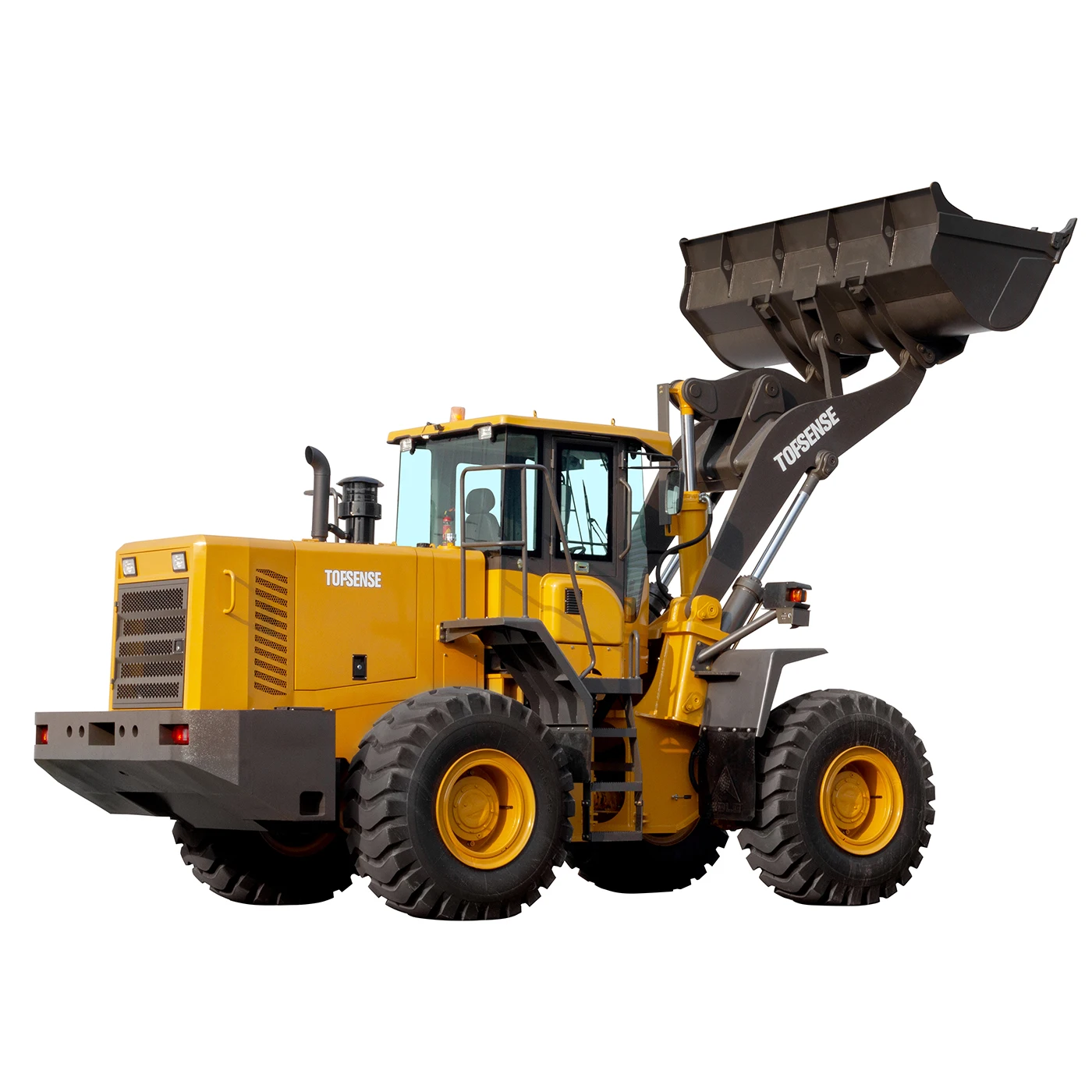

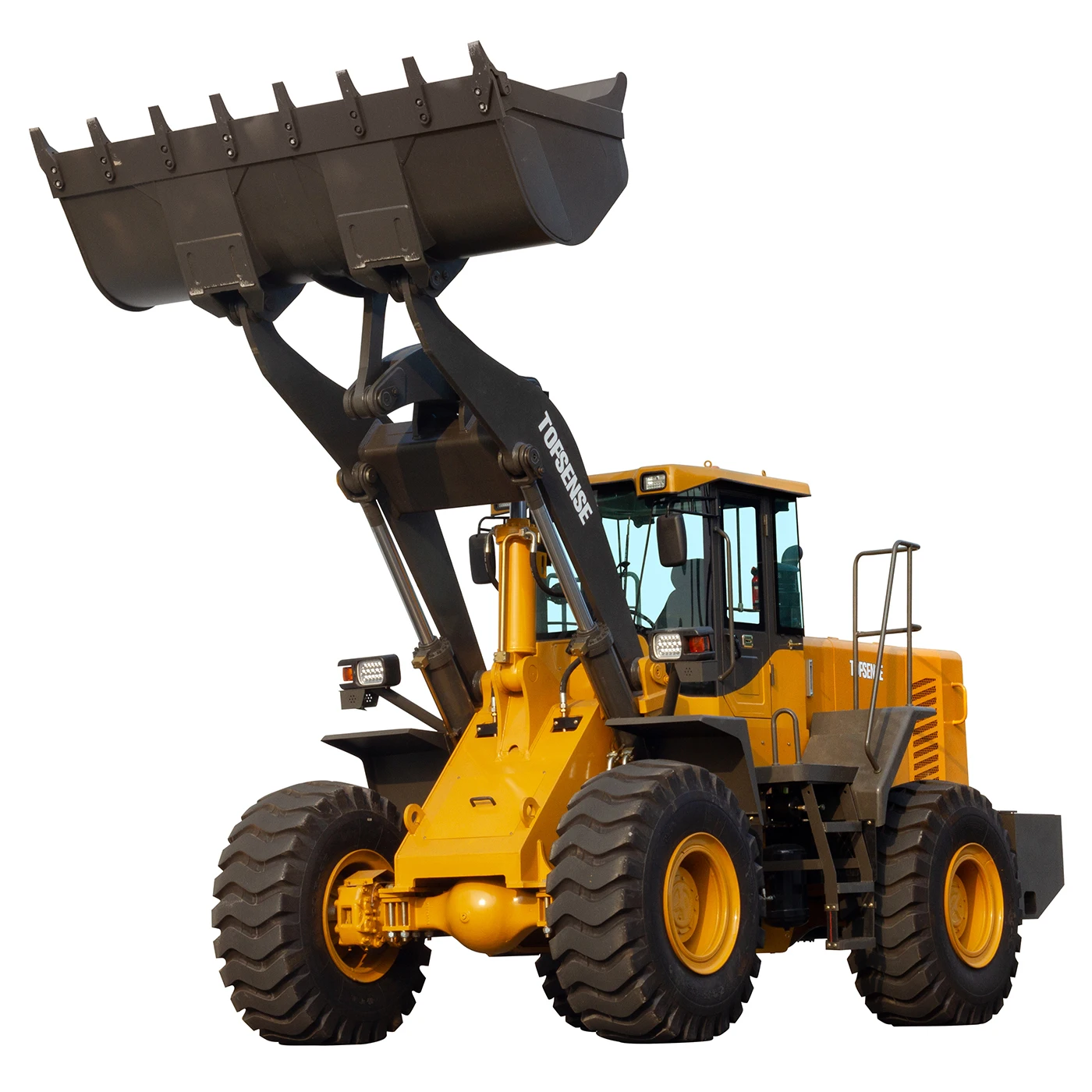

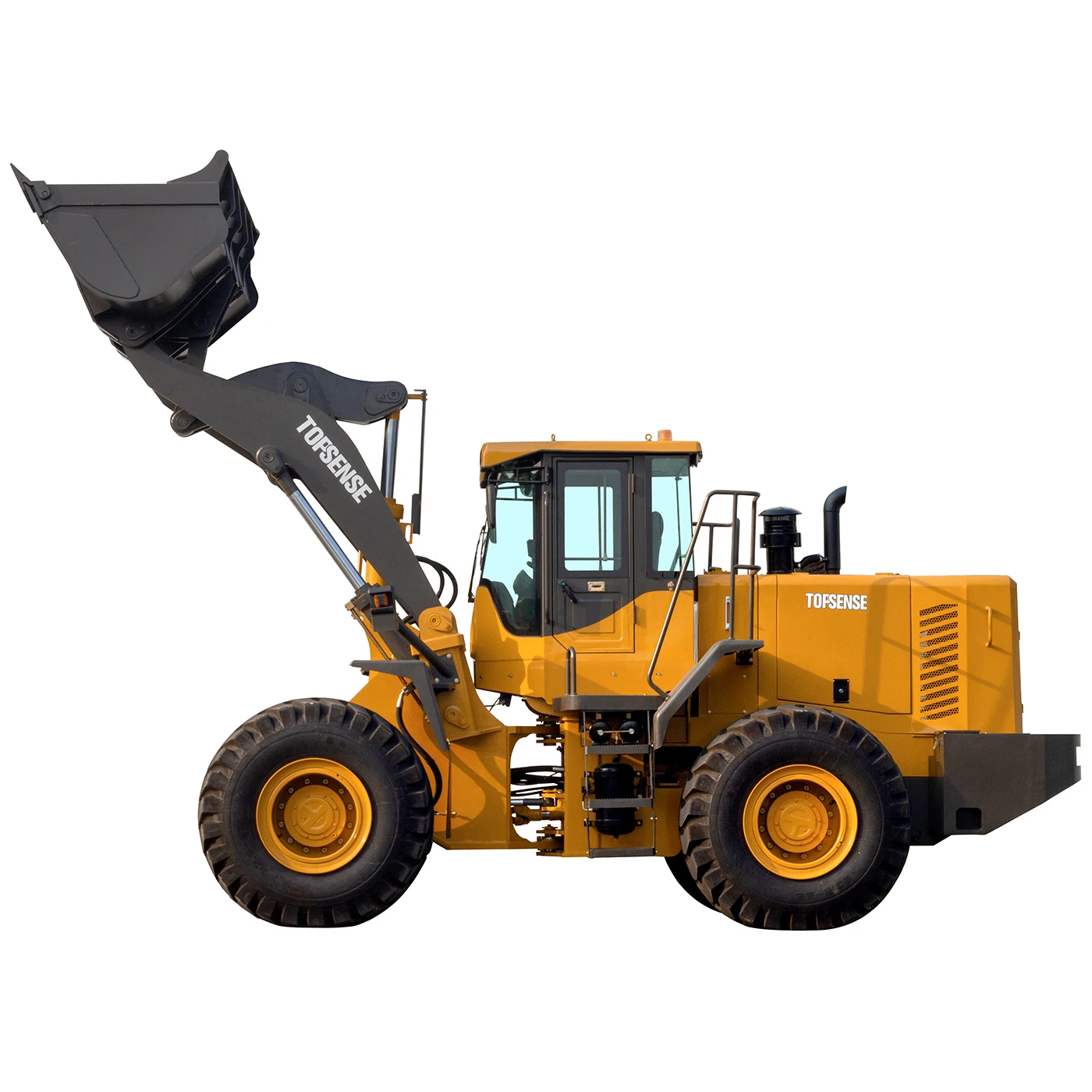

Small Diesel Hydraulic 5 Ton Backhoe Four Wheel Drive Multi Functional Loader for Construction
- Category: >>>
- Supplier: Shandong Topsense Machinery Co. Ltd.Shandong Ltd.
Share on (1601344901319):
Product Overview
Description
Products Description

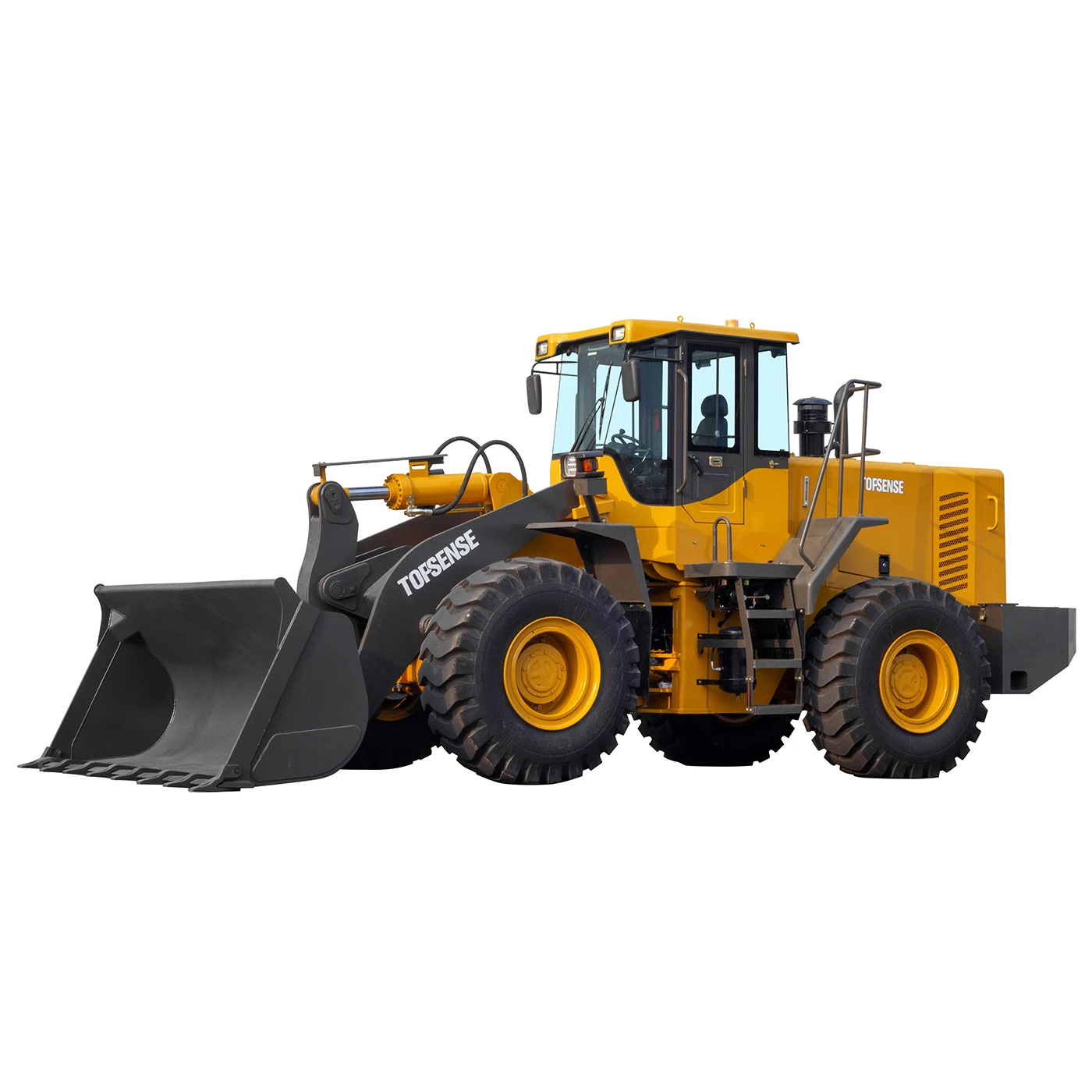

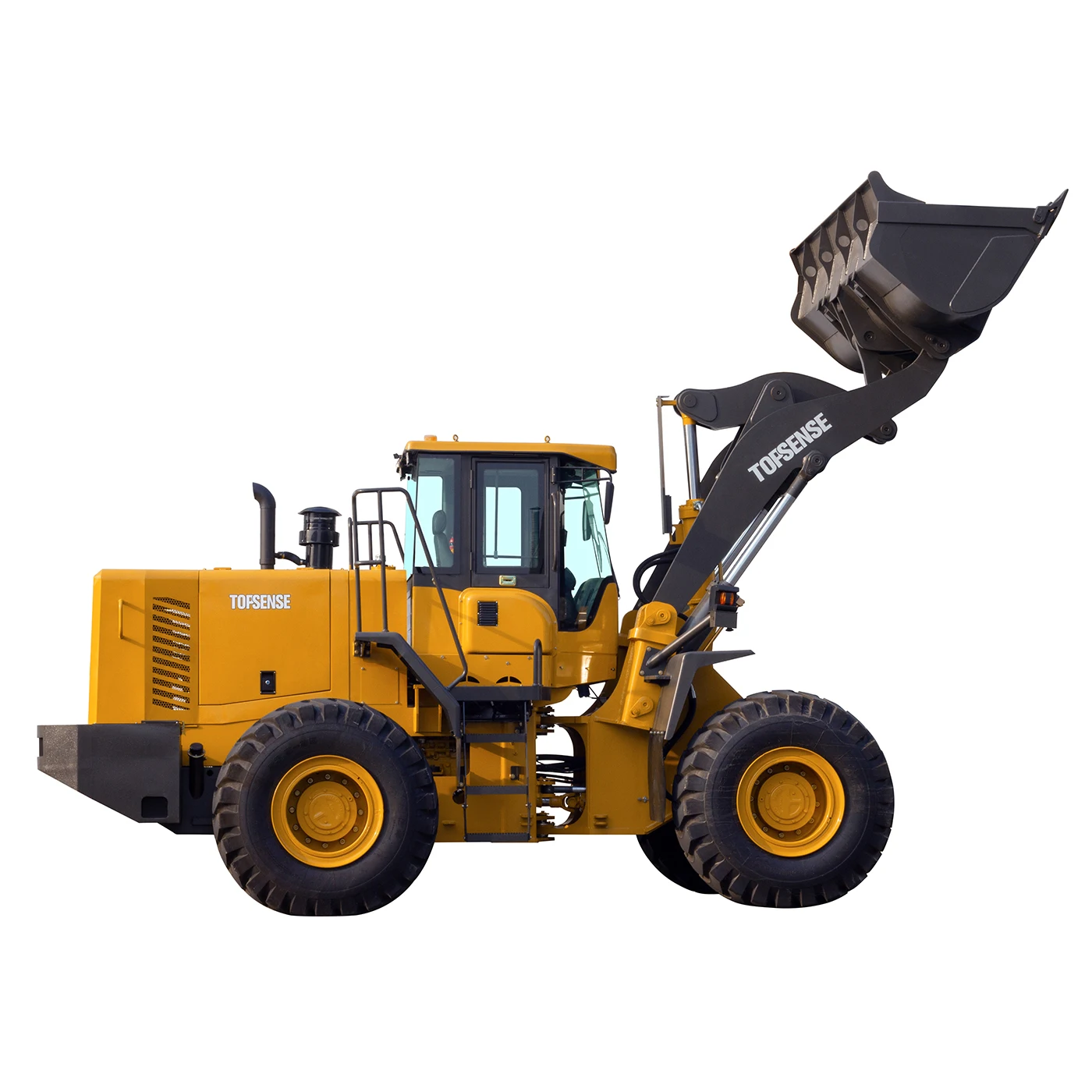

'TOPSENSE' TS956
Power and efficiency at the same time, the loader accelerates your career!
--1. Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable--2.Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety
--3.Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.
--4.Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy
--5.The big loading engine side covers made in steel are of good appearance and suitable for maintenance

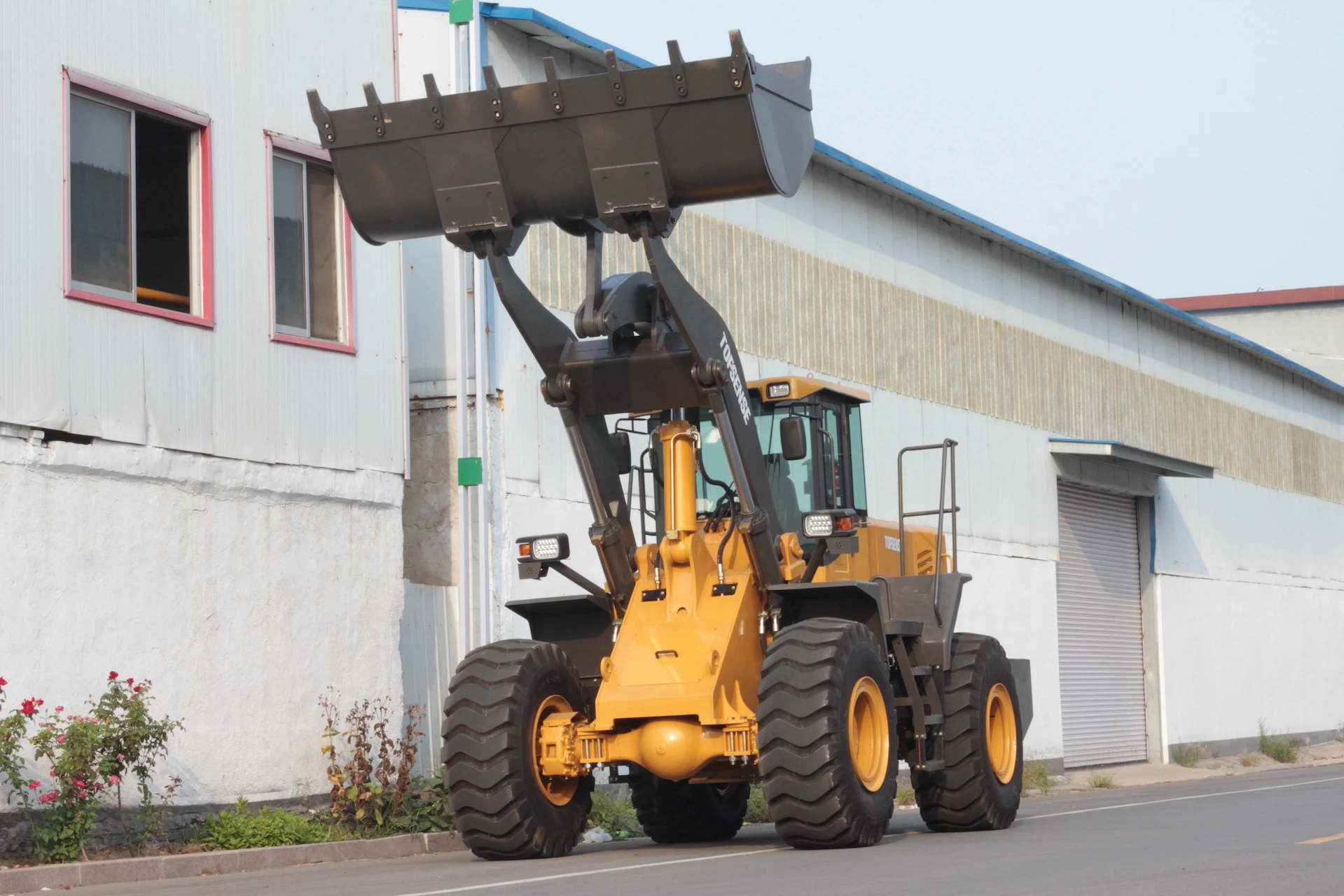

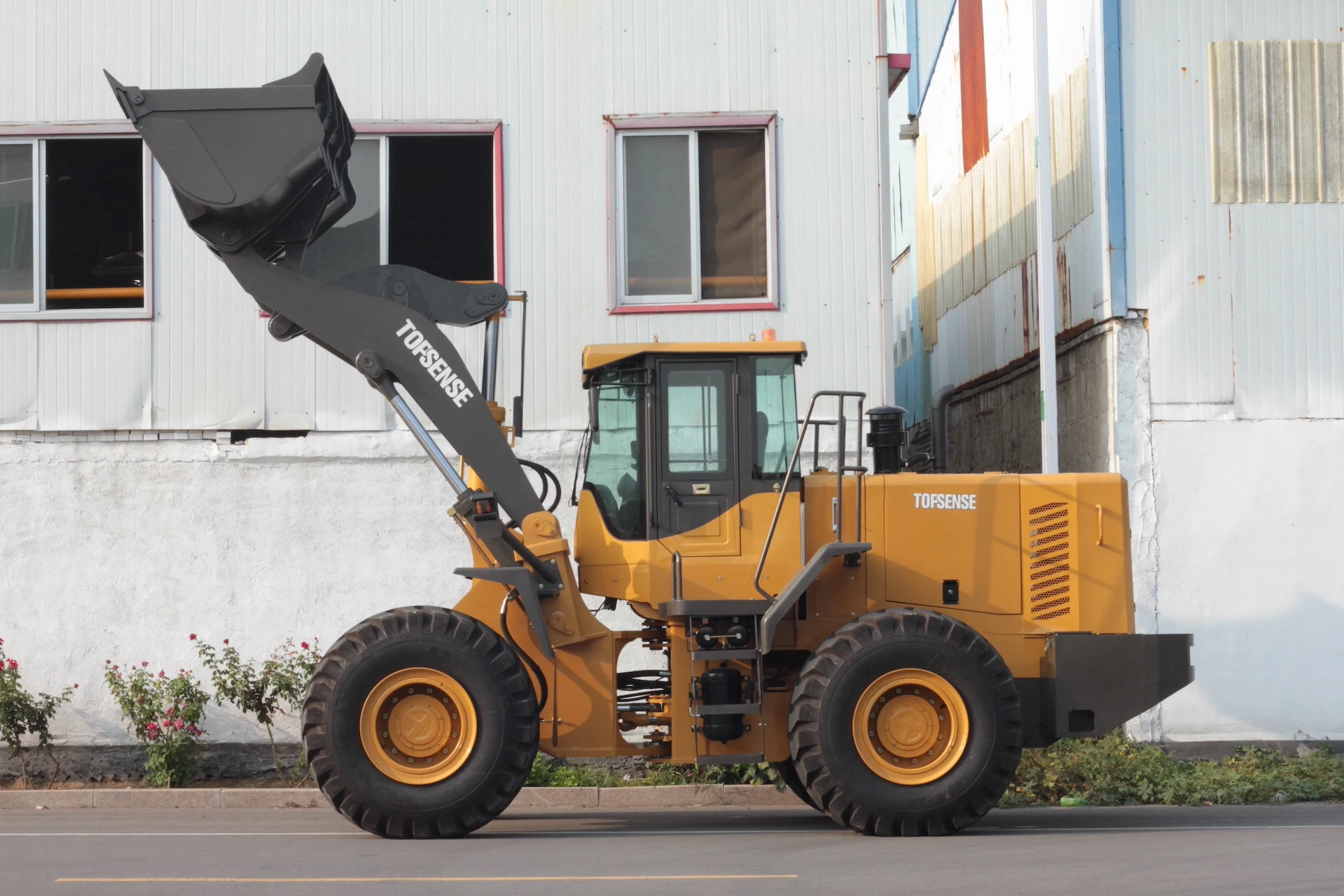

Detailed Image of Product

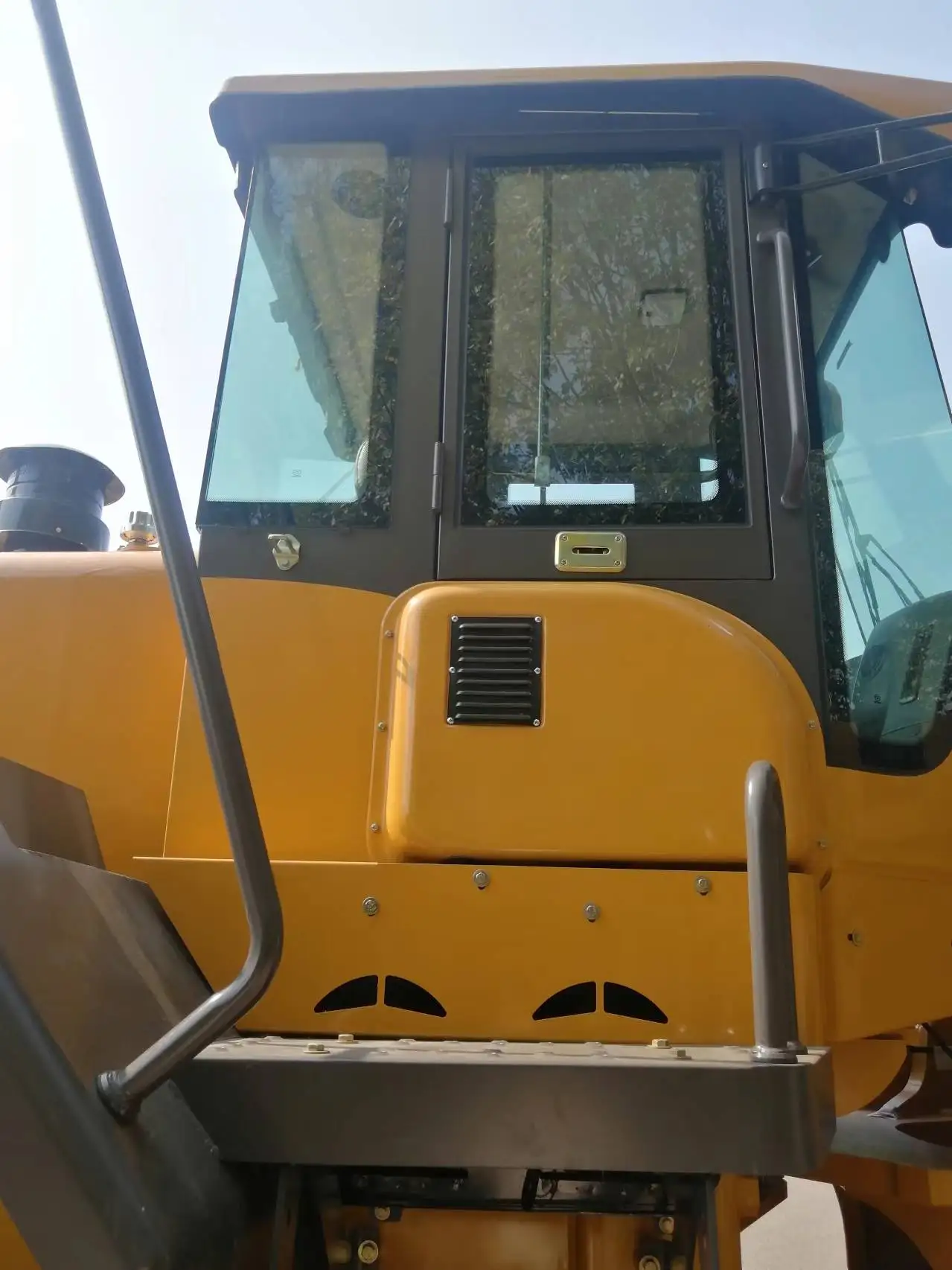

New luxury cab, with large internal operation space and wide vision; New and unique design, safe and reliable.

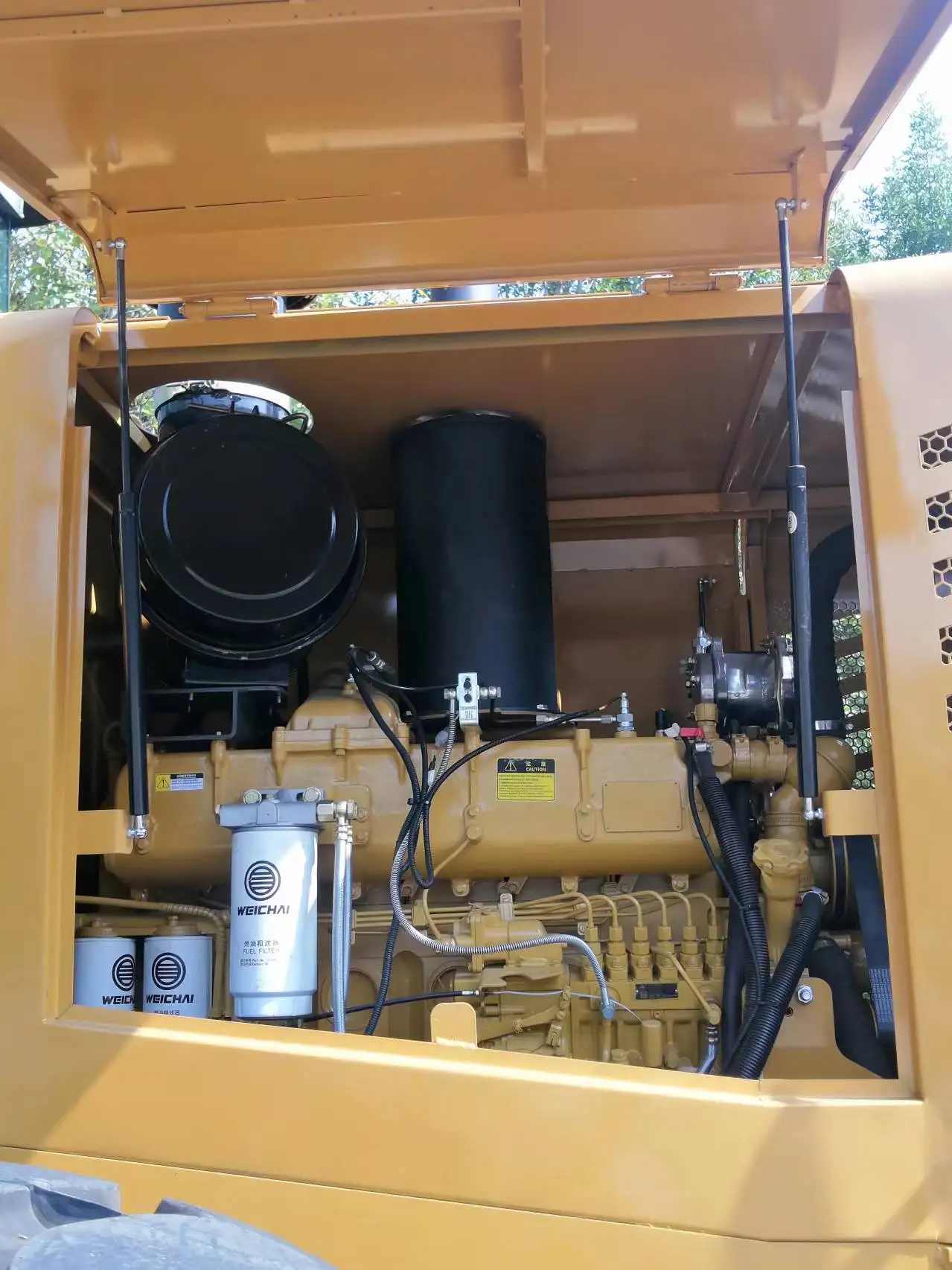

The engine cover is designed with large side door and upturning type, it's convenient for engine overhaul and
maintenance.
maintenance.

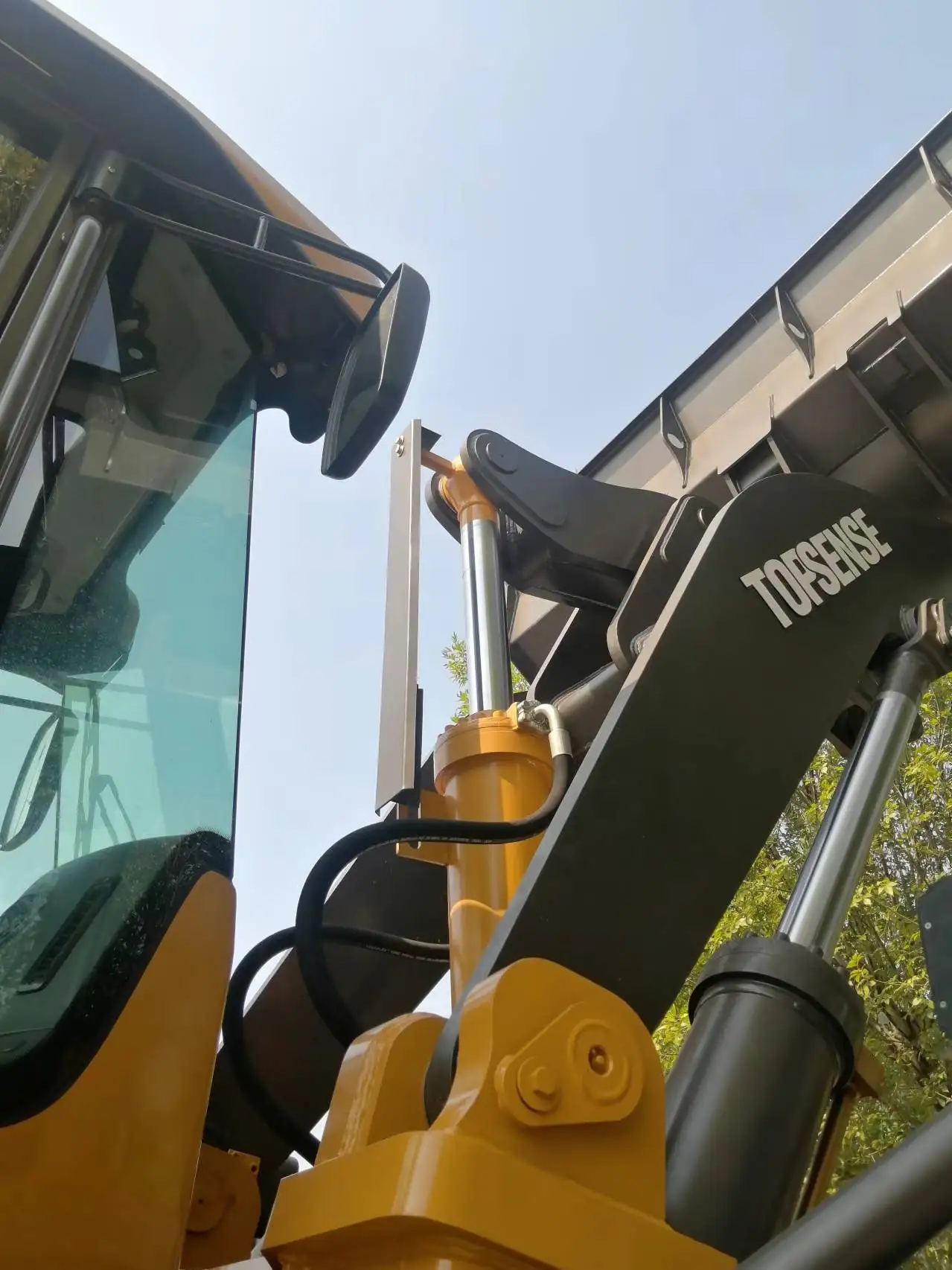

Thicken Cylinder: Thick middle cylinder, strong power, improve operation stability.

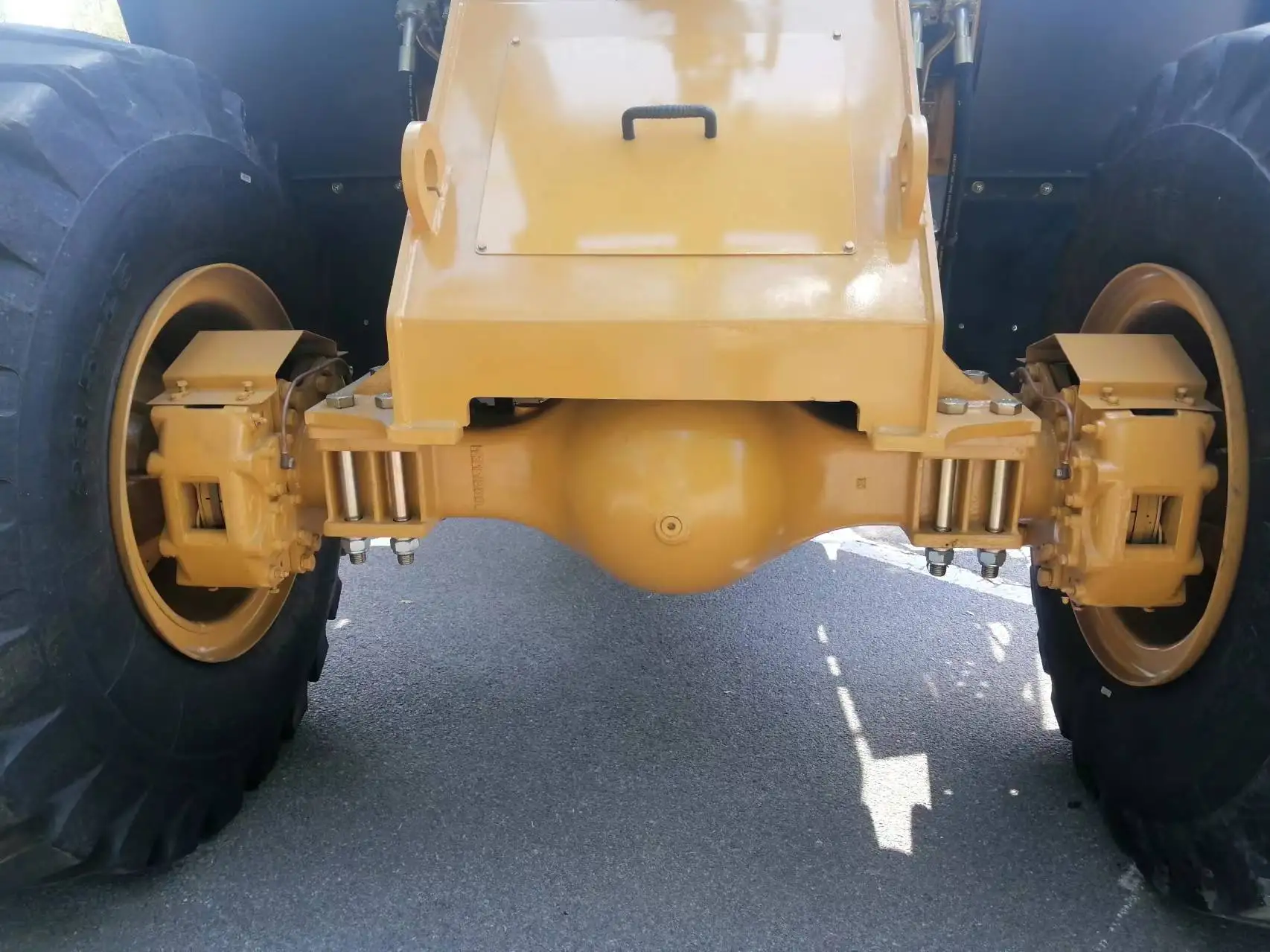

New Heavy Axle:
New design heavy axle, it has good anti overload capacity to meet the needs of various high-load operations.

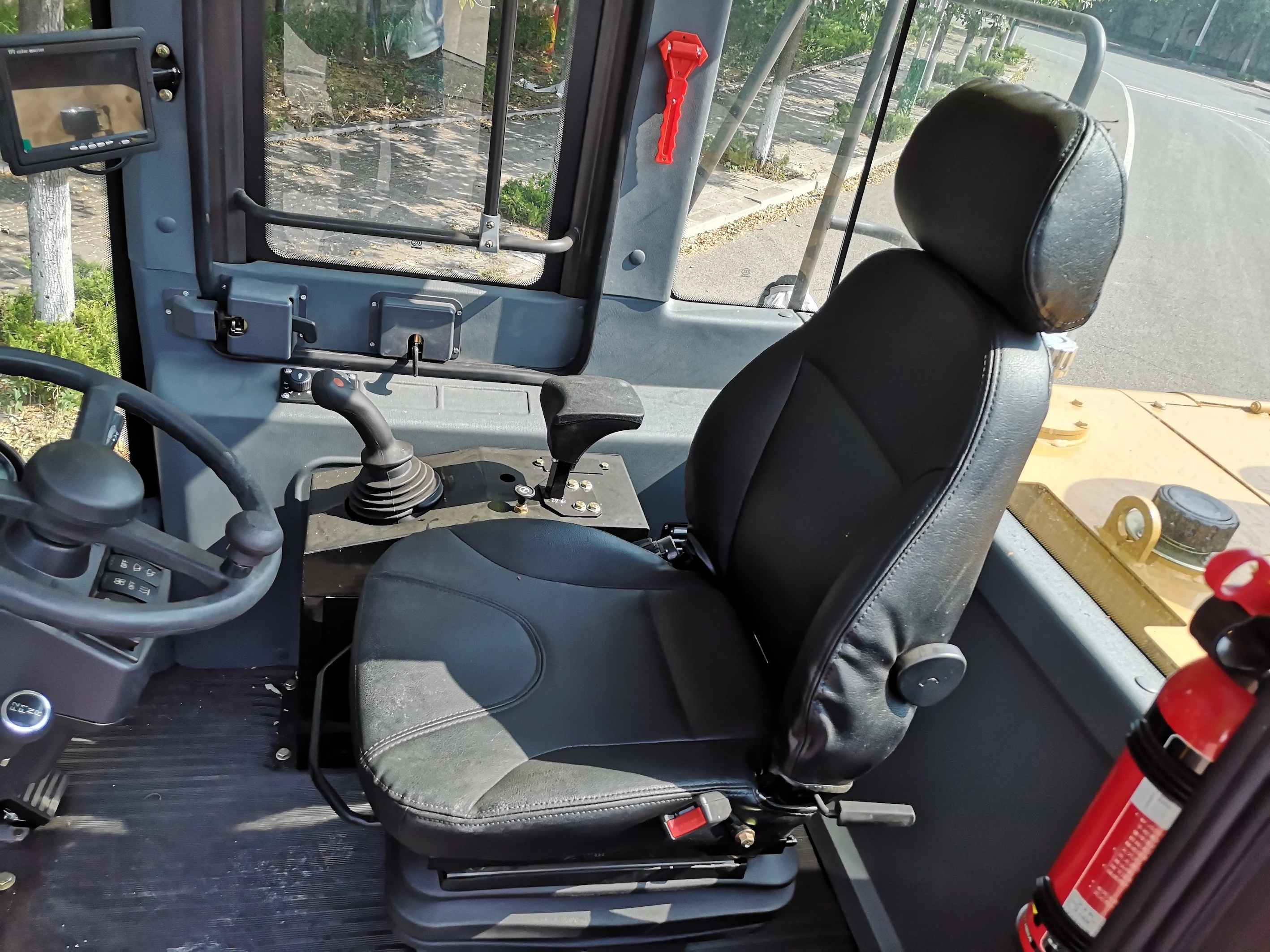

Comfortable Seat:
Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable.
Product Specifications
TS956 | ||||
PERFORMANCE | rated load | 5000kg | ||
overall weight | 17200kg | |||
rated bucket capacity | 3.0m3 | |||
maximum tractive force | 160KN | |||
maximum breakout force | ≥180KN | |||
maximum grade ability | 38℃ | |||
maximum dump height | 3100mm | |||
maximum dump reach | 1200mm | |||
overall dimension (L×W×H) | 8453×3024×3385mm | |||
minimum turning radius | 6201mm | |||
ENGINE | model | WeichaiWP10G220E22 | ||
Emission standard | lnline water cooling dry cylinder injection | |||
No. of cylinder-bore/stroke | 6－126×130mm | |||
rated power | 162kw--2200r/min | |||
maximum torque | 920N.m | |||
min fuel-consume ratio | ≤215g/kw.h | |||
Transmission system | torque converter | Single-stage four-element twin-turbine torque converter | ||
gearbox mode | Planetary power transmission | |||
gear shift | 2 forward shift 1 reverse shift | |||
maximum speed | 38km/h | |||
Drive axles | main reducing spiral | bevel gear grade 1reduction | ||
decelerating mode | planetary reduction,grade 1 | |||
wheel base (mm) | 3200mm | |||
wheel tread | 2250mm | |||
minimum ground clearance | 450mm | |||
Hydraulic system | system working pressure | 18MPa | ||
boom lifting time | 5.95±0.2s | |||
total time | 10.95±0.5s | |||
Brake system | service brake | air over hydraulic disc brake on 4 wheels | ||
parking brake | manual parking brake | |||
Tyre | type specification | 23.5-25 | ||
front tyre pressure | 0.4Mpa | |||
rear tyre pressure | 0.35Mpa | |||

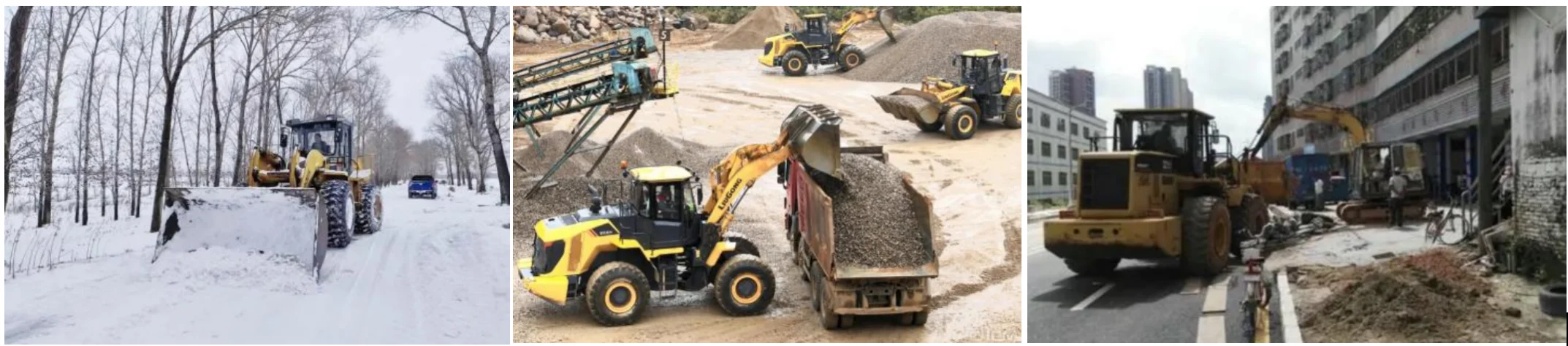

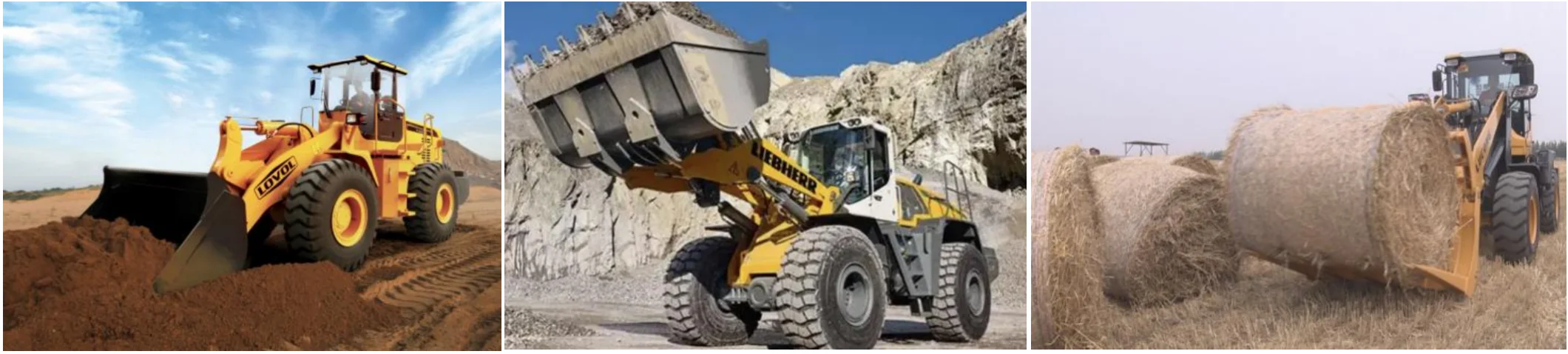

Product application direction
Construction Engineering
On construction sites, loaders are mainly used to excavate, load and transport construction materials, such as sand, gravel,cement, bricks, etc. It can efficiently complete earthwork operations and improve construction efficiency.
Mine Mining
In mines, loaders are used to load and transport mineral resources such as ore and coal. Due to the complex mining environment,
the efficiency and adaptability of loaders are particularly important.
the efficiency and adaptability of loaders are particularly important.
Agricultural production
In the agricultural field, loaders are used to load and transport crops, fertilizers, etc. Especially in large-scale agricultural
production, loaders can significantly improve agricultural production efficiency.
production, loaders can significantly improve agricultural production efficiency.
Snow shoveling
It is suitable for snow shoveling operations on highways, urban roads, airports, expressways and other places. It has rich
varieties and can be quickly replaced with snow brushes.
varieties and can be quickly replaced with snow brushes.
Municipal Engineering
In municipal engineering, loaders are used for road construction, garbage disposal, landscaping, etc. It can quickly complete
various municipal engineering tasks and improve the efficiency of urban construction.
various municipal engineering tasks and improve the efficiency of urban construction.
Road Construction
In road construction, loaders are used for filling and excavation of roadbed engineering, collection and loading of asphalt
mixture and cement concrete material yards. In addition, they can also carry out operations such as pushing soil, leveling the
ground, and towing other machinery.
mixture and cement concrete material yards. In addition, they can also carry out operations such as pushing soil, leveling the
ground, and towing other machinery.
Company Profile

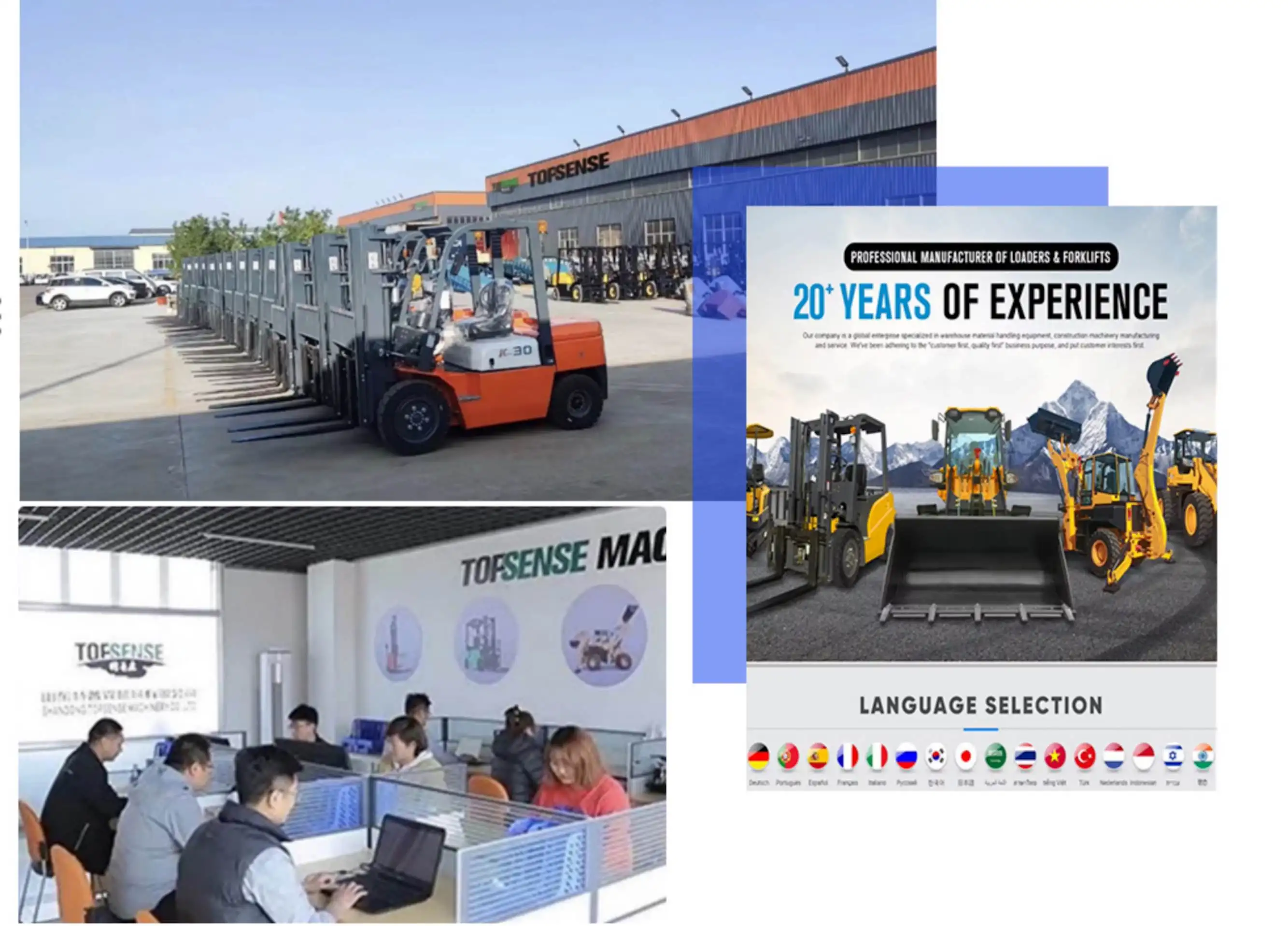

Welcome to Shandong Topsense Machinery Co., Ltd
Shandong Topsense Machinery Co., Ltd is a company with import and export rights endorsed by the State Administration of foreign trade and economic cooperation and the General Administration of customs, with aregistered capital of 3.6 milion RMB. Our company is a global enterprise specialized in storage equipment construction machinery equipment manufacturing and service. Our products cover diesel forklifts, electric forklifts, electric pallet truck, electric stackers, telehandler, wheel loaders, backhoe loaders, mini excavator and skid steer loader etc. These are mainly used for farming, warehousing, port, air port, factory workshop etc.And OEM is acceptable.
！！！
Our company is headquartered in Qingdao, Shandong Province. Lts production base is located in Weifang, Shandong Province. With
Qingdao Shibei District lnternational Trade Department, Weifang sales branch. Now our productsare popular selling not only in
Chinese domestic market, but also more than 40 countries in the world.The company is close to Qingdao Port and has prosperous
trade relations.
Qingdao Shibei District lnternational Trade Department, Weifang sales branch. Now our productsare popular selling not only in
Chinese domestic market, but also more than 40 countries in the world.The company is close to Qingdao Port and has prosperous
trade relations.
Our Advantages

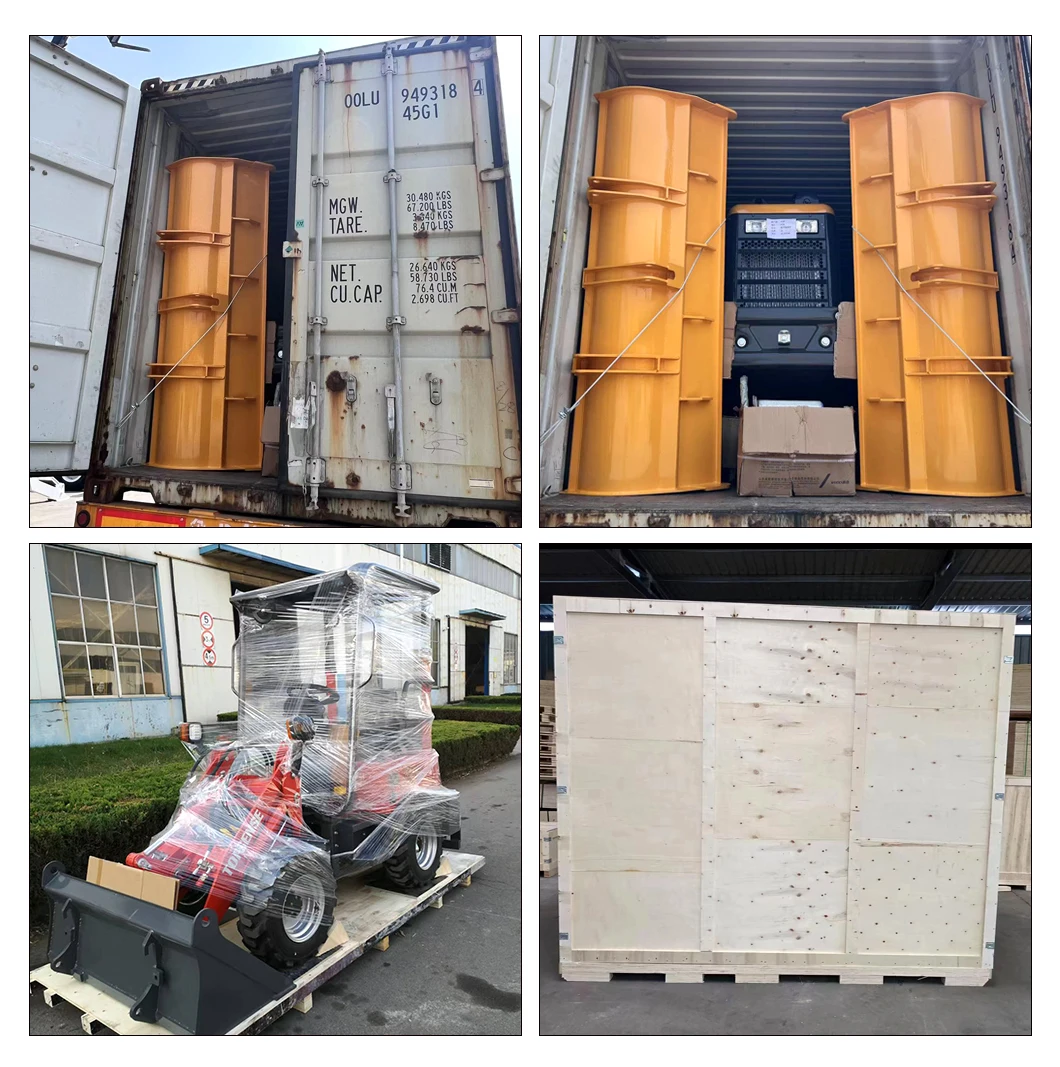

Product Packaging
