LQX2018 outdoor 24V DC 24W IP67 dmx512 smart dimmable rgbw wall washer light Architectural contour lighting
- Category: >>>
- Supplier: Brtech Lighting (dongguan) Co. Ltd.Brtech Ltd.
Share on (1601345008784):
Product Overview
Description
LQX2018 High-Tech LED Flexible Wall Washer Light

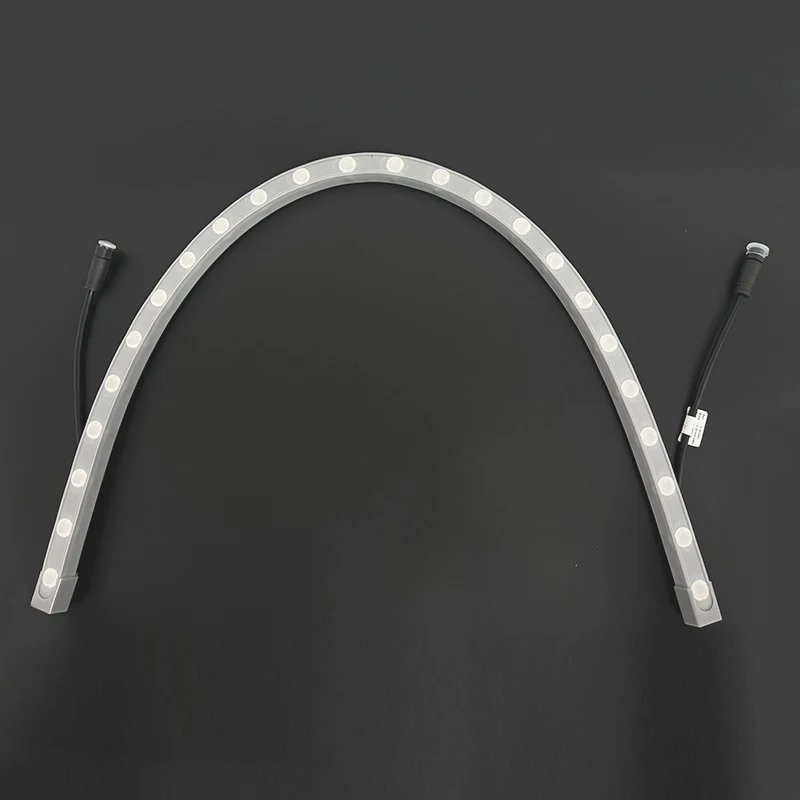

The LQX2018 is an advanced LED flexible wall washer light that integrates LED light source components, a DMX control chip, and optical lenses into a seamless, vapor-phase silicone encapsulation. This innovative design ensures high UV resistance, superior waterproofing, excellent temperature tolerance, and resistance to outdoor acids and alkalis. Its cutting-edge secondary encapsulation technology allows dual-sided bending with a radius of less than 20 cm, enabling flexible lighting applications on curved architectural surfaces.
---------------------------------------------------------------------------------------------------------------------------------
Product Highlights
1. Versatile Applications

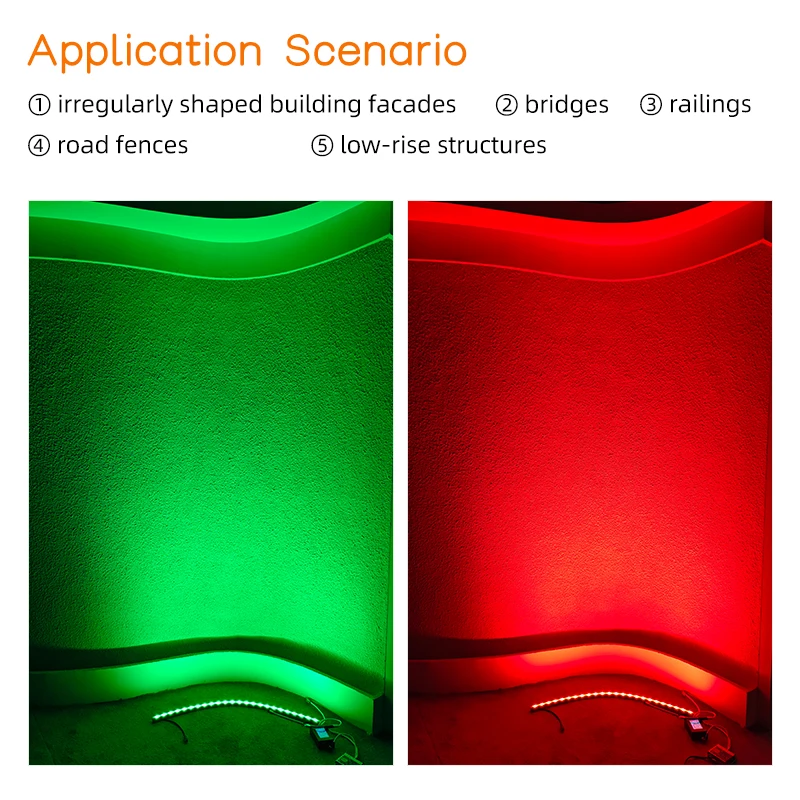

* Outdoor Architectural Lighting: Ideal for irregular building facades, bridges, railings, and ground-level structures.
* Landscape and Infrastructure: Suited for pathways, road fences, and curved or low-profile architectural features.
2. Light Color and Beam Options

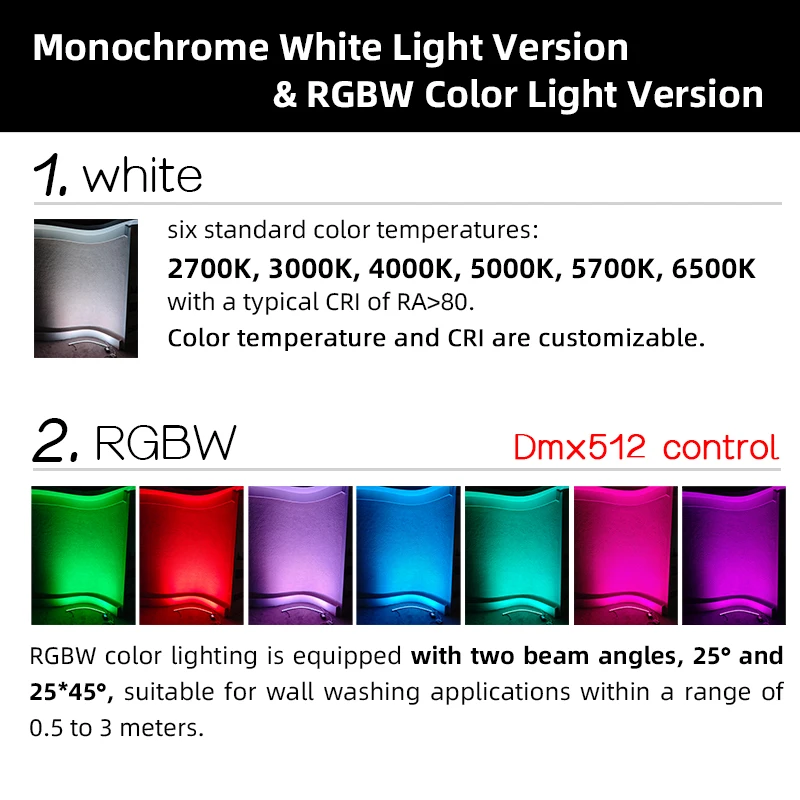

* Color Options: * Single-color white light with standard CCT options: 2700K, 3000K, 4000K, 5000K, 5700K, and 6500K (customizable to 1800K, 2200K, and 3500K).
* RGBW for vibrant, dynamic lighting effects.
* Beam Angles: * White Light: 17°, 35°, 50°, and 22×35°
* RGBW: 25° and 25×45°
* Color Rendering Index (CRI): Standard RA>80, customizable to RA>90.
3. Control Features
* Supports ON/OFF switching or DMX512 control, with standard 4-segment control per meter.
* Designed for wall washing and light projection over a range of 0.5 to 3 meters.
4. Rugged Outdoor Design

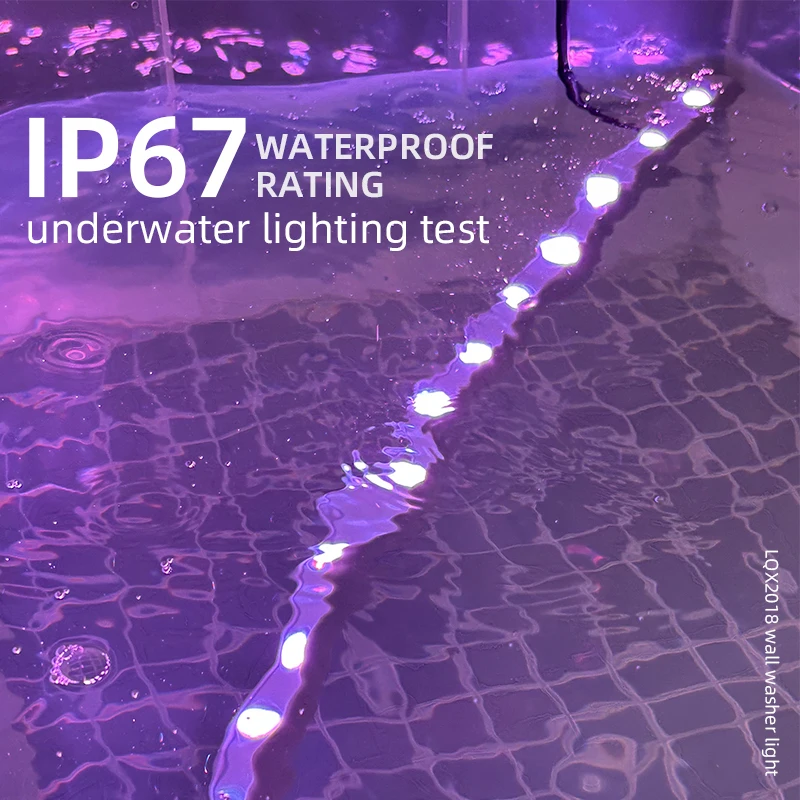

* IP67 Waterproof Rating: Built to withstand harsh outdoor environments.
* Materials: High-performance silicone for superior durability and resistance.
5. Specifications

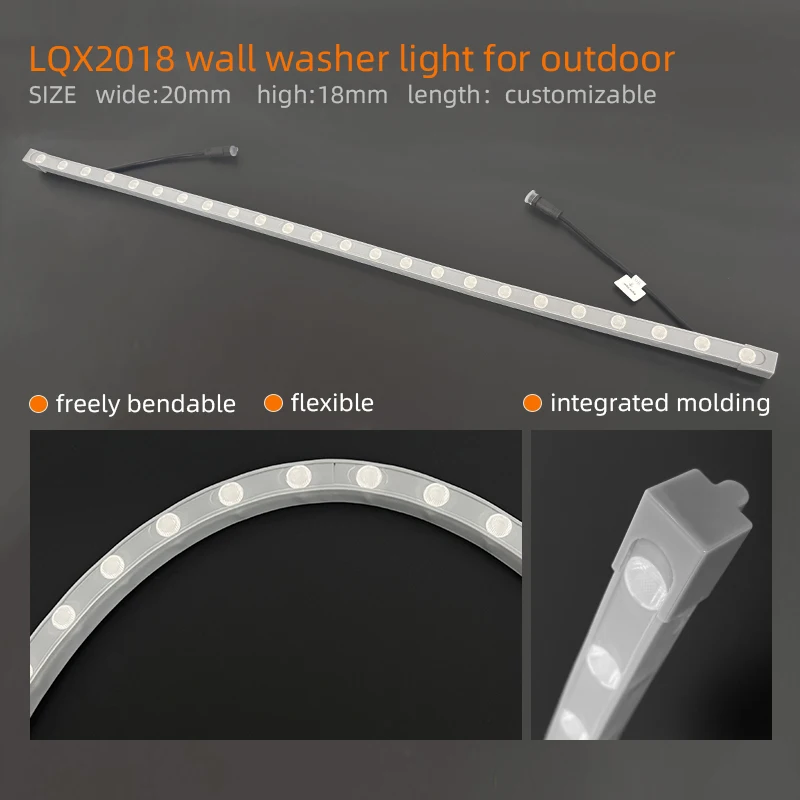

* Dimensions: 20mm width, 18mm height
* Input Voltage: DC24V
* Power Consumption: 24W
6. Flexible Installation
* Equipped with aluminum profiles and stainless steel rotating brackets for versatile mounting options. Its compact design allows for seamless installation on curved or narrow surfaces.
7. Packaging and Logistics
* Packaging Length: 2 meters per roll
* Carton Specifications: 12 rolls per carton
* Carton Dimensions: 533×533×409mm
* Carton Weight: 11.58 kg
Designed for efficient handling and transportation, the LQX2018 is ideal for large-scale architectural and outdoor lighting
projects.
---------------------------------------------------------------------------------------------------------------------------------
Product Highlights
1. Versatile Applications
* Outdoor Architectural Lighting: Ideal for irregular building facades, bridges, railings, and ground-level structures.
* Landscape and Infrastructure: Suited for pathways, road fences, and curved or low-profile architectural features.
2. Light Color and Beam Options
* Color Options: * Single-color white light with standard CCT options: 2700K, 3000K, 4000K, 5000K, 5700K, and 6500K (customizable to 1800K, 2200K, and 3500K).
* RGBW for vibrant, dynamic lighting effects.
* Beam Angles: * White Light: 17°, 35°, 50°, and 22×35°
* RGBW: 25° and 25×45°
* Color Rendering Index (CRI): Standard RA>80, customizable to RA>90.
3. Control Features
* Supports ON/OFF switching or DMX512 control, with standard 4-segment control per meter.
* Designed for wall washing and light projection over a range of 0.5 to 3 meters.
4. Rugged Outdoor Design
* IP67 Waterproof Rating: Built to withstand harsh outdoor environments.
* Materials: High-performance silicone for superior durability and resistance.
5. Specifications
* Dimensions: 20mm width, 18mm height
* Input Voltage: DC24V
* Power Consumption: 24W
6. Flexible Installation
* Equipped with aluminum profiles and stainless steel rotating brackets for versatile mounting options. Its compact design allows for seamless installation on curved or narrow surfaces.
7. Packaging and Logistics
* Packaging Length: 2 meters per roll
* Carton Specifications: 12 rolls per carton
* Carton Dimensions: 533×533×409mm
* Carton Weight: 11.58 kg
Designed for efficient handling and transportation, the LQX2018 is ideal for large-scale architectural and outdoor lighting
projects.
Company Profile
Specification
LQX2018 | ||||||
Specification | Single color | Single color PX8 | RGBW PX4 | |||
Industry-specific attributes | ||||||
Color Temperature(CCT) | 1800k,2200k,2700k,3000k,3500K,4000k,5000k,5700k,6500k. | 1800k,2200k,2700k,3000k,3500K,4000k,5000k,5700k,6500k. | RGBW | |||
Warranty(Year) | 3-year | |||||
Shade Material | Fumed silica gei | |||||
Application | Outdoor | |||||
Other attributes | ||||||
Place of Origin | Guangdong, China | |||||
Lumens per Watt (lm/W) | 50-62 | 50-54 | 28-32（at full brightness） | |||
Lighting Solution Services | Installation instructions | |||||
Luminaire Life (hours) | 50000 | |||||
Working Hours (hours) | 30000 | |||||
Item Weight | 0.42kg/m | |||||
Light Source Type | LED | |||||
Item Type | LED Wall Washer Light | |||||
Dimmable | NO | Yes | Yes | |||
Input Voltage | DC 24V | |||||
CRI (Ra>) | 80 | 80 | 80（White） | |||
Luminaire Luminous Flux (lm/m) | 1200-1488 | 1200-1296 | 672-768（at full brightness） | |||
Working Temperature(℃) | -40℃ - 55℃ | |||||
IP Rating | IP67 | |||||
Brand | BRTECH | |||||
Fixture Size | （W）20mm*（H）18mm | |||||
Power | 24W/M | |||||
PCB Width | 12mm | |||||
Cuttable length | 125mm | 125mm | 250mm | |||
LED quantity | 24LED/M | 24LED/M | ||||
View Angle | 17°/22*35°/ 35°/50° | 17°/22*35°/ 35°/50° | 25°/25*45° | |||
Bending Direction | Flexible Bending | Flexible Bending | Flexible Bending | |||
Certificate | CE | |||||
Minimum Bend Diameter | 400mm | 400mm | ||||
Package | Each carton contains 12 rolls of 2-meter LED strips, with carton dimensions of 533x533x409mm and a weight of 11.58 kg. | |||||
