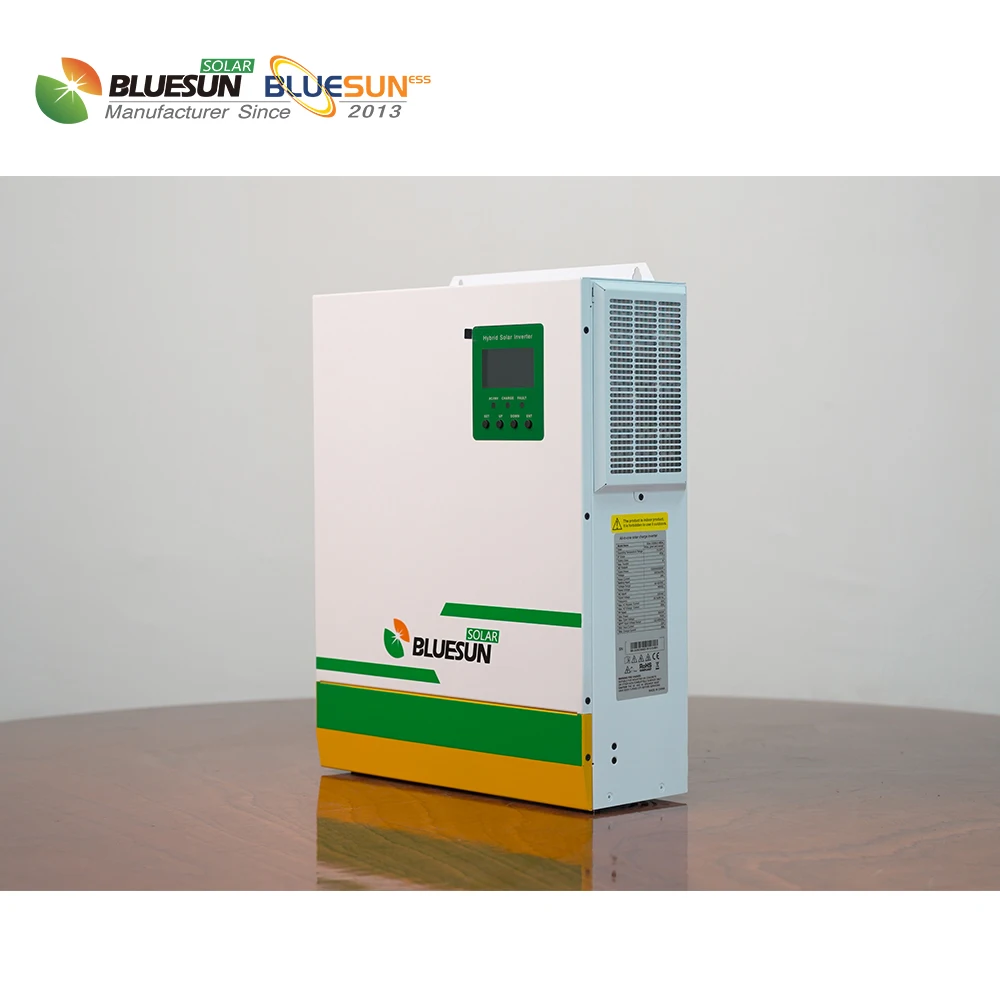

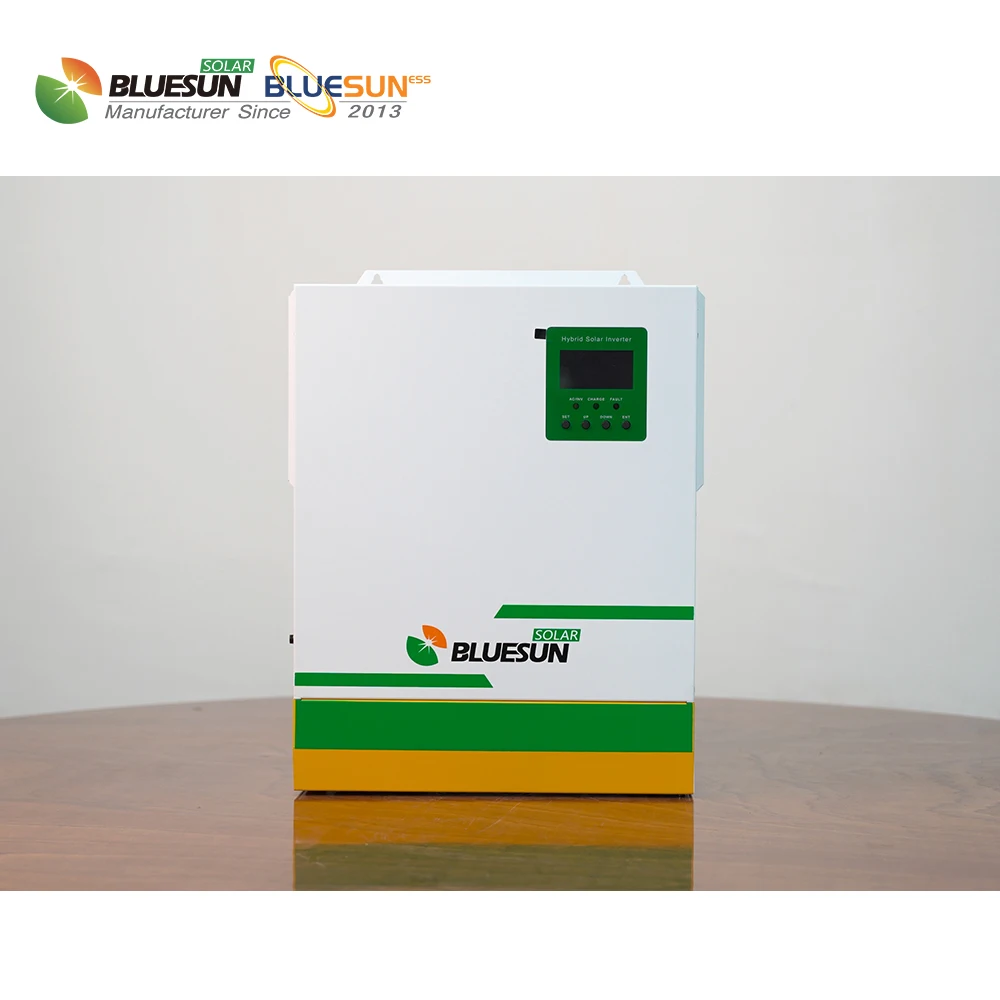

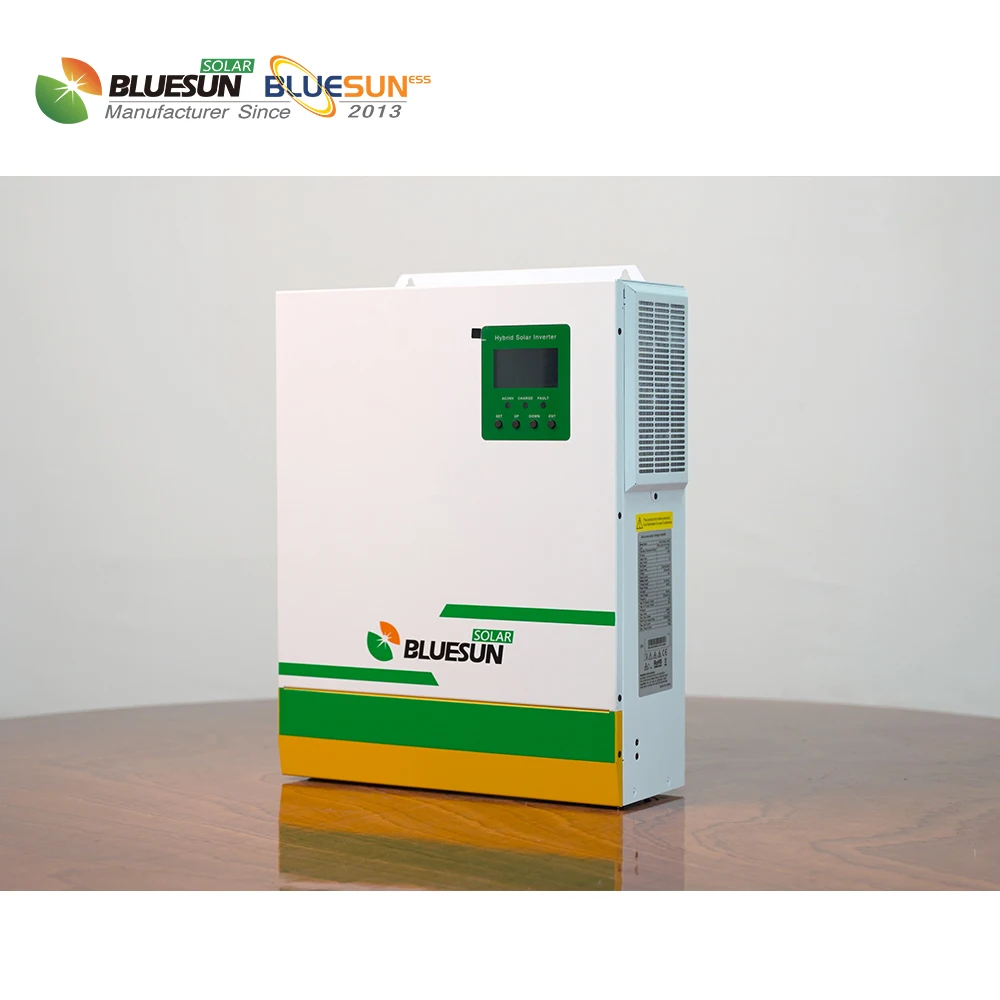

Bluesun 5kw solar inverter off grid solar power inverter all in one solar inverter
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.Bluesun Ltd.
Share on (1601345032012):
Product Overview
Description
Product Description

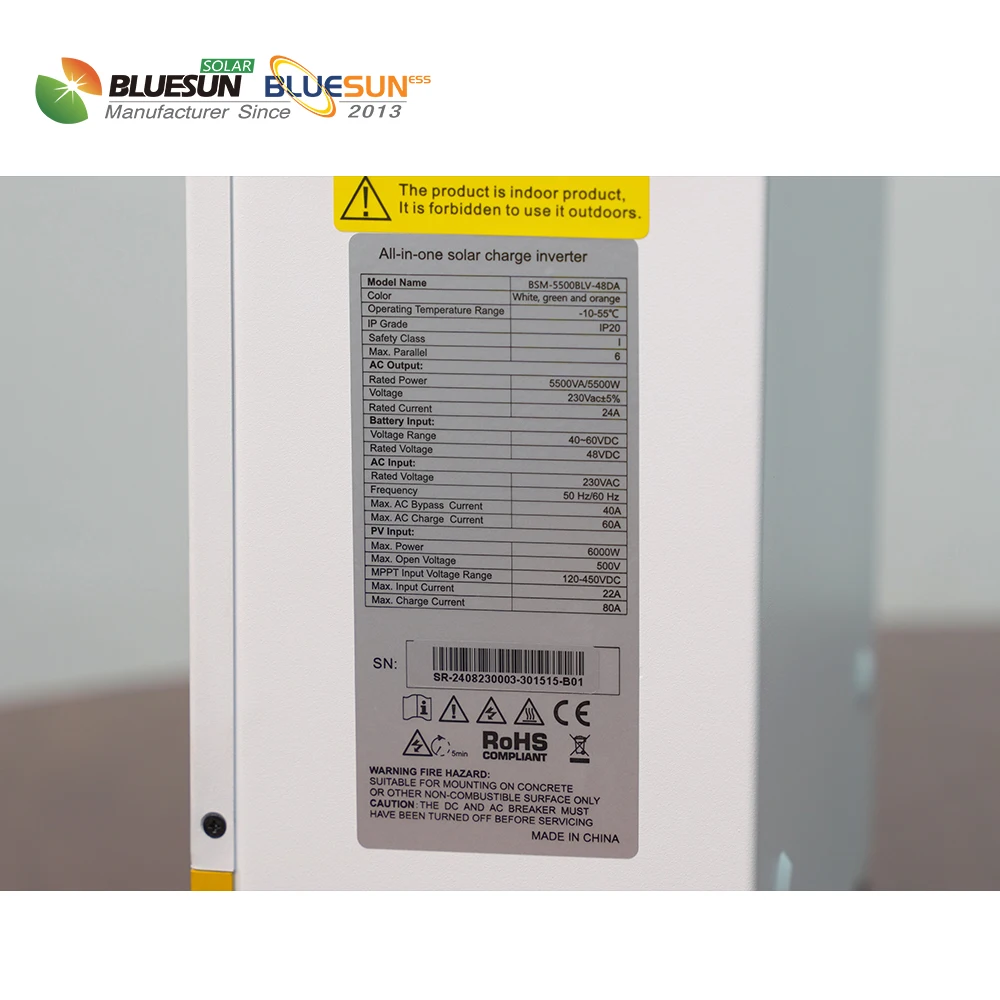

Technical Specifications
Model | BSM-5500BLV-48DA | Adjustable | ||
Battery Input | ||||
Battery type | Sealed 、FLood 、GEL 、LFP 、Ternary | √ | ||
Rated Battery Input Voltage | 48V ( Minimum Startup Voltage 44V) | |||
Hybrid Charging Maximum Charging Current | 80A | √ | ||
Battery Voltage Range | 40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/ Overvoltage Warning/Overvoltage Recovery...) | √ | ||
Solar Input | ||||
Maximum PV Open-circuit Voltage | 500Vdc | |||
PV Working Voltage Range | 120-500Vdc | |||
MPPT Voltage Range | 120-450Vdc | |||
Maximum PV Input Current | 22A | |||
Maximum PV Input Power | 6000W | |||
Maximum PV Charging Current | 80A | √ | ||
AC Input（generator/grid） | ||||
Mains Maximum Charging Current | 60A | √ | ||
Rated Input Voltage | 220/230Vac | |||
Input Voltage Range | UPS Mains Mode：(170Vac~280Vac)土2% | √ | ||
APL Generator Mode：(90Vac~280Vac)±2% | ||||
Frequency | 50Hz/ 60Hz (Automatic Detection) | |||
Mains Charging Efficiency | >95% | |||
Switch Time (bypass and inverter) | 10ms(Typical Value) | |||
Maximum Bypass Overload Current | 40A | |||
AC Output | ||||
Output Voltage Waveform | Pure Sine Wave | |||
Rated Output Voltage (Vac) | 230Vac | √ | ||
Rated Output Power (VA) | 5500W | |||
Rated Output Power(W) | 5500W | |||
Peak Power | ||||
On-load Motor Capacity | 4HP | |||
Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | √ | ||
Maximum Efficiency | >92% | |||
No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） | |||
General | ||||
Number of parallel/split phases | 1-6PCS | |||
Working Temperature Range | -10°C ~ 55°C | |||
Storage Temperature Range | -25°C ~ 60°C | |||
Humidity Range | 5% to 95%(Conformal Coating Protection) | |||
Dimensions | 426mm*322mm*124mm | |||
Weight (KG) | 10.5 | |||
