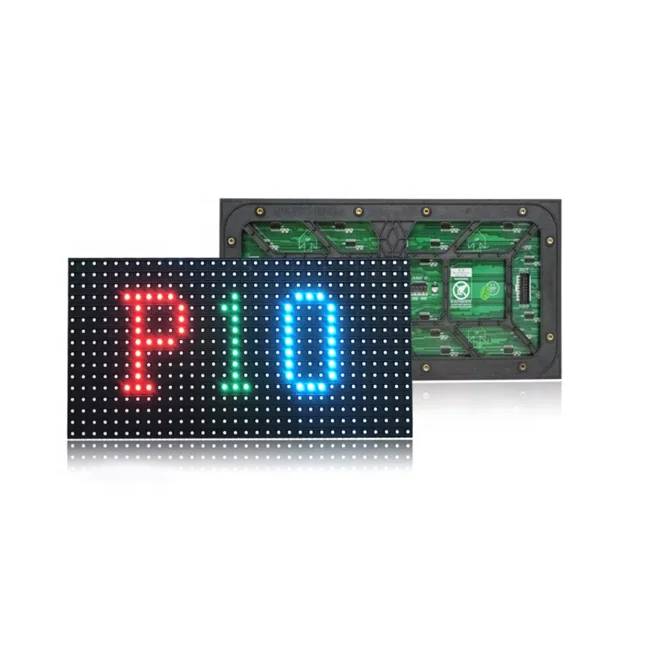

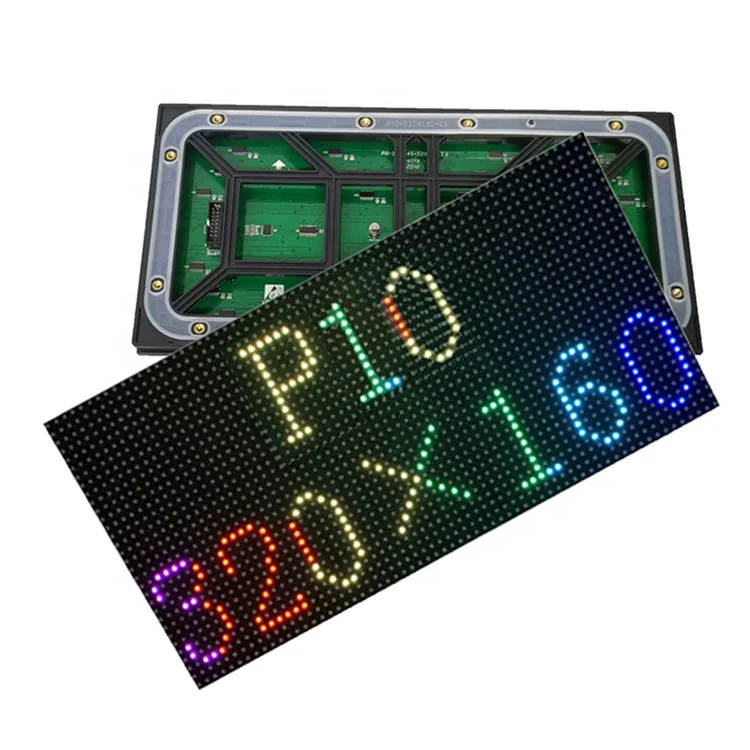

High Quality PH10 LED Display Module Waterproof with High and Low Temperature Resistance Wide Field of View

              Item

                                               Technical parameter

Panel

Dimension

(W)320mm*160mm(H)

Pixel pitch

10mm

Pixel Density

10000/ M²

Pixel configuration

1R1G1B

LED specification

SMD3535

Pixel resolution

(W)32*16(H)

Average power

16W

Panel current

8A

Panel weight

0.44KG

Cabinet&Bracket

Humidity

10%-95%RH

Number of unit boards per square meter

19.5PCS

Hub connecting

HUB75

Best viewing angle

Horizontal >170  Vertical>120

Best viewing distance

5-100M

Working temperature

-20-+60

Panel power supply

5V40A

Screen power supply

220VAC/50HZ+_10%

Max power

<1000W/m²

Average power

300W

power quantity

200W/4PCS

Technical parameter

Driving device

16208Constant current drive

Drive type

1/2Scanning

Refresh frequency

1920/3840HZ

Display color

4096*4096*4096

Brightness

6000cd/M²

Life span

100000Hours

Communication distance

<100M
