Top Brand Factory Price 20 Ton Road Roller XS203J Hydraulic Heavy Road Construction Machinery
- Category: >>>
- Supplier: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Share on (1601345187911):
Product Overview
Description
Chinese famous brand 20 ton soil compactor vibratory roller XS203J at a good price
Product Overview

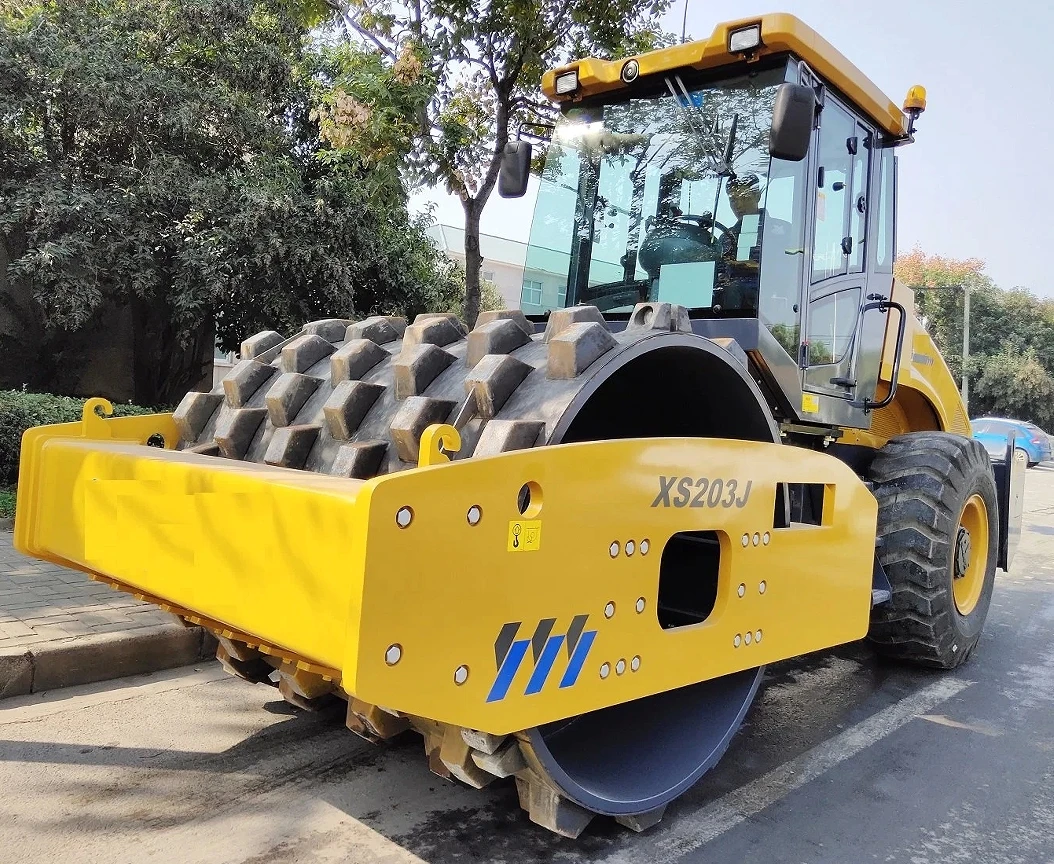

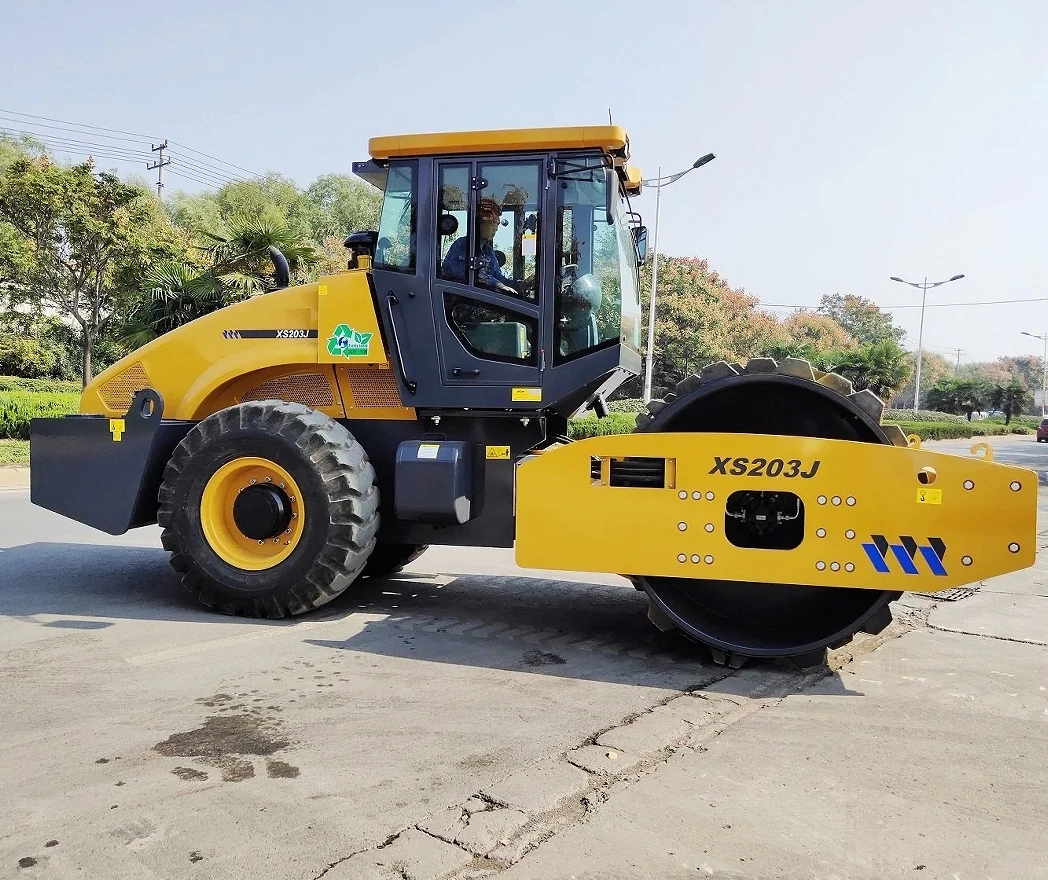

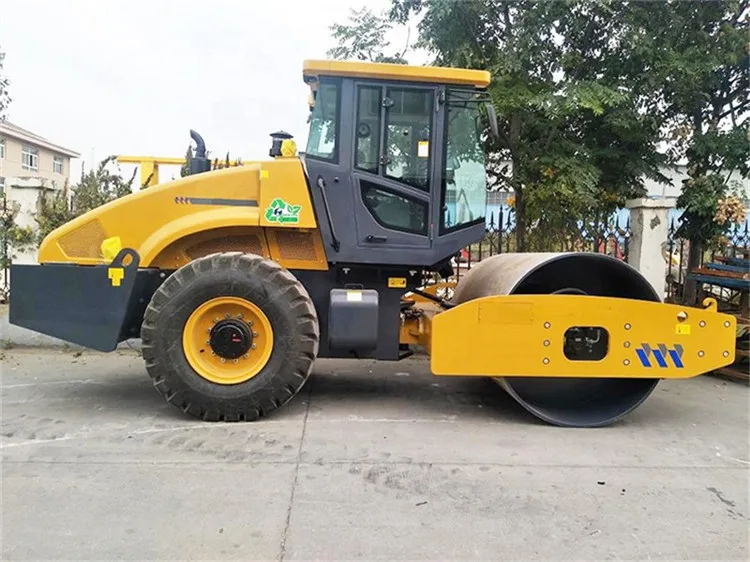

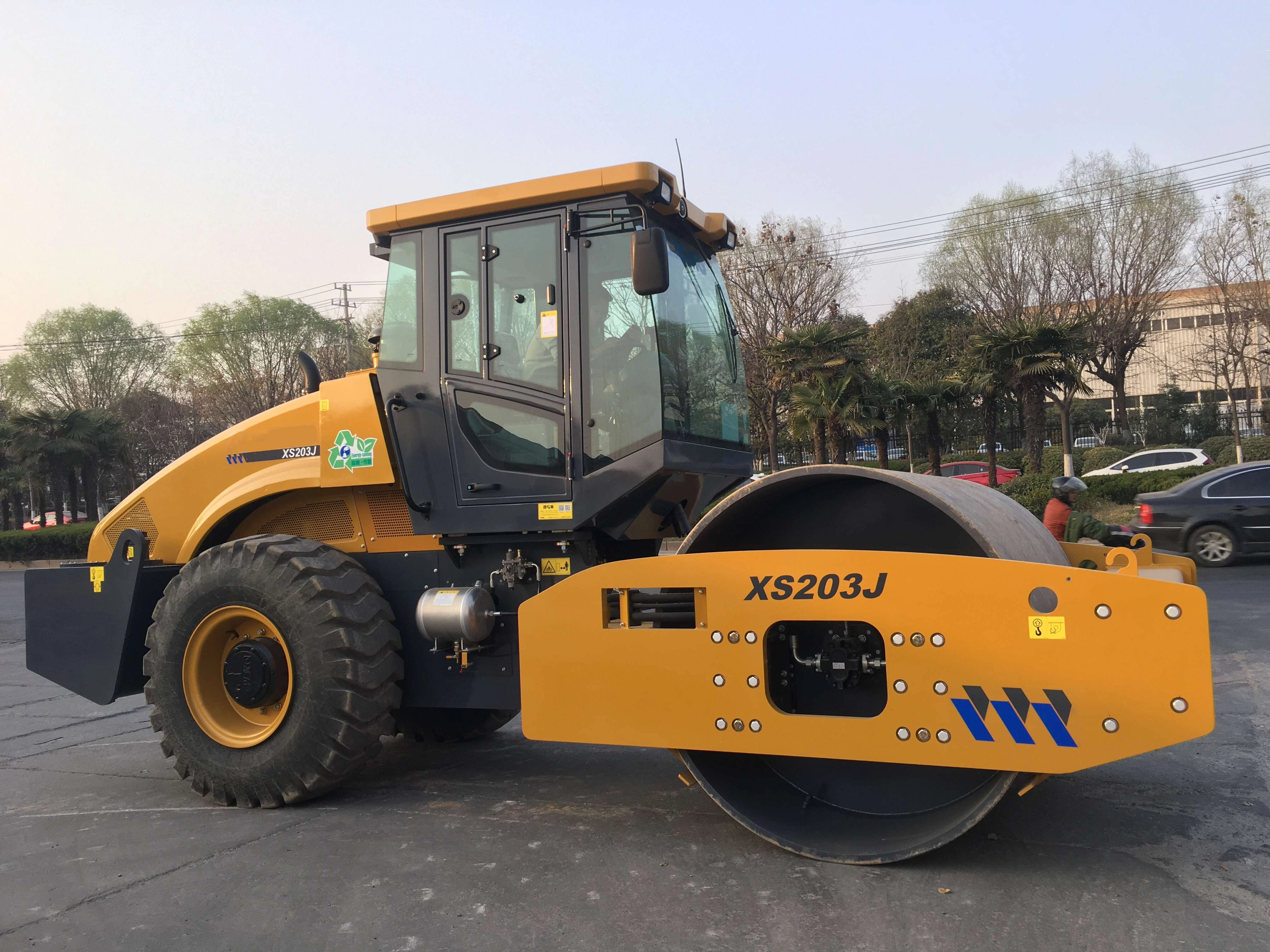

XS203J
This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well
as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment
for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.
as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment
for the construction of high-grade highways, airports, harbors, dams and industrial construction sites.
* The Shangchai CHina-ll turbocharged low speed diesel engine is adopted to achieve the best fuel consumption working area and
reduce the comprehensive fuel consumption by 10%; The low-speed diesel engine reduices noise emission and enhances the
leakproofness of the whole engine to reduce noise by 2dB; Optimized transmission system matching to achieve the best compaction
speed and increase the efficiency by 8%.

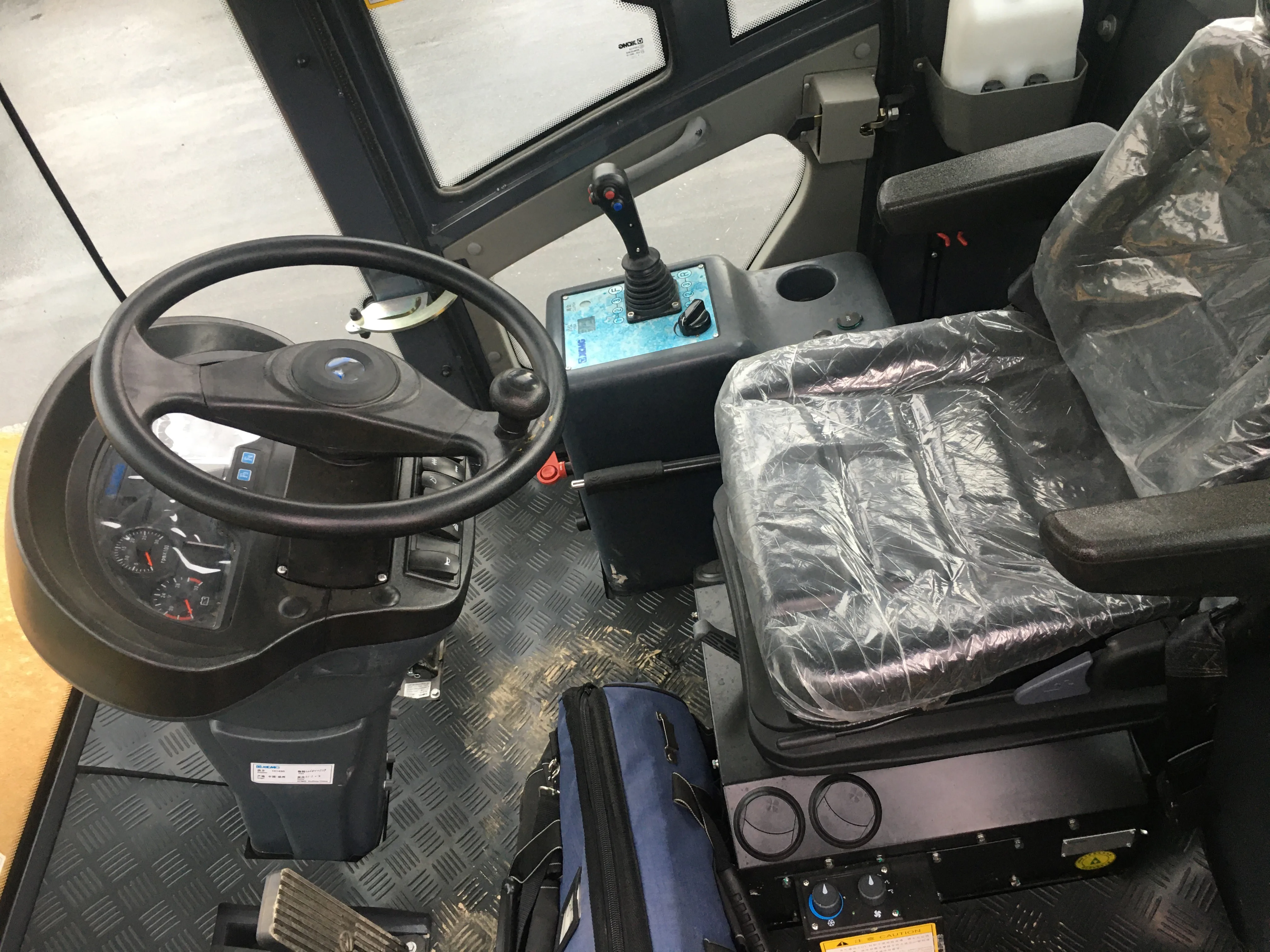

* The vibration damping device with combined stiffness is adopted in the cab and frame, multidimensional reduction of cab
vibration, significantly improves the working comfort of the operator.
* Scientific and reasonable air duct design, the air conditioning system radiates heat independently to ensure sufficient air
intake and improve the heat dissipation ability comprehensively, ensuring efficient operation of power system.
* Electro-hydraulic control of the power shit gearbox, with independent intellectual property rights of the new electric control
shift lever, significantly increase the operation comfort.
* Using advanced hydraulic damping control technology, optimized vibration parameters, reliability and work quality is greatly
improved.
Product Paramenters
Model | Unit | XS203J |
Operating weight | kg | 20000 |
Load applied on front drum | kg | 10000 |
Static linear load | N/cm | 470 |
Travel Speed | km/h | 3-9.4 |
Theoretical gradeability | % | 30 |
Min. outer turning radius | mm | 6500 |
Steering angle | ° | ±33 |
Oscillating angle | ° | ±10 |
Vibration frequency | Hz | 33/28 |
Nominal amplitude (high/low) | mm | 1.9/0.95 |
Exciting force (high/low) | kN | 353/245 |
Drum width | mm | 2130 |
Drum Diemeter | mm | 1600 |
Engine model | Shanghai Diesel Engine SC8D175.2G2B1 | |
Rater Power | kW | 128 |
Engine oil consumption | g/kW.h | 205 |
Hydraulic tank capacity | L | 170 |
Fuel tank capacity | L | 310 |
Dimension(L*W*H) | mm | 6220*2430*3200 |
