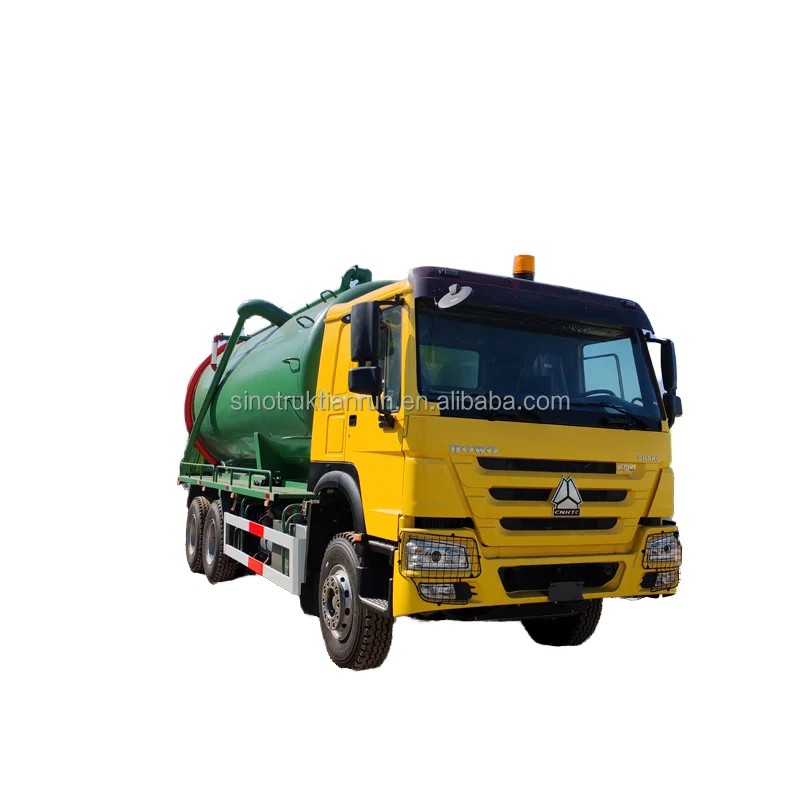

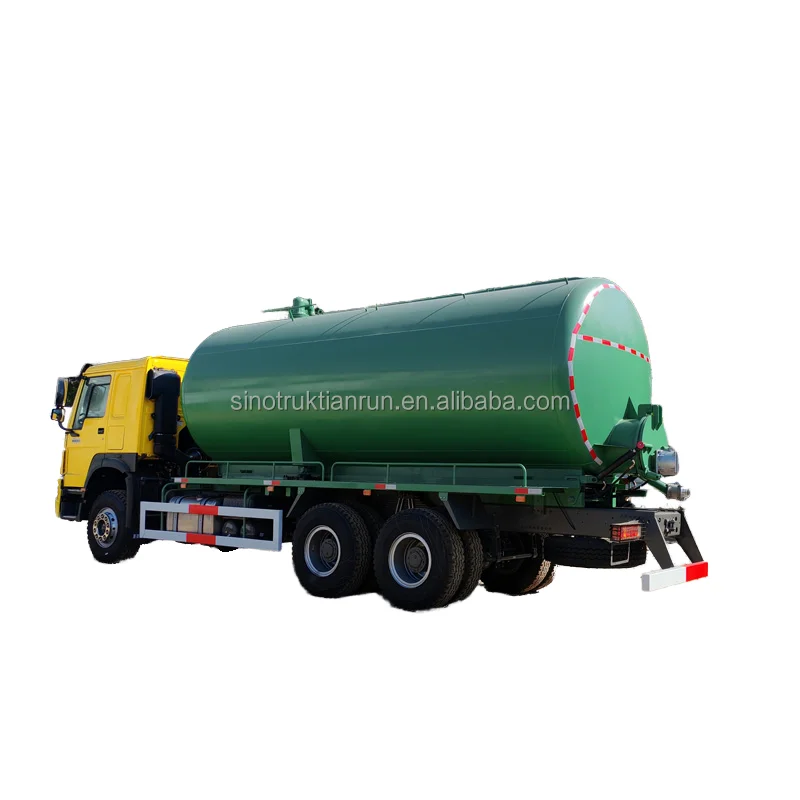

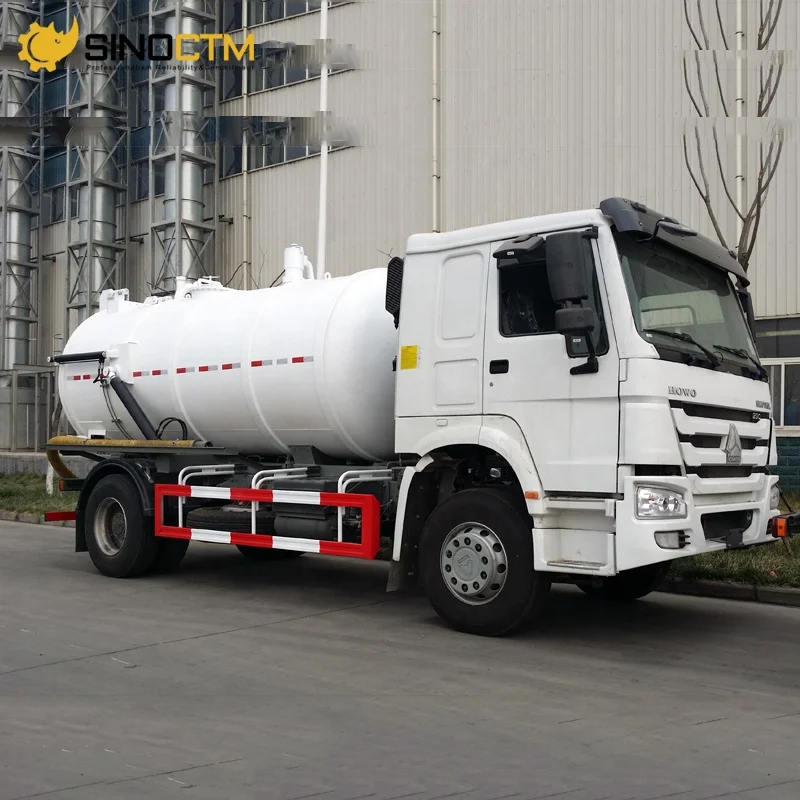

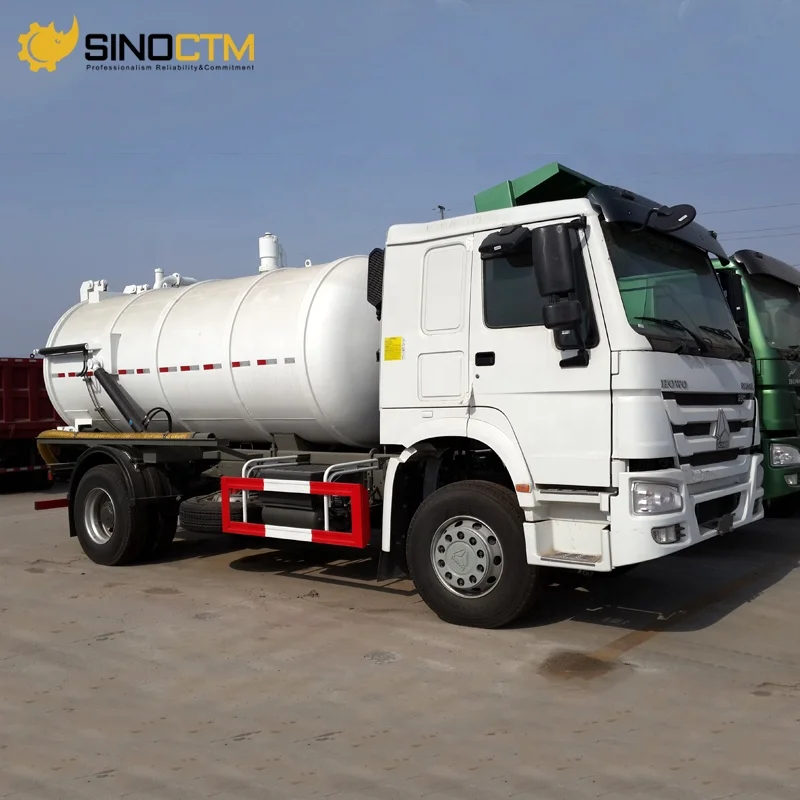

Howo 4x2 10cbm Waste Water Suction Tanker Truck Sewage Suction Truck For Sale
- Category: >>>
- Supplier: Jinan Tian Run Machinery International Co. LtdJinan Ltd
Share on (1601345206644):
Product Overview
Description
Product Description
Sinotruk New Design cleaning sewage suction dredging truck
Our Main Products Heavy Trucks and Construction Machinery. including Head tractor trucks(Prime movers), Dump trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
Specification
SINOTRUK HOWO 4x2 SEWAGE SUCTION TRUCK SPECIFICATIONS | ||||
Truck Model | ZZ1167M4611W(Right Hand Drive ) | |||
Truck Brand | SINOTRUK-HOWO | |||
Dimension (LxWxH) (unloaded)mm | 8650×2550×3650 | |||
Tank volume(m³) | sewage tank:10m³，Vacuum pump，Back door hydraulic opening. Tank Body Material:End Plate)6mm;Tank Body:5mm； Vacuum pump:JuropPN106D Air flow:11000L/min vacuum degree Max：-0.092MPa Suction full time:12Min Depth:6m Rubber hose:6m | |||
Approaching angle/ Departure angel (°) | 16/15 | |||
Overhang (front/rear) (mm) | 1500/1890 | |||
Wheel base (mm) | 4600 | |||
Max. Driving speed (km/h) | 102 | |||
Front axle loading capacity (kg) | 7000 | |||
Rear axle loading capacity(kg) | 16000 | |||
Curb weight (kg) | 8950 | |||
Gross vehicle weight | 16000 | |||
Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |||
Engine Model | Model | WP10.300E22,EURO II,300hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
Rated Power (kw/rpm) | 221/1900 | |||
Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking Brake (emergency brake) | Spring energy, compressed | |||
Steering system | Model | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) | ||
Front axle | SINOTRUK 7000kg Front Axle,new 7-ton front axles of equipped with drum brakes. | |||
Rear axle | SINOTRUK 16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
Wheels &Tire | Rims:9.0-20 10 hole-steel ;Tyres:12R22.5 tubeless tyre with 1 Spare tire. | |||
Electrical system | Electrics Operating voltage | 24V,negative grounded | ||
Starter | 24V,7.5 Kw | |||
Alternator | 3-phase,28V,1500 W | |||
Batteries | 2x12 V,165 Ah | |||
horn,headlamps,fog lights,brake lights,indicators and reverse light。 | ||||
Oil Tank | Square type-400L Aluminum alloy fuel tank | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||
Details Images

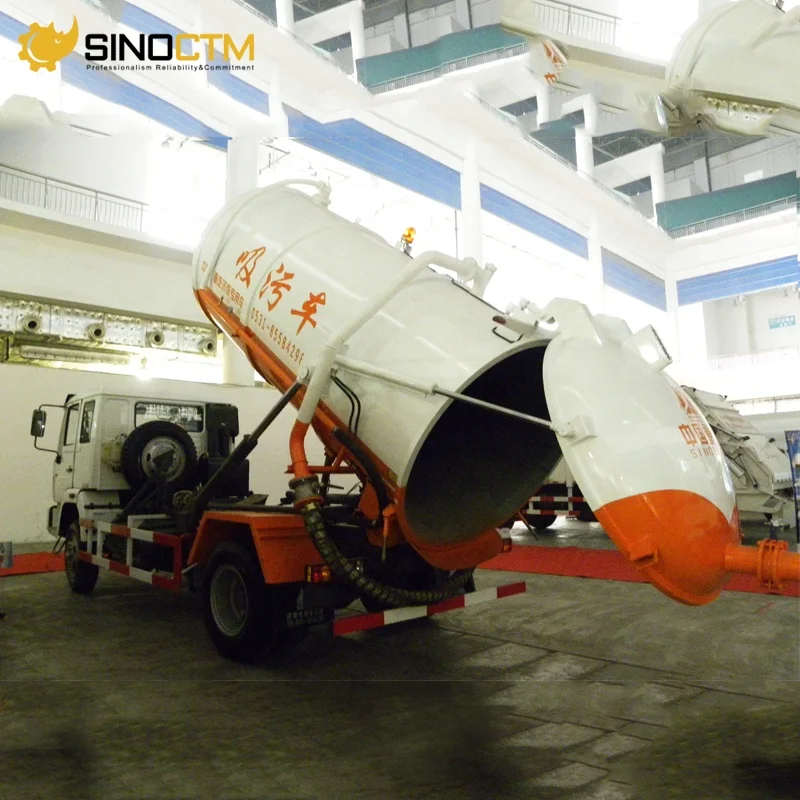

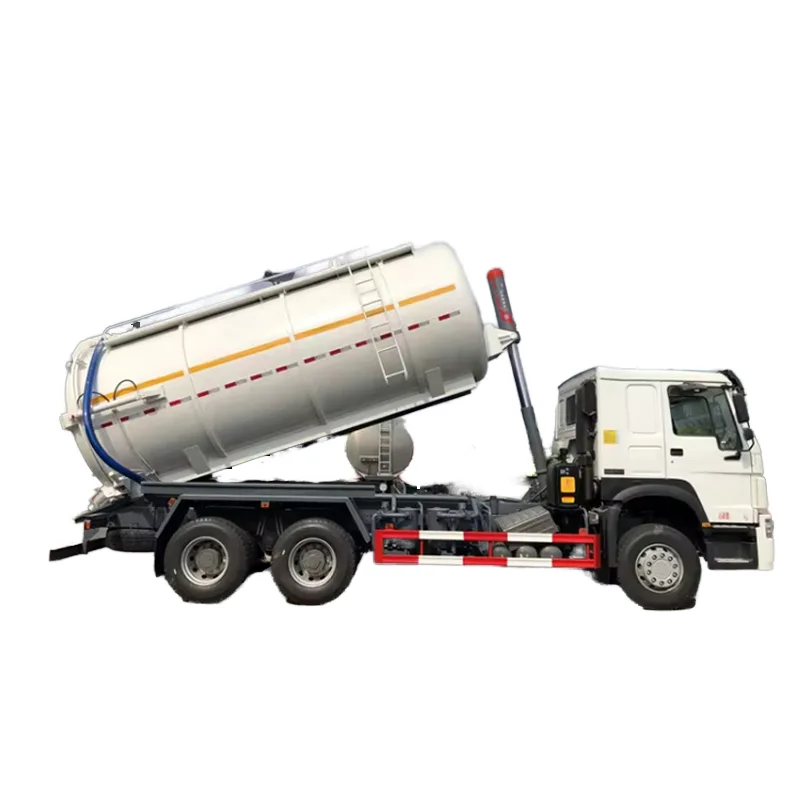

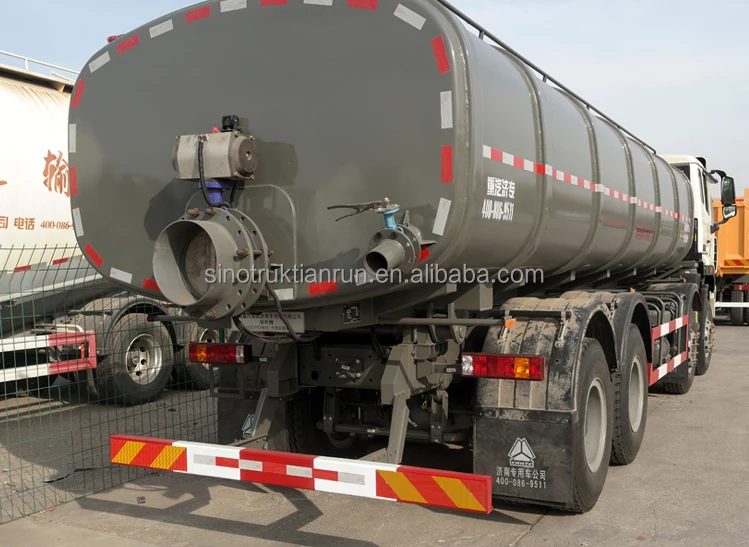

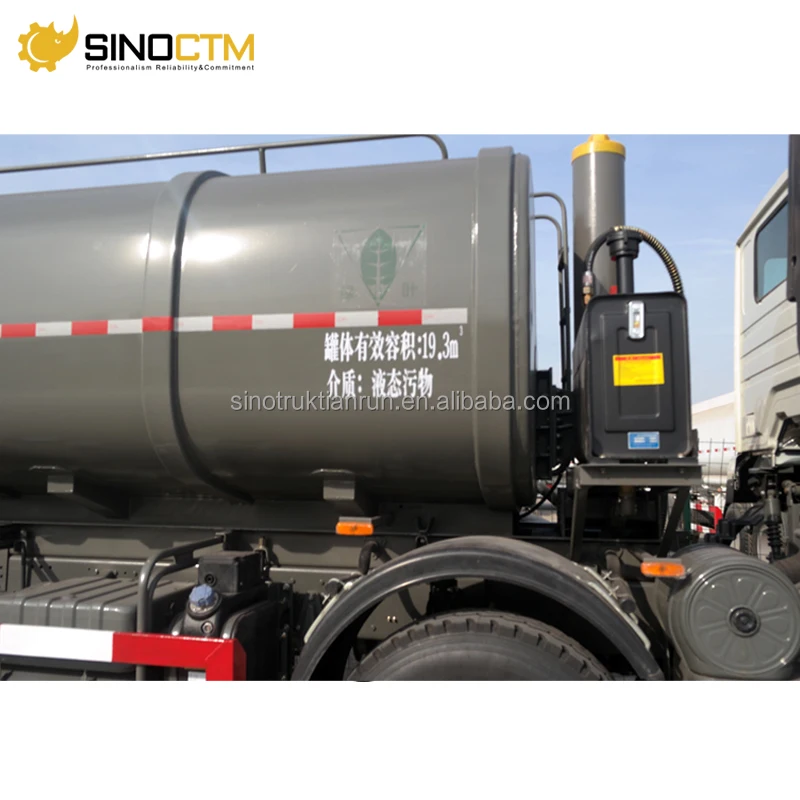

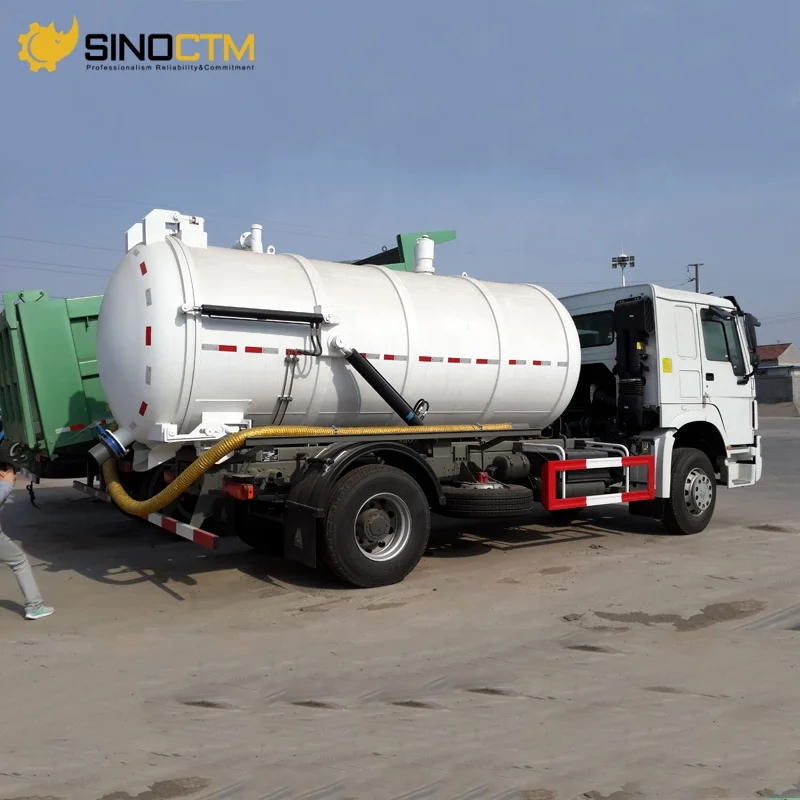

The vehicle adopts the domestic well-known manufacturer chassis,refitted with tank body, vacuum pump,suction rubber pipe, hydraulic system, pipeline system etc. Once-compression moulding tank head, the rear door can be opened and the body can be lifted bu double hydraulic cylinders. The vehicle can be widely used in the city of collecting the sludge and sewage in rain water wells, and various inspection wells; for sucking, loading and discharging the deposit of petrochemical sewage pool; also can be for drought, waterlogging and other rescue project.
Company Profile

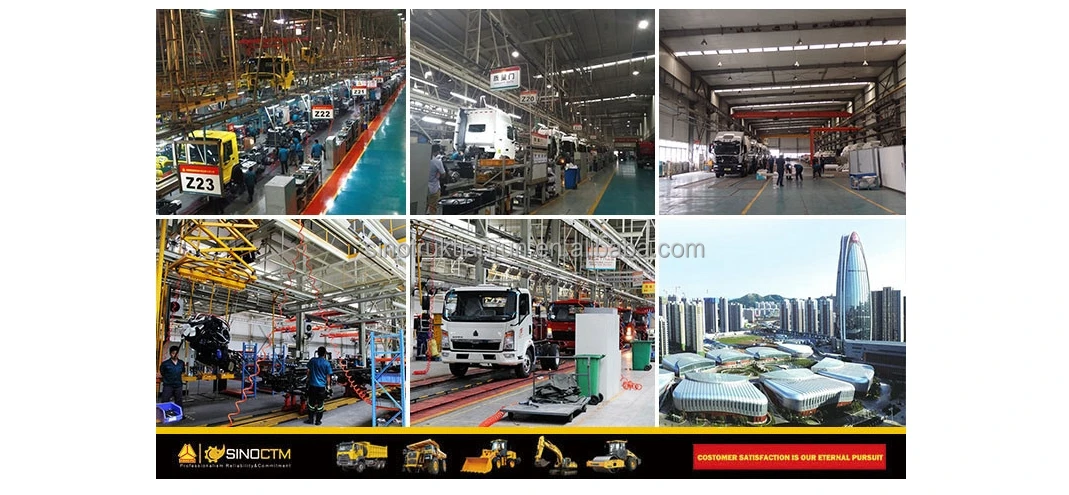

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Recommend Products
Main products
1.Dump Truck / Tipper Truck / Mining Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer
( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer /van container trailer etc. )
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader,)
12.Coach Bus
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader,)
12.Coach Bus
Packing & Delivery

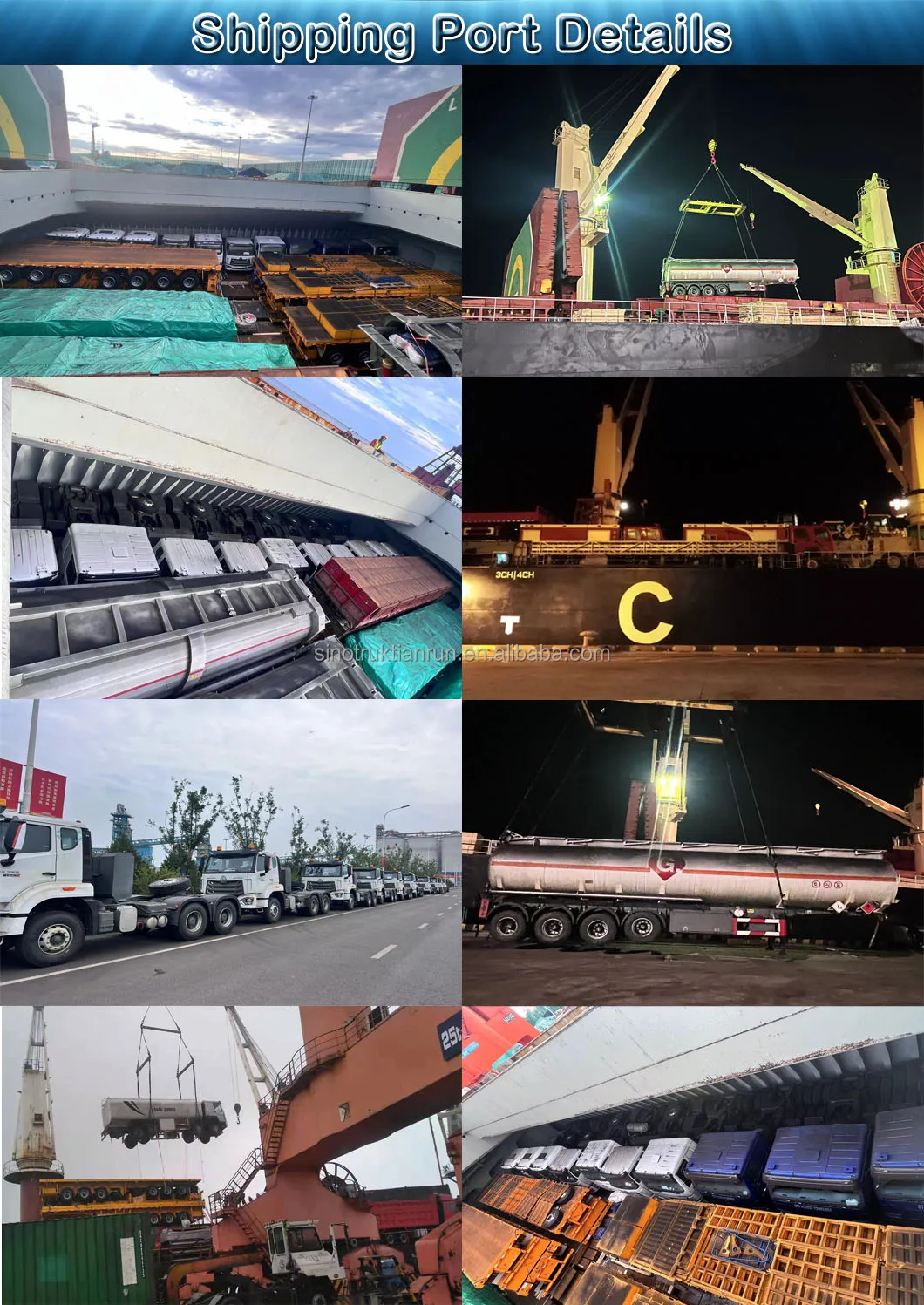

Roll on roll off (RORO) ship
