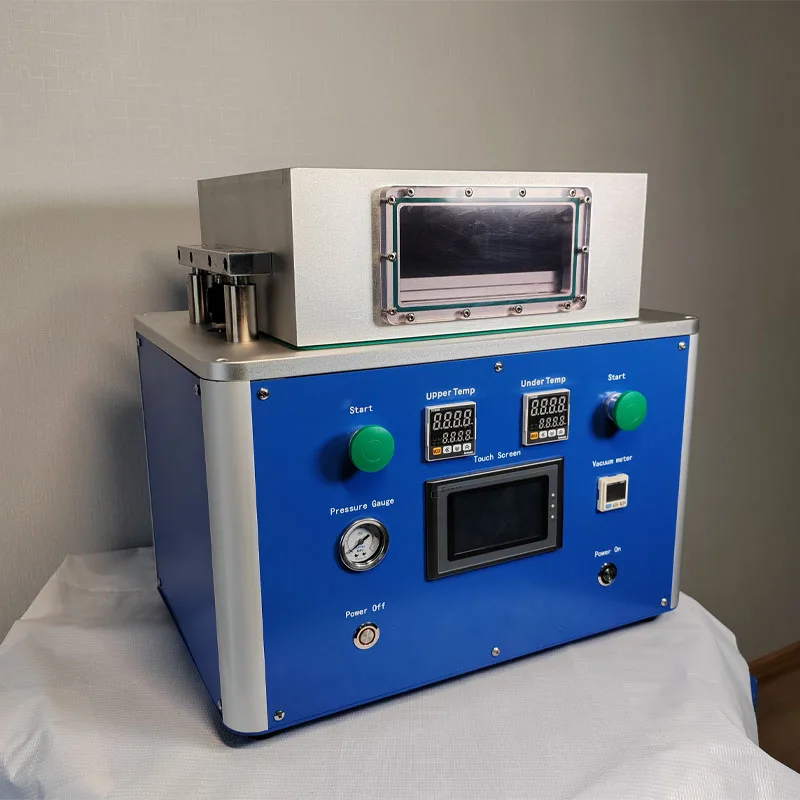

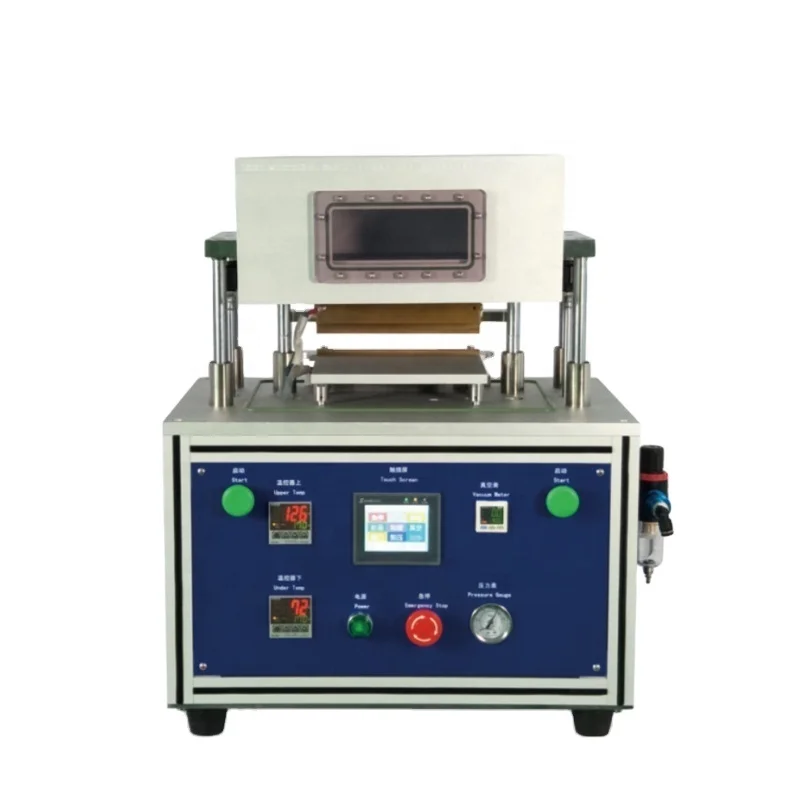

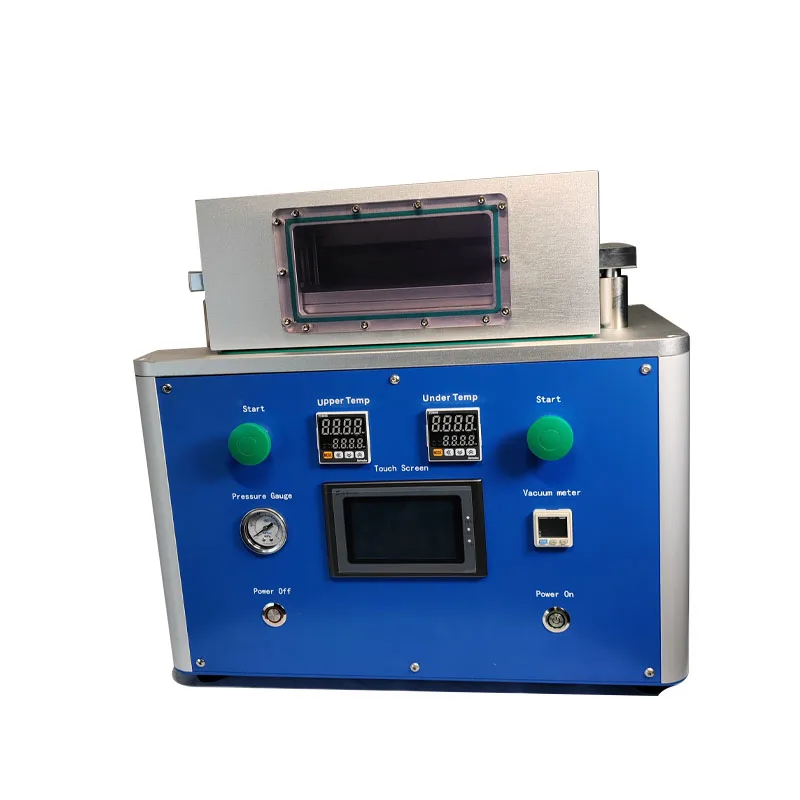

Battery Vaccum Secondary Sealing Machine for Pouch Cell Lab Research

Main feature

*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work
efficiency, and saves energy compared with similar products;
*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different
process parameters;
*The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly,
and the guidance is accurate to ensure the parallelism requirements of the product after edge sealing;
*With automatic puncture function;

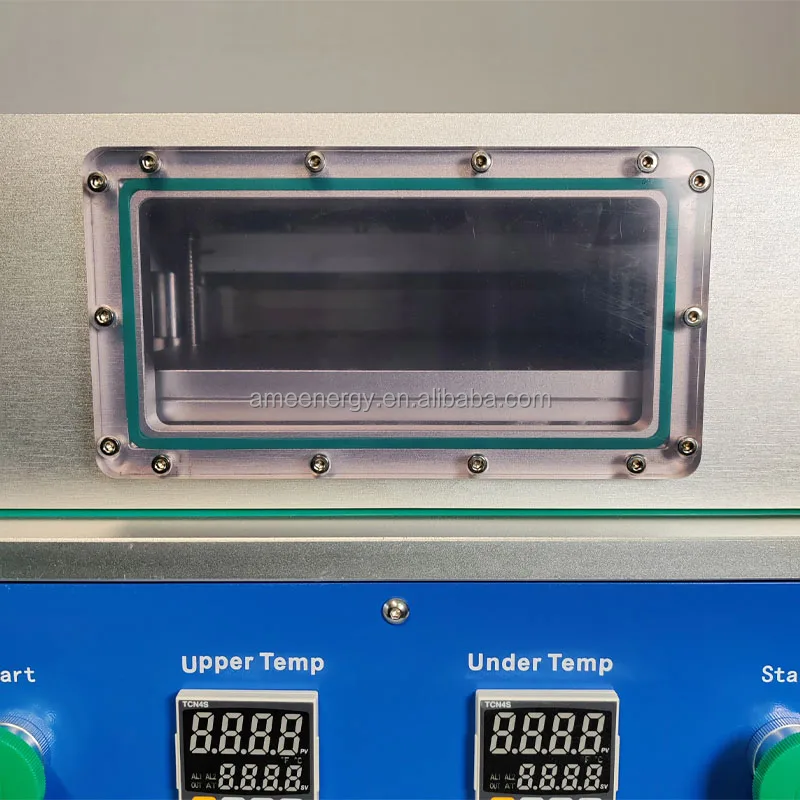

*The cover cavity is driven by an air cylinder and guided by a linear guide sleeve, which can move up and down flexibly, and the
guidance is accurate to ensure the product's tightness requirements;
*It can be applied to different specifications of product batteries, and the adjustment is simple and convenient;
*Easy operation, beautiful appearance, small size and light weight;

Technical parameter

*The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure;
*Vacuum ≤-96Kpa (the buyer shall provide a vacuum pump);
* Head temperature: room temperature~250℃, temperature is adjustable;
*Temperature control accuracy: ±1.5℃;
*Heat sealing pressure: 0~7Kg/cm2 adjustable;
*Heat sealing time: 0~99 seconds adjustable;
*Edge banding width: 5±0.4mm (according to customer requirements);
*Maximum sealing size: 200mm;
*Seal thickness range: 60~300um
*Seal thickness accuracy (mm): package thickness difference between any two points <15um
*Gas consumption: about 0.2L compressed gas/each time.
*Pneumatic working speed: ≥180 times/h
*Power: Using 300w heating tube, the power consumption when heating is about 0.6KW.
*Power supply: 220V/50Hz;
*Compressed air source: 0.5~0.7Mpa;
*Dimensions: L500mm*W550mm*L700mm;
