Wholesale Wind Inverter 150 Kw on Grid Tiein
$265.00-515.00

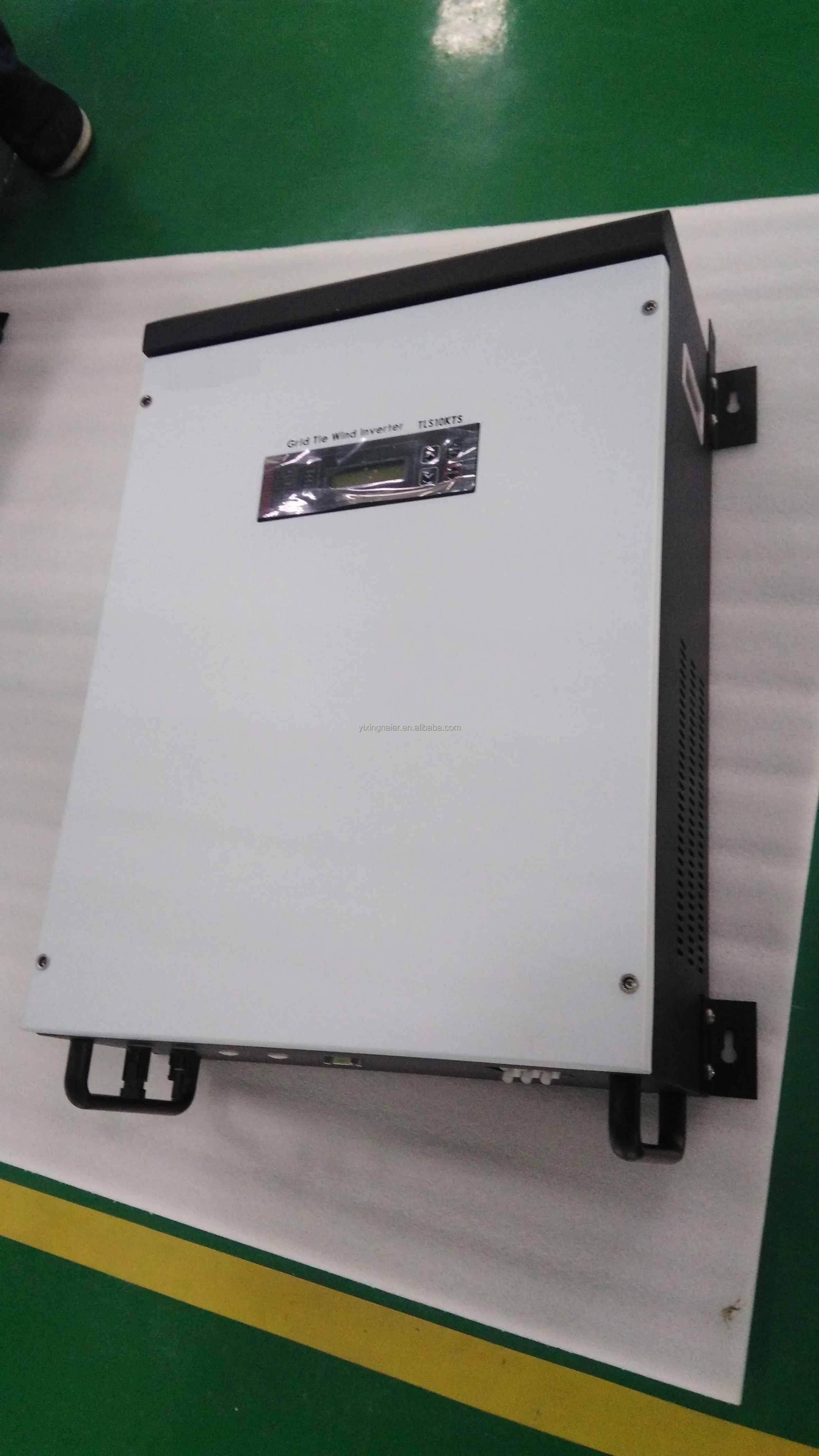

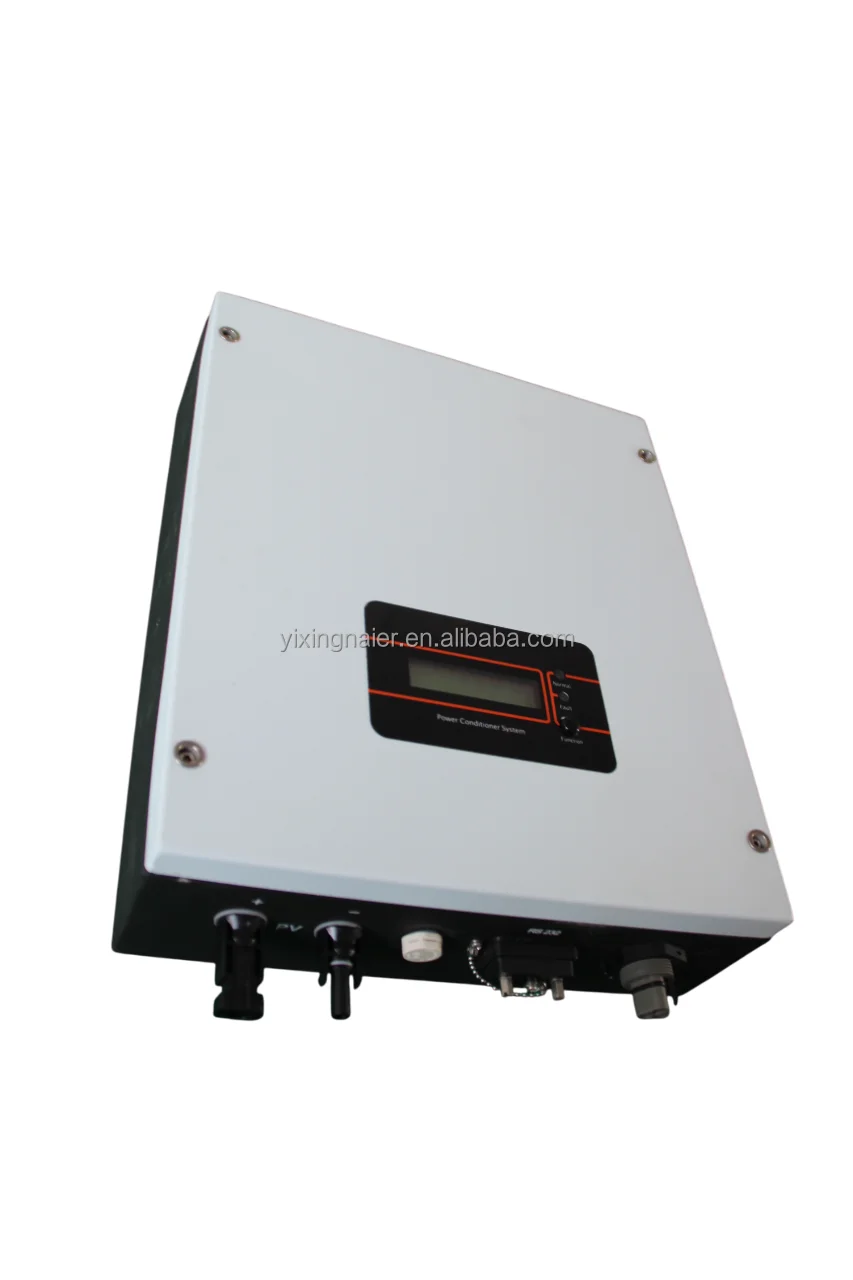

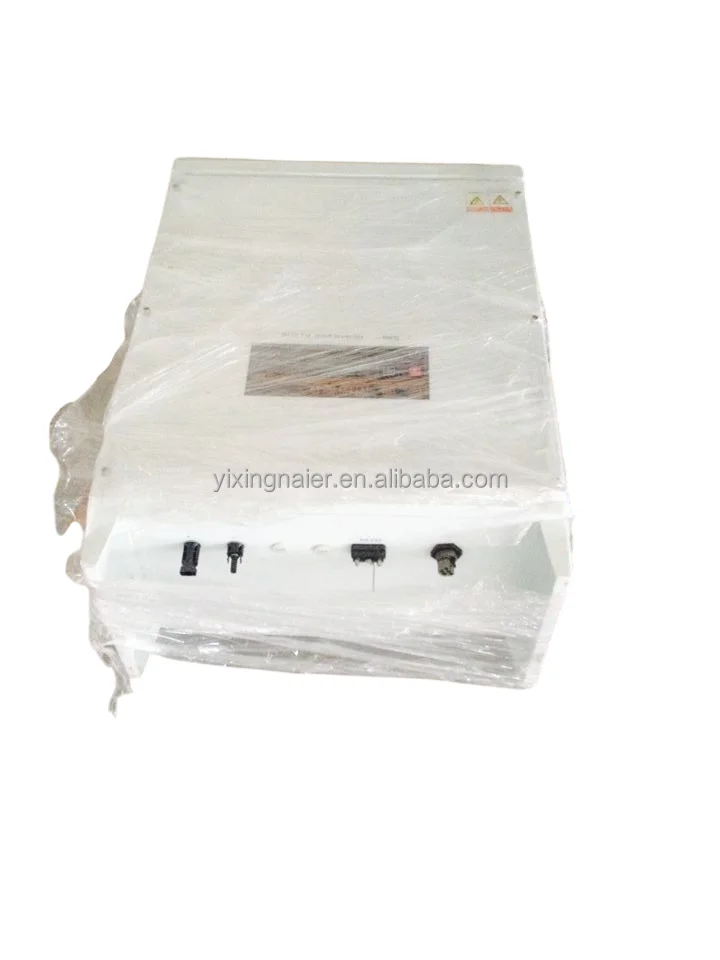

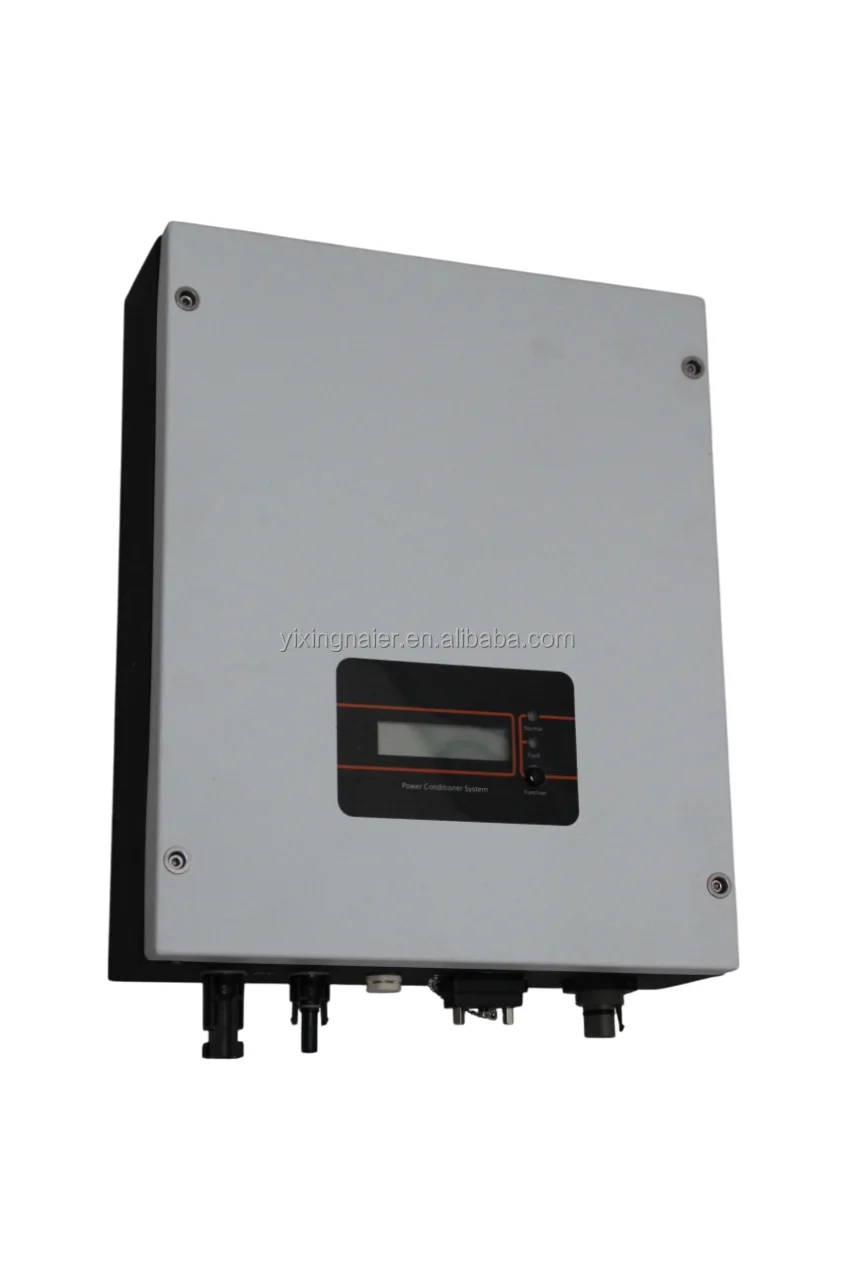

NE 1Kw 2Kw 3Kw 5Kw 10Kw 220V Wind Turbine On Grid Inverter Wind Generator Wind Solar Hybrid Inverter
- Category: >>>
- Supplier: Yixing Naier Wind Power Technology Co. Ltd.Yixing Ltd.
Share on (1601345229941):
Product Overview
Description
Product Overview
Characteristic of product
(1) High effectiveness electric power conversion
(2) Digital control
(3) Transformer-less type inverter
(4) Dispersion mode power system and economic efficiency
(5) Maximum Power Point Tracking (MPPT)
(6) Easy of parallel operation
(7) Convenience stallation and operation
(8) High authoritativeness and low noise
(2) Digital control
(3) Transformer-less type inverter
(4) Dispersion mode power system and economic efficiency
(5) Maximum Power Point Tracking (MPPT)
(6) Easy of parallel operation
(7) Convenience stallation and operation
(8) High authoritativeness and low noise
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | NE-2KTS | ||
Input | MPPT voltage range | DC 100~500V | |
Control system | MPPT | ||
Output | Power | 2000W | |
Voltage range | Single phase AC 185 ~ 264V (Can adjust) | ||
Rated voltage | 220VAC | ||
Frequency | Grid frequency50/60Hz（can adjust） | ||
Phase | Single phase | ||
Power factor | 0.95 | ||
Max current | 9A | ||
THD | At rated power and the sine wave <3.5% | ||
Efficiency | 97%（Euro efficiency:96.4%） | ||
Structure | Protection degree | IP65/NEMA 4X | |
Cooling method | Natural cooling | ||
Noice | <50dB | ||
Data interface | External RS 232C | ||
Protection | Inverter | Input over voltage, output short circuit, overload overheat | |
Grid | Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid | ||
Environment | Operation temperature range | -10℃~40℃（50℃） | |
Stored temperature | -25℃~60℃ | ||
Relative humldity | 0~100% | ||
Environment | Have no corrosion gas, flammable gas, oil mist,dust etc. | ||
Standby power consumption | <25.0mW | ||
Elevation | 6600feet (2000m ) | ||
Size | W*H*D | 442*380*110mm | |
Weight | KG | 16 | |
SALES AND SERVICE NETWORK

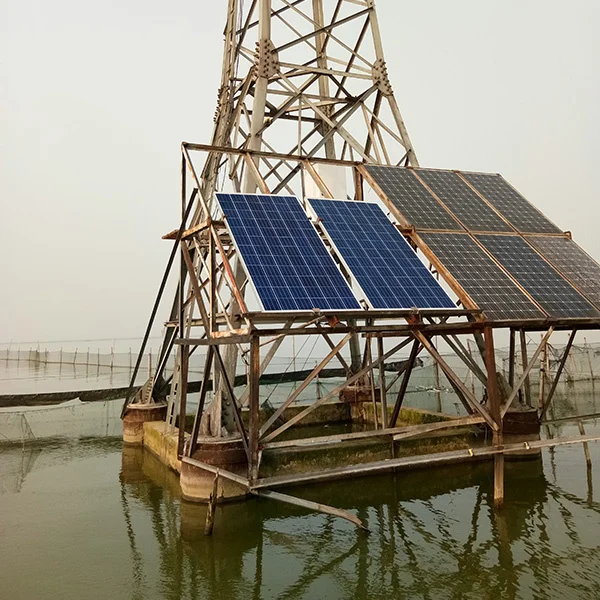

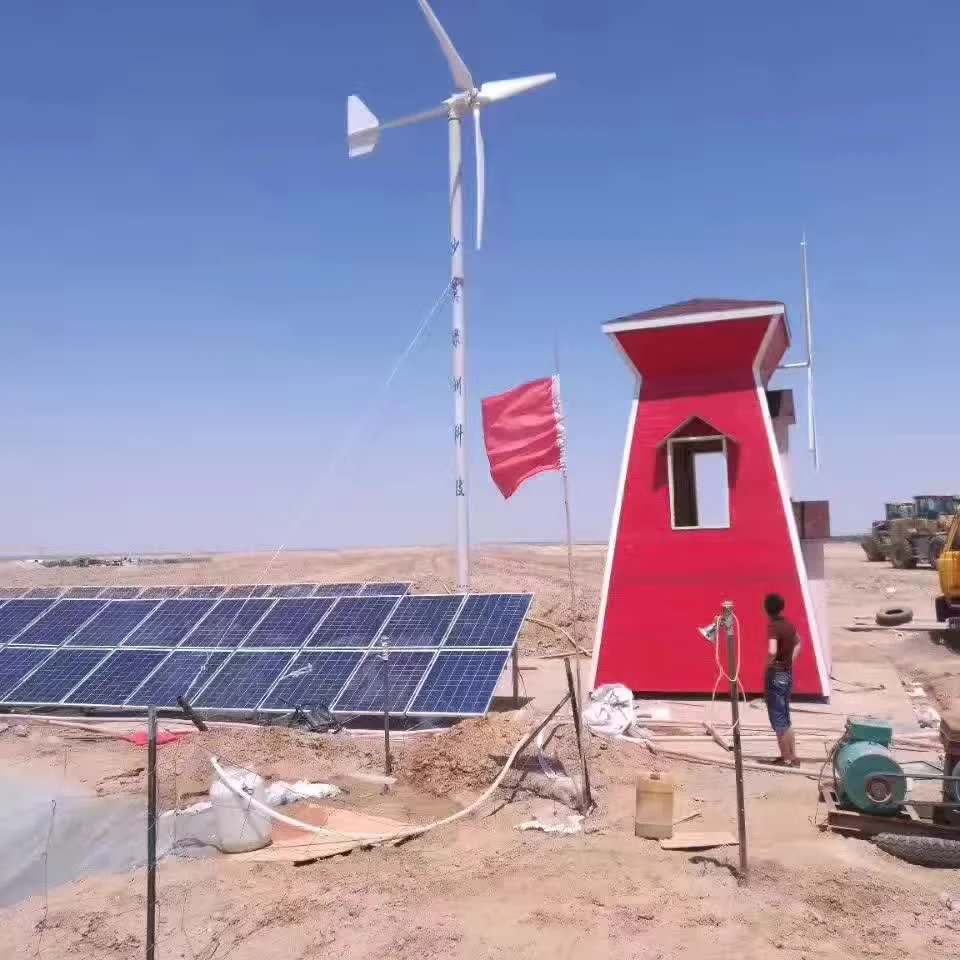

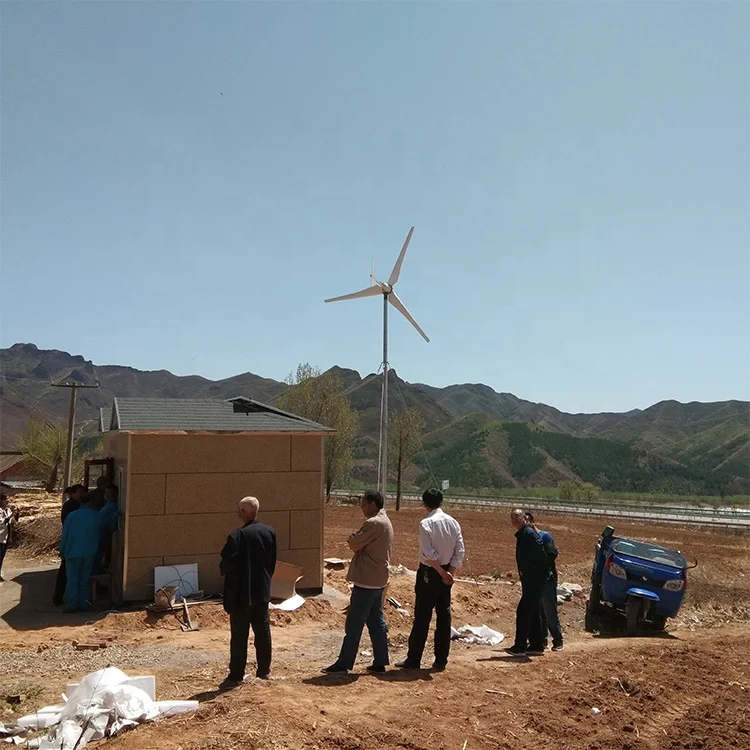

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1:Is installation easy?\t\t\t
A:Yes, very easy.Every customer can do it by themselves. We supply you all the components and the isntallation mamual.\t\t\t
Q2:Is our wind enough for a wind generator?\t\t\t
A:Our wind generator can start running at low wind speed 1.5m/s, so if your average annual wind speed is more than 5mls, it can works wel.\t\t\t
Q3:Which model should I choose?\t\t\t
A:If you are not sure to choose the model, please contact our sales with the following points:\t\t\t
1. What appliance do you want to run by the system?How much watts are they?How long do they work?\t\t\t
2.Your average annual wind speed.\t\t\t
3.What kind of system do you want? On-grid or off grid?\t\t\t
Q4:Can I only buy parts of the whole system?\t\t\t
A:Yes, you can only buy wind turbine, controller, inverter etc.\t\t\t
Q5:Does the price include or exclude controller, inverter?\t\t\t
A:The Price is only for wind turbine, if you need whole system which includes controllerand inverter, batteries and pole, pls contact our sales for a detail quotation.\t\t\t
Q6:How can i fix wind turbine on the pole ?\t\t\t
A:For small horizontal axis wind turbine with pole connection, we have flange and hoopfor choice. The later one is easier to fix on the pole. Pls let the sales know your choice.\t\t\t
Q7:How to protect wind turbine during strong wind?\t\t\t
A:All the wind turbines are protected by controller. while the battery is full or wind speed is very fast,the controller would start a short circuit to slow down the wind turbine. Meanwhile, our model from-NE 2K to 10K wind turbines tail could fold to slow down the running speed as a protection as well.\t\t\t
Q8:What's the warranty ?\t\t\t
A:Wind turbine warranty is 1 year. For distributors, we will prepare few spare parts in the package as a storage.\t\t\t
Q9: how can we guarantee quality?\t\t\t
Always a pre-production sample before mass production;\t\t\t
Always final Inspection before shipment;\t\t\t
Q10: why should you buy from us not from other suppliers?\t\t\t
Yixing Nair Wind Power Technology Co., Ltd. is a research and development, manufacturing, sales of wind turbines, as one of the scientific and technological manufacturing enterprises.\t\t\t
A:Yes, very easy.Every customer can do it by themselves. We supply you all the components and the isntallation mamual.\t\t\t
Q2:Is our wind enough for a wind generator?\t\t\t
A:Our wind generator can start running at low wind speed 1.5m/s, so if your average annual wind speed is more than 5mls, it can works wel.\t\t\t
Q3:Which model should I choose?\t\t\t
A:If you are not sure to choose the model, please contact our sales with the following points:\t\t\t
1. What appliance do you want to run by the system?How much watts are they?How long do they work?\t\t\t
2.Your average annual wind speed.\t\t\t
3.What kind of system do you want? On-grid or off grid?\t\t\t
Q4:Can I only buy parts of the whole system?\t\t\t
A:Yes, you can only buy wind turbine, controller, inverter etc.\t\t\t
Q5:Does the price include or exclude controller, inverter?\t\t\t
A:The Price is only for wind turbine, if you need whole system which includes controllerand inverter, batteries and pole, pls contact our sales for a detail quotation.\t\t\t
Q6:How can i fix wind turbine on the pole ?\t\t\t
A:For small horizontal axis wind turbine with pole connection, we have flange and hoopfor choice. The later one is easier to fix on the pole. Pls let the sales know your choice.\t\t\t
Q7:How to protect wind turbine during strong wind?\t\t\t
A:All the wind turbines are protected by controller. while the battery is full or wind speed is very fast,the controller would start a short circuit to slow down the wind turbine. Meanwhile, our model from-NE 2K to 10K wind turbines tail could fold to slow down the running speed as a protection as well.\t\t\t
Q8:What's the warranty ?\t\t\t
A:Wind turbine warranty is 1 year. For distributors, we will prepare few spare parts in the package as a storage.\t\t\t
Q9: how can we guarantee quality?\t\t\t
Always a pre-production sample before mass production;\t\t\t
Always final Inspection before shipment;\t\t\t
Q10: why should you buy from us not from other suppliers?\t\t\t
Yixing Nair Wind Power Technology Co., Ltd. is a research and development, manufacturing, sales of wind turbines, as one of the scientific and technological manufacturing enterprises.\t\t\t
