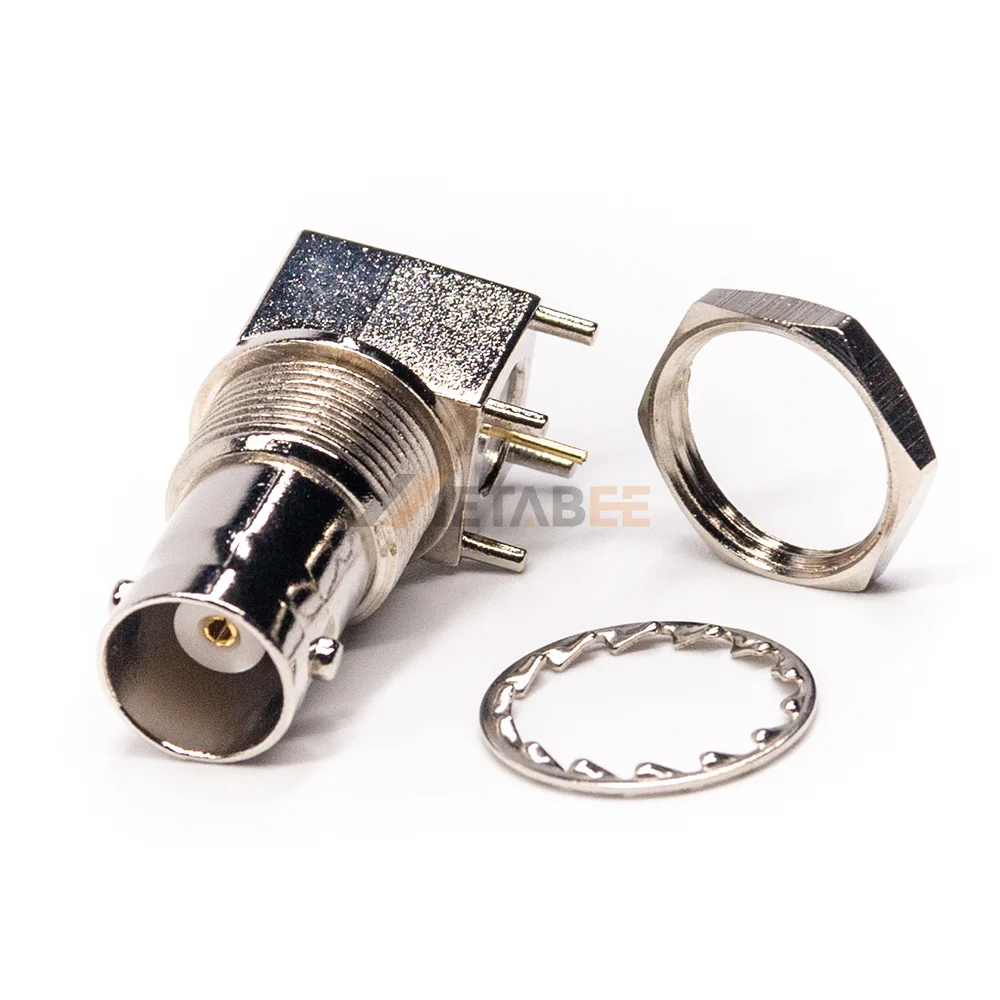

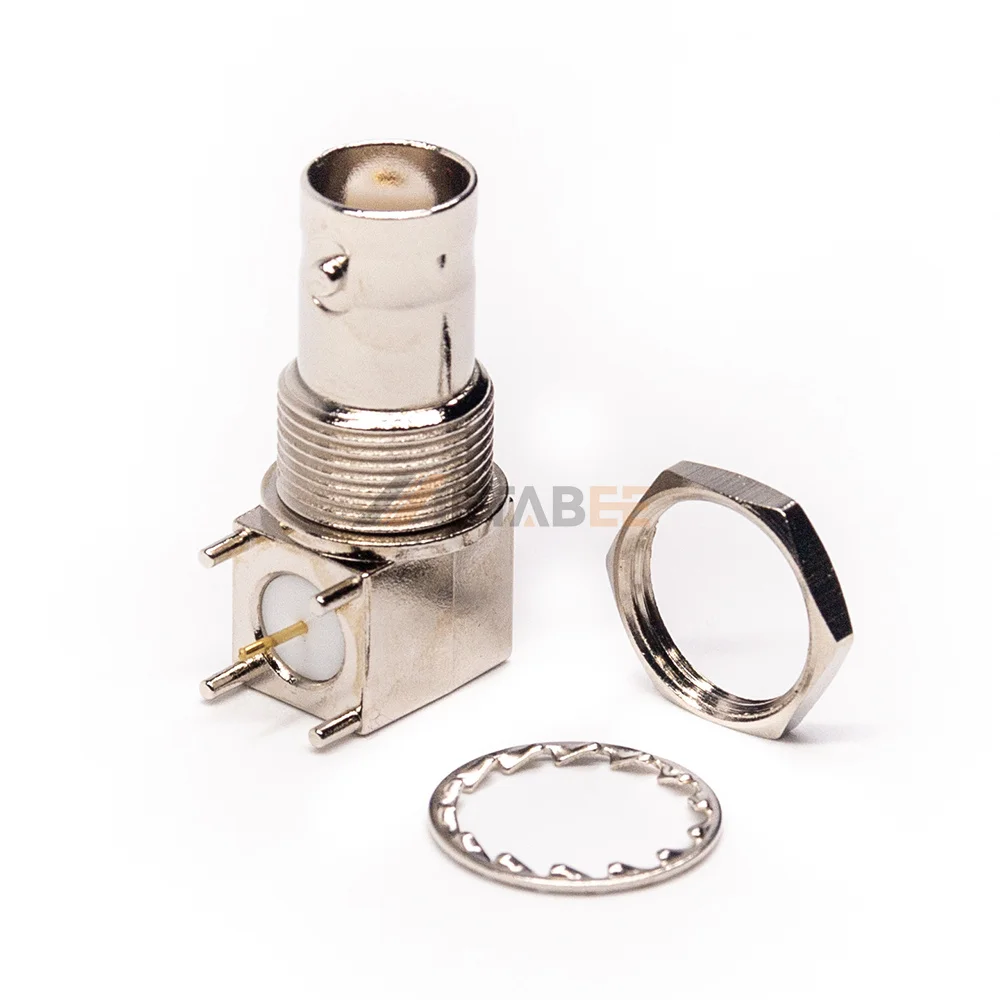

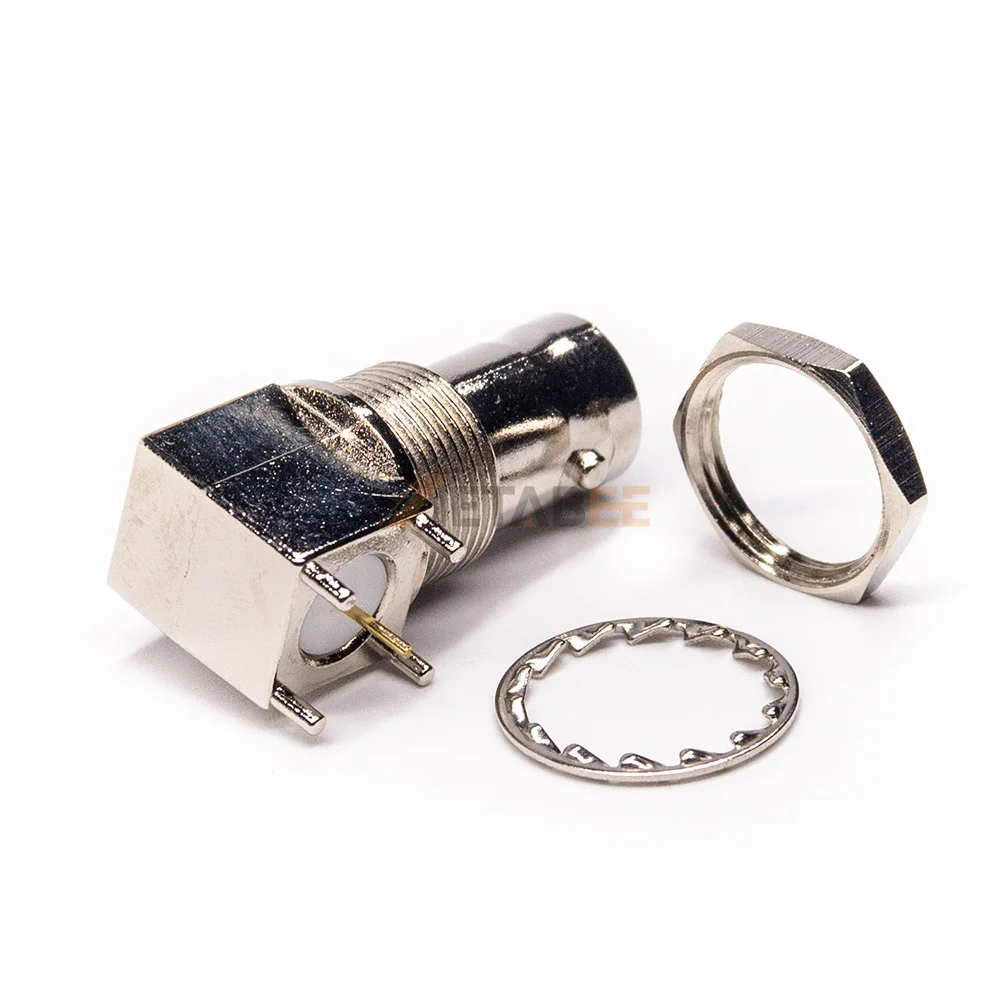

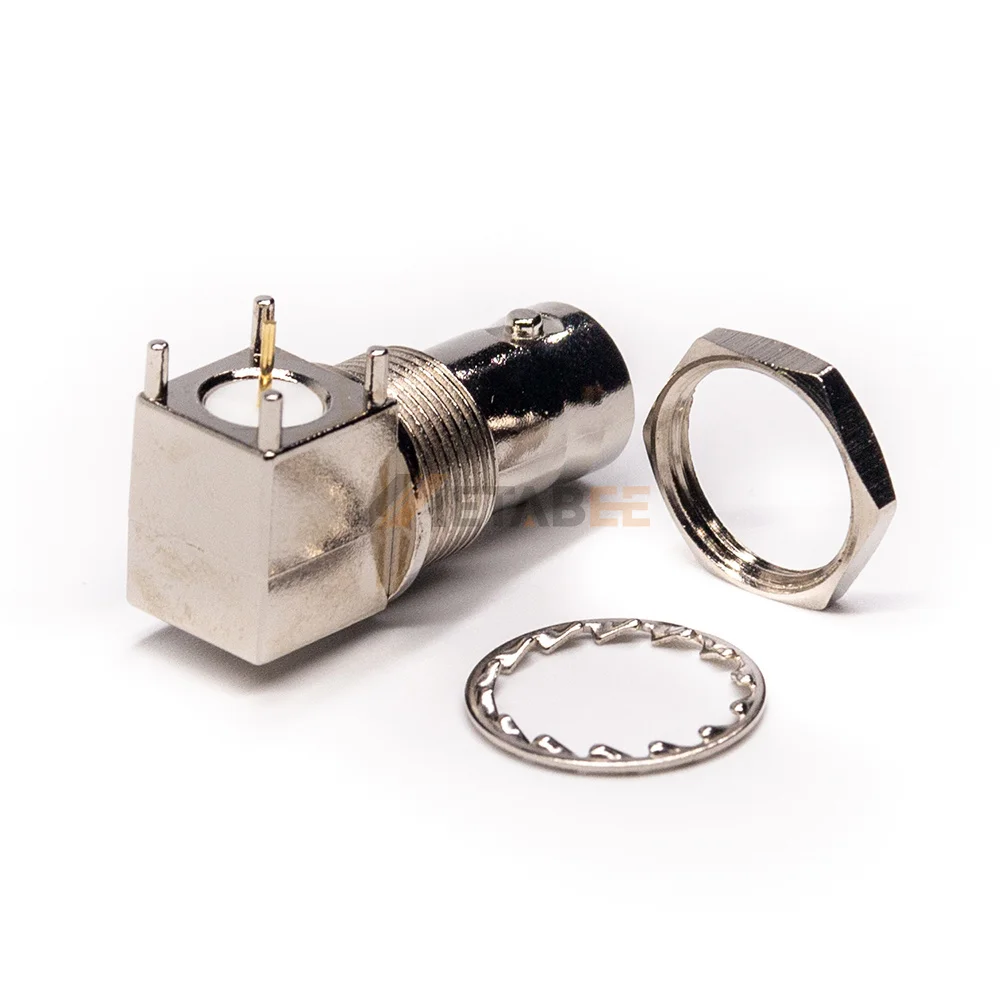

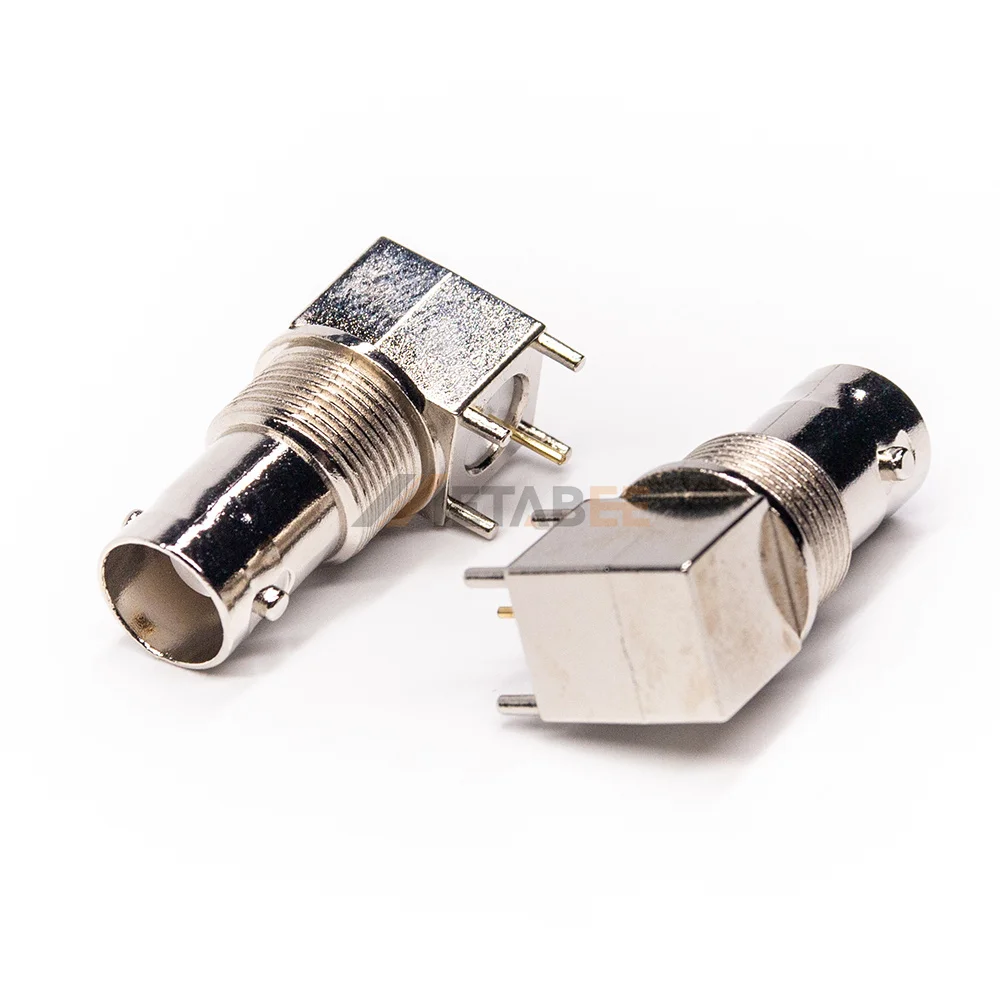

90 Degree High Quality BNC Bulkhead Female Connector
- Category: >>>
- Supplier: Yuanchuang Shidai (chengdu) Technology Co. Ltd.Yuanchuang Ltd.
Share on (1601345325810):
Product Overview
Description
Products Description
Seamless Connectivity and Superior Performance! Discover the BNC Connector Collection!
1️⃣ Universal Compatibility: Our BNC connectors are designed to work seamlessly with a wide range of audio and video devices, ensuring hassle-free connectivity every time.
2️⃣ Unleash the Power: Experience high-quality signal transmission like never before with our BNC connectors, delivering crystal-clear audio and stunning visuals that will elevate your entertainment experience.
3️⃣ Plug and Play Convenience: With their user-friendly design, our BNC connectors are incredibly easy to install. Just plug them in, and you're ready to enjoy uninterrupted connections and immersive content.
4️⃣ Durability Redefined: Built with premium materials, our BNC connectors are engineered to withstand daily use and provide long-lasting reliability, ensuring consistent performance over time.
5️⃣ Versatile Applications: Whether you're setting up a professional studio, optimizing your home theater system, or working on a surveillance project, our BNC connectors offer the versatility you need for seamless integration.
Bayonet coupling mechanism provides positive, quick mating and un-mating
50 and 75 ohm impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial, and commercial applications
Designs available for many common BNC coaxial cable types
BNC female and male configurations
50 and 75 ohm impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial, and commercial applications
Designs available for many common BNC coaxial cable types
BNC female and male configurations

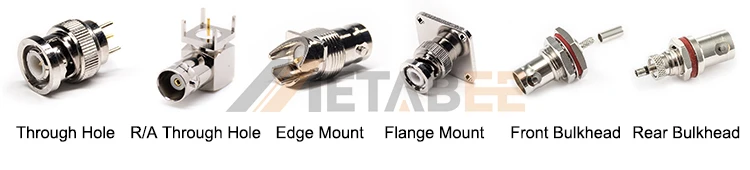

BNC PCB/Panel Connector

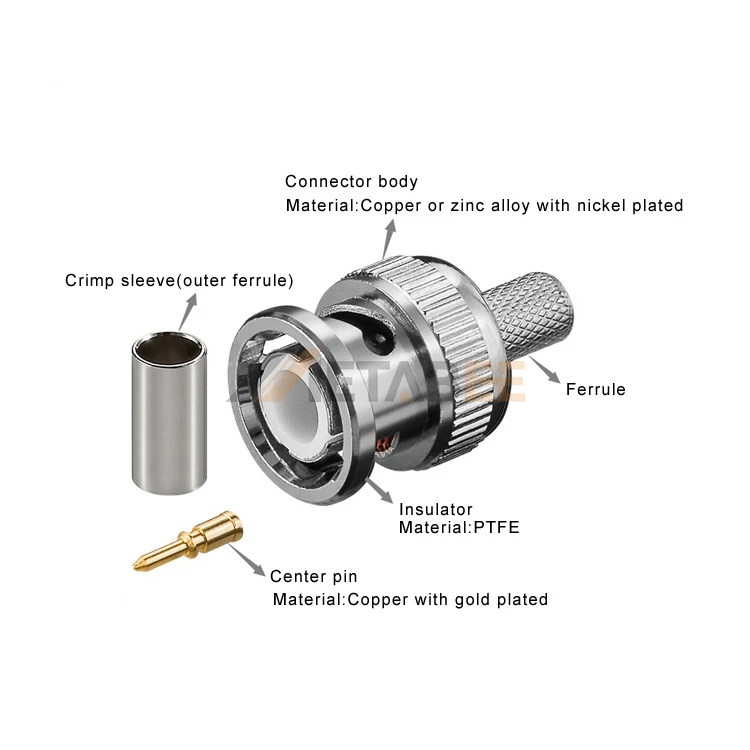

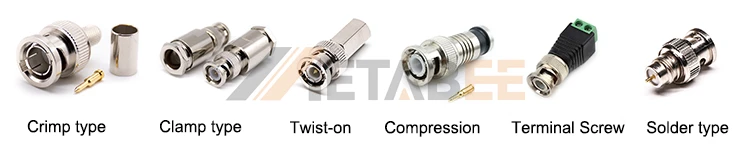

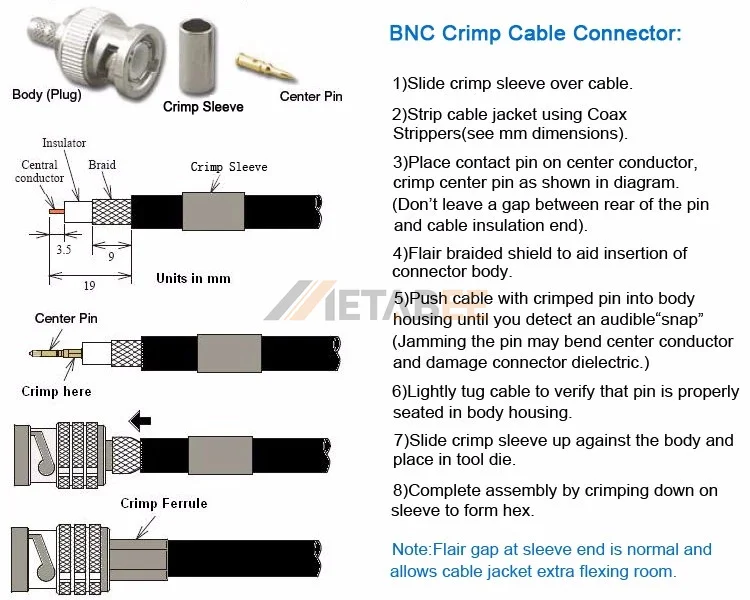

BNC Cable Connector
Impedance | 50 / 75 Ω |
Frequency Range | 0~4 GHz for 50 ohm |
VSWR | R/A type ≦ 1.30/3GHz, Straight type ≦ 1.22/3GHz |
Dielectric Withstanding Voltage | 1500 V rms |
Working Voltage | 500 V rms |
Center Contact Resistance | ≦ 1.5 MΩ (Milliohms Max.) |
Outer Contact Resistance | ≦ 2.0 MΩ (Milliohms Max.) |
Insultation Resistance | ≧ 5 × 10³ MΩ (Milliohms min.) |
Fastening Type | Bayonet |
Contact Retention | 6 lbs min. |
Mating Durability | ≧ 500 Cycles |
Environmental Characteristics | POM -40℃~+60℃, Teflon -55℃~+155℃ |
Coupling Nut Retention | 100 lbs. min. |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
Application
Bayonet Neill–Concelman (BNC) Connector Applications
The BNC connector is a type of RF (Radio Frequency) connector commonly used in telecommunications, video, and electronics industries. It has various applications, including:
The BNC connector is a type of RF (Radio Frequency) connector commonly used in telecommunications, video, and electronics industries. It has various applications, including:

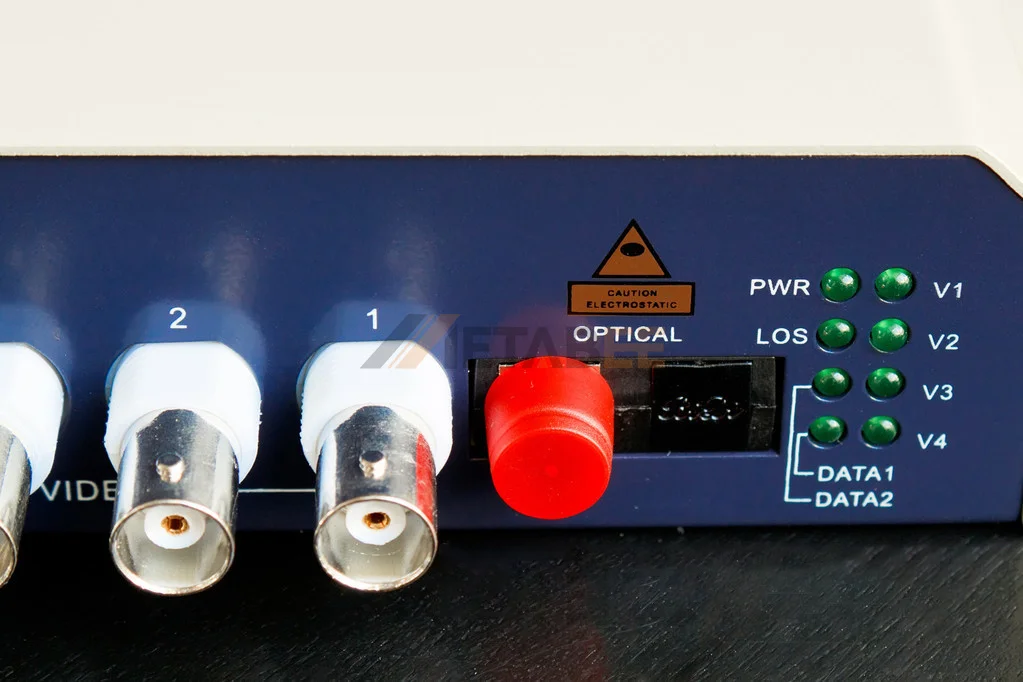

Video and Audio Transmission: BNC connectors are often used to transmit analog video signals in CCTV cameras, video monitors, and professional audio equipment.
Networking: In the past, BNC connectors were used in Ethernet networks as part of the 10BASE2 or "Thinnet" cabling standard. However, this standard is now mostly obsolete and replaced by more modern Ethernet cabling like twisted-pair (RJ45) cables for 10/100/1000BASE-T networks.

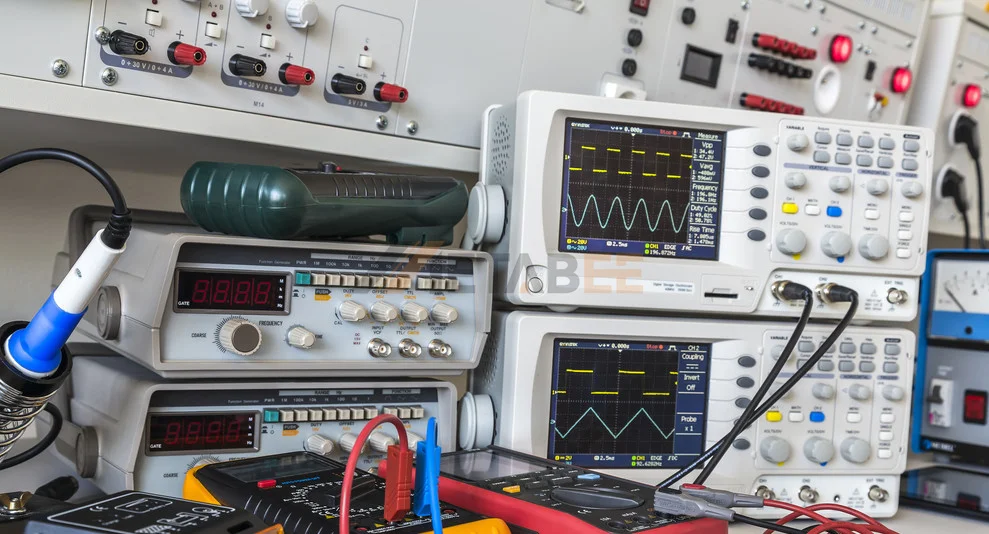

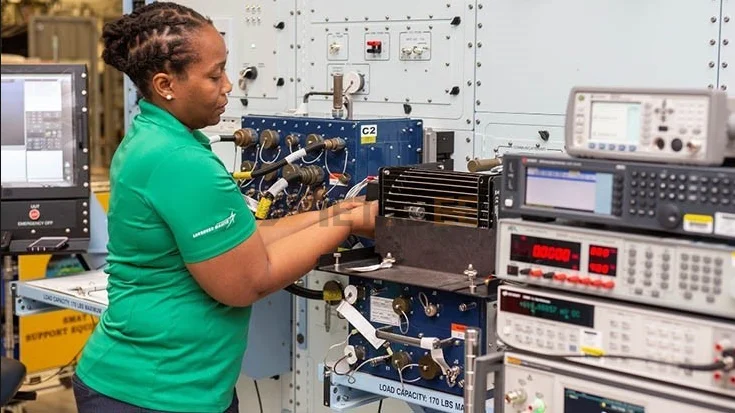

Test and Measurement: BNC connectors are widely used in test and measurement equipment, such as oscilloscopes, signal generators, and spectrum analyzers, to provide a reliable connection for high-frequency signals.
Business Network Communication (BNC) Applications
Business Network Communication refers to communication and collaboration within an enterprise. Some applications include:
Internal Communication: BNC can be used for intra-company communication, enabling employees to connect, share information, and collaborate more effectively.
Document Sharing and Collaboration: BNC platforms can facilitate the sharing of documents, files, and resources among employees, teams, or departments.
Virtual Meetings and Conferencing: BNC systems can support video conferencing, webinars, and virtual meetings, allowing geographically dispersed teams to interact in real-time.
Project Management: BNC tools can aid in project planning, tracking, and coordination, helping teams stay organized and productive.
