Rubri AEM Electrolyzer Hydrogen Production Equipment with High Efficiency and Lower Cost for Green Hydrogen Gas Generating
- Category: >>>
- Supplier: Hefei Sinopower Technologies Co. Ltd.Hefei Ltd.
Share on (1601345363898):
Product Overview
Description
Product Description

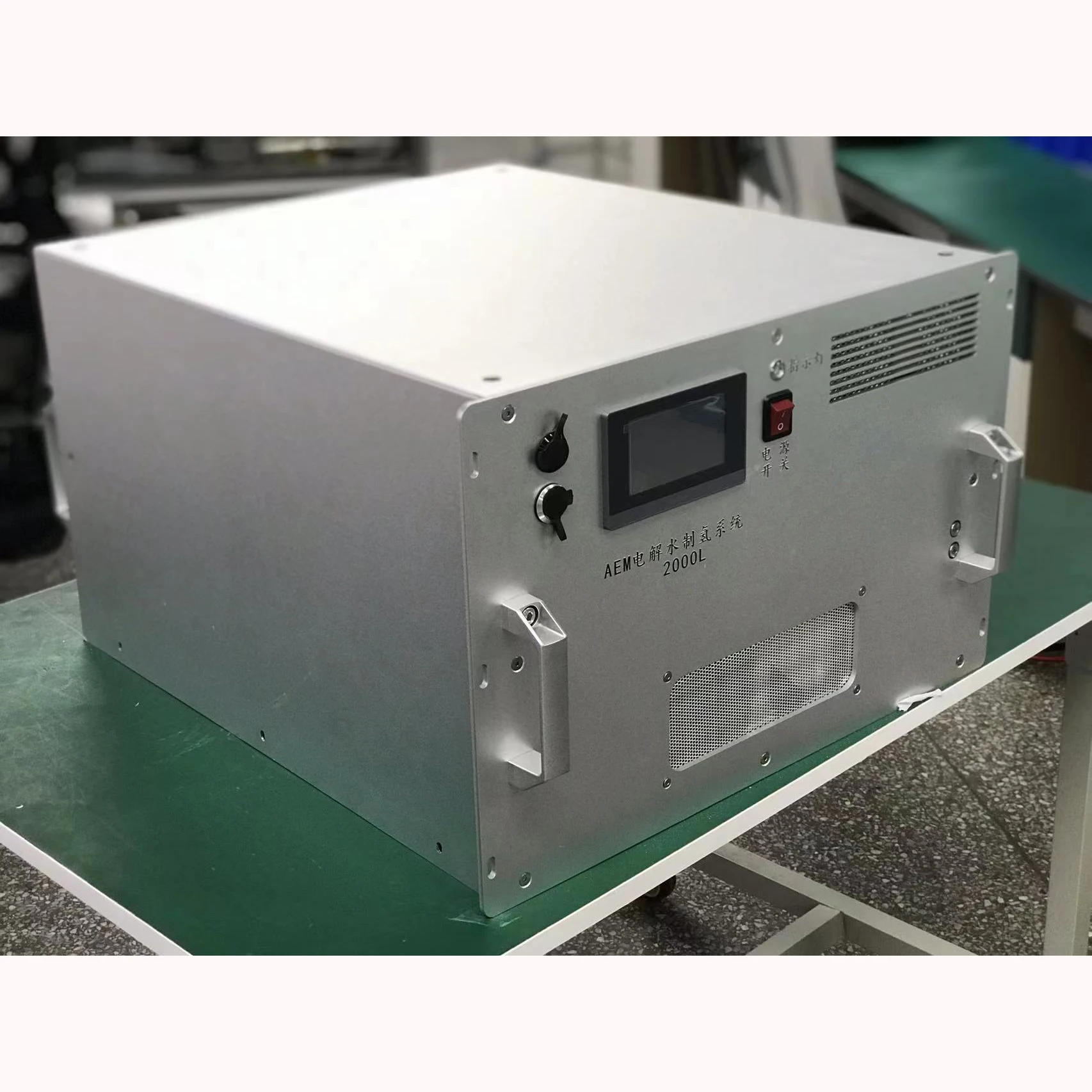

AEM Electrolyzer

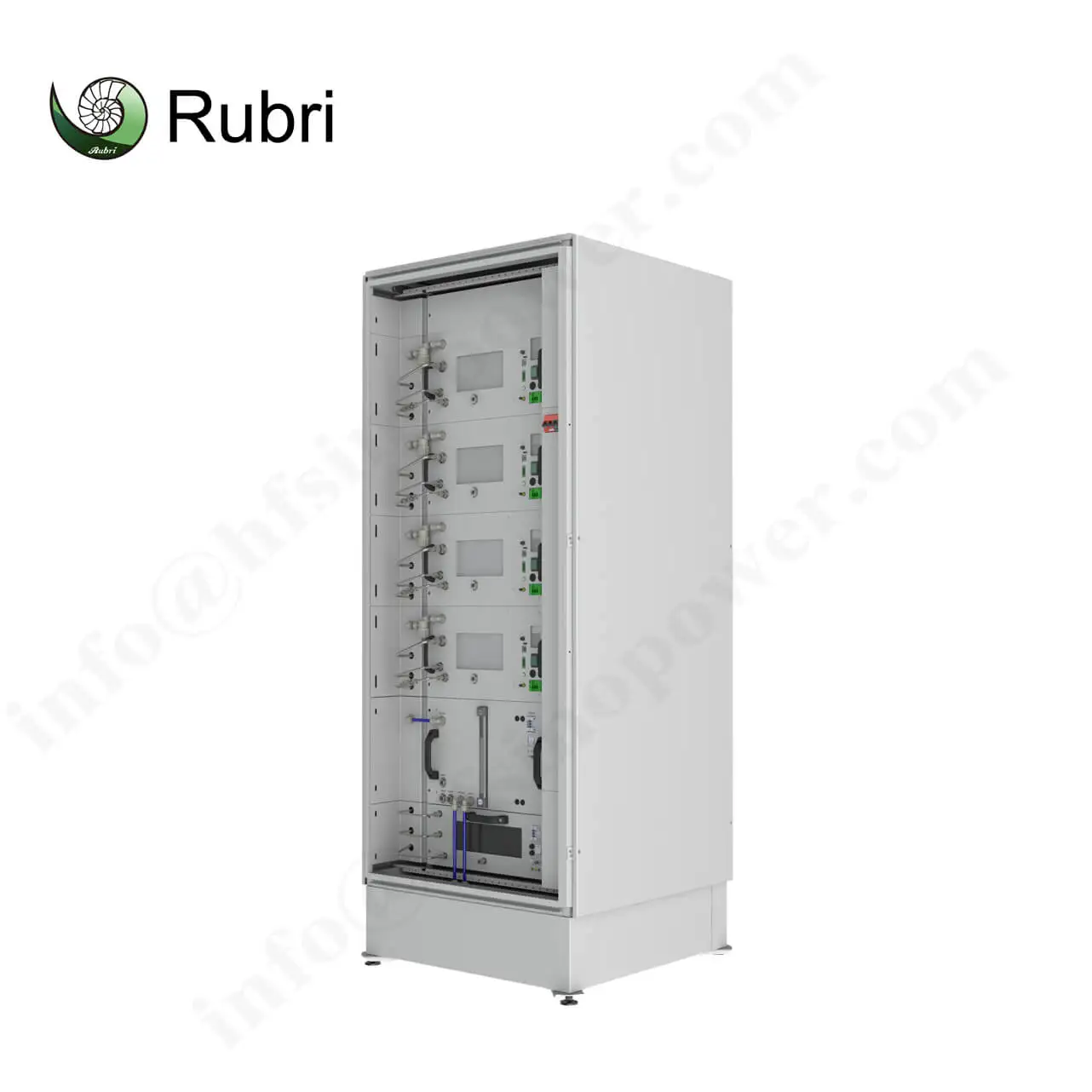

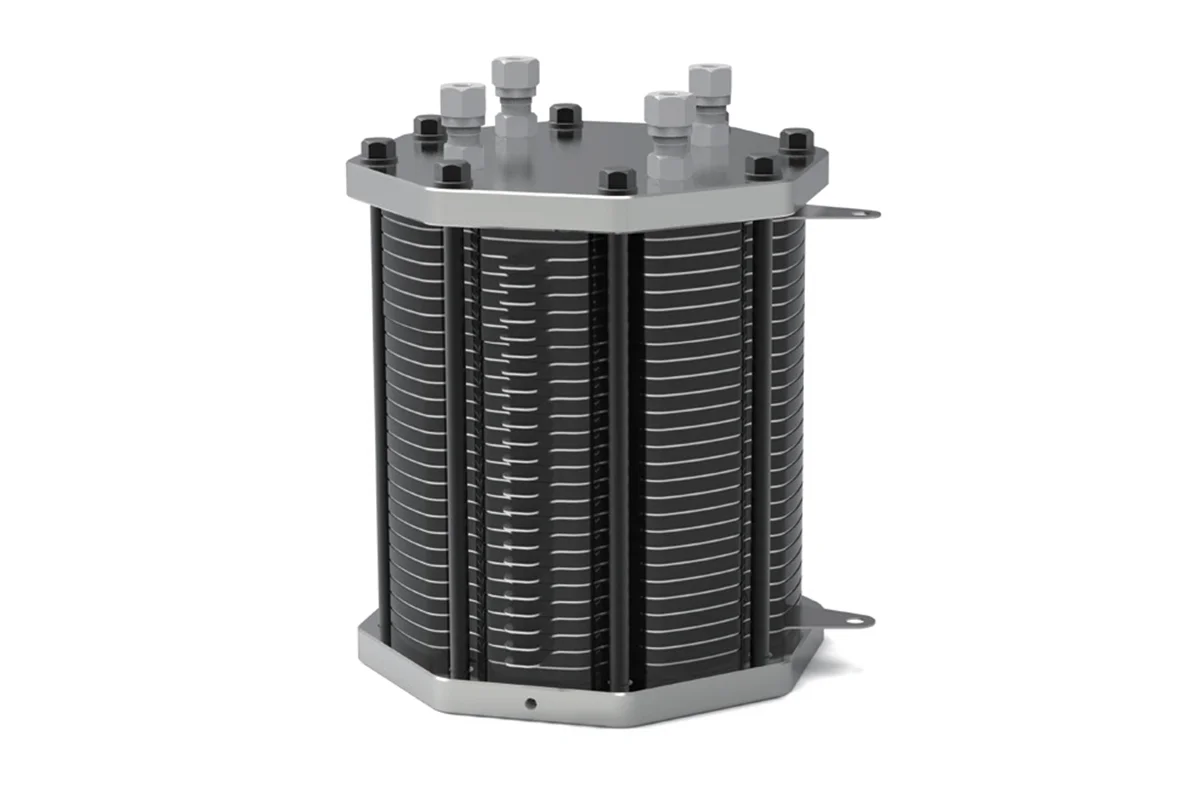

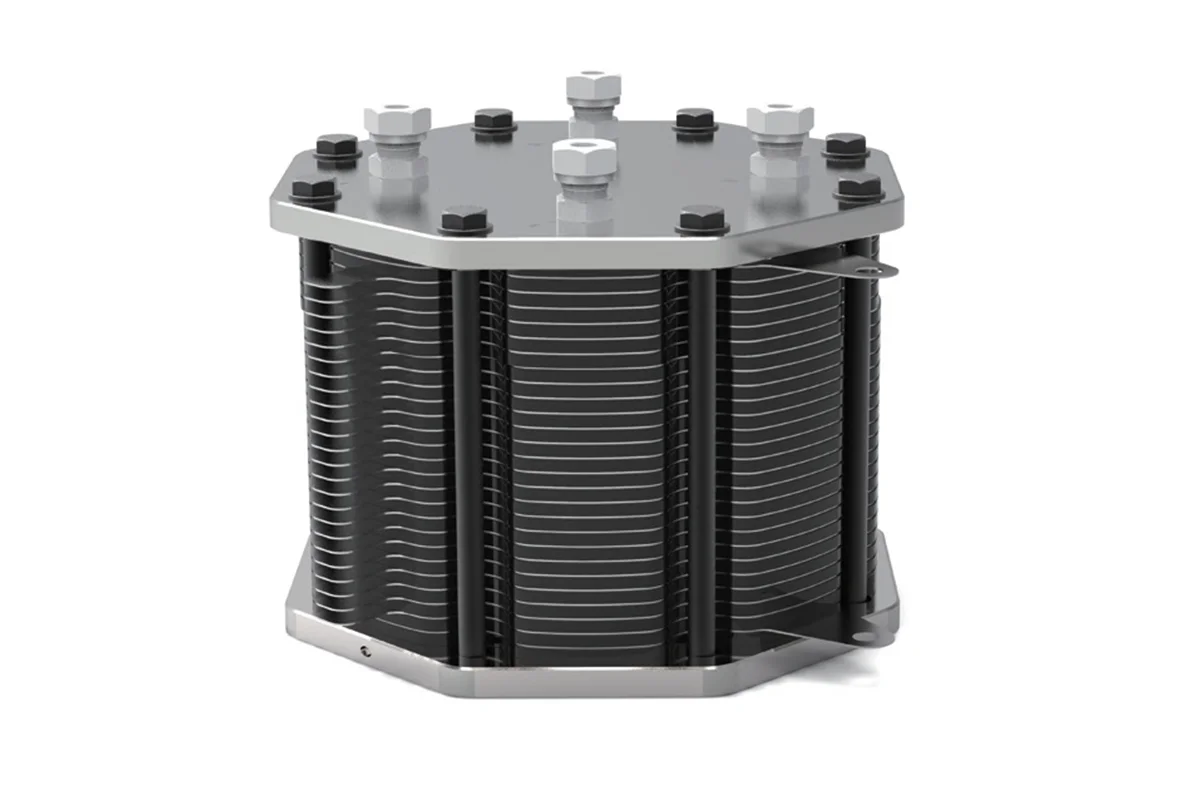

Rubri AEM electrolyzer consists of an AEM electrolyser stack, a control power supply, control system, a radiator, a water tank, a circulating water pump, and a human-computer interaction interface etc.

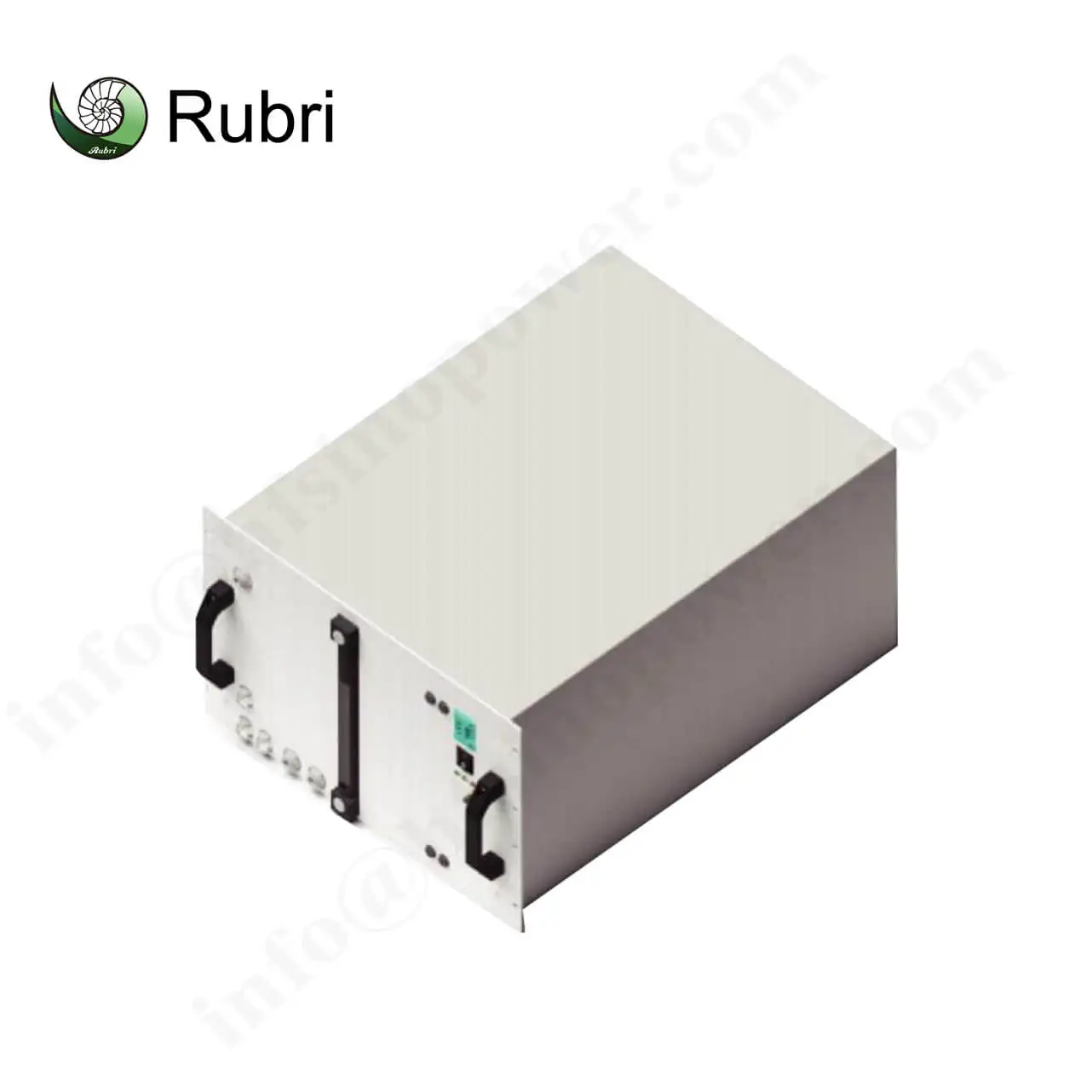

Product structure design adopts a chassis suitable for standard cabinet installation, can be used alone, or multiple units combined together to achieve different scale system integration, to meet customer needs for different hydrogen production capacity.
1. Low energy consumption, long service life, safe and reliable.
2. Low water quality requirements, weak alkaline operating environment, strong system corrosion resistance.

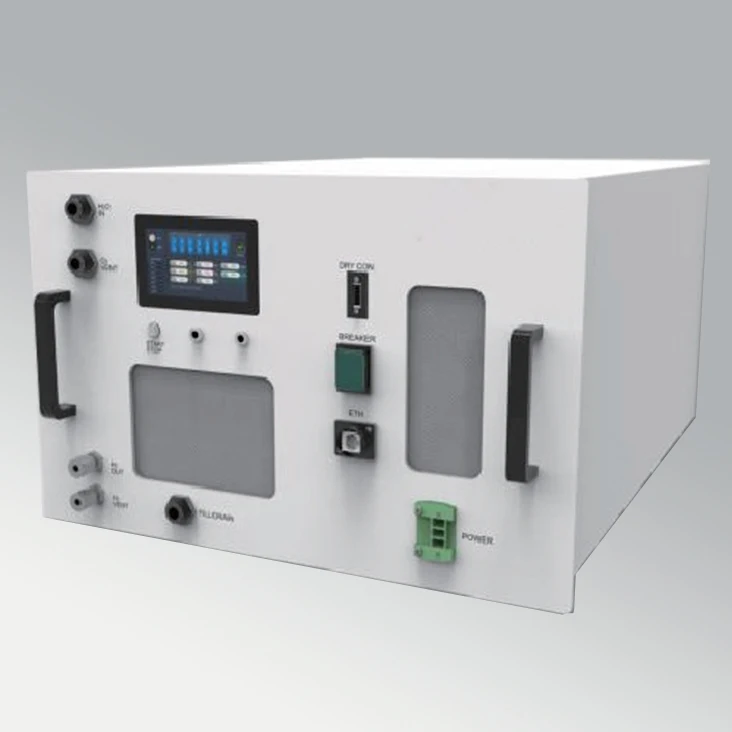

3. The human-machine interaction interface (touch screen) controls the operation of the equipment, reads the operating data, and realizes the functions of start-up, shutdown, operating status display, warning and alarm, and equipment operation safety
management.
4. The system control software realizes the safe control of the process of hydrogen production by electrolysis of water. Complete safety protection measures, active shutdown, ventilation and alarm in case of hydrogen leakage.
5. Single-mode voltage online detection, real-time monitoring of the health status of the single-chip electrolytic cell has remote monitoring control and data acquisition functions, and can be connected to the user's SCADA system through a network cable, and the equipment can be remotely monitored in real time with a mobile phone or computer.
Specifications
Model | Rated H2 production rate | Rated power | H2 purity (after dryer) | H2 outlet pressure |
CH-AEM-600L | 500L/h | 2.5KW | 99.995% | Nominal 1.6MPa |
CH-AEM-2000L | 2000L/h | 10KW | 99.995% | Nominal 1.6MPa |
Hefei Sinopower Technologies Co., LTD., founded in 2011, has been committed to integrating global high-quality resources and supporting the development of China's clean energy industry. The company develops and distributes all kinds of products in the hydrogen energy industry chain, including but not limited to hydrogen production, hydrogen storage, hydrogen supply, electric maintenance and BOP parts, fuel cell system assembly, fuel cell vehicles,etc.
We have an experienced professional technical research and development team, and can provide from the design, product custom development and technical support and other professional services. We work with the University of Science and Technology of China, the University of Auckland, Peru National University, Jilin University, Wuhan University of Technology, Zhongshan University and other domestic and foreign universities and research institutions.
At the same time, our products are exported to the United States, Russia, the Netherlands, Italy, Germany, South Korea, India, Malaysia and other dozens of countries and regions.
