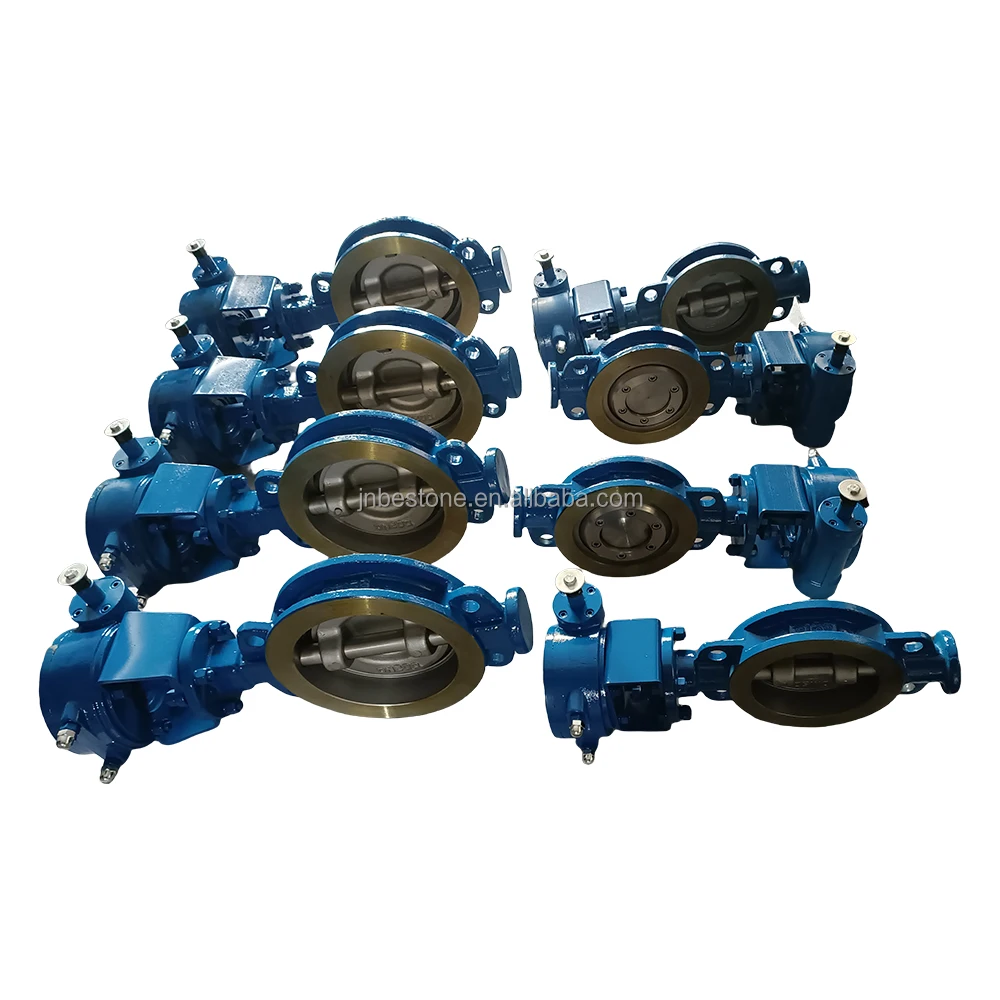

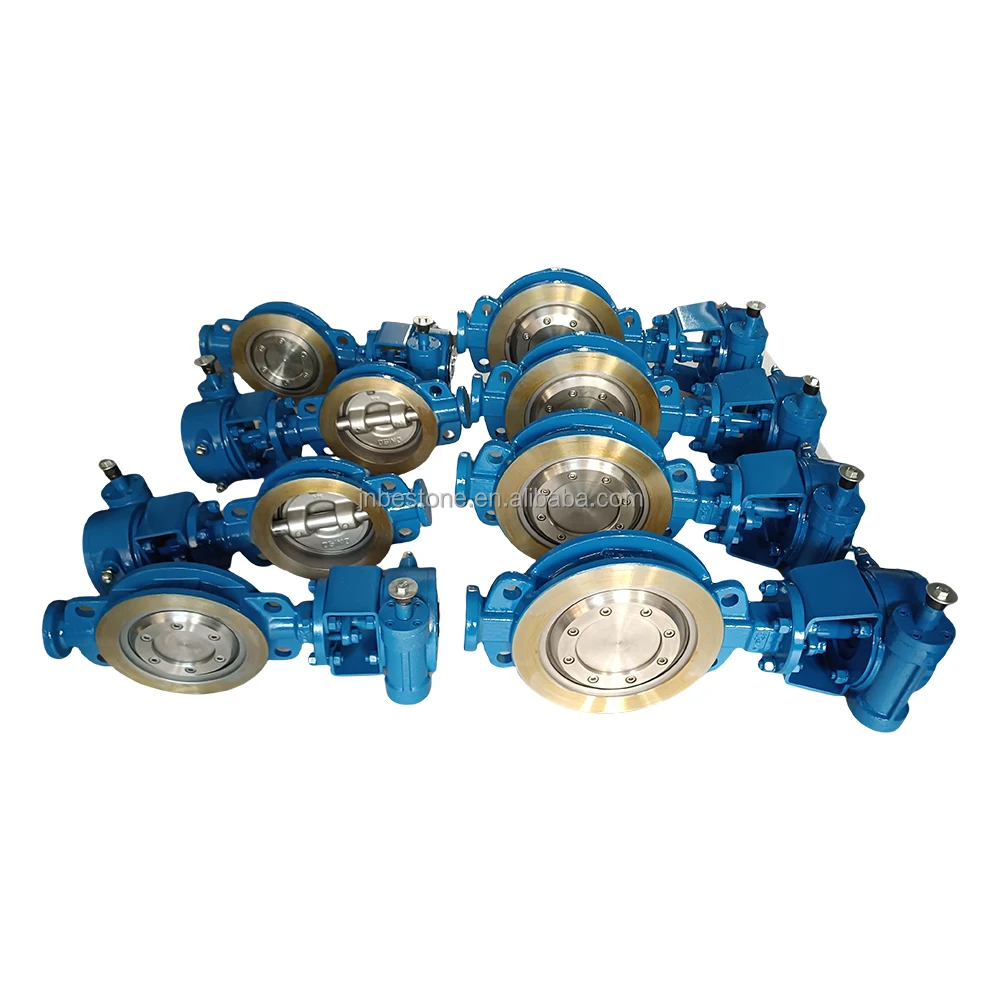

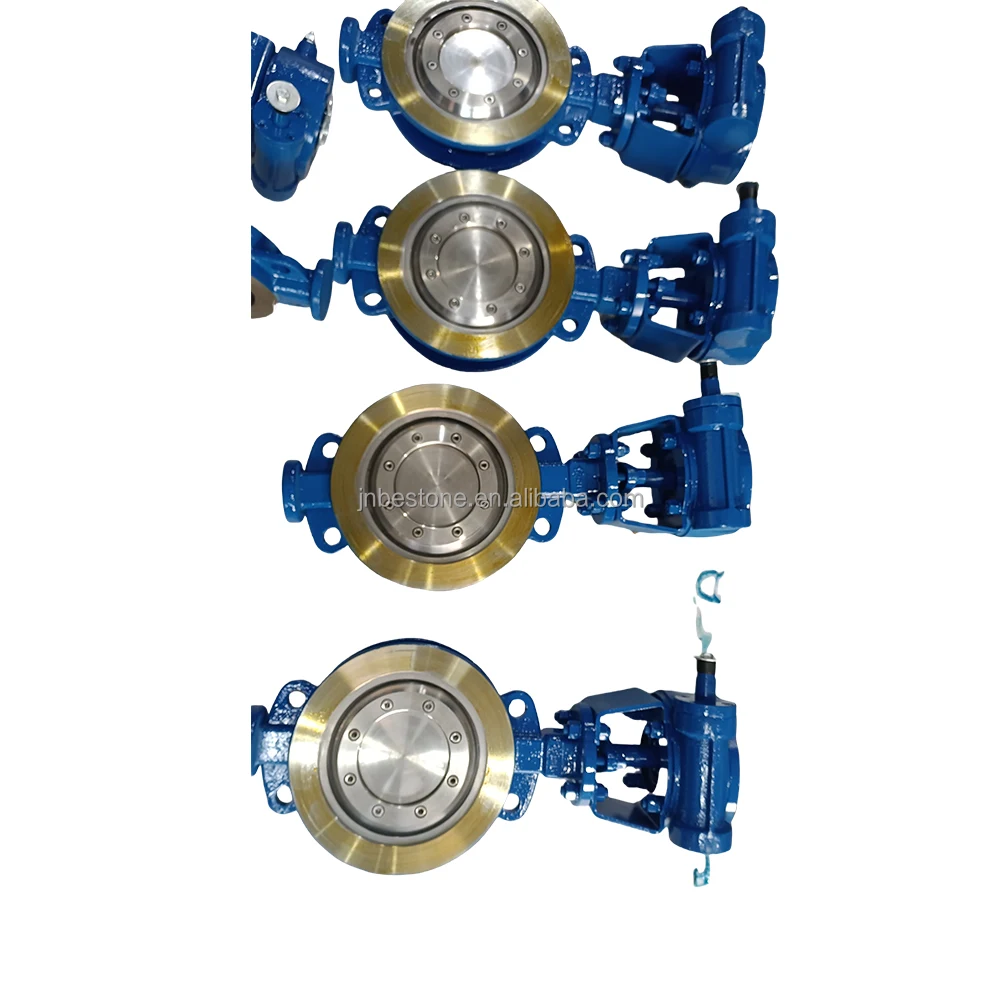

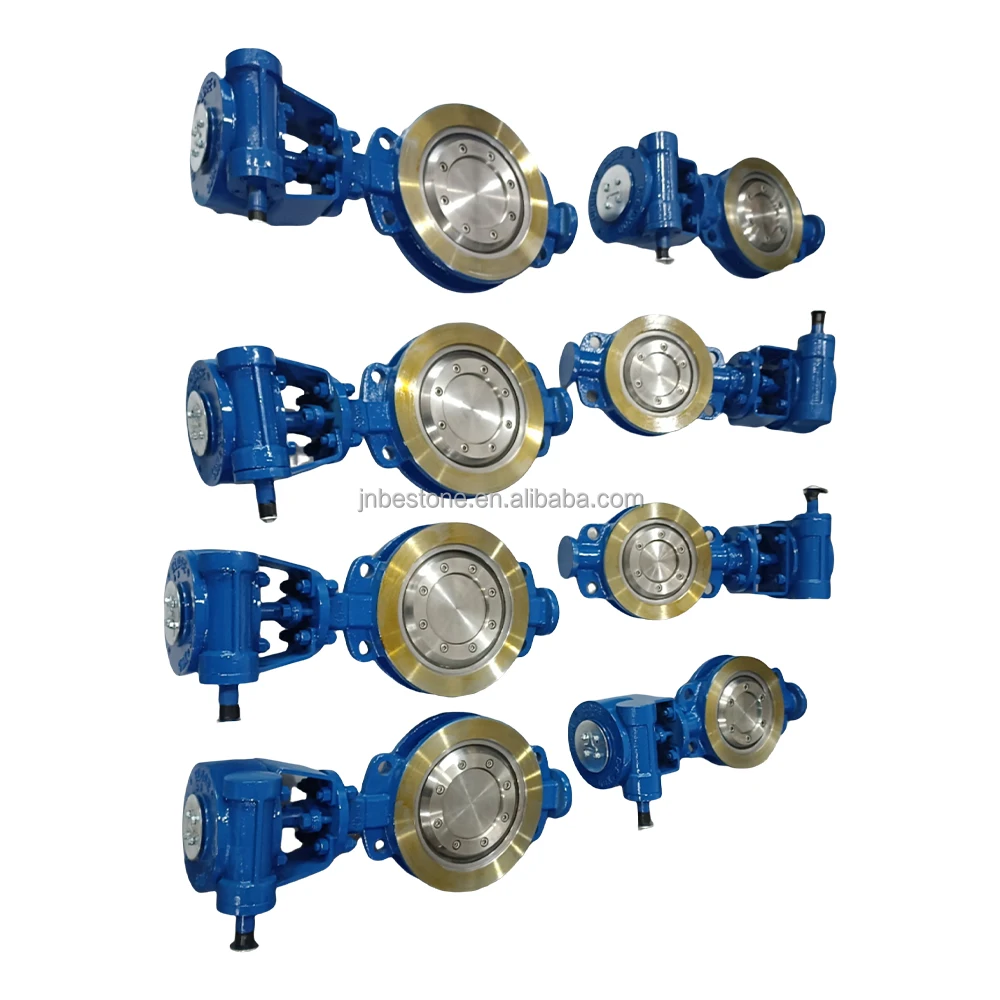

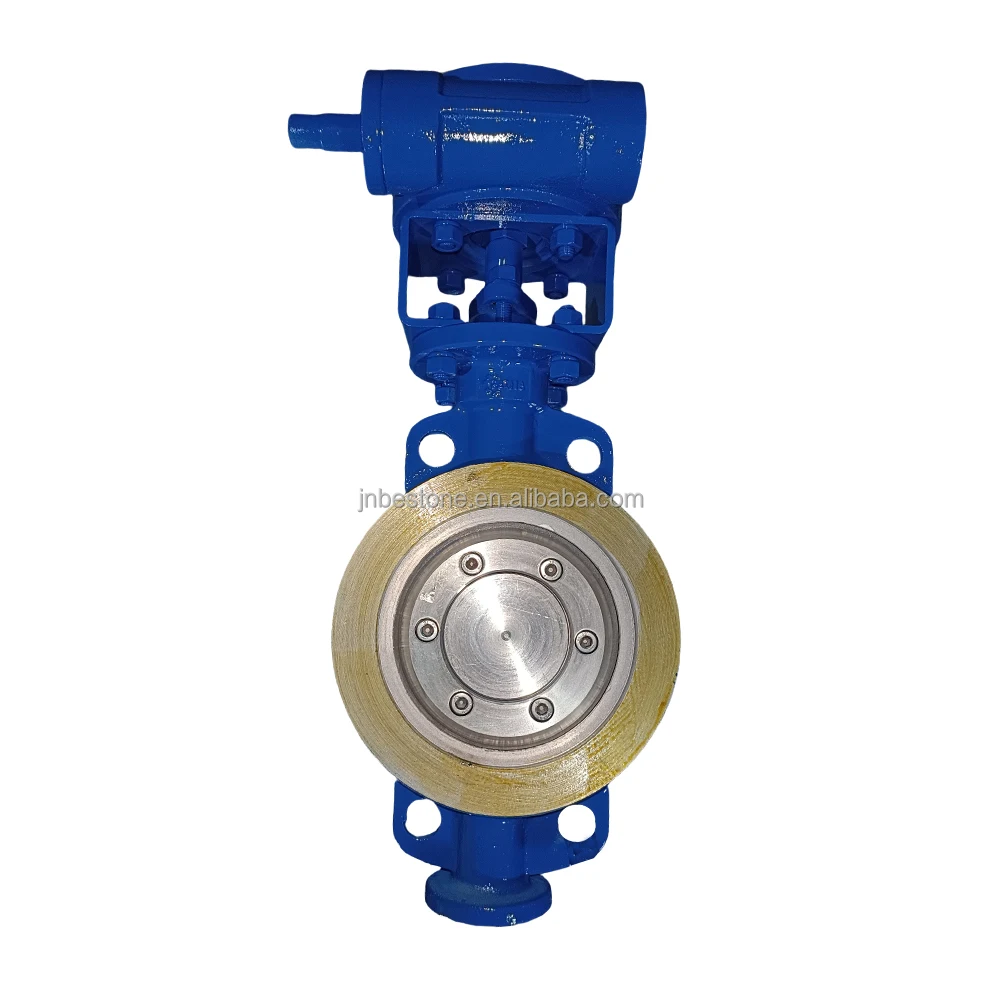

DN200 Hot selling ANSI150 Hard sealing Gear box wafer butterfly valve, metal to metal seat wafer type Butterfly Valve

Technical

1-Design and manufacture as per BS EN593

2-Face to face dimensions as per BS EN558 Series 25

3-Flange dimensions as per Gost 33259-2015

4-Pressure test as per BS EN12266-1

Media: Water, oil and gas

Temperature: -15~350℃

Material for main parts

 1.How to order samples?

We can provide samples, but you need to afford the sample charge and freight, for the big order we will return to you the sample charge, prepare time about 15days.

2.What about the warranty?

We are very confident in our products, we have special quality control department who will 100% check every goods before shipment,we make sure all the goods we sent out to customers are in good condition(Except for the damages caused by the uncontrolled factors during the transportation). when customers receive the goods in 15 days,if there are broken one,please tell us and show us the detail proof so we can check and give replacement in the next order.

3.What is your MOQ?

Our minimum order QTY at least one CBM or one ton. We can accept trial orders.

4.What certificate do you have?

Our valves have FM/UL Approval, ISO, CE, WRAS Approval, ACS Approval ect., all as customer’s requirement.

5.What is the delivery time?

Our production time based on order QTY, generally, one 20feet container need 20-35days, for the customized style or special material production time will be longer.

6.What is your payment term?

TT30% advanced, the balance TT70% before shipment loading. We will show you the copy of BL advanced. or from Alibaba on line.

7.What is your packing?

Our packages are wooden box , pallets, according to customer’s requirement.

8.How about the transportation?

We arrange shipments to any part of the world. Sea way, Air way, Rail way and Express all accept, according to customer’s requirement.
