hot price 5kw12v 24v 48v 96v 220v Vertical Axis Off Grid Free Energy System 600w Wind Turbine Generator solar and wind generator

Share on (1601345431925):


Price:$823.00-933.00

Quantity:


Product Overview

Description









1.Security. Using vertical blades and triangular double-fulcrum,The problems of blade lose/broken or leaf flying-out have been well solved.
2.Noise. Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
3.Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
4.Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.

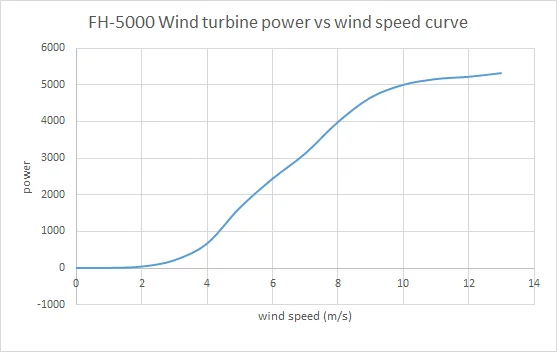

5.Power generation curve.The power generation increasing gently , it could produce 10% to 30% more power than other types of wind turbines.
6.Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
7.Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime.
8.Operation and maintenance. Without gear box and steering mechanism, the wind turbine only needs regula check every 6 months.

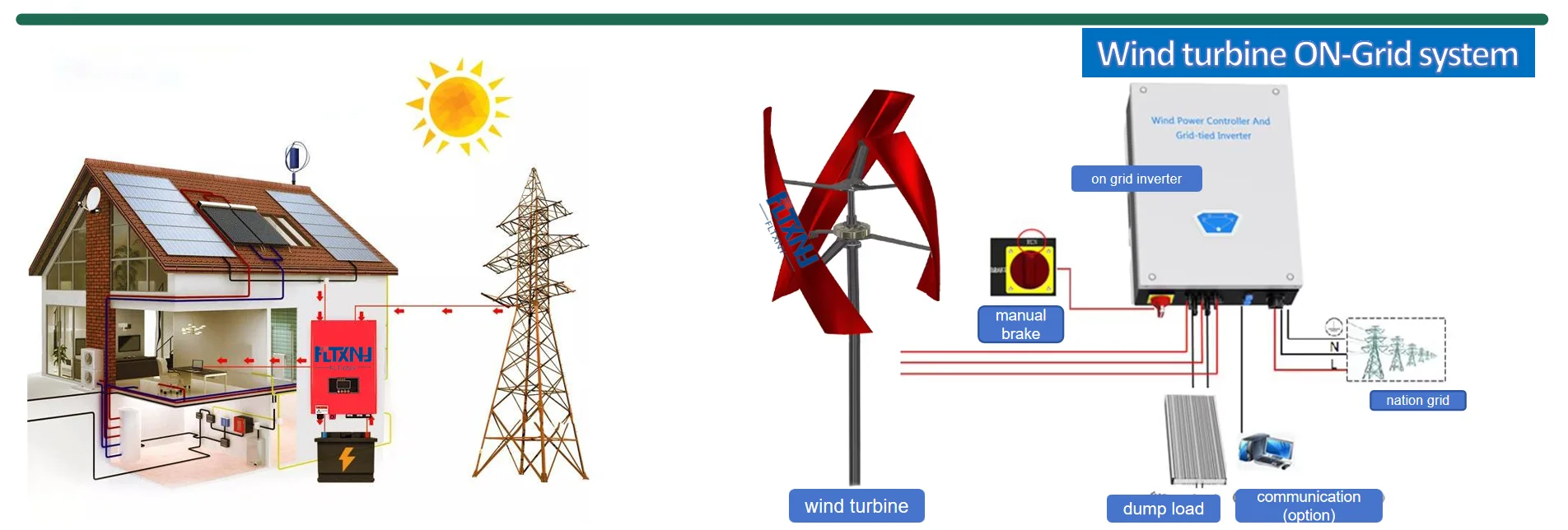

ADVANTAGES OF GRID-TIED SYSTEMS

1. SAVE MORE MONEY WITH NET METERING
A grid-connection will allow you to save more money with wind generator through better efficiency rates, net metering, plus lower equipment and installation costs:
).Batteries, and other stand-alone equipment, are required for a fully functional off-grid wind system and add to costs as well as maintenance. Grid-tied wind systems are therefore generally cheaper and simpler to install.
).Your wind turbine generator will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.
).Net metering (or feed-in tariff schemes in some countries) play an important role in how wind power is incentivized. Without it,residential wind systems would be much less feasible from a financial point of view.
).Many utility companies are committed to buying electricity from homeowners at the same rate as they sell it themselves.

2. THE UTILITY GRID IS A VIRTUAL BATTERY
).Electricity has to be spent in real time. However, it can be temporarily stored as other forms of energy (e.g. chemical energy in batteries). Energy storage typically comes with significant losses.
).The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity (and more money) goes to waste with conventional battery systems.
).According to EIA data[1], national, annual electricity transmission and distribution losses average about 7% of the electricity that is transmitted in the United States. Lead-acid batteries, which are commonly used with solar panels, are only 80-90% efficient at storing energy, and their performance degrades with time.
).Additional perks of being grid-tied include access to backup power from the utility grid (in case your solar system stop generating electricity for one reason or another). At the same time you help to mitigate the utility company`s peak load. As a result, the efficiency of our electrical system as a whole goes up.

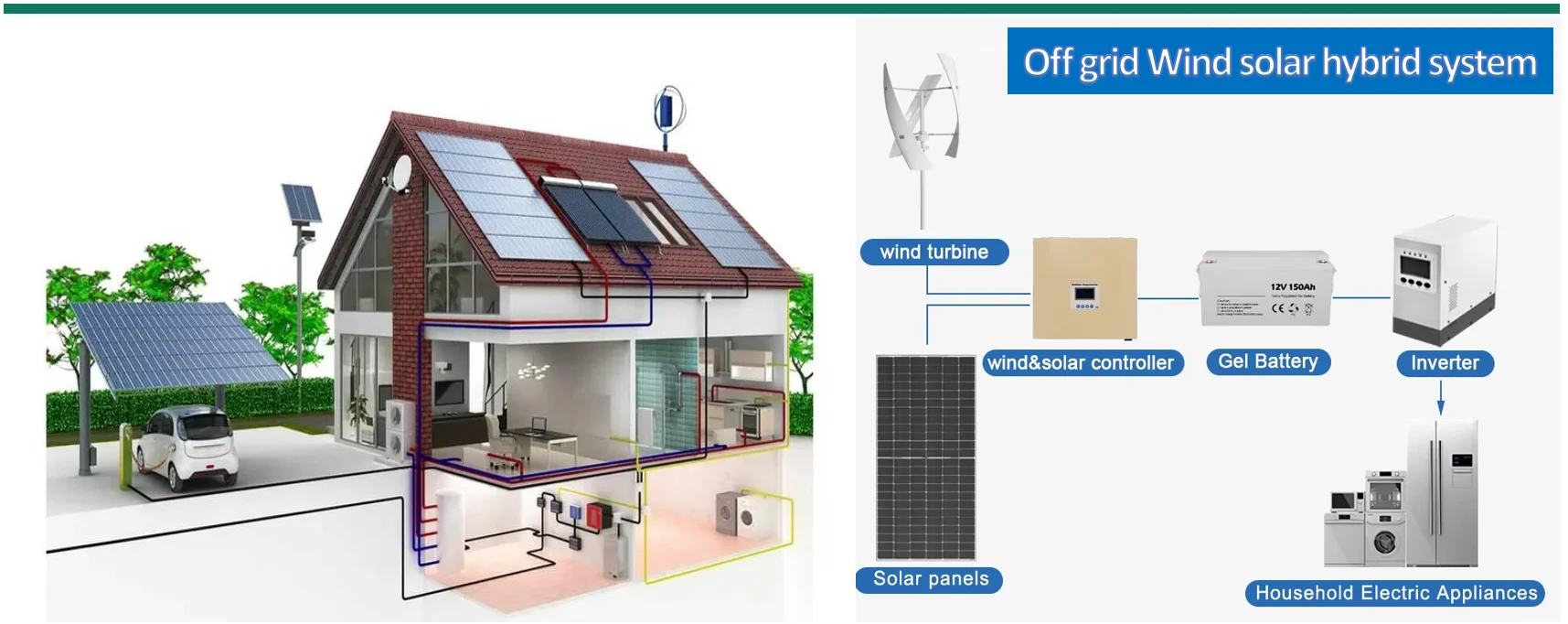

ADVANTAGES OF OFF-GRID SOLAR SYSTEMS
1. NO ACCESS TO THE UTILITY GRID
Off-grid solar systems can be cheaper than extending power lines in certain remote areas.
Consider off-gird if you’re more than 100 yards from the grid. The costs of overhead transmission lines range from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).

2. BECOME ENERGY SELF-SUFFICIENT
Living off the grid and being self-sufficient feels good. For some people, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Power failures on the utility grid do not affect off-grid wind systems.
On the flip side, batteries can only store a certain amount of energy, and during cloudy times, being connected to the grid is actually where the security is. You should install a backup generator to be prepared for these kinds of situations.

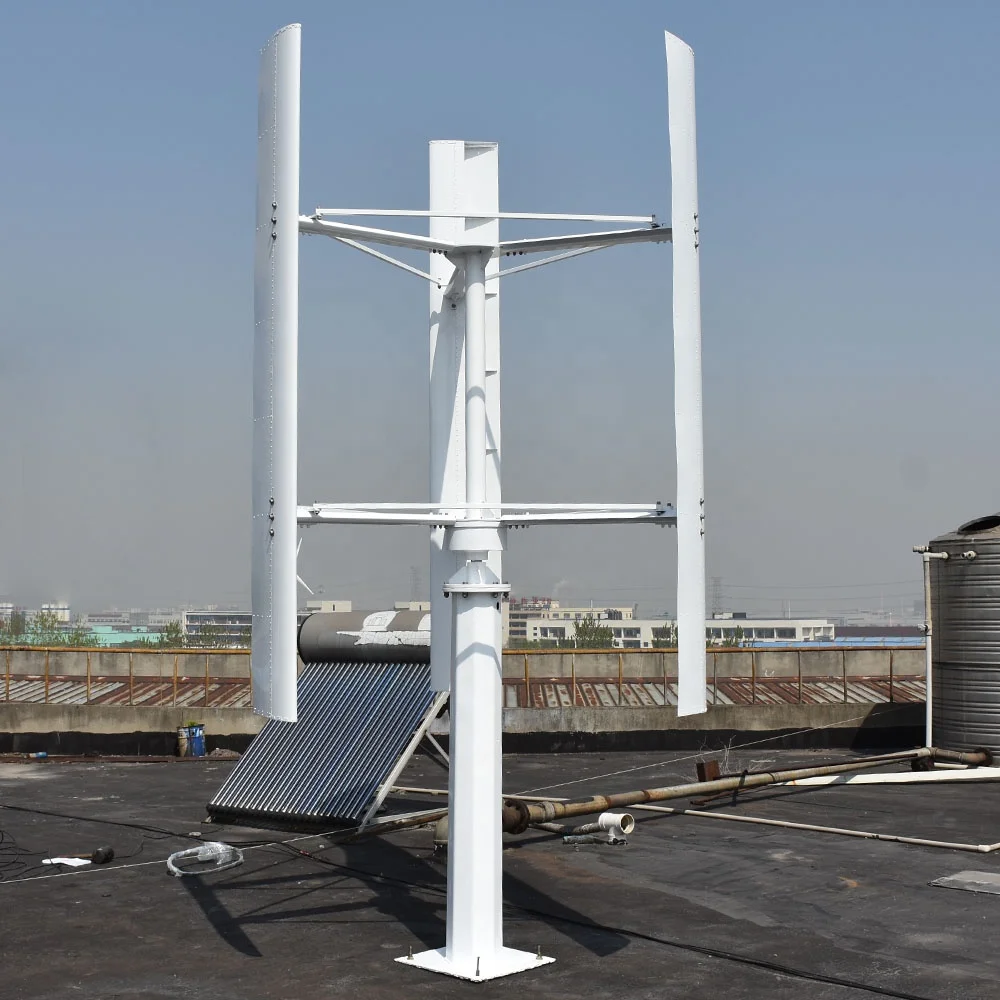

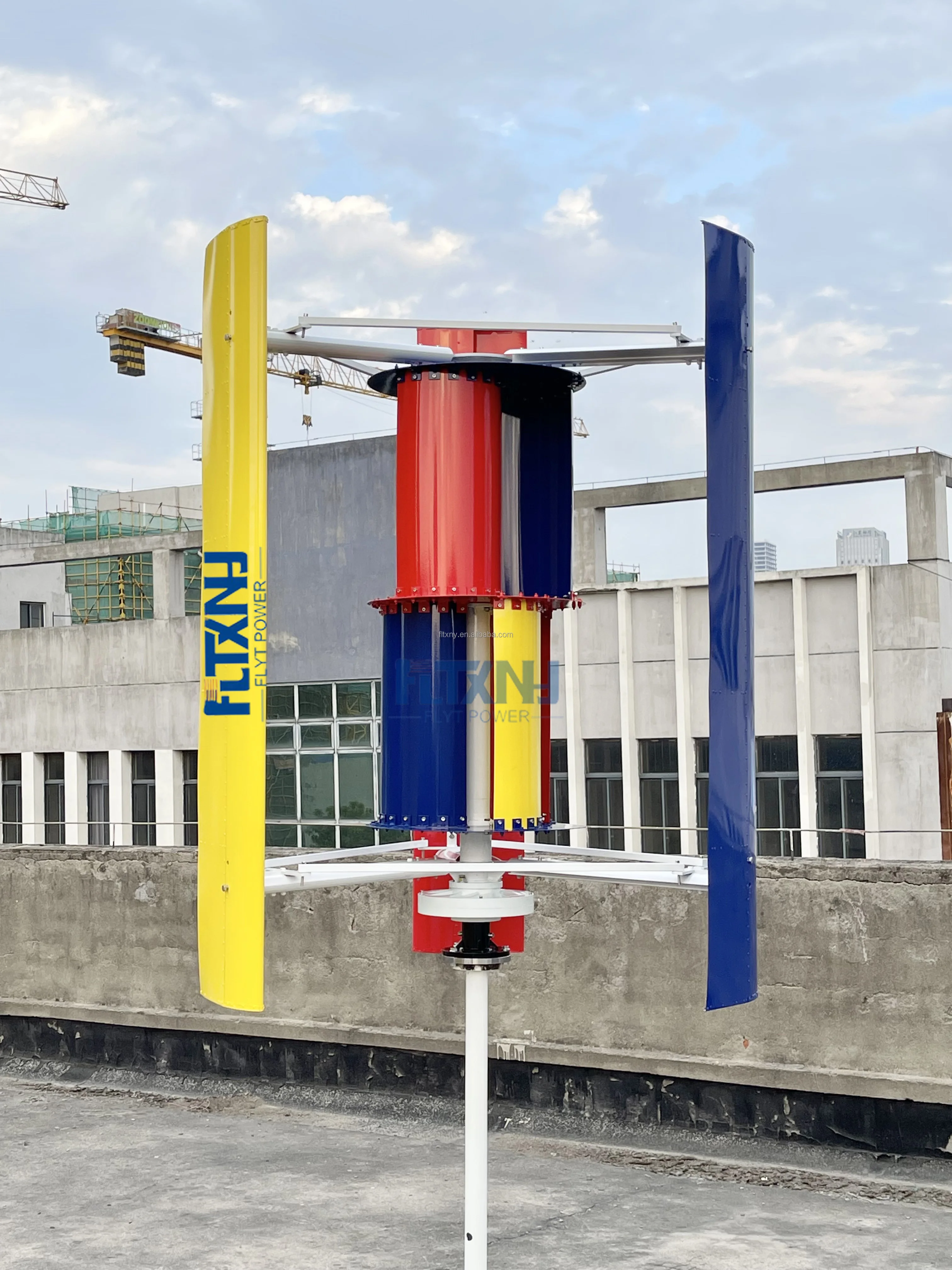

Noiseless Vertical Wind Generator Wind Turbine with Solar Panel and Inverter

Firstly , We originally adopt new composite flexible material for blades,with the features of longer lifetime,Resistance to strong
winds brighter color appearance.

Secondly,Model X is made of vertical maglev generator,lighter but more powerful,more efficient,noiseless, fitting for household.

Thirdly, New patented technology for blades bracket,more stable rotating speed,more sweep wind area.

Fourth,Unique smart controller function, strongly improve the wind energy,efficiently harvest electrical energy.

Fifth:The whole body of wind turbine are coated with anti-corrosive protective coating,effectively prevent wind and rain damage.

Hope to be your trustworthy supplier in China!

Win-win cooperation!

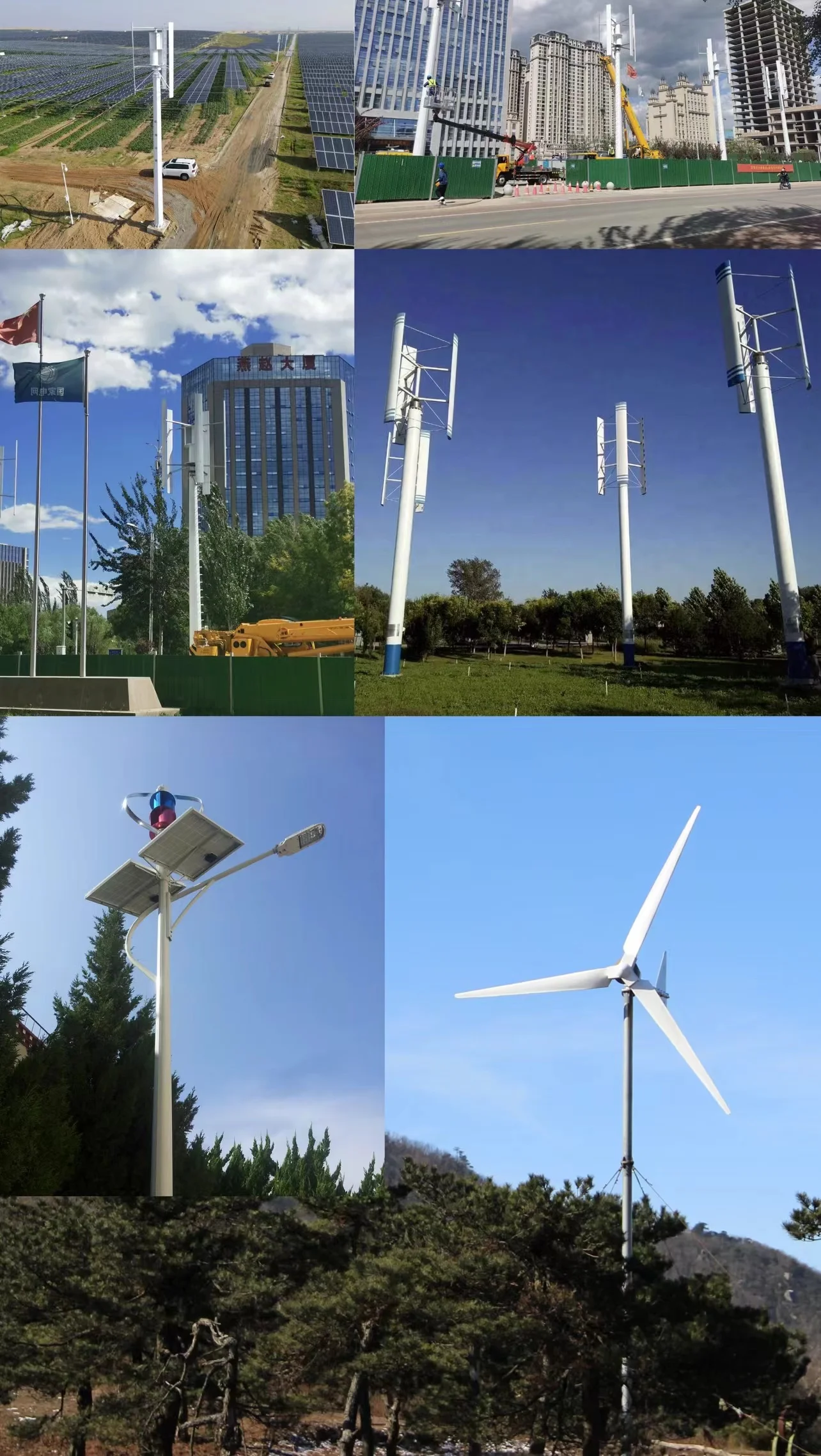

--Household,Garden,Farm,Urban,Rooftop--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection




Model
FH1K
FH2K
FH3K
FH3K-2
FH5K
Rated Power
1000W
2000W
3000W
3000W
5000W
Max Power
1200W
2300W
3300W
3500W
6000W
Blades Length
1.3M
1.8M
2.0M
2.0M
2.8M
Wheel Diameter
0.8M
1.2M
1.4M
1.4M
1.8M
Generator Type
Maglev coreless
Maglev coreless
Iron-core
Iron-core
Maglev coreless
Rated Voltage
12v-48v
24V~220V
48V~220V
48V~220V
48V~380V
Start Up Speed
1.3m/s
1.3m/s
1.3m/s
1.3m/s
1.5m/s
Rated Wind Speed
10m/s
10m/s
10m/s
10m/s
10m/s
Cut in wind speed
2.5m/s
2.5m/s
2.5m/s
2.5m/s
2.5m/s
Survival Wind Speed
40m/s
40m/s
40m/s
40m/s
40m/s
Blades Quantity
3 pcs
3 pcs
3 pcs
3 pcs Include boost drum
3 pcs
Blades Material
Aluminium alloy
Working Temperature
-40℃~+40℃
Protection Level
IP54
Working environment humidness
≤90%
Altitude
≤4500m
Install Height
3~12m
Overload Protection
Electromagnetic Brake




Model
FH6K
FH7K
FH8K-1
FH8K-2
FH8K-3
FH10K
Rated Power
6000W
7000W
8KW
8KW
8KW
10KW
Max Power
6200W
7200W
10KW
9KW
10KW
12KW
Blades Length
3.2M
3.2M
3.2M
3.6M
3.6M
3.6M
Wheel Diameter
2.0M
2.0M
2.0M
2.4M
2.4M
2.4M
Generator Type
Iron-core
Iron-core
Maglev coreless
Iron-core
Iron-core
Maglev coreless
Rated Voltage
48V~380V
96V~380V
48V~380V
96V~380V
48V~380V
48~380V
Start Up Speed
2.0m/s
2.0m/s
2.0m/s
2.0m/s
2.0m/s
2.0m/s
Rated Wind Speed
11m/s
11m/s
11m/s
11m/s
11m/s
11m/s
Cut in wind speed
2.5m/s
2.5m/s
2.5m/s
2.5m/s
2.5m/s
2.5m/s
Survival Wind Speed
50m/s
50m/s
50m/s
50m/s
50m/s
50m/s
Blades Quantity
3 pcs
3 pcs
3 pcs Include double boost drum
3 pcs
3 pcs Include double boost drum
3 pcs Include double boost drum
Include double boost drum
Blades Material
Aluminium alloy
Working Temperature
-40℃~+40℃
Protection Level
IP54
Working environment humidness
≤90%
Altitude
≤4500m
Install Height
2~12m
Overload Protection
Electromagnetic Brake
Gross Weight
219kg
259kg
280kg
290kg
300kg
320kg


High Efficiency Horizontal Axis Grid Tie wind power generator 10kw china wind generator wind generator turbine
wind power generator 10kw wind generator turbine china wind generator




















Feedback from customers around the world






1,Competitive Price --We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality --All products will be produced in our factory so we can show you every detail of the production and let
you check the quality of the order. 3. Multiple payment methods -- We accept online Alipay, bank transfer,Paypal ,LC, Western
union etc. 4,Various forms of cooperation --We are not only offer you our products, if it is needed, we could be your partner and
design product according to your requirement. Our factory is your factory! 5.perfect after-sales service --As a manufacturer of
wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever
happens,we will solve it at the first time.
