Product Overview
Description
Product Description

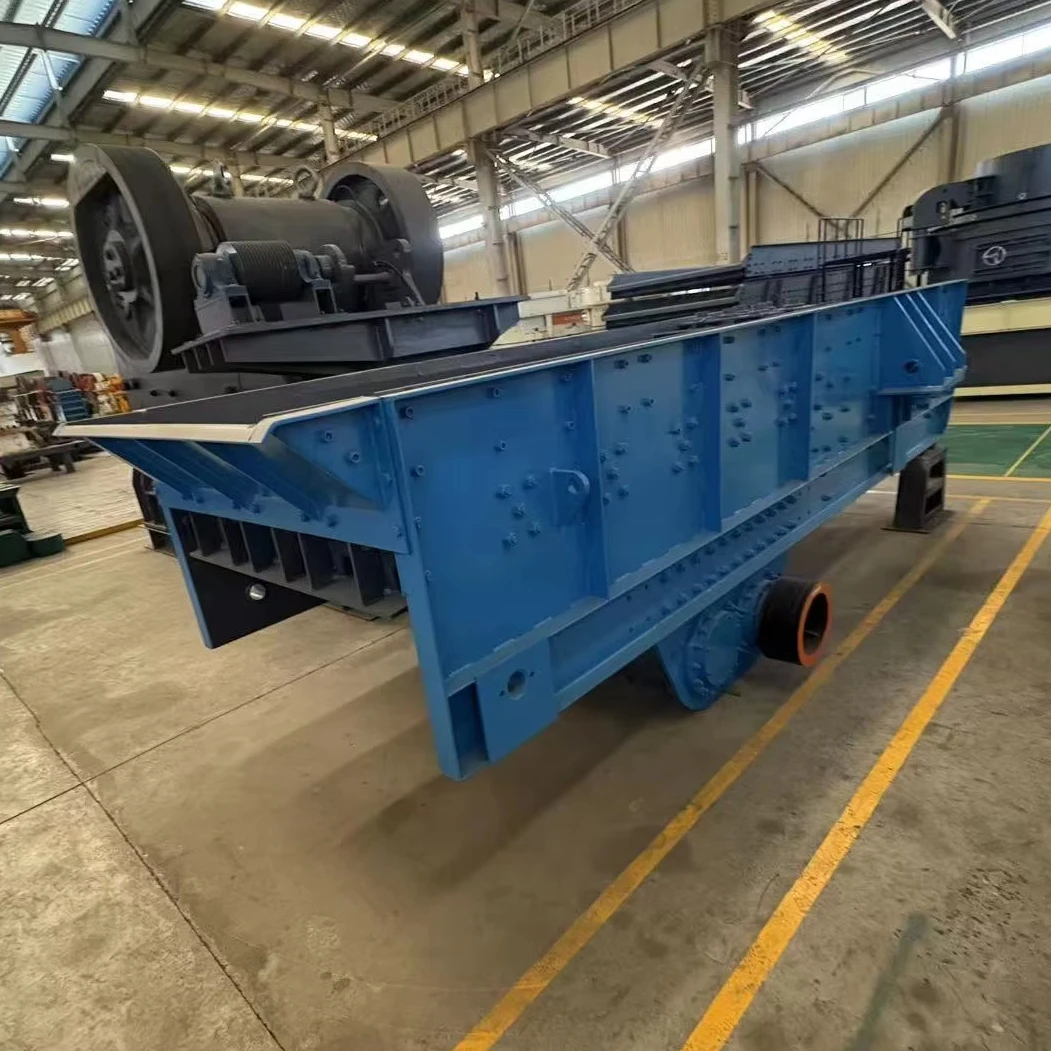

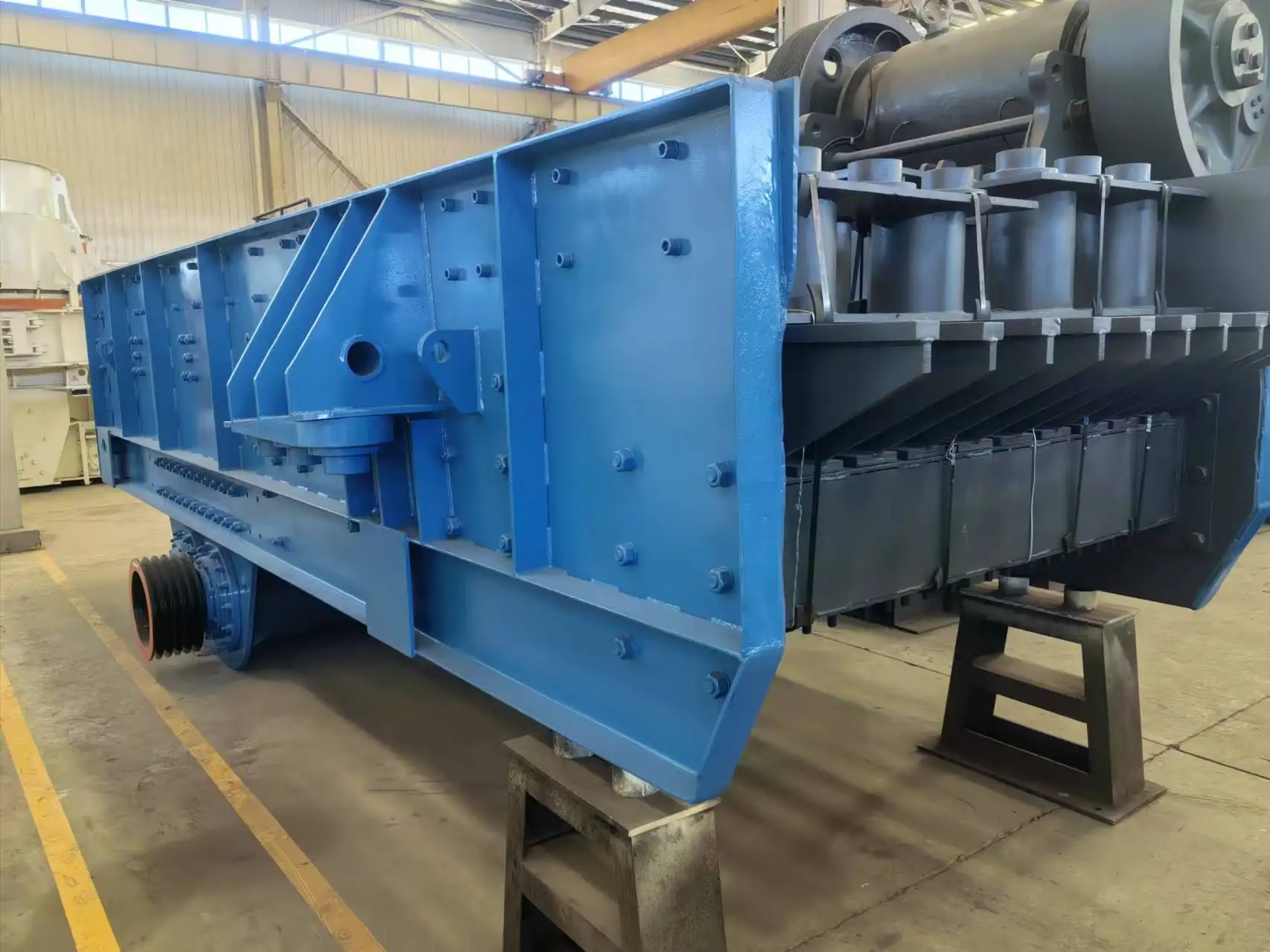

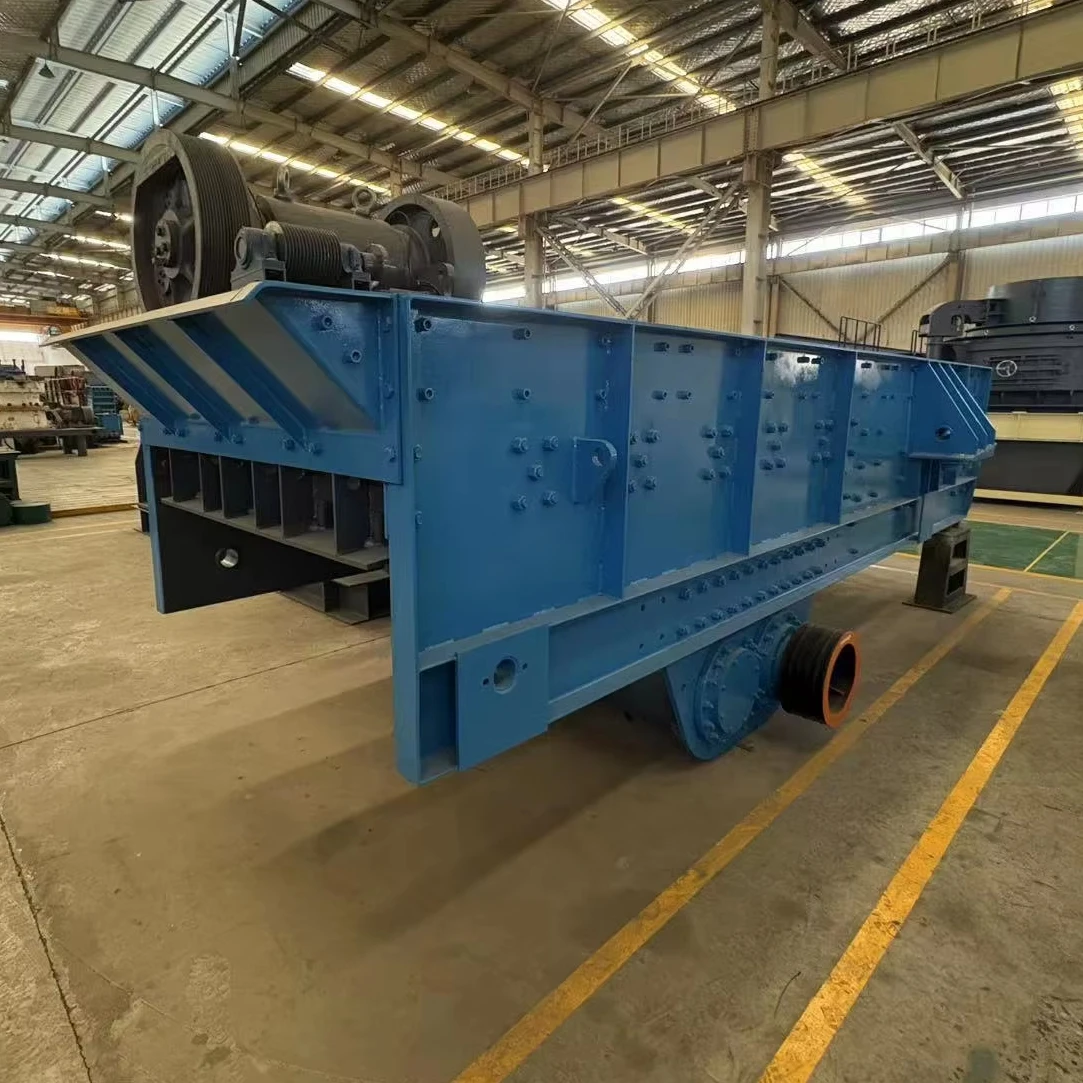

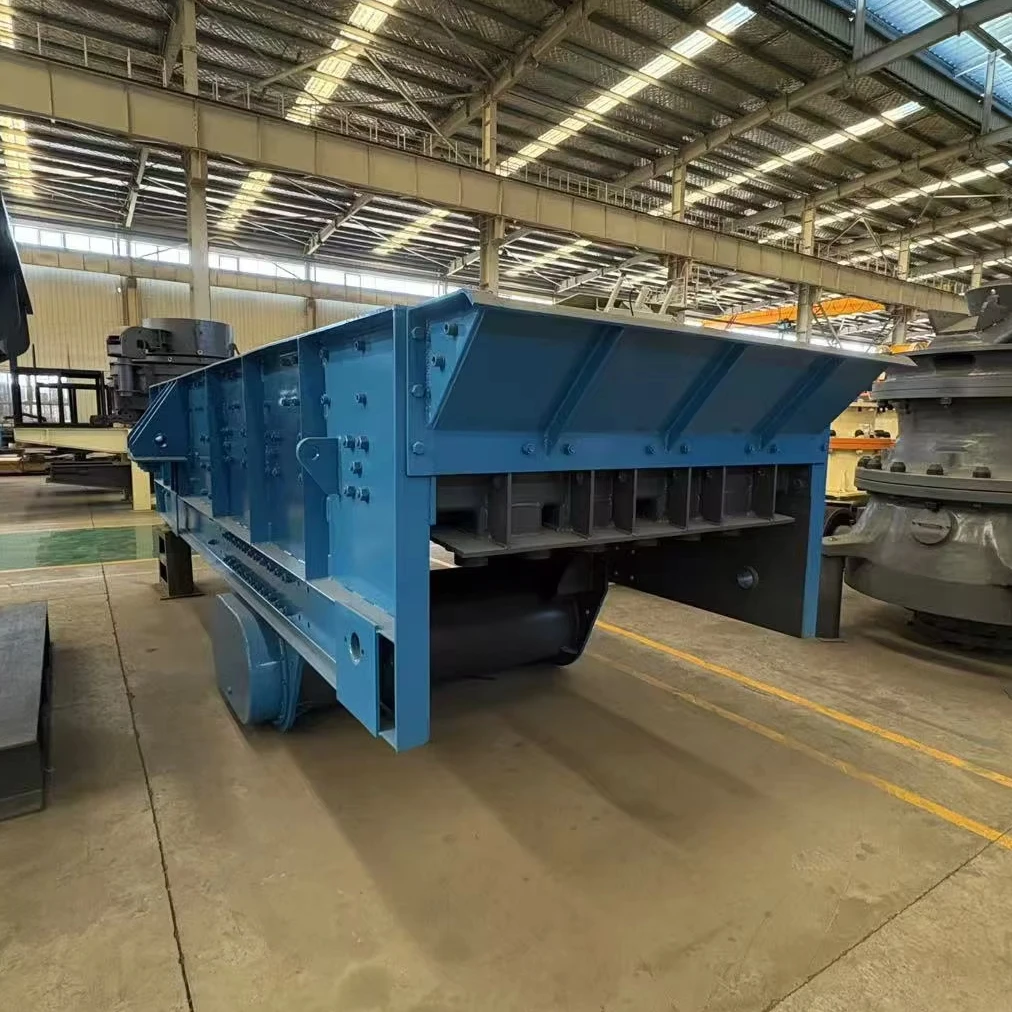

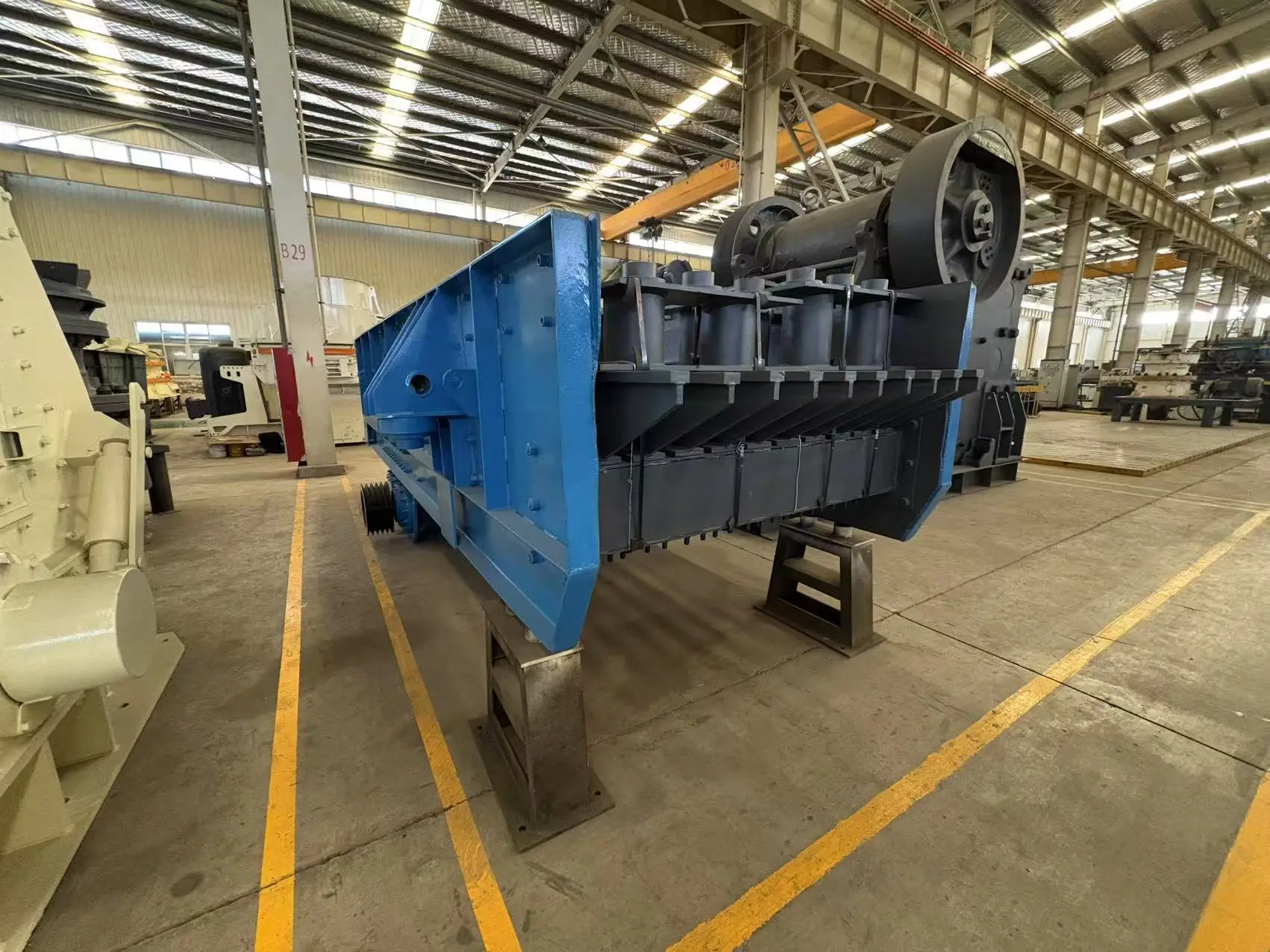

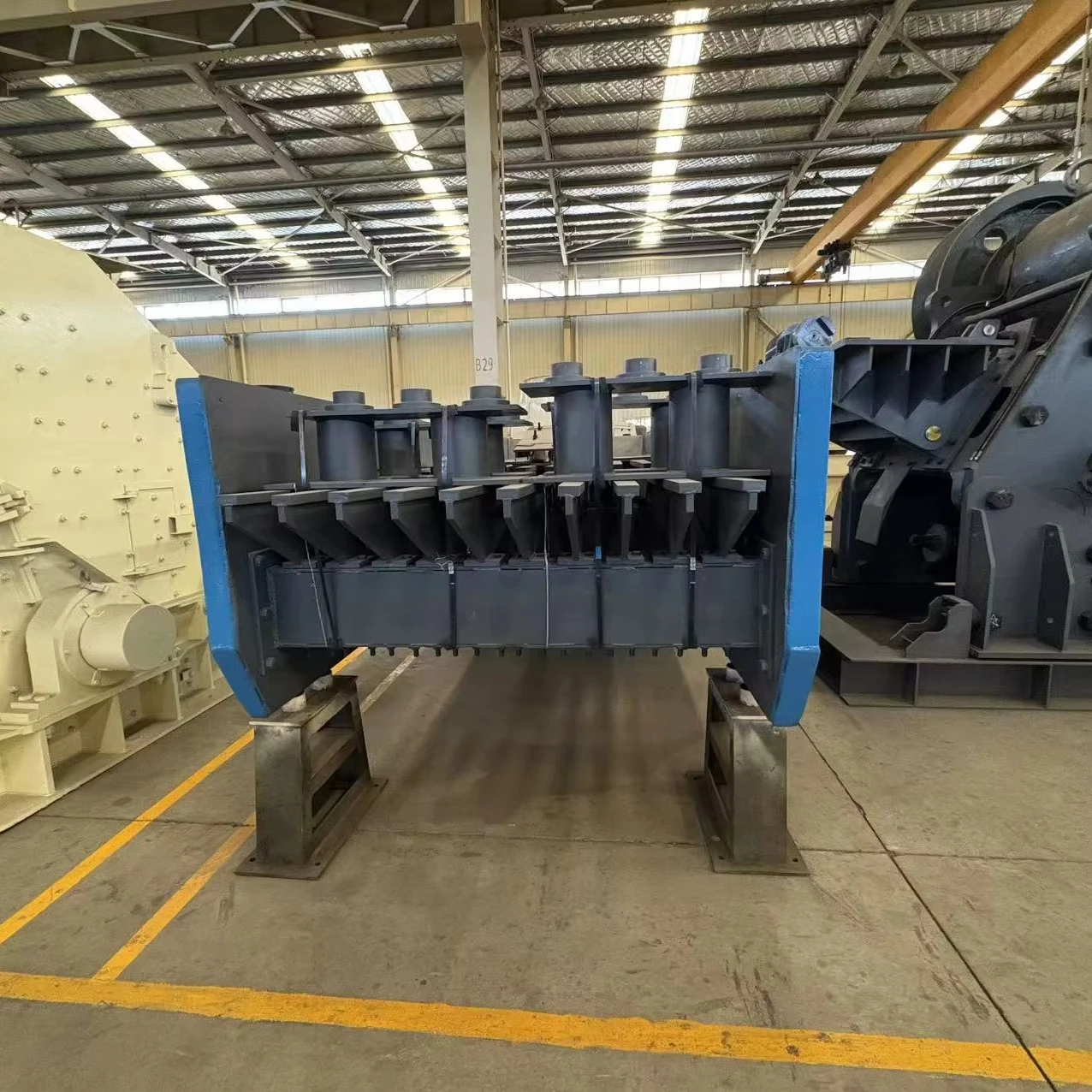

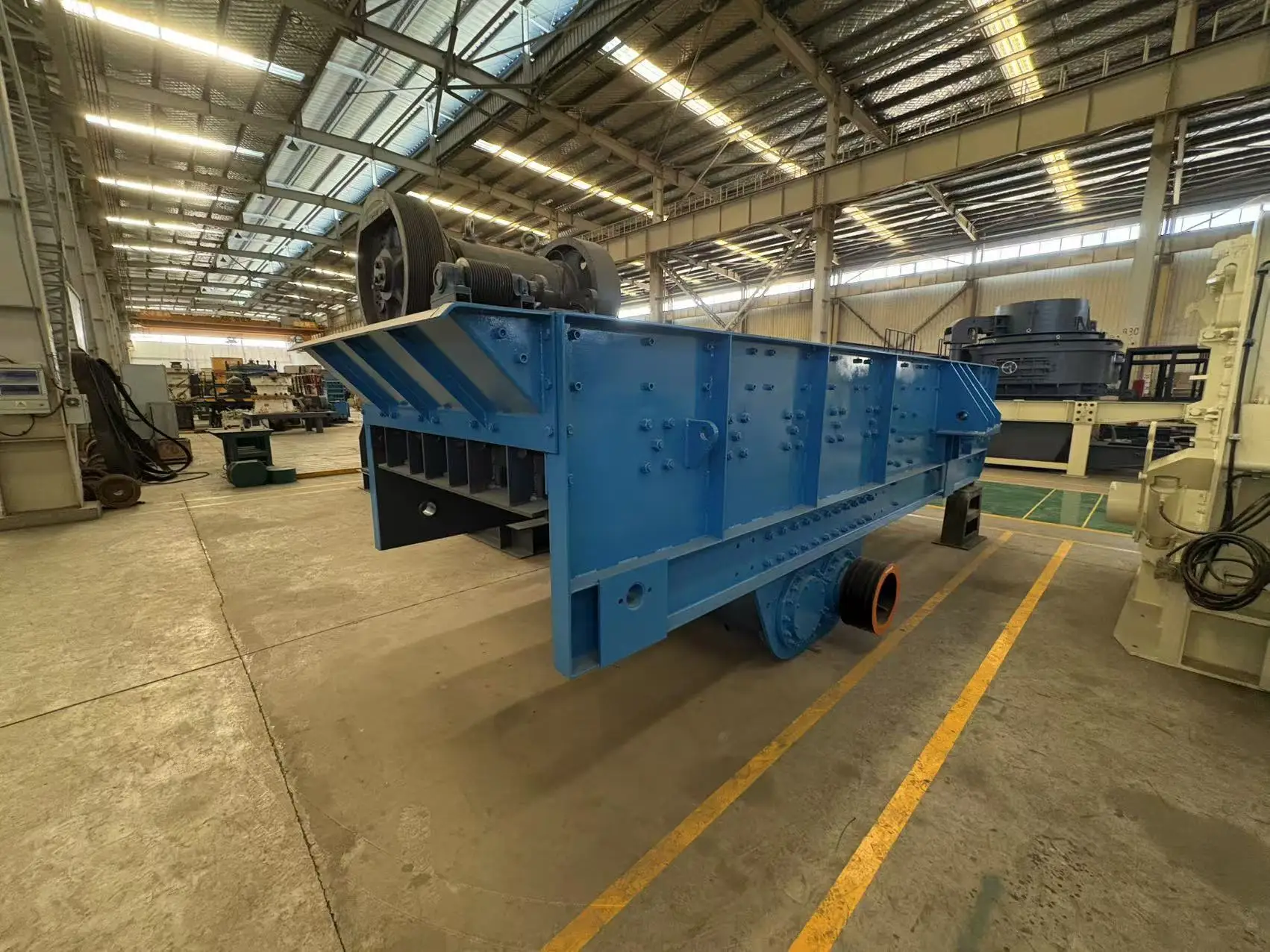

ZSW series vibration feeder is designed based on the principle of two synchronous eccentric shafts rotating to generate exciting force. It is mainly used for continuous and uniform feeding before the coarse crushing crusher. At the same time of feeding, the material is coarse screened according to the preset bar gap size to avoid the reactive power loss of the subsequent crusher, so as to improve the crushing efficiency of the first section.
Advantages:
● Cascade bar drop is large, not easy to plug, fast feeding, with good pre-screening effect

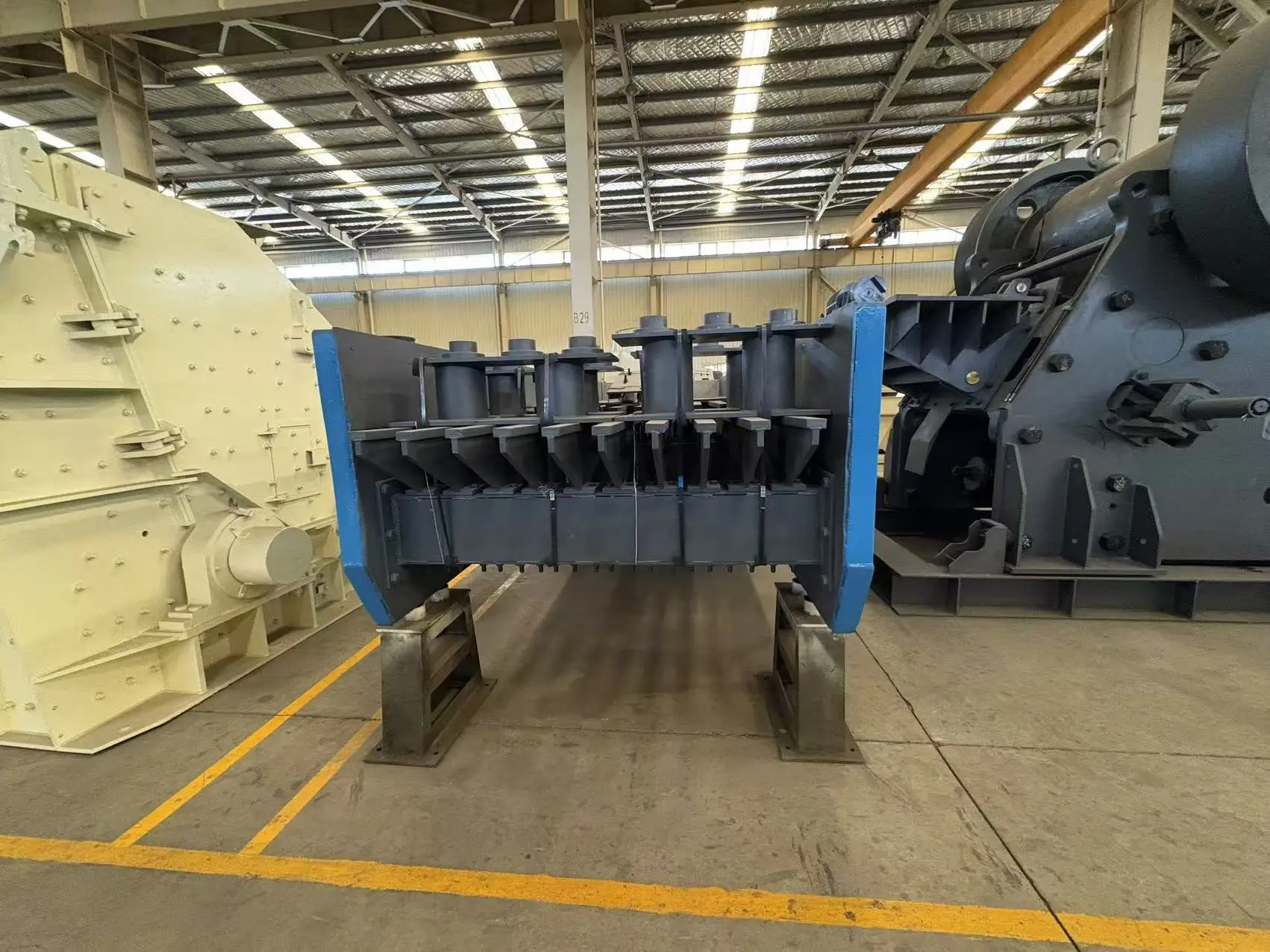

● Modular bar design, convenient bar gap adjustment
● Frequency control can be used to adjust the frequency, easy to control the feed amount of the first section of the crusher
● Thin oil lubrication structure, after the first filling, the later periodic replacement can be
● closed exciter, to prevent dust pollution
Application fields, applicable materials
Application: Widely used in metallurgy, mineral processing, building materials, abrasives and chemical industry crushing, screening combined equipment
Applicable materials: limestone, granite, marble, basalt, iron ore, river pebbles, shale, bluestone, coal, construction waste and so on.
Technical Specification
ZSW380X95 | ZSW420x110 | ZSW490x110 | ZSW600x130 | ZSW600x150 | ZSW600x180 | ZSW600x210 | |
Feed size (mm) | 500 | 580 | 580 | 750 | 900 | 1050 | 1200 |
rotate speed(r/min) | 500~800 | 500~800 | 500~800 | 500~800 | 500~800 | 600~850 | 600~850 |
Processing capacity (t/h) | ~150 | 150~280 | 150~350 | 220~560 | 260~620 | 400~1000 | 550~1250 |
Power (kw) | 11 | 15 | 18.5 | 30 | 37 | 45 | 45 |
Recommend Products
Our Company
01. Company profile
Luoyang Deyu Machinery&Technology Co. Ltd specializing in CUSTOM heavy mining machine spare parts manufacturing for more than 23 years experience. We have three plant: a cold processing plant mainly engaged in shaft processing; a large-scale heat treatment equipment factory
mainly engaged in heat treatment processing; and a gear factory mainly engaged in big modulus gear processing. All of them have the ISO9001 certificates.
mainly engaged in heat treatment processing; and a gear factory mainly engaged in big modulus gear processing. All of them have the ISO9001 certificates.
2. Main Equipment
We have many kinds of heavy duty equipment,such as C61250×20000mm CNC Heavy duty Horizontal Lathe, 1m-14m Gear Hobbing Machine; Vertical lathe(1000mm-16000mm); 80-200 CNC Boring-milling Machine,
treatment equipment, like, Gas Box Car-bottom Furnace,Heating Equipment，105kw Carburizing Furnace etc.
treatment equipment, like, Gas Box Car-bottom Furnace,Heating Equipment，105kw Carburizing Furnace etc.
3. Technical advantage
We have a professional technical team and advanced testing equipment and laboratory, so we can make sure the quality of ourproduct and services is always consistent and reliable.
4. Assembly advantage
We can provide customers the whole set equipment with one-stop service from raw materials, processing to final assembly.
5. Third Party Inspection
We accept the third party Inspection for factory and goods.
Customer & Exhibition
FAQ
Q: Quality warranty?
A:Our warranty time is one year under the normal use condition
Q: After sales service?
A: we can supply technical Support for installation guide and routine maintenance
Q: How long is your delivery time?
A: Generally it is 45-60 days. or it is according to quantity and technical requirement
Q: What is your terms of payment ?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
