Lithium Battery Management System 3S 4S BMS 25A PCM L04S20 690(A 6) with Blance function and Temperature protection
- Category: >>>
- Supplier: Shenzhen Smartec Technology Co. Ltd.Shenzhen Ltd.
Share on (1601345537129):
Product Overview
Description
Lithium Battery Management System 3S 4S BMS 25A PCM-L04S20-690(A-6) with Blance function and Temperature protection
PCM or PCB ( protection circuit module or board ) is the "heart" of Lithium battery pack. It will protect Lithium battery pack from overcharging, over-discharging and over-drain, therefore it is the must to have to avoid Lithium battery pack from explosion,fire and damage.
BMS Features
Suitable for 3-4 series of Li-ion and LifePO4 rechargeable batteries;
With multiple protection functions such as overcharge, over-discharge, over-current, short circuit, temperature, etc.;
With voltage balance function and temperature protection function under charging state;
Charge and discharge at the same port, maximum continuous working current 25A
With multiple protection functions such as overcharge, over-discharge, over-current, short circuit, temperature, etc.;
With voltage balance function and temperature protection function under charging state;
Charge and discharge at the same port, maximum continuous working current 25A

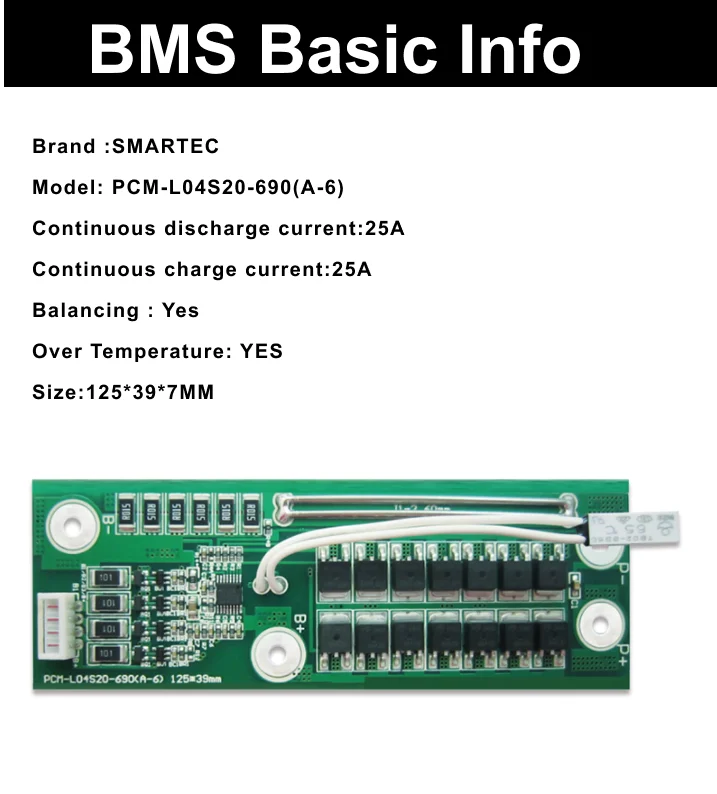

Specification

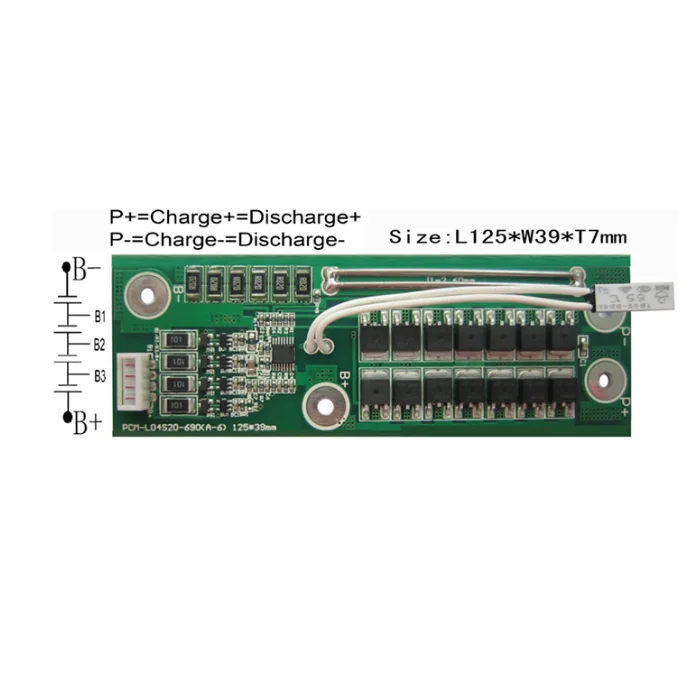

Model Number | PCM-L04S20-690(A-6) |
Dimension | 125*39*7MM |
Maximal continuous Discharging current | 25A |
Charging&discharging port | Common |
Balancing Function | YES (4.2V for li-ion (NMC) and 3.6V for LiFepo4) |
Battery type | LiFePO4 & Li-ION(NMC) |
Nominal Voltage | LiFepo4 3.2V/Cell; Li-ion 3.6/3.7V/Cell; |
Charging Voltage | LiFepo4 DC:3.6V/Cell; Li-ion DC:4.2V/Cell; |
High/Low cutoff voltage | 3.9V/2.0V for LiFePO4; 4.25V/2.5V for li-ion /li-po battery ( Adjustable ) |
Protective function | Over charge/discharge/current/temperature/short circuit Protection |
Temperature | Operating -40~+85℃; Storage'-40~+125℃ |
100% E-testing | 100% E-testing |
Package | Anti-static Bubble Bag |
Product Description
Company Profile
Why Choose Us
1. Based R&D,manufacturer and Sales of Recharegable Lithium batteries with PCM/BMS as “One-stop” Power Solutions Providers in China;
2. Joint venture with several reliable manufacturers, so we can provide quality & fast & best services;

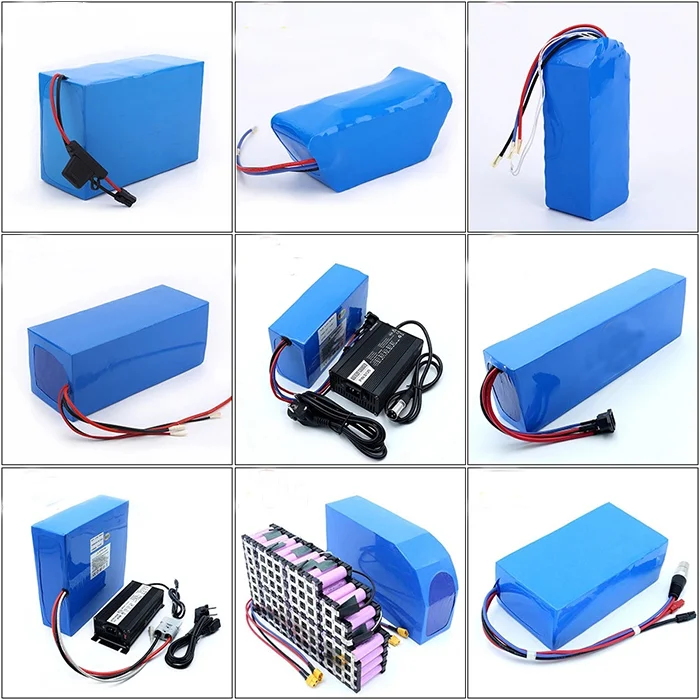

3. Large selections of PCM/BMS(over 2000 models), Batteries, and accessories (such as nickel strip,battery holder);
4. Private labeling and packaging for either big or small customers. Starting from 2000 per order, customer can own their own brand name;

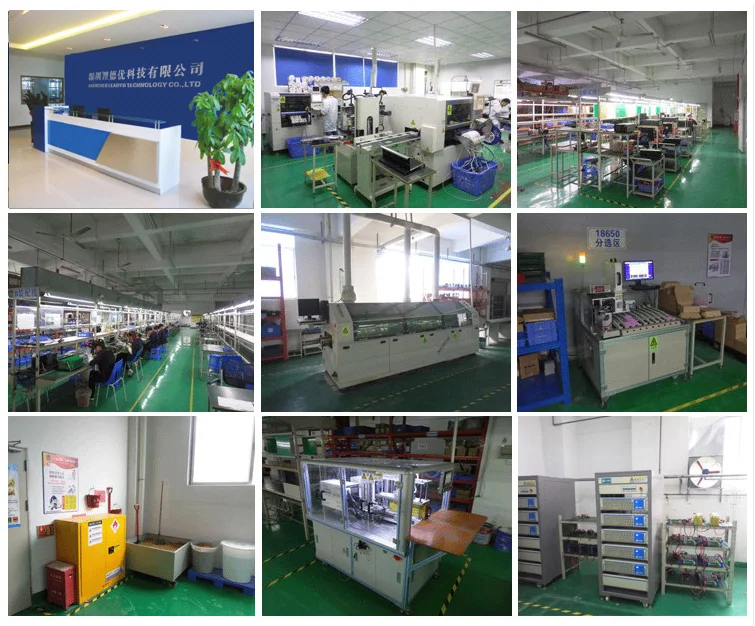

5. Own large manufacturing areas and professional testing equipment;
6. Can provide UN38.3/MSDS/CE/SGS/ISO report;
7. Have office in USA and Japan for local customers knowing more about us.
