H13 H14 High Efficiency HEPA Deep Pleat Air Filter Pleated Panel Panel for Hotel Industries

Product Overview

Description

H13 H14 High Efficiency HEPA Deep Pleat Air Filter Pleated Panel Panel for Hotel Industries

1.High efficiency for H10-H13, is the finally filtration in clean room that use for filter the particles more than 0.3um.

2.Large dust capacity,because the filter media , the hot melt glue spacing each pleats in regular so that achieve high dust volume.

3.Aluminum frame can anticorrosion for long time.

4.Sealant around the media prevent the air filter is without any air leaking.

5.Hepa filter with metal screens,prevent the media is without any damage.

6.Light weight for easy to install.

7.100% factory inspection.
8.Wedge shaped pleat design to prevent the filter media from damage.
9.Big filtration area, big air flow.
10.Even wind speed, big dust holding capacity.
11.High versatility,Good performance.

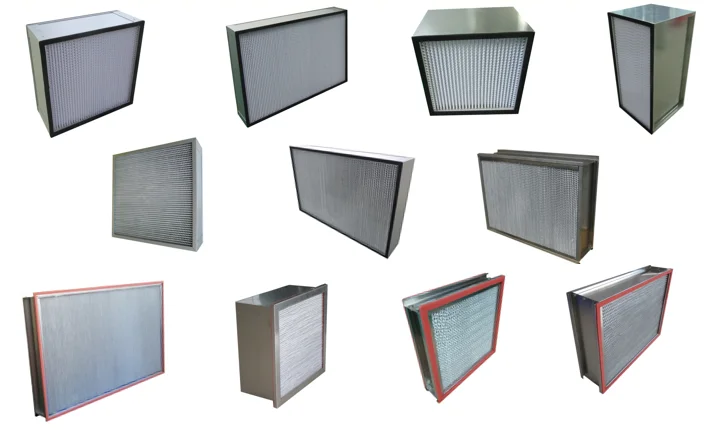

Product Show







Material and Performance

Frame Material	Aluminum /Galvanized/Wooden /Stainless Steel
Filter medium	Glass fiber
Sealant	Polyurethane adhesive
Partition	Paper / Aluminum Foil
Max. humidity	80%RH
Max. temperature	80°C

Specification and technical parameters

Model	Size L*W*H (mm)	Rated air flow (m³/h)	Inital resistance (pa)	Efficiency 0.3μm (flame method)
GB	320*320*220	400	≤120	95%-99.99%
GB	484*484*220	1000
GB	610*610*150	1000
GB	630*630*220	1500
GB	915*610*150	1500
GB	1220*610*150	2000
GB	945*630*220	2200
GB	1260*630*220	3000
Special size can be customized.



Application

1. Clean rooms ( suitable for use in multilayer filter filtration system or micro component electronic manufacture & assembly).

2. Food processing industry.

3. Aerospace Engineering.

4. Genetic & Biological research.

5. Biohazard Atmosphere.

6. Laminar Flow Workstations.

7. Bio Safe Hoods(Biological Safety Cabinets).

8. Hospital Operating Theaters & Intensive care units.

9. Atomic Research.

10. Hepa air filter used for electronic, food.
