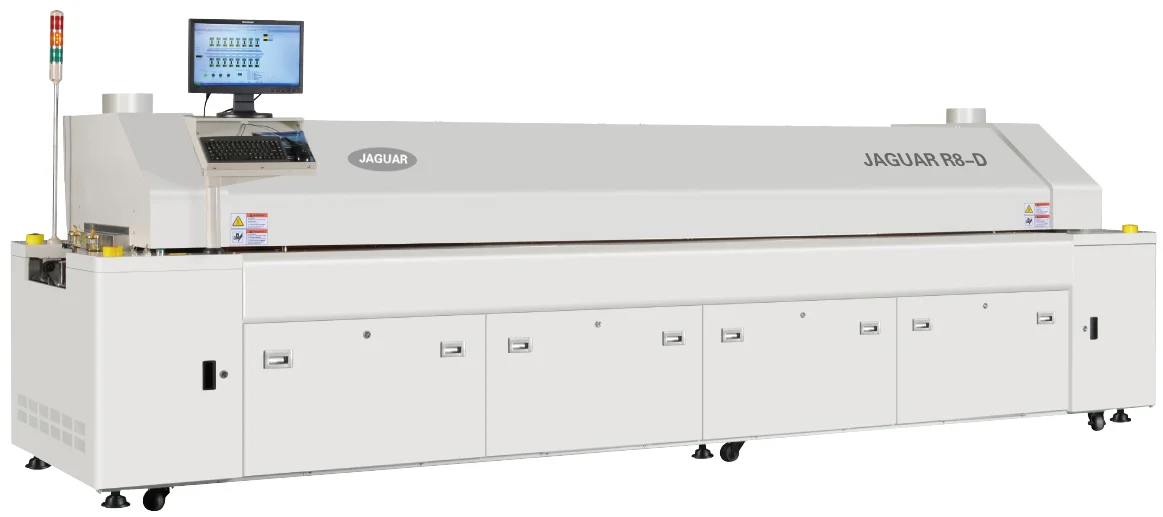

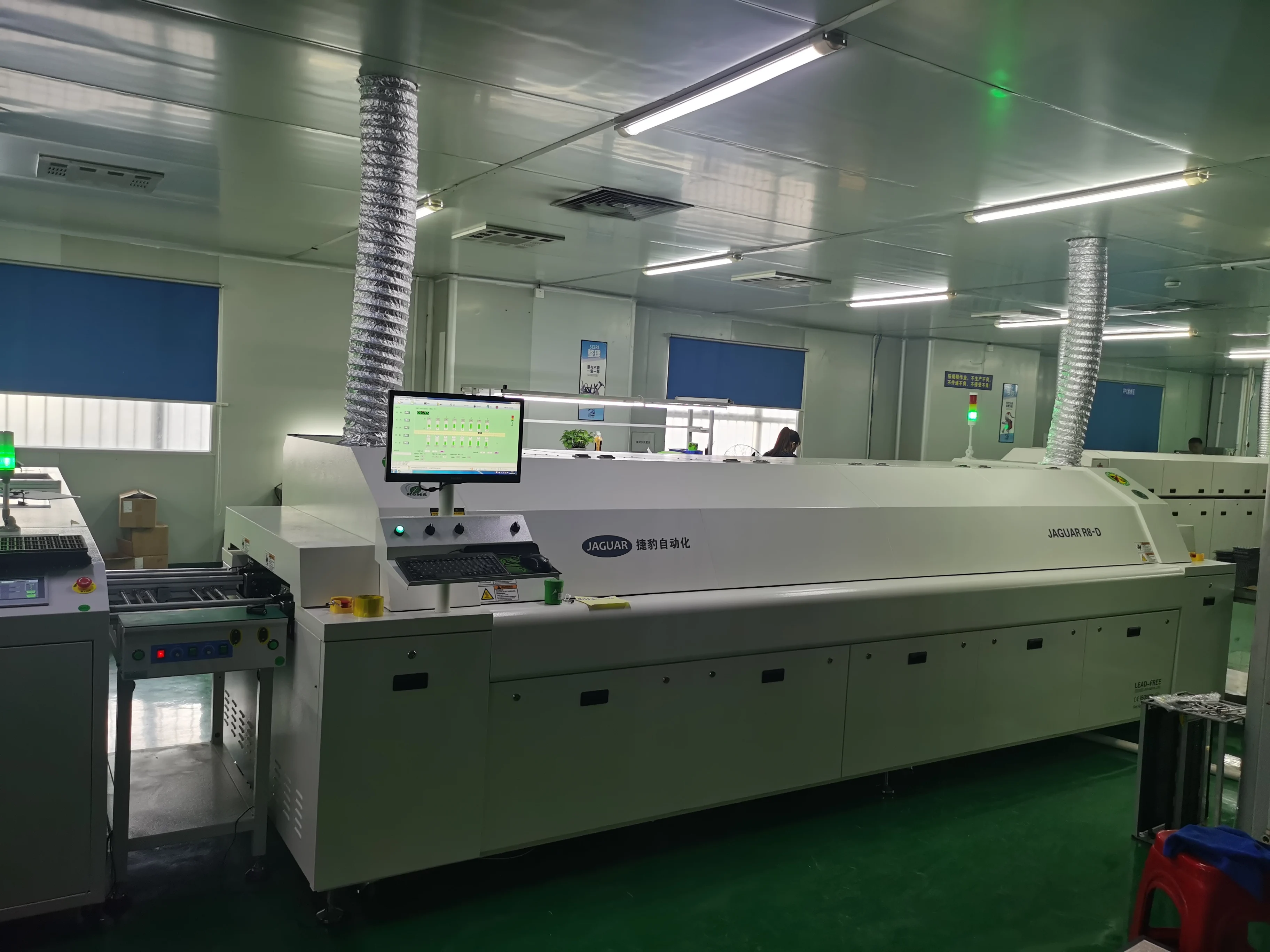

JAGUAR Dual Lane 8 Zones Lead-free Hot Air Reflow Oven R8-D
Introduction:
1.Win7 system with English and Chinese is easy to learn how to operate and can be change any time.
2. The digital control system adopted with PLC and Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.
5.Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.
6.Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.
7.PLC and PID closed loop control to achieve high precision temperature control and repeatable profiles.
8. Standard 10 couples of up and down heating zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
9.The Dual rail conveyor make it can produce 2 PCB at same times, one machine equals to two machine.
10.The Dual rail width can be adjusted by manual.(option:automatically by SPG gear motor).
11.Chain Rails will be lubricated by central oil reservior device ,controlled by computer.
12.Strong software system can save all settings and can print all the data and profiles through PC.
2. The digital control system adopted with PLC and Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.
5.Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.
6.Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.
7.PLC and PID closed loop control to achieve high precision temperature control and repeatable profiles.
8. Standard 10 couples of up and down heating zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
9.The Dual rail conveyor make it can produce 2 PCB at same times, one machine equals to two machine.
10.The Dual rail width can be adjusted by manual.(option:automatically by SPG gear motor).
11.Chain Rails will be lubricated by central oil reservior device ,controlled by computer.
12.Strong software system can save all settings and can print all the data and profiles through PC.

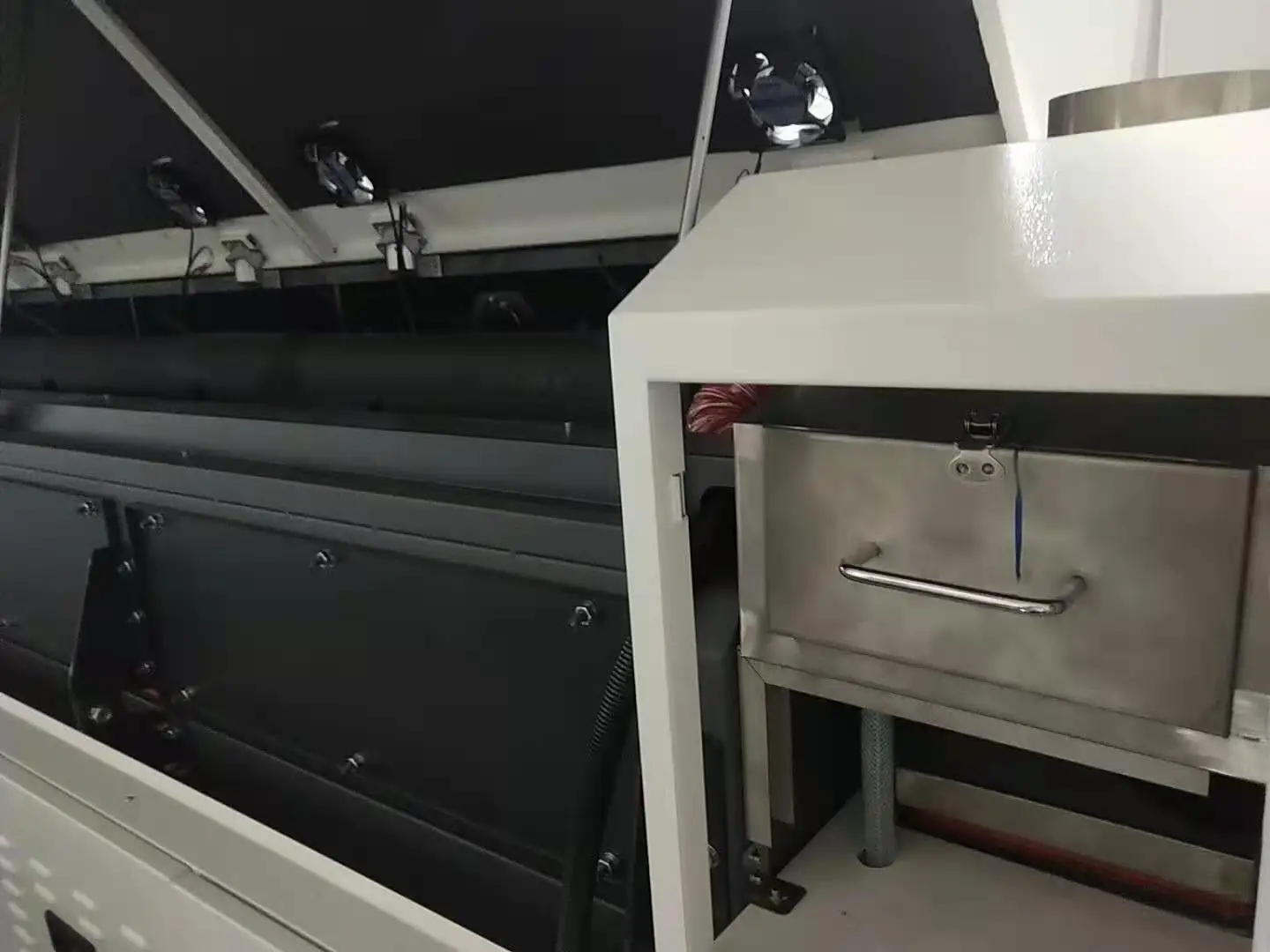

13.With flux collecting system to keep inside zones clean and ensures more environmental emission.
14.Nitrogen protection system is optional.
14.Nitrogen protection system is optional.
Specification
Model | JAGUAR R8-D | ||
Heating System | Number of Heating Zones | Up 8 Bottom 8 | |
Number of Cooling Zones | Top 2 Bottom 2 | ||
Length of Heating Zones | 3121mm | ||
Heating Mode | Hot Air | ||
Cooling Mode | Air Oven:Forced air; Nitrogen Oven: Water Chiller | ||
Exhaust Volume | 10m³/min * 2 Exhausts | ||
Conveyor System | Max. Width of PCB | 250mm*2,(Optional 300mm*2,350mm*2) | |
Transmission Direction | L→R(or R→L) | ||
Transmission Net Height | 900±20mm | ||
Transmission type | Mesh and Dual Rail Chain | ||
Conveyor Speed | 0-2000mm/min | ||
Auto Lubrication | Standard | ||
Fixed Rail Side | 1,4 Rail Fixed 2,3 Rail Moving(1,3 Rail Fixed 2,4 Rail Moving) | ||
PCB Clearance | Top and Bottom 25mm | ||
Control System | Power Supply | 5 line 3 phase 380V 50/60Hz | |
Total Power | 45kw | ||
Starting Power | 36kw | ||
Normal Power Consumption | 8-11KW | ||
Warming Time | About 35 mins | ||
Temp. Setting Range | Room Temperature-300℃ | ||
Temp. Control Method | PID Close Loop Control & SSR Driving | ||
Temp. Control Precision | ±1℃ | ||
Data Storage | Process Data and Status Storage(80GB) | ||
Nozzle Plate | Aluminum Alloy Plate | ||
Abnormal Alarm | Abnormal Temp. (Extra-high/Extra-low Temp.) | ||
Board Dropped Alarm | Standard | ||
Tricolor Light Tower | Yellow-warming, Green-normal, Red-abnormal | ||
General | Dimension(L*W*H) | 5300×1550×1550mm | |
Weight | 2600kgs | ||
Color | Ivory | ||
