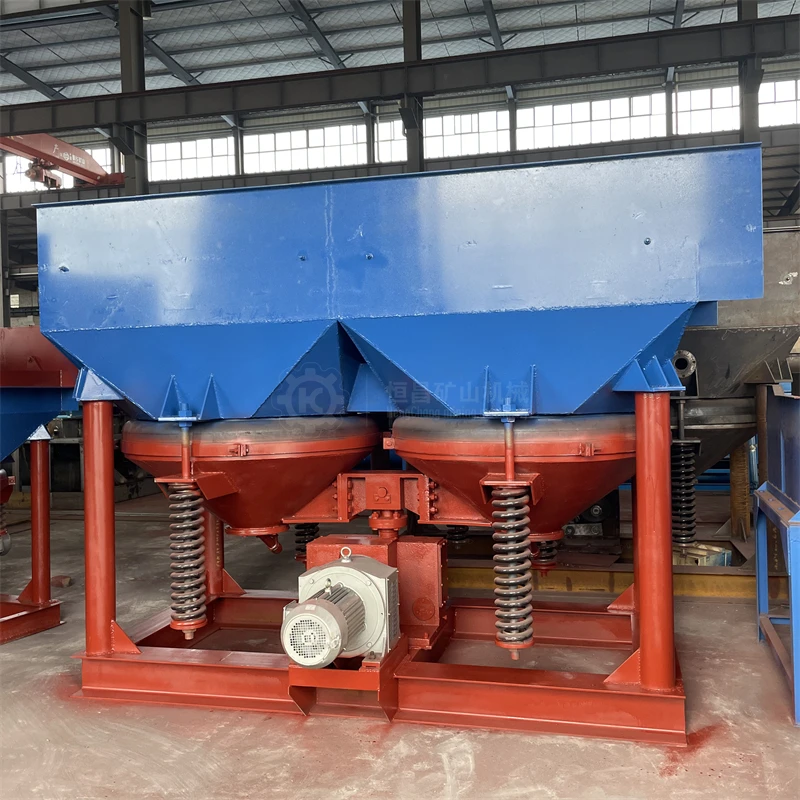

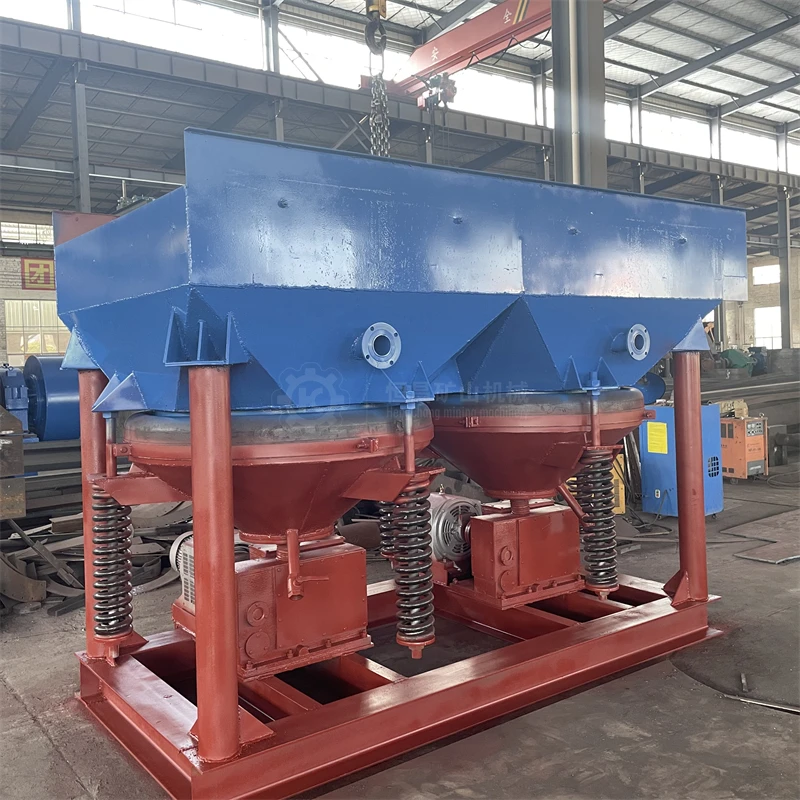

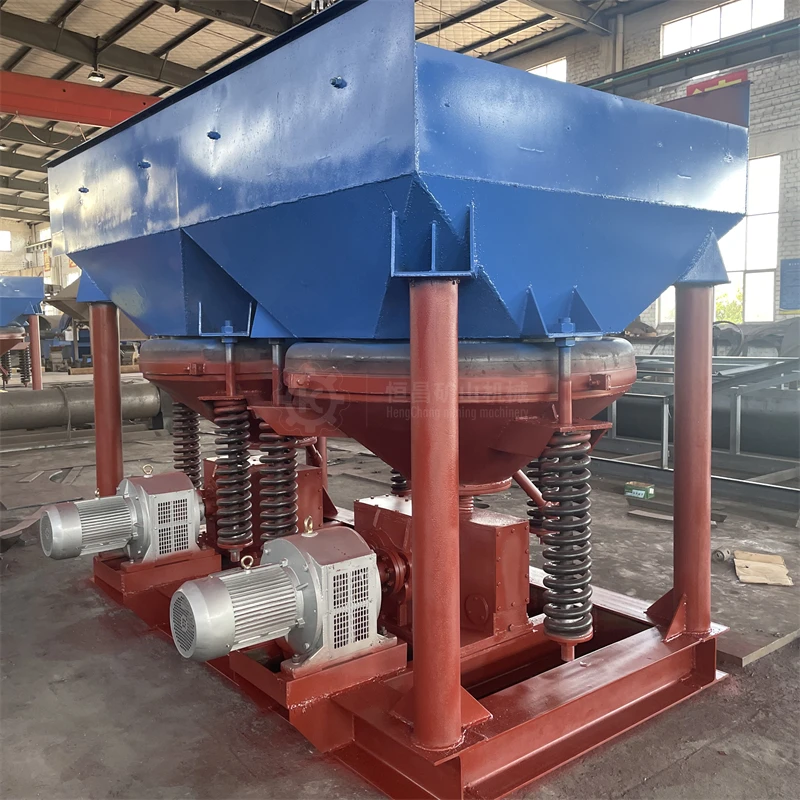

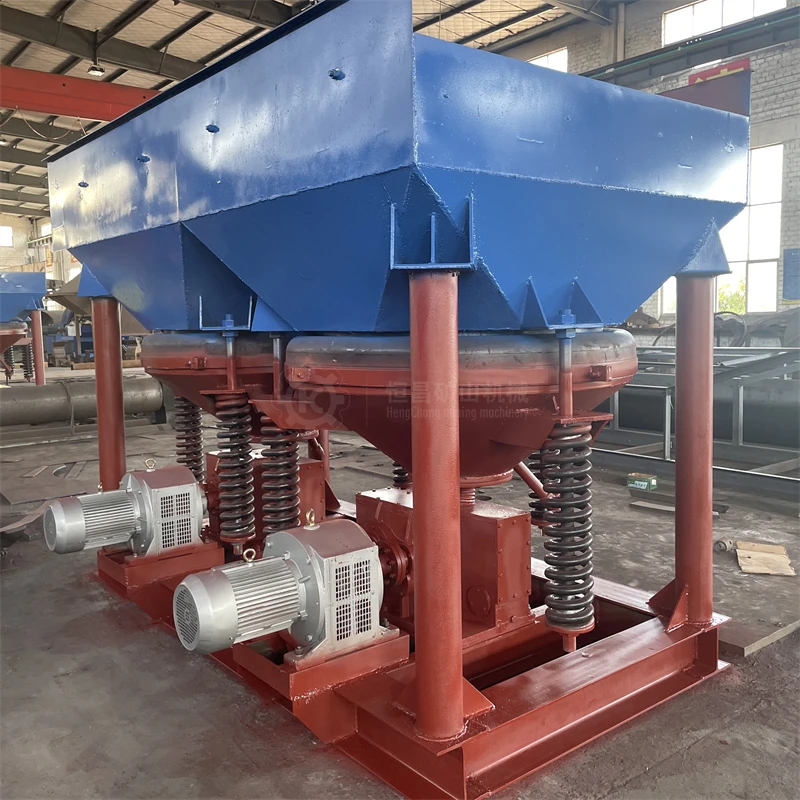

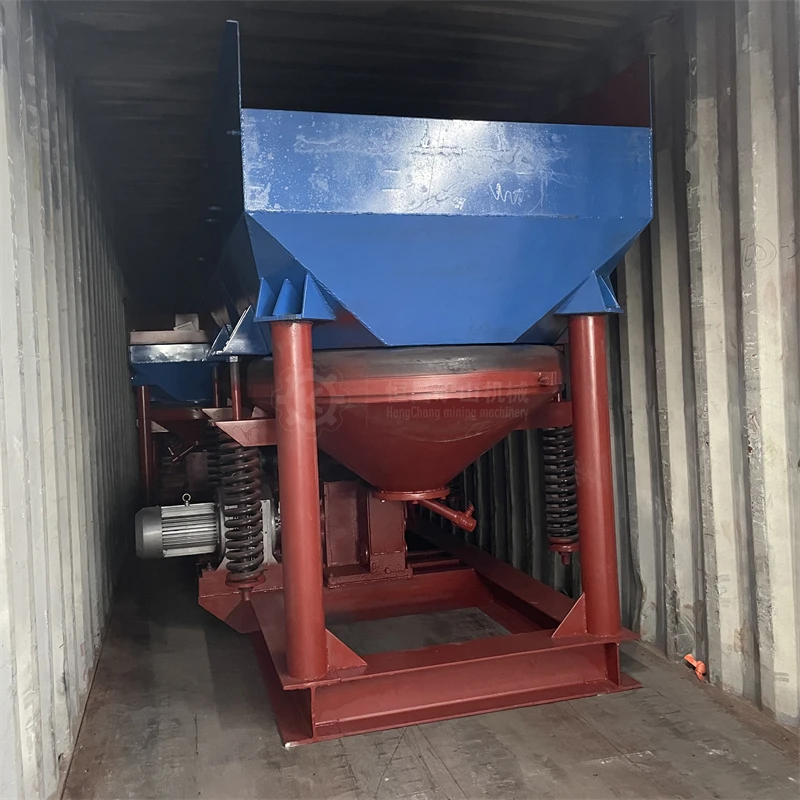

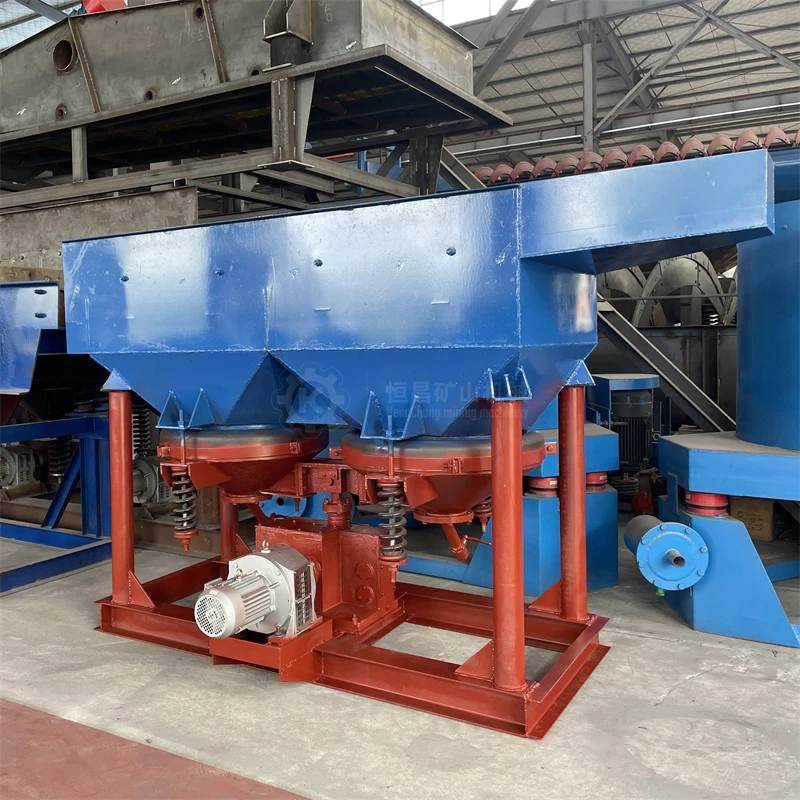

High Recovery Rate Alluvial Tin Gold Gravity Separation Equipment JT2-2 JT3-1 JT4-2 JT5-2 Mineral Concentrator Jigging Machine
Hengchang mining machinery gravity jig concentrator can be used for many minerals separating, such as gold, tin, iron, titanium, manganese, barite, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Mineral Concentrator Jigging Machine Introduction
Jig machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
Mineral Concentrator Jigging Machine Working Principle

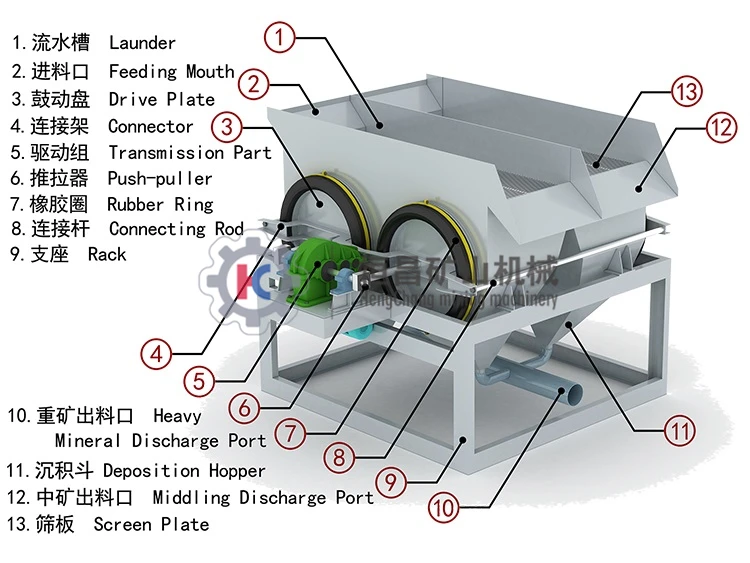

Diamond Mining Machinery need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.
Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
Mineral Concentrator Jigging Machine Widely Applications
It is widely used to separator tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
There are many applications where the jig separator of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
Model | Feeding Size (mm) | Water Added (m³/t) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) |
JT0.57-1 | <6 | 1-2 | 1-3 | 1.5 | 1550x780x1530 | 610 |
JT1-1 | <10 | 2-3 | 2-4 | 2.2 | 2270x1110x1890 | 900 |
JT2-2 | <10 | 2-4 | 4-8 | 3 | 3225x1550x2050 | 1640 |
JT3-1 | <10 | 3-6 | 6-10 | 5.5 | 2745x2000x3030 | 3260 |
JT4-2 | <25 | 4-8 | 10-15 | 7.5 | 4240x1990x2750 | 4200 |
JT4-2A | <25 | 4-8 | 10-15 | 4x2 | 4240x1990x2750 | 4200 |
JT5-2 | <10 | 3-6 | 12-20 | 7.5 | 3600x2000x2600 | 4500 |
More Products
1.What is your machine used for ?
Our Jigging Machine was used to separator tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
