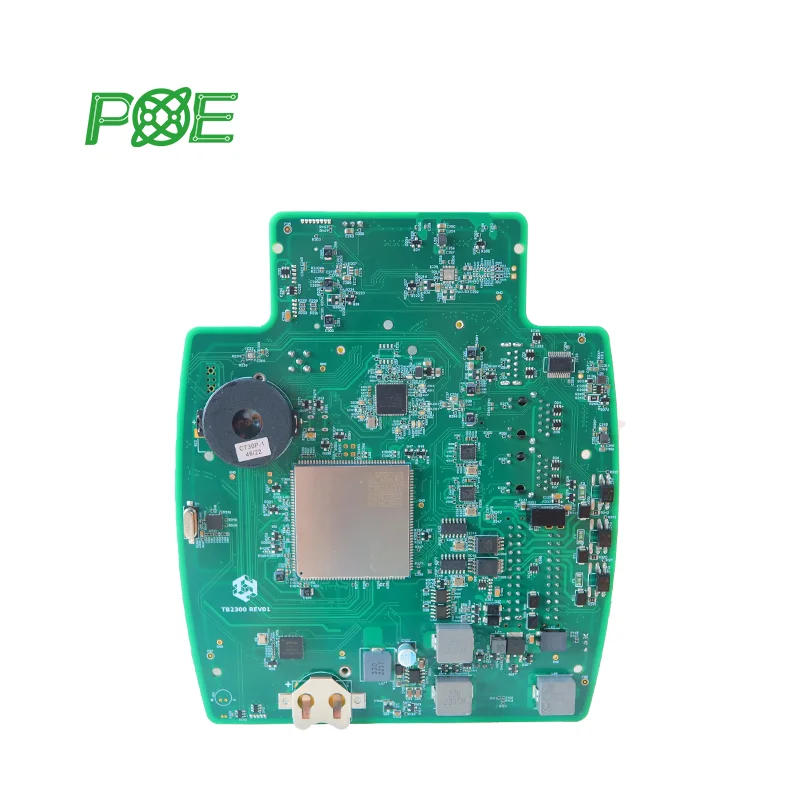

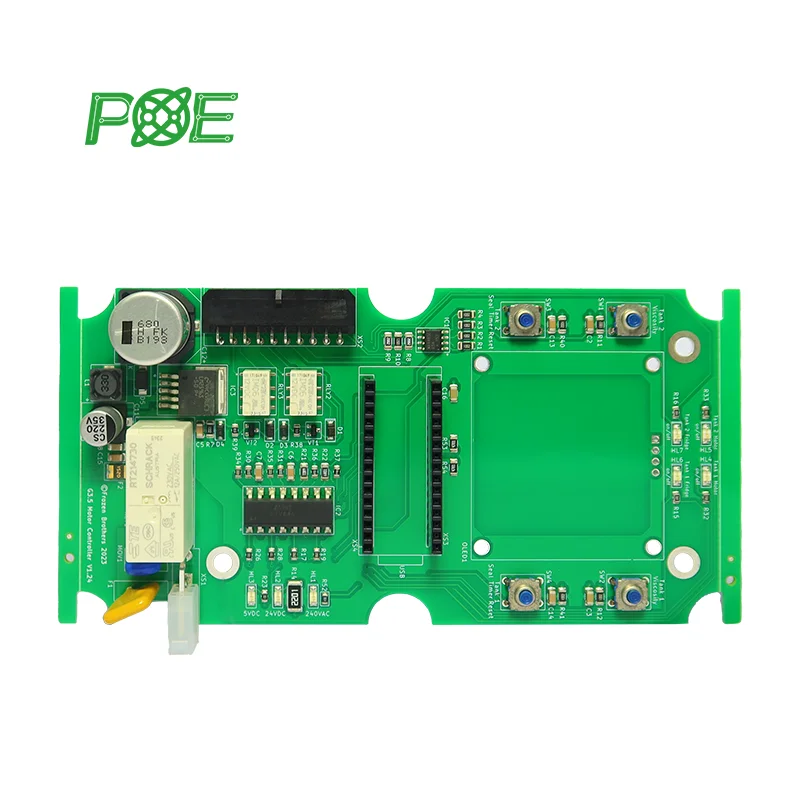

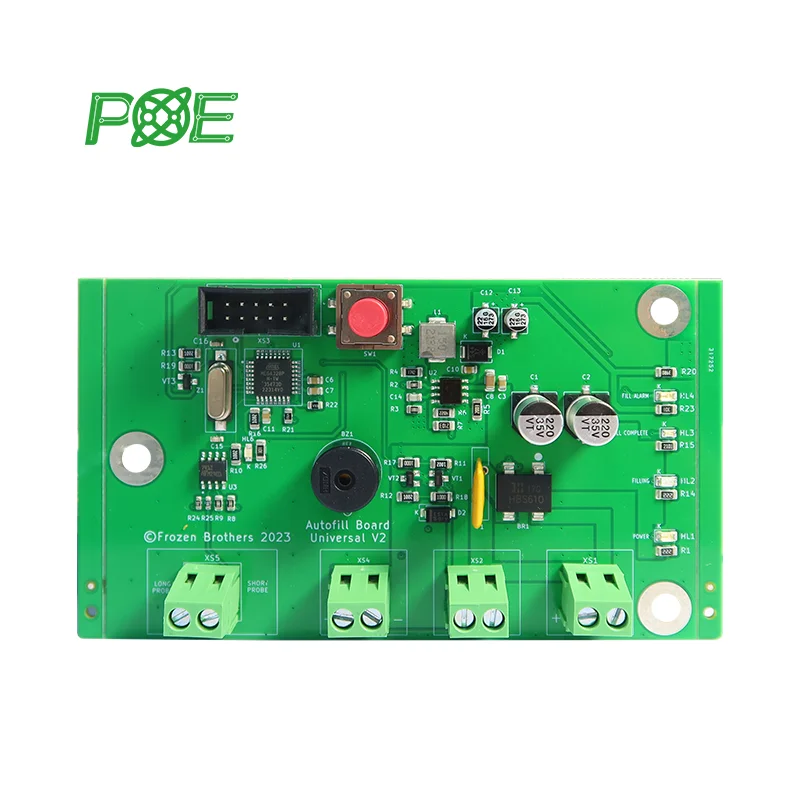

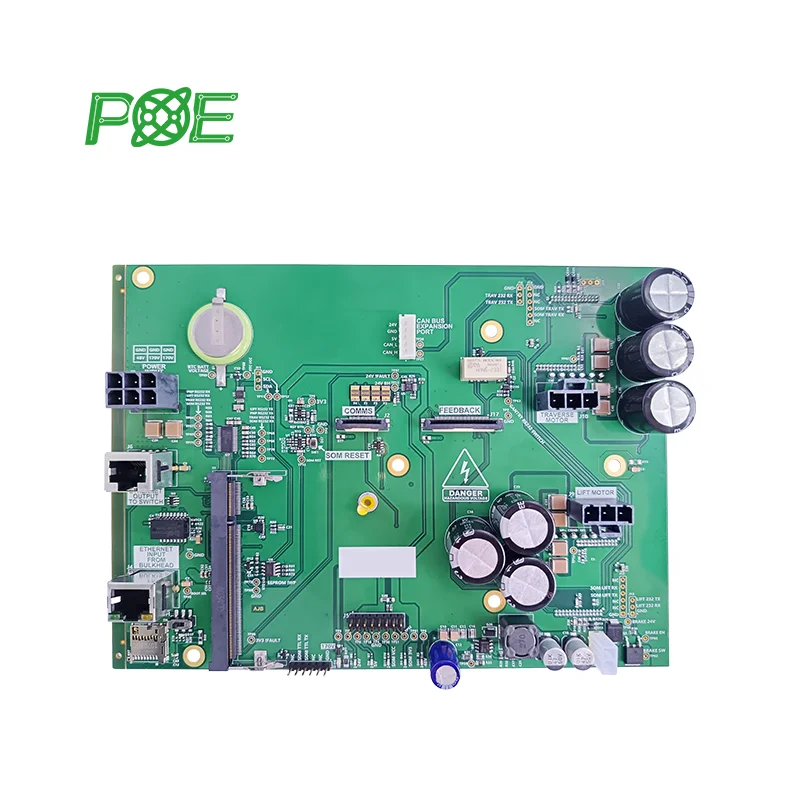

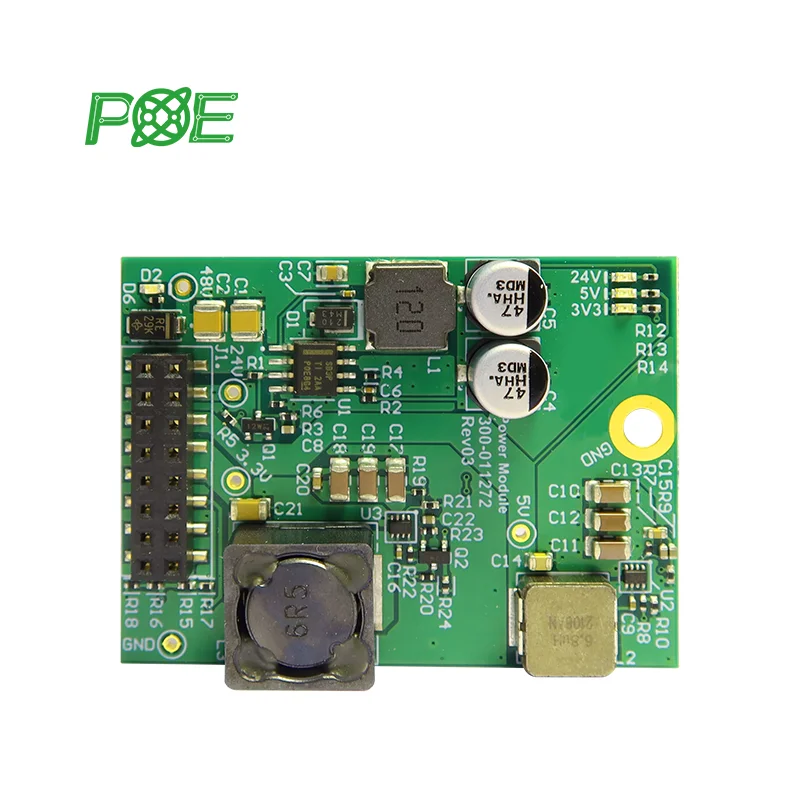

Proactive Support PCB Custom 5G IOT PCBA Printed Circuit Board Assembly PCBA OEM Service Advanced PCB Factory
- Category: >>>
- Supplier: Shenzhen Wanfeng Technology Co. Ltd.Shenzhen Ltd.
Share on (1601346102248):
Product Overview
Description
CAPABILITIES OF TURNKEY PCB ASSEMBLY | ||
Capability | Standard | |
Certifications: | ISO14001:2015, ISO9001:2015, ISO13485:2016, ROHS, UL 94v0, IPC-600G classll and IPC-6012B classll | |
Lead Time: | 3-15 Days, As per the scheduled period | |
Ports Procurement: | Full Turnkey, Partial Turnkey, and Kitted | |
Assembly Types: | Surface Mount (SMT), Through-hole, Mixed Technology. Single and doubl-sided SMT/PTH. | |
Stencils: | Laser cut stainless steel and Nano-coating | |
Components: | Possive components smallest size 01005, Fine pitch components smallest size 8 Mils pitch. | |
Component Packaging: | Reels, Cut Tape, Tube, and lose parts. | |
Inspection: | X-ray analysis, AOI, and Microscope to 20X | |
Solder Type: | Leaded and Lead- free/ RoHS compliant | |
Assembly Surface Mount Connectors: | Yes | |
Wave Soldering: | Yes | |
PCB Finish: | HASL Electrolytic Gold, Electroless gold, Electroless silver, Immersion gold, Immersion silver, Immersion tin, and OSP. | |
Ponelized PCB: | Tab routed, Breakaway tobs, V-scored and Routed + V scored | |
Rework: | BGA removal and replocement station, SMT IR rework station, and Through-hole reworks station. | |
Design File Format: | Gerber RS 27.274D, Eogle and Auto CAD's DXF, DWG BOM, and Pick and place file | |
POE Precision Electronics is a branch company of POE Group Corporation Limited, which is specializes in electronic manufacturing services (world known as EMS).
POE established on April 25, 1996 with 200 employees and 25000sq.m Of production and office area. We can offer one-stop service from PCB manufacturing to PCB assembling, testing and housing. With in-time delivery after more than 20 years of successful experience on the global EMS market. Our PCB production capacity can reach 40000 sq.m. per month and EMS assembling capacity at 150,000,000 components per month.
POE established on April 25, 1996 with 200 employees and 25000sq.m Of production and office area. We can offer one-stop service from PCB manufacturing to PCB assembling, testing and housing. With in-time delivery after more than 20 years of successful experience on the global EMS market. Our PCB production capacity can reach 40000 sq.m. per month and EMS assembling capacity at 150,000,000 components per month.
Specs and Tolerances | ||||
Min. FR4 PCB Thickness | ||||
Loyer Count | Typical Value (mm) | Utimate Volue (mm) | ||
1-layer&2-layer | 0.40 | 0.20 | ||
4-layer | 0.40 | 0.30 | ||
6-layer | 0.60 | 0.40 | ||
8-layer | 1.00 | 0.80 | ||
10-layer | 1.20 | 1.00 | ||
12-layer | 1.80 | 1.20 | ||
14-layer | 2.20 | 1.60 | ||
16-layer | 2.50 | 1.80 | ||
FAQ
1.What is your minimum order quantity?
We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.
2. Are my design files safe when I submit them to you for manufacturing?
Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
3. Do you have after-sales product servicing available for your customers?
Yes, for any quality problems will take our responsibility to solve it for you any time.
4. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
5. What kind of service do you offer?
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.
2. Are my design files safe when I submit them to you for manufacturing?
Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
3. Do you have after-sales product servicing available for your customers?
Yes, for any quality problems will take our responsibility to solve it for you any time.
4. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
5. What kind of service do you offer?
We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
