Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale
Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale

Factory Wholesale Loading 10/12/14/16 ton lorry crane Truck Cranes truck Mounted Crane for sale

Share on (1601346411959):


Price:$5,000.00-9,000.00

Quantity:


Product Overview

Description



Product description


What advantages can we bring to you:
(1)Jiaqing factory has advanced research and development means, perfect development materials, reasonable engineering and assembly tools, smooth product assembly lines, perfect quality assurance system and the highest performance cost in the world.
(2): For consumers, our products are affordable and have a long service life. The product model can meet your needs and support customization
(3): For suppliers, we provide you with sufficient profit margins. We provide you with testing to ensure the quality of the product before leaving the factory. At the same time, we support customized colors and product brands


Product Paramenters

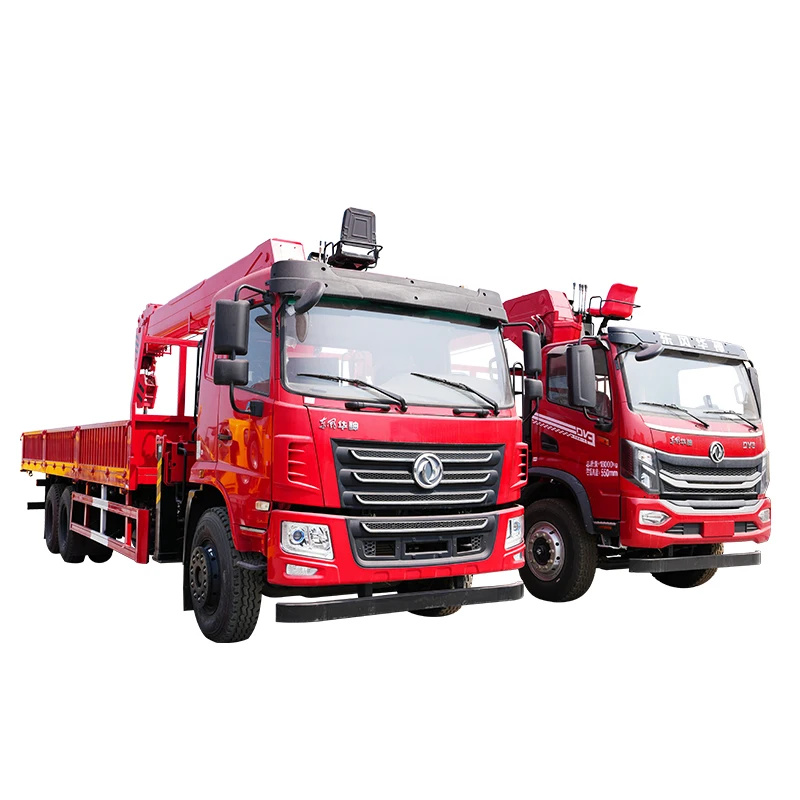

12 ton Dongfeng truck mounted crane
Chassis parameters
Crane parameters
Selected chassis
Dongfeng D17 (National VI)
Maximum lifting capacity
12000KG
emission standard
Guowu
Basic arm length
5.6-18.8 meters
Engine model
(YCS06270-60) Yuchai
Boom extension and retraction
Return rope
engine power
199KW (270 horsepower)
lifting arm
5 meters * 5 sections (U-shaped boom)
gearbox
Maximum lifting height
21.8 meters
Tire type
1100R20-18PR
hydraulic outrigger
Automatic (dual chamber rear outrigger)
Car frame
300 full body three layers
wheelbase
5900+1350mm
Maximum lifting torque
30T*M
axle load
7T/18T
Maximum Elevation
0-75°
overall dimension
12000*2500*3950mm
rotation angle
360 ° full rotation
Internal dimensions of cargo compartment
8500*2400*550mm
rotation speed
2.5
total mass
25000kg
Arm exit method
Double oil cylinder arm output (second arm single output)
Rated load capacity
8575kg
Overall width span
2.5m*5.8m
curb weight
16230kg
Dual pump confluence aluminum alloy hydraulic oil tank
top speed
90km/h
refrigeration system
air-conditioning


Company Profile

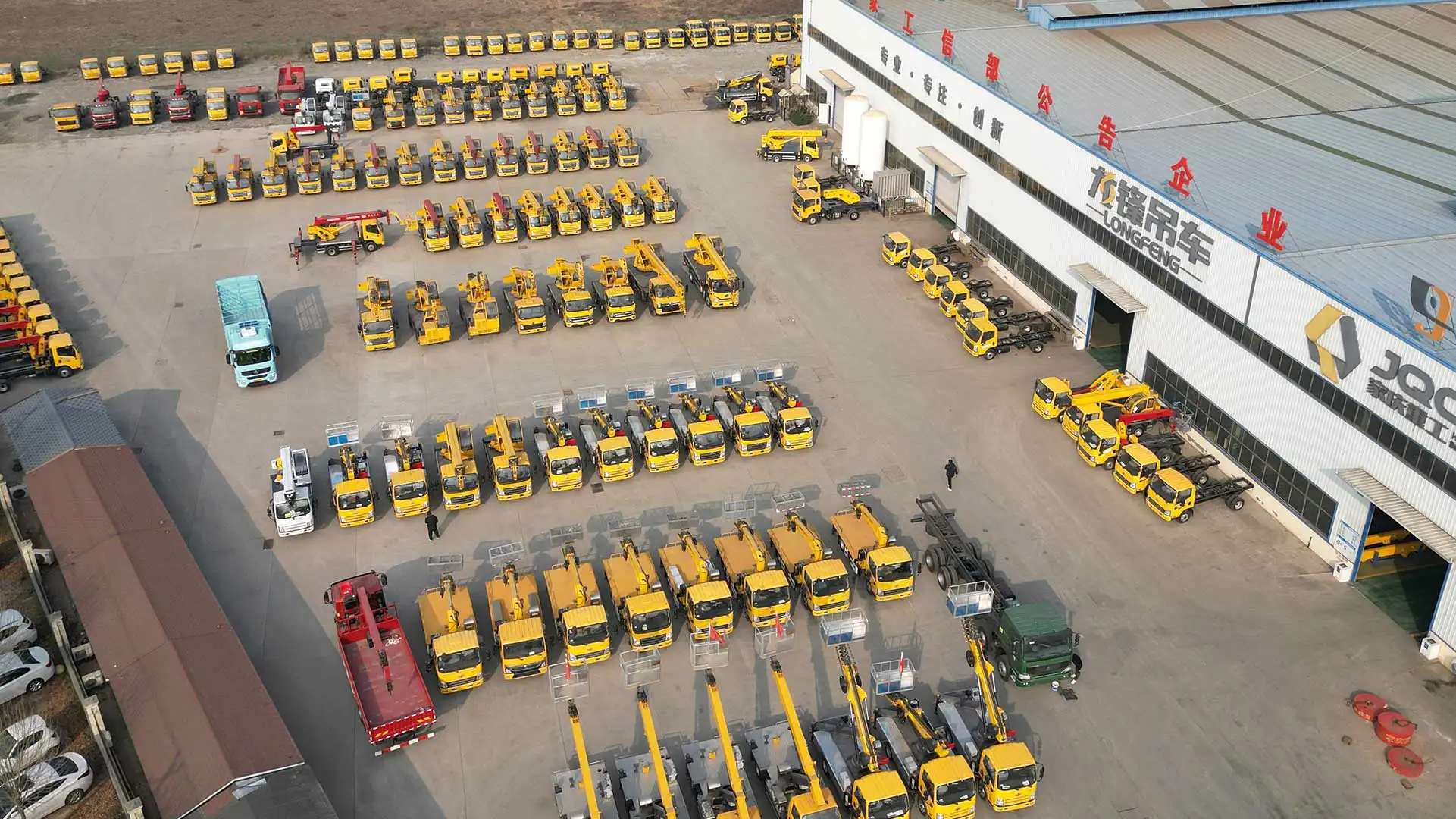

Jining Jiaqing Special Vehicle (Group) Co., Ltd, a modern corporate enterprise, established in 2012,registered capital 22,000,000 RMB, professionally producing truck crane series , self-made crane series, truck mounted crane series,located in Changgou Industrial Park, Jining City, Shandong Province, covering 80232 square meters. Now our company owns fixed assets 23000000 RMB,196 employees, 40 professional engineers , 8 senior engineers , 16 senior technicians. Acquired ISO 9001:2015 national quality management system certification and the ISO13485:2016 national quality management system certification, passed the European Community CE quality certification.11 years experience and nearly 1000 sets annual sale of cranes make us one of the biggest crane manufacturer in China. Our company has many years of production experience and can produce according to customer needs, support customized orders and process according to drawings.Welcome to visit our factory when come to China,more information and pictures will be sent after getting your reply.
333


More details


Thickened and thickened fully hydraulic support outriggers
Long service life of steel wire tire

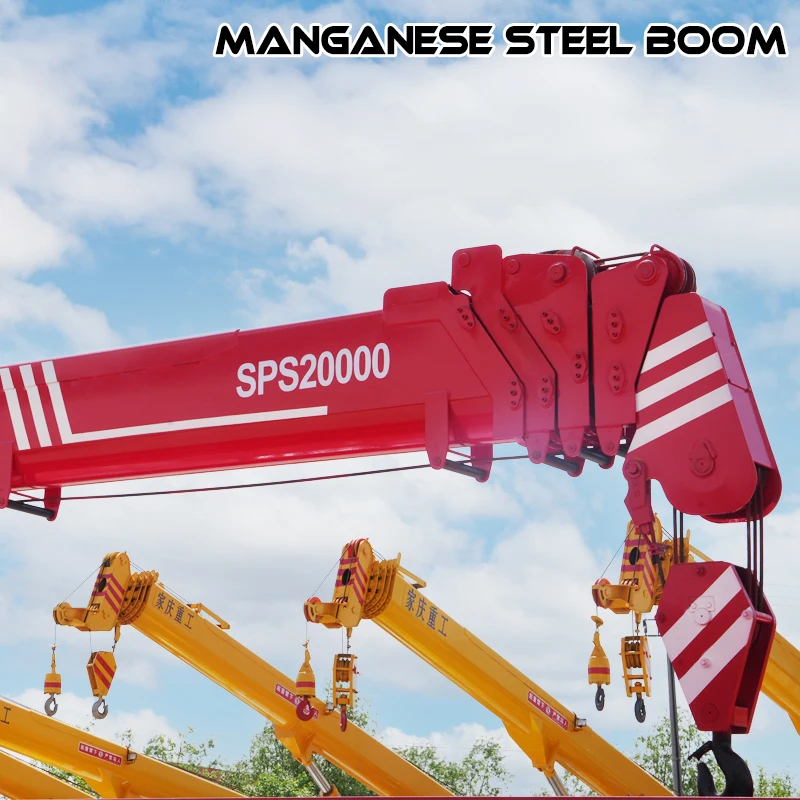

Strong resilience of the upper arm, lengthening the upper arm


Certifications




Customer visit
