Lovtec medical gas use flexible metal hose stainless steel hose with gauge for cylinder valve
- Category: >>>
- Supplier: Danyang Airtech Co. Ltd.Danyang Ltd.
Share on (1601346637156):
Product Overview
Description
Product Application

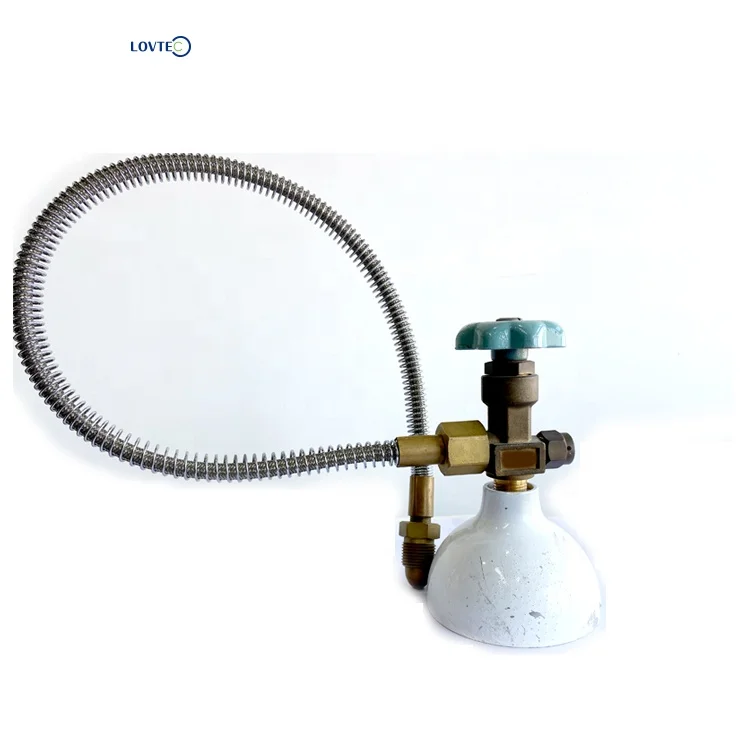

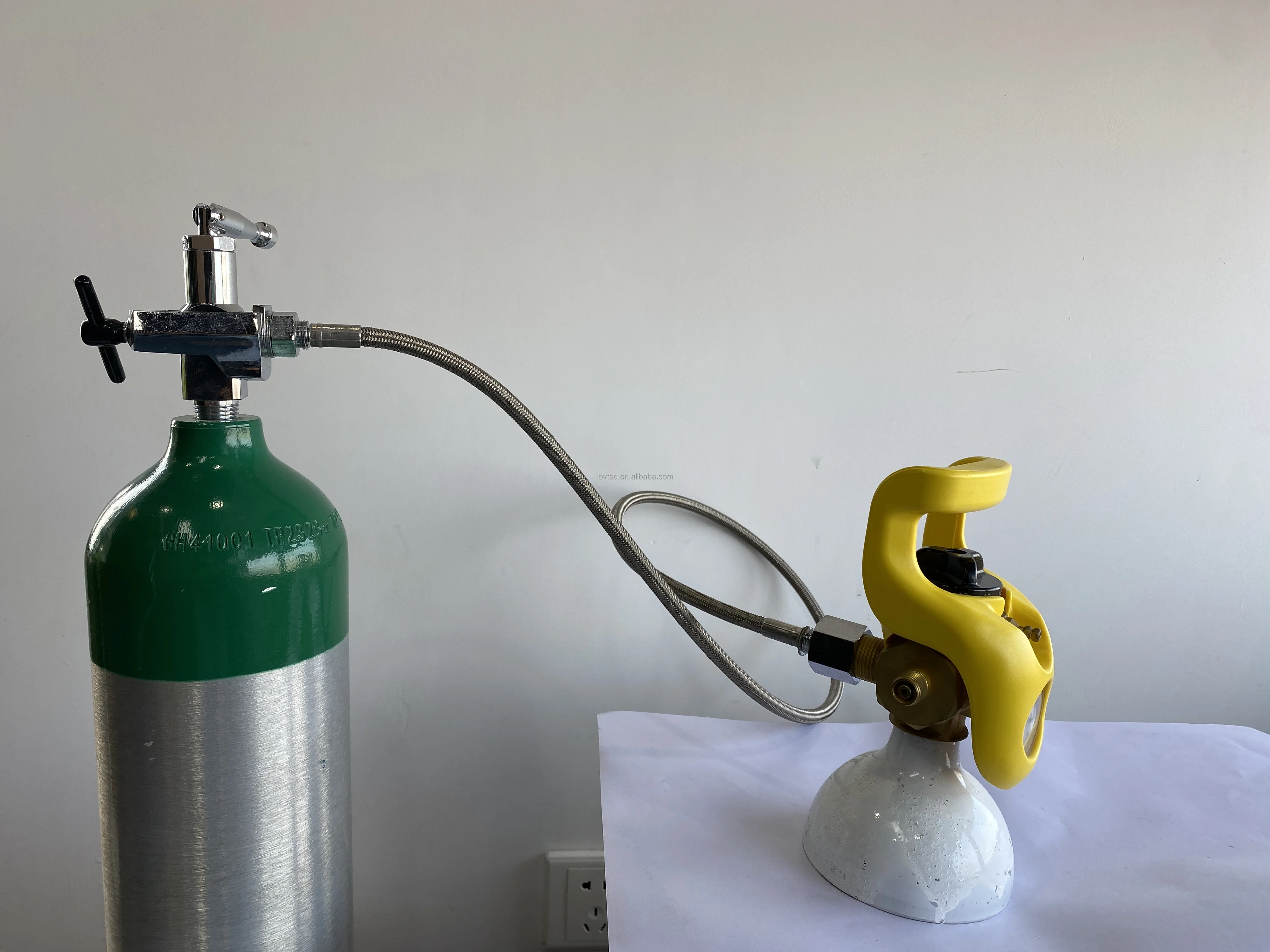

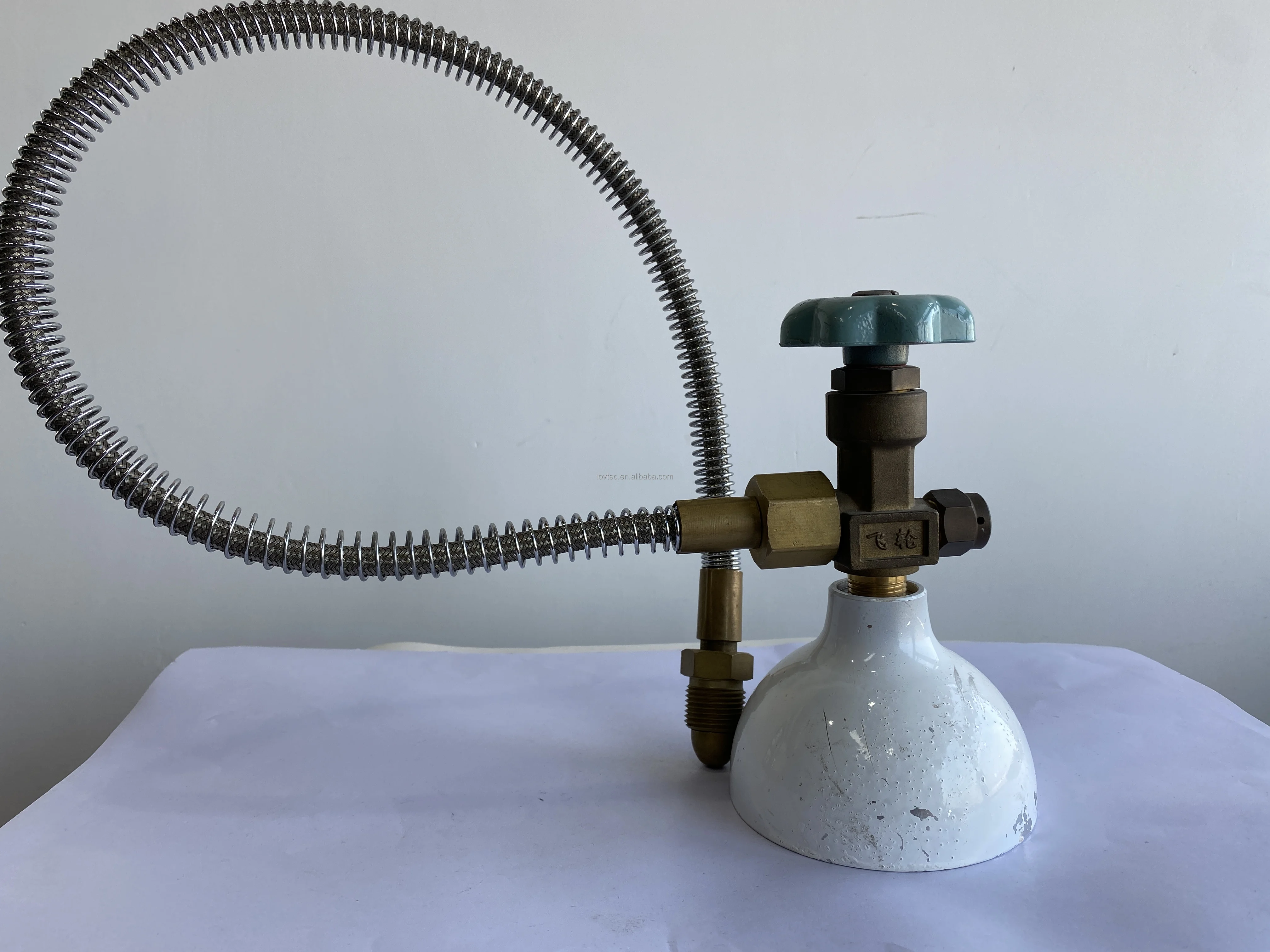

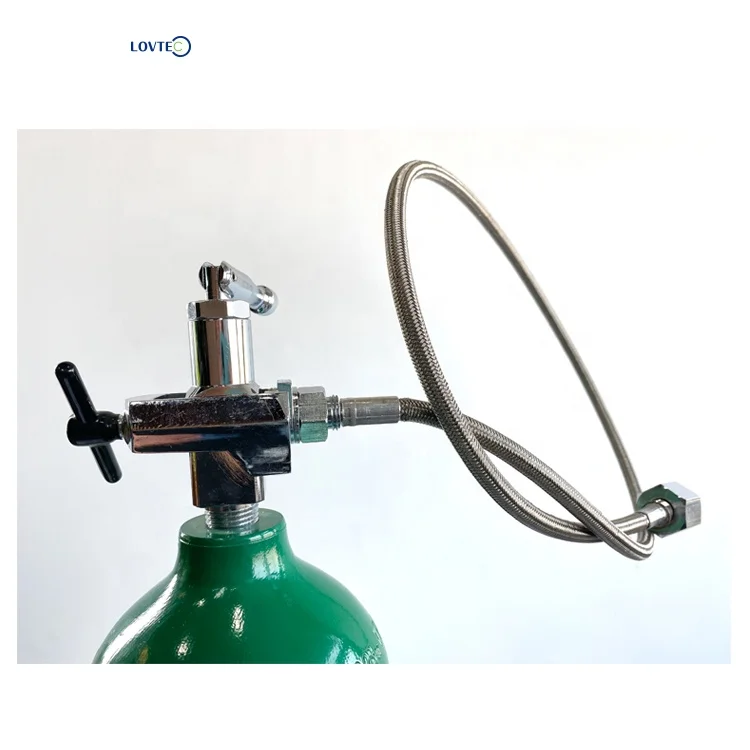

Medical oxygen cylinder hose

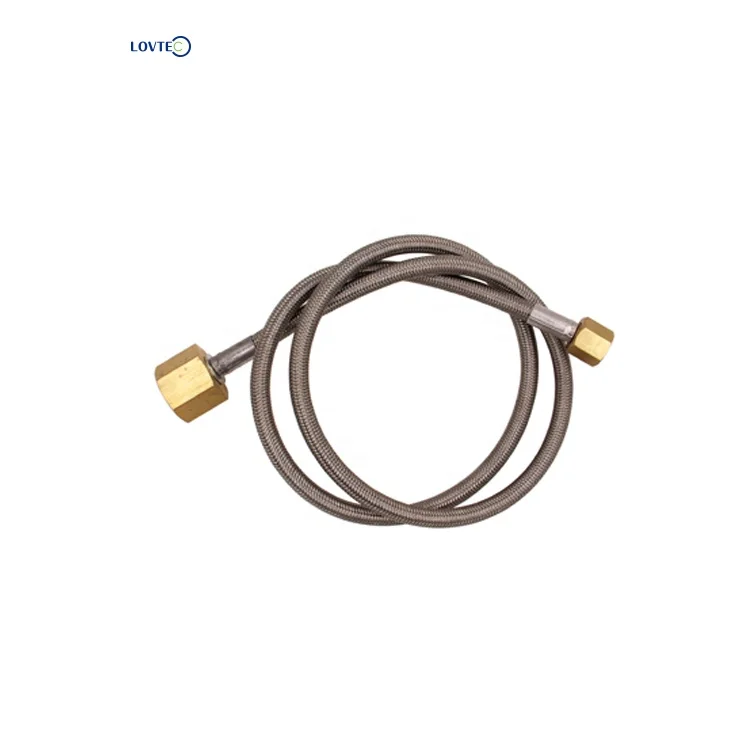

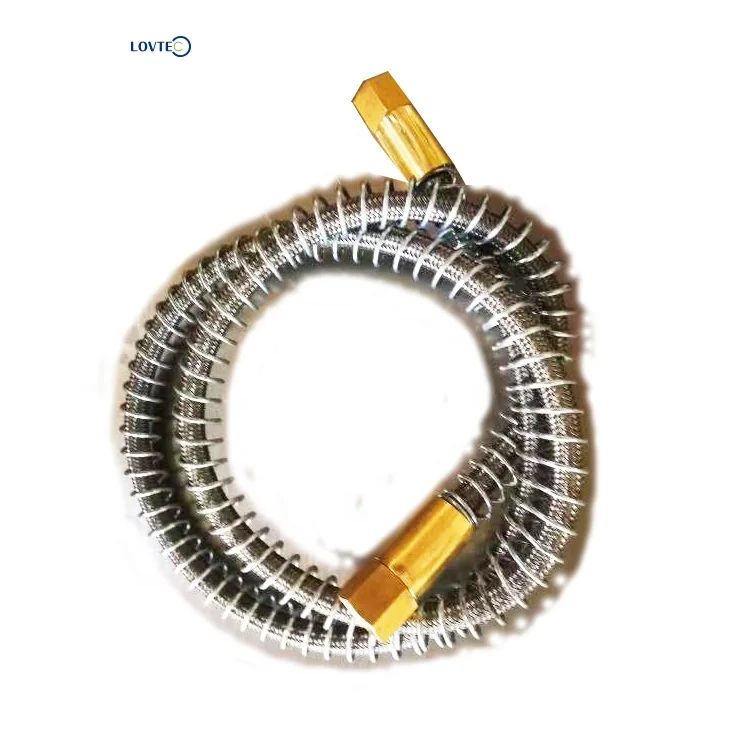

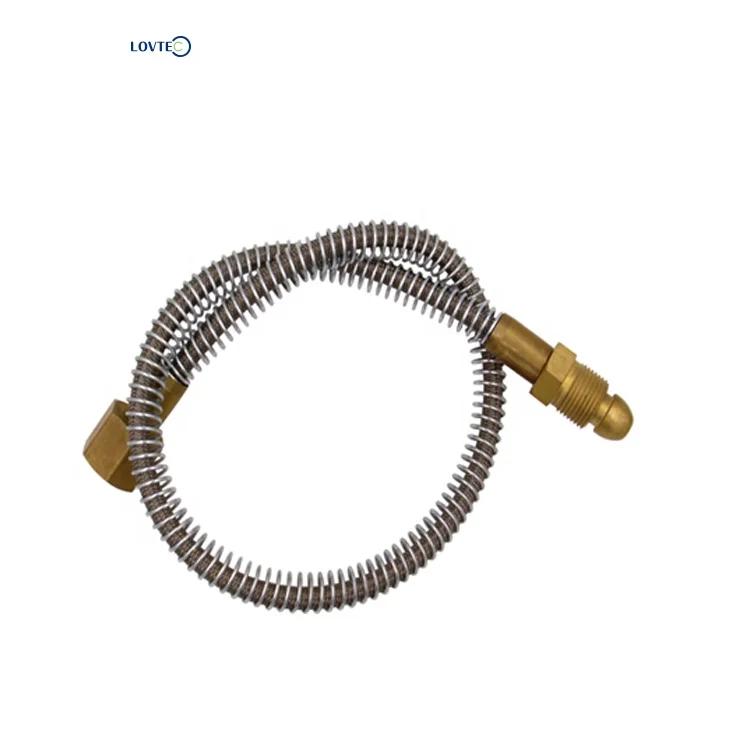

Stainless Steel High Pressure Flexible Hose Assembly
Features: PTFE extruded hose reinforced with stainless steel wires braiding, and both sides fitted with metal connectors.
Inner tube: PTFE/FEP extruded hose, features as high and low temperature resistant, anti-corrosion,
anti-stickness.
Outer Sheath: Stainless Steel SS304 braiding net, improve its pressure resistance, and connected with fast connectors.
Working Temperature range: Constant temperature -50° C~ +210° C, short time temperature
-70° C~ +260° C.
Reinforcement: SS304 Double wire Braids, SS316 Double wire Braids
fit for cylinder valve type | CGA540\\BULLNOSE\\CGA870,and other customized valve | ||||||
Inner hose | PTFE/FEP | ||||||
Reinforcement | SS304 Double wire Braids, SS316 Double wire Braids | ||||||
Construction | Extruded ptfe/FEP tube with a stainless steel double wire braid cover. | ||||||
Temperature | -70° C to +260° C | ||||||
Colour | Natural stainless finish or support customized | ||||||
Cover | Stainless braid | ||||||
Working pressure | 15-20Mpa | ||||||
Specification | According to customer's demands | ||||||
Thickness | 1mm-1.5mm | ||||||
Length | According to customers' requirements | ||||||
