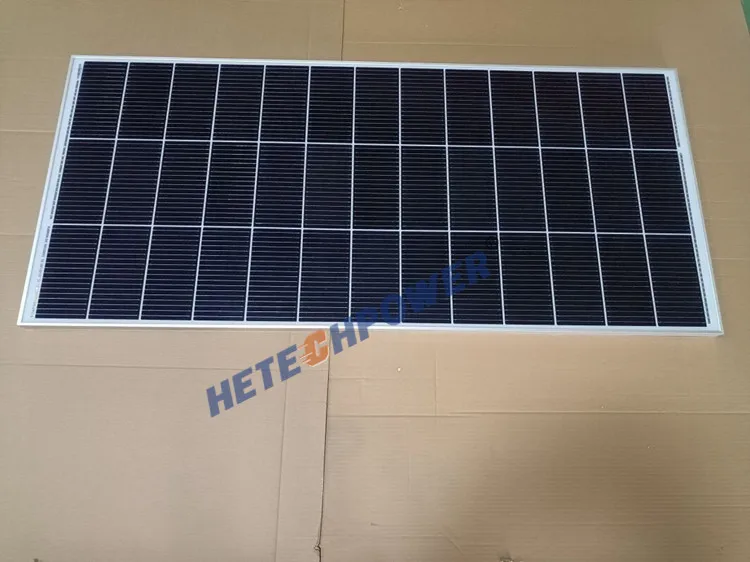

166*55.33mm 9BB Renewable Energy 12v 18v mono Power PV Module Solar Panels 140W 150W for Your Home
- Category: >>>
- Supplier: Zhengzhou Hetai Energy Co. Ltd.Zhengzhou Ltd.
Share on (1601348011006):
Product Overview
Description
Product Description
CHARACTERISTICS | ||||||||||
Maximum Power (Pmax) | 110W | 120W | 130W | 140W | 150W | |||||
Maximum Power Voltage (Vmp) | 18.60V | 19.54V | 21.25V | 17.58V | 18.79V | |||||
Maximum Power Current (Imp) | 5.91A | 6.14A | 6.12A | 7.96A | 7.98A | |||||
Open-circuit Voltage (Voc) | 21.71V | 22.57V | 24.58V | 20.42V | 21.80V | |||||
Short-circuit Current (Isc) | 6.25A | 6.46A | 6.44A | 8.40A | 8.42A | |||||
Dimensions | 790*765*30mm | 1070*580*30mm | 885*765*30mm | 980*765*30mm | 1045*765*30mm | |||||
Weight | 6.37kg | 6.56kg | 7.10kg | 7.55kg | 8.25kg | |||||
STC | Irradiance 1000W/m2,cell temperature 25℃ AM1.5G | |||||||||
CHARACTERISTICS | ||||||||||
Maximum Power (Pmax) | 160W | 170W | 180W | 190W | 200W | |||||
Maximum Power Voltage (Vmp) | 19.99V | 21.18V | 18.79V | 39.79V | 22.82V | |||||
Maximum Power Current (Imp) | 8.00A | 8.03A | 9.58A | 4.78A | 8.77A | |||||
Open-circuit Voltage (Voc) | 23.18V | 24.54V | 21.80V | 46.26V | 26.24V | |||||
Short-circuit Current (Isc) | 8.43A | 8.46A | 10.10A | 5.04A | 9.11A | |||||
Dimensions | 1105*765*30mm | 1170*765*30mm | 1245*765*30mm | 1320*765*30mm | 1480*680*30mm | |||||
Weight | 9.11kg | 9.22kg | 9.87kg | 10.45kg | 10kg | |||||
STC | Irradiance 1000W/m2,cell temperature 25℃ AM1.5G | |||||||||
Operating Conditions | ||
Maxi System Voltage | 700VDC | |
Temperature range | -40°C~+85°C | |
NOTC | 45±2℃ | |
Temperature Coefficient of Isc(α-Isc） | +0.048%/℃ | |
Temperature Coefficient of Voc(β-Voc) | -0.27%/℃ | |
Temperature Coefficient of Pmax(Y-Pmp) | -0.35%/℃ | |

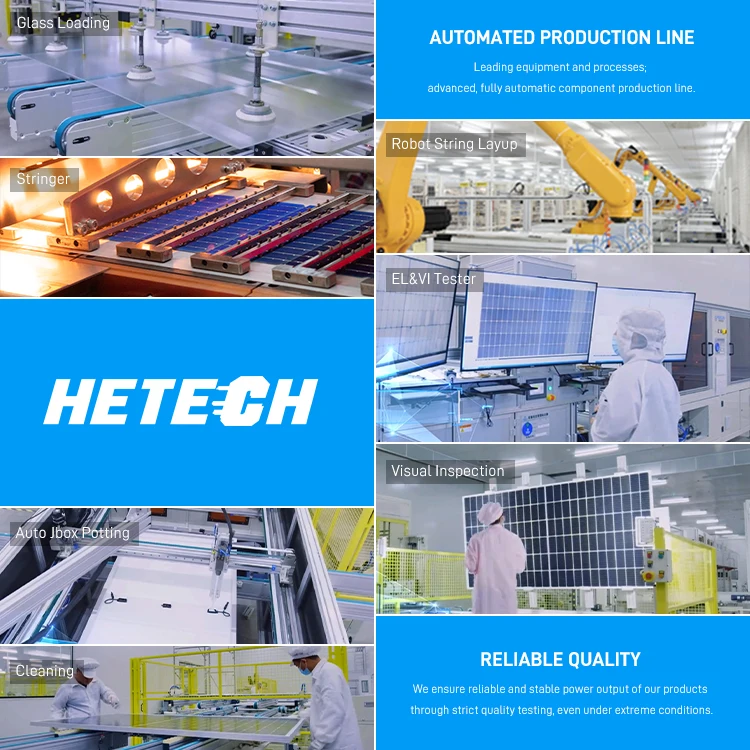

Production line
Company Profile
Packing & Delivery

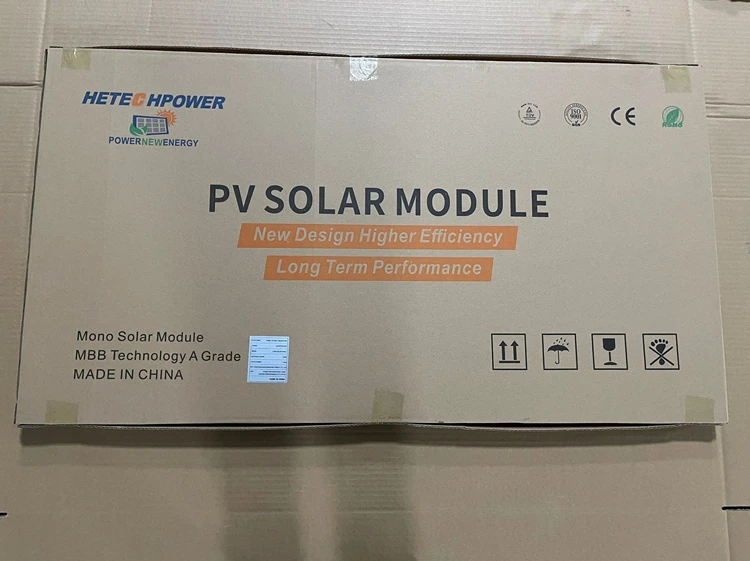

Packing
Normally packing: 1pc/2pcs/3pcs/10pcs/25pcs per carton
Individual packing requirement is acceptable.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
Shipping Methods | Arrive AT | Delivery From |
By Sea | Sea Port You Want | Any port in China |
By Air | Air Port You want | Any port in China |
By Railway | Your Door | Any station in China |
By Express | Your Door | Zhengzhou |
Payment
T/T , L/C, Western Union, Money Gram Paypal.

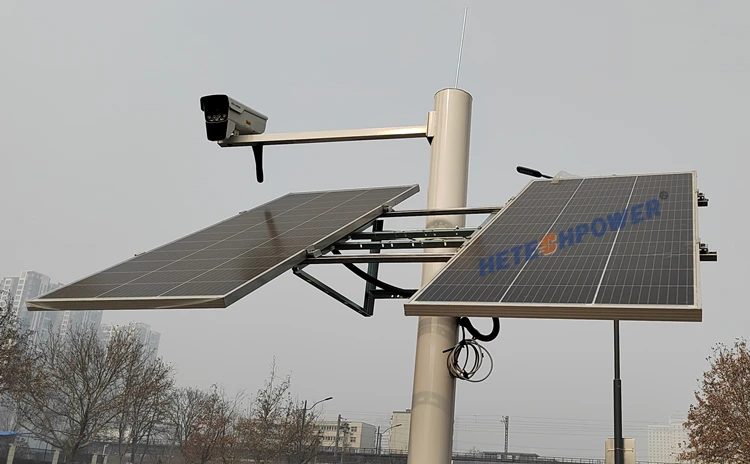

Application

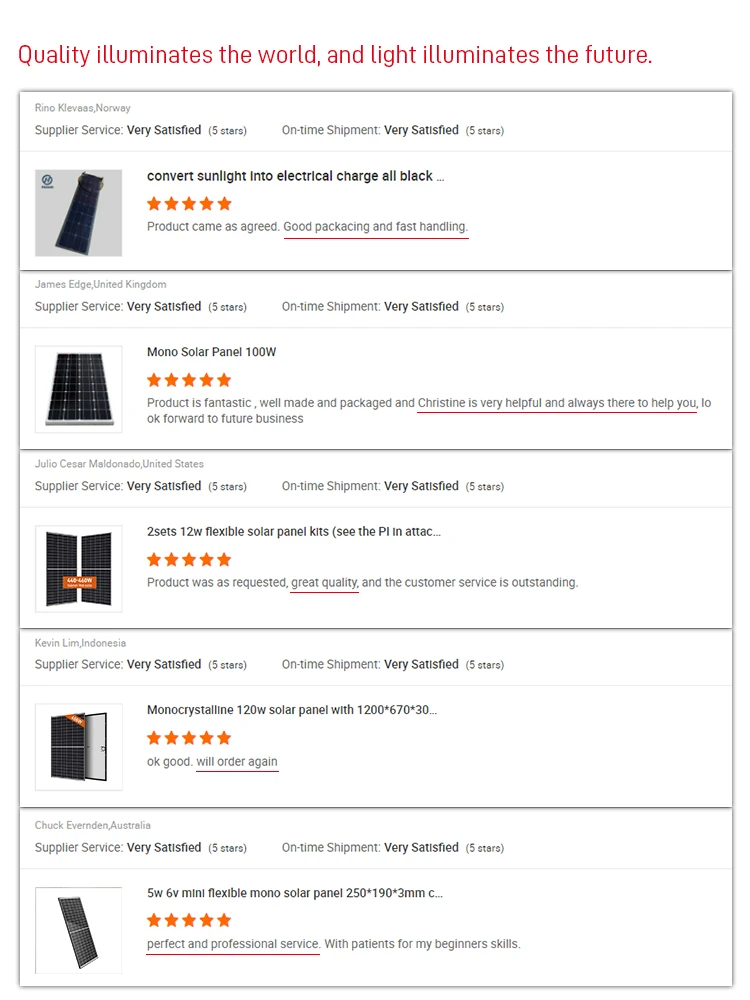

Customer Reviews

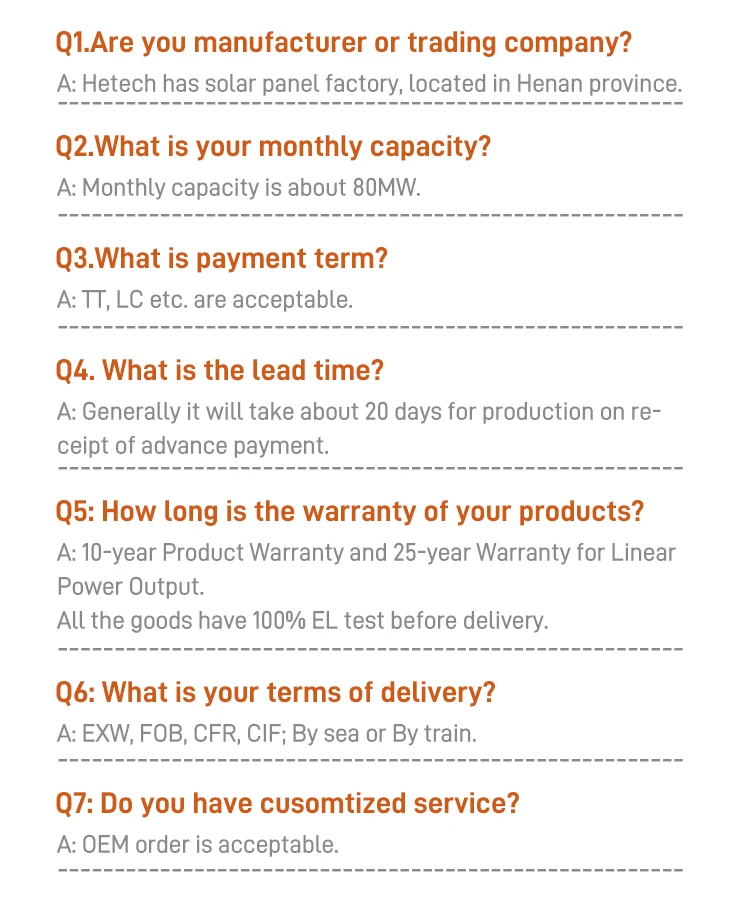

FAQ
