Product Overview

Description



Products Description




Technical Specifications


Model
Tracer
6210AN
Tracer 5415AN
Tracer 6415AN
Tracer 8415AN
Tracer 10415AN
Nominal system voltage
12/24VDC/Auto
12/24/36/48VDC/Auto
Battery type
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
Battery input voltage range
8V～32V
8V～68V
8V～68V
8V～68V
8V～68V
Rated charge current
60A
50A
60A
80A
100A
Rated charge power
750W/12V
1500W/24V
625W/12V
1250W/24V
1875W/36V
2500W/48V
750W/12V
1500W/24V
2250W/36V
3000W/48V
1000W/12V
2000W/24V
3000W/36V
4000W/48V
1250W/12V
2500W/24V
3750W/36V
5000W/48V
Max. conversion efficiency
98.00%
98.30%
98.60%
98.50%
98.60%
Tracking efficiency
≥99.5%
Max. PV open circuit voltage
100V（At minimum operating environment temperature） 92V（At 25℃ environment temperature ）
150V（At minimum operating environment temperature） 138V（At 25℃ environment temperature ）
MPP voltage range
(Battery Voltage +2V)～72V
(Battery Voltage +2V)～108V
Equalization voltage
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
Boost voltage
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
Float voltage
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
Low voltage reconnect voltage
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
Low voltage disconnect voltage
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
Self-consumption
98mA/12V;60mA/24V;50mA/36V;46mA/48V
Temperature compensation ( for lead-acid battery)
－3mV/℃/2V(Default)
Relative humidity
5% to 95% (N.C.)
Enclosure
IP20
Communication interface
RS485(5VDC/200mA, Two RJ45 ports in parallel)
Grounding
Common negative
Operating temperature range
`-25℃～+60℃(derating above 45℃)
Dimensions(LxWxH)(mm)
340×232×105.2
261×216×119
340×236×119
394×240×134
394×242×143
Net weight
3.5kg
3.5kg
4.5kg
6.1kg
7.4kg
1. The controlller can't automatically identify system voltage if lithium batteries were connected.
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system.


Model
Tracer 5420AN
Tracer 6420AN
Tracer 8420AN
Tracer 10420AN
Nominal system voltage
12/24/36/48VDC/Auto
Battery type
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
Battery input voltage range
8V～68V
8V～68V
8V～68V
8V～68V
Rated charge current
50A
60A
80A
100A
Rated charge power
625W/12V 1250W/24V 1875W/36V 2500W/48V
750W/12V 1500W/24V 2250W/36V 3000W/48V
1000W/12V 2000W/24V 3000W/36V 4000W/48V
1250W/12V 2500W/24V 3750W/36V 5000W/48V
Max. conversion efficiency
98.30%
98.10%
98.50%
98.50%
Tracking efficiency
≥99.5%
Max. PV open circuit voltage
200V（At minimum operating environment temperature） 180V（At 25℃ environment temperature ）
MPP voltage range
(Battery Voltage+2V)～144V
Equalization voltage
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
Boost voltage
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
Float voltage
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
Low voltage reconnect voltage
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
Low voltage disconnect voltage
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
Self-consumption
98mA/12V;60mA/24V;50mA/36V;46mA/48V
Temperature compensation ( for lead-acid battery)
－3mV/℃/2V(Default)
Relative humidity
5% to 95% (N.C.)
Enclosure
IP20
Communication interface
RS485(5VDC/200mA, Two RJ45 ports in parallel)
Grounding
Common negative
Operating temperature range
`-25℃～+60℃(derating above 45℃)
Dimensions(LxWxH)(mm)
261×216×119
340×236×119
394×240×134
394×242×143
Net weight
3.5kg
4.5kg
6.1kg
7.4kg
1. The controlller can't automatically identify system voltage if lithium batteries were connected.
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system.

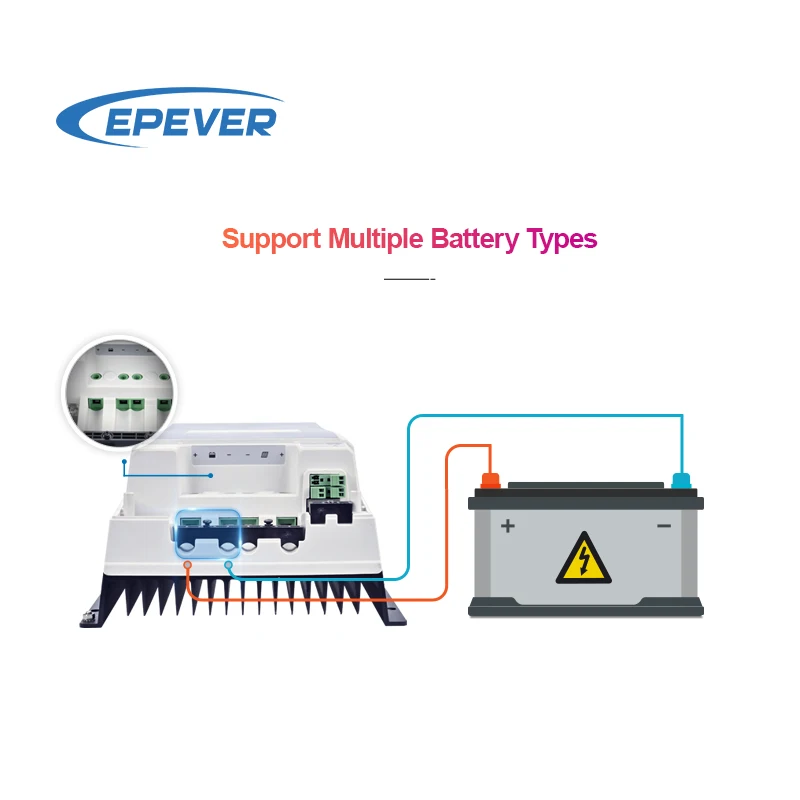

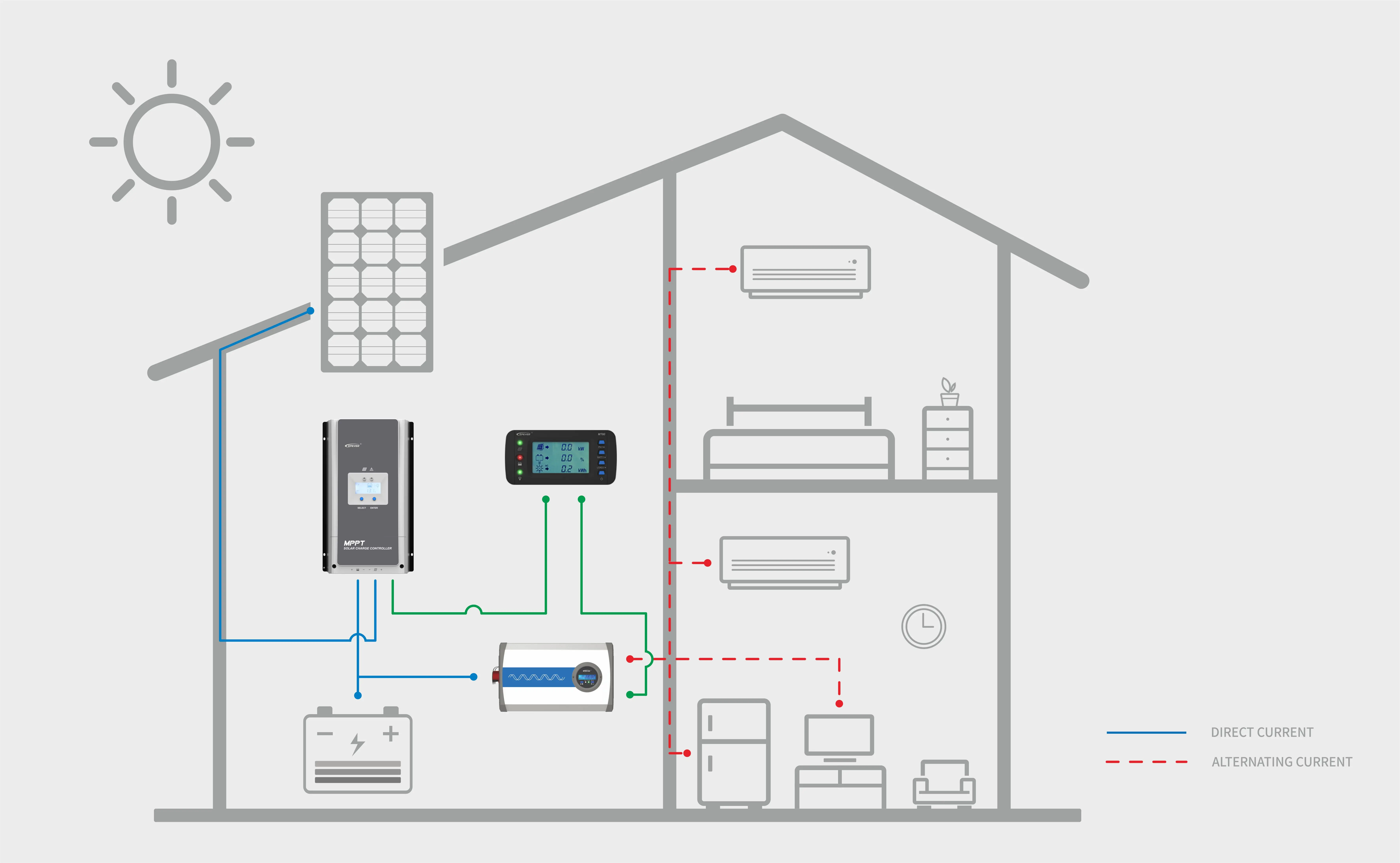

System connection diagram

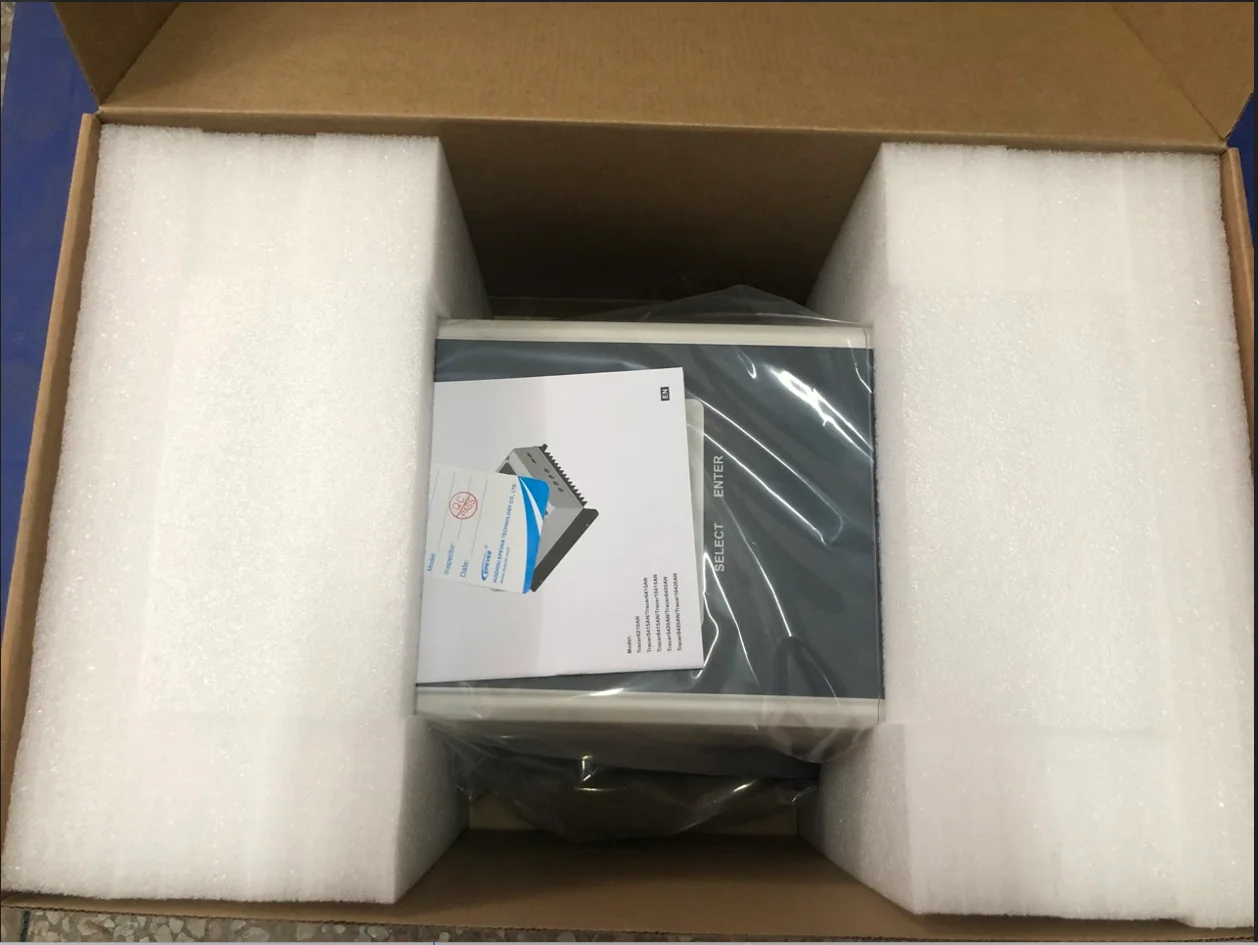

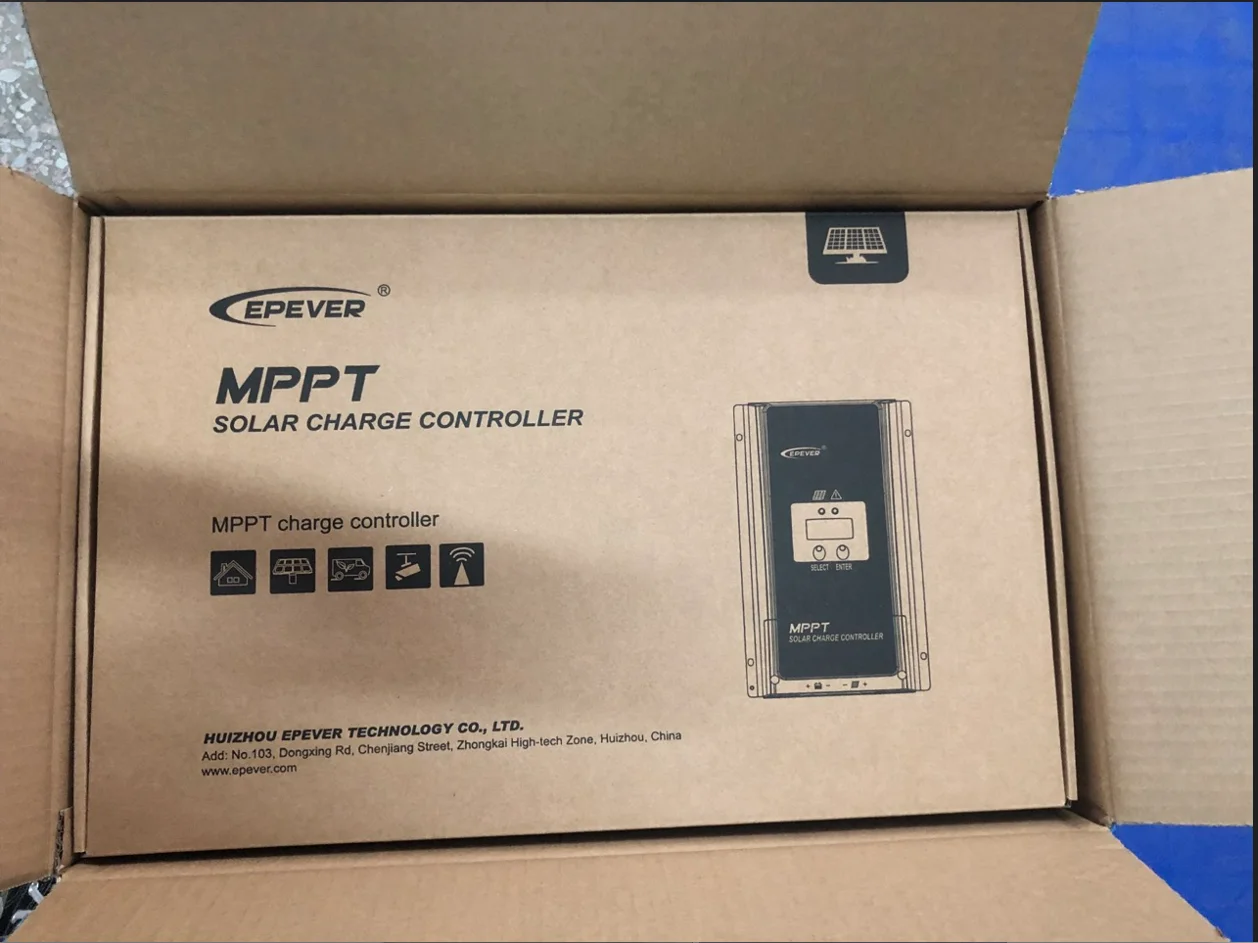

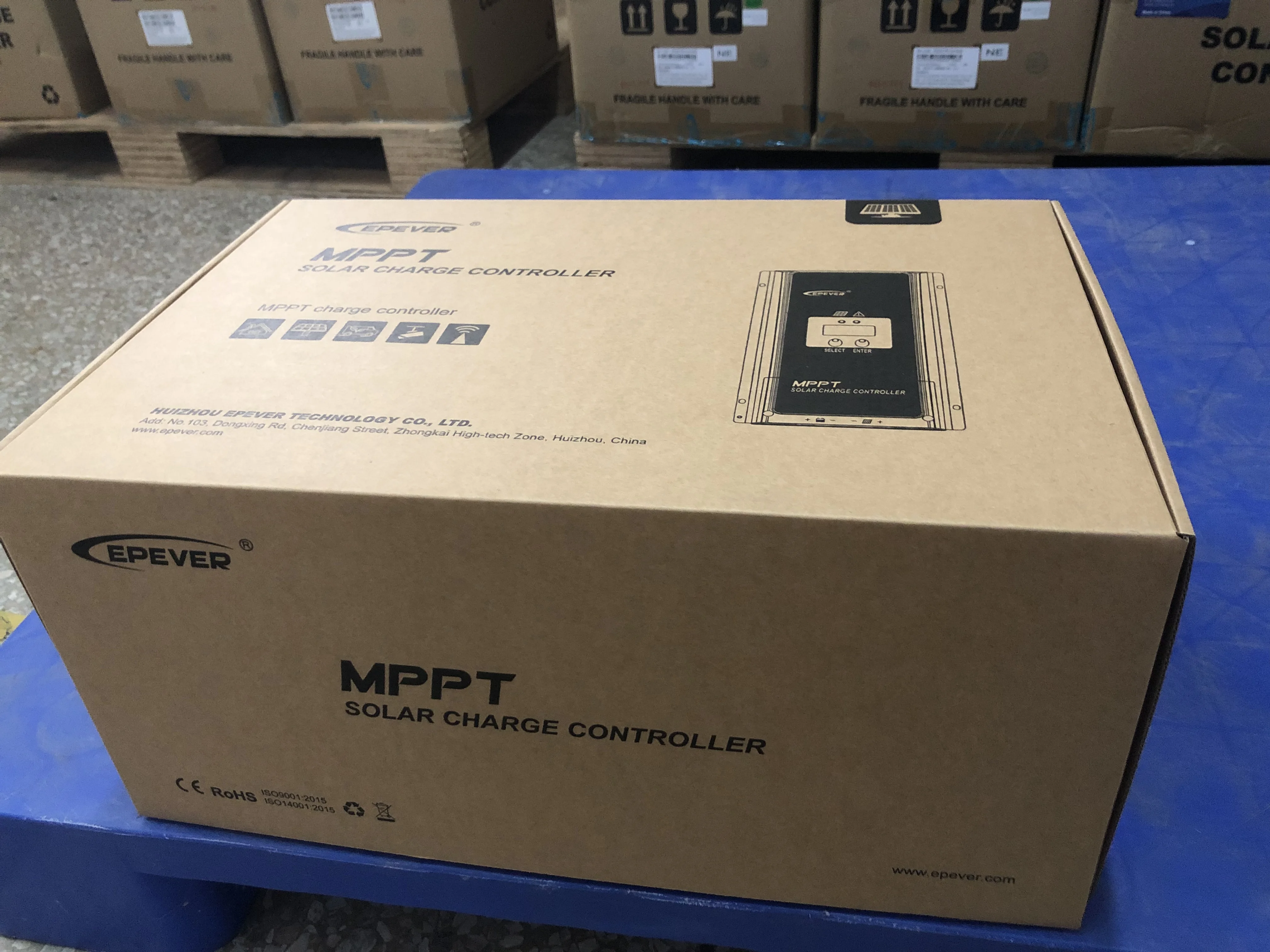

Product packaging
