High efficiency gold mining equipment gold centrifugal concentrator for sale

Share on (1601348455108):


Price:$3,850.00

Quantity:


Product Overview

Description



Product Description

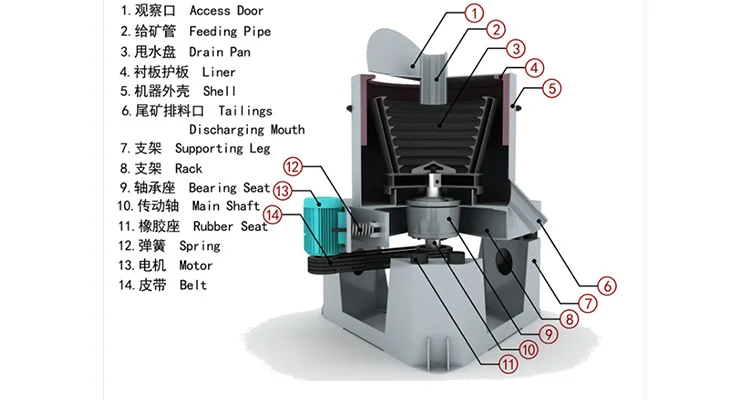

Gold Centrifuge Machine
A mine-used centrifuge is a crucial piece of equipment in the mining industry.
It is mainly used for separating substances of different densities in mining processes. The centrifuge operates based on the principle of centrifugal force. When the sample is placed inside and spun at high speed, the denser components move towards the outer edge while the lighter ones stay closer to the center. This enables effective separation of minerals from other impurities or different phases of the mined materials.
It has a robust construction to withstand the harsh conditions in mines. With advanced engineering, it can achieve high -
efficiency separation, which is vital for improving the quality of the final mining products and reducing waste.




Manufacturing Technique


Model
KDL19
KDL30
KDL60
KDL80
KDL100
Capapcity (T/H)
0.25-0.30
3-5
15-20
40-50
80-100
Feed particles (mm)
0-3
0-4
0-6
0-6
0-6
Feed density (%)
0-50%
0-50%
0-50%
0-50%
0-50%
Recoil of water (T/H)
1.5-2
4-6
10-15
17-25
40-60
Concentrate production
2-3
10-20
30-40
60-70
70-80
(kg per time)
Motor Power (kw)
0.75
3
7.5
11
18.5
Cone rotational speed
800
600
460
400
360
Water Pressure (MPa)
0.04
0.1
0.16
0.18
0.2
Overall Size (mm)
790×785×790
1150×1360×1250
1970×1670×1750
2300×1800×2200
2500×2000×2400
Weight
300kg
500kg
1300kg
1800kg
2800kg

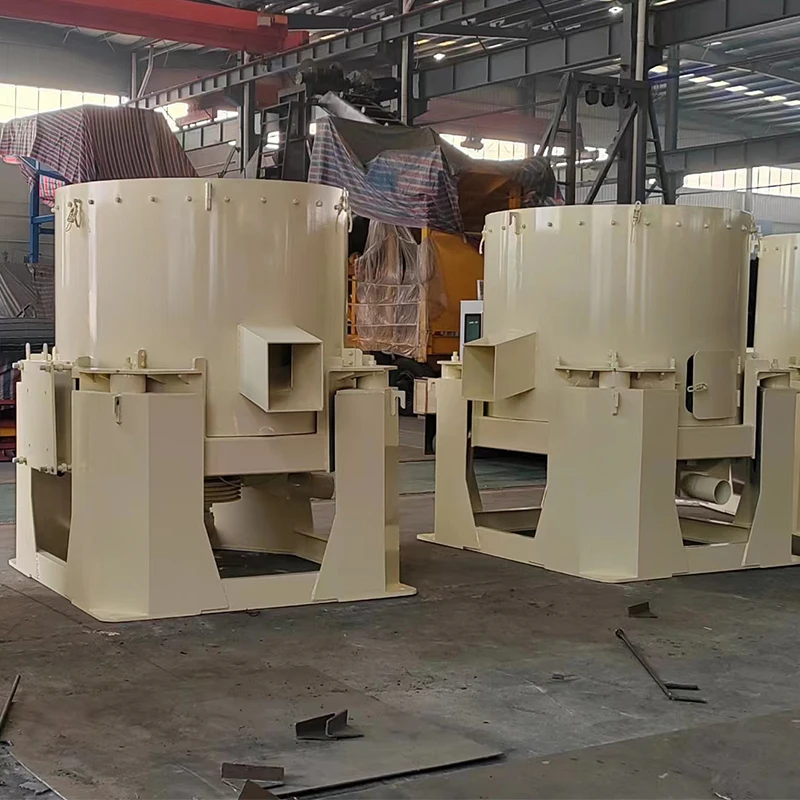

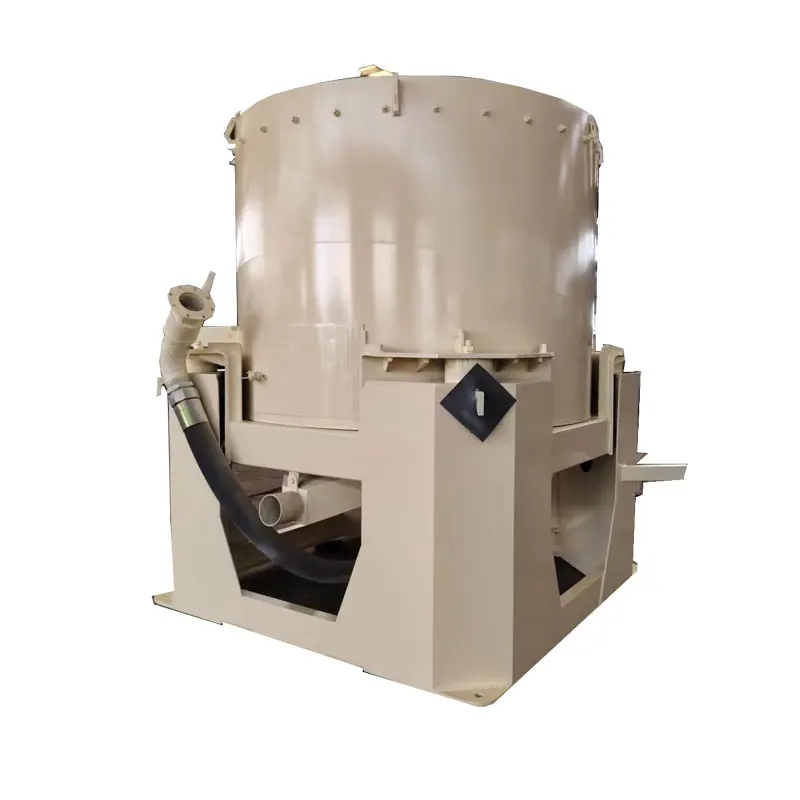

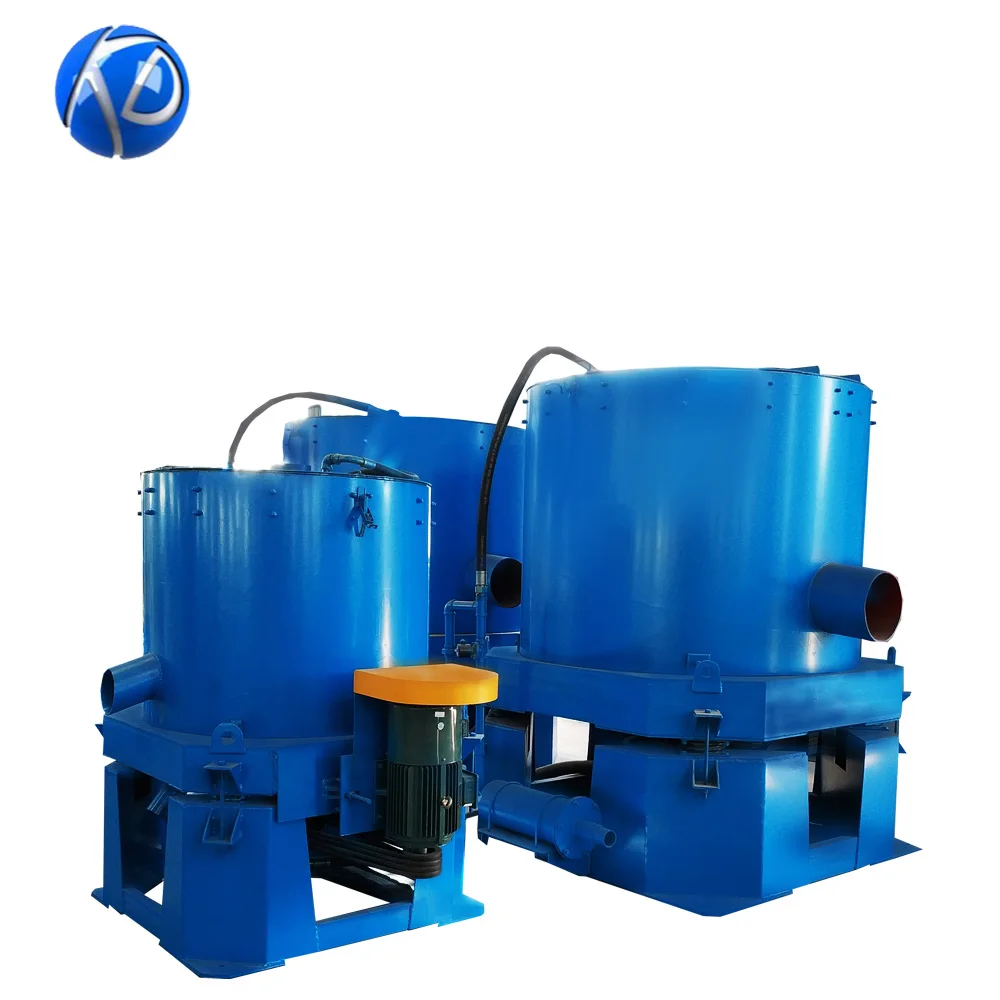

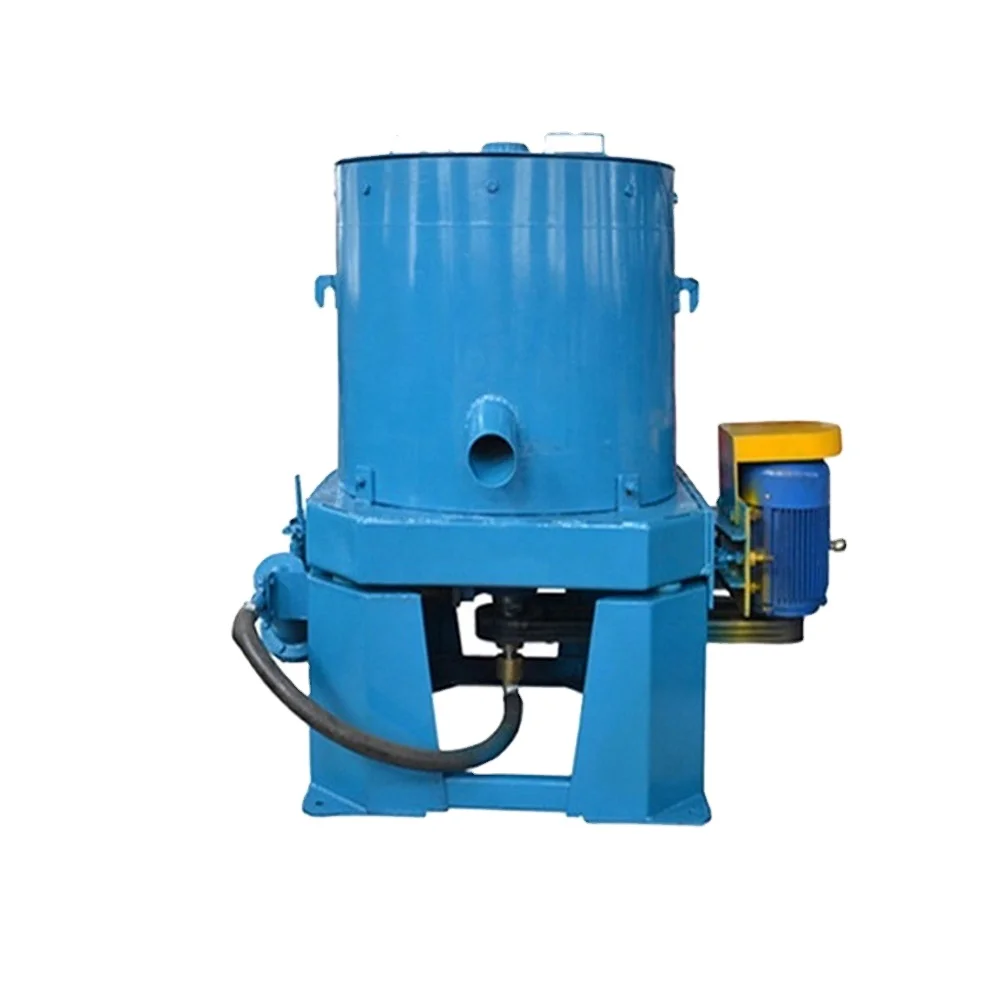

Details Images

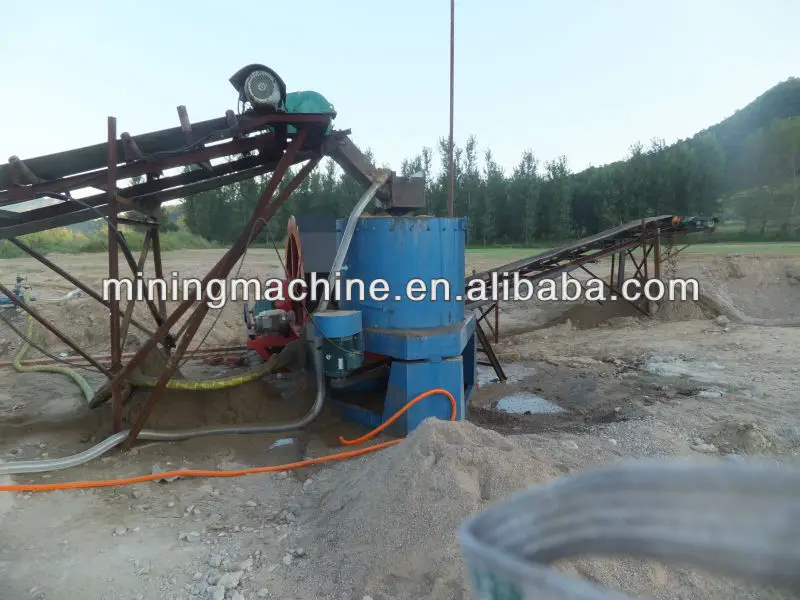

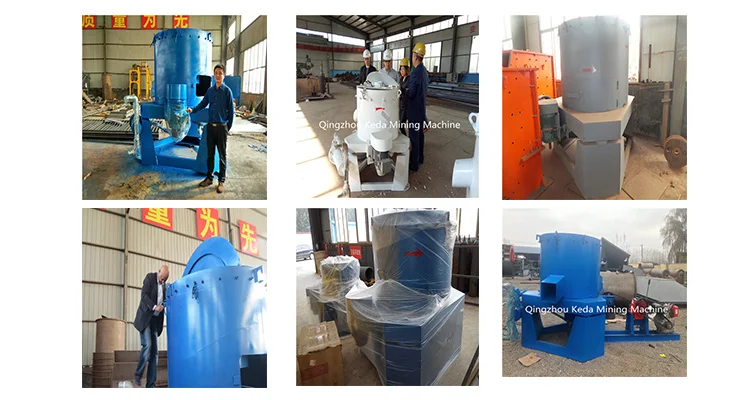

Our Cases

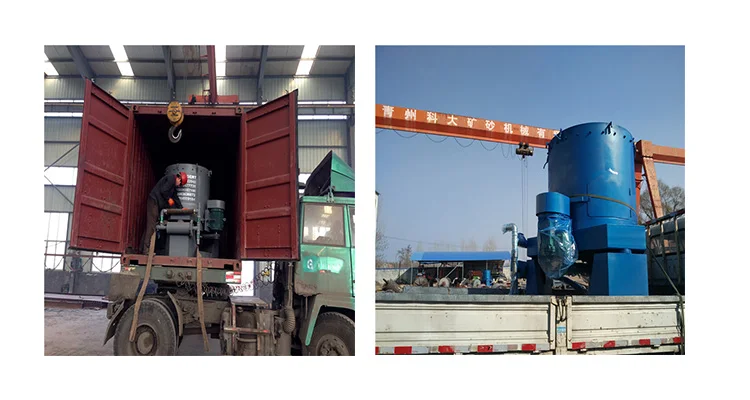

Packing&Delivery




Why Choose Us


Qingzhou KEDA Environment Proctection Machinery Co., Ltd
1.More than 10 years of production experience in dredgers and mineral processing equipment
2.Strong technical service team, can provide customized services
3.Own design team with 21 patents
4.Industry and Trade Integration Enterprise
5.The factory covers an area of over 22,000 square meters
6. 3 production lines-dredger-cleaning boat-gold mining equipment
