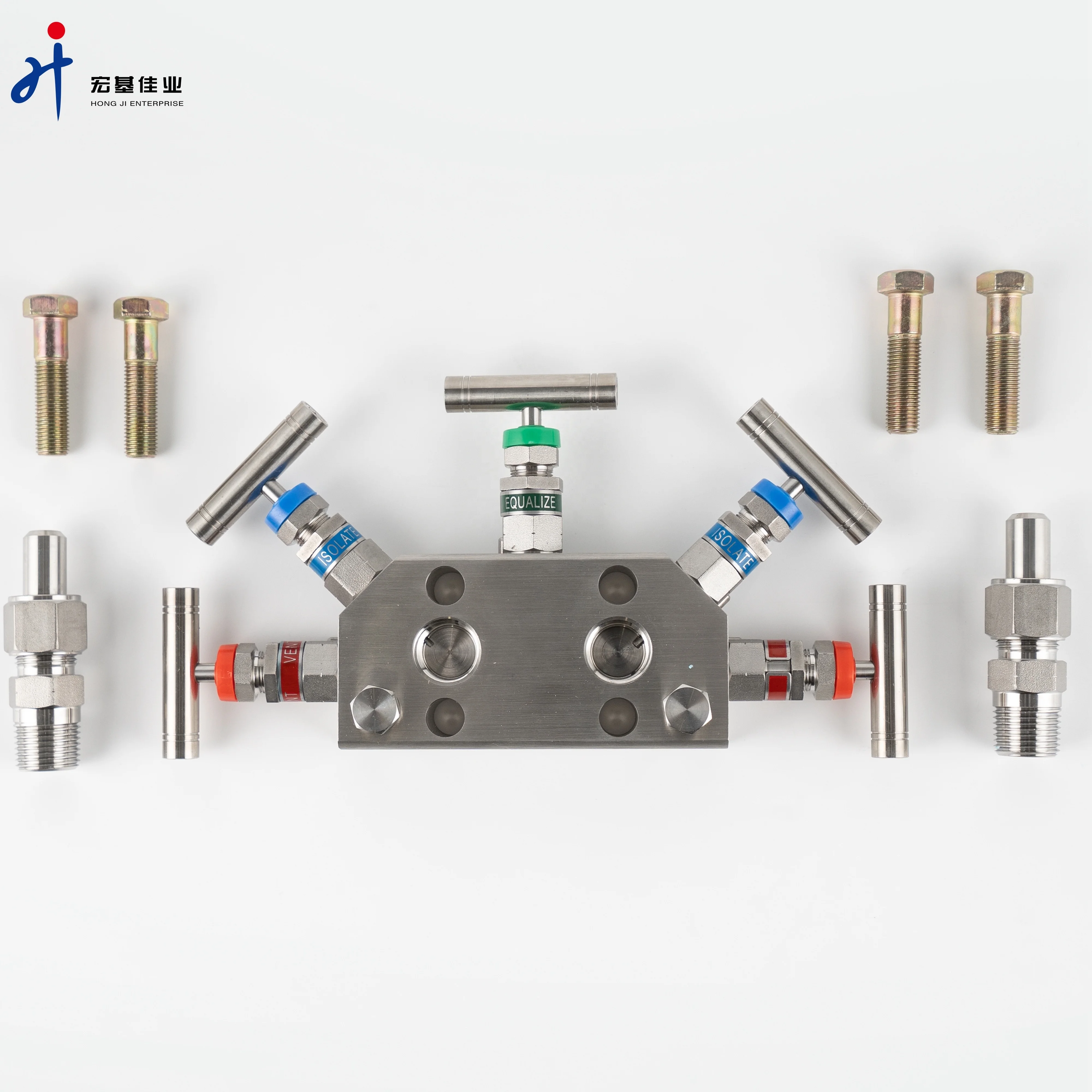

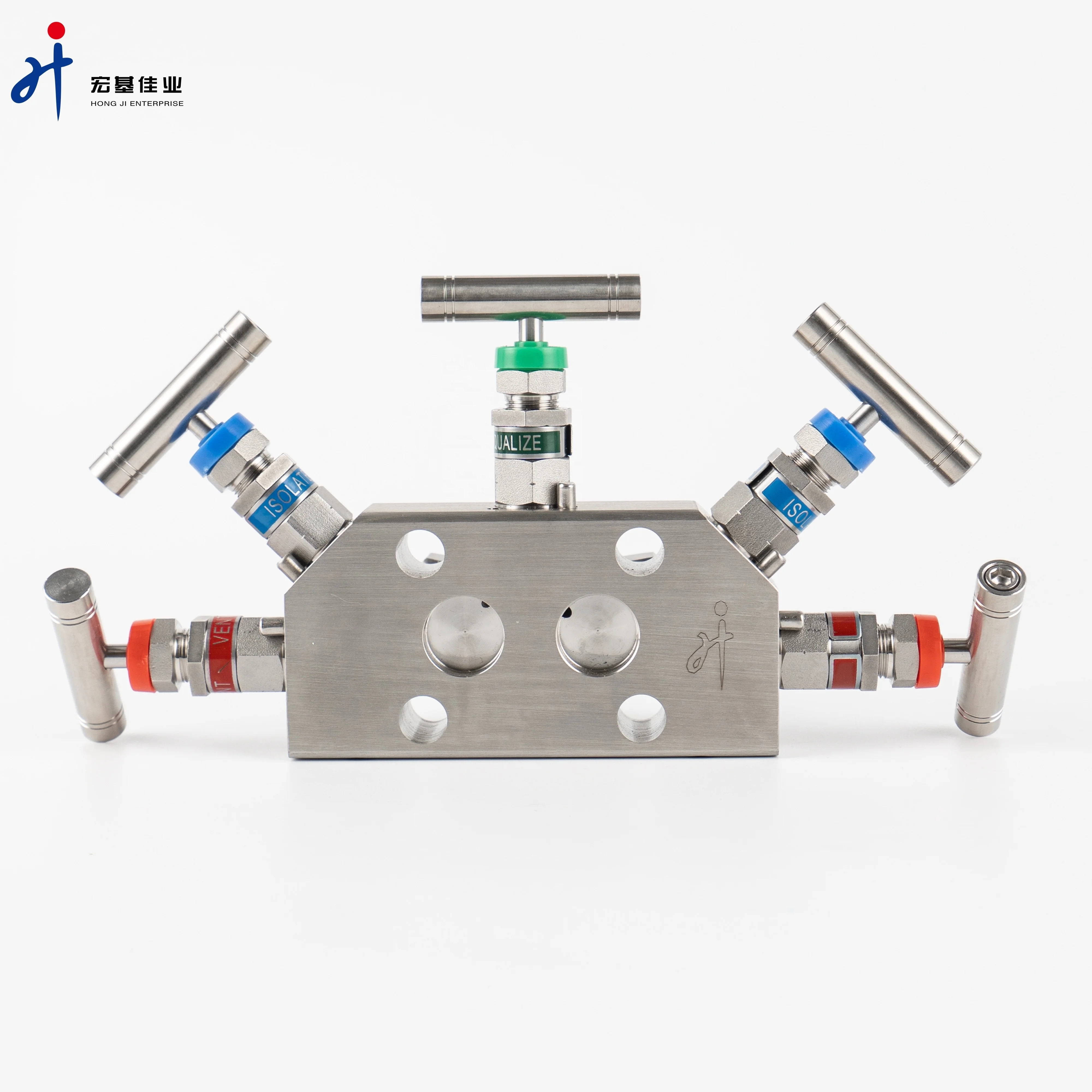

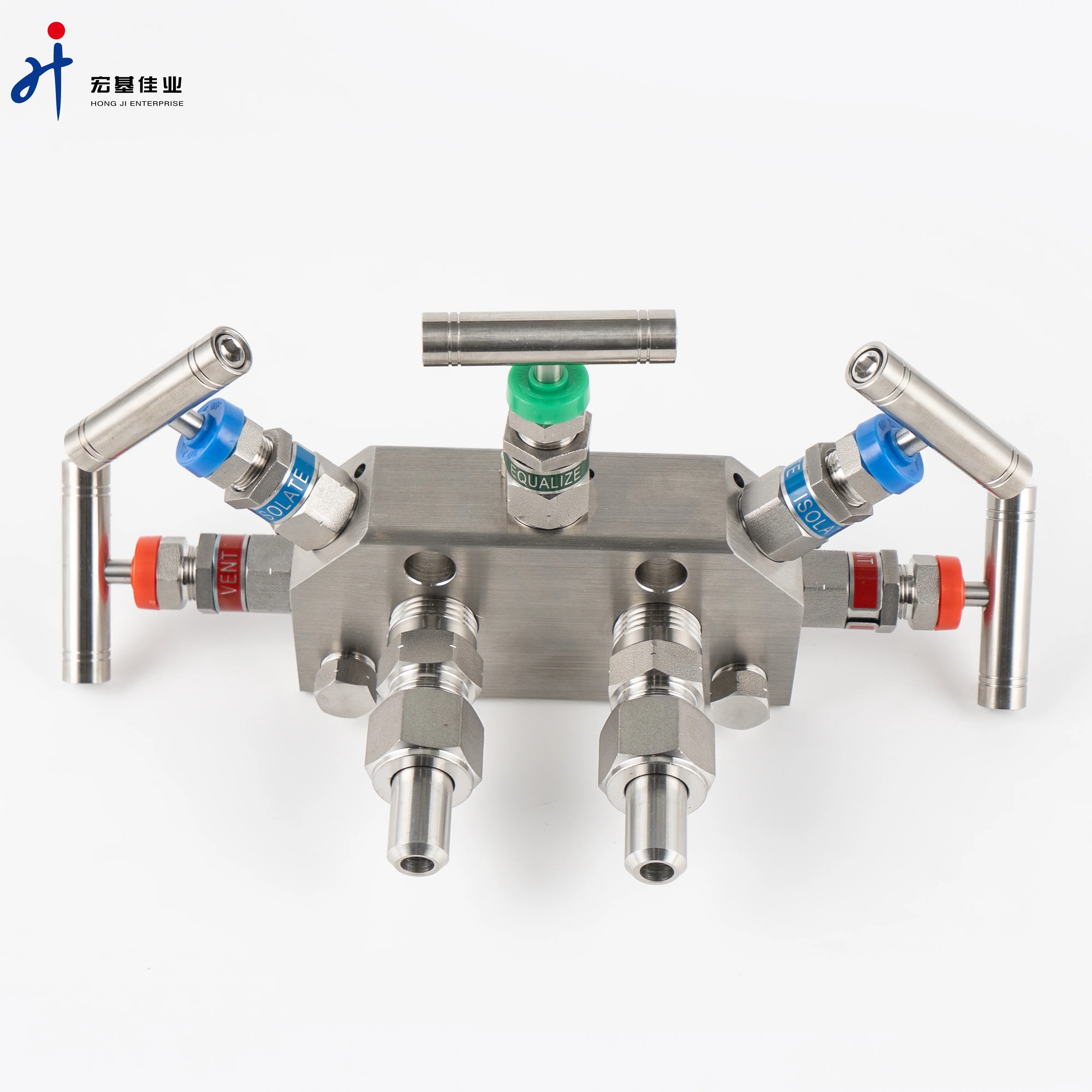

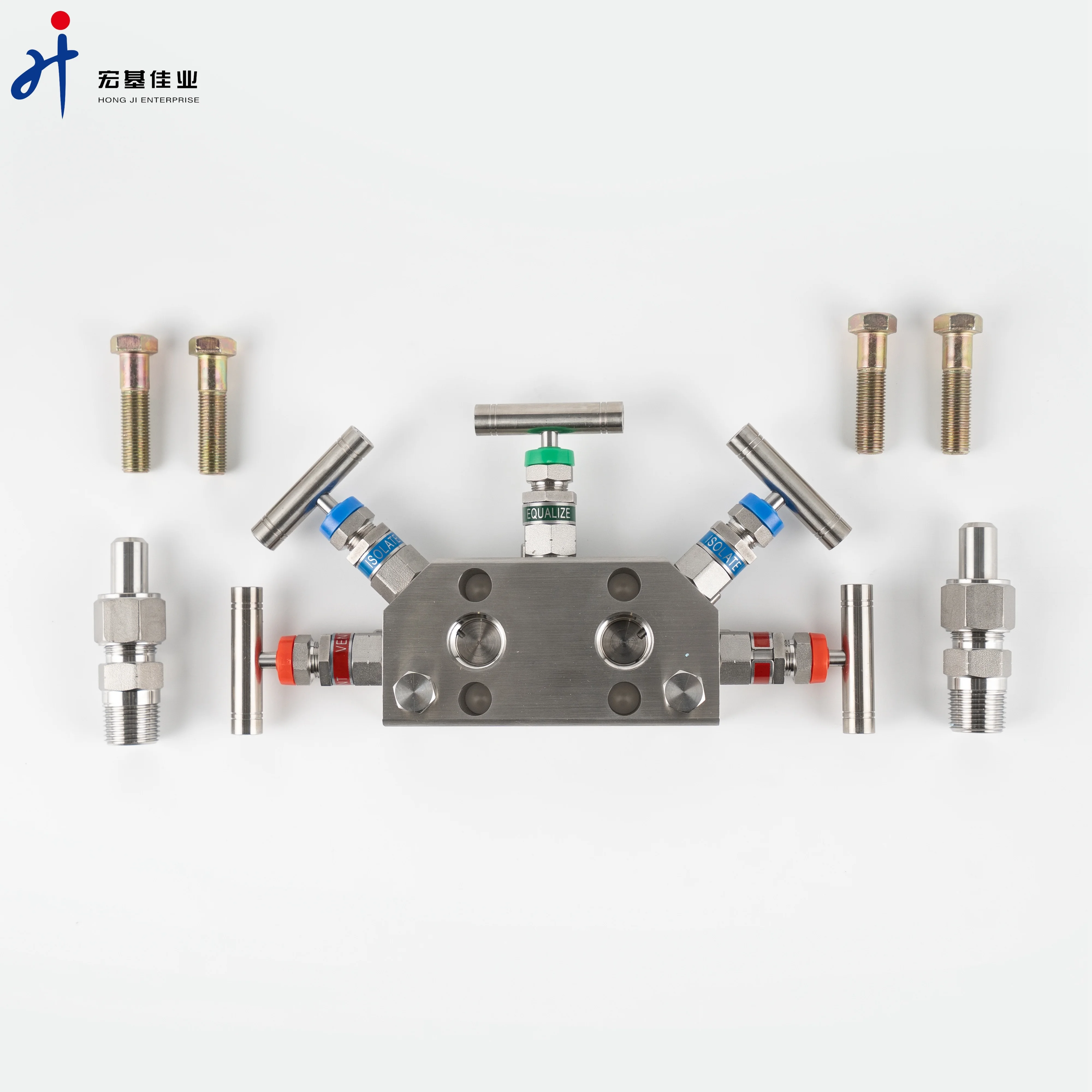

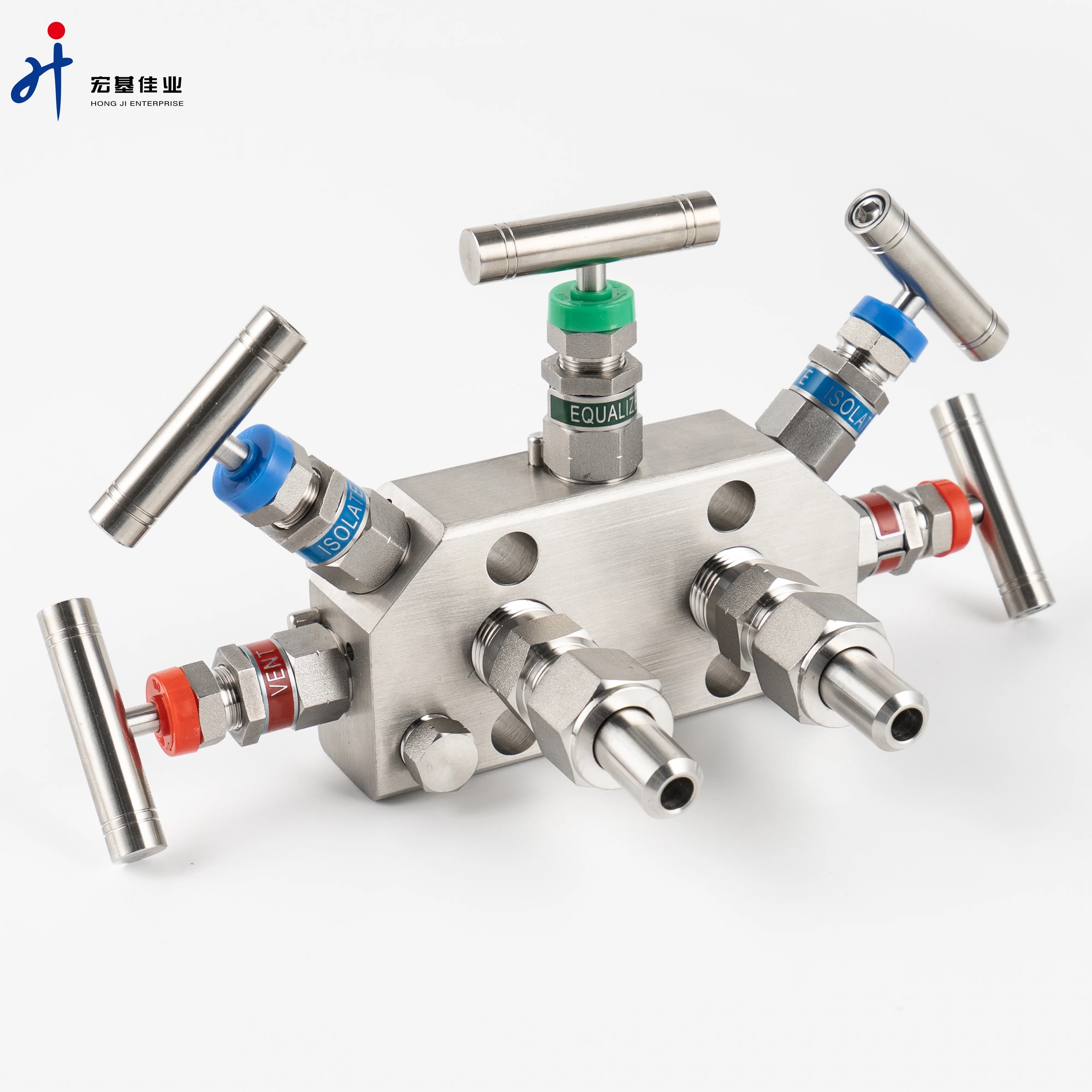

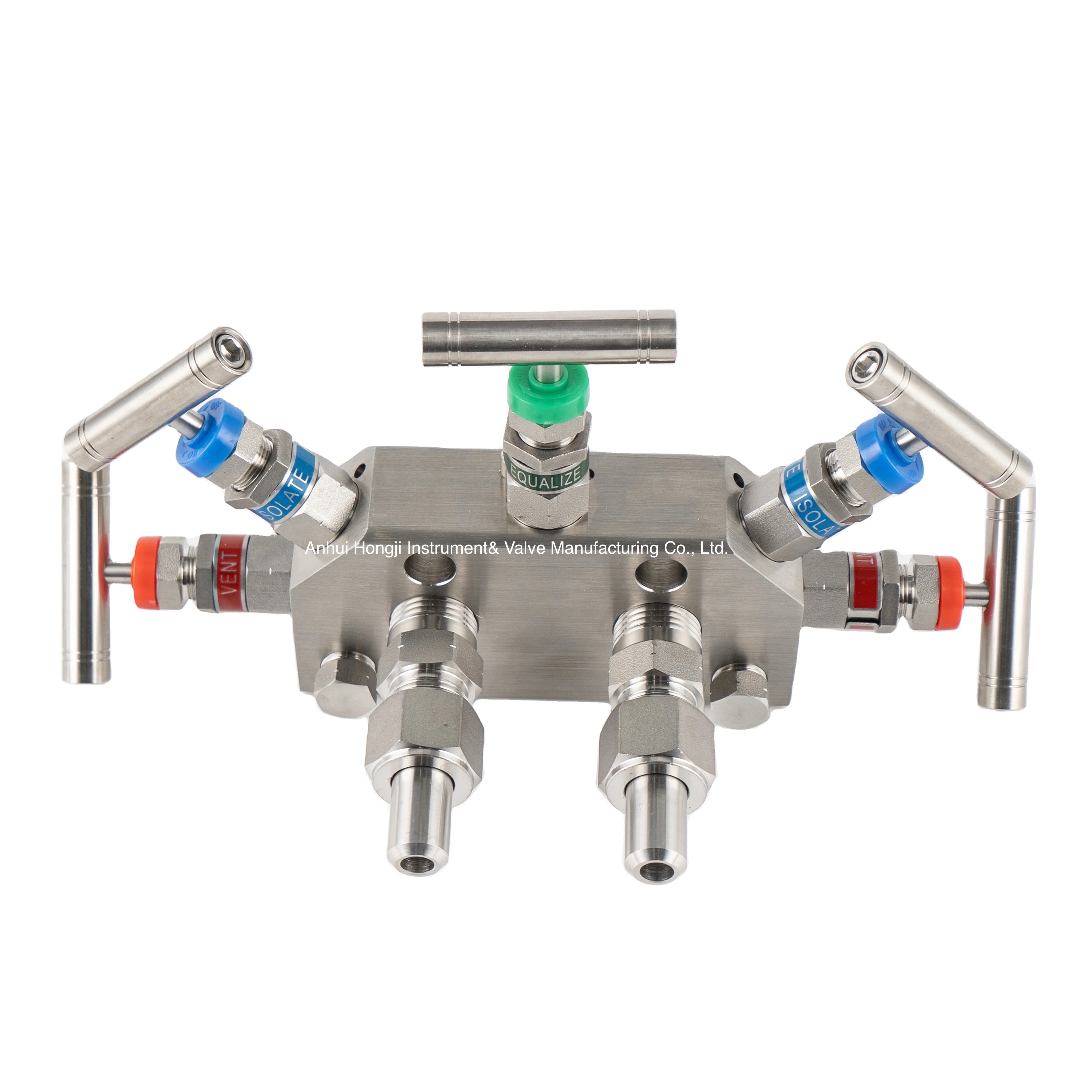

Hongji coplanar flange integrated five valve manifold For differential pressure transmitter
- Category: >>>
- Supplier: Anhui Hongji Intrustment Valve Co. Ltd.Anhui Ltd.
Share on (1601348466308):
Product Overview
Description
Products Description
Instrumentation Manifolds
Instrumentation manifolds made by Hongji Instrument& Valve Manufacturing Co., Ltd. combine several valves in one body with multiple connections. This equipment assists pressure instruments directly and indirectly in measuring andequalizing pressures, differential pressures, static, gauge, and variable in process instrumentation lines by bleeding, blocking, and
calibrating.
calibrating.
Production Details
Instrumentation Manifolds Features:
* Efficiency Improvement and Energy Saving.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
Instrumentation Manifolds General data
* Pressure Range: 5000Psi 6000Psi(344Bar-413Bar)
* Working temperatures: 232°C-649°C (450°F-1200°F)
* Inlet/outlet/test/vent: NPT1/4-NPT1/2, flange, optional
* Application: Liquid or Gas, Steam, Water, Oil
* Body Material:316,316L, Alloy
* Working temperatures: 232°C-649°C (450°F-1200°F)
* Inlet/outlet/test/vent: NPT1/4-NPT1/2, flange, optional
* Application: Liquid or Gas, Steam, Water, Oil
* Body Material:316,316L, Alloy
Applications of Valve Manifold
* Oil and gas
* Chemical
* Power Plant
* Nuclear Energy
* Water Treatment
* Steel
* Pulp& Paper
* Chemical
* Power Plant
* Nuclear Energy
* Water Treatment
* Steel
* Pulp& Paper
Variety of Valve Manifolds
* Body Type: In-line, Coplanar, Integral
* Mounting Style: Remote mounting, Direct mounting
* Number of Valves / Layout: 2-way, 3-way, 5-way
* Mounting Style: Remote mounting, Direct mounting
* Number of Valves / Layout: 2-way, 3-way, 5-way
Product Paramenters
Model | HJHYSF-SWW | Orifice Size | 0.157 in/ 4.0 mm |
Type | Valve Manifolds | CV | 0.35 |
Body Material | 316L, Alloy | Pack Material | PTFE/ Graphite |
Net Weight | 2490g | ||
Seal Type | Hard Sealing | Manufacturing Capacity | 1000/Month |
Manufacturing | Forging and CNC | Warranty | 1 year |
Application | Nontoxic Liquid or Gas, Steam, Oil | Norms | ISO/GB/JB/DIN |
Pressure Range | 6000psi/414bar | Test Norms | API 598/ GBT-13927-2008 |
PTFE | -54—260°C/-65.2—500°F | Certificate | ISO/TUV |
Inlet/Vent | 1/2’’-1/4’’ | Graphite | -54°C to 649°C/-65°F to 1200°F |
No. | Component | Material | ||
1 | Handle | SS 316 | Alloy 400 | |
1 | Handle | Stainless Steel | ||
2 | Set Screw | Stainless Steel | ||
3 | Packing Bolt | SS304 | ||
4 | Upper Stem | SS316 | ||
5 | Lock Nut | 17-4PH | ||
6 | Bonnet | SS316 | Alloy 400 | |
7 | Gland | SS316 | ||
8 | Packing | PTFE/Graphite | ||
9 | Lock Pin | Stainless Steel | ||
10 | Lower Stem | SS316 | Alloy 400 | |
11 | Body | SS316 | Alloy 400 | |
12 | Seat | Acetal/PEEK/PFA | ||
