Product Overview
Description
Product Description
Manufacturer Sales of New Cement Laser Levelling Machine for Concrete Floors Construction Industry Core Components Engine Motor
Laser leveling machines are developed based on the increasing requirements for the quality of the ground, such as strength, flatness and levelness, of large-area cement concrete floors in modern industrial plants, large shopping malls, warehouses, etc. They can easily pour high-strength concrete, low-slump concrete and fiber cement. Its laser system is equipped with a variety of automatic control components to ensure the vibration compaction of the concrete, making the entire poured concrete matrix uniform and dense.

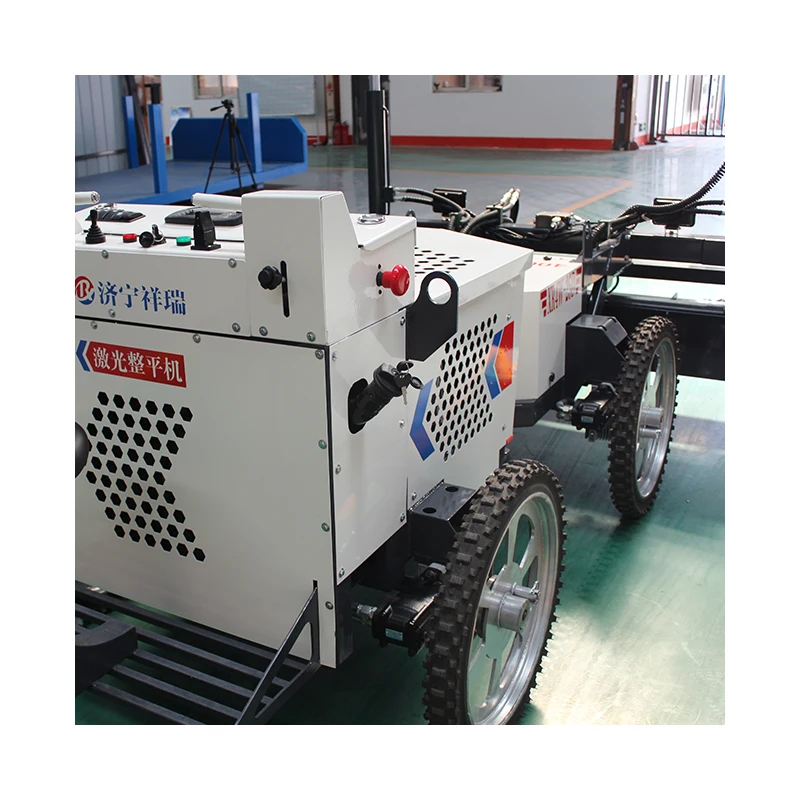

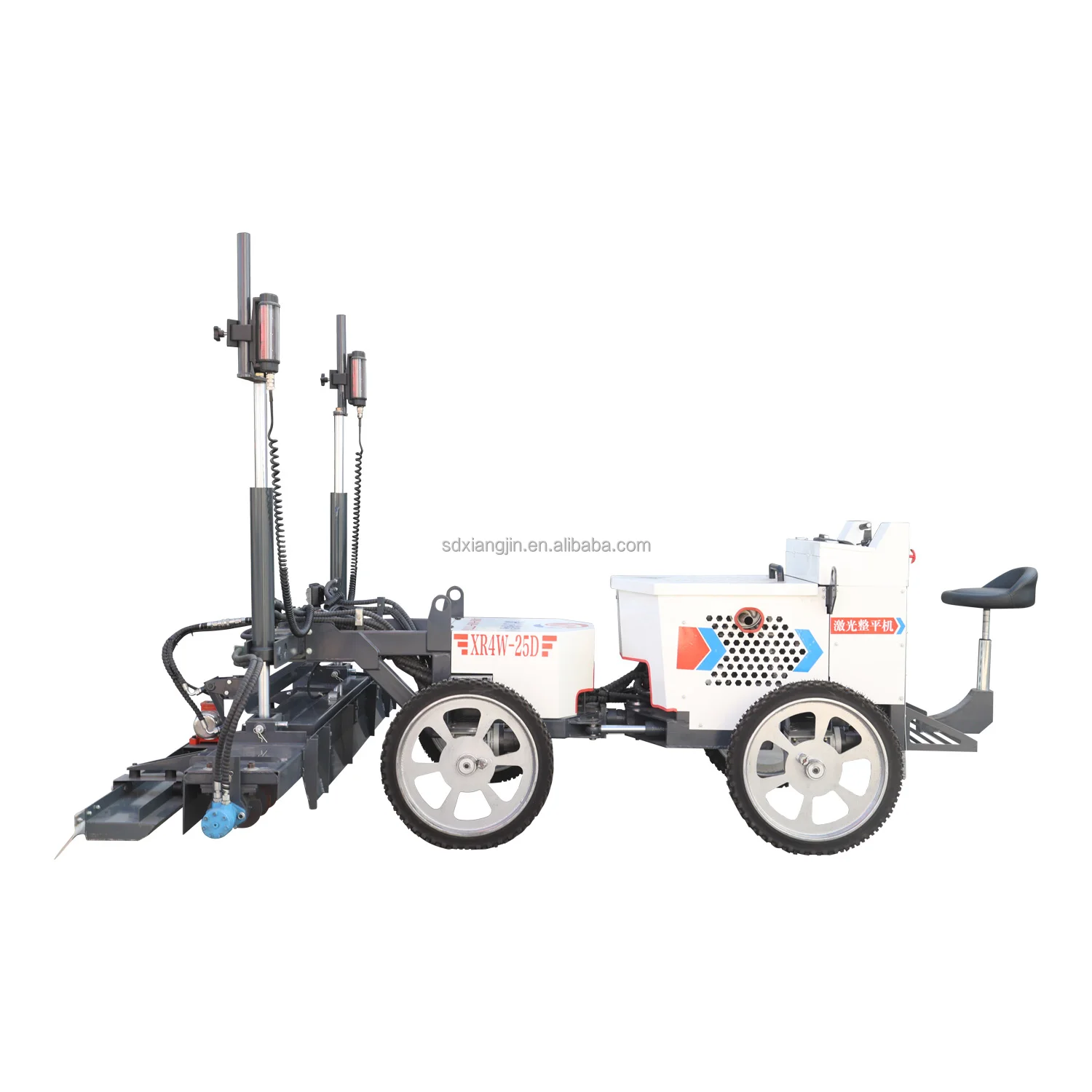

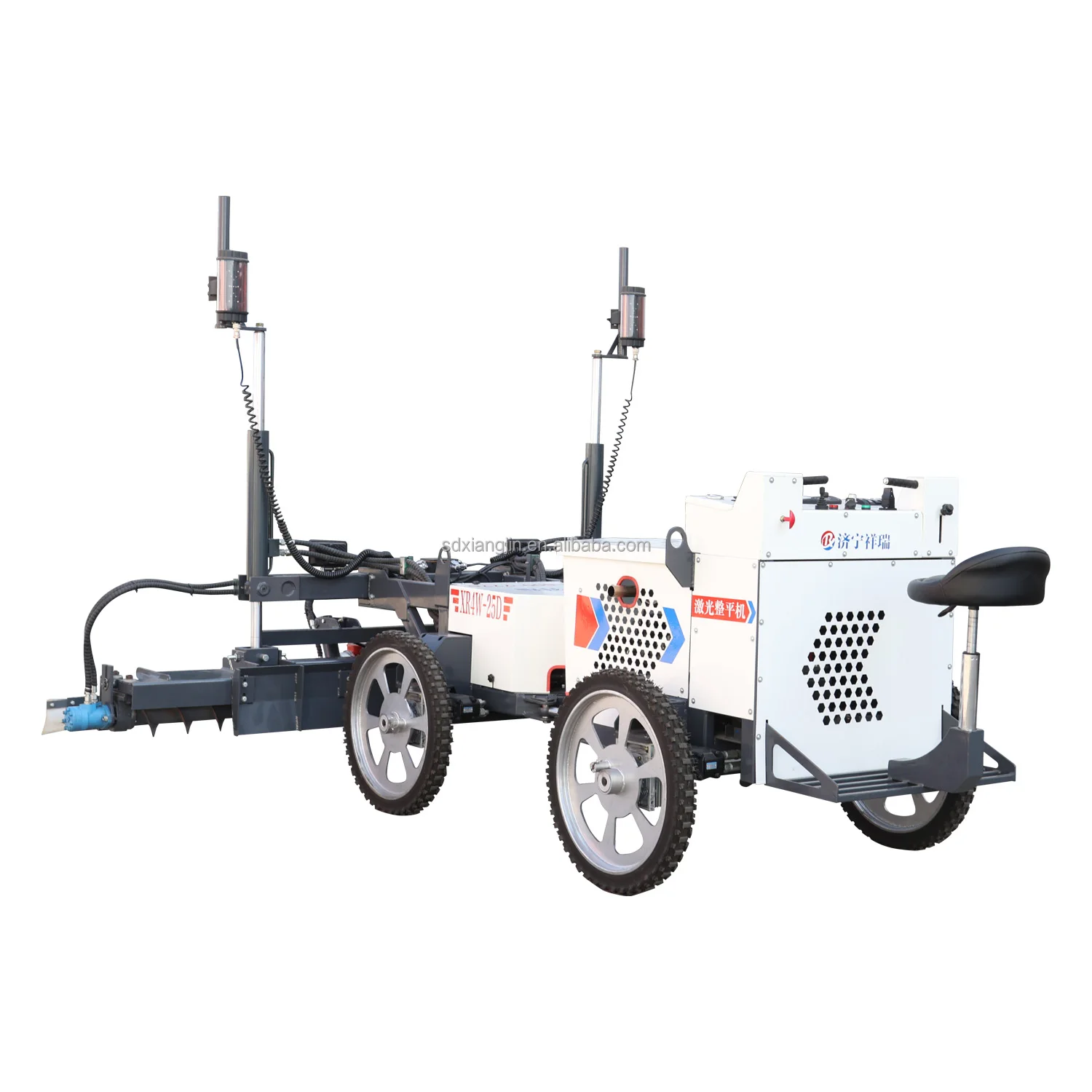

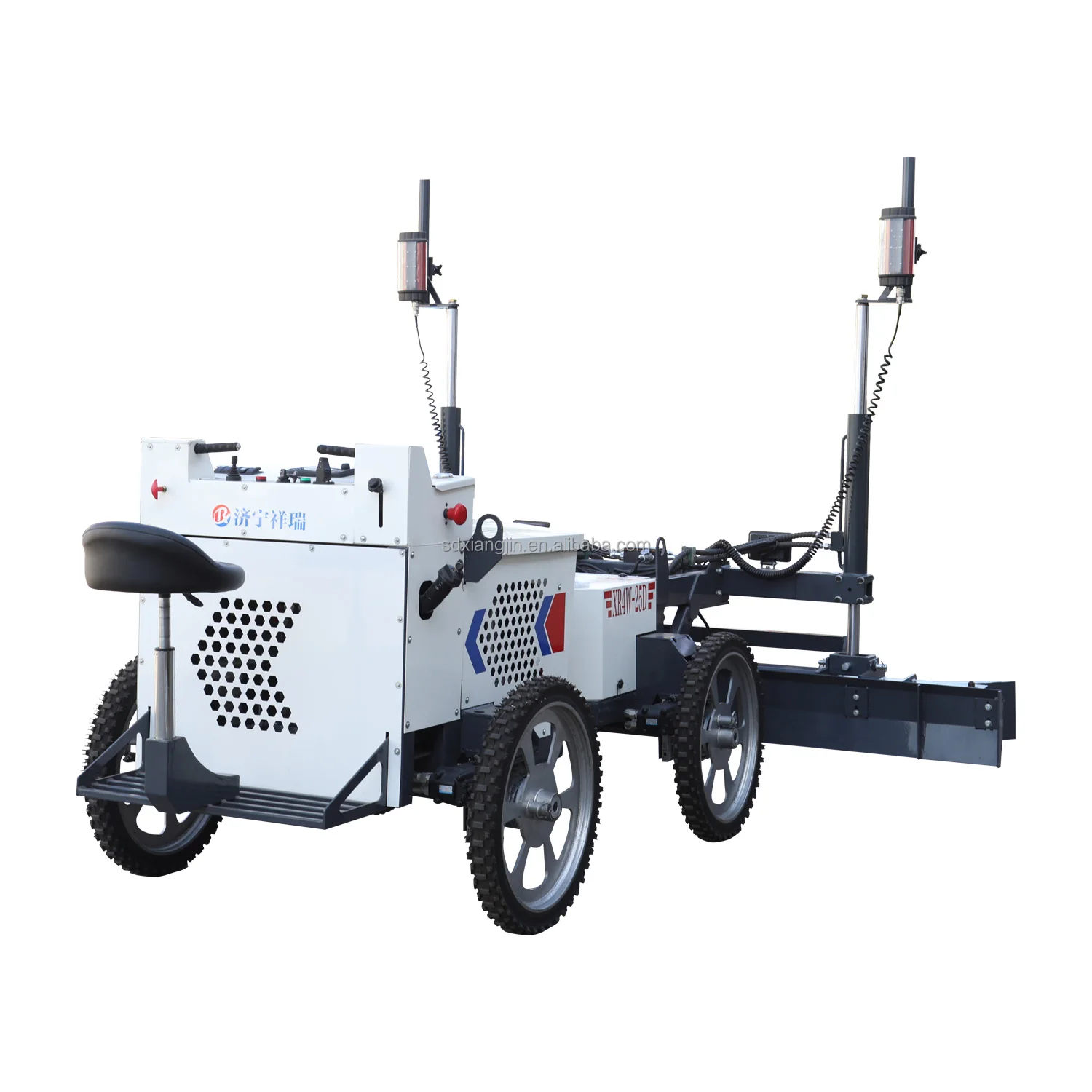

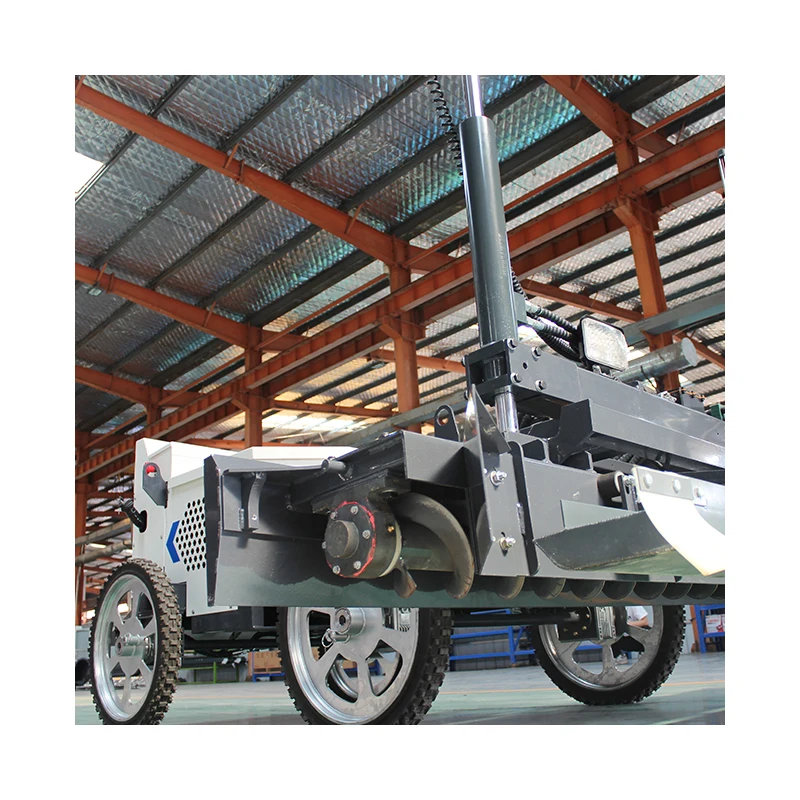

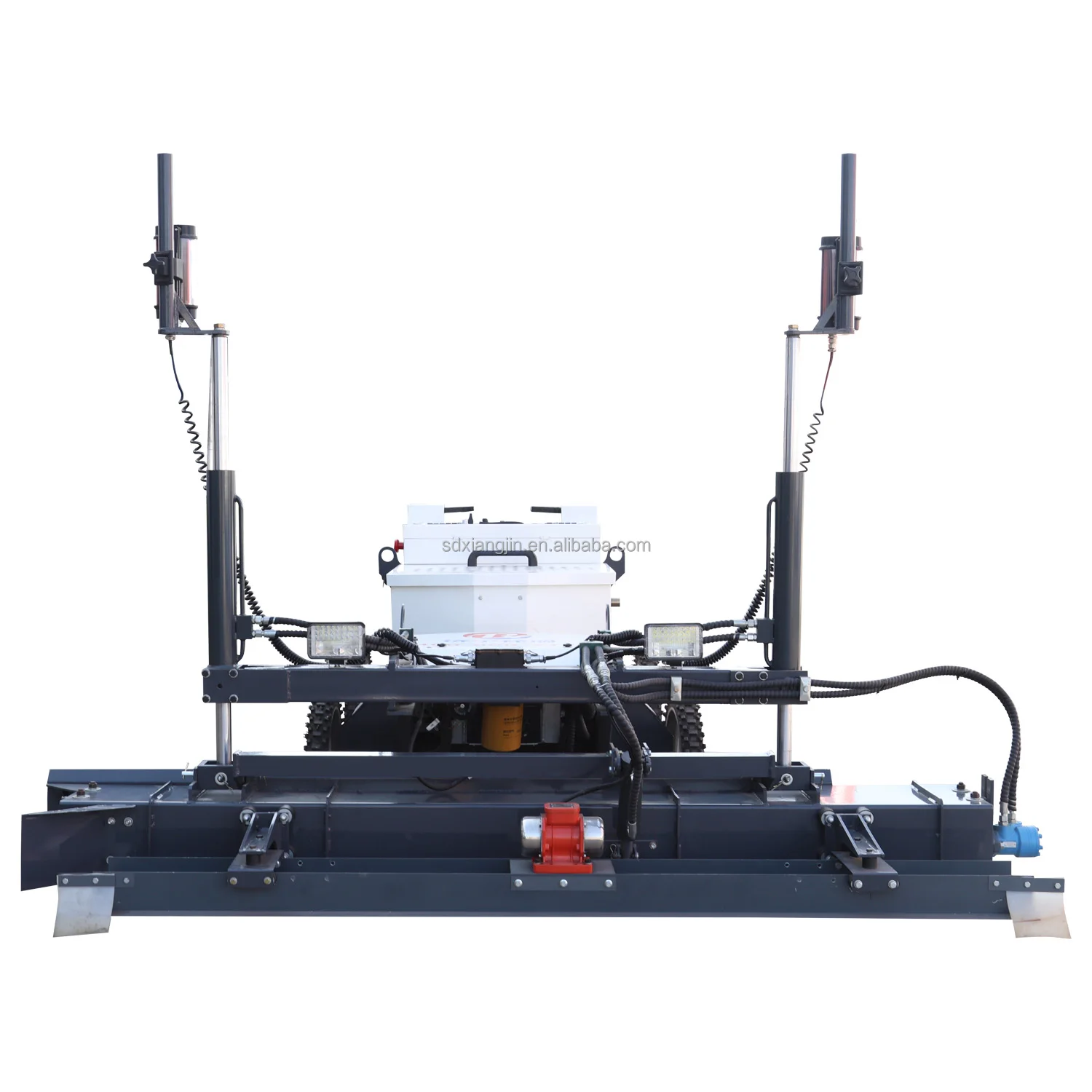

Details Images
If you are interested in this product, please contact us and we will give you the best deals and gifts!

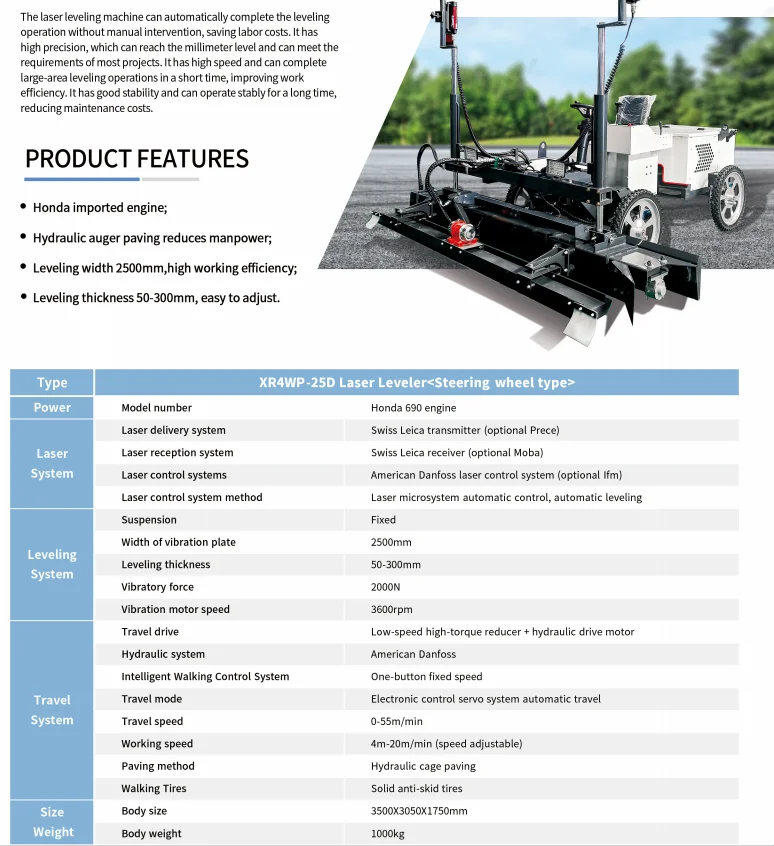

Product Paramenters
Size& weight | 3500*2850*1700(Lwh)1000kgs/nw.Unite |
Engine mode | Home-made jiaLing |
Engine type | Petrol, air cooled 4 stroke |
Engine power | 13.0kw |
Fuel oil consumption | 0.8-1.3L/h |
Fuel tank volume | 17L(18 working hours) |
Screed board width | 2500mm |
Driving system | Homemade servo drives |
Driving speed | 0-55 m/min |
Working speed | 4m-20m/min (adjustable) |
Driving mode | Automatically |
Wheel&tire | Solid puncture narrow tire(optional pneumatic wide Tyre) |
Suspension system | Independent suspension |
Paving thickness | Standard fitting 50-300mm (680tire only) |
Excitation force | 2000n |
Vibration frequency | 3600rpm |
Control panel | Button control |
Tail wheel control mode | Manual up and down |

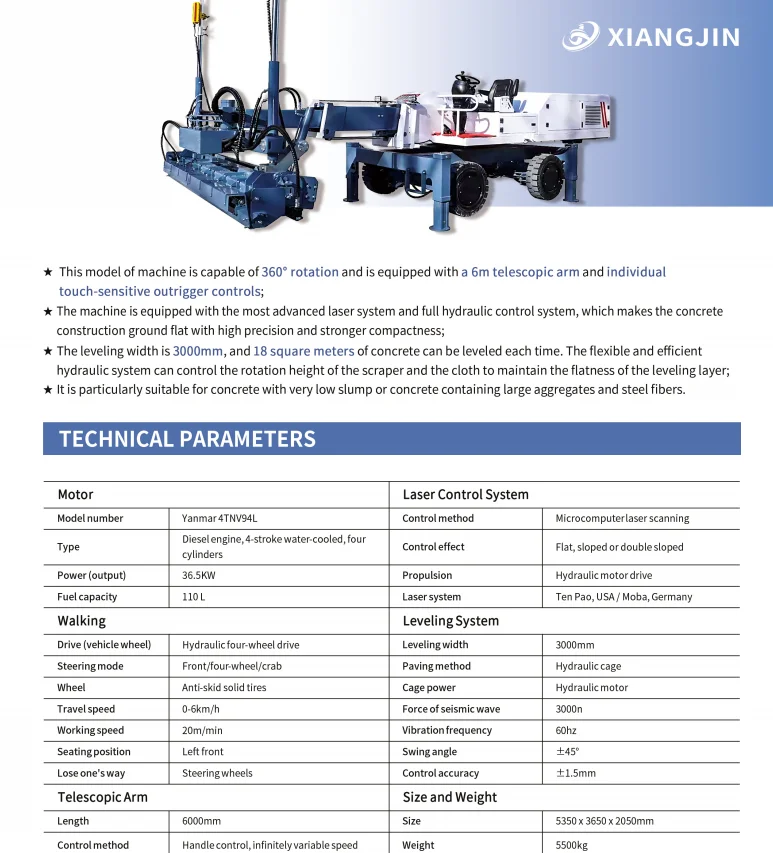

This model of machine is capable of 360°rotation and is equipped with a 6m telescopic arm and individual touch-sensitive outrigger controls;

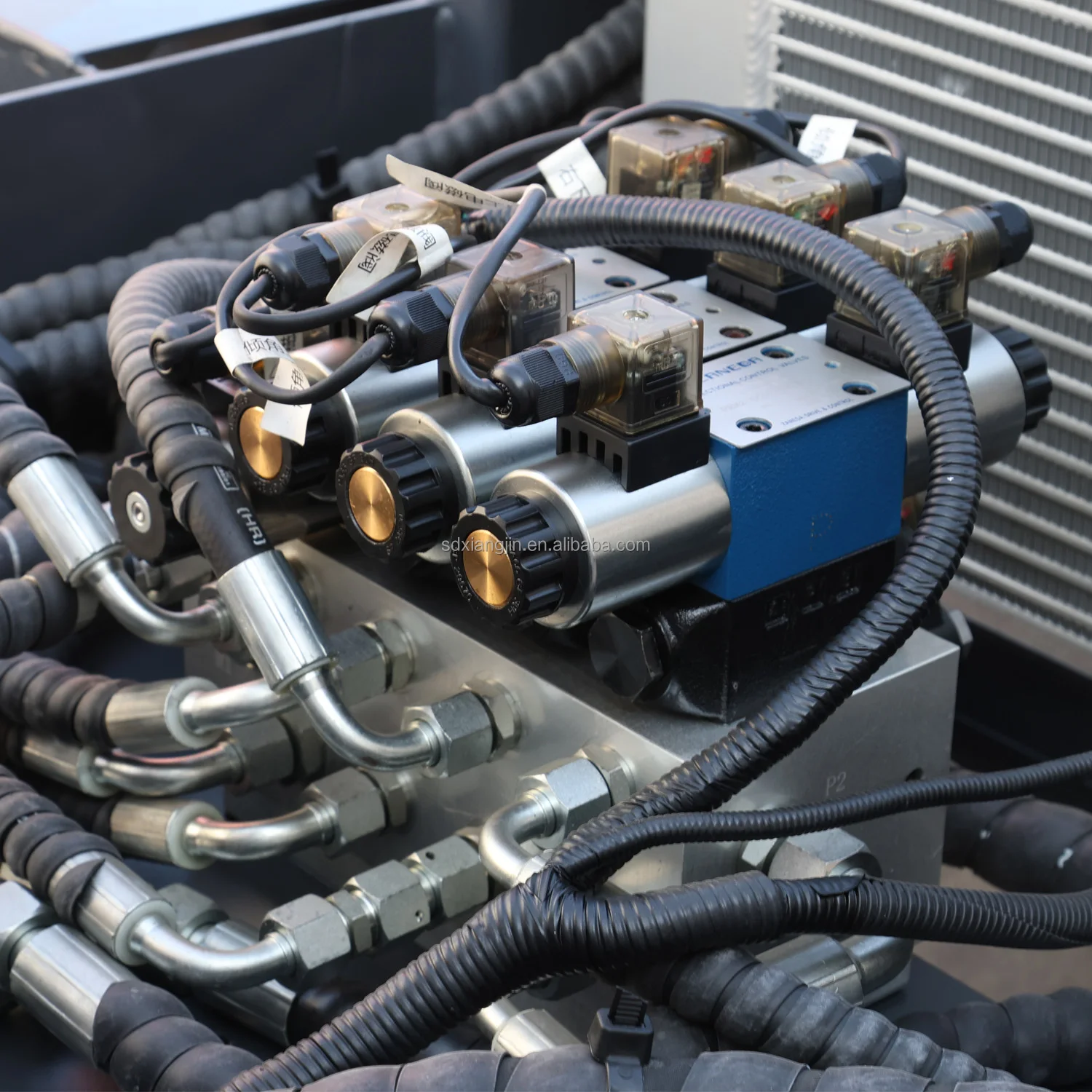

The machine is equipped with the most advanced laser system and full hydraulic control system, which makes the concrete construction ground flat with high precision and stronger compactness;
The leveling width is 3000mm, and 18 square meters of concrete can be leveled each time. The flexible and efficient hydraulic system can control the rotation height of the scraper and the cloth to maintain the flatness of the leveling layer;
It is particularly suitable for concrete with very low slump or concrete containing large aggregates and steel fibers.
If you are interested in this product,please contact us and we will give you the best deals and gifts!
If you are interested in this product, please contact us and we will give you the best deals and gifts!
Customer Case

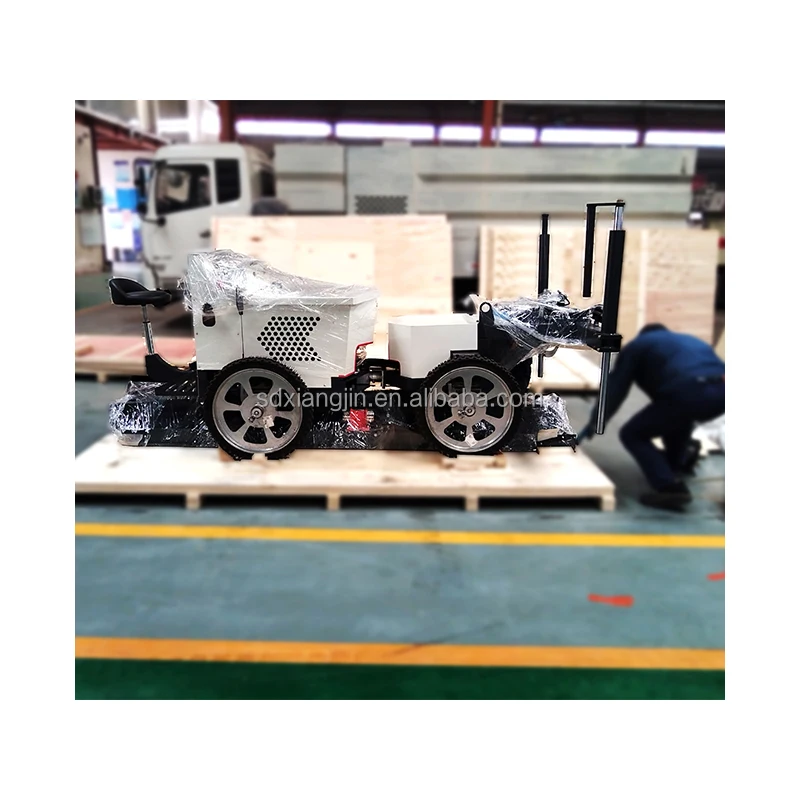

Transport
1) We have experienced workers who can well pack concrete mixing tanks into containers and boxes to save space and make your cost lower.
2) Specially made according to the internal size of the container
