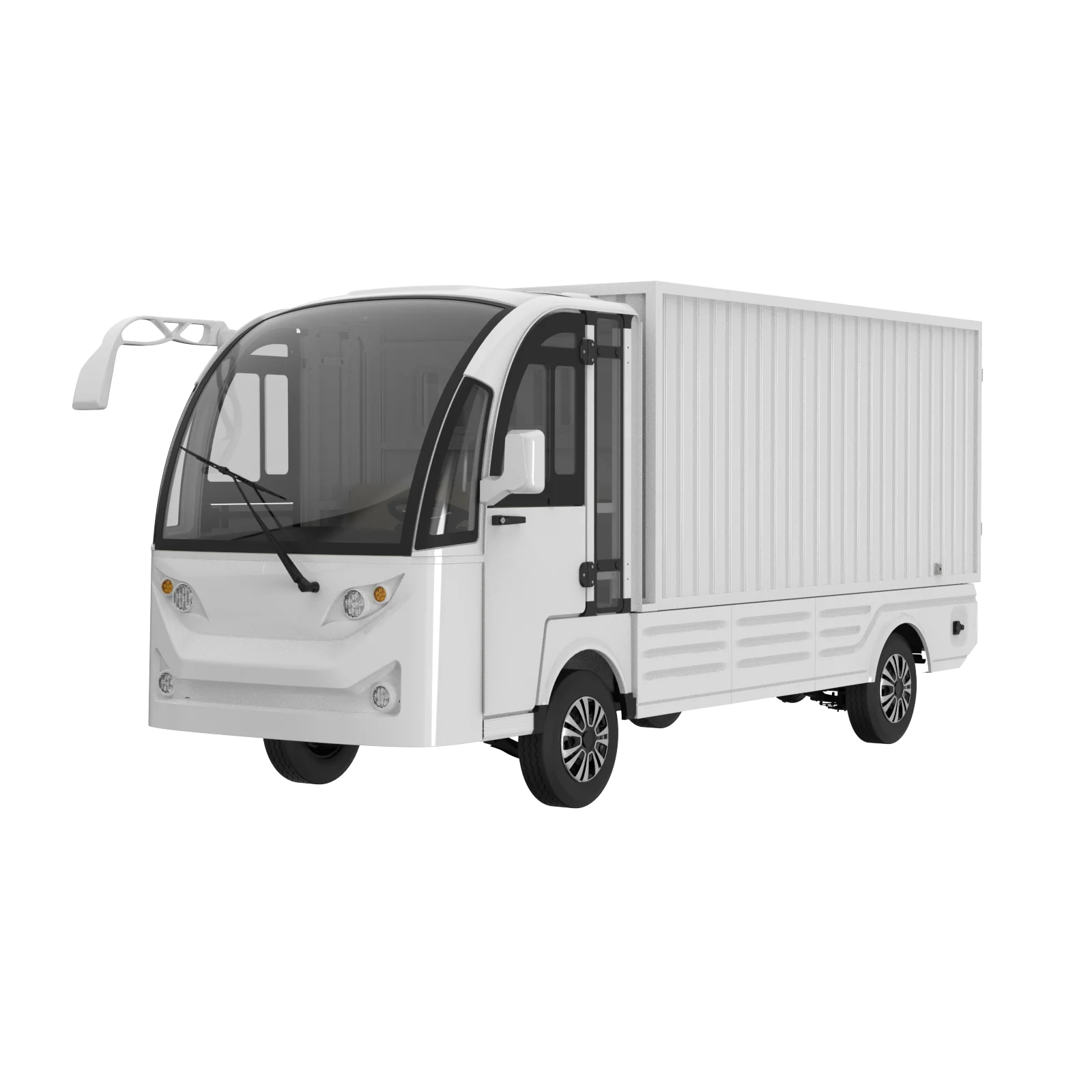

Intelligent 72V Motor 2 Seats Enclosed Pickup Pick Up Truck Mini Electric Motor Cargo Van

Share on (1601348659656):


Price:$7,860.00

Quantity:


Product Overview

Description





MODEL
LQF1032FM
Qty/40'HQ (Nude Packing)
1unit
Qty/40'HQ (Disassembled)
2units
Performance
Passenger capacity
2 seats
Max.Speed
≤30km/h(Adjustable)
Range
90km
Climbing Ability
≤20%
Braking Distance
≤6m
Min.Turning Radius
≤6.5m
Min.Clearance
140mm
Recharge time
8h
Dimensions
L ×W × H
4940*1510*2010mm
F/R Tread
Front1300mm/Rear1300mm
Axle Distance
2770mm
Curb Weight
1540kg
Max. loading
≤2540kg
Frame Size
3200*1470*1480mm (iron cargo box)
Standard Configurations
Motor
72V/7.5KW AC motor
Controller
78V/450A With AN communication controller
Battery
6V/pc,*12pcs 170AH Maintenance-free Lead Acid batteries
Charger
Intelligent high-frequency vehicle charger, input voltage AC220V output
DC72V/25A
Roof
Enhanced fiberglass + aluminum alloy frame; with light weight, anti-aging,
not easy to fade.
Body
High-strength composite front enclosure (PT+PBT alloy injection-molded
front cover) with superb impact resistance.
Car Door
High-strength steel frame + aluminum alloy skin + sliding window.
Chassis
High-strength steel frame-type longitudinal beam chassis with
electrophoresis+powder -coated anti-rust treatment.
Pillar
Custom aluminum front and rear columns with high strength and never
rust.
Seats
PU car special seat, ergonomic.
Dashboard
Injection-molded dashboard with combination switch, electric lock switch,
emergency power-off switch, multi-function LCD display (containing meter
indications such as voltage, power, speed mileage, etc. and entertainment
playback system), equipped with USB/Type-C ports, storage box, and cup
holders.
Lighting & Signaling
LED high/low beams, turn signals, rear combination taillights, horn, reverse
buzzer.
Steering
Dual push rack and pinion steering + electric power steering system.
Brake System
Front ventilated discs and rear drum hydraulic dual circuit brakes +
handbrake parking with vacuum-assisted braking system.
Front Suspension
Front axle MacPherson independent suspension with coil springs +
cartridge hydraulic damping.
Rear Suspension
Integral rear axle, steel plate springs + cartridge hydraulic shock absorbers.
Tire
Vacuum radial tires 165/70R13 with steel rims.
Standard Parts
1.reverse camera;
2.multimedia screen (including audio speakers);
3.two-point seat belt;
4.fire extinguisher;
5.brake booster;
6.directional booster;
7.USB port;
8.the seat is standard for the foam seat;
9.the entire vehicle metal parts electrophoresis + powder-coating treatment.
10.flatbed trucks are standard with stainless steel fences.



















Q: What are our advantages?
A: High quality. We are the leading manufacturer of electric vehicle, over 22 years experience.Quality is the first we focus on. Good quality have the bright future. Design. Comparing with other factories, our appearance with a new streamlined design, high-grade paint, bright colors, beautiful and stylish, Competitive and reasonable price. We will offer a good price as quantity and give our best discount. Quick Response. Our team will give you the answer in 24 hours, once we receive your inquiry and questions.

Q:What are the trade terms and payment terms?
A: We normally work on EXW, FOB, CFR, CIF.
We accept T/T term and L/C term.
-30% by T/T as down payment, 70% by T/T before shipment.
-30% by T/T as down payment, 70% L/C at sight.
For other terms, please contact us to discuss.

Q: What the delivery time?
A: Standard configuration: 20 working days. Customized configuration: 30~40 working days.

Q: What color can be painted?
A:The car can be painted any color as client request, the color no. need customer to provide. Maximum color mix: 2
colors.

Q: What is the warranty?
A: 1 year warranty, except the easy-broken parts.

Q: How about the shipment?
A: Mostly, the cars will transport by sea.For some neighboring landlocked countries, it will transport by railway. For the spare parts, it will send by air, or DHL, UPS, Fedex etc.
