small bitumen melting machine bitumen decanter 6ton price
- Category: >>>
- Supplier: Henan Sinoroader Heavy Industry CorporationHenan Corporation
Share on (1601348681978):
Product Overview
Description
& 20s Turning Barrel Into Mixer
& Automatically Reverses Oil Barrel
& Internal Circulation Function
& Automatic Slag Removal
& Convenient Relocation
& Automatically Reverses Oil Barrel
& Internal Circulation Function
& Automatic Slag Removal
& Convenient Relocation
Product Overview

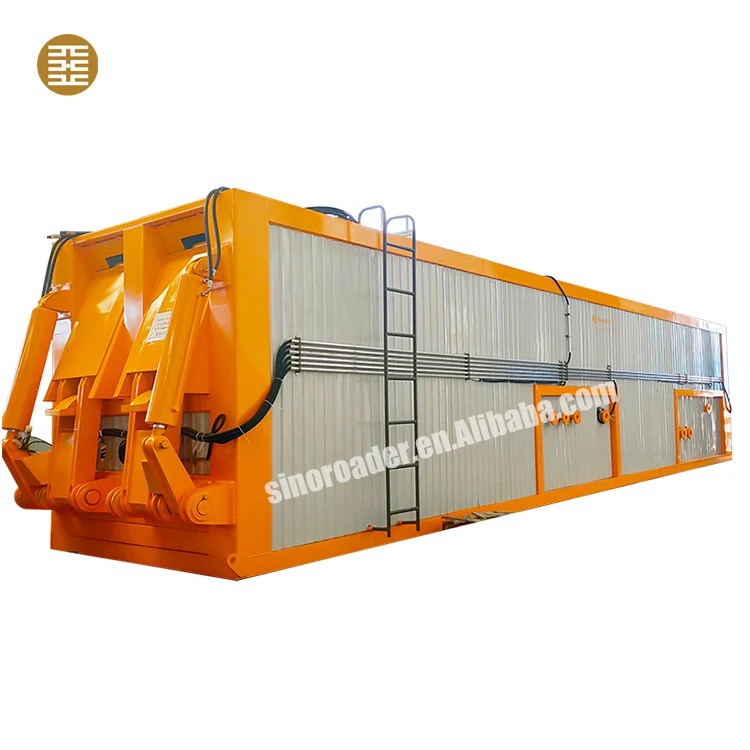

bitumen decanter
Drummed Asphalt melting equipment Bitumen Decanter is to extract the solid bitumen by melting method usually from the barrels, bags, and wooden cases asphalt .use the hot oil heating coils to indirectly heat up asphalt, which can prevent asphalt from aging .The liquid bitumen will work for asphalt mixing equipments and other industrial purpose.
The Bitumen melting machine is Automatic hydraulic tumbling bucket design，safe, reliable and easy to operate. The low energy consumption and environmental pollution makes it the first choice of asphalt melting equipment.
The Bitumen melting machine is Automatic hydraulic tumbling bucket design，safe, reliable and easy to operate. The low energy consumption and environmental pollution makes it the first choice of asphalt melting equipment.
FEATURES AT A GLANCE

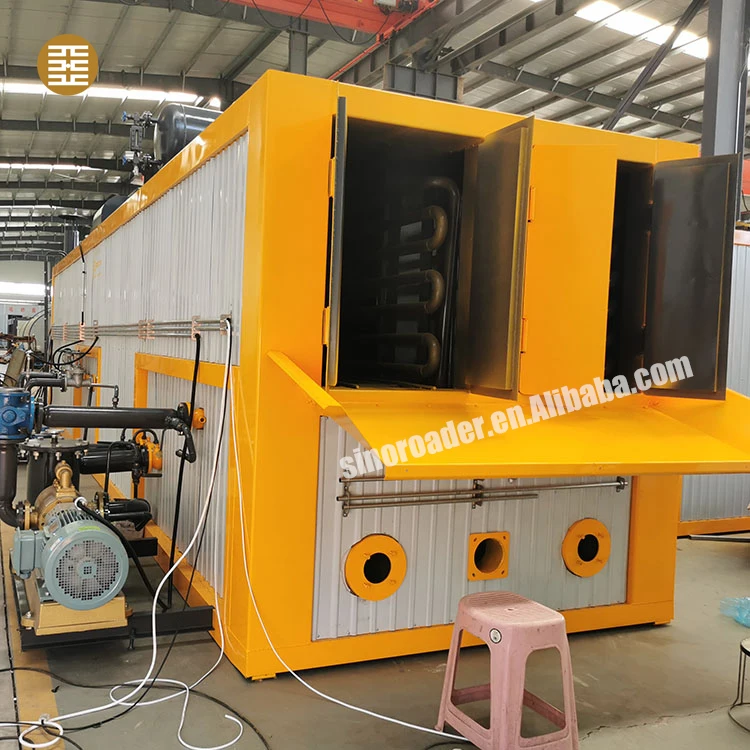

bitumen pump
The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.
Turning over the barrel and turning the barrel into mixer can be completed in one time, single bitumen decanting process takes less than 20s.
The machine automatically reverses the oil barrel instead of manually turning over the oil barrel, which greatly reduces the labor intensity of the workers.
Hydraulic cylinder speed can be adjusted according to actual needs.
Automatic slag removal: The equipment has automatic slag removal function. The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.
Adaptability: It can be customized according to various sizes of asphalt drums.
PRODUCT SPECIFICATIONS
Model | DT-4 | DT-6 | DT-8 |
Capacity | 4-6t/h | 6-8t/h | 8-10t/h |
Melting Type | Continuous | Continuous | Continuous |
Structure | Integrated | Integrated | Integrated |
Bitumen Temperature | 120-140℃ | 120-140℃ | 120-140℃ |
Bitumen Storage Capacity | 11m3 | 17m3 | 27m3 |
Quantity of Barrels/Cycle | 18 or 20units | 28 or 32units | 42 or 48units |
Hot Capacity of Transfer Oil Heater | 400,000Kcal/h | 600,000Kcal/h | 800,000Kcal/h |
Transfer Oil Temperature | 200-240℃ | 200-240℃ | 200-240℃ |
Total Power | 26kw | 34kw | 36kw |
Weight | 15t | 20t | 24t |
Hot Oil System Dimensions | 5500x1800x2000mm | 7000x2200x2100mm | 7000x2200x2200mm |
Bitumen Melter Dimensions | 9000x2100x2550mm | 12000x2100x2550mm | 12000x2500x2550mm |
SALES AND SERVICE NETWORK
FAQ
Q1: Which countries have your equipment been exported?
A: Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Pakistan, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q2: How many workers are needed to operate one set of bitumen decanter?
A: 1-2
Q3: How many days are used for installation of one set bitumen decanter?
A: Around 15 days, according to local situation.
Q4: Do you provide overseas erection and training service?
A: Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q5: How long is the delivery time?
A: 30-45 days, according to different configuration. We promise to delivery on time.
Q6: Can you sent me some spare parts freely?
A: Some spare parts will be sent to you together with asphalt decanter freely.
Q7: How to go to your asphalt plant factory easily?
A: Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q8: Can I visit your factory?
A: Of course. We warmly welcome to your visit to our factory. And we will provide you great services like airport pickup, hotel booking, etc.
A: Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Pakistan, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q2: How many workers are needed to operate one set of bitumen decanter?
A: 1-2
Q3: How many days are used for installation of one set bitumen decanter?
A: Around 15 days, according to local situation.
Q4: Do you provide overseas erection and training service?
A: Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q5: How long is the delivery time?
A: 30-45 days, according to different configuration. We promise to delivery on time.
Q6: Can you sent me some spare parts freely?
A: Some spare parts will be sent to you together with asphalt decanter freely.
Q7: How to go to your asphalt plant factory easily?
A: Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q8: Can I visit your factory?
A: Of course. We warmly welcome to your visit to our factory. And we will provide you great services like airport pickup, hotel booking, etc.
