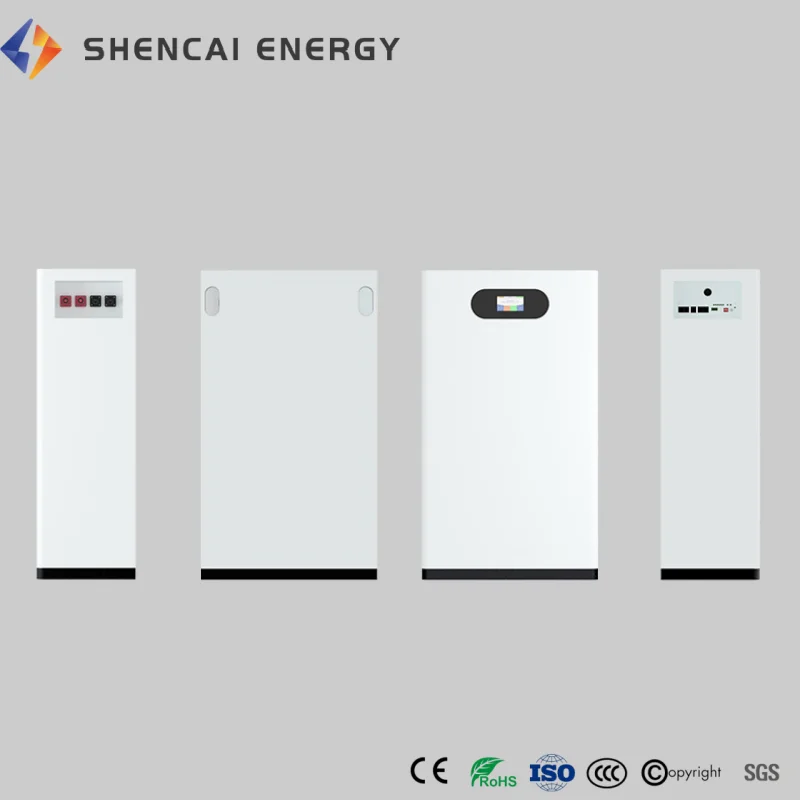

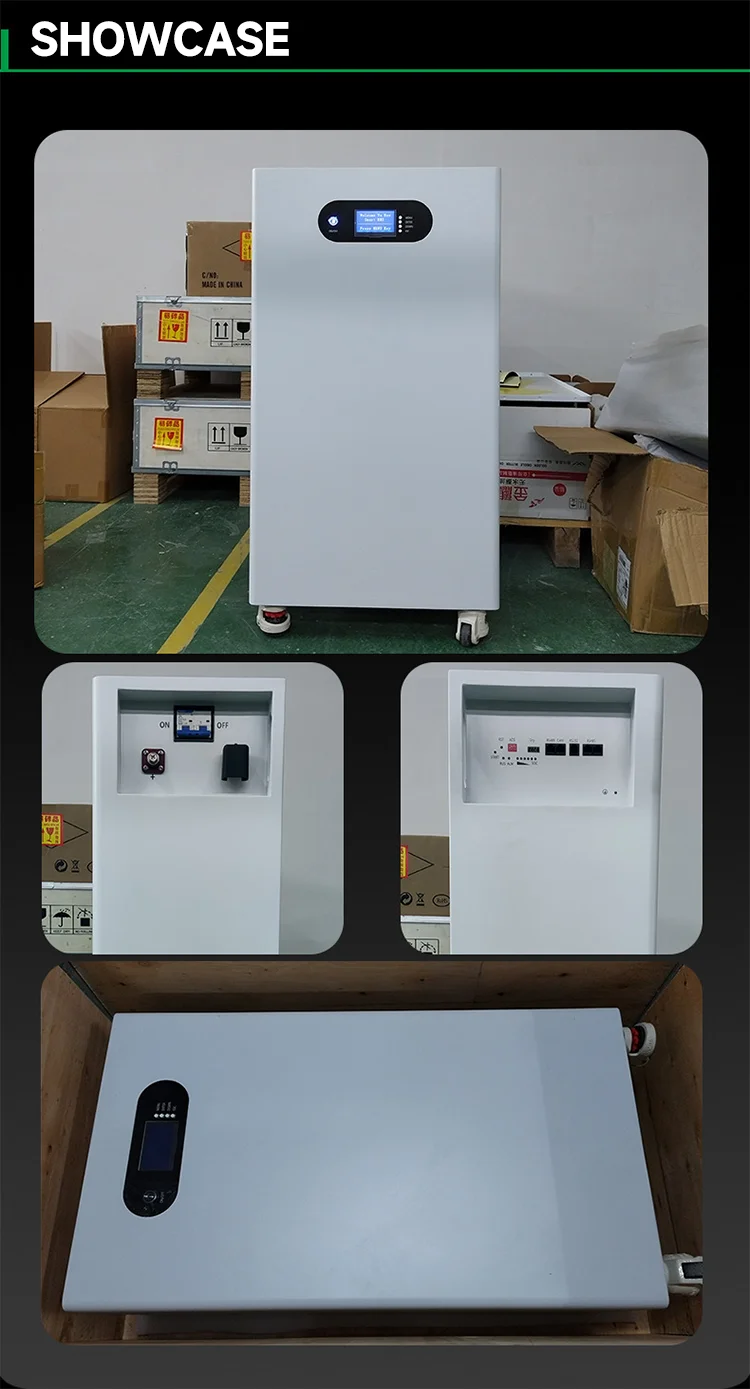

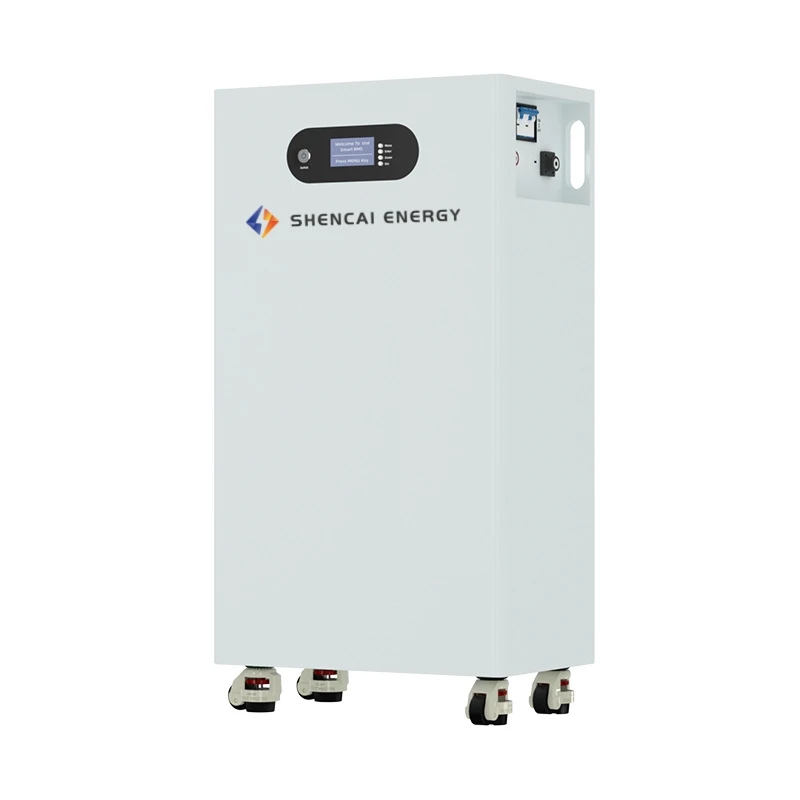

Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use
Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use

Hybrid Solar Home Energy Storage System Lithium Ion Battery Ground Mounting MPPT Residential Use

Share on (1601349453702):


Price:$1,480.00-1,500.00

Quantity:

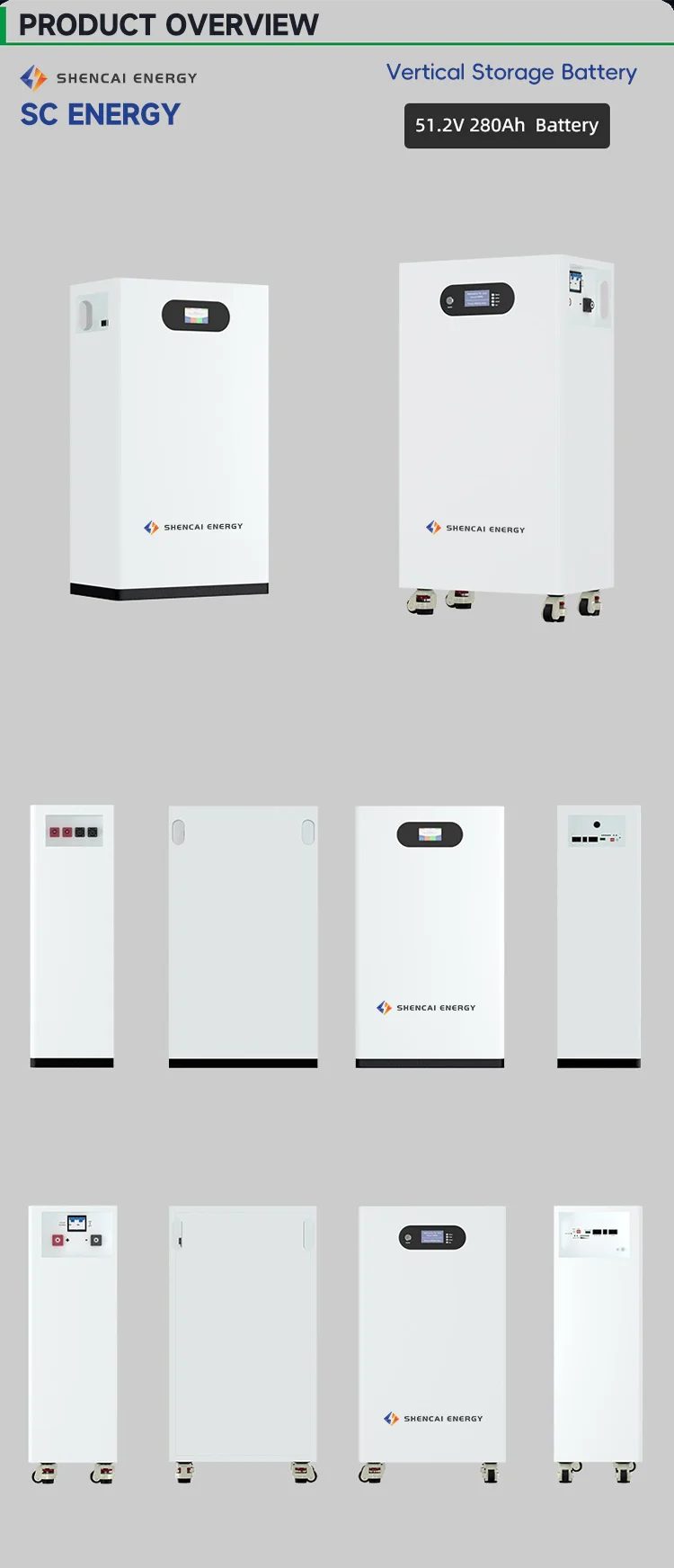

Product Overview

Description



Product Parameter
Battery Type
 LiFePO4
Nominal Voltage
 51.2V
Nominal Capacity
 280AH
Nominal Energy
 14.336kWh
Communication
CAN/RS485
Resistance
 ≤50 mΩ @ 50% SOC
Actual volumetric efficiency
 ≥100% Nominal Energy
Recommended Charge Current
 ≥200A
Maximum Continuous Discharge Current
 ≥100% Nominal Energy
Recommended maximum load power
 ≥8kW
Ultimate Maximum load power
 ≥10KW
Recommended Charge Voltage
 57.6V
BMS Charge Cut-Off Voltage
 58.4V
BMS charge cut-off release voltage
 ≤57.6V
Balancing Voltage
 ≥52.8V
 Balancing open voltage
 ≥52.8V
 Recommended Low Voltage Disconnect
 ≤45V
 BMS Discharge Cut-Off Voltage
 ≤40V
 BMS Discharge Cut-Off release voltage
 ≥46V
 Discharge Temperature
-4 ~ 131 ºF (-20 ~ 55 ºC）
 Charge Temperature
-4 ~ 113 ºF (0 ~ 45 ºC)
 Storage Temperature
 23 ~ 95 ºF (-5 ~ 35 ºC)
 BMS High Temperature Cut-Of
 149 ºF (65 ºC)
 Reconnect Temperature
 131 ºF (55 ºC)

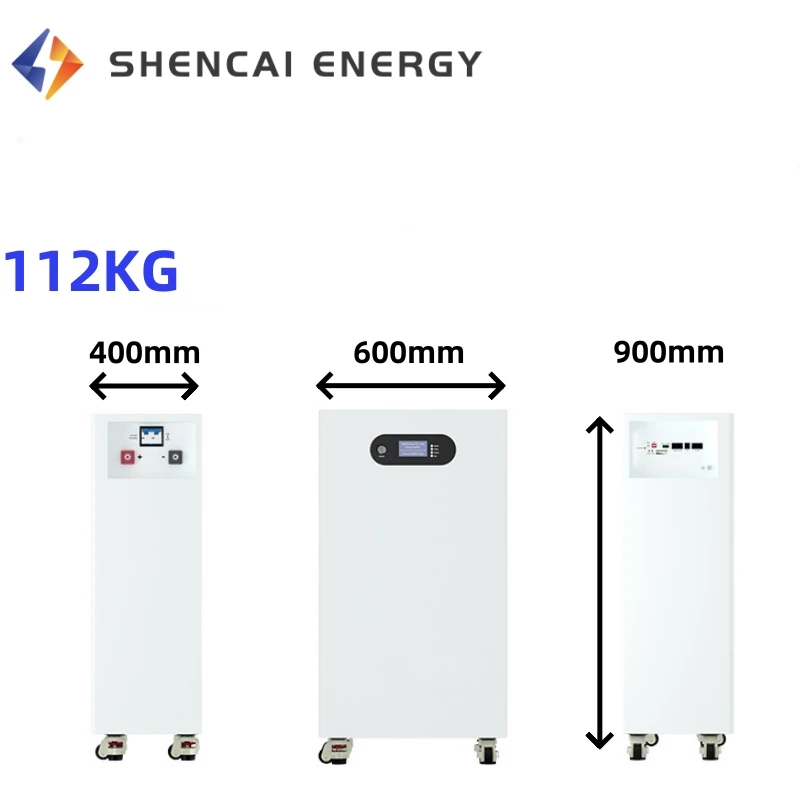

Dimension (L x W x H)
 600*400*900mm
 Approx. Weight
 112KG
 Enclosure Protection
 IP54
 Certifications
 CE (battery) UN38.3 (battery) UL1642 & IEC62133 (cells)
 Shipping Classification
 UN 3480, CLASS 9
 Compatible inverters
 PYLON/Growatt/Voltronic/Luxpowertek/WOW/Schneider/Deye/Victron/
Schneider
Sorotec/SMA/GoodWe/STUDER/MUST/GINLONG/Senergy/TBB/MEGAREVO/AISWEI More brands can contact our sales staff to provide inverter names for customization
 Cycle life
 6000 Cycles (25℃, 100% DOD) for effectively lower total of ownership cost
 Service life
 3 years
