NDAA 8MP 4K Smart AI Night Color Active Deterrence Turret POE IP Camera Red&Blue Flashlight Siren Security Alarm 2 Way Audio
- Category: >>>
- Supplier: Shenzhen Ycx Electronics Co. Ltd.Shenzhen Ltd.
Share on (1601349865447):
Product Overview
Description
Product Description

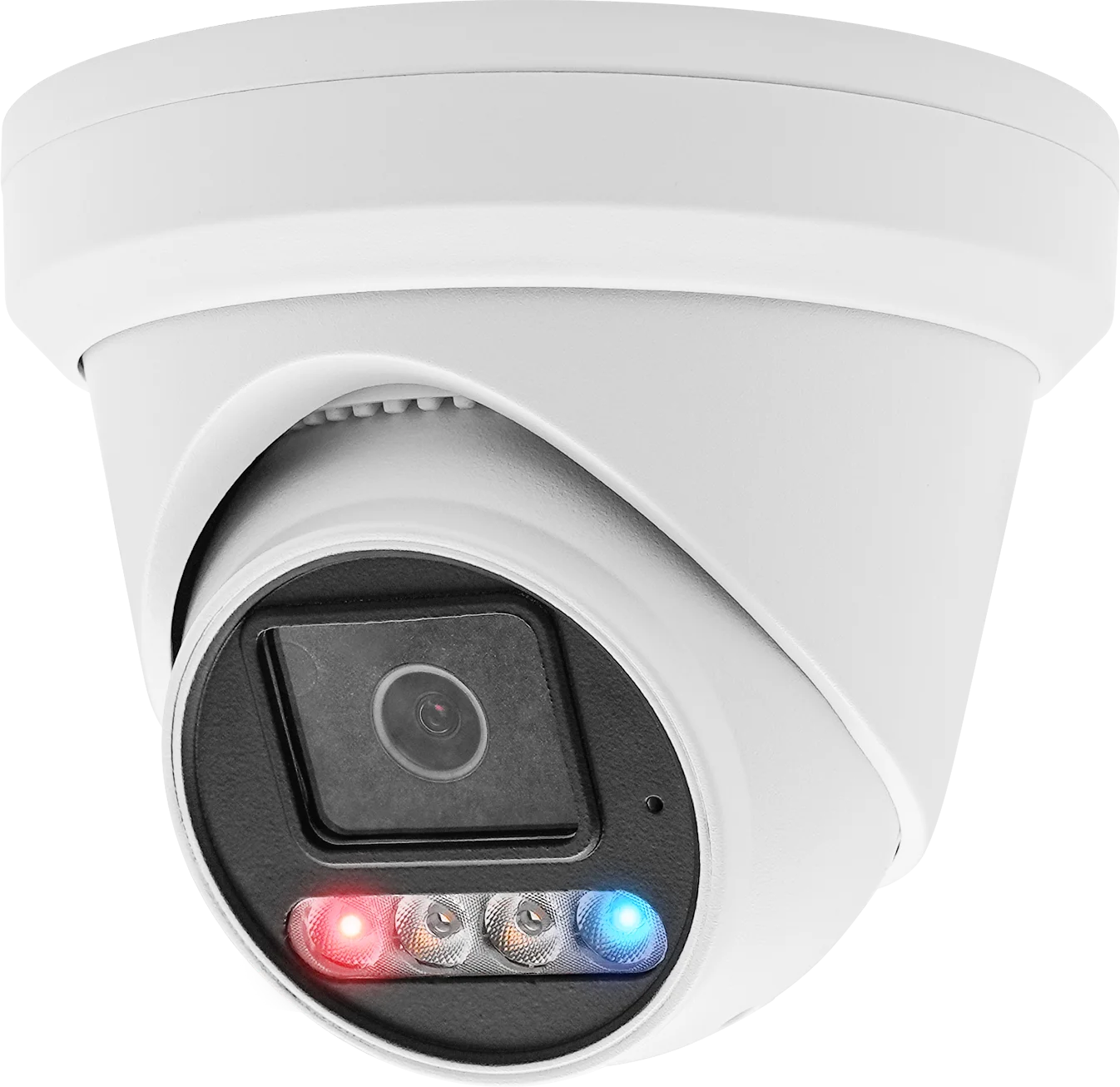

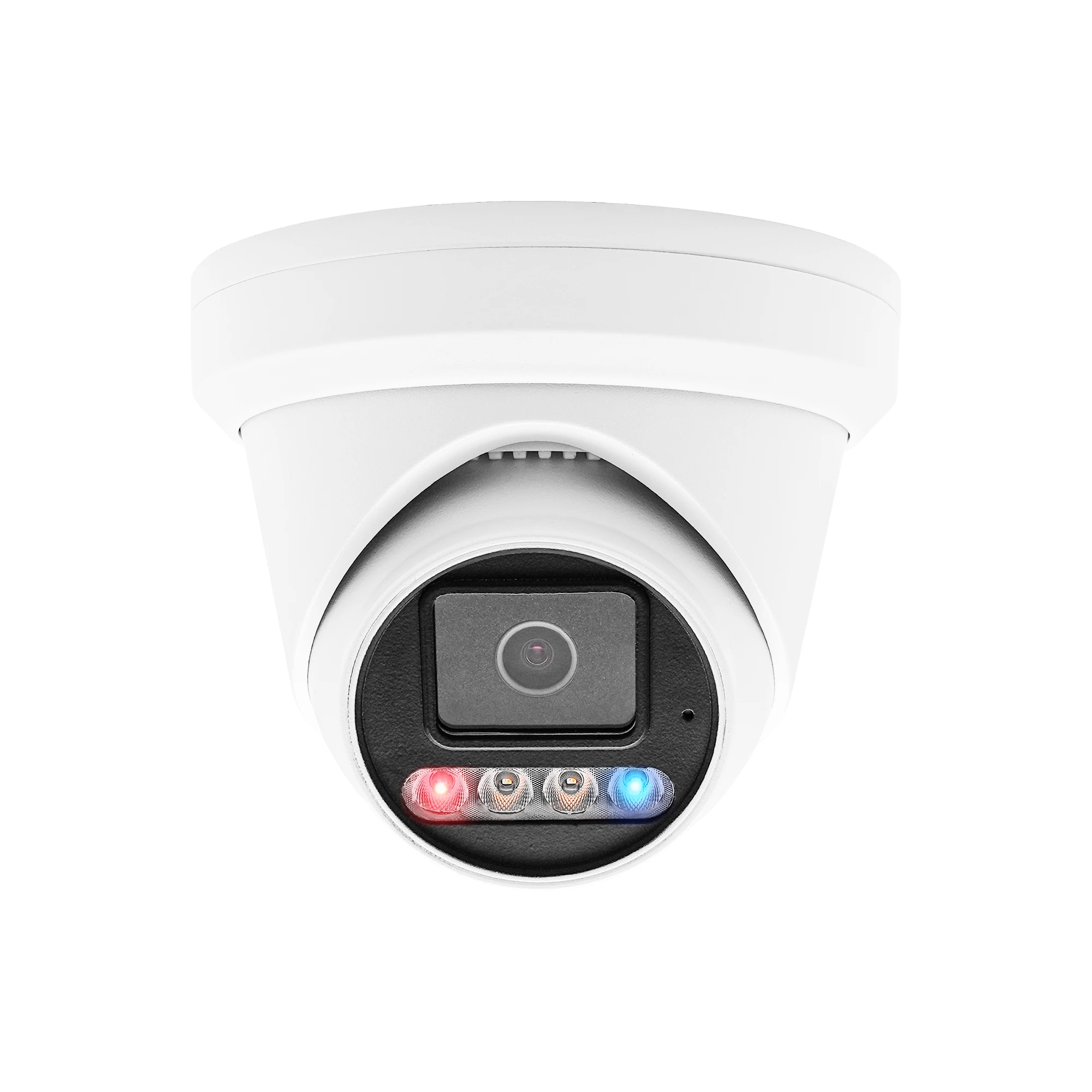

4K Smart AI Dual-light Red&Blue Flashlight Alarm Turret IP Camera
Key Features:
Ø Lightning protection 4000V
Ø Strong Waterproof housing, IP67
Ø Two-way audio, built-in Mic and loudspeaker
Ø Built-in Micro-SD slot(max 512GB) & Reset
Ø Siren and Light Active Deterrence, Red&Blue Light Flashing
Ø Color imaging when alarm triggering by human/vehicle detection
Ø High quality imaging with 8 MP resolution
Ø HD 2.8mm F1.6 Lens
Ø Up to 30M Warmlight&IR Distance
Ø Smart Dual light (Warmlight & IR) + Red&Blue Flashlight
Ø RTSP and Ovif 23.12 compatible with many third-party NVR
Ø H.264/H.265 dual-stream media server
Ø Smart AI Face Detection, Human&Vehicle Detection, Line Crossing, Intrusion Detection, Area Entry/Leaving DetectionØ Up to 30M Warmlight&IR Distance
Ø Smart Dual light (Warmlight & IR) + Red&Blue Flashlight
Ø RTSP and Ovif 23.12 compatible with many third-party NVR
Ø H.264/H.265 dual-stream media server
Ø Lightning protection 4000V
Ø Strong Waterproof housing, IP67
Ø Two-way audio, built-in Mic and loudspeaker
Ø Built-in Micro-SD slot(max 512GB) & Reset
Ø Siren and Light Active Deterrence, Red&Blue Light Flashing
Ø Color imaging when alarm triggering by human/vehicle detection
Technical Parameters
Model | N798FDRB97RA | |
Camera | ||
Image Sensor | 1/2.8" 8MP IMX415 CMOS | |
Effective Pixels | 3840(H)×2160 (V) | |
Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable | |
Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity | |
Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable | |
White Balance | AWB/MWB | |
WDR | 100db WDR | |
Light Mode | Smart(dual-light) / Infrared / White light, adjustable | |
Light Control | Auto/Manual, Brightness level (0-100%) adjustable | |
DNR | 2D/3D DNR | |
Encode | ||
Video Standard | H.265+/H.265/H.264/MJPEG | |
Video Resolution | Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) *Third stream: 10fps@720P(default),30@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) -- (when third stream customized enabled, Face Detection and Perimeter protection will be disabled) (*Note:MJPEG max 1080P) | |
Video Bitrates | Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) | |
Image Snapshot | Main stream(HD)/Sub Stream(SD) snapshot | |
Image Rotation | 0 / 90 / 180 / 270 degree adjustable | |
Border Crop | X crop, Y crop | |
Image Mirror | horizon / vertical / horizon&vertical adjustable | |
OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD | |
Privacy Mask | 4 areas | |
Region of Interest | ROI: Each stream support 8 areas | |
Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC | |
Built-in Mic | Yes | |
Built-in Speaker | Yes; Two-way audio | |
Led | ||
Light | 2PCS red and blue flashlight alarm Light(1 red &1 blue)+2PCS IR & Warm Light LEDs | |
Light Distance | 20-30M | |
Lens | ||
Focal length | 2.8 mm F1.6 Fixed Lens | |
Language | ||
English, simplified Chinese, Chinese Traditional, Korean, etc. | ||
Smart Detection | ||
Motion Detection | Yes | |
Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (Optional) | |
Human Vehicle Detection | Yes, (2-20 meters) | |
Cross Line Detection | Yes, 4 lines | |
Perimeter protection | Yes, 4 areas; Intrusion Detection, Area Entry Detection, Area Leave Detection | |
Face Detection | Yes, (1-5 meters) | |
Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px) | |
Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash), White LED Flash, Voice siren Micro-SD, Email, FTP, NAS storage (optional) | |
Simultaneous Detection | Maximum 16 targets simultaneous detection | |
Storage Type | Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS | |
Network Services | ||

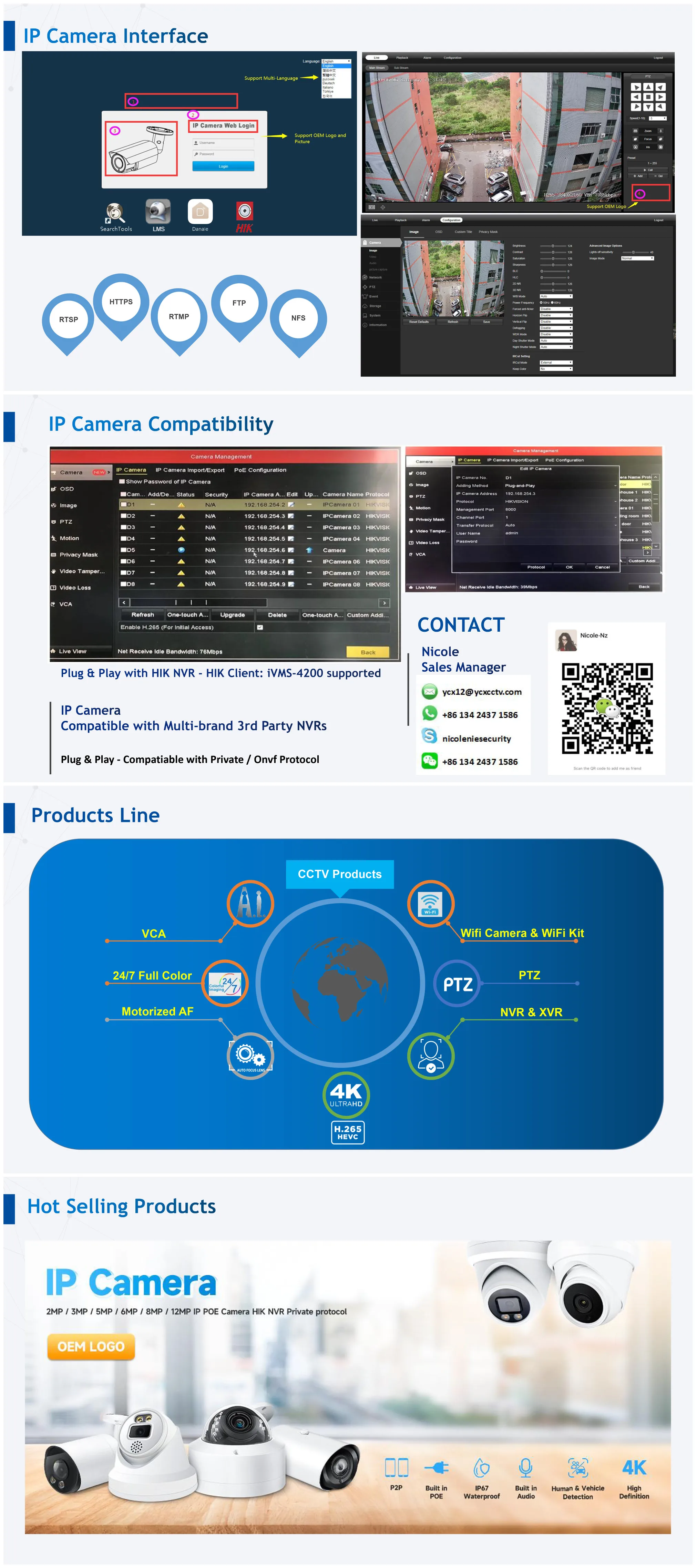

Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS | |
P2P Mobile APP | Android, IOS | |
Web Access | IE, Firefox, Chrome, Edge, Safari, etc. | |
PC Tool | Windows, Mac | |
ONVIF | 23.12 compatible (profile S G T M) | |
General | ||

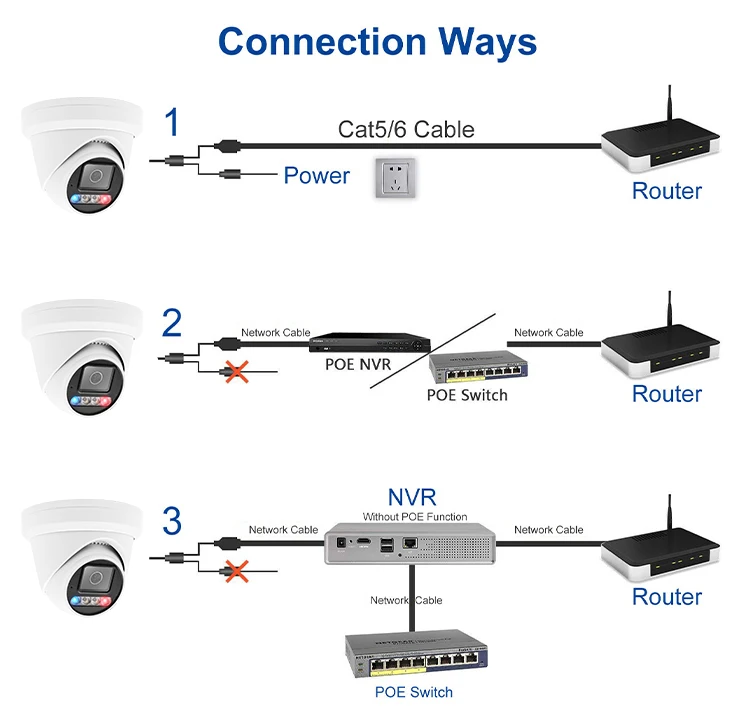

Network Port | 1-RJ45, 100Mbps, POE(IEEE802.3af) | |
Power Supply | 12 VDC ± 10% | |
Power Consumption | < 8 W | |
Operating Temp. | -20℃-(+60)℃, 10%-90%RH | |
Product Details
Related Products

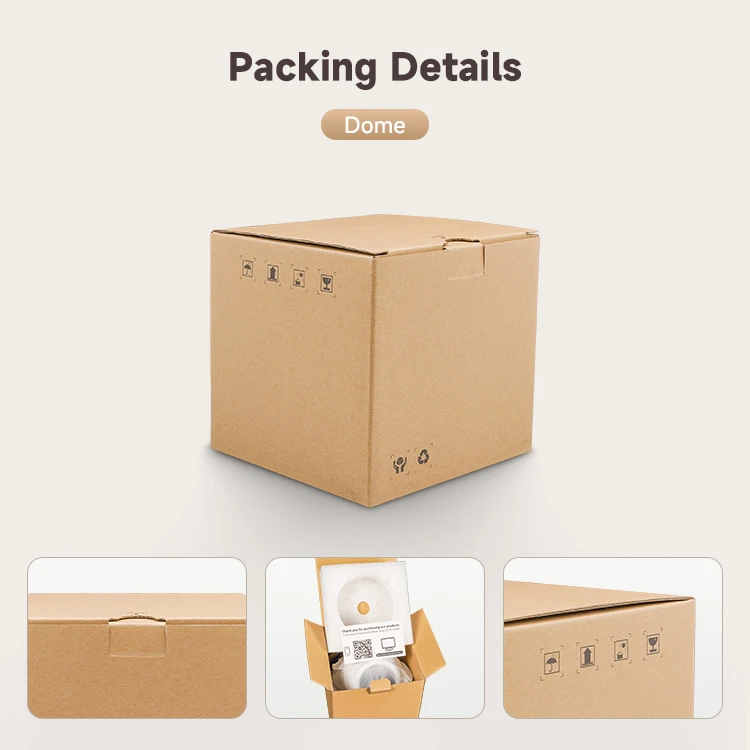

Packing&Shipping
Company Introduction
Our Services
Warranty & RMA
2 years free repair and lifetime technical support provided after the shipment date.
Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 0.5%
OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your enquiries!
Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> If order value less than 20,000USD$, we should get 100% payment before production
> Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 1 carton per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
2 years free repair and lifetime technical support provided after the shipment date.
Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 0.5%
OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your enquiries!
Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> If order value less than 20,000USD$, we should get 100% payment before production
> Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 1 carton per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
Contact Us
For More, Please feel free to contact us & Welcome to Visit our Factory in Shenzhen. Welcome to visit our official website www.ycxcctv.com to view video demos, download product catalog and read CCTV technical articles.
Choose YCX, Guard Your Safety, Secure Your World!
