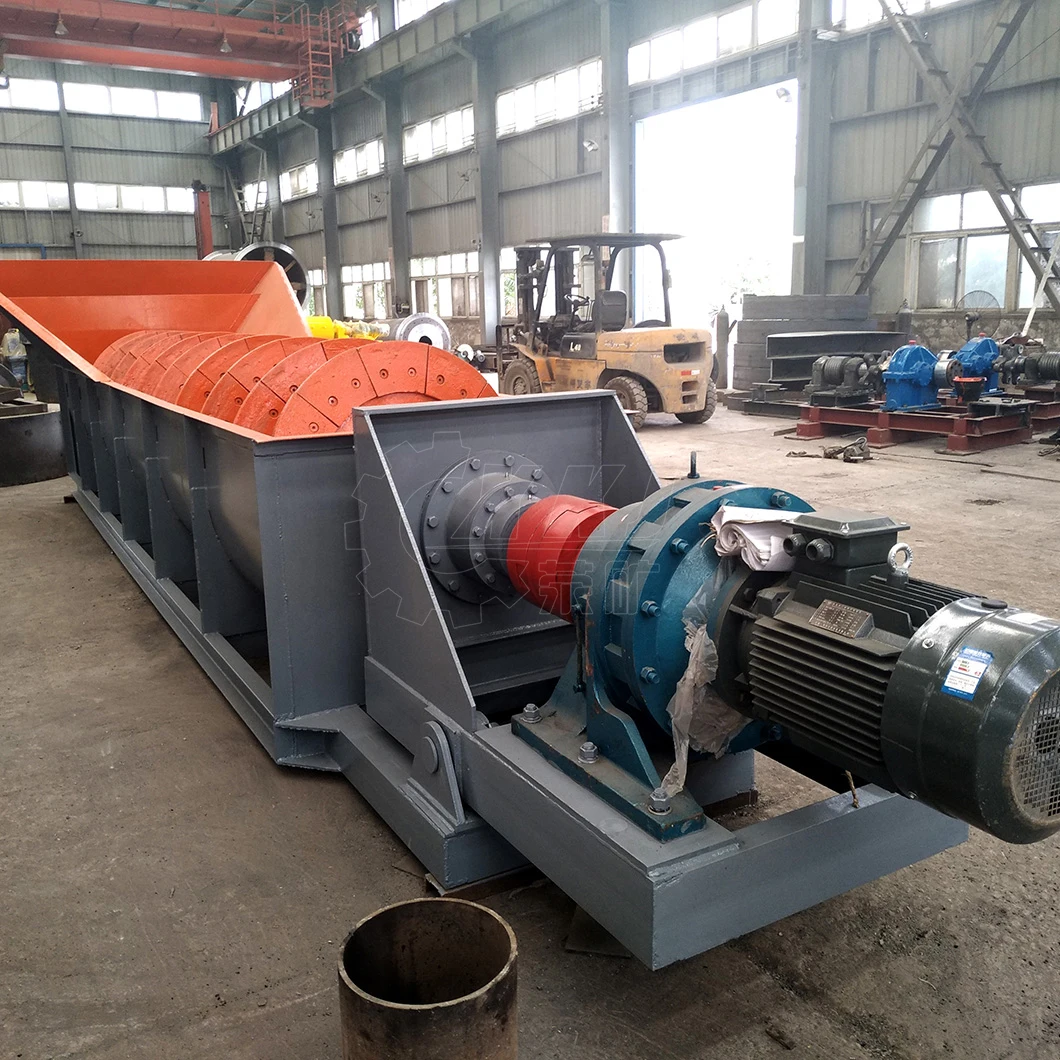

Customized diesel engine for small spiral sand washing machine equipment in 2024
- Category: >>>
- Supplier: Henan Xingyang Mining Machinery ManufactoryHenan Manufactory
Share on (1601349923480):
Product Overview
Description
Product Introduction

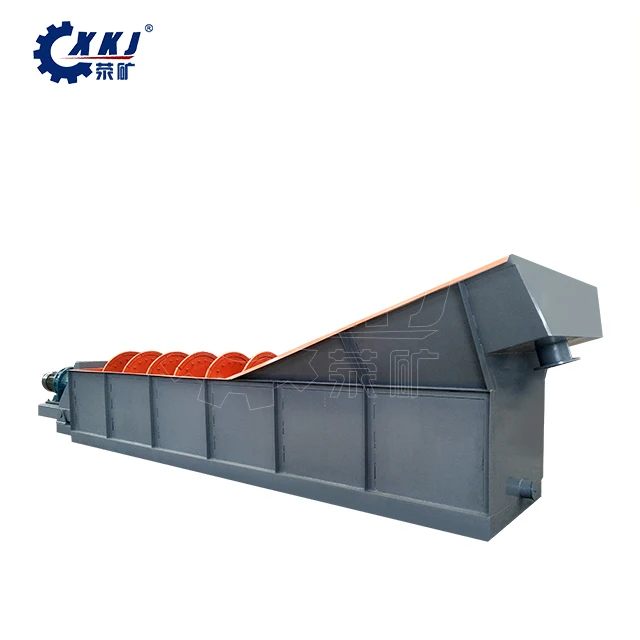

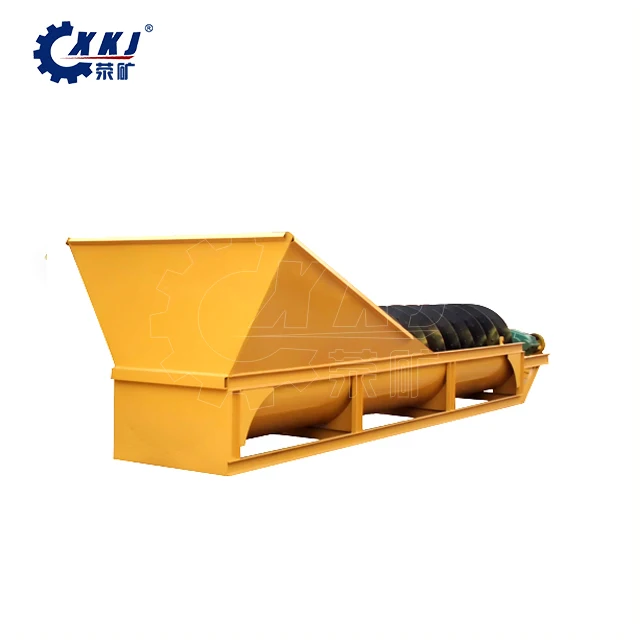

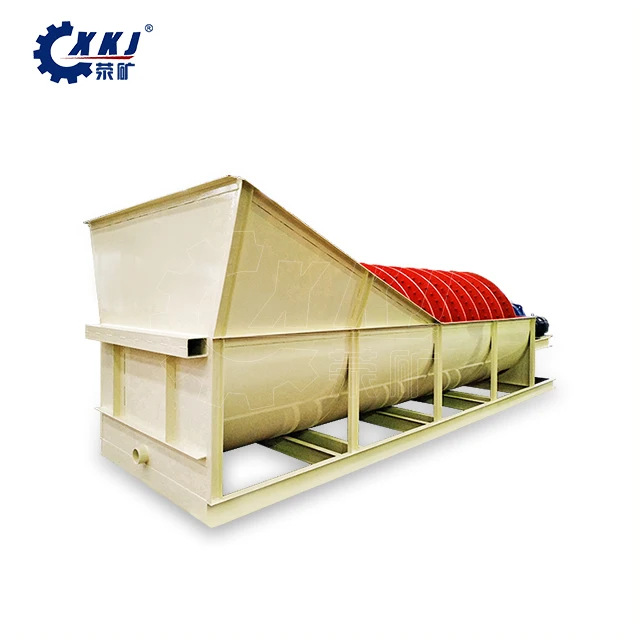

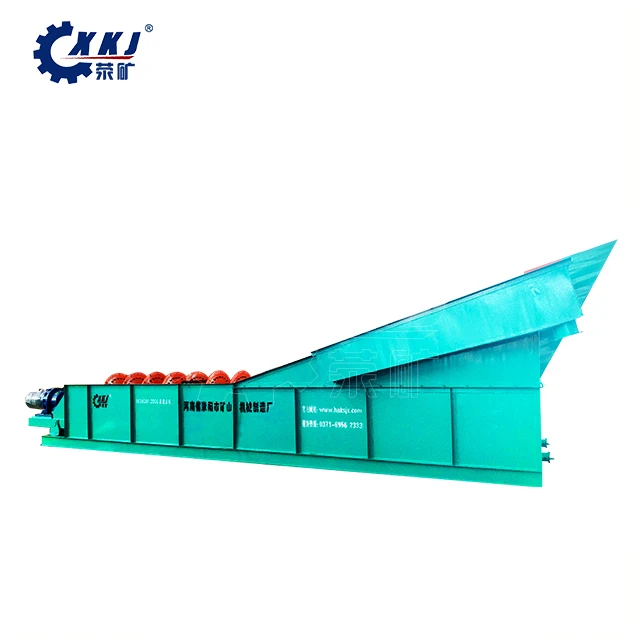

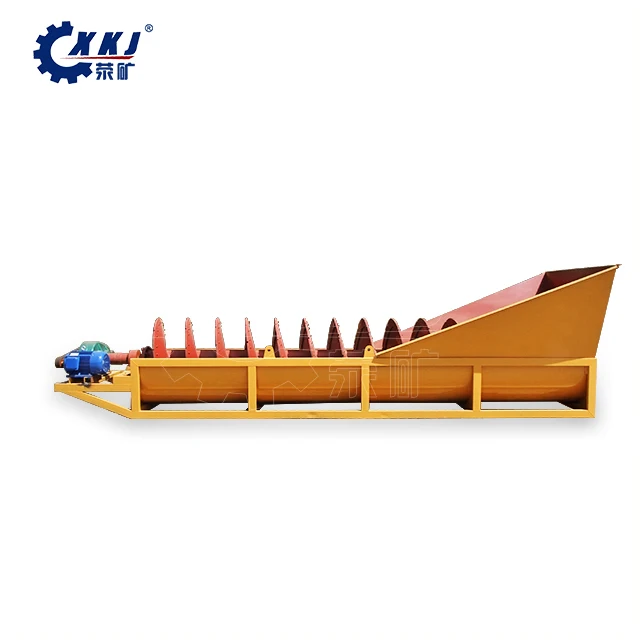

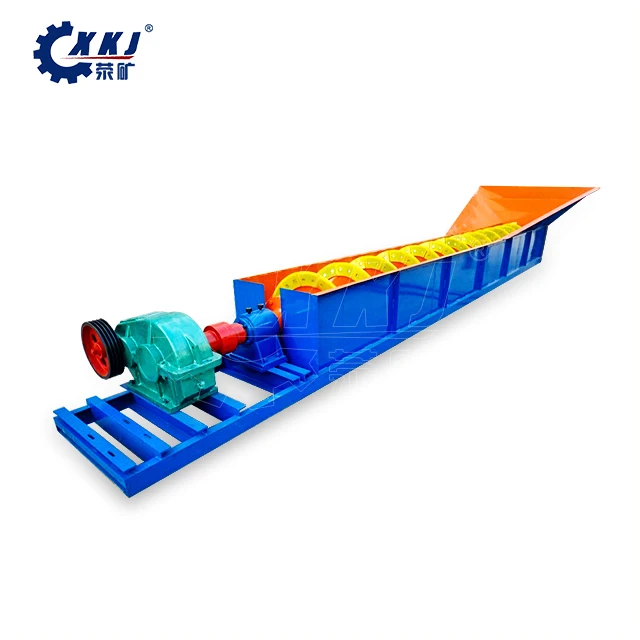

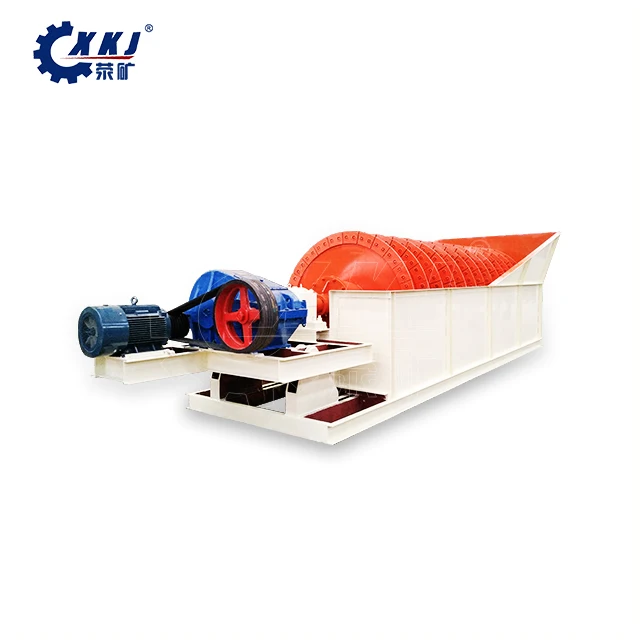

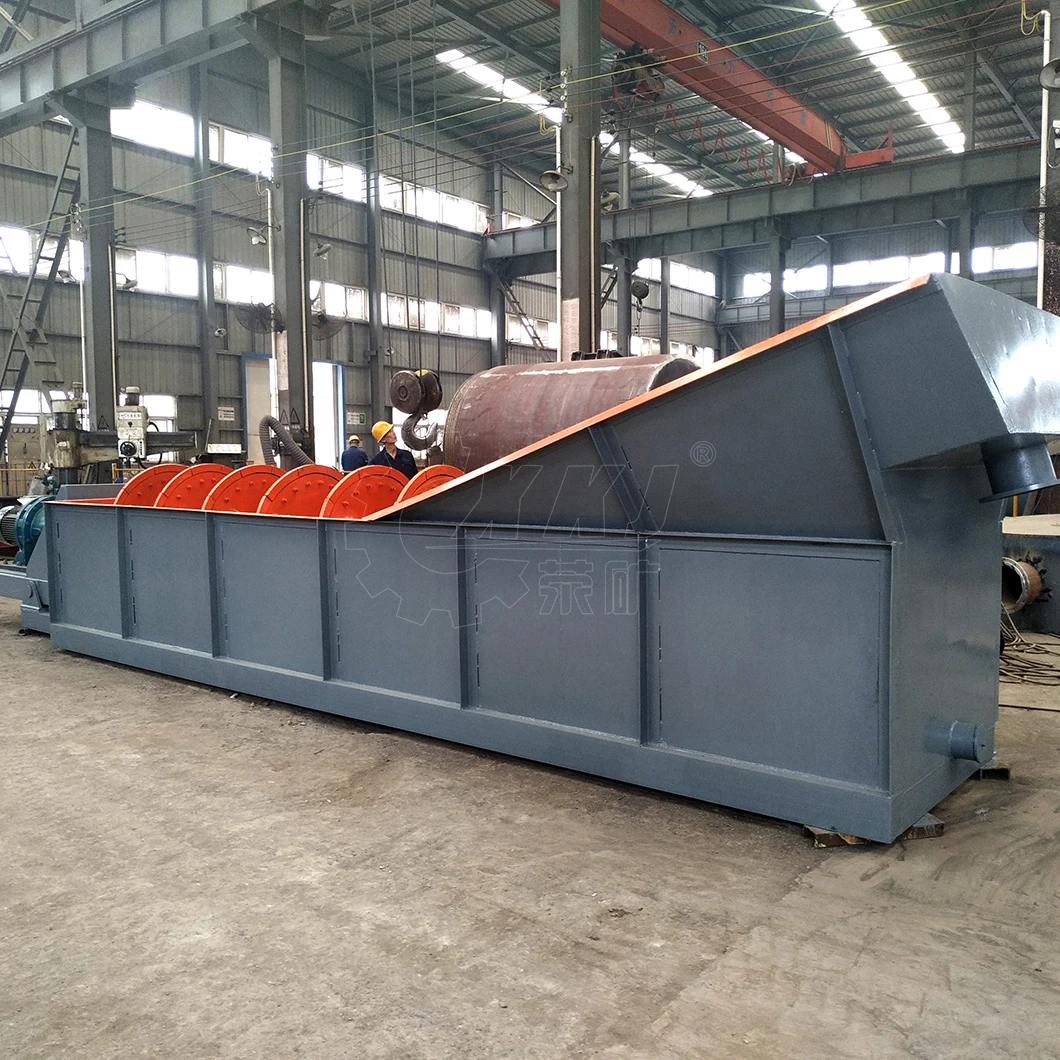

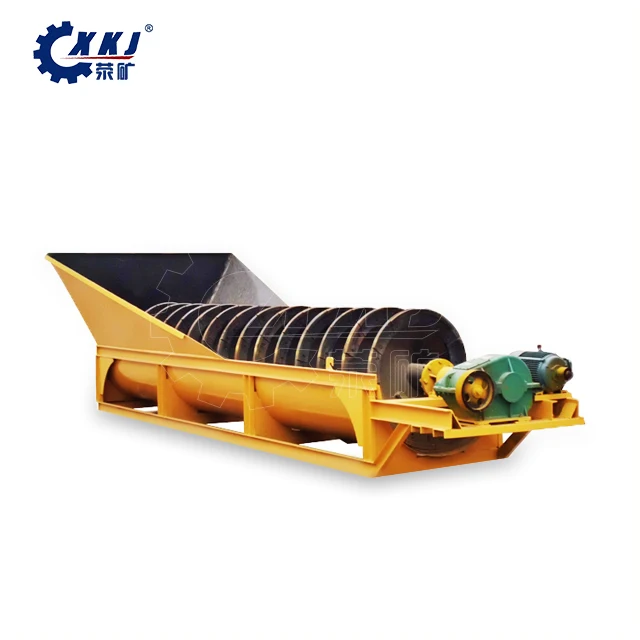

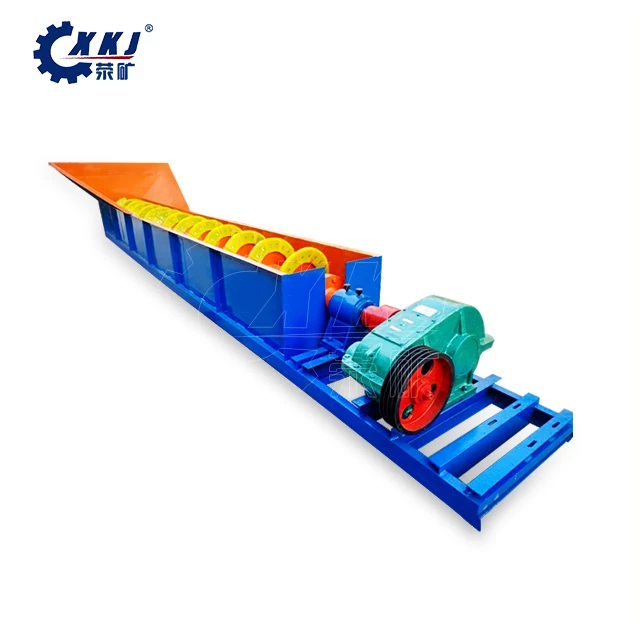

Sand washing equipment is used to remove the dust and stone powder in the sand produced by sand making machine, it also can do sand-selecting work or the similar process. The machine aims to improve the quality and grade of the sand. Screw classifier can effectively seperate the mud among the material and clean the coal and sand. The materials are conveyed to the designated positon while cleaning and drying as the spiral stirs. Spiral sand washer is well-known for its strict triple sealing system, which guarantees the stability when pocessing.
Features
1. Long spiral body and good sealing design.
2. Simple structure, powerful treatment capacity.
3. Easy to maintain and replace used parts.
Working Principle

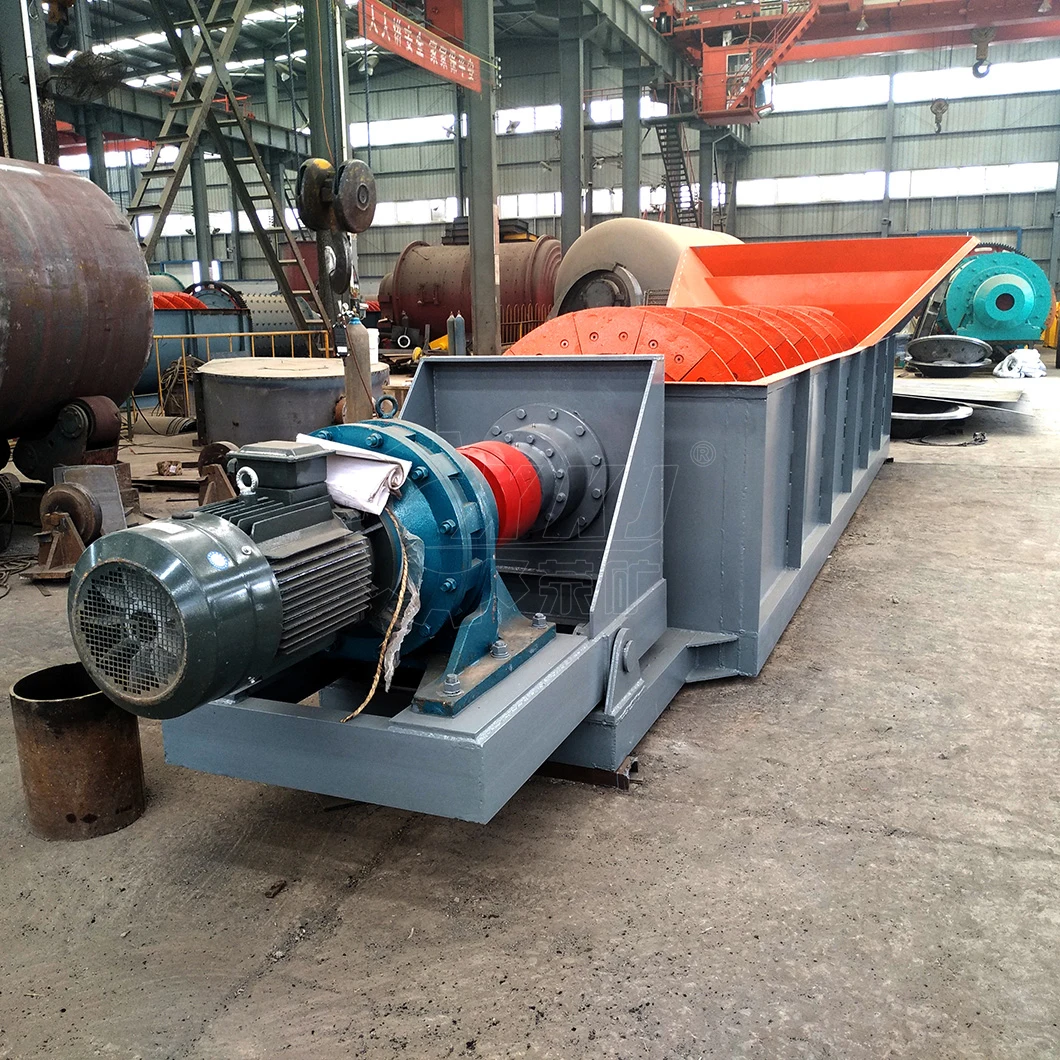

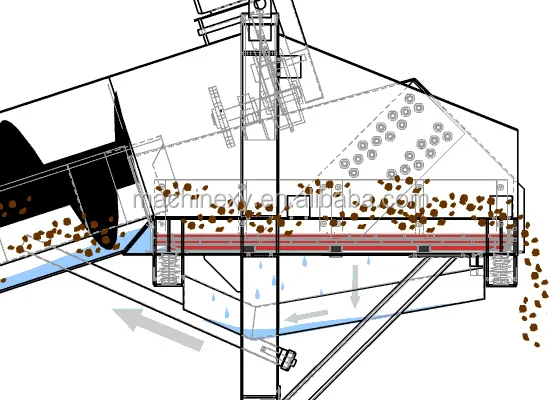

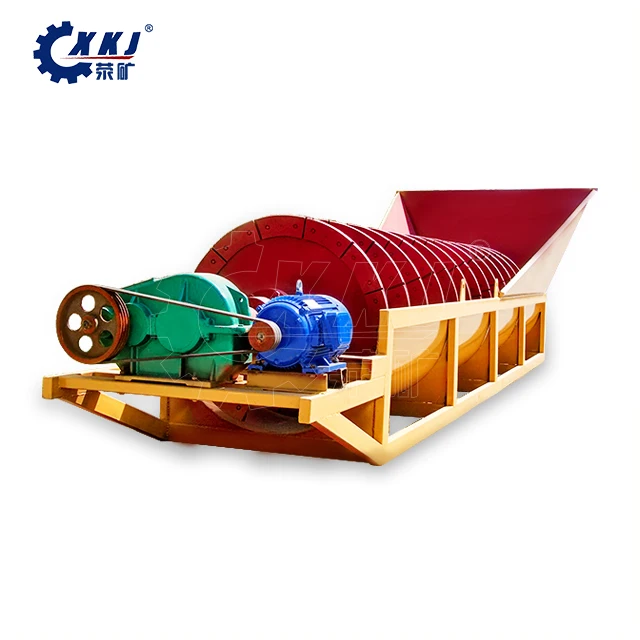

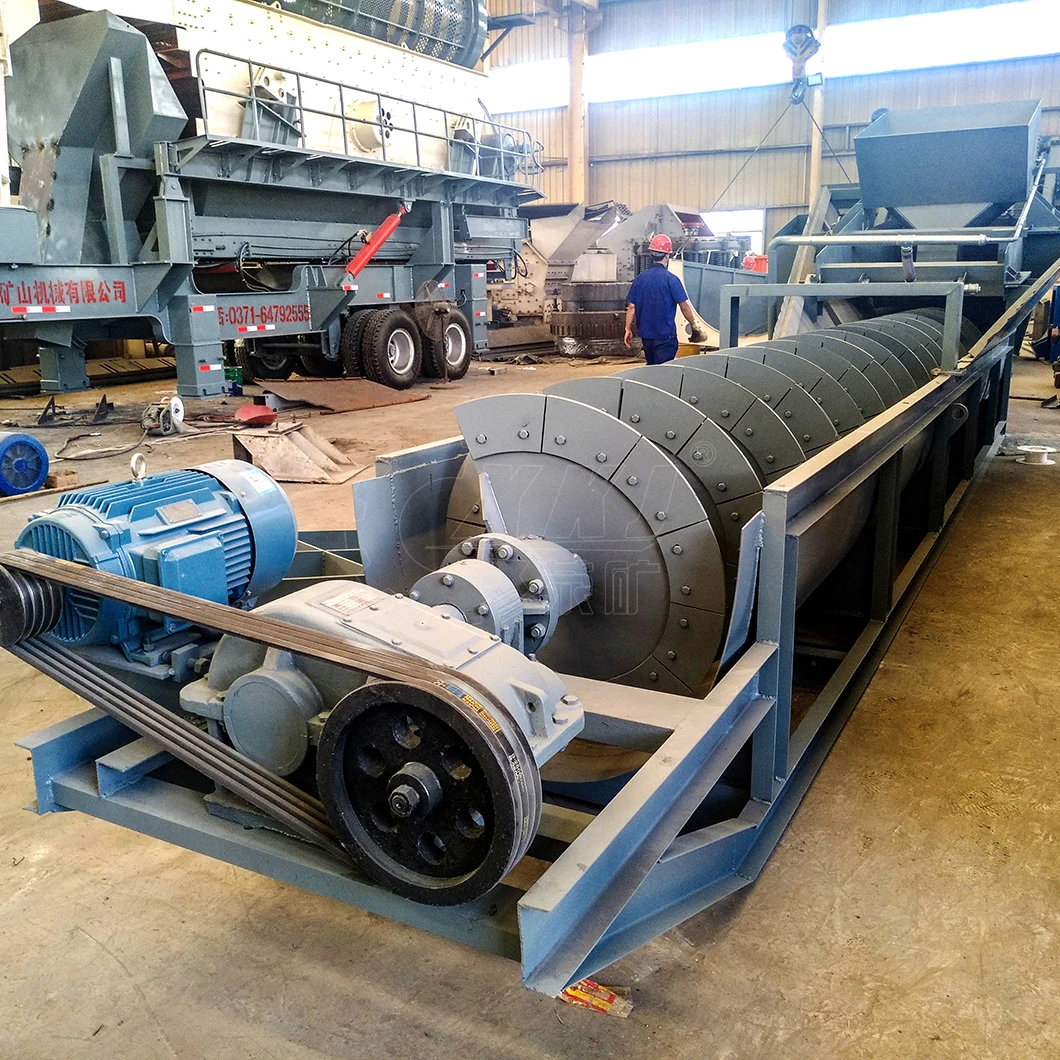

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
Parameters
Model | Spiral diameter (mm) | Feed size (mm) | Water consumption (m3/h) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight(T) |
XL-508 | 508 | <10 | 6~60 | 20 | 5.5 | 8000*2343*1430 | 2.67 |
XL-610 | 610 | <10 | 6~63 | 40-50 | 7.5 | 8000*2050*1400 | 3.80 |
XL-762 | 762 | <10 | 9~63 | 50-75 | 11 | 8545*2650*3862 | 5.23 |
XL-915 | 915 | <10 | 10-80 | 100 | 11 | 8500*2810*3600 | 6.27 |
2XL-915 | 915 | <10 | 20~160 | 200 | 2*11 | 8420*3765*3960 | 11.11 |
XL-1115 | 1115 | <10 | 20~150 | 175 | 15 | 10970*3945*4720 | 10.18 |
2X1115 | 1115 | <10 | 40~30 | 350 | 2×15 | 10970*5250*4720 | 17.94 |
Related Products
Spiral Classifier
Spiral Classifier can clean and separate the soil and impurities in sand and stone. Its novel sealing structure, adjustable overflow weir plate and reliable transmission device ensure the effect of cleaning and dehydration.
Shaking table
Shaking table is one of the mineral separation equipment of gravity concentration, it is easy to be operated and can produce high grade concentrated ore, secondary concentrated ore, middling and gangue, etc. At the same time, it is widely used to separate tungsten, stanum, niobium, gold, other rare metal and noble metal ores.
Jaw Crusher
The jaw crusher is mainly used for crushing all kinds of ores and bulk materials with medium size. It is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries.
Company Information
XKJ Machinery has won many honors through outstanding products and advanced technology and we always see product quality as life and customers as God. Customers mean everything and we will always carry out the quality principle of being responsible for every procedure, every product and every customer and serve every customer with heart and soul. Everything we do, we do it for your benefit and we deeply believe that our sincerity will be finally paid back.
Why choose us ？
1.We are real manufacture factory ( not dealer).
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service. So please buy machine from factory.
2. Our equipment with senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation. If you are new for this business, we will help you.
Service&Delivery
Our Services：
Before-sale services:
We guide customers to choose the best and applicable device, provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold. Customers are invited to simulate and test machine on-the-spot and raise objections. In accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips: The prices in the web only to be reference, according to raw material's price fluctuations, specific price is subject to the negotiation.
Packing：

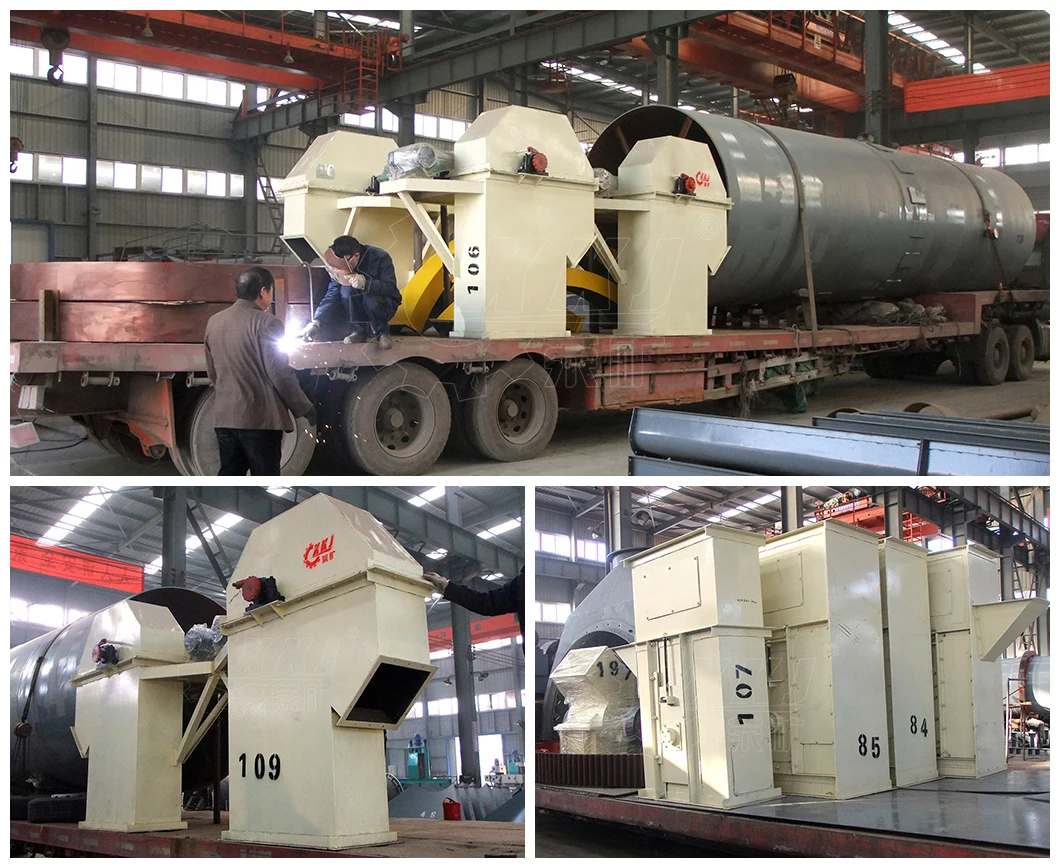

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below, nude packing, bundle packing, grass rope packing, water proof packing, wooden pallets packing, wooden box or carton box packing.
FAQ
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Can we visit your factory?
A: Yes. You can visit our factory anytime you want.
