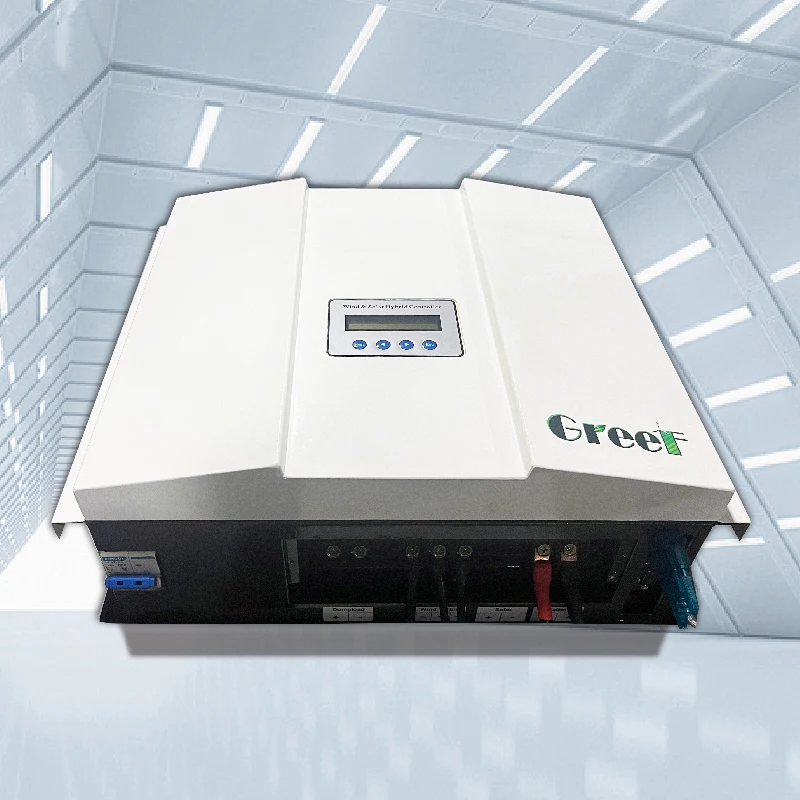

5KW 10KW Power function GBBC Series Can be combined with solar energy Three Stage Charging off grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller
5KW 10KW Power function GBBC Series Can be combined with solar energy Three-Stage Charging off-grid controller

5KW 10KW Power function GBBC Series Can be combined with solar energy Three Stage Charging off grid controller

Share on (1601349969338):


Price:$1,200.00

Quantity:


Product Overview

Description

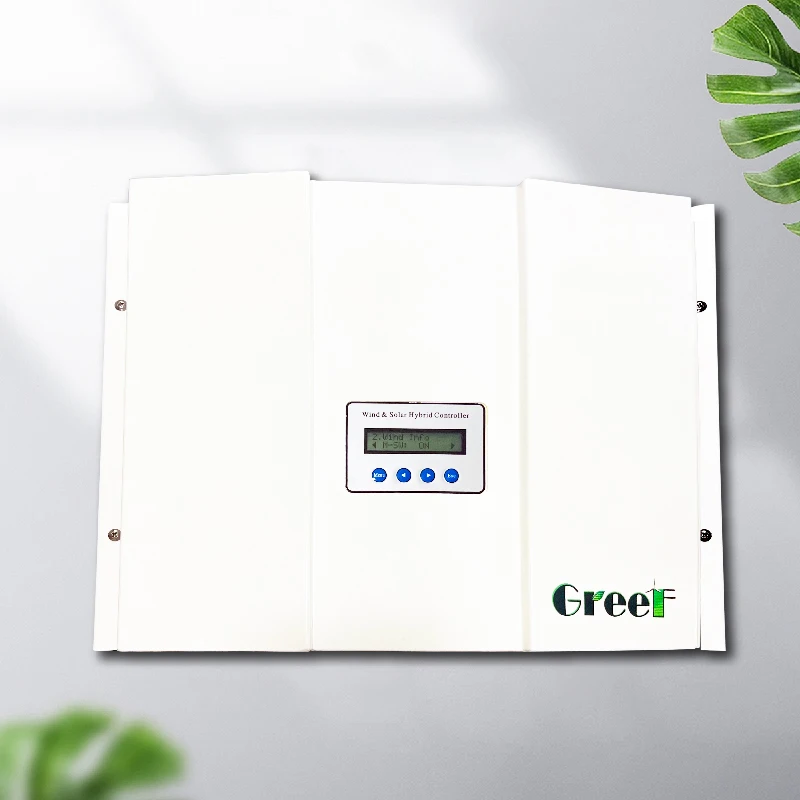

Product Show

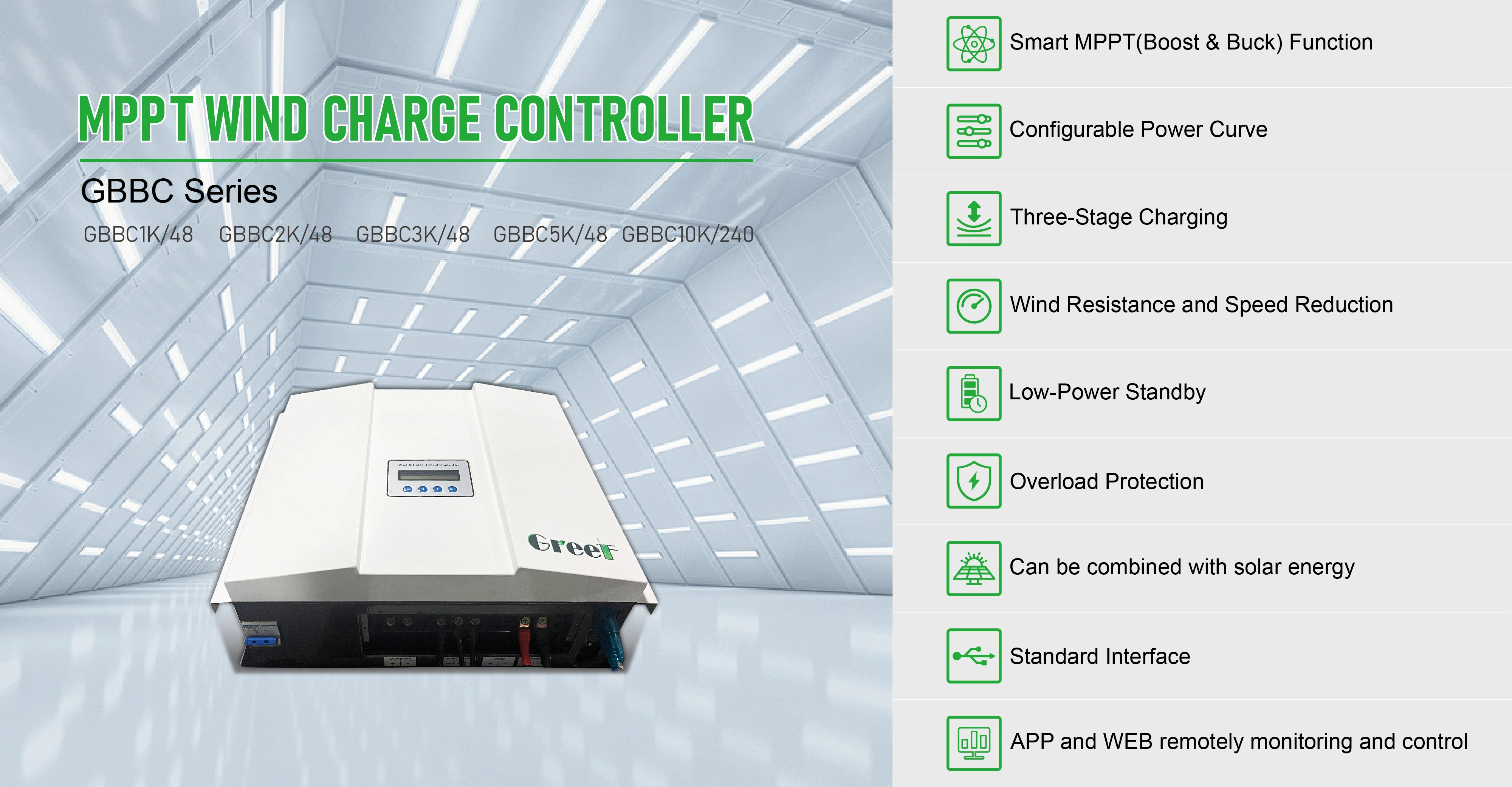

1. Smart MPPT(Boost & Buck) Function: Wide charge range.2. Configurable Power Curve: Users can set parameters, and the controller will automatically generate the power curve.
3. Three-Stage Charging: The system uses a three-stage charging method to ensure charging efficiency and battery lifespan.
4. Wind Resistance and Speed Reduction: The system has a unique electrical speed reduction feature to effectively handle strong
winds, preventing overheating and brake failure.
5. Low-Power Standby: When not in use, the system automatically enters a low-power standby mode.
6. Overload Protection: The system includes over-speed, over-voltage, and over-current protection to ensure safe operation.

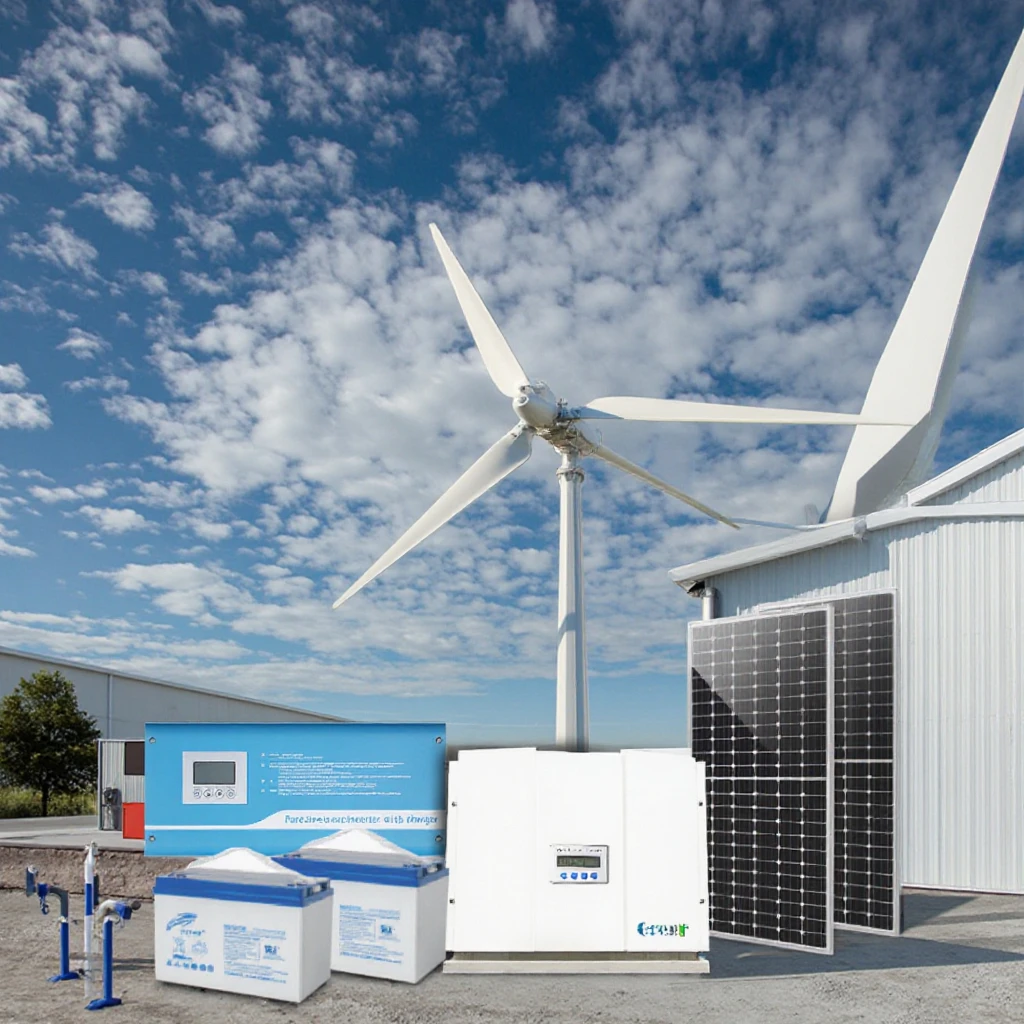

7. Can be combined with solar energy.
8. Standard Interface: The system is equipped with a standard RS485 interface and Modbus protocol for easy interconnection with
other systems.
9. APP and WEB remotely monitoring and control.


Product Paramenters


Model
GBBC1K/48
GBBC2K/48
GBBC3K/48
GBBC5K/48
GBBC10K/240
Rated wind power
1KW
2KW
3KW
5KW
10KW
Nominal system voltage
48V
48V
48V
48V
240V
Wind charging range
DC (20-350)V
DC (20-350)V
DC (20-350)V
DC (20-350)V
DC (120-400)V
Wind start charging voltage(Cut In)
24V
20V
20V
20V
120V
Wind dump load voltage(Vmax)
80V
180V
150V
380V
400V
Dump load control mode
Over rotate speed limiting, Over voltage limiting, Over Current limiting, PWM
Wind charging mode
MPPT(Boost & Buck) & PWM
MPPT Mode
Auto & P-V Curve
Display mode
LCD
Display content
Battery: Voltage; charging current; percentage of battery power.
Wind: Voltage; charging current; rotate speed; output current; output power
Solar: Voltage; charging current.
Loads: Current; power; working mode.
Operating temperature
& Relative humidity
﹣20~﹢55℃/35~85%RH(Non-condensing)
Power Loss
≤3W
Protection type
Battery: Over-discharge protection; over-charge protection; anti-reverse connection.
Wind: Over rotate speed protection, over voltage protection, over current protection.
Loads: Over-load protection
Communication function
RS232/RS485/USB/GPRS/WIFI/Ethernet

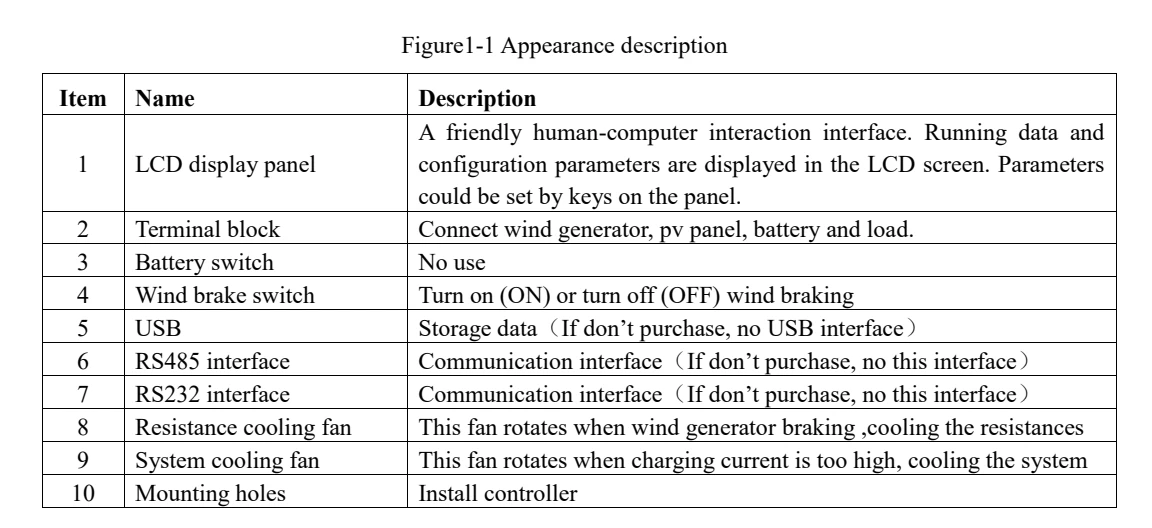

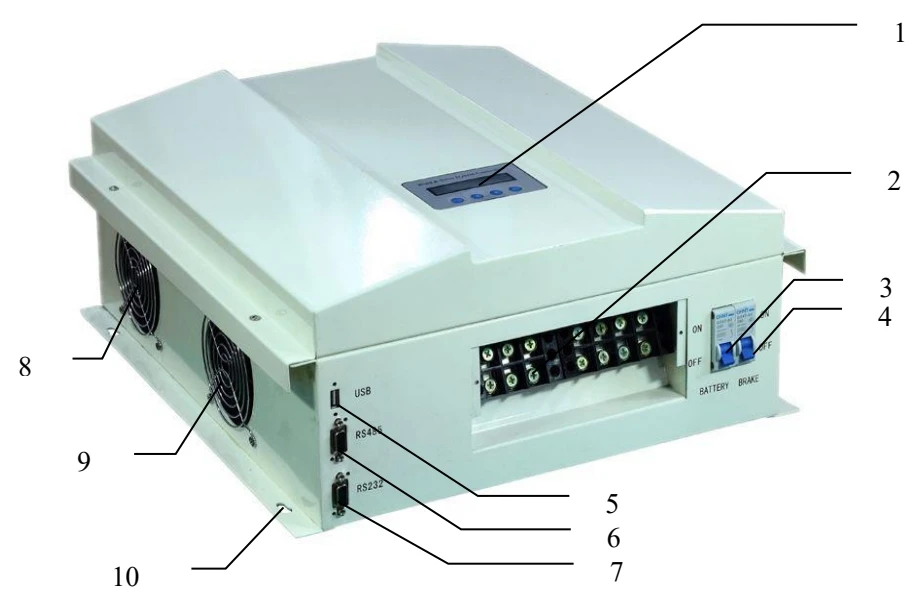

Details Images

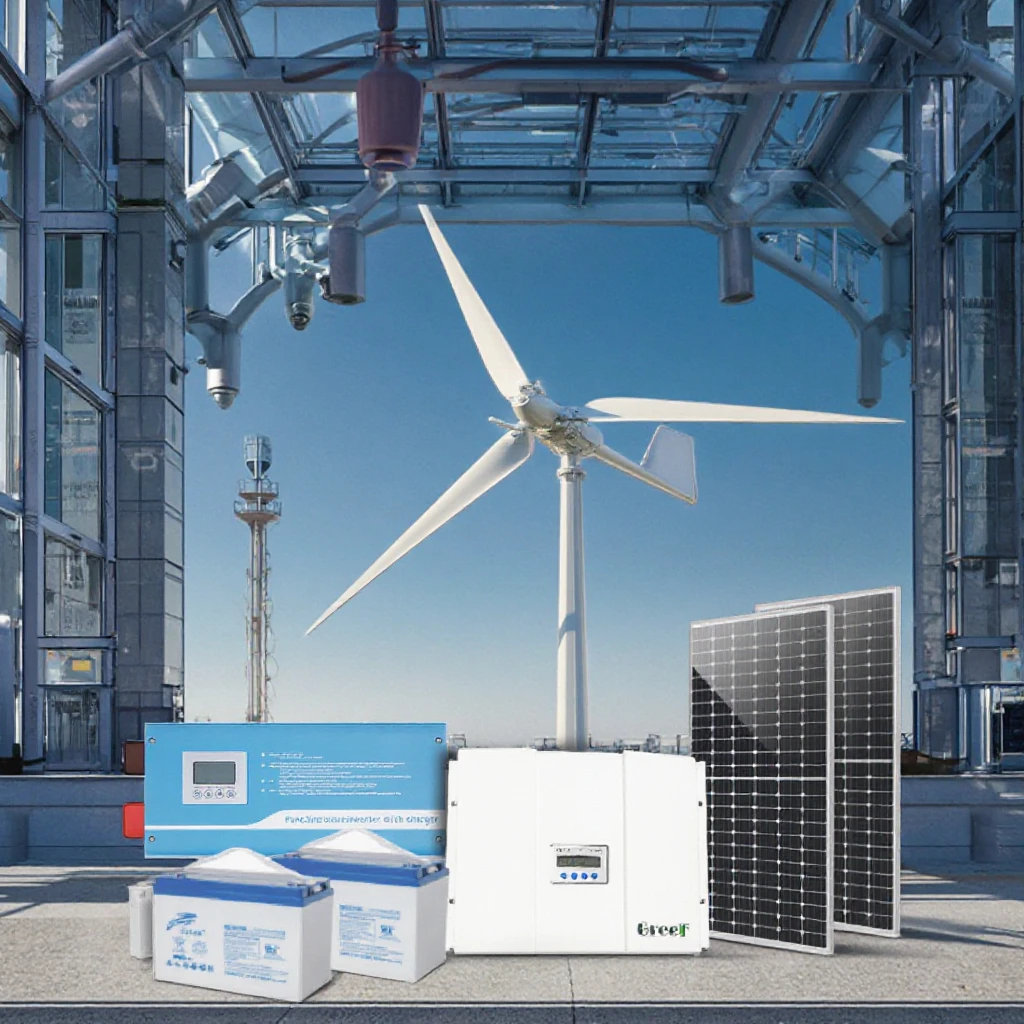

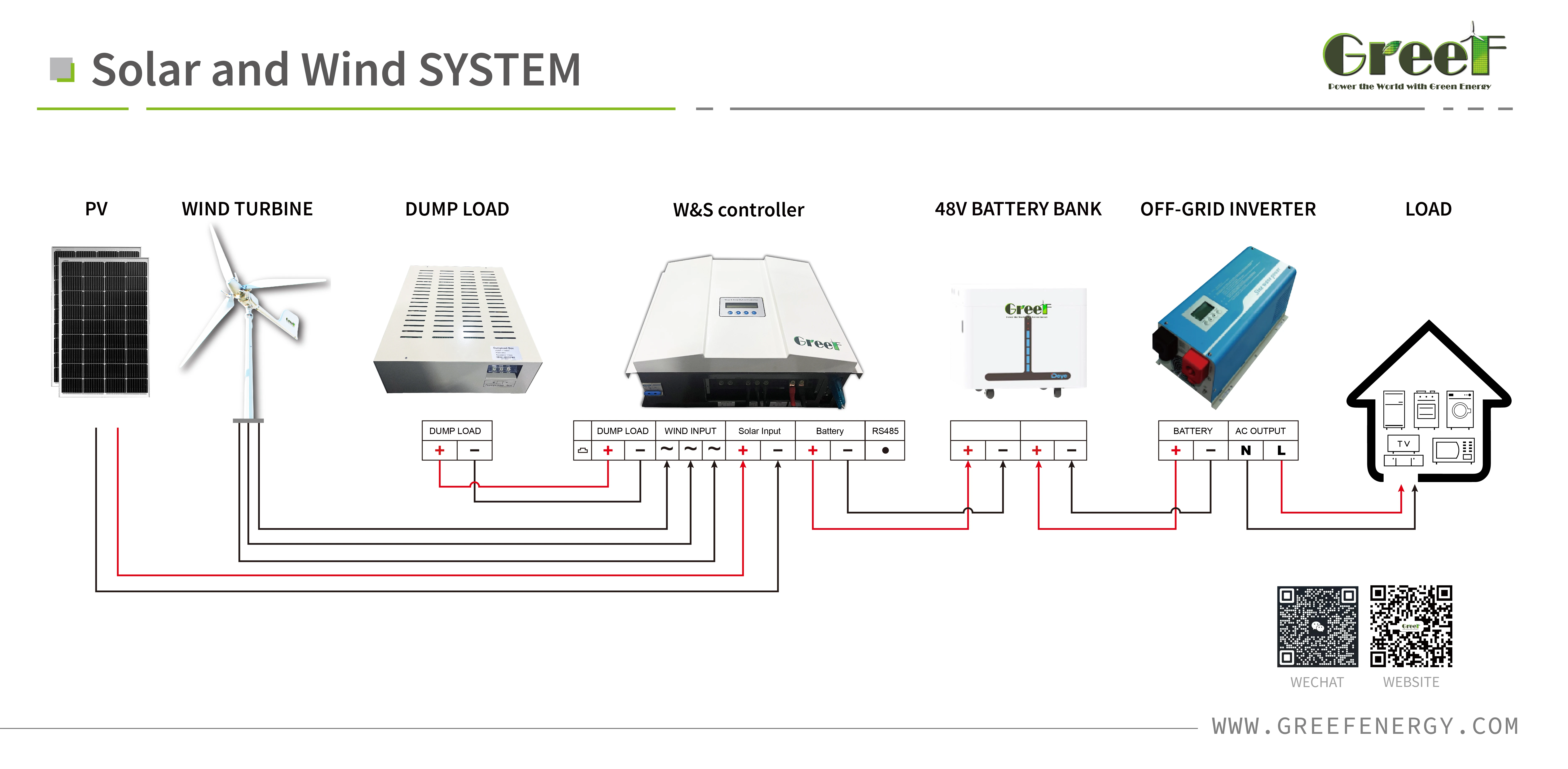

System Solution


We can customize the system to suit your requirements

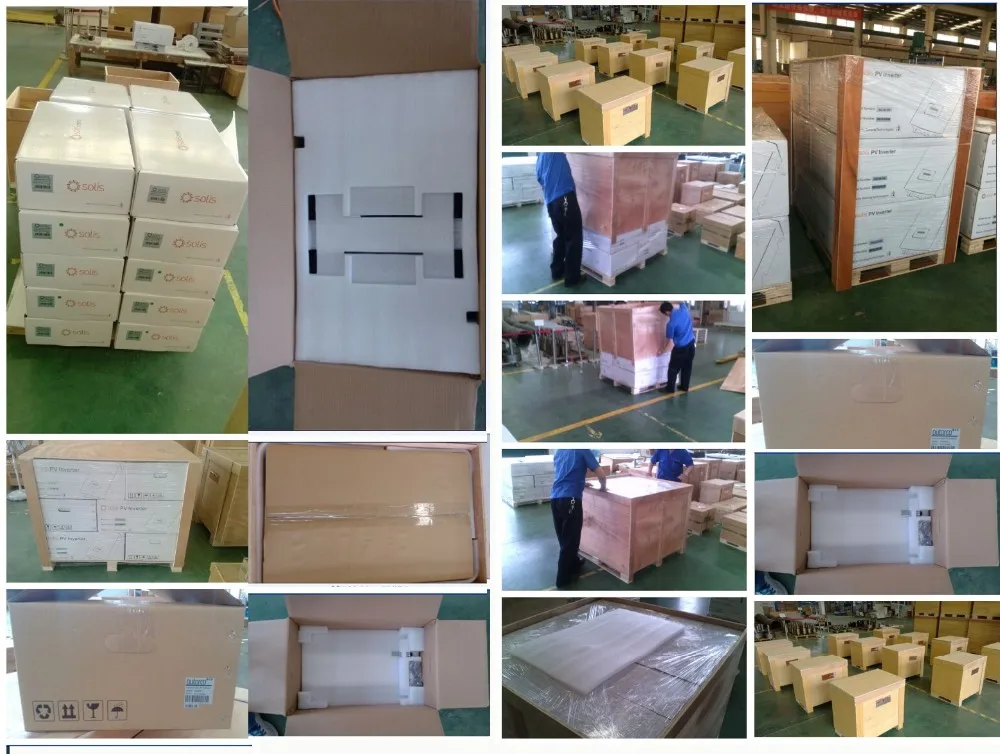

Packaging & Shipping
