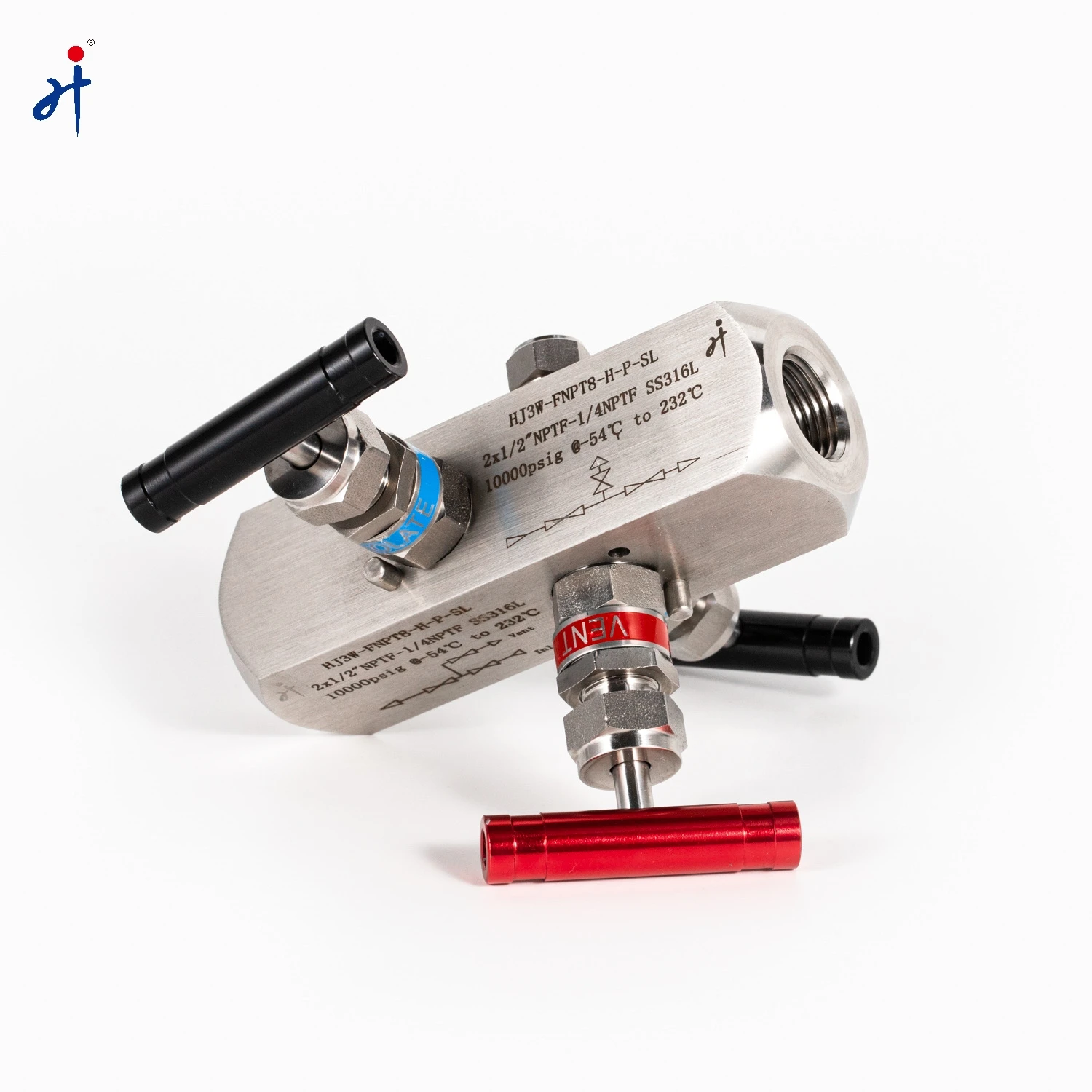

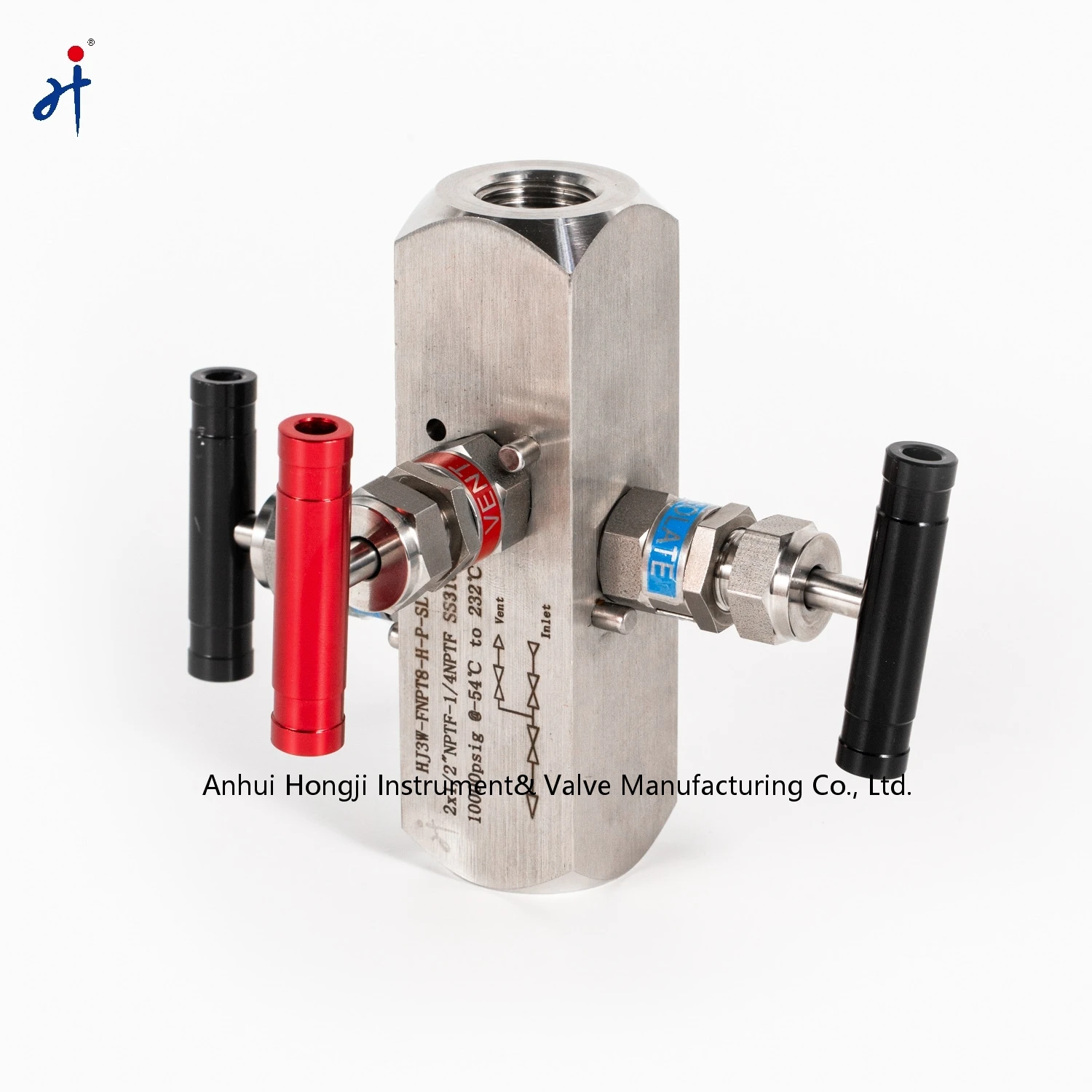

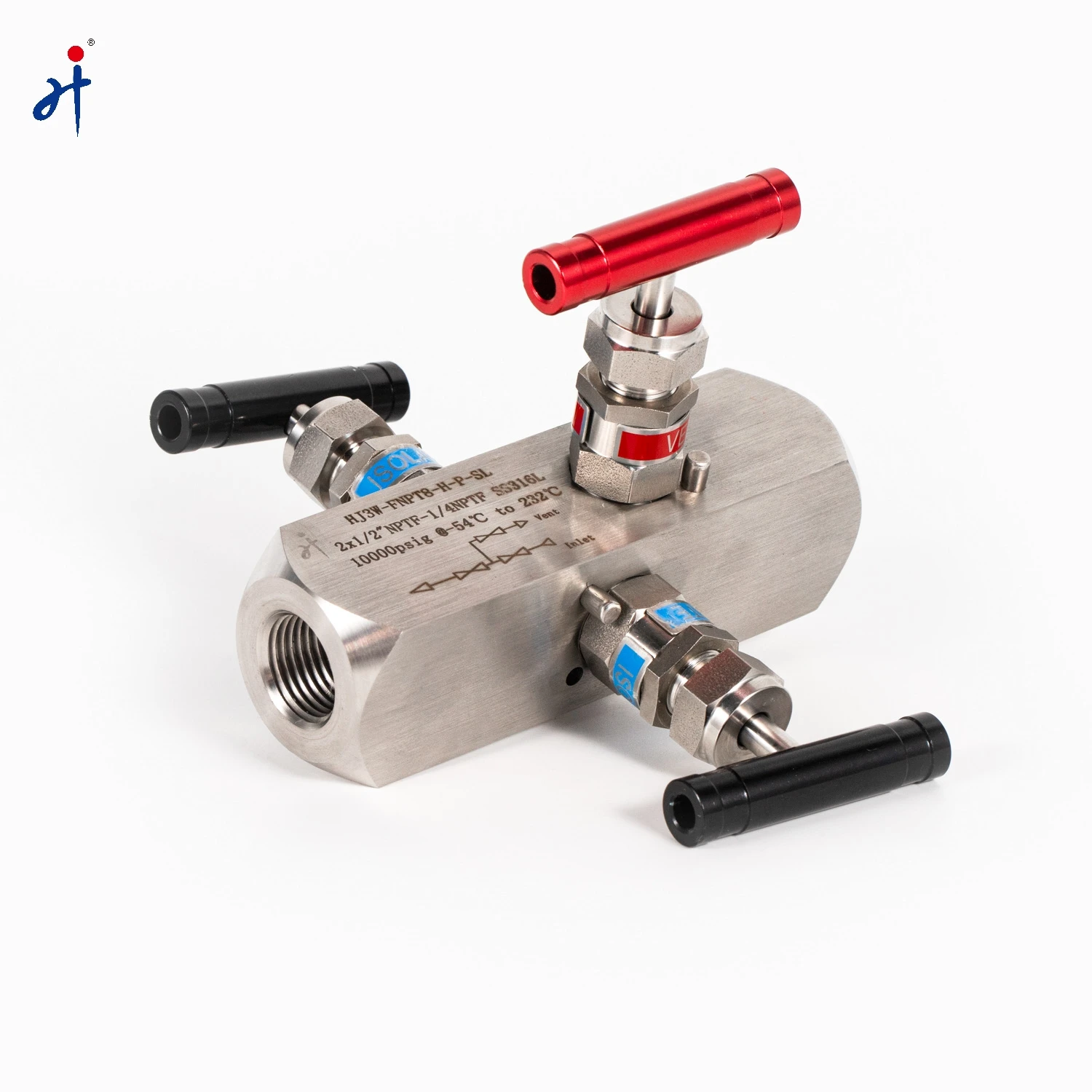

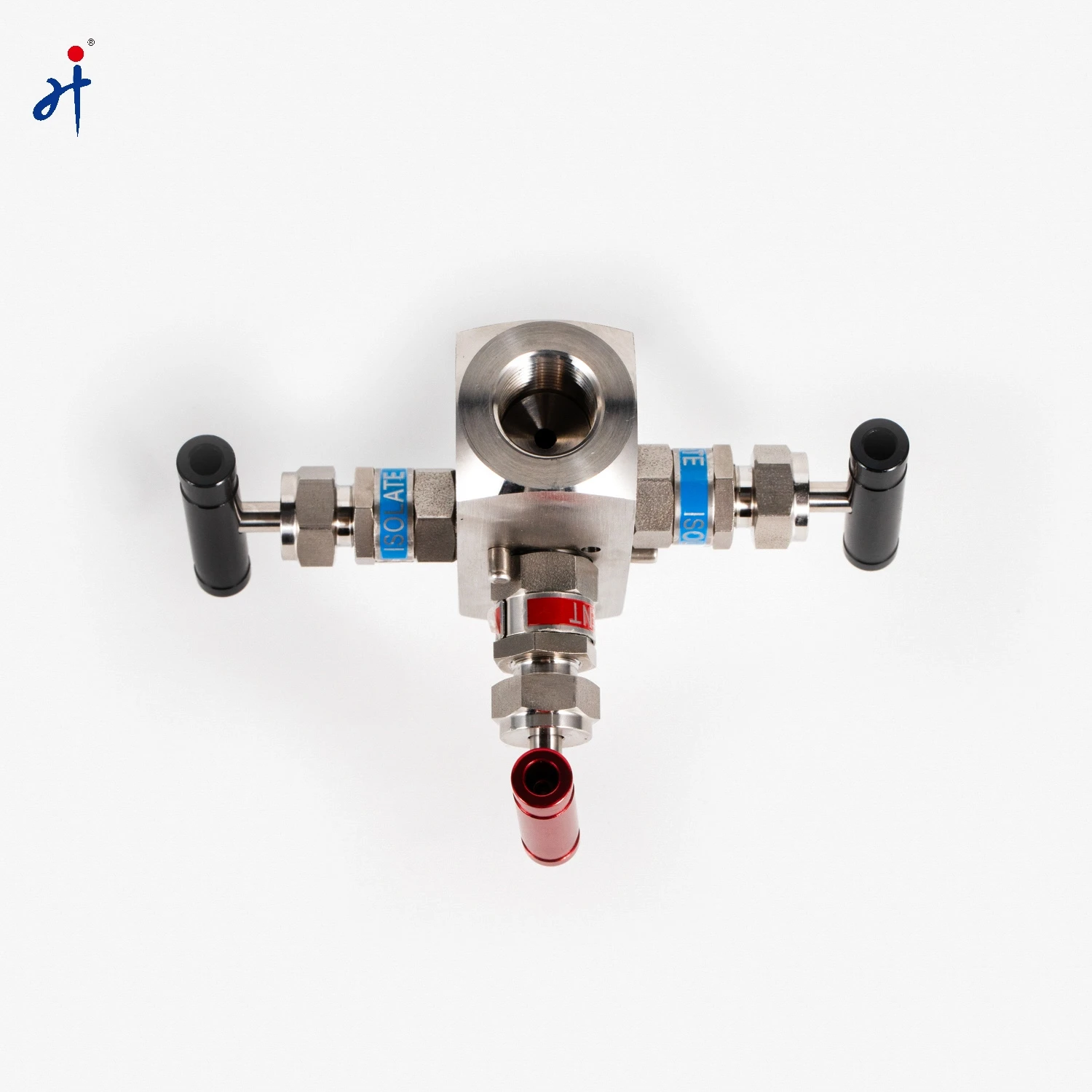

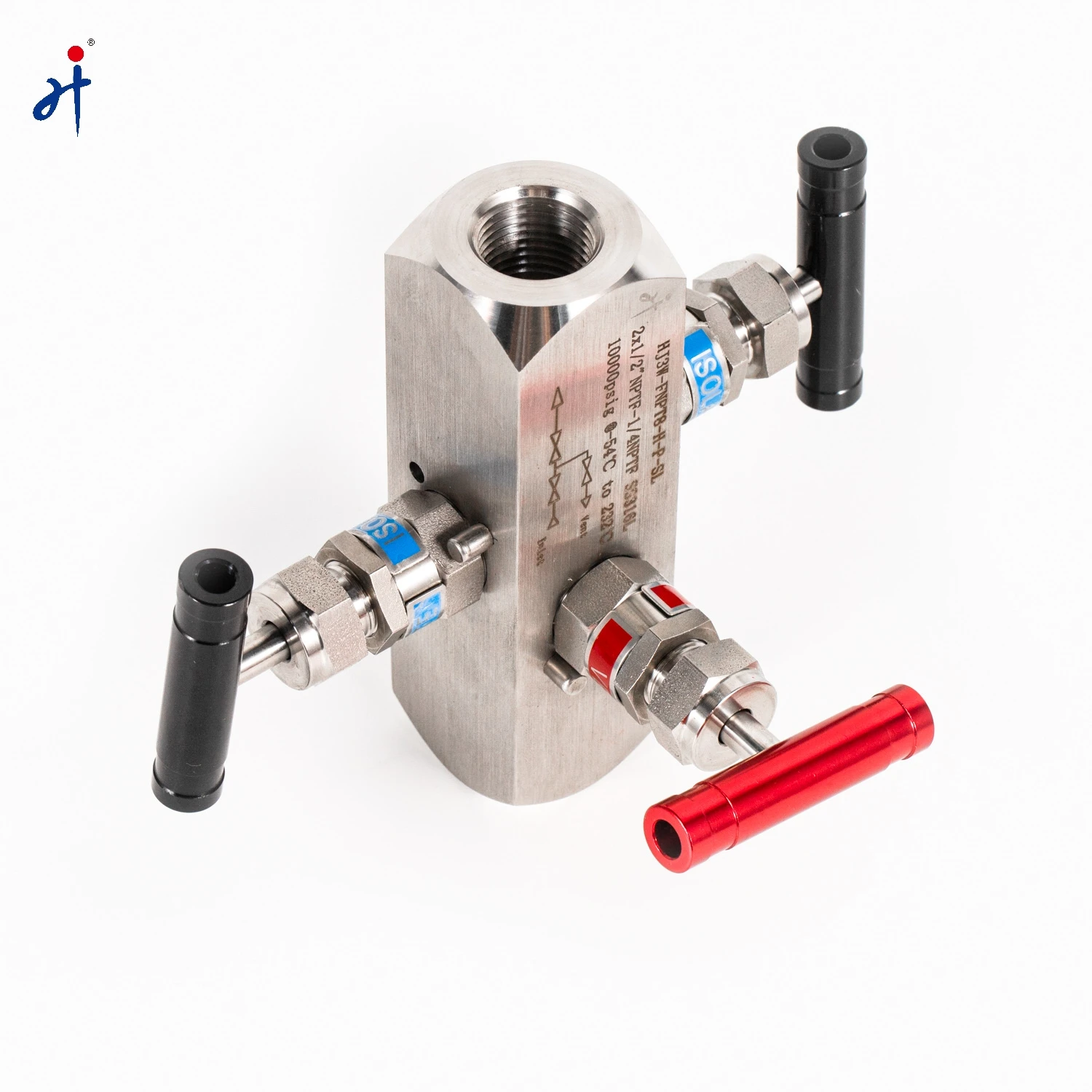

Hongji Stainless Steel Columnar Internal Thread Connection Three Valve Manifolds
- Category: >>>
- Supplier: Anhui Hongji Intrustment Valve Co. Ltd.Anhui Ltd.
Share on (1601350100145):
Product Overview
Description
Product Overview
Instrumentation Manifolds
Features
◎ Working pressure
HJ2W, HJ2V, HJ3W, HJ3V, HJ5W, HJ5V series up to 6000 psig (414 bar)
HJ2WH, HJ2VH, HJ3WH, HJ3VH, HJ5WH, HJ5VH series up to 10000 psig (690 bar)
◎ Working temperature:
PTFE packing: -65 °F to 450 °F (-54 °C to 232 °C)
Graphite packing: -65 °F to 1200 °F (-54 °C to 649 °C)
◎ Orifice: 0.157 (4.0 mm)
◎ Safety back seating seals in fully open position
◎ Every gauge valve leak tested at factory at rated working pressure
HJ2W, HJ2V, HJ3W, HJ3V, HJ5W, HJ5V series up to 6000 psig (414 bar)
HJ2WH, HJ2VH, HJ3WH, HJ3VH, HJ5WH, HJ5VH series up to 10000 psig (690 bar)
◎ Working temperature:
PTFE packing: -65 °F to 450 °F (-54 °C to 232 °C)
Graphite packing: -65 °F to 1200 °F (-54 °C to 649 °C)
◎ Orifice: 0.157 (4.0 mm)
◎ Safety back seating seals in fully open position
◎ Every gauge valve leak tested at factory at rated working pressure
FEATURES AT A GLANCE
Instrument Manifold Features
* Efficiency Improvement and Energy Saving.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
* Suitable for confined spaces as its compact size.
* Installation cost-saving as its elaborate design.
* Miner leakage possibility leads to low maintenance.
* Fewer connections improve system layout.
Up
Back
Series
PRODUCT SPECIFICATIONS
No. | Component | Material Grade/ASTM Specification |
1 | Handle | 304 SS/A479 |
2 | Set Screw | 304 SS/A479 |
3 | Stem | 316 SS/A479 |
4 | Bonnet | Plastic |
5 | Stem Nut | 316 SS/A479 |
6 | Lock Nut | 304 SS/316 SS |
7 | Metal Gasket | 316 SS/A479 |
8 | Packing | PTFE/Graphite |
9 | Body | 316 SS/A479 |
10 | Lock Pin | 304 SS |
11 | Stem Tip | Hardened 316 SS/Stellite/Silicon carbide ceramics |
12 | Body | 316 SS/A479 |
