380V Three Phase Solar System Home 30KW 40KW 50KW On Off Grid Solar Energy System Complete Set
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.Bluesun Ltd.
Share on (1601350139214):
Product Overview
Description
Product Description

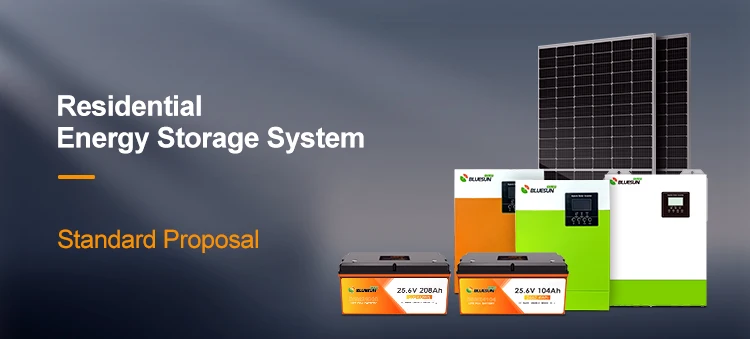

Residential Energy Storage System Standard Proposal | ||||||
Model | BSR-3.5kw-5.32KWh-Eco | BSR-5.5kw-5.3KWh-Eco | BSR-11kw-10.6KWh-Eco | |||
System Parameter | ||||||
AC rated power | 3500W | 5500W | 11KW | |||
Battery Capacity | 5325Wh | 5325Wh | 10.6KWh | |||
Ac voltage | 220/230V | 220/230V | 220/230V | |||
Rated grid frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||
Inverter Parameter | ||||||
Model | BSM 一 3500LV 一 24 | BSM 一 5500BLV 一 48 | BSM 一 11000LV 一 48 | |||
Rated Power | 3500W | 5500W | 11KW | |||
Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | |||
Nominal Voltage | 220 / 230VAC | 220 / 230VAC | 220 / 230VAC | |||
Peak Efficiency(PV to INV) | > 96 ％ | > 96 ％ | > 94 ％ | |||
Max.PV Array Open Circuit Voltage | 500VDC | 500VDC | 500VDC | |||
PV Array MPPT Voltage Range | 30 一 500 VDC | 30 一 500 VDC | 30 一 500 VDC | |||
Max.Solar Inputcurrent | 15A | 18A | 18A*2 | |||
Max. Charge Current | 100A | 100A | 160A | |||
Dimensions, D X W X H(MM) | 330 * 278 * 98 | 482 * 290 * 113 | 540 * 415 * 122 | |||
Weight (Kgs) | 3.8 | 10 | 15 | |||
Battery Parameter | ||||||
Model | BSM24208 | BSM24104*2PCS | BSM24208*2 | |||
Battery Type | LiFeP04(LFP) | LiFeP04(LFP) | LiFeP04(LFP) | |||
Nominal Voltage (V) | 25.6 | 25.6*2 | 25.6*2 | |||
Nominal Capacity (WH) | 5325Wh | 2662Wh*2 | 5325Wh*2 | |||
Voltage Range (V) | 20 一 29.2 | 44.8 一 57.6 | 44.8 一 57.6 | |||
Max. Charge/Discharge Current(A) | 200 | 100 | 200 | |||
Communicaiton | / | / | / | |||
Dimensions, D x W x H (mm) | 520 * 269 * 229 | 415 * 251 * 206*2PCS | 520 * 269 * 229*2PCS | |||
Weight (Kgs ） | 42 | 21*2PCS | 42*2PCS | |||
Design Life | 5 years+ | |||||
Cycle Life | > 6000@25。C | |||||
Environment | ||||||
Operation humidity range | 0 一 95 ％ (no condensation) | |||||
Maximum operation altitude | 2000m | |||||
Working Temperature | 0°一 50 ℃ Charge；一 10°一 50 ℃ Discharge | |||||
Shelf Temperature | －20°～ 一 60°C | |||||

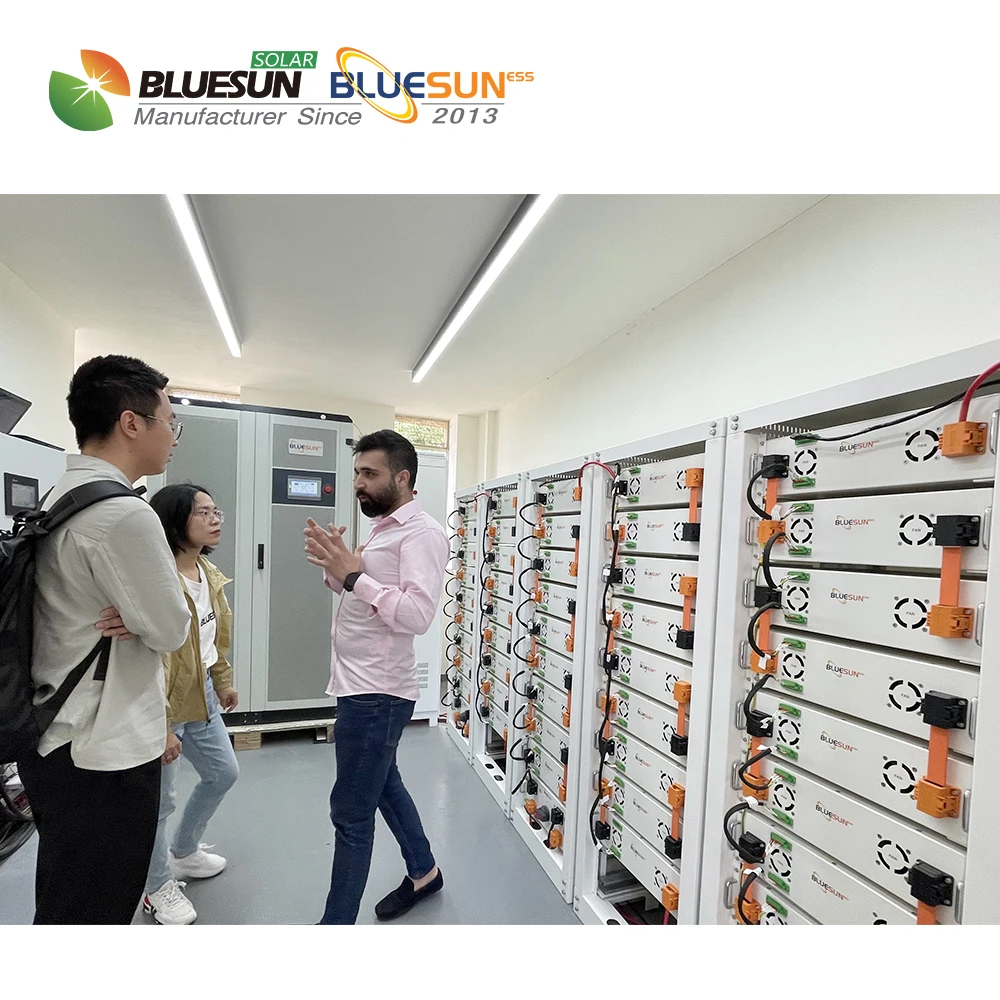

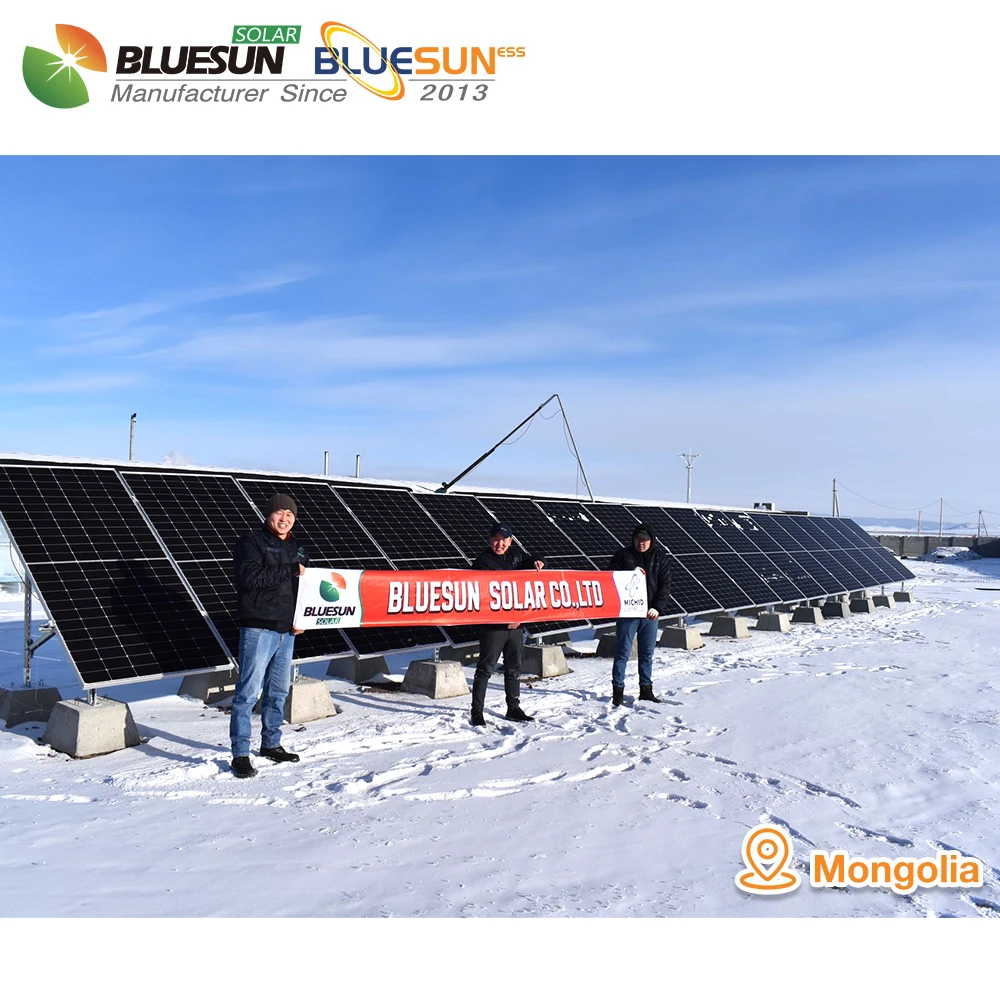

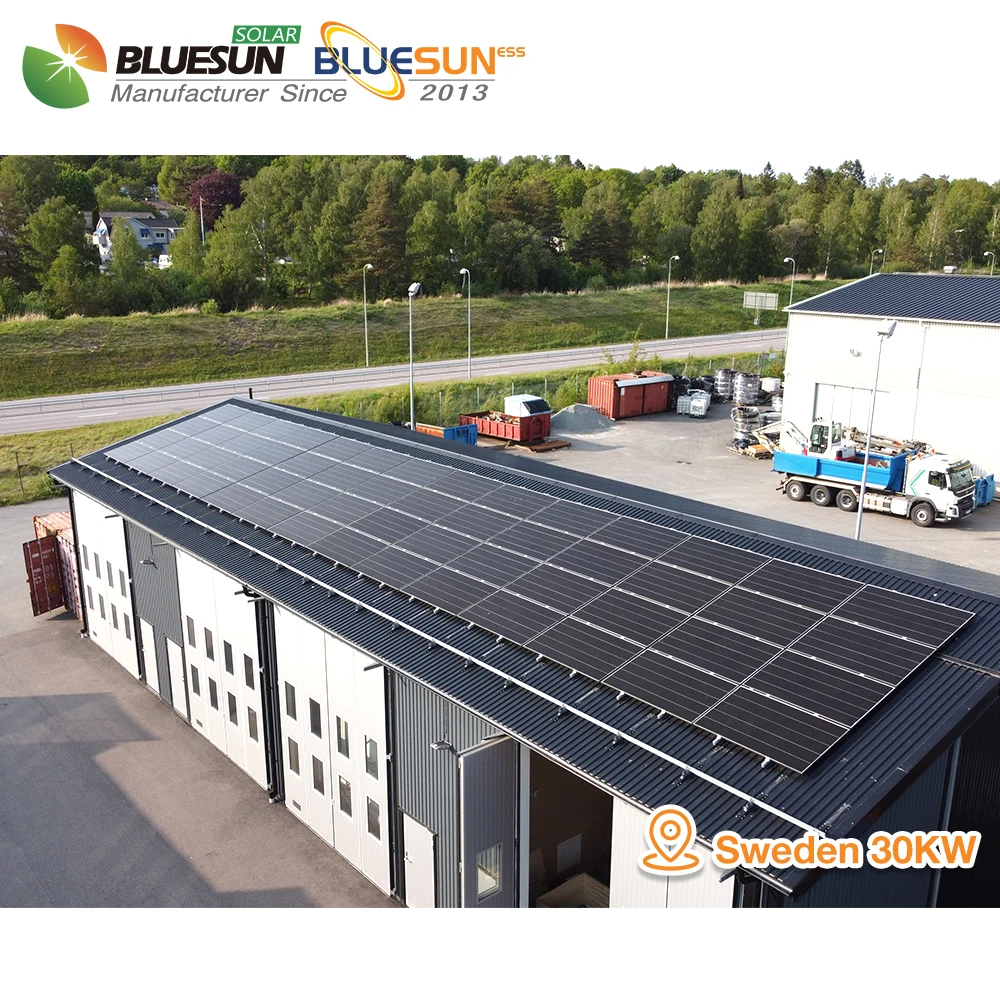

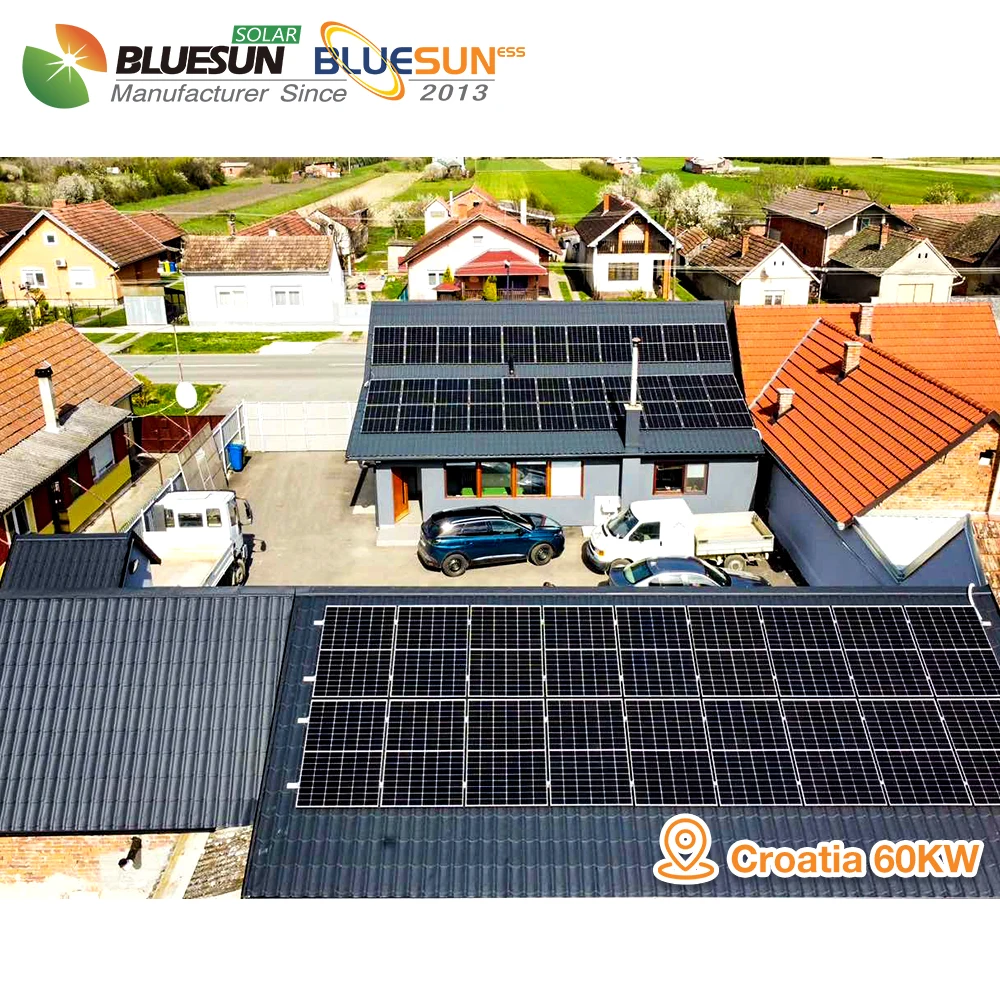

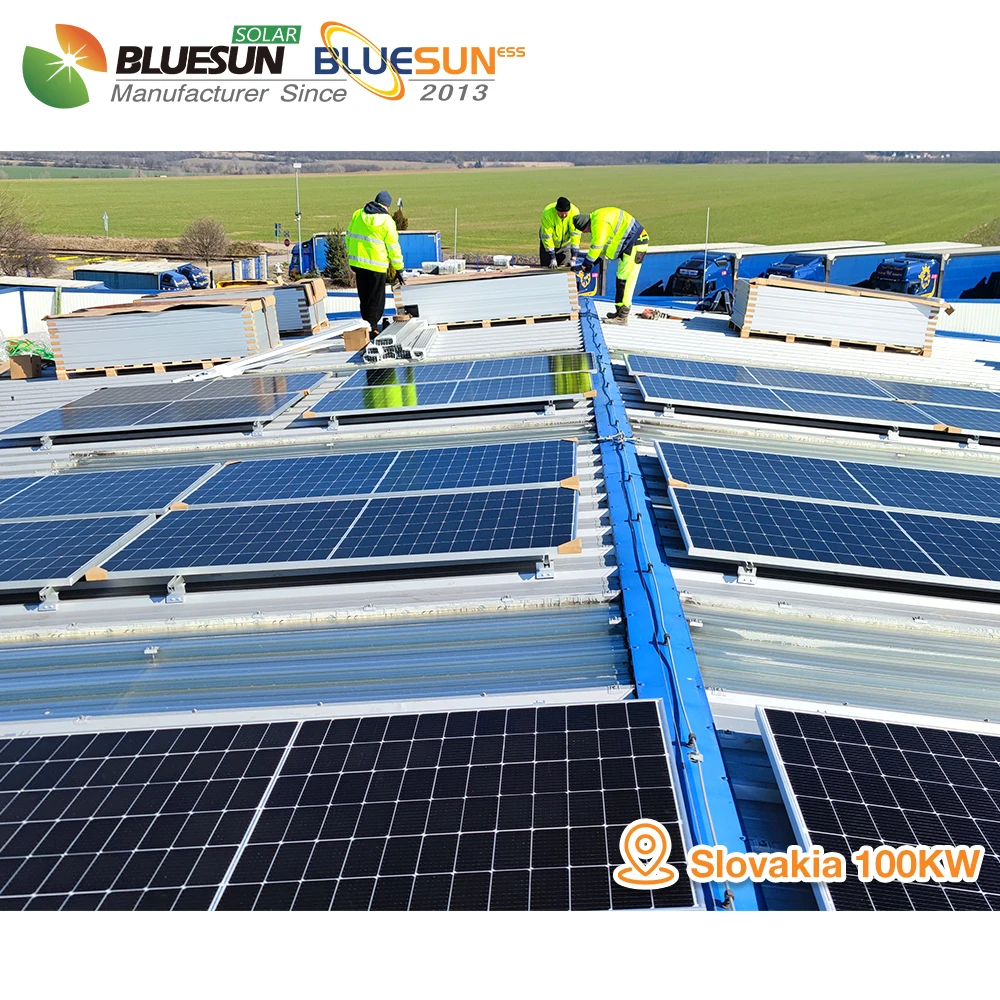

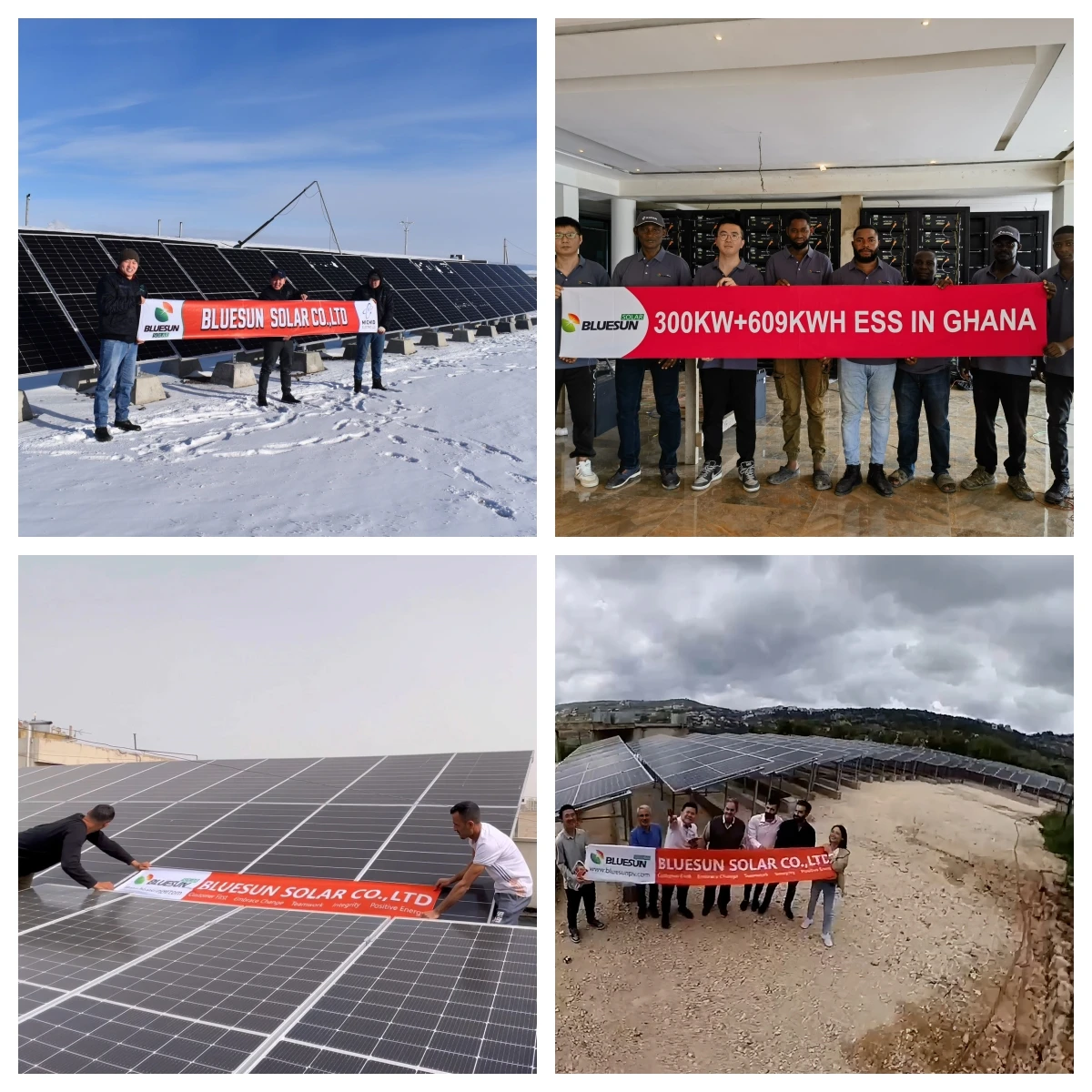

Bluesun Project
