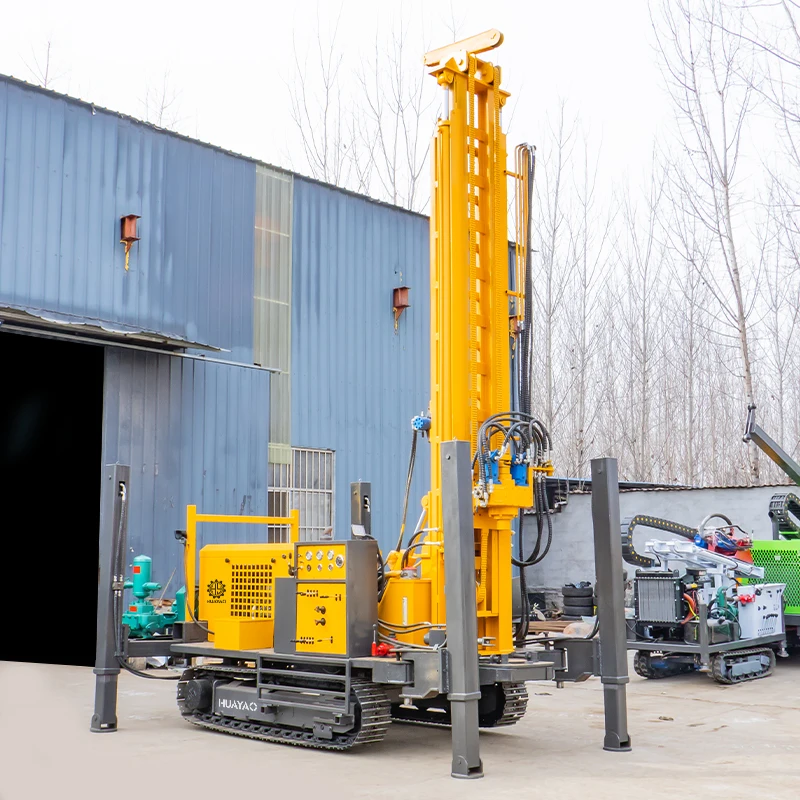

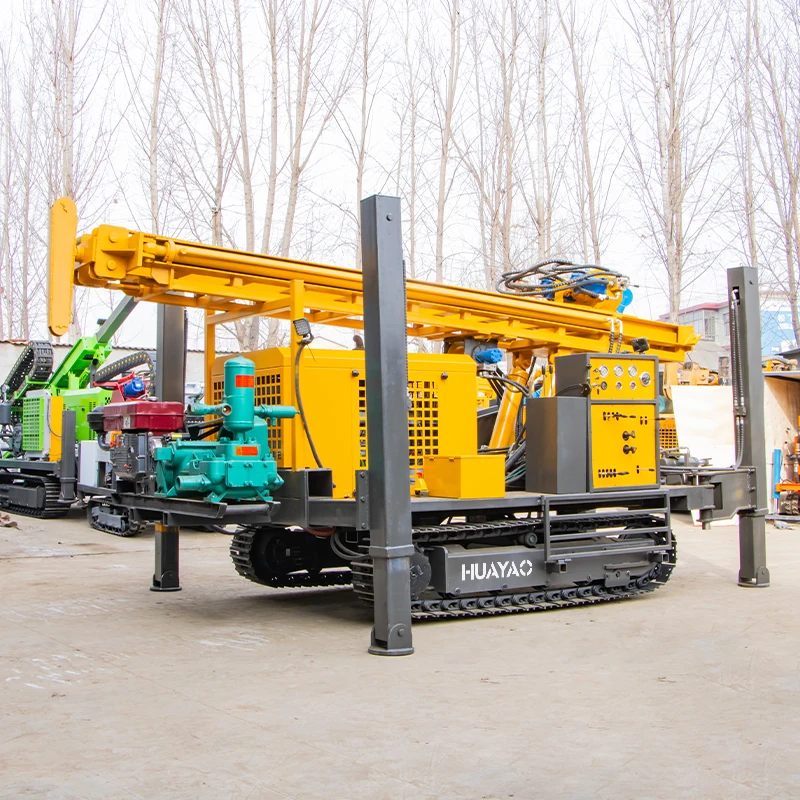

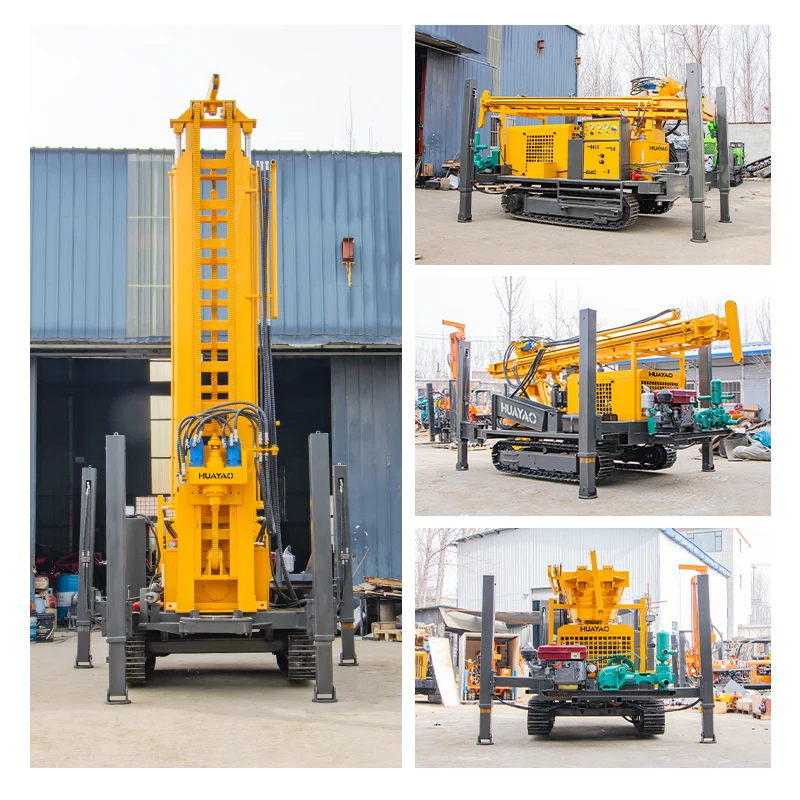

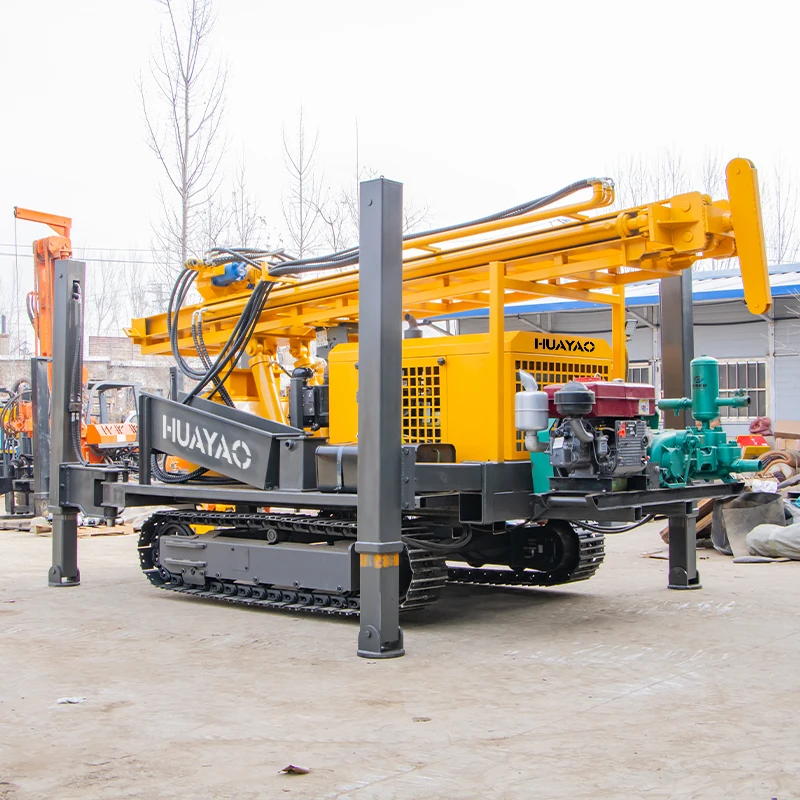

400m 500m deep crawler mounted water well drill rig Water well Crawler portable drilling rig machine
- Category: >>>
- Supplier: Shandong Huayao Construction Machinery Co. Ltd.Shandong Ltd.
Share on (1601350142216):
Product Overview
Description

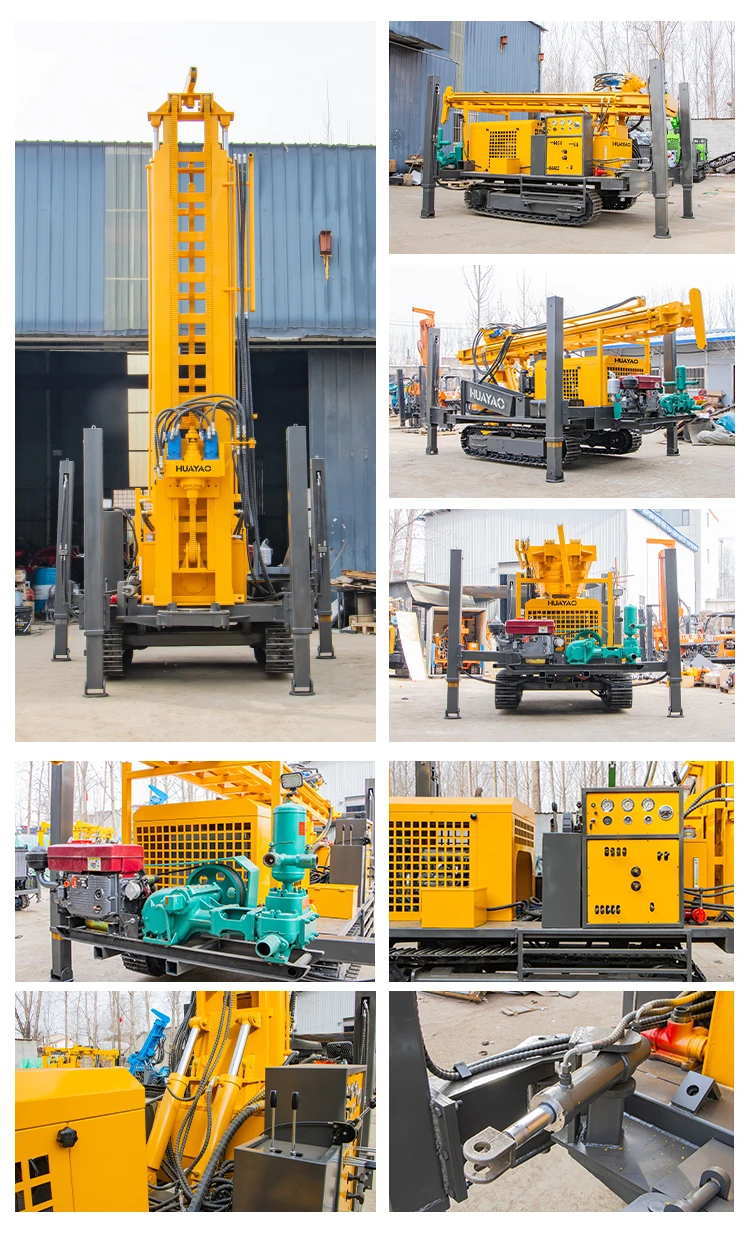

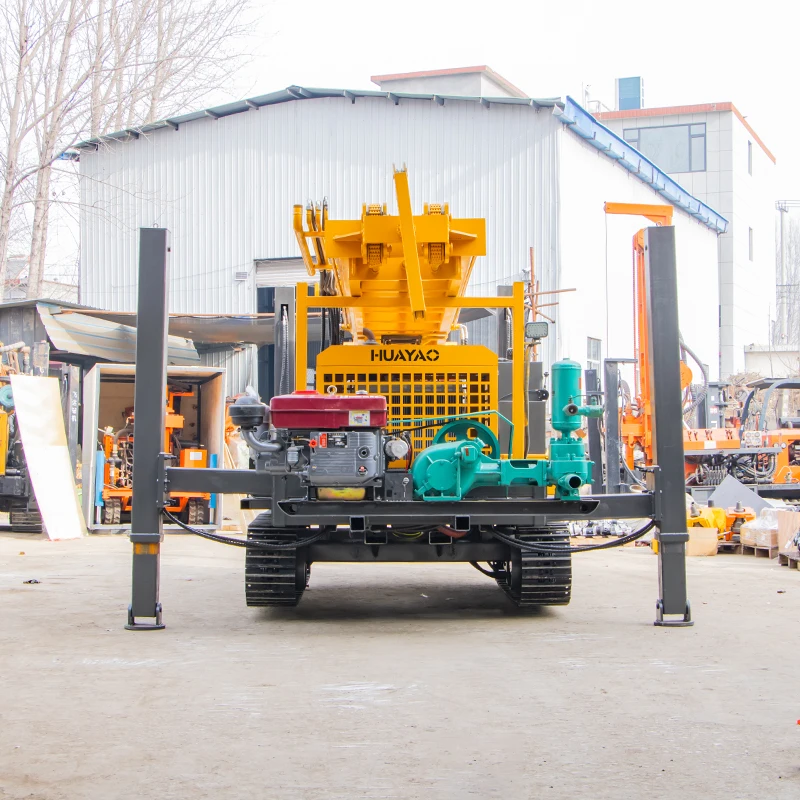

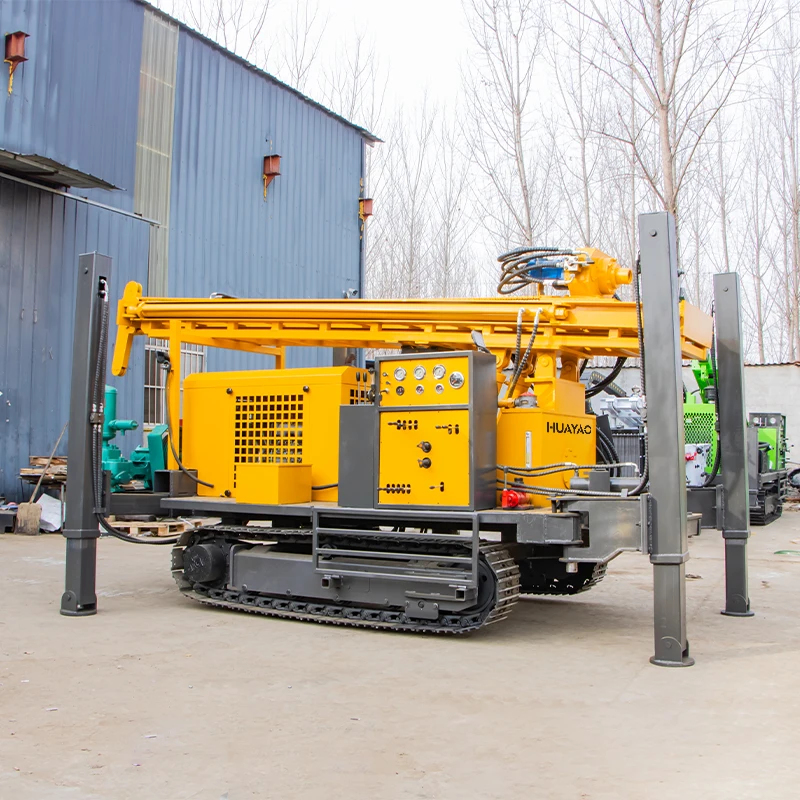

400m 500m deep crawler mounted water well drill rig Water well Crawler portable drilling rig machine
Product Information
Product Description:
1. Huayao pneumatic drilling rig is particularly suitable for water extraction in mountainous areas and rock formations. The pneumatic drill shall be used together with the air compressor, and mud pump and foam pump can be added. Different drilling tools are required, such as drill rods, hammers, rock drills, etc.
2. Pneumatic drilling rigs have the advantages of compact structure, fast drilling speed, flexible movement, and wide application fields. Especially suitable for taking water from mountainous areas and rock formations.
3. The new HY-400 can be used for different geological structures, with drilling diameters up to 150-400mm, depths of 400m, and rock drilling speeds of 20M-40M/hour

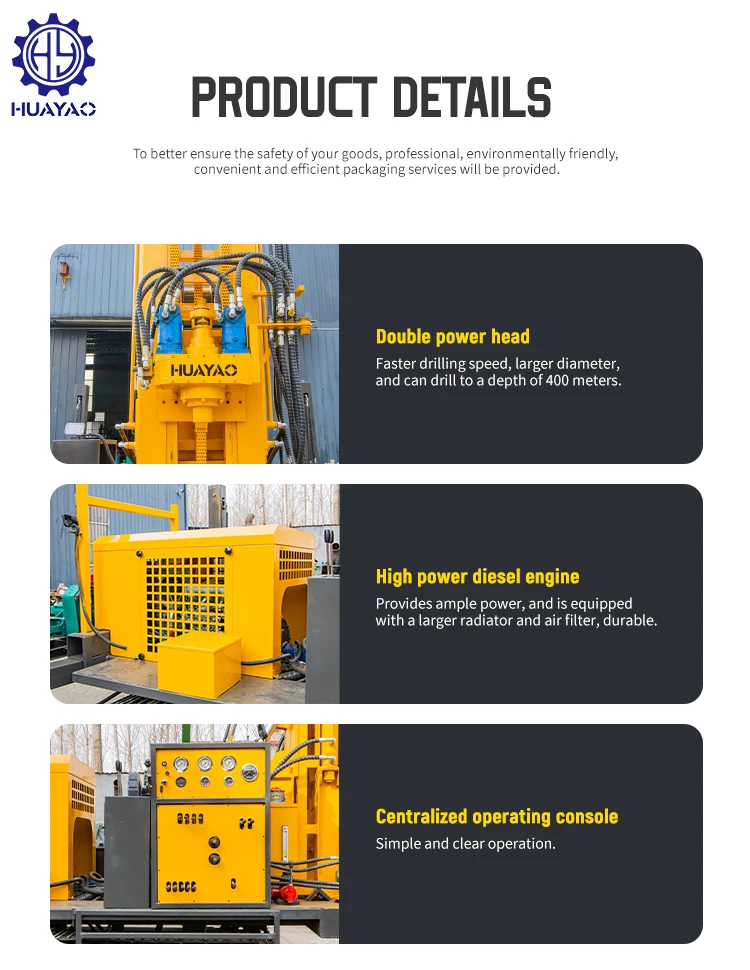

4. The new HY-400 adopts new hydraulic technology, equipped with high torque hydraulic motor rotation and large diameter hydraulic cylinder expansion.
5. Crawler walking is convenient for transportation. Adapting to complex terrain, the fully automatic water well drilling rig adopts ultra hydraulic transmission, CNC control, and automatic drilling experience
2. Pneumatic drilling rigs have the advantages of compact structure, fast drilling speed, flexible movement, and wide application fields. Especially suitable for taking water from mountainous areas and rock formations.
3. The new HY-400 can be used for different geological structures, with drilling diameters up to 150-400mm, depths of 400m, and rock drilling speeds of 20M-40M/hour
4. The new HY-400 adopts new hydraulic technology, equipped with high torque hydraulic motor rotation and large diameter hydraulic cylinder expansion.
5. Crawler walking is convenient for transportation. Adapting to complex terrain, the fully automatic water well drilling rig adopts ultra hydraulic transmission, CNC control, and automatic drilling experience
Product Name | HY-400 pneumatic Water Well Drilling Rig | |
Model | HY-400 | |
Overall Weight | 8.3T | |
Dimension | 5400*2000*2500mm | |
Drilling Diameter | Ф150-Ф400mm | |
Drilling Depth | 400m | |
Diameter of Drill Rod | Ф76mmФ 89mm | |
Maximum lifting force | 10-18ton | |
Working Air Pressure | 1.7-3.5mpa | |
Air Consumption | 17-35m2/min | |
Rotary torque | 4500-7500 N.m | |
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. | ||
Drilling Mode | Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling | |
Impactor | China Famous Brand New Diamond Middle and High Pressure Series Impactor | |
Product Description

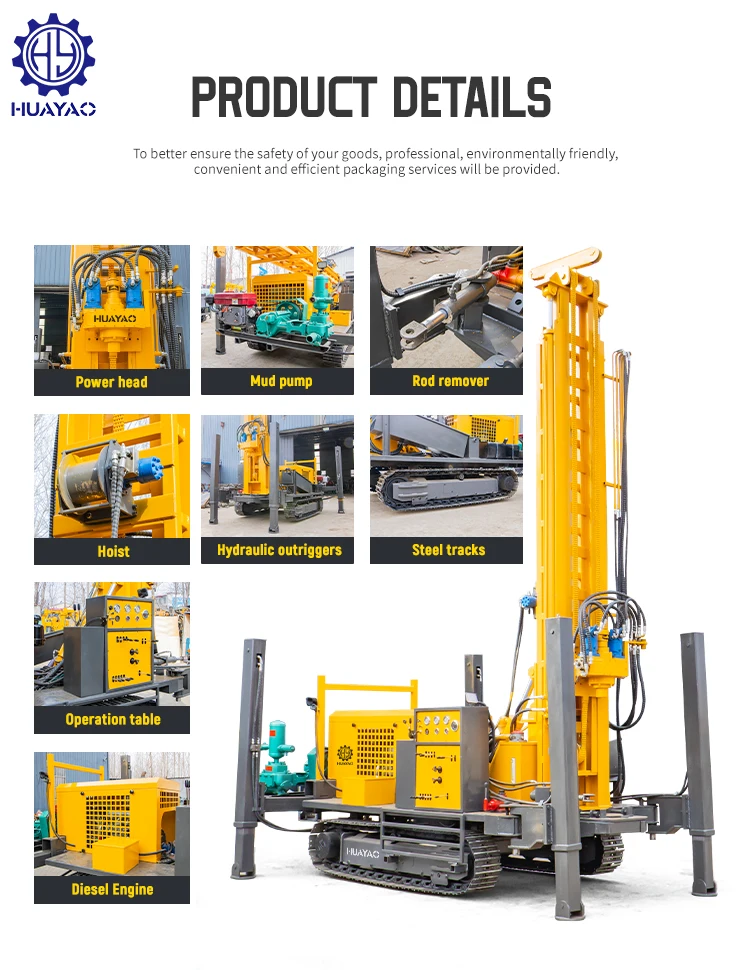

Please refer to the structure diagram of our pneumatic water well drilling rig as follows ：
Customer Feedback
The following pictures are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Romania, Ireland, United States, etc.), and we also have many customer feedback videos. If you are interested, please contact us
