Mining Quarry Impact Crusher Machine Hard Rock Stone VSI Crusher Crushing Equipment For Sale
- Category: >>>
- Supplier: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.Zhengzhou Ltd.
Share on (1601350244889):
Product Overview
Description
Product Description
Product Introduction

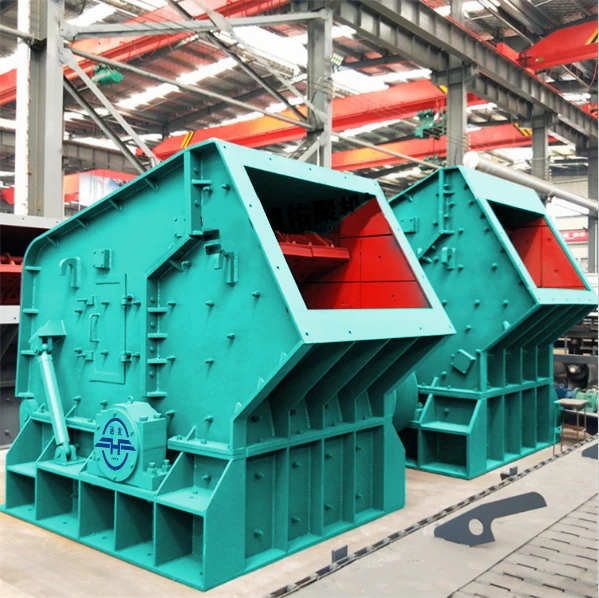

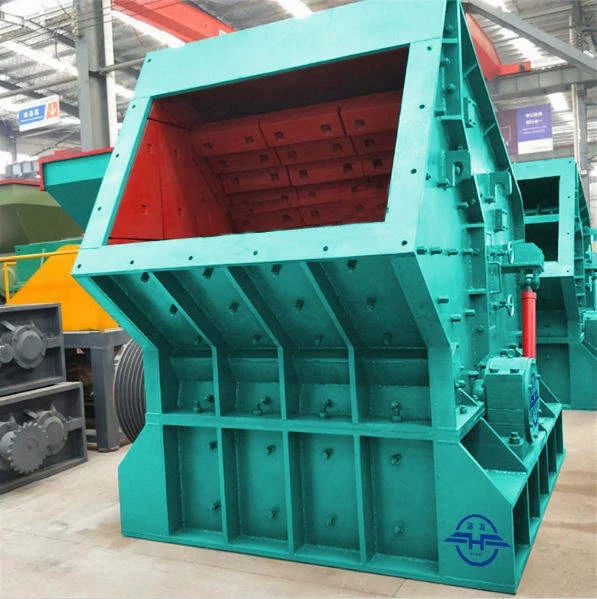

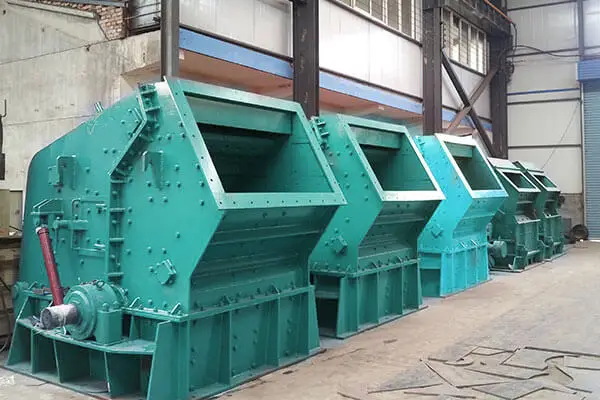

PF impact crusher has unique structural design and advanced manufacturing technology. It is widely used in the crushing of low-abrasive materials with medium hardness or below in industries such as railways, highways, energy, building materials, and chemicals.
Specification
Technical Parameter
Model | Specifications (mm) | Feed port size (mm) | Max feed size (mm) | Processing capacity (t/h) | Motor power (kw) | Dimensions(mm) |
PF1007 | ø 1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
PF1010 | ø 1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
PF1210 | ø 1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
PF1214 | ø 1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
PF1315 | ø 1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
PF1320 | ø 1320×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
PF1520 | ø 1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
PF1820 | ø 1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
Working Principle
The impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, the rotor rotates at high speed driven by the motor. When the material enters the plate hammer action area, it hits the plate hammer on the rotor and is crushed. Then it is thrown to the impact device and crushed again. Then it bounces back from the impact lining to the plate hammer action area and is crushed again. This process is repeated. The materials enter the first, second, and third impact chambers from large to small and are repeatedly crushed until the materials are crushed to the required particle size and discharged from the discharge port. The purpose of changing the particle size and shape of the material can be achieved by adjusting the gap between the impact frame and the rotor.
Product Advantages
✔️Unique design, good crushing effect; ✔️Excellent rotor structure design;
✔️The counter-attack frame is flexible and convenient to adjust;
✔️Select the most durable component materials;
✔️Good frame opening structure design;
✔️High quality welding technology.
Applications
Widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries and other fields.
Applicable Materials
Suitable for crushing medium-hard materials: limestone, feldspar, calcite, barite, fluorite, rare earth, kaolin, coke, coal gangue, gypsum, etc.

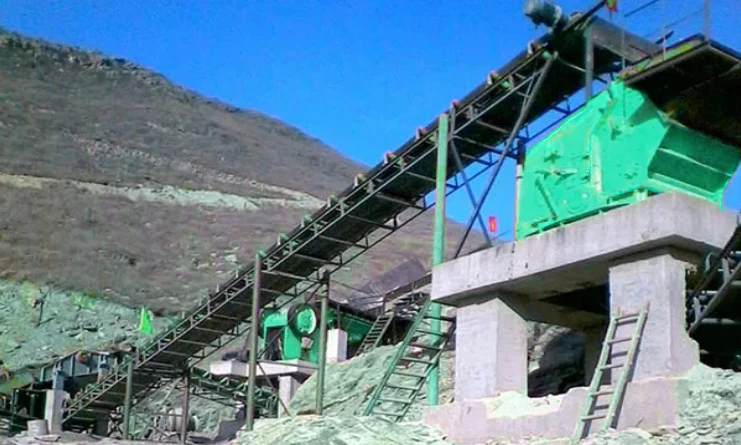

Production Line
If you need our products, please contact us, this is my WhatsApp. Or you can directly click the blue font below to send an
inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：betty@hanfagroup.com
inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：betty@hanfagroup.com
Company Profile
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well
drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our
engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our
engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
