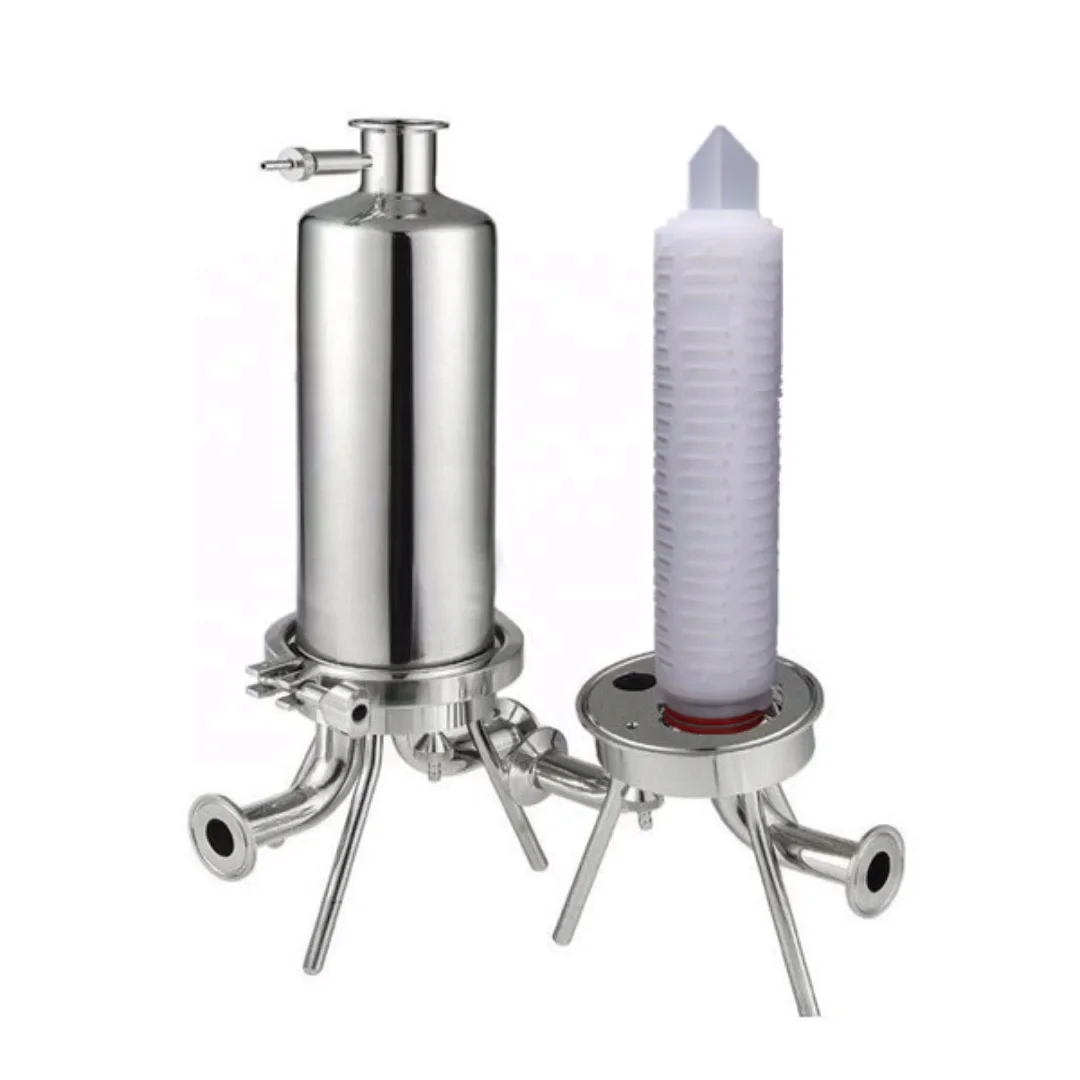

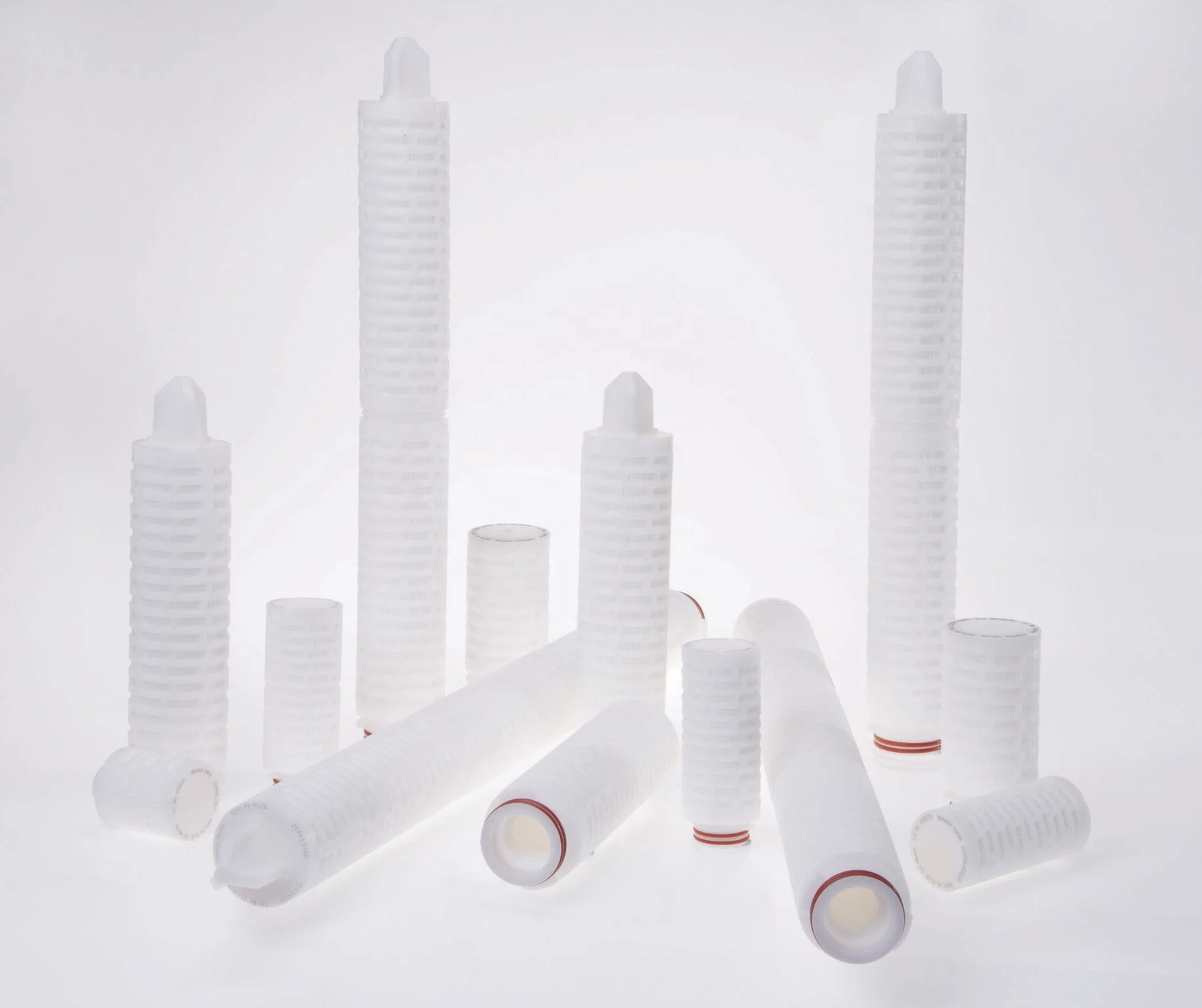

Sanitary grade nominally rated PP membrane filter Pleated Filter Cartridge For Semi Conductor filtration in electronic industry
- Category: >>>
- Supplier: Hangzhou Kosma Membrane Technology Co. Ltd.Hangzhou Ltd.
Share on (1601351205837):
Product Overview
Description
Products Description
PARAMETER INFORMATION
Materials Of Construction | Filter Media | Polypropylene |
Support Layers | Polypropylene | |
Micron Rating | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um | |
Inner Core | Polypropylene | |
Outer Cage, End Cap | Polypropylene | |
Seal Method | Thermal Bonded, No Adhesives | |
O-Rings/Gaskets | Silicone, Nitrile, EPDM, Viton, Teflon | |
Cartridge Dimensions | Outer Diameter | 69mm(2.75'') |
Inner Diameter | 33mm(1.30'') | |
Length(Based On DOE End Cap) | 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |
Filtration Area(m2) | 0.65 m2 per 10'' | |
Operating Conditions | Normal Operating Temperature | Up to 55℃ (140 ℉ ) |
Max.operating Temperature | 80℃ (176 ℉ ) at △ P£1.0 bar (14.5psi) | |
Normal Flow Direction | 4.2 bar (60.9 psi) at 25℃ (77 ℉ ) | |
Reverse Flow direction | 2.1 bar (30.5psi) at 25℃ (77 ℉ ). | |
PH Value Compatibility | 1-13 | |
Sterilization | Not Recommended | |
Cartridge Safety | Endotoxin | ＜ 0.25 EU/ml |
Extractables | 0.03g / 10" |
RELATED PRODUCTS
Company Profile
Exhibition
Why Choose Us
PACKING AND SHIPPING
FAQ
1. How can we get the quotation of filter cartridges ？
Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
2. What's the minimal quantity requested?
We do not the requirement on the minimal demand. Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment.
