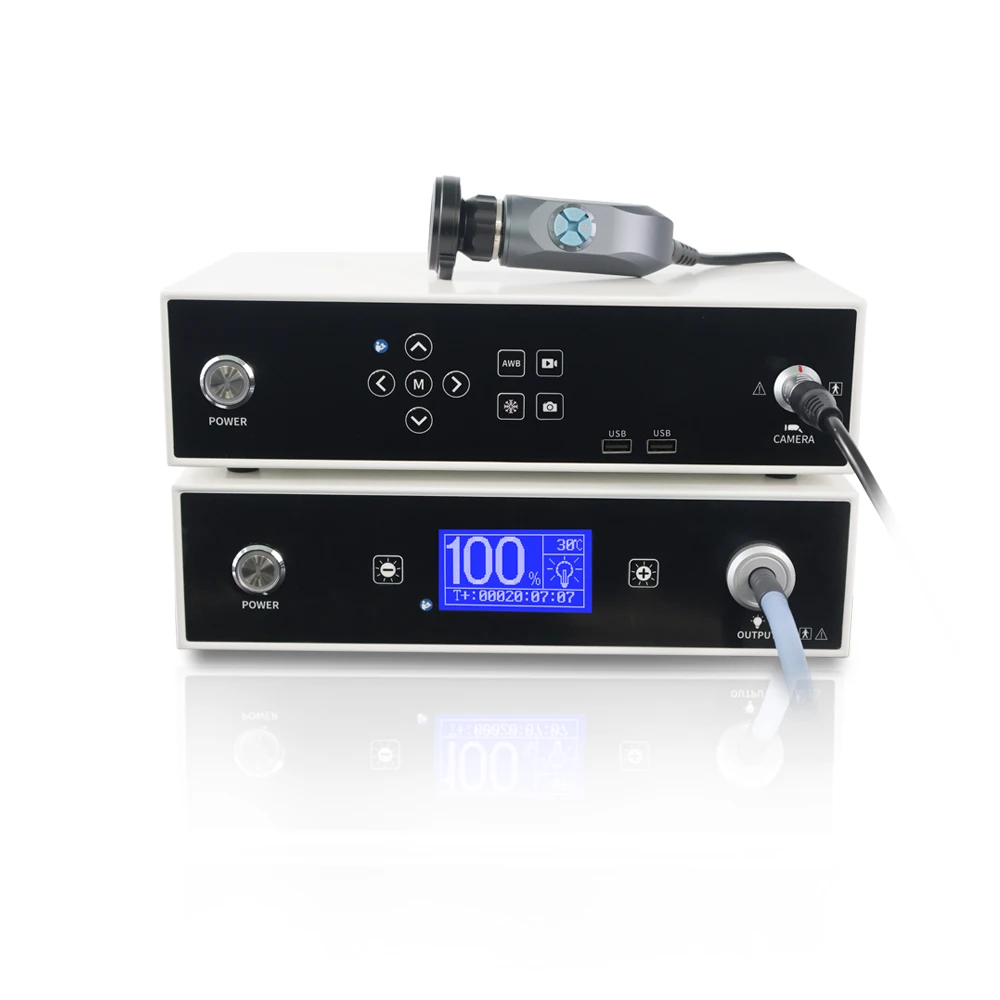

Professional Video recorder Manufacturer Medical Full HD Endoscpy Camera Imaging Equipment Unit with cold light source
- Category: >>>
- Supplier: SHENZHEN TUYOU MEDICAL IMAGING CO. LTD.SHENZHEN LTD.
Share on (1601351288930):
Product Overview
Description
Product Description

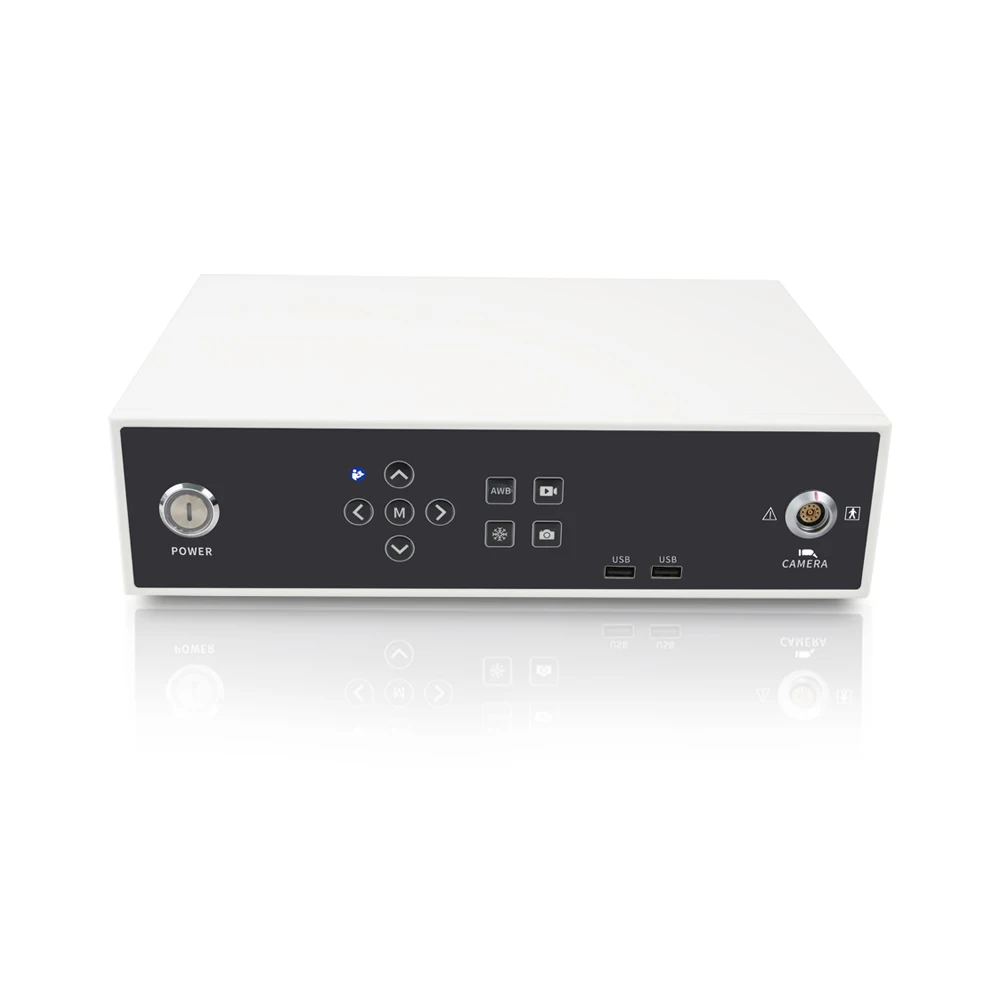

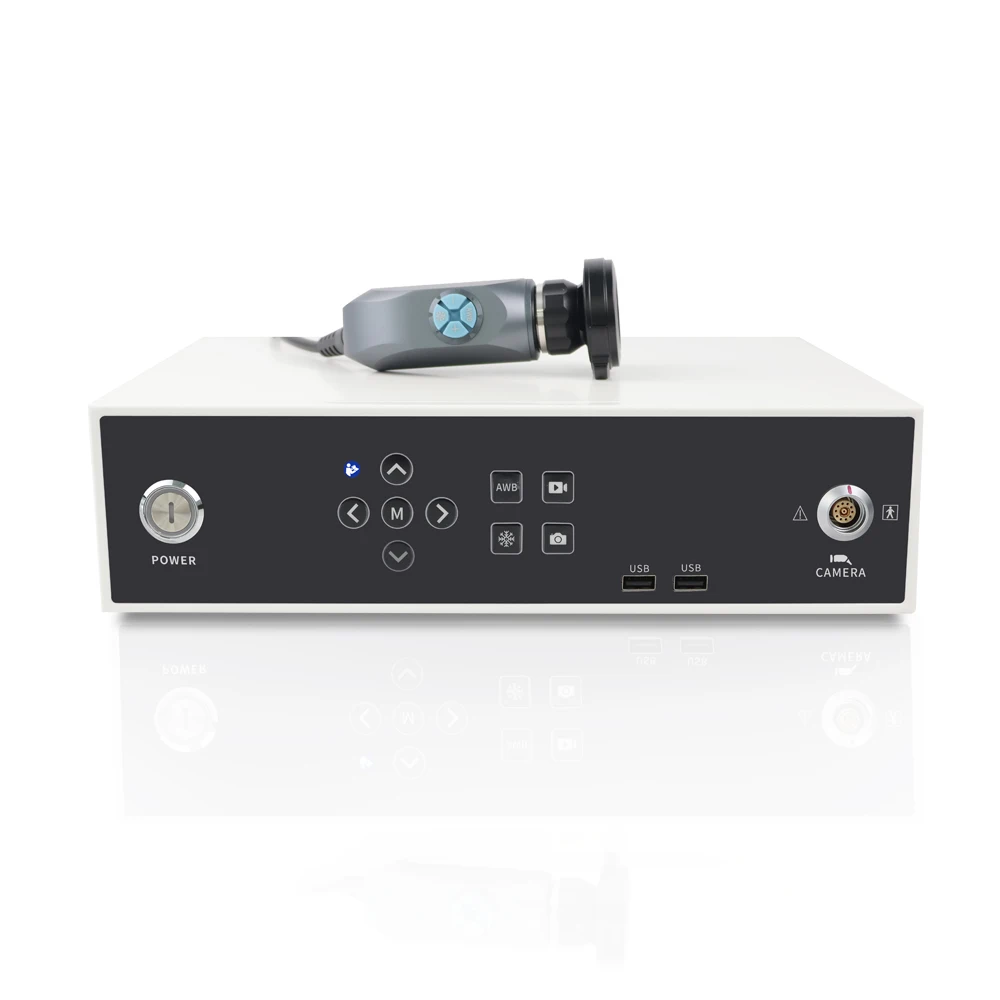

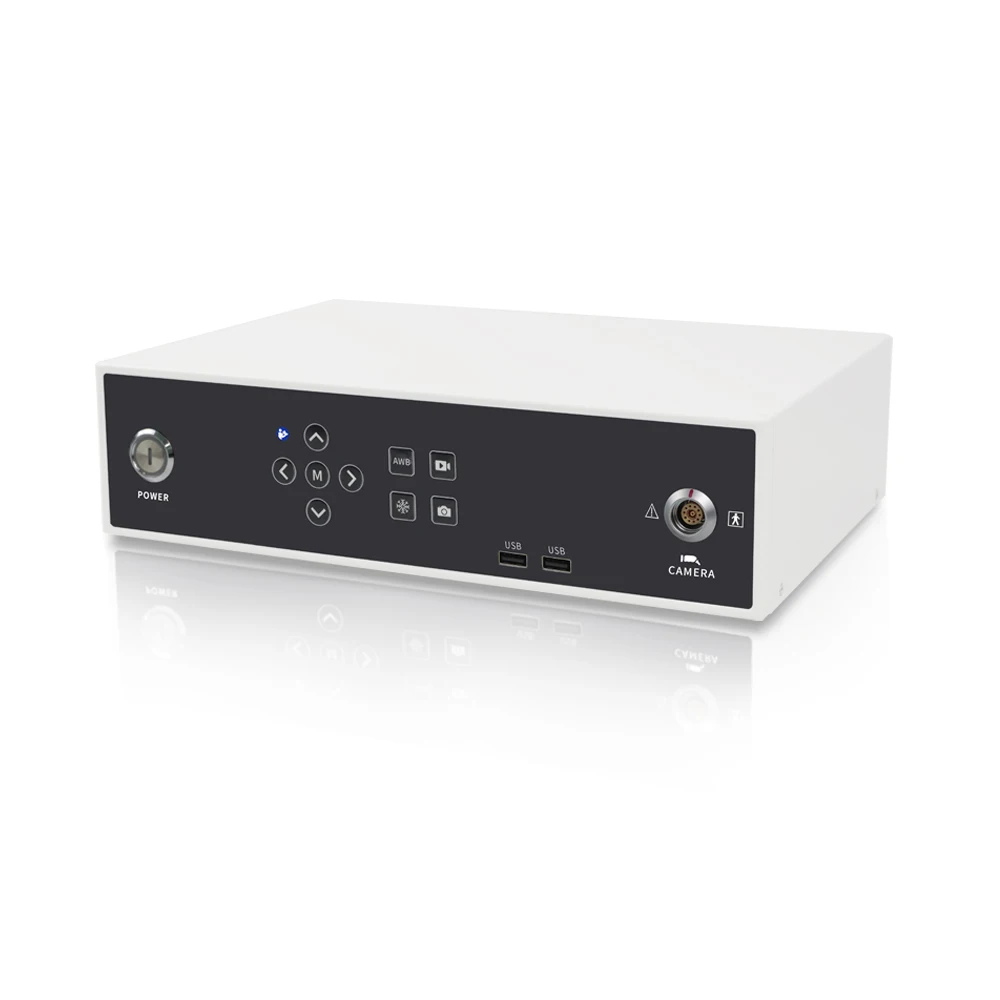

Endoscopy camera processor is widely used in hospital medical system, college teaching demonstration, clinic diagnosis analysis, and animal pet veterinary medical diagnosis. Compatible with all kinds of rigid endoscope(Storz/Wolf and so on).
TU-PY105 Features:
● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FREEZE, AWB, Multi- languages, Photos and videos recording function
● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function.
TU-PY105 Features:
● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FREEZE, AWB, Multi- languages, Photos and videos recording function
● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
Notes: In different lens models, optical lenses should be matched. Some shots match as below:
SIZE | Laparoscopic | Synscope | Laryngoscope | Hysteroscope | Arthroscopye |
1/2" | 35mm | 28mm | 28mm | 28mm | 28mm |
1/3"(native) | 28mm | 22mm | 22mm | 22mm | 22mm |
1/4" | 22mm | 18mm | 18mm | 18mm | 18mm |
Products Parameters
1080P Full HD Medical Endoscopic Camera Processor for Hospital Diagnosis | ||
Resolution | SDI:1080P@30fps,1080P@60fps | |

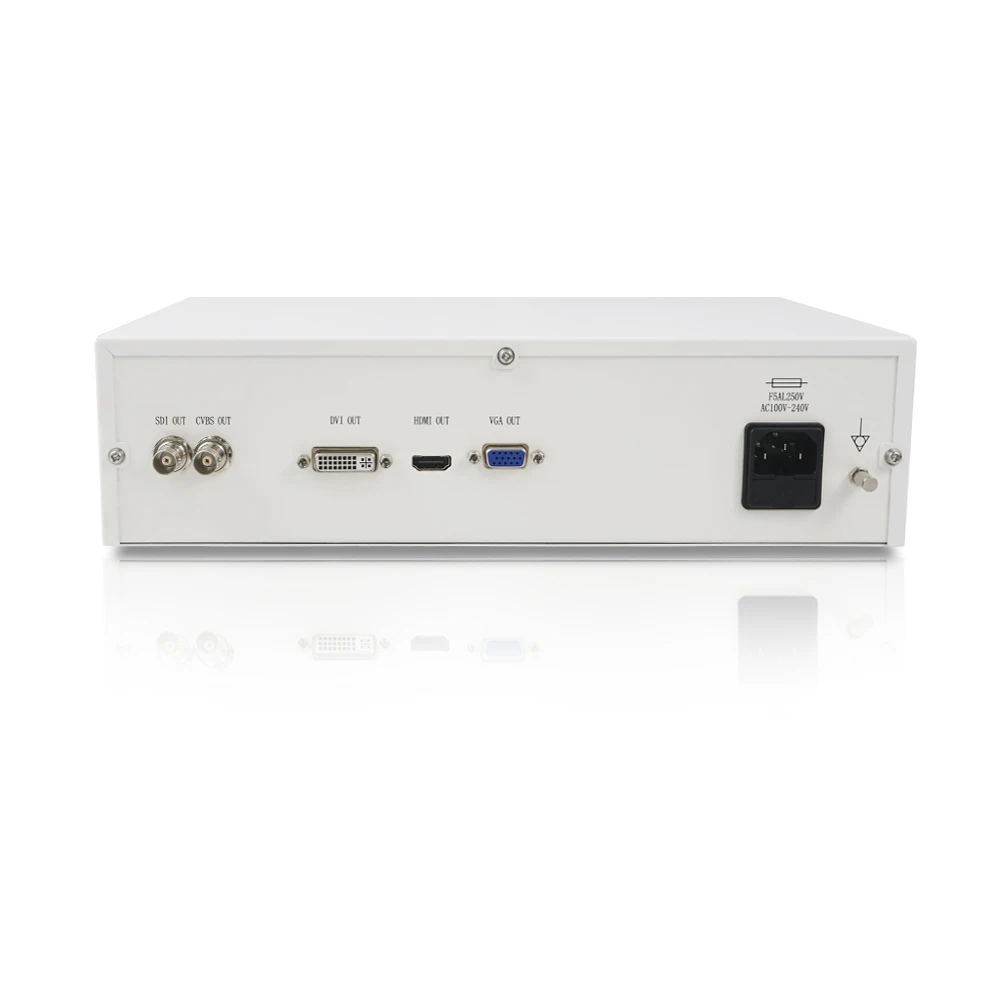

Output | DVI+HDMI+SDI+CVBS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
SDI | HD-SDI/EX-SDI switchable | |
IMAGE SENSOR | 1/2.8” or 1/1.8" SONY CMOS(IMX385) | |
BRIGHTNESS | 1-20 steps | |
SHARPNESS | 1-20 steps | |
BACKLIGHT | OFF/BLC/HLC/WDR | |
AWB | Preset/Purshing | |
FREZZ | SUPPORT | |
D-ZOOM | Image zoom in /out | |
Endoscope mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT | |
Working temperature | -10℃-+75 ℃ | |
LANGUAGE | CHINESE/ENGLISH....etc | |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 | |
Power Supply | DC12V ±10%<1.7W | |
Power consumption | 1 .2 W（≤100mA ） | |
Working Current | 140mA±10mA | |
Processor Size | 2000x1700x170mm | |
Please Note | The optic endoscope is Recommend part. | |
Product Color | Black and Blue color is available. | |
Company Profile
Shenzhen Tuyou Medical Imaging Co., Ltd. was established in 2005, with 3500 square meters automated SMT dust-free workshop and over 50 employees, specializing in R&D, production and sales of medical equipment. Depending on leading HD image technology and sincerely considerate service, our company has earned many customers' trust and built a good reputation at home and aboard in medical Industry.
Owning superiority of Korea high resolution medical camera technology, we have successfully finished developing 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K /1080p medical endoscope camera and high quality endoscope camera cable, and so on. So far, we can offer ONE-STOP medical solutions to our customers.
We will committed to the following standards of excellence:
1. World-class service
2. Unsurpassed quality
3. Cost-effective solutions
4. Environmental stewardship
Owning superiority of Korea high resolution medical camera technology, we have successfully finished developing 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K /1080p medical endoscope camera and high quality endoscope camera cable, and so on. So far, we can offer ONE-STOP medical solutions to our customers.
We will committed to the following standards of excellence:
1. World-class service
2. Unsurpassed quality
3. Cost-effective solutions
4. Environmental stewardship
Packing & Delivery

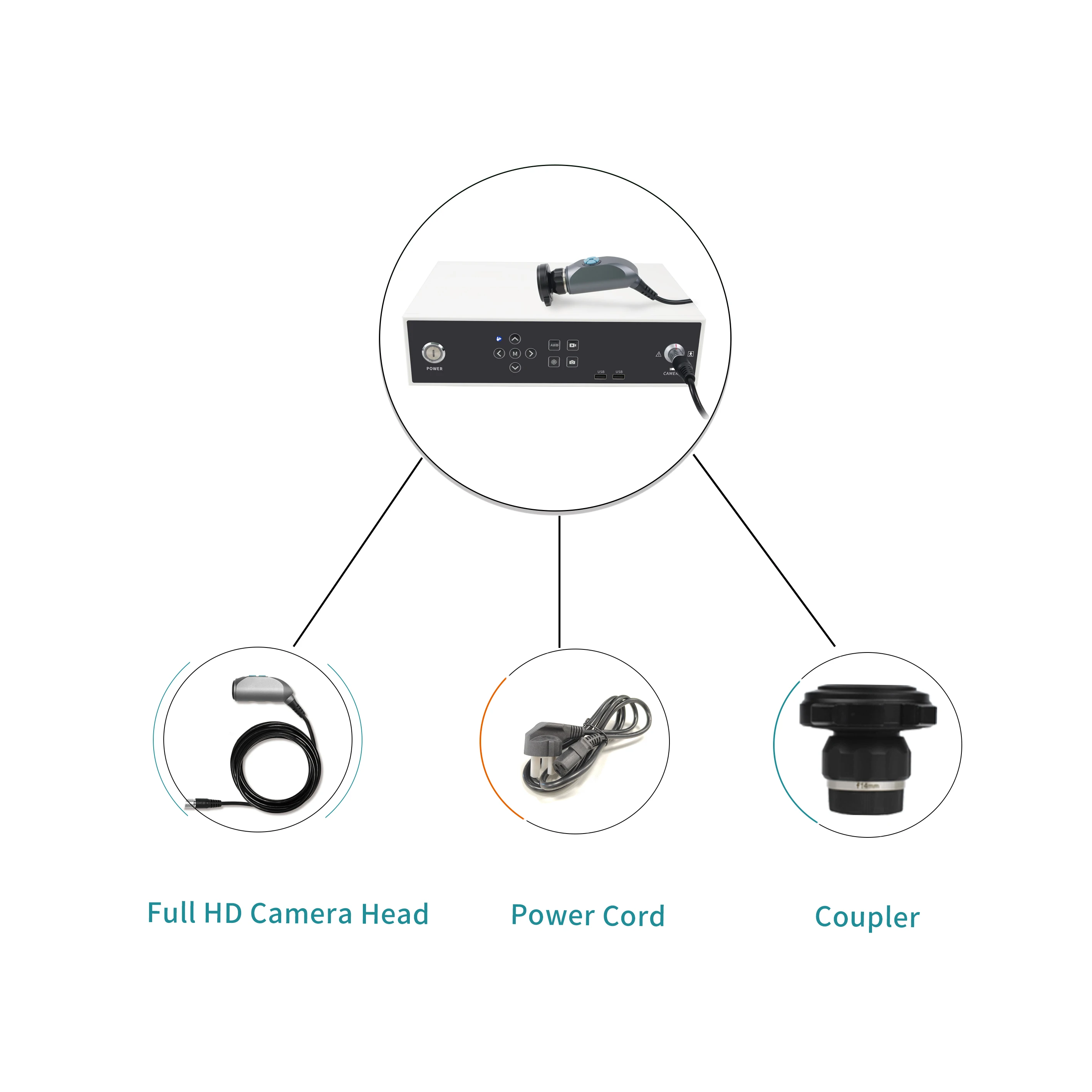

Low price 1080P Medical Endoscope Imaging System
1 Set/Carton Box
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Domestic Market(45.00%),Southeast Asia(25.00%),Eastern Europe(15.00%), Africa(10.00%), Southern Europe(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Endoscope Camera System,Laparoscopy Camera,Medical Endoscope Camera,Medical Light Source, Laparoscope Unit.
4. Why should you buy from us not from other suppliers?
Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. The company has more than 20 years of experience in video research and and development.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR, JPY, HKD, CNY;
Accepted Payment Type: T/T,D/P D/A, Money Gram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2021,sell to Domestic Market(45.00%),Southeast Asia(25.00%),Eastern Europe(15.00%), Africa(10.00%), Southern Europe(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Endoscope Camera System,Laparoscopy Camera,Medical Endoscope Camera,Medical Light Source, Laparoscope Unit.
4. Why should you buy from us not from other suppliers?
Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. The company has more than 20 years of experience in video research and and development.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR, JPY, HKD, CNY;
Accepted Payment Type: T/T,D/P D/A, Money Gram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
