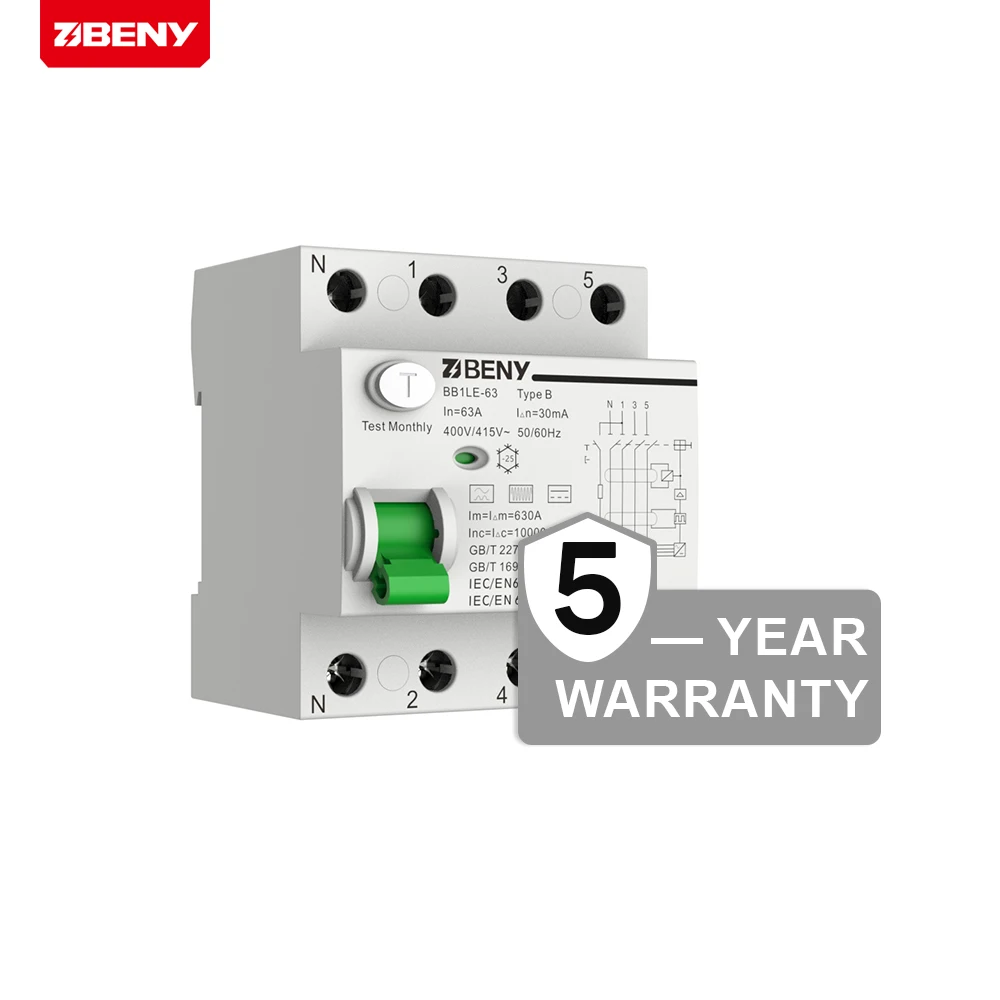

BENY China RCCB 10KA Residual Circuit Device RCD Electronic 30mA 100mA 300mA RCCB4 P 63A With 5 Years Warranty
- Category: >>>
- Supplier: Hong Kong Benyi E-commerce LimitedHong Limited
Share on (1601351405974):
Product Overview
Description

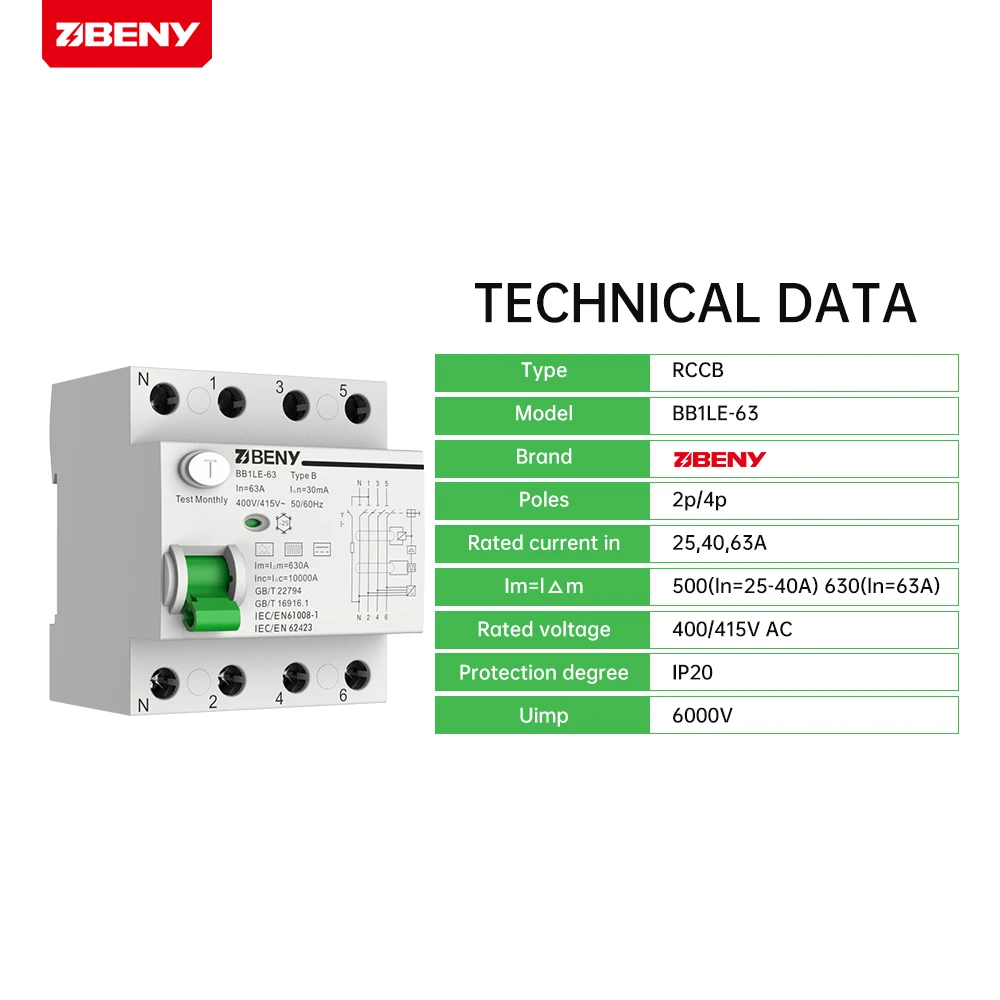

Specification

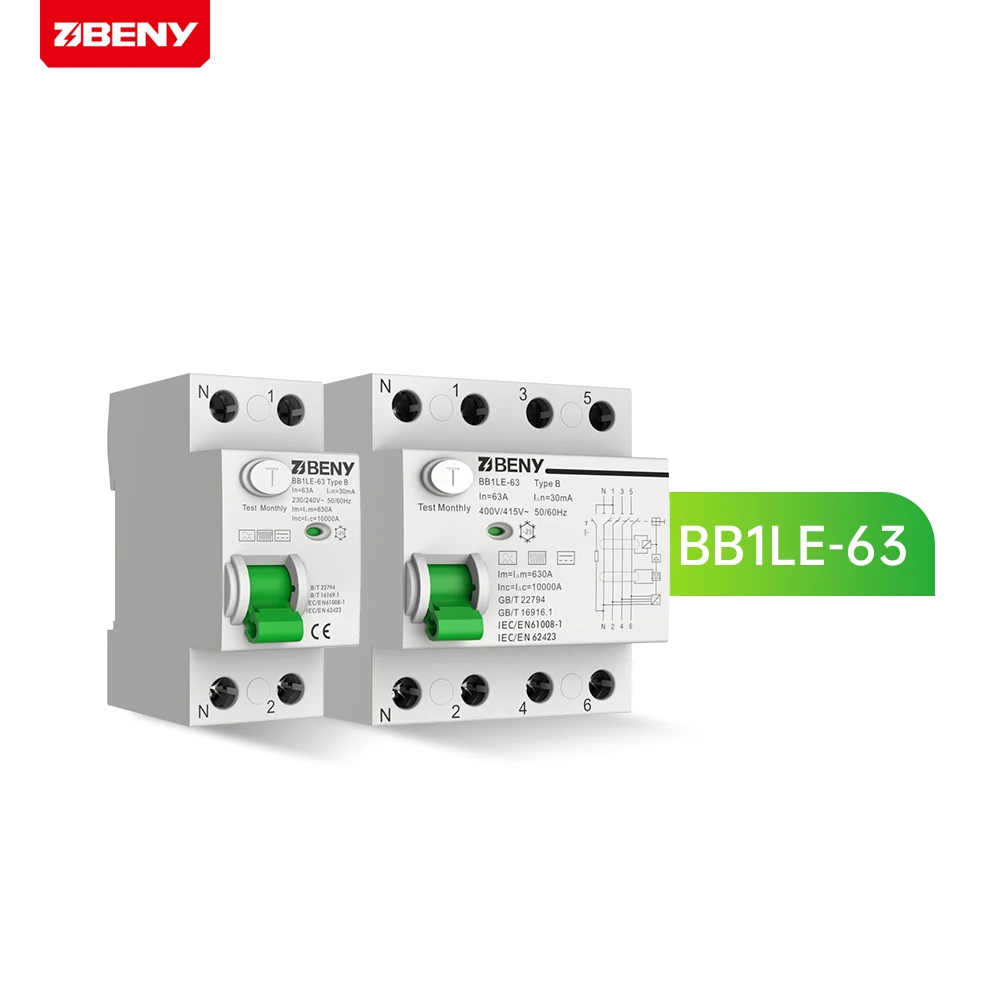

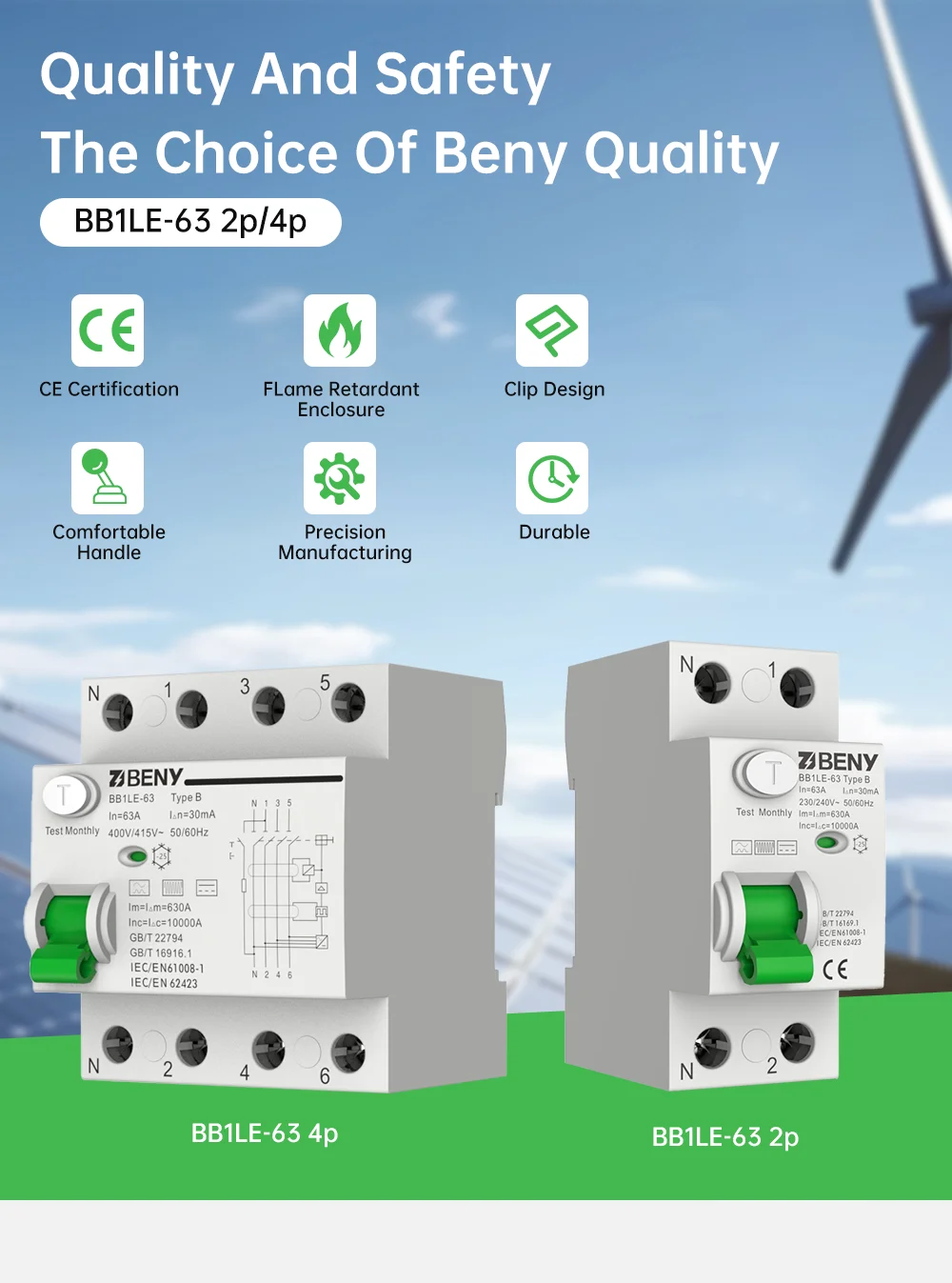

Product name | BB1LE-63 Residual Current Protection Switch |
Type | Type B RCCB |
Short-circuit current | 10kA |
Rated Current | 25A、40A、63A |
Max current | 63A |
Standard | GB/T 22794 GB/T16916.1 IEC/EN62423 IEC/EN61008-2-1 |
Rated Voltage | 400/415V AC |

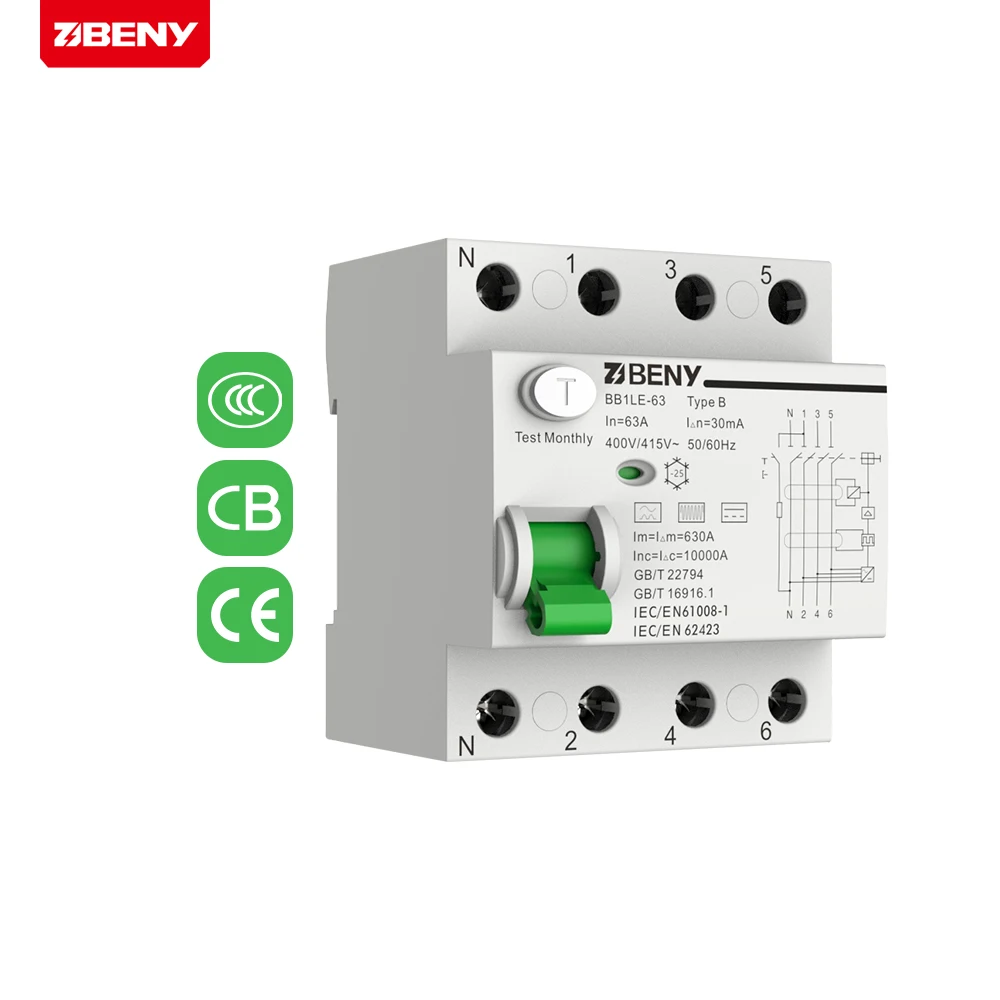

Certificate | CCC CE CB |
Pollution degree | 3 |
Temperature | -40°C~+80°C |
Pole | 4P |
Warranty | 5 Years |
Application
BENY BB1LE-63 Residual current protection switch is suitable for industrial applications using frequency converters，photovoltaic
power plarits,electric vehiclechargers,and similar components.
power plarits,electric vehiclechargers,and similar components.
It is rated at 400/415V and 63A for detecting pulsating DC leakage, smooth DC leakage, compound DC leakage, compound wave
leakage,and high-frequency leakage up to 1kHzin circuits When personal electric shock or circuit leakage exceeds the specified
value, the residual current operated circuit breaker automatically cuts off the faulty power supply in a very short period of time,
protecting and protecting personaal and electrical equipment safety.
leakage,and high-frequency leakage up to 1kHzin circuits When personal electric shock or circuit leakage exceeds the specified
value, the residual current operated circuit breaker automatically cuts off the faulty power supply in a very short period of time,
protecting and protecting personaal and electrical equipment safety.
*With AC leakage, pulsating DC leakage,and smoothness DC leakage protection and high-frequency leakage protectionup to 1kHzProtective device complete protection function
*Adopting frame type wiring structure safe and reliable wiring
*The 35mm standard installation guiderail simple and convenient installation
*Rated Current : 63A
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic,
battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic,
battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Video Description
Products Description
Company Profile
BENY New Energy is a trusted manufacturer of protective components for photovoltaic systems across the globe. Our experience of working in the electrical industry for more than 30 years allows us to create solar DC components that comply with the latest DC standards.
With the inheritance of 30+ years of experience in the research and production of DC protection products, we are continuously dedicated to the EV charging field.
In recent years, BENY has attentively invested resources in research on EV-related products, successively manufacturing other types of products, thus reaping wide market popularity across the world.
Through our focus on solar DC protection design, production, and marketing, we can bring brand-building PV protection solutions.
With the inheritance of 30+ years of experience in the research and production of DC protection products, we are continuously dedicated to the EV charging field.
In recent years, BENY has attentively invested resources in research on EV-related products, successively manufacturing other types of products, thus reaping wide market popularity across the world.
BENY New Energy is instrumental in the success of numerous photovoltaic, battery storage, and EV charging system projects across Australia, Germany, France, Poland, UK, USA, Brazil, South Africa, Philippines, Thailand, Middle East Countries, and much more.
We cater to major organizations such as solar power system manufacturers, PV project contractors, distributors, EV charging operators, and distributors.
Our factory is located in China and we have set up overseas offices in Germany, USA and Brazil to better serve our customers.
We will continue to increase the number of overseas offices and hope that more partners will join us to contribute to the world’s transformation to renewable energy.
Exhibition
FAQ
Q1:If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A1:All your enquiry will be replied in 24hours.
Q2:Can I get a sample before the order because I really don't how is your product quality?
A2:Of course! We can offer free samples , We think sample order is the best way to build the trust. Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A3:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q4:I need your price list of all your products, do you have a price list?
A4:Surely ,we can send the price list to you ,please send your email address to me.
Q5. Do you accept OEM business?
A5:We accept OEM with your authorization.we also can ODM for you.
Q6: How's the delivery?Because I really need them is urgently?
A6: Samples cost 3-7 days. Bulk order cost 7-15 days.
Q7. What is your terms of delivery?
A7: EXW, FOB, CFR, CIF, DDU.
Q8. Do you test all your goods before delivery
A8: Yes, we have 100% test before delivery
Q9:Any quality guarantee or after-sales service?
A9:All the products have 5 years’ Guarantee. If any quality complaint , we will give out solution within 5 days.
A1:All your enquiry will be replied in 24hours.
Q2:Can I get a sample before the order because I really don't how is your product quality?
A2:Of course! We can offer free samples , We think sample order is the best way to build the trust. Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A3:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q4:I need your price list of all your products, do you have a price list?
A4:Surely ,we can send the price list to you ,please send your email address to me.
Q5. Do you accept OEM business?
A5:We accept OEM with your authorization.we also can ODM for you.
Q6: How's the delivery?Because I really need them is urgently?
A6: Samples cost 3-7 days. Bulk order cost 7-15 days.
Q7. What is your terms of delivery?
A7: EXW, FOB, CFR, CIF, DDU.
Q8. Do you test all your goods before delivery
A8: Yes, we have 100% test before delivery
Q9:Any quality guarantee or after-sales service?
A9:All the products have 5 years’ Guarantee. If any quality complaint , we will give out solution within 5 days.
