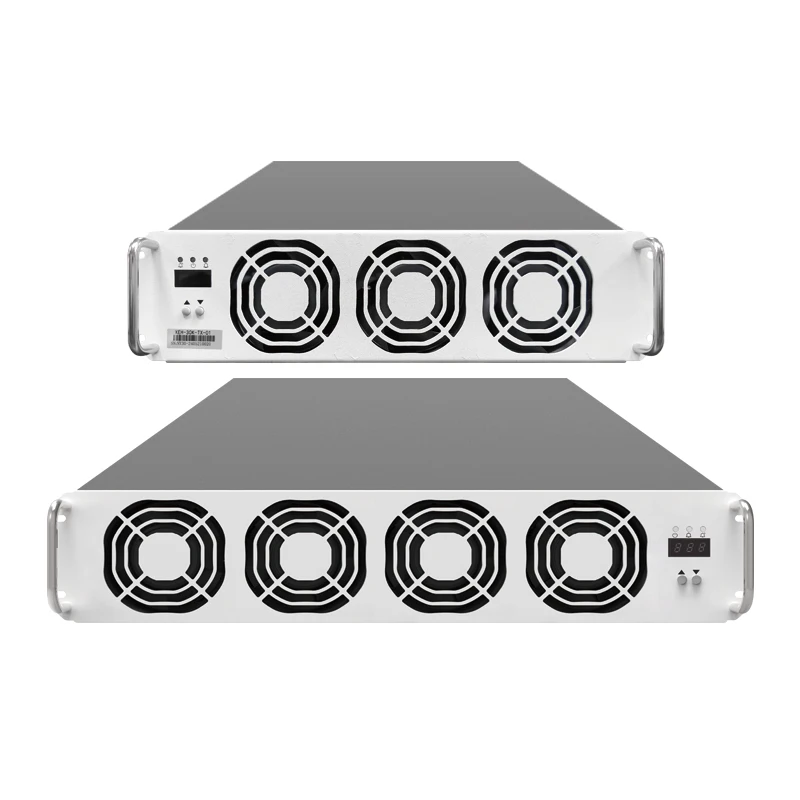

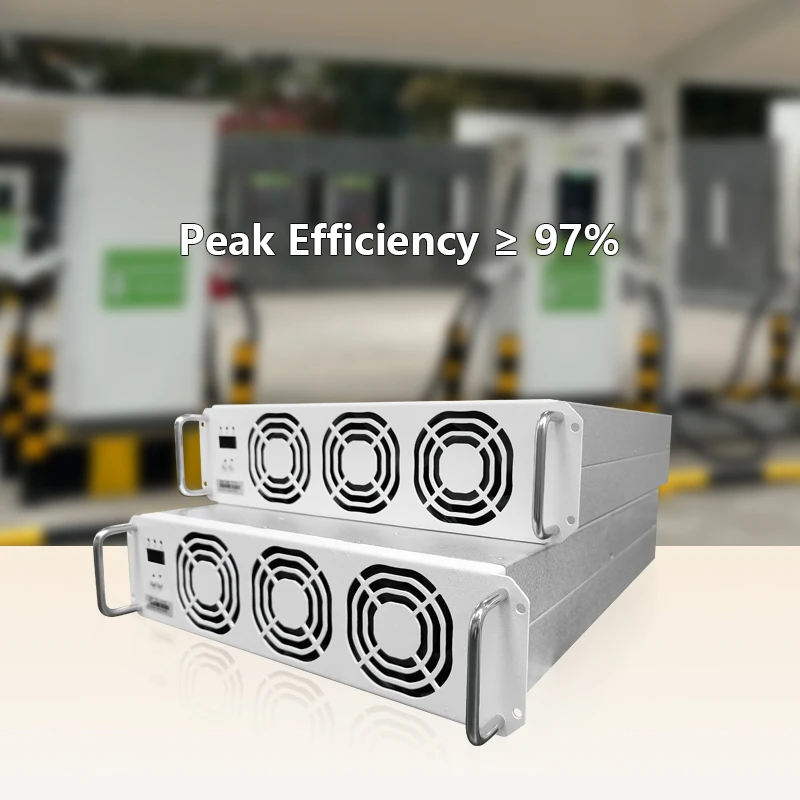

dc communication control module ev charging module 30 kw dc charger rectifier fast charging electric car charging modules
- Category: >>>
- Supplier: Suzhou Niuera Energy Co. LtdSuzhou Ltd
Share on (1601351423911):
Product Overview
Description
Product Description
Product Parameters
Input | Input Voltage Range | 260~485V AC |
Input Frequency | 45~65Hz | |
Input Current | ＜60A | |

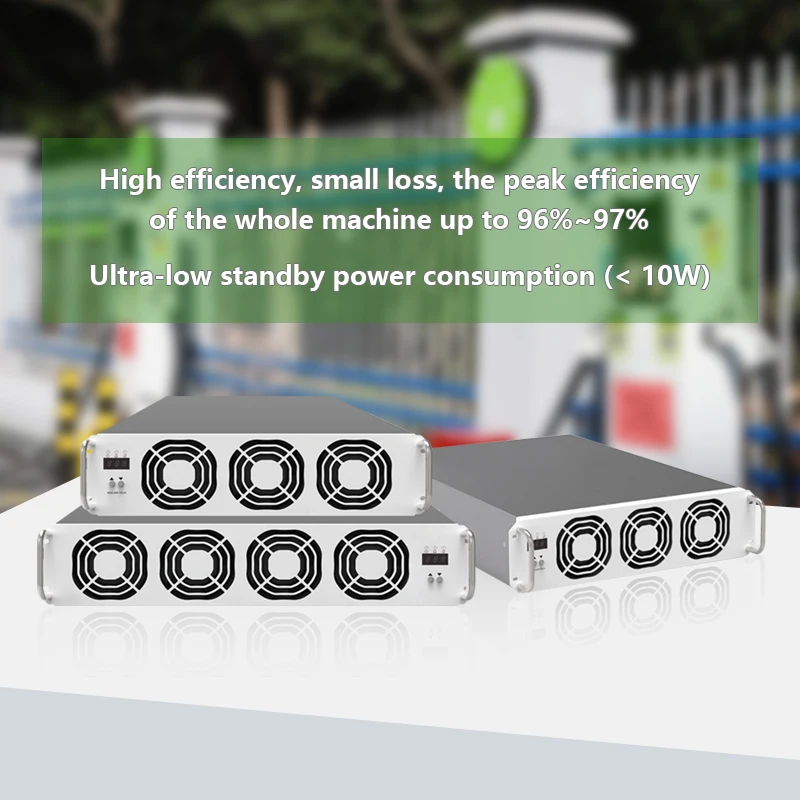

Peak Efficiency | ≥96% | |

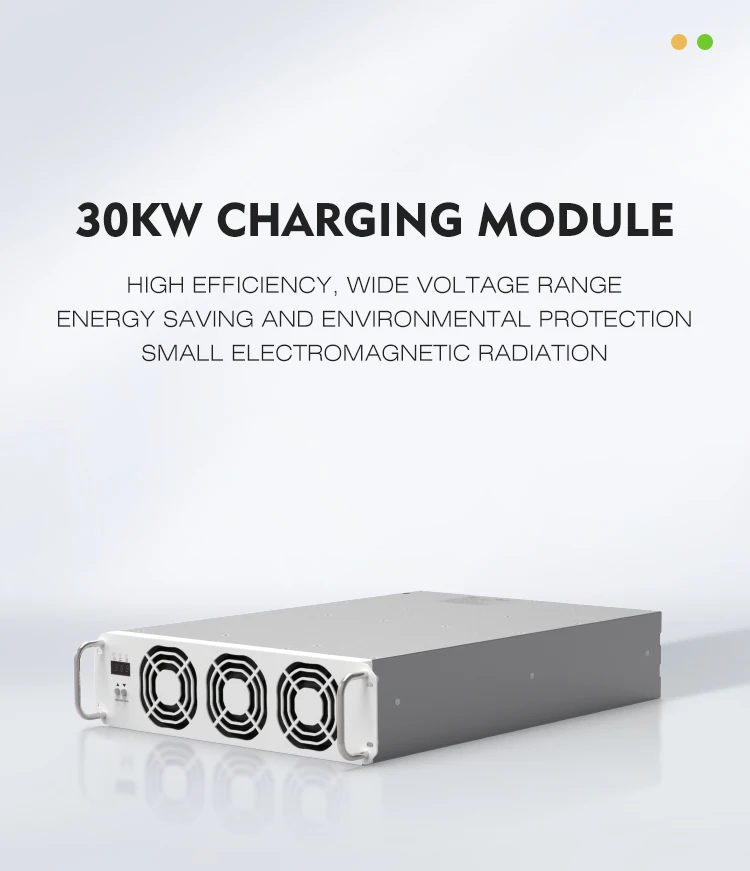

Output | Constant Power Range | 30KW (300~1000V) |
Output Current Range | 0~100A | |

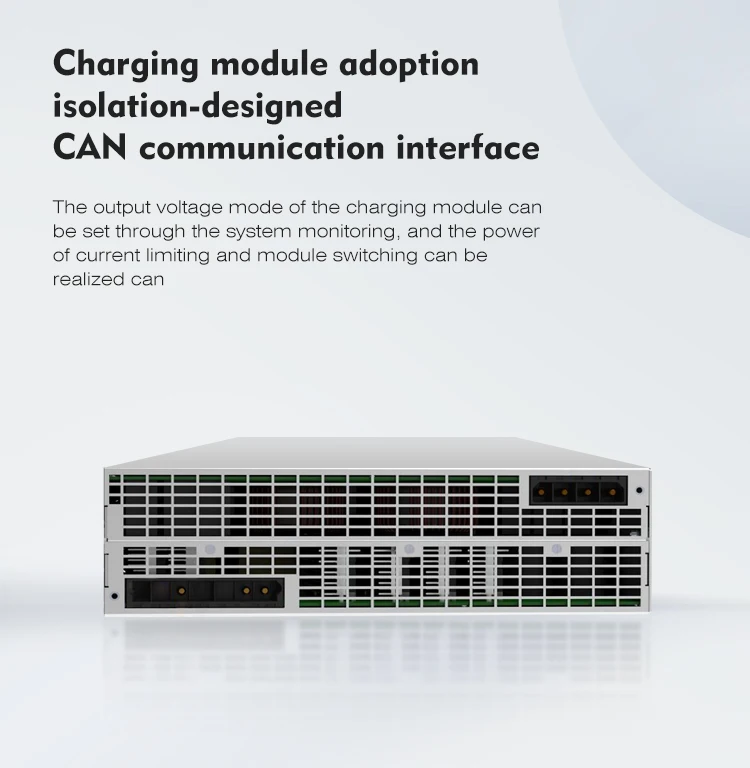

Communication Interface | CAN, Max.60 | |

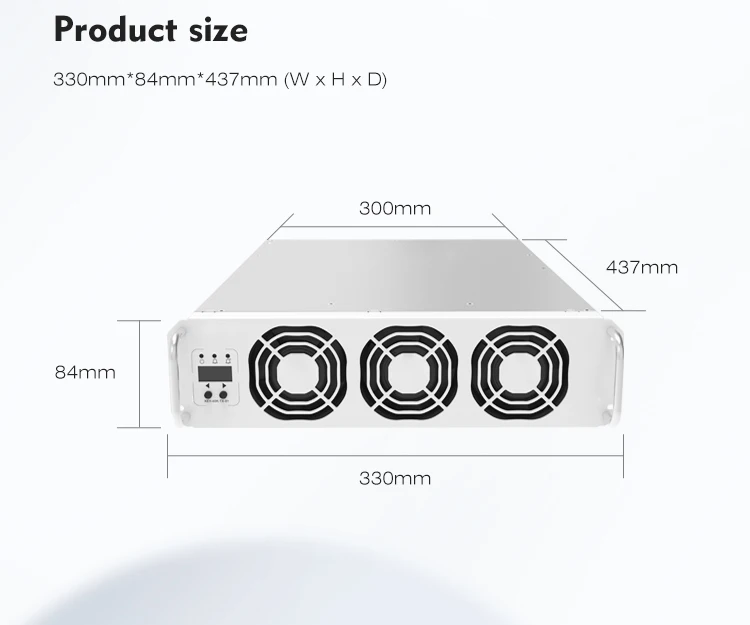

Size (W*D*H) | 300*437*84mm | |
Weight | ≤15kg | |
Fan Noise | ＜65dB (1m from the device) | |

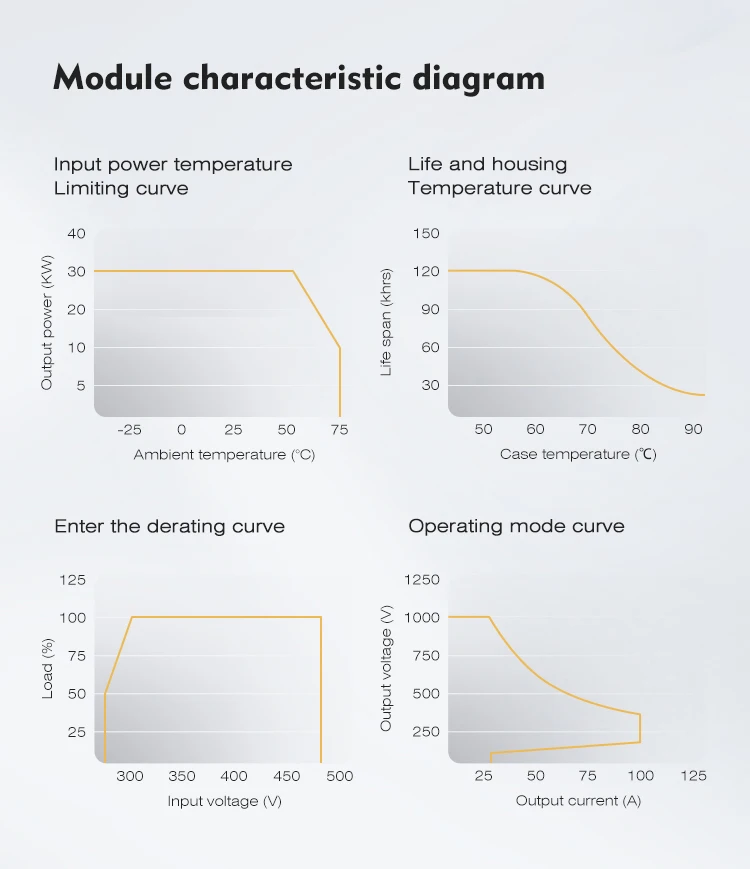

Ambient Temperature | -40℃~75℃; The derated function is used when the temperature is above 55℃ | |
Storage Temperature | -40℃~85℃; Humidity:5%~90% no condensation | |
Certificate | Certificate | CE, UL |
Short Circuit Protection | No module output after short-circuit protection, lock after four times automatic restarts | |
Output Overvoltage Protection Point | 1010V±10V (manual recovery, starts locking mode after four times overvoltage) | |
Automatic protection starts when detection temperature reaches the preset value; After protection,there is no output. After recovery, you need to start the system by running a command |
Company Profile
Exhibitions&Certificates
Package & Delivery
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(40.00%),North America(20.00%),Eastern
Europe(20.00%),Eastern Asia(10.00%),Africa(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
AC EV Chargers, Portable EV Chargers, DC Fast EV Charger Station and AC-DC Charger Module.
4. why should you buy from us not from other suppliers?
Suzhou Newera Energy Co.,Ltd. founded in 2016. The company has strong production capacity and R&D capacity. It has obtained a number of invention patents and has its own brand.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(40.00%),North America(20.00%),Eastern
Europe(20.00%),Eastern Asia(10.00%),Africa(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
AC EV Chargers, Portable EV Chargers, DC Fast EV Charger Station and AC-DC Charger Module.
4. why should you buy from us not from other suppliers?
Suzhou Newera Energy Co.,Ltd. founded in 2016. The company has strong production capacity and R&D capacity. It has obtained a number of invention patents and has its own brand.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
