ESS LiFePO4 Lithium Ion Battery 5kw 10kw 11kw 51.2V 100ah 200ah 48V with hybrid solar inverter all in one Energy Storage system
- Category: >>>
- Supplier: Guangdong Chuangfeng New Energy Technology Co. Ltd.Guangdong Ltd.
Share on (1601351453592):
Product Overview
Description
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.

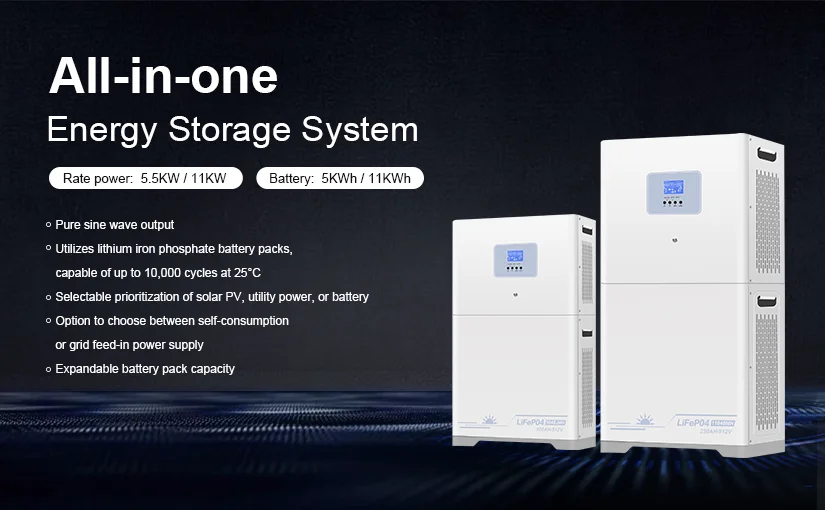

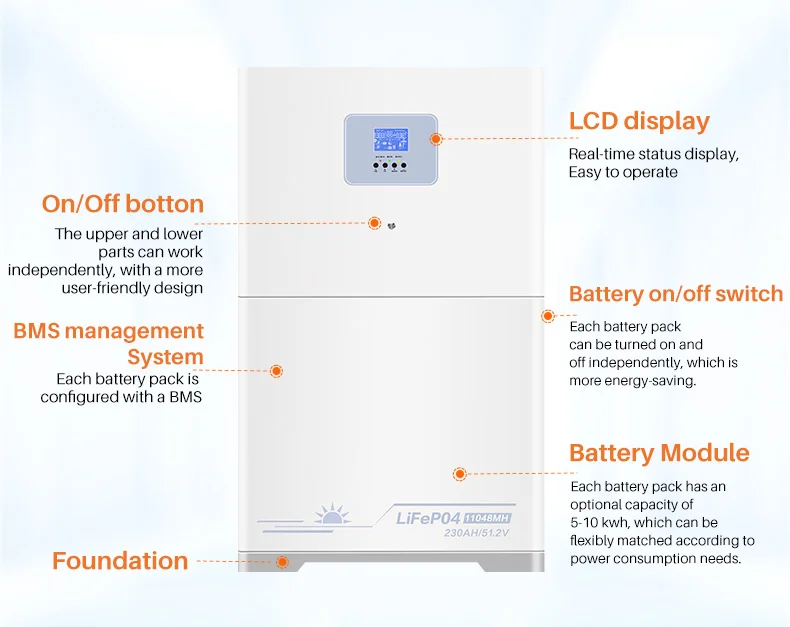

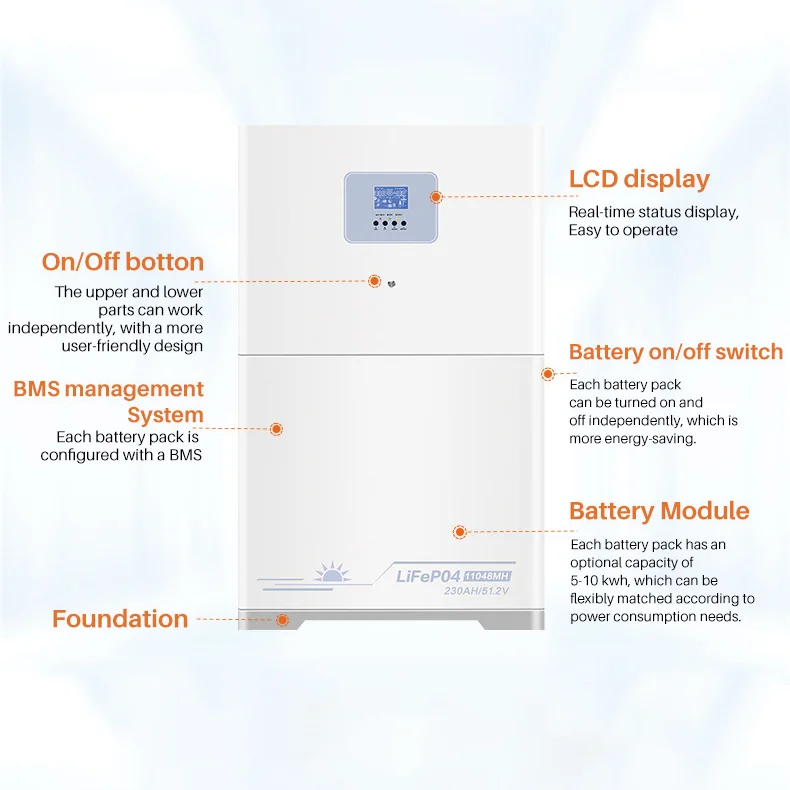

Techfine All-in-One Energy Storage System
Achieving Efficient Energy Management and Seamless Power Supply
Techfine All-in-One Energy Storage System is the ideal choice for residential and commercial users, offering a stable and
efficient energy solution. This system integrates the latest photovoltaic technology with advanced battery storage capabilities, designed to provide a highly reliable and user-friendly energy management platform.
Key Features:
> High Efficiency Output: Offers rated power options of 5.5KW and 11KW to meet the needs of different users.
> Long-life Battery Technology: Utilizes lithium iron phosphate battery packs capable of enduring up to 10,000 charge-discharge
cycles, ensuring long-term reliability.

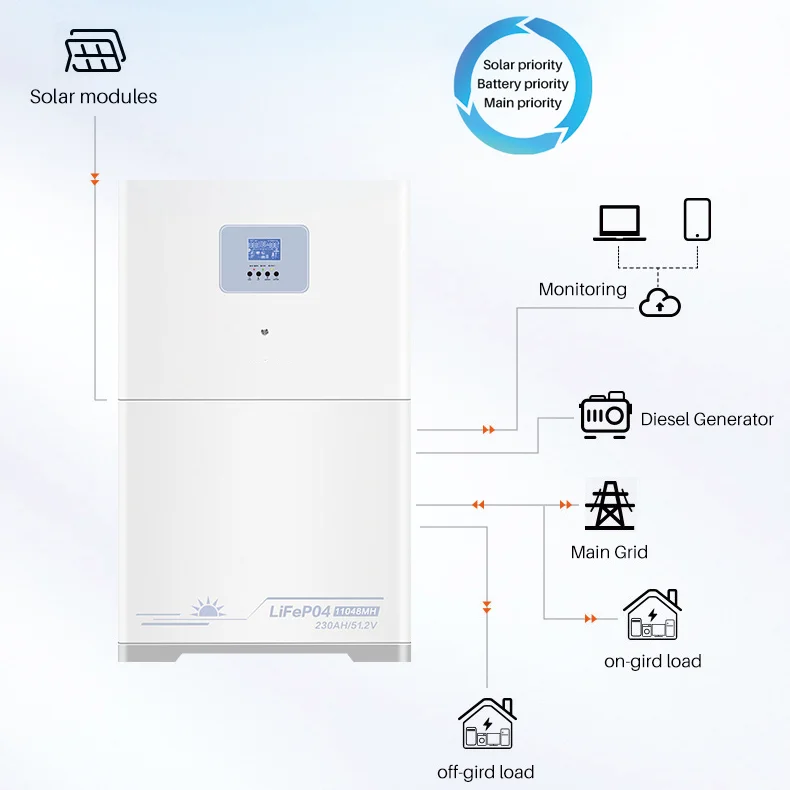

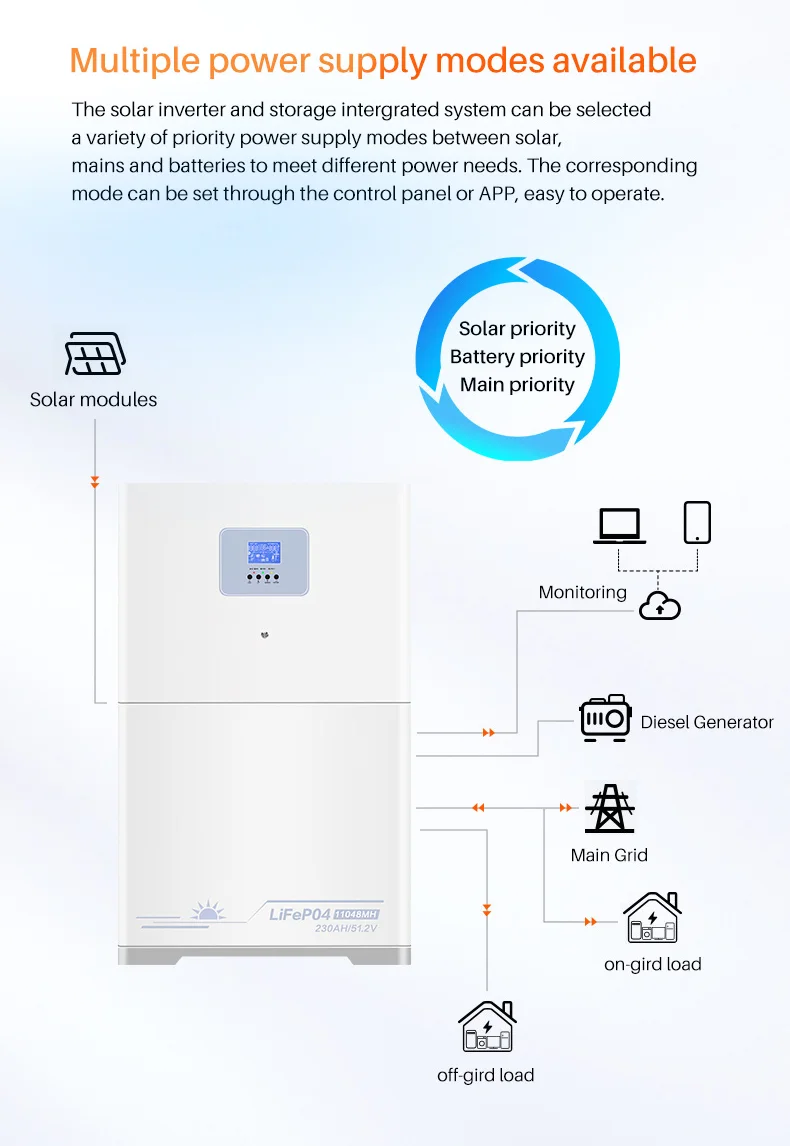

> Versatile Power Options: Users can choose solar PV, utility power, or battery power as their priority according to actual needs,
flexibly coping with various power demands.

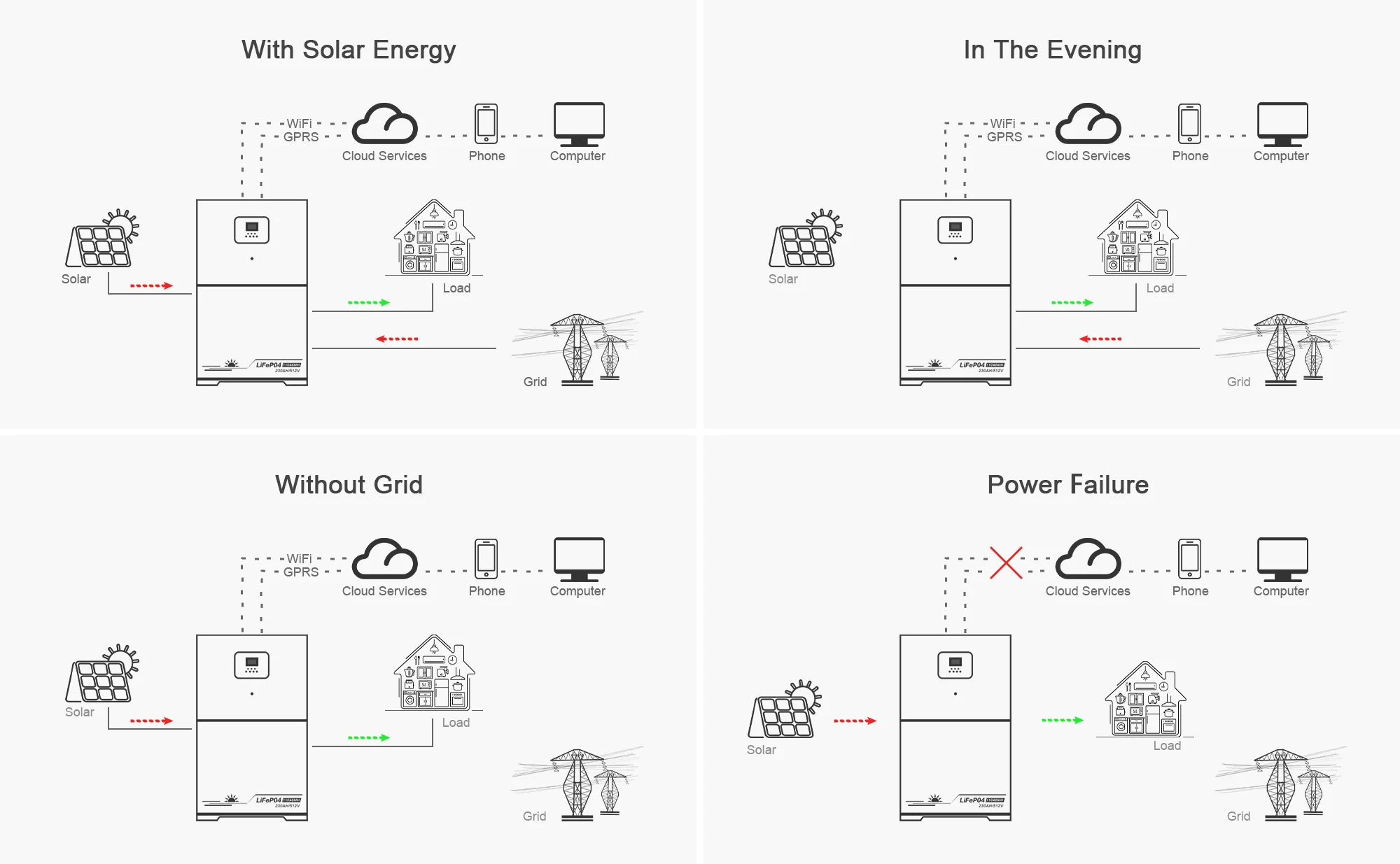

> Smart Energy Consumption Management: Supports self-consumption and grid feed-in modes to optimize energy efficiency.

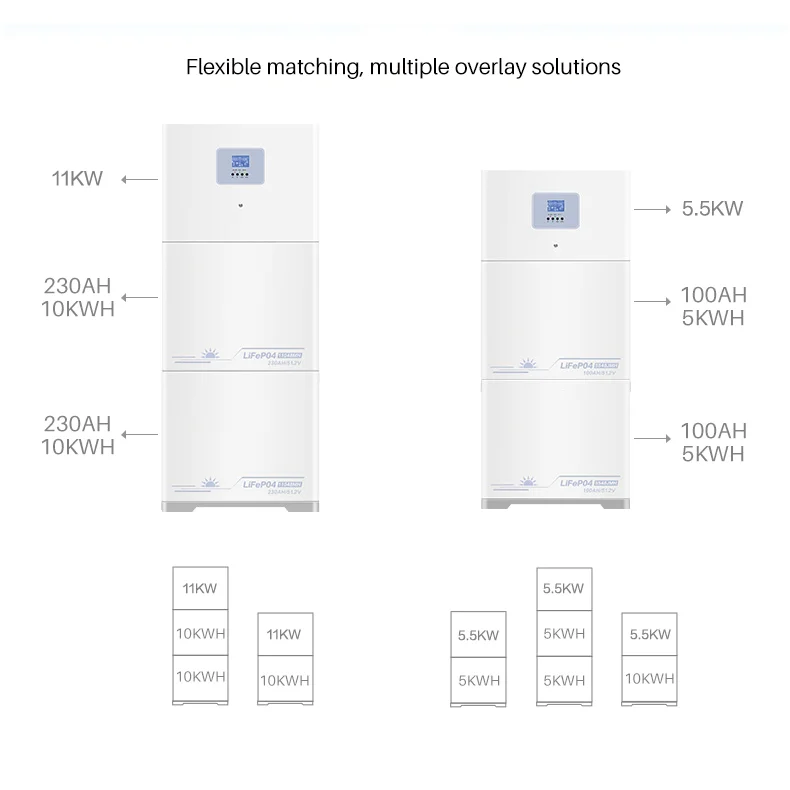

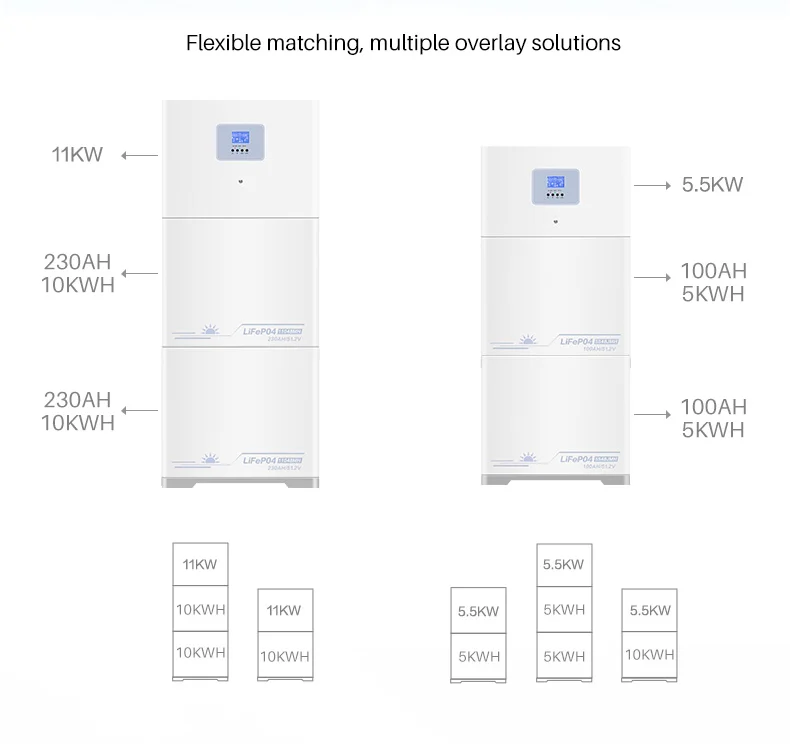

> Scalability: Battery capacity can be expanded to meet larger scale energy needs.
Whether for home or business, All-in-One Energy Storage System provides a one-stop solution for optimizing your energy
structure, reducing electricity costs, while also enhancing the environmental friendliness of energy use.
Choose our to embark on a new era of smart, efficient, and green energy.
> Long-life Battery Technology: Utilizes lithium iron phosphate battery packs capable of enduring up to 10,000 charge-discharge
cycles, ensuring long-term reliability.
> Versatile Power Options: Users can choose solar PV, utility power, or battery power as their priority according to actual needs,
flexibly coping with various power demands.
> Smart Energy Consumption Management: Supports self-consumption and grid feed-in modes to optimize energy efficiency.
> Scalability: Battery capacity can be expanded to meet larger scale energy needs.
Whether for home or business, All-in-One Energy Storage System provides a one-stop solution for optimizing your energy
structure, reducing electricity costs, while also enhancing the environmental friendliness of energy use.
Choose our to embark on a new era of smart, efficient, and green energy.
Product Parameter | ||||
Inverter-Lithium Battery Integrated Machine LD Series Technical Parameters | ||||
Inverter Model | LD5548JMH | LD11048JMH | ||
rated power | 5500VA/5500W | 11000VA/11000W | ||
Input | ||||
Voltage | 230VAC | |||
Voltage range | 170-280VAC(UPSmodel)90-280VAC(Inverter Mode) | |||
Frequency Range | 50Hz/60Hz(Automatic adaptation) | |||
Output | ||||
The output voltage | 230VAC±5% | |||
Peak Power | 11000VA | 22000VA | ||
Conversion efficiency (maximum) | 94% | |||
Output frequency | 50/60Hz±0.1% | |||
Switching time | 10ms (computer equipment), 30ms (home appliances) | |||
Output waveform | Sine Wave | |||
Load loss | ＜55W | ＜80W | ||
Solar charging and mains charging | ||||
Solar charging method | MPPT | |||
PV maximum input power | 5500W | 2×5500W | ||
MPPT input voltage range | 90-500Vdc | |||
Maximum PV charging current | 100A | 150A | ||
Maximum AC charging current | 80A | 120A | ||
Maximum charging current | 100A | 150A | ||
Physical parameters | ||||
L×W×H (product dimensions) | 550×170×450 | 650×260×470 | ||
Net weight (NW Kg) | 13 | 15 | ||
battery model | LD100AH/51.2V/100E | LD230AH/51.2V/200E | ||
Battery capacity | 5120WH | 11776WH | ||
Battery voltage | 51.2VDC | 51.2VDC | ||
Battery Type | Lithium Iron Phosphate (LiFePo4) | |||
Full charge voltage (FC) | 56V | |||
Full discharge voltage (FD) | 42V | |||
Maximum continuous discharge current | 100A | 200A | ||
Maximum discharge current | 120A(1 minute) | 230A(1 minute) | ||
Protect | BMS, Circuit Breaker | |||
Charging voltage | 56V | |||
Charging voltage | 50A(0.5C) | 115A(0.5C) | ||
Charging current (maximum) | 100A | 200A | ||
L×W×H (product dimensions) | 550×170×450 | 650×260×560 | ||
Net weight (NW Kg) | 55 | 110 | ||
