HW S5731 S24T4X 98011851 24* 10/100/1000BASE T ports 4*10GE SFP ports network switch

Share on (1601351513886):


Price:

Quantity:


Product Overview

Description



Details Images




Specification


S5731-S24T4X Specification

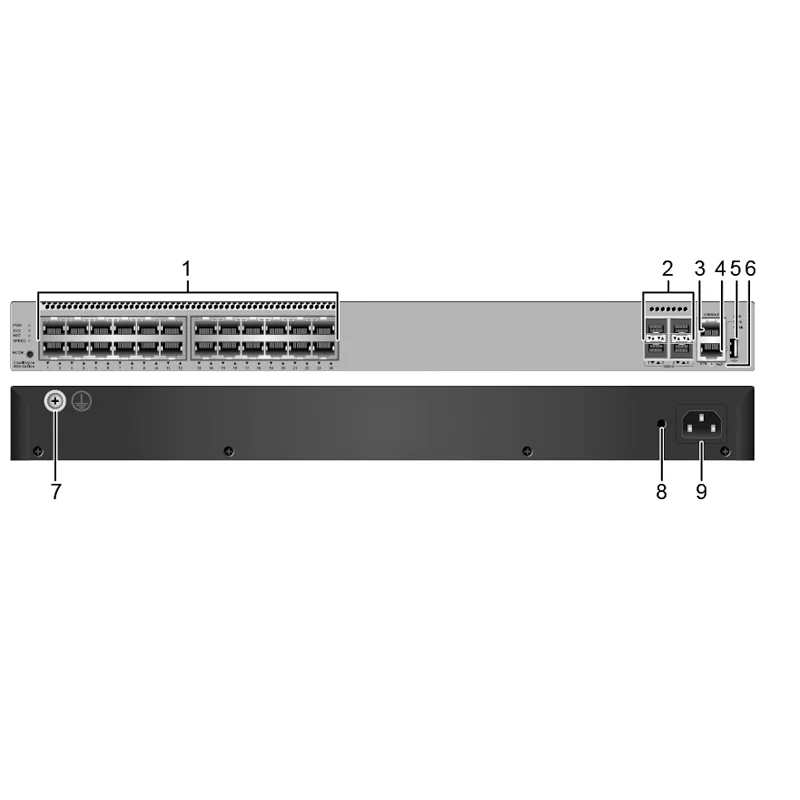

Fixed port
24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)
442 mm x 420 mm x 43.6 mm
Chassis height
1 U
Chassis weight (including packaging)
8.4 kg
Power supply type
• 150 W AC (pluggable)
• 600 W AC (pluggable)
• 1000 W DC (pluggable)
Rated voltage range
• AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz
• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz
• DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range
• AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
• AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz
• High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
• DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption
114 W
Noise
• Under normal temperature (sound power): 57.5dB (A)
• Under high temperature (sound power): 70.9dB (A)
• Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature
• 0-1800 m altitude: -5°C to +45°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature
-40℃ to +70℃
Relative humidity
5% to 95% (non-condensing)
Surge protection specification (service port)
Common mode: ±6 kV
Surge protection specification (power port)
• AC power port: ±6 kV in differential mode, ±6 kV in common mode
• DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation
Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
