Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings
Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings

Original Auto Bearing Supplier Nylon Cage Single Double Row Steel NA CHI 61922 Deep Groove Ball Bearings

Share on (1601351514550):


Price:$20.00-22.00

Quantity:


Product Overview

Description



Product Description

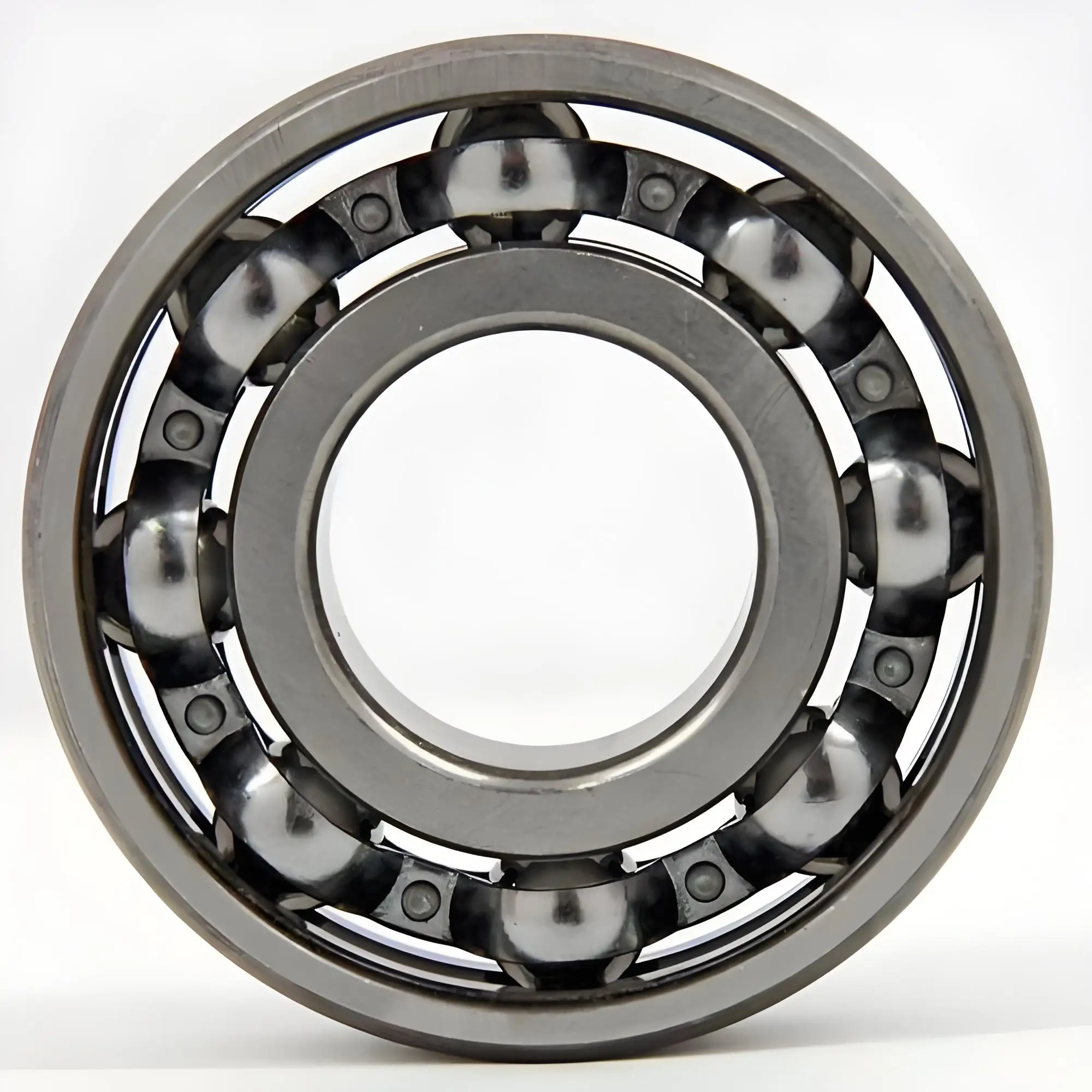

NACHI 61922 Deep Groove Ball Bearing
1. Basic Information
Type: Deep Groove Ball Bearing
Bore Diameter: 110 mm
Outer Diameter: 150 mm
Width (Thickness): 20 mm
Material: Typically made of high-carbon chromium steel or stainless steel, depending on the specific variant.
Ball Type: Steel balls are commonly used, though ceramic balls may be used in higher performance variants.
2. Applications
General Machinery: Used in a wide variety of industrial applications including motors, pumps, gearboxes, and conveyors.
Automotive: Common in automotive applications like wheel hubs and drive shafts.
Electric Motors: Suitable for low-to-medium-speed electric motors.
3. Key Features
Deep Groove Design: Allows the bearing to support both radial and axial loads in both directions.
Low Friction: Offers reduced friction, which improves performance and reduces heat generation.
Durability: Designed for long operational life, even under moderate to heavy loads.
Sealing Options: Available in open, sealed, or shielded versions, depending on the protection required against dust, dirt, or moisture.
4. Design Variations
Open: No seals or shields. Allows for easier maintenance but requires proper lubrication.
Sealed: Rubber seals on both sides to protect the bearing from contaminants and retain lubrication.
Shielded: Steel shields on both sides that provide protection but may allow for some contamination entry, compared to sealed designs.




Specification




Designation
 Principal dimensions
dynamic
static
Reference speed
Limiting speed
d/mm
D/mm
B/mm
C/kn
Co/kn
r/min
r/min
6314
70
150
35
111
68
9 500
6 300
6314 N
70
150
35
111
68
9 500
6 300
6314 NR
70
150
35
111
68
9 500
6 300
6314-2RS1
70
150
35
111
68

3 000
6314-2Z
70
150
35
111
68
9 500
5 000
6314-RS1
70
150
35
111
68

3 000
6314-Z
70
150
35
111
68
9 500
6 300
6211-2Z
55
100
21
46.2
29
14 000
7 000
6211-2ZNR
55
100
21
46.2
29
14 000
7 000
6211-RS1
55
100
21
46.2
29

4 300
6211-Z
55
100
21
46.2
29
14 000
9 000
6211-ZNR
55
100
21
46.2
29
14 000
9 000
62211-2RS1
55
100
25
43.6
29
10 000
4 300
62311-2RS1
55
120
43
71.5
45

3 800
6311
55
120
29
74.1
45
12 000
8 000
6311 M
55
120
29
74.1
45
12 000
11 000
6311 N
55
120
29
74.1
45
12 000
8 000
62306-2RS1
30
72
27
28.1
16

6 300
63006-2RS1
30
55
19
13.3
8.3

8 000
6306
30
72
19
29.6
16
20 000
13 000
6306 N
30
72
19
29.6
16
20 000
13 000
6306 NR
30
72
19
29.6
16
20 000
13 000
6306-2RS1
30
72
19
29.6
16

6 300
6306-2RZ
30
72
19
29.6
16
20 000
11 000
6306-2Z
30
72
19
29.6
16
20 000
11 000
6304-2Z
20
52
15
16.8
7.8
30 000
15 000
6304-2ZNR
20
52
15
16.8
7.8
30 000
15 000
6304-RSH
20
52
15
16.8
7.8

9 500
6304-Z
20
52
15
16.8
7.8
30 000
19 000
6304-ZNR
20
52
15
16.8
7.8
30 000
19 000
4206 ATN9
30
62
20
26
20.8
17 000
9 500
4306 ATN9
30
72
27
41
30
16 000
8 500
6006
30
55
13
13.8
8.3
28 000
17 000
6006 N
30
55
13
13.8
8.3
28 000
17 000
6006 NR
30
55
13
13.8
8.3
28 000
17 000
6006-2RS1
30
55
13
13.8
8.3

8 000
6006-2RZ
30
55
13
13.8
8.3
28 000
14 000
6006-2Z
30
55
13
13.8
8.3
28 000
14 000
