Shantui SD13 SD16 SD22 SD26 SD32 Crawler Bulldozer Hot Sale
- Category: >>>
- Supplier: Skymard Construction Machinery (Hunan) Co. Ltd.Skymard Ltd.
Share on (1601351703756):
Product Overview
Description
Company Profile
PRODUCTS
Specification

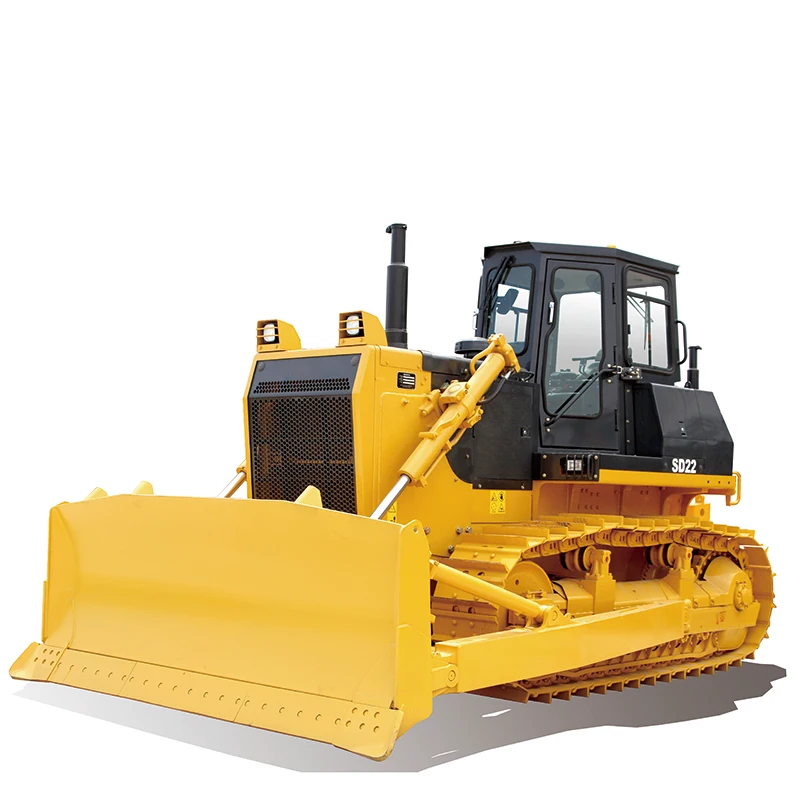

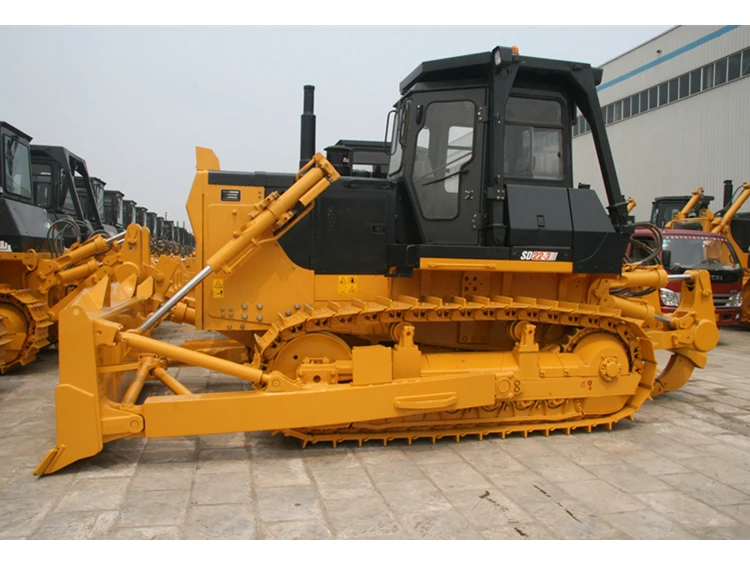

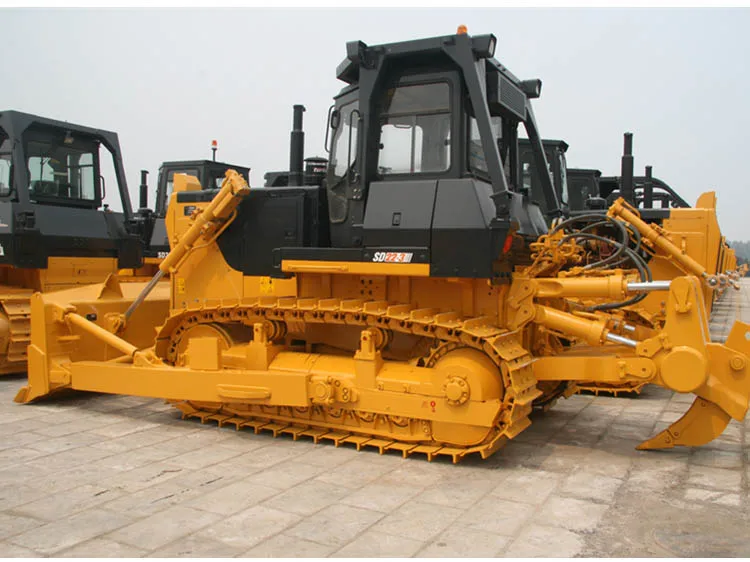

SD22 bulldozer, with reasonable whole structure,and has good performance, which is applicable to ground pushing, excavation, backfill earth and other bulk materials operations of roads, railways, mines, airports and so on. It is an indispensable mechanical equipment for the construction of national defense engineering, mine construction, urban and rural roads and water conservancy construction.
Parameter name | SD22 (Standard version) | SD22C (Coal version) | SD22W (Rock version) |
Operating weight (Kg) | 23450 | 24000 | 23600 |
Ground pressure (kPa) | 66 | 57.5 | 66 |
Engine model | WP12/QSNT-C235 | WP12/QSNT-C235 | QSNT-C235 |
Rated power/rated speed (kW/rpm) | 175/1800 | 175/1800 | 175/1800 |
Overall dimensions of machine (mm) | 5495*3725*3402 | 5820*4200*3402 | 5495*3725*3402 |
Forward speed (km/h) | F1：0-3.6 F2:0-6.5 F3:0-11.2 | F1：0-3.6 F2:0-6.5 F3:0-11.2 | F1：0-3.6 F2:0-6.5 F3:0-11.2 |
Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 | R1:0-4.3 R2:0-7.7 R3:0-13.2 |
Center distance of track (mm) | 2000 | 2000 | 2000 |
Width of track shoes (mm) | 560/610/660 | 660 | 560/610/660 |
Ground length（mm） | 2730 | 2730 | 2730 |
Tank capacity | |||
Fuel tank (L) | 450 | 450 | 450 |
Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | Coal blade | Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade |
Digging depth (mm) | 540 | 538 | 540 |

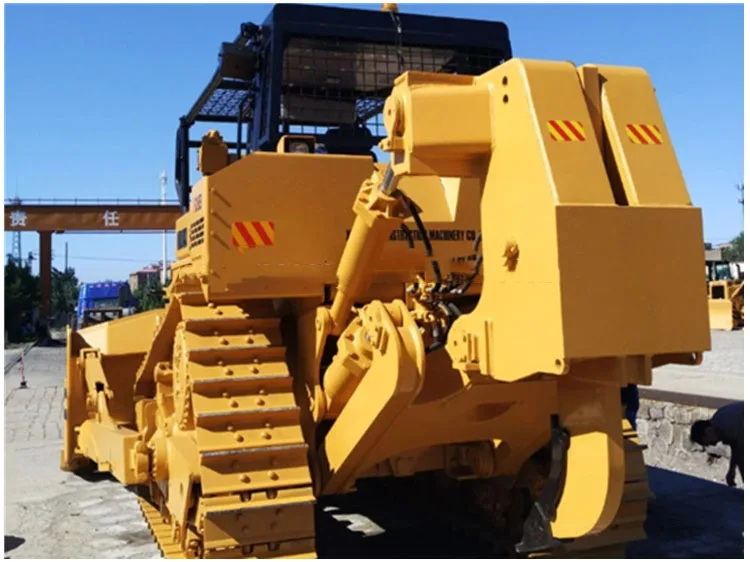

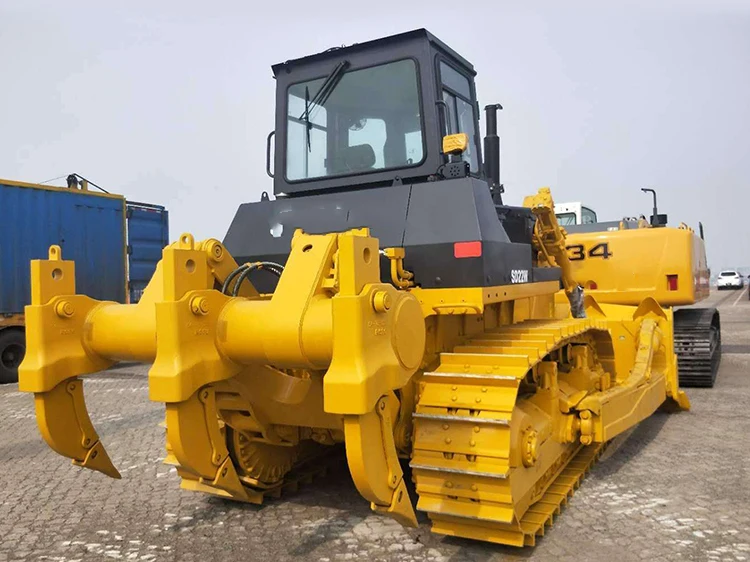

Ripper type | Single-shank three-shank | Single-shank three-shank | Single-shank three-shank |
Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) | 695 (Single-shank) and 666 (Three-shank) |
Working device | |||
Blade type | Straight tilting blade | ||
Digging depth (mm) | 590 | ||
Ripper type | Three-shank | ||
Ripping depth (mm) | 567 |
