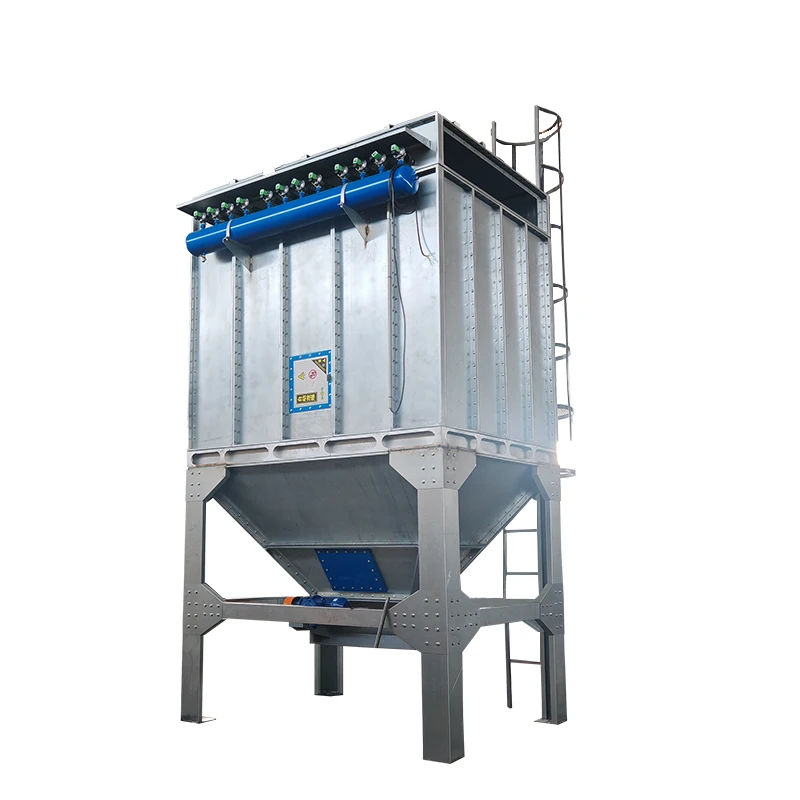

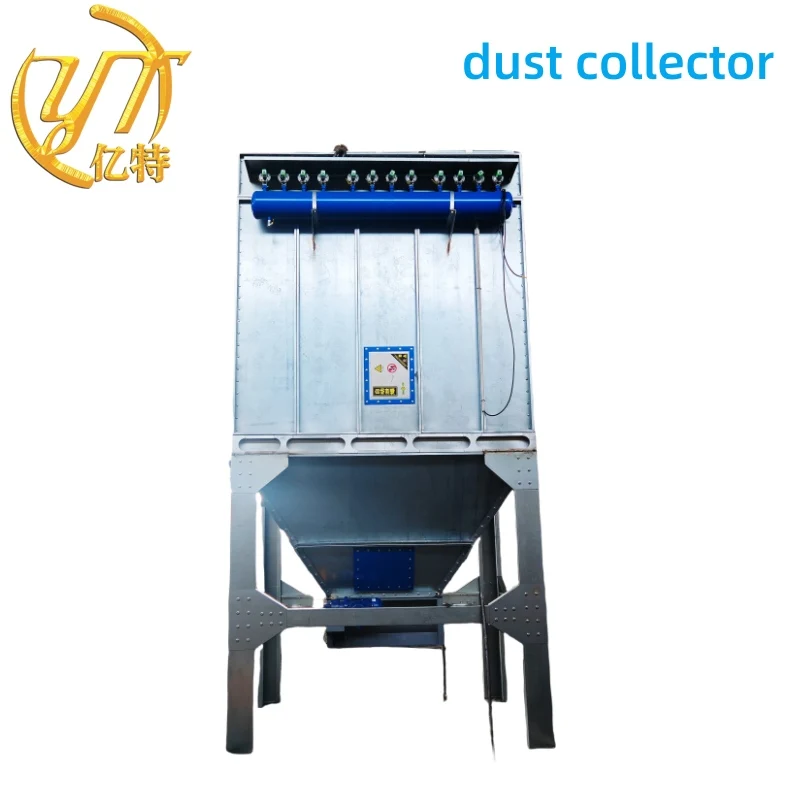

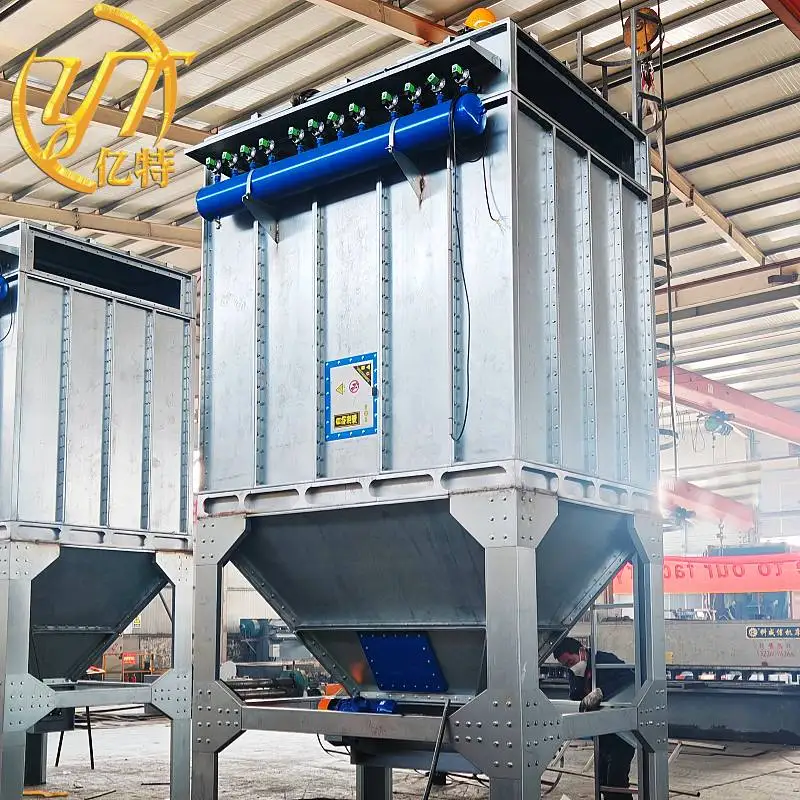

New woodworking dust collector use for woodworking lathes, edge banding machines, sanding machines,CNC machine tools
- Category: >>>
- Supplier: Botou Yite Environmental Protection Machinery Manufacturing Co. Ltd.Botou Ltd.
Share on (1601351735667):
Product Overview
Description
Woodworking dust collectors are equipment specifically designed to collect and treat dust and wood chips generated during wood processing. Woodworking industry in the production process,
such as sawing, planing, sanding, sanding and other operations will produce a lot of dust and wood chips

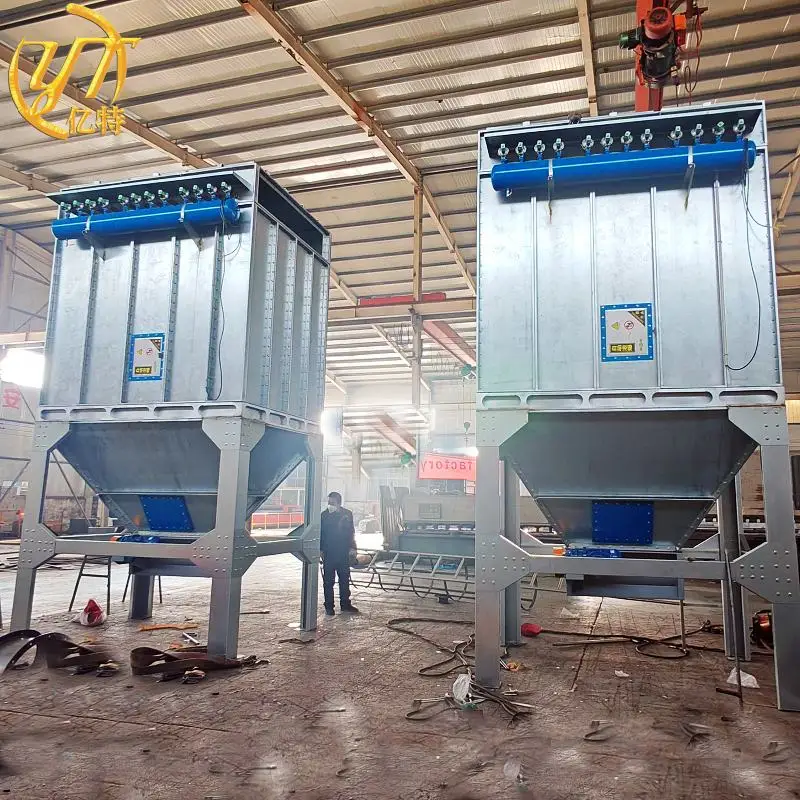

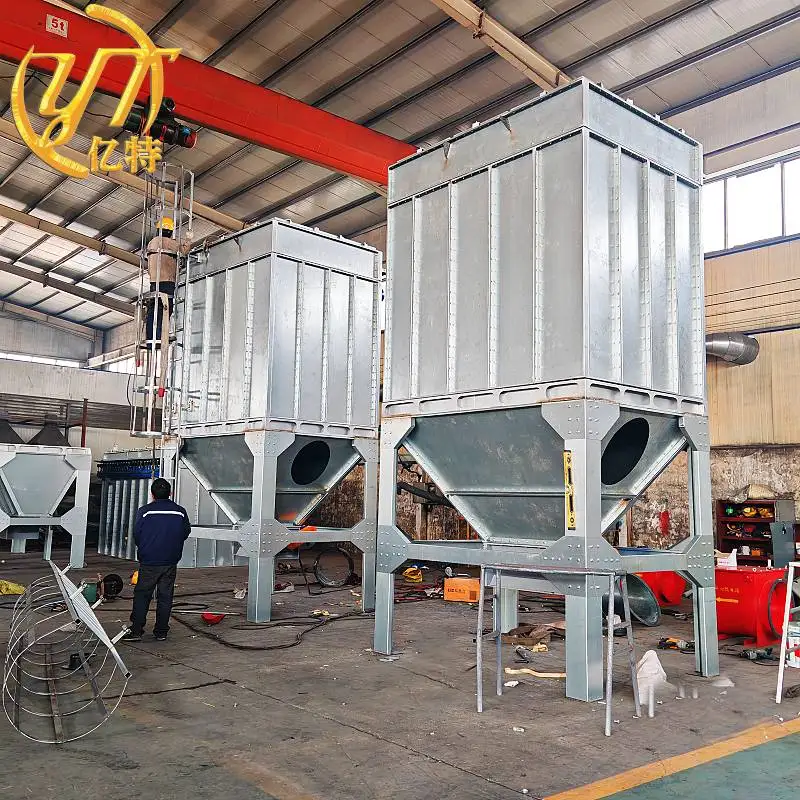

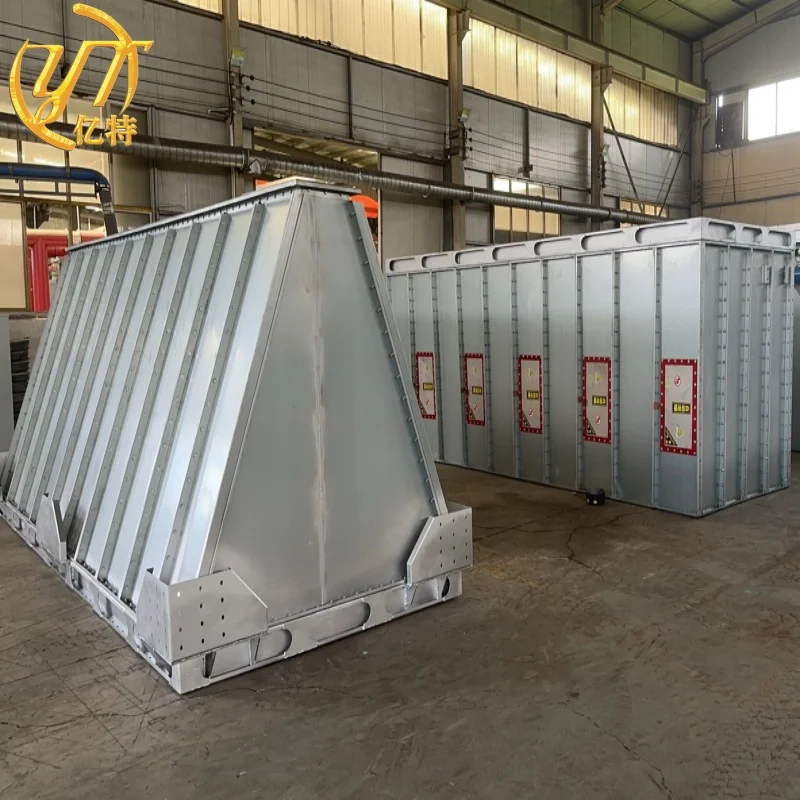

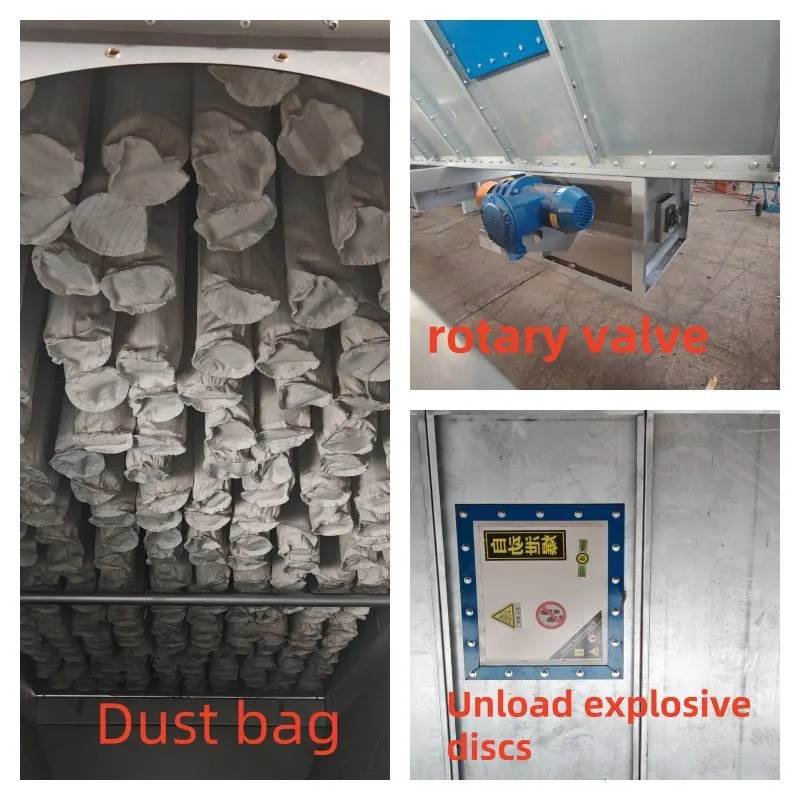

Woodworking dust collector interior detail
rotary valve
Automatically discharge explosive discs
Woodworking dust collector can effectively remove dust, sawdust and other particles generated during wood processing
No. | Model | Filter area ㎡ | Air volume m³/h | Pulse valve Num | filter bags Num | Filter bag size mm | Power kw | Dimensions mm | Weight kg |
1 | YT-01MC24 | 18 | 2160-4300 | 4 | 24 | φ133*2000 | 2.2 | 1420*1430*4400 | 610 |
2 | YT-01MC32 | 24 | 2800-3150 | 4 | 32 | 3 | 1550*860*4400 | 694 | |
3 | YT-01MC36 | 27 | 3250-6480 | 6 | 36 | 3 | 1200*1200*4400 | 710 | |
4 | YT-01MC48 | 36 | 4320-8630 | 6 | 48 | 4 | 1550*1200*4400 | 848 | |
5 | YT-01MC64 | 45 | 5400-10800 | 8 | 64 | 5.5-7.5 | 1540*1540*4400 | 990 | |
6 | YT-01MC72 | 54 | 6450-12900 | 8 | 72 | 7.5 | 1710*1540*4400 | 1080 | |
7 | YT-01MC80 | 63 | 7550-15100 | 8 | 80 | 7.5 | 1880*1540*4400 | 1138 | |
8 | YT-01MC96 | 72 | 8650-17300 | 12 | 96 | 7.5-11 | 2220*1540*4400 | 1324 | |
9 | YT-01MC120 | 90 | 10800-20800 | 12 | 120 | 15 | 2220*1880*4600 | 1760 |
