Silo sliding dark rod water gate valve digital 30 inch gate valve

Product Overview

Description

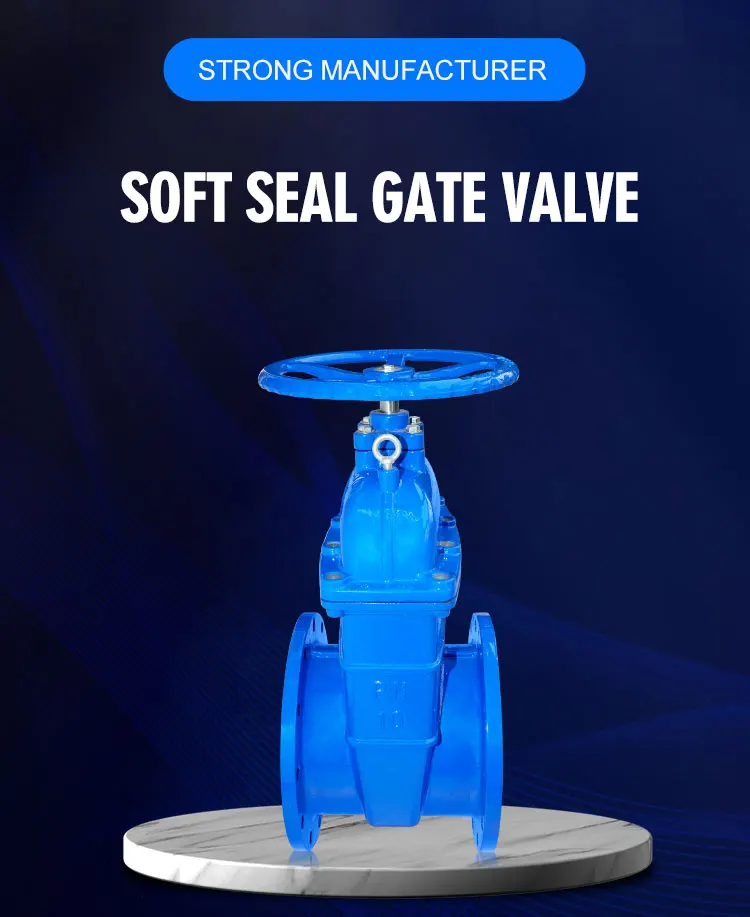

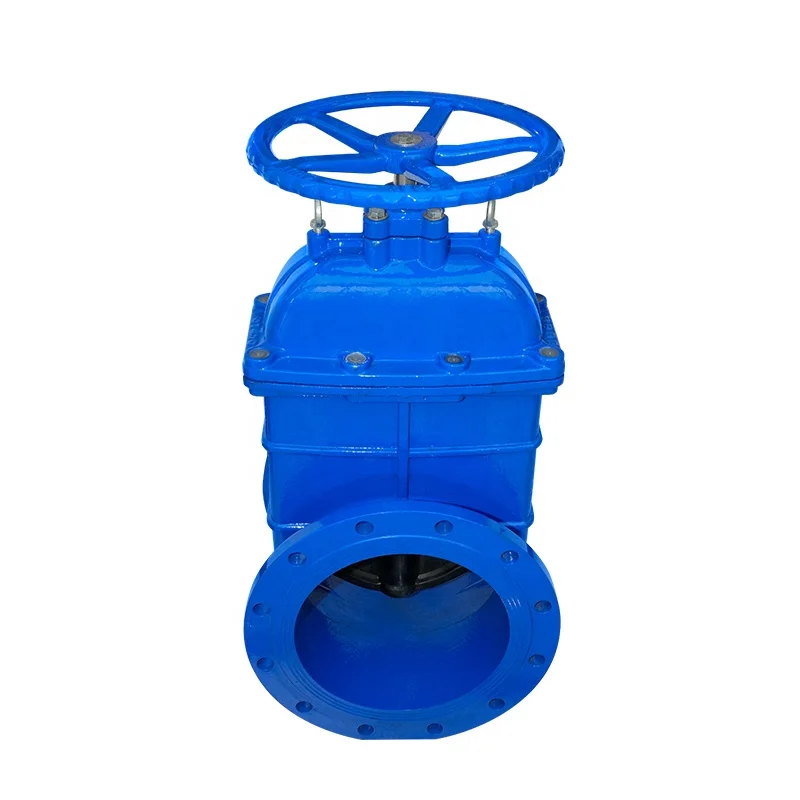

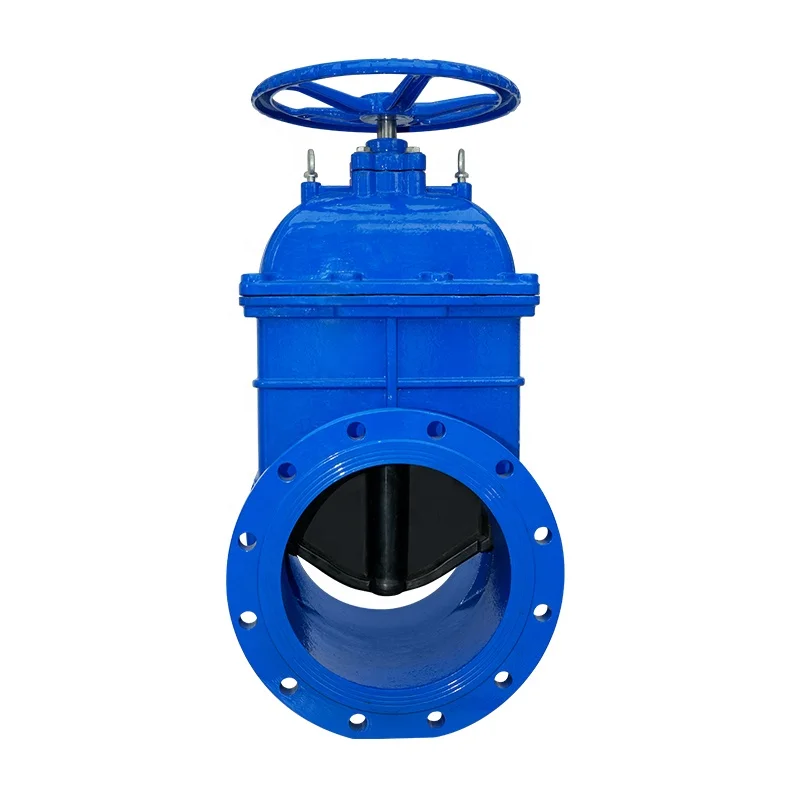

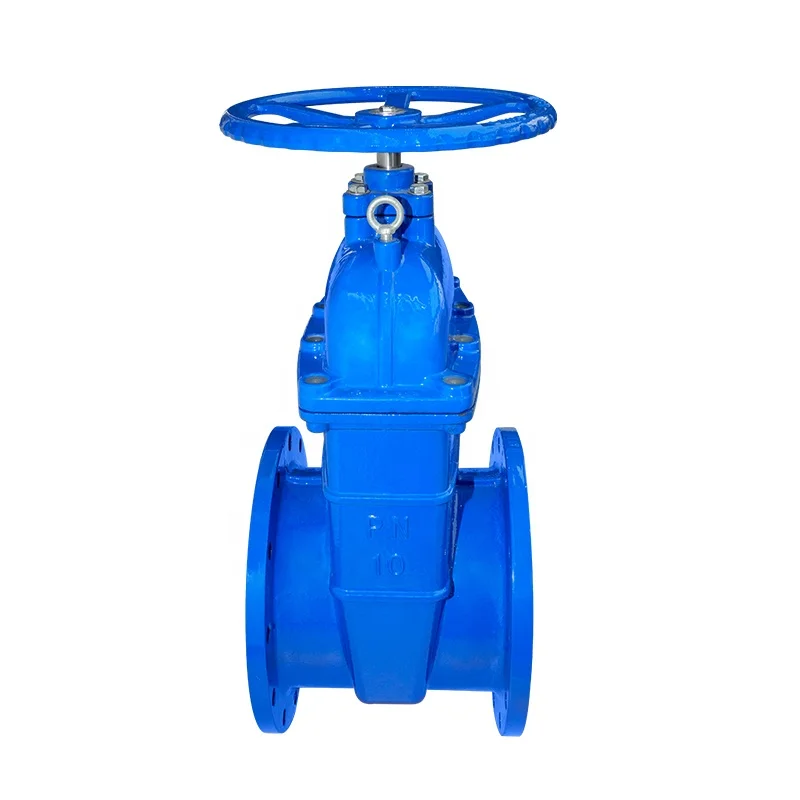

Silo sliding dark rod water gate valve digital 30 inch gate valve





Product description:

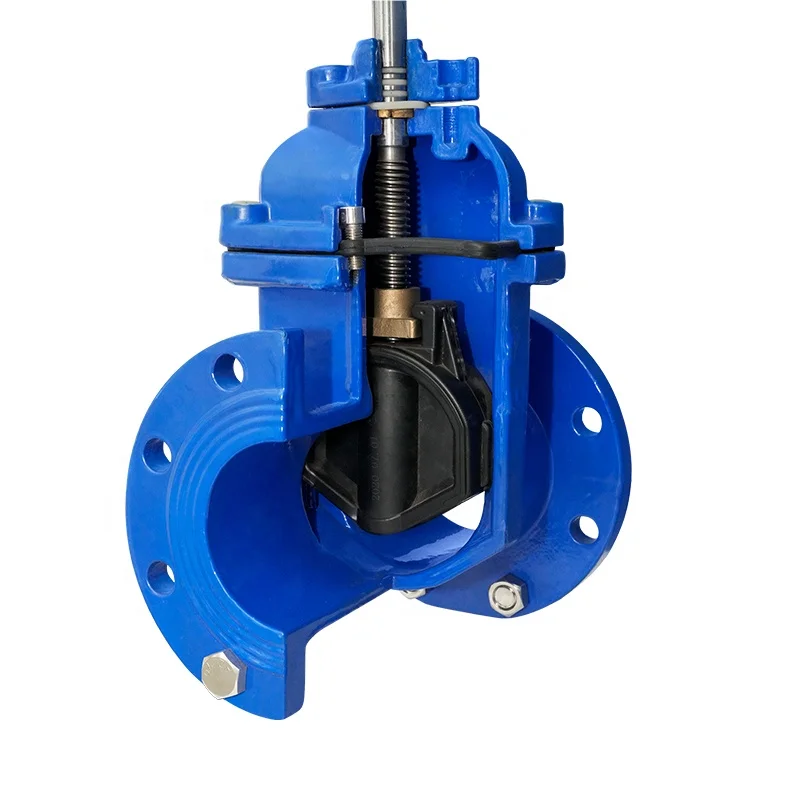

Soft sealing gate valves, industrial valves, and soft sealing gate valves have gate plates as their opening and closing components. The direction of movement of the gate plate is perpendicular to the direction of the fluid, and the gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate valve has two sealing surfaces, and the most commonly used mode is that the two sealing surfaces of the gate valve form a wedge shape. The wedge angle varies with the valve parameters, with a nominal diameter of DN50 to DN1200 and a service temperature of ≤ 200 ℃.

Technical parameters:

Nominal Diameter	DN50~DN1200
Pressure level	1.6MPa-2.5MPa
Main material	QT450, WCB, CF8
Applicable temperature	-0℃ to 80℃;
Design manufacturing standard	GB/T32290; GB/T 12232; CJ/T 216
Structure length standard	GB/T12221
Connecting size standard	GB/T17241.6; JB78
Pressure test standard	GB/T13927
Transmission mode	Manual, bevel gear, electric, pneumatic
Applicable Medium	Water, steam, gas, oil,etc.





Our products have become products of 3-High: high technology, high standard, high quality.

Porfessional selection guidance;

Remote technical support;

Professional presale and aftersales service;

Sample order is acceptable.
