Product Overview
Description
Product Description
.Mining——Mining,Second-time breaking
.Metallurgy——Clearing slag,demolition of furnace and foundation
.Road——Repairing,breaking,foundation work
.Railway——Tunneling,demolition of bridge
.Construction——Demolition of building and reinforced concrete
.Ship repairing——Clearing clam and rust from the hull
.Others——Breaking frozen mud
Advantages:
1. Selected raw material - high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from South Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
Specifications:
Small Models
Model | Unit | PA450 | PA530 | PA680 | PA750 | PA850 | PA1000 |
SB20 | SB30 | SB40 | SB43 | SB45 | SB50 | ||
Weight | Side (kg) | 90 | 130 | 250 | 380 | 510 | 760 |
Open(kg) | 100 | 150 | 300 | 430 | 550 | 820 | |
Silence(kg) | 130 | 190 | 340 | 480 | 580 | 950 | |
Length | mm | 1000 | 1100 | 1300 | 1719 | 1737 | 1900 |
Working | liter /min | 25-50 | 25-60 | 36-60 | 50-90 | 45-85 | 80-120 |
Oil Relief | kg/cm2 | 160 | 160 | 170 | 170 | 190 | 190 |
Working | kg/cm2 | 90-100 | 90-120 | 110-140 | 120-170 | 127-147 | 150-170 |
Impact rate | bpm | 500-1000 | 500-1000 | 500-900 | 400-800 | 400-800 | 400-650 |
Chisel Diameter | mm | 45 | 53 | 68 | 75 | 85 | 100 |
Hose Diameter | inch | 1/2 | 1/2 | 1/2 | ‘1/2 | ‘1/2 | ’3/4 |
Back head pressure | kg/cm2 | 16 | 16 | 16 | 16±0.5 | 16±0.5 | 16±0.5 |
Accumulator Pressure | kg/cm2 | / | / | / | / | / | / |
Suitable Carrier | Ton | 1-1.5 | 1.5-3 | 4-7 | 6-9 | 7-14 | 10-15 |
Big Models:

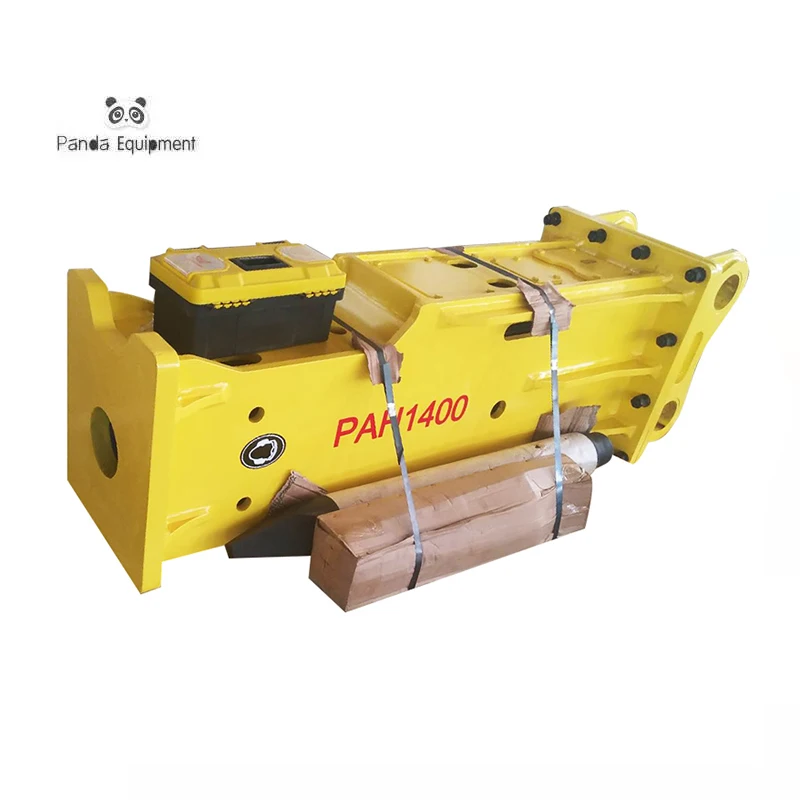

PA1350 | PA1400 | PA1550 | PA1650 | PA1750 | ||
SB81N | SB81 | SB121 | SB130/140 | SB151 | ||
Weight | Side (kg) | 1450 | 1740 | 2500 | 2900 | 3750 |
Open(kg) | 1520 | 1800 | 2600 | 3100 | 3970 | |
Silence(kg) | 1650 | 2000 | 2900 | 3250 | 4150 | |
Length | mm | 2300 | 2420 | 2620 | 3015 | 3055 |
Working Flow Rate | liter /min | 130-170 | 150-190 | 150-230 | 200-260 | 210-280 |
Oil Relief Pressure | kg/cm2 | 210 | 210 | 230 | 240 | 240 |
Working Pressure | kg/cm2 | 160-185 | 160-185 | 170-200 | 180-200 | 180-200 |
Impact rate | bpm | 400-650 | 400-800 | 400-800 | 250-400 | 250-350 |
Chisel Diameter | mm | 135 | 140 | 155 | 165 | 175 |
Hose Diameter | inch | 1 | 1 | 1 | 5/4 | 5/4 |
Back head pressure | kg/cm2 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 |
Accumulator Pressure | kg/cm2 | 60 | 60 | 60 | 60 | 60 |
Suitable Carrier | Ton | 18-25 | 20-30 | 27-36 | 30-45 | 40-55 |
Detailed Images
Different Types:

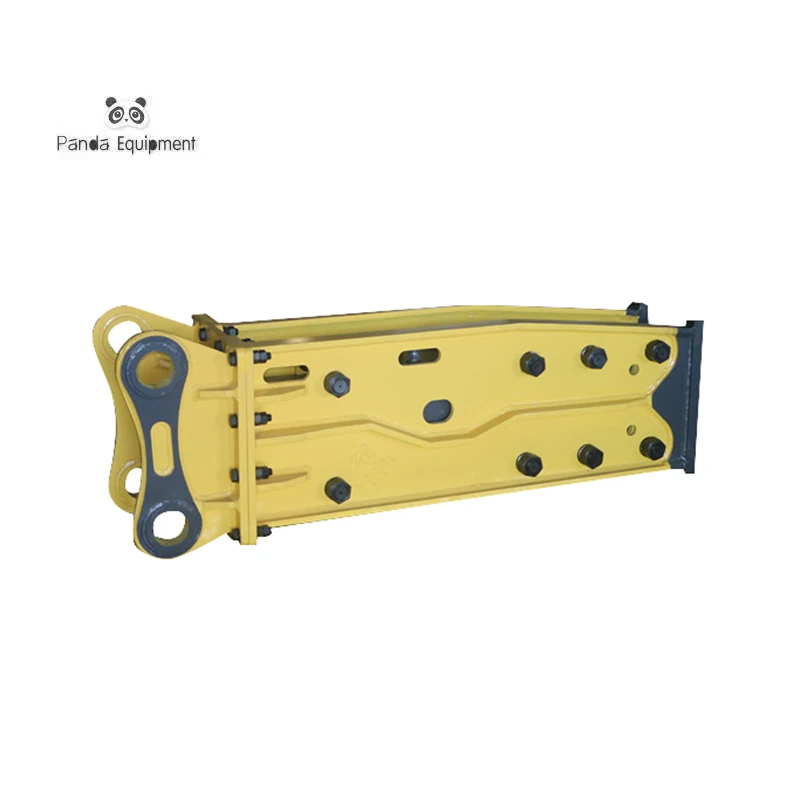

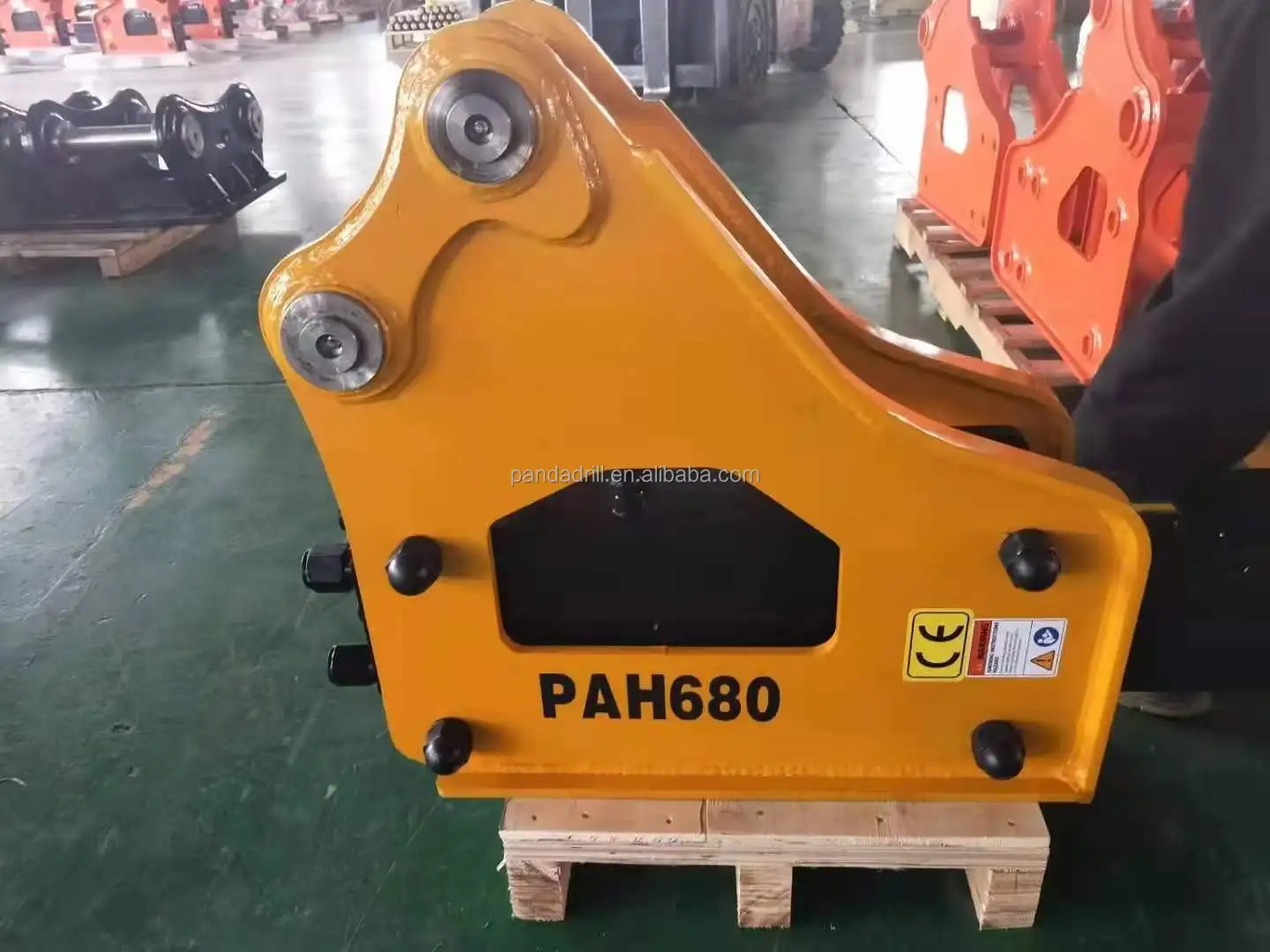

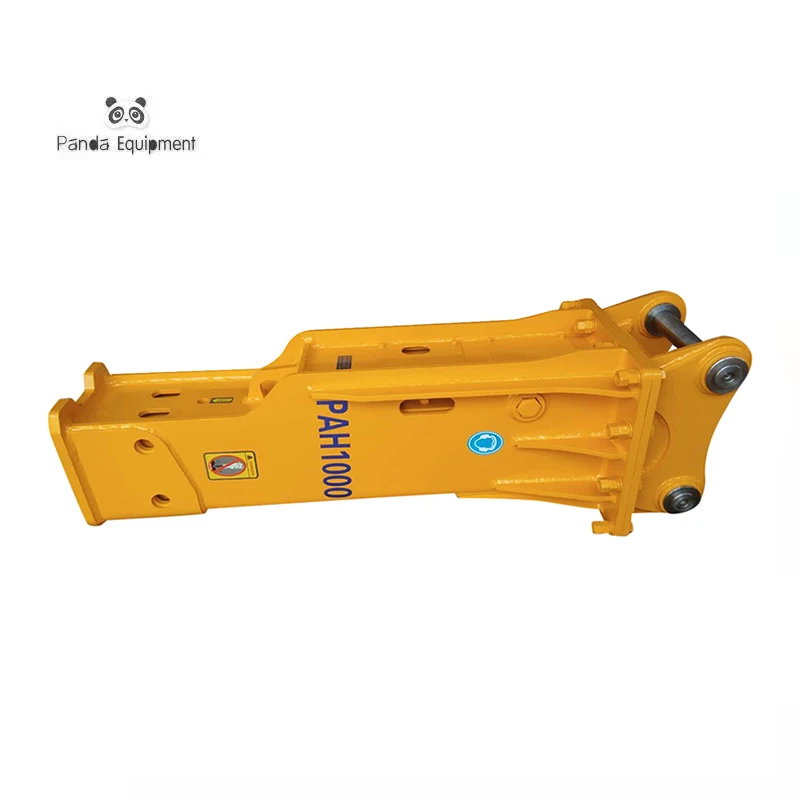

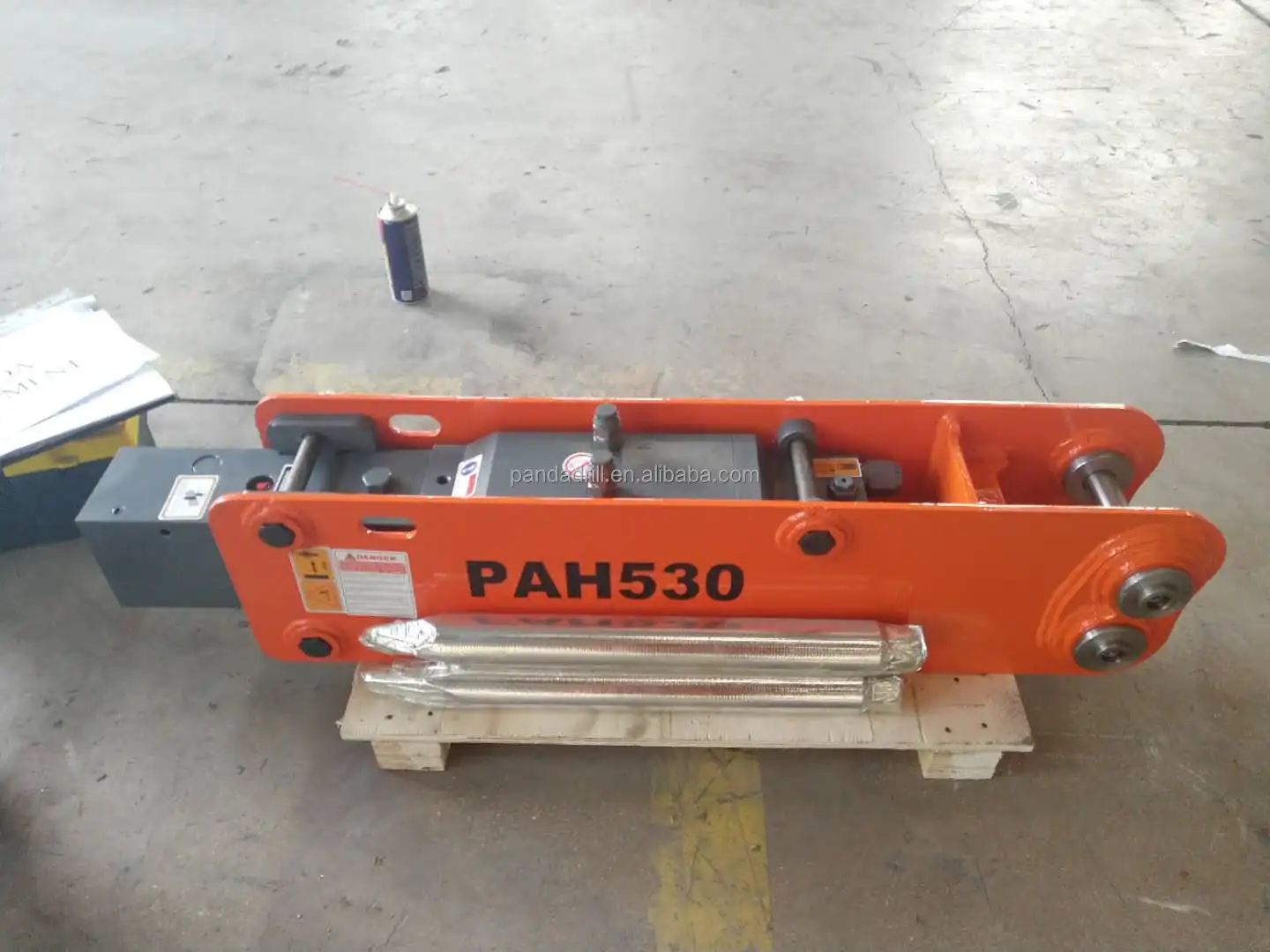

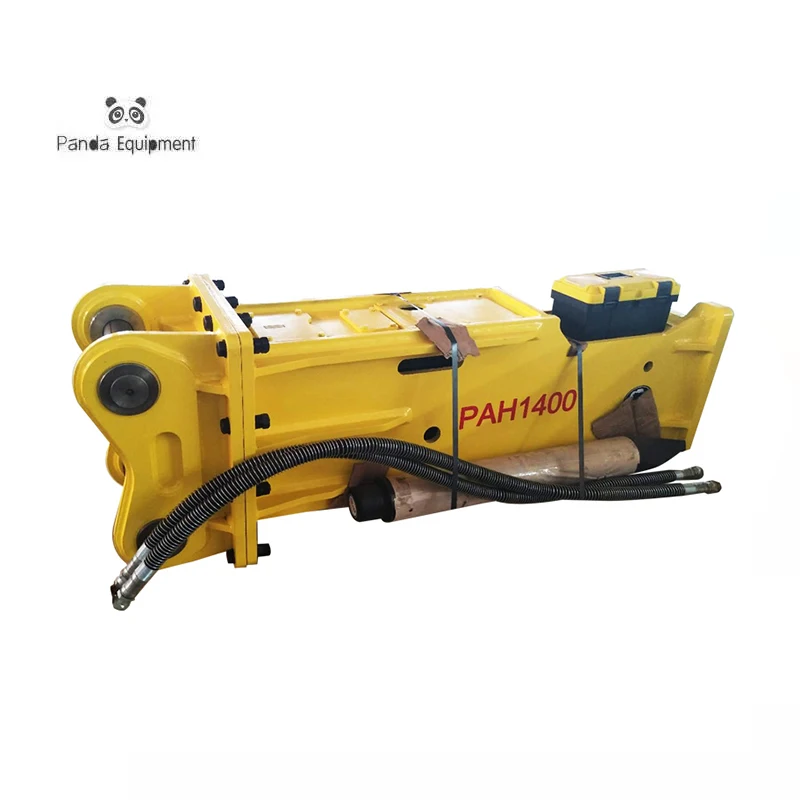

Side Type | Top Type | Silent Type |
Cheapeast type | Most popular type | Low noise type |
1. Reducing total-length： 2. More convenience to handle the breaking object 3. Easy maintenance | 1. Easy-control and easy-position make it more convenience to excavator work 2. Without side-weight, reducing therate or chisel breakage 3. Longer total-length and heavier total-weight | 1. Low noise level 2. Full-closed bracket protects the main body from damage. 3 Low noise, 80dB （20m from the hammering point） |

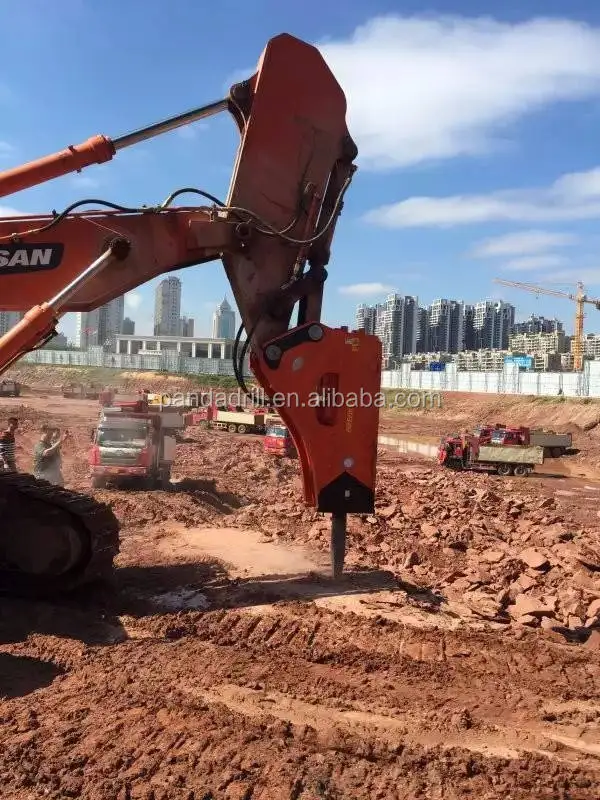

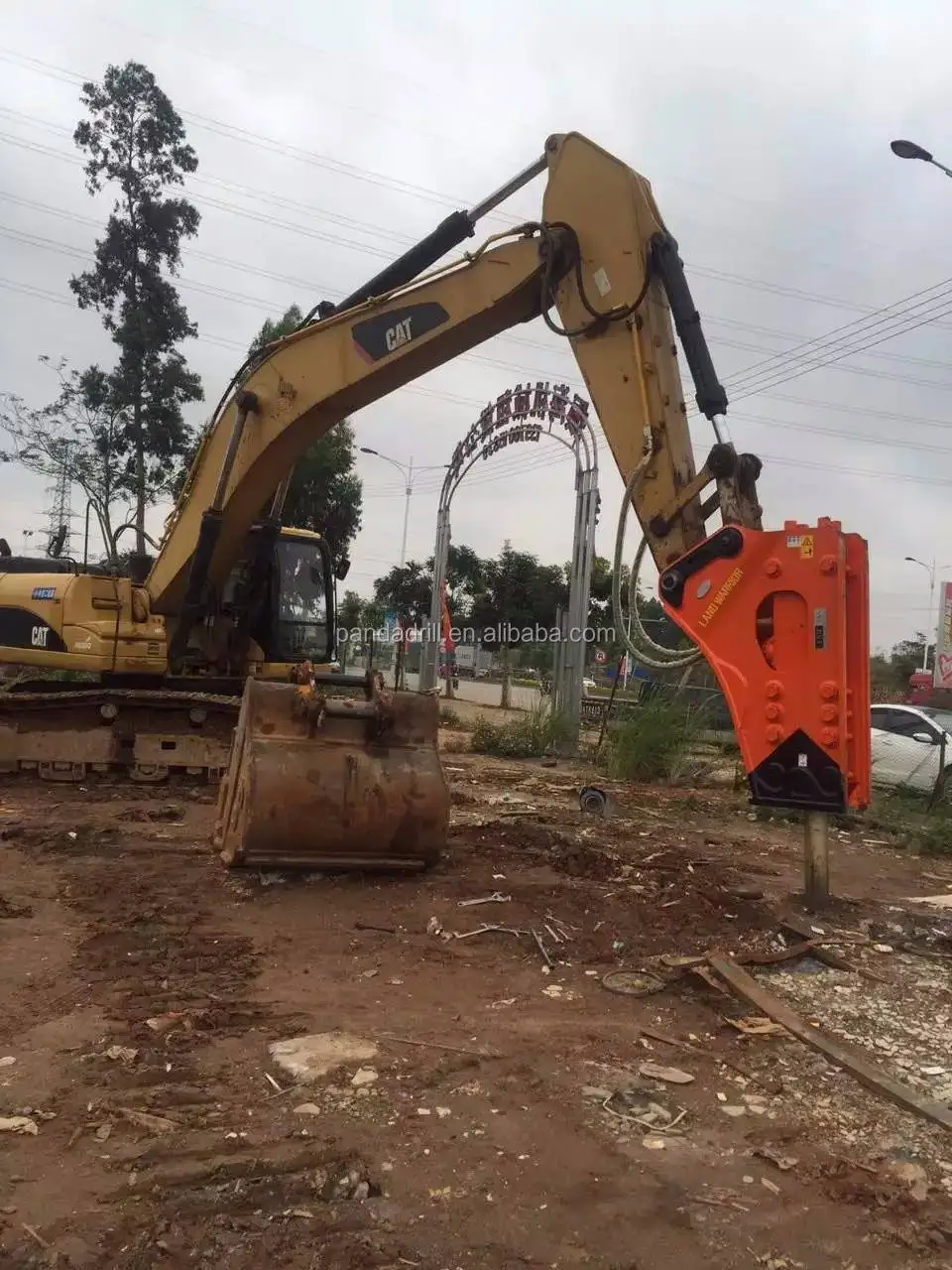

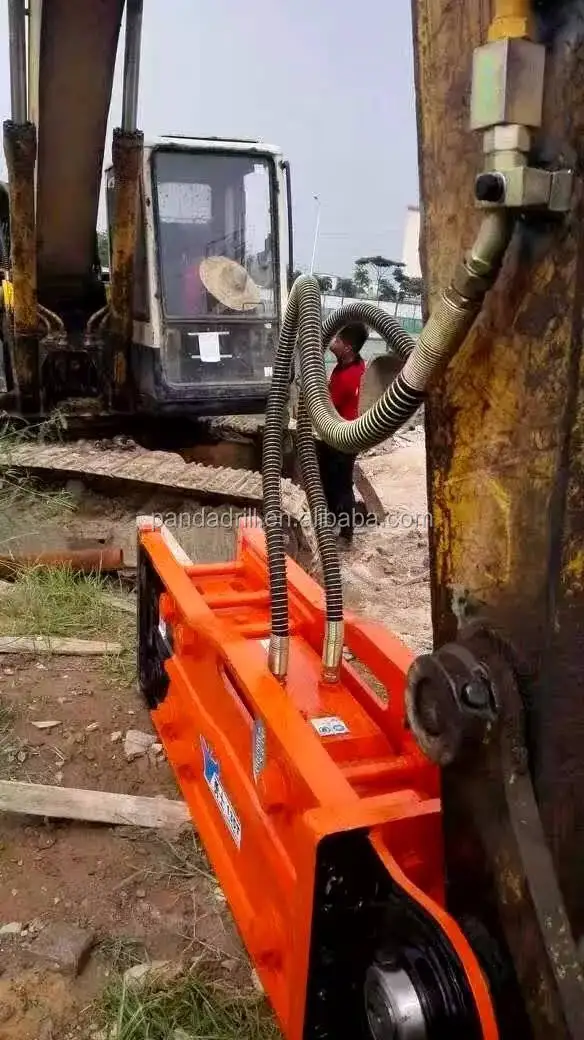

Production Application:
REVIEWS FROM CLIENTS

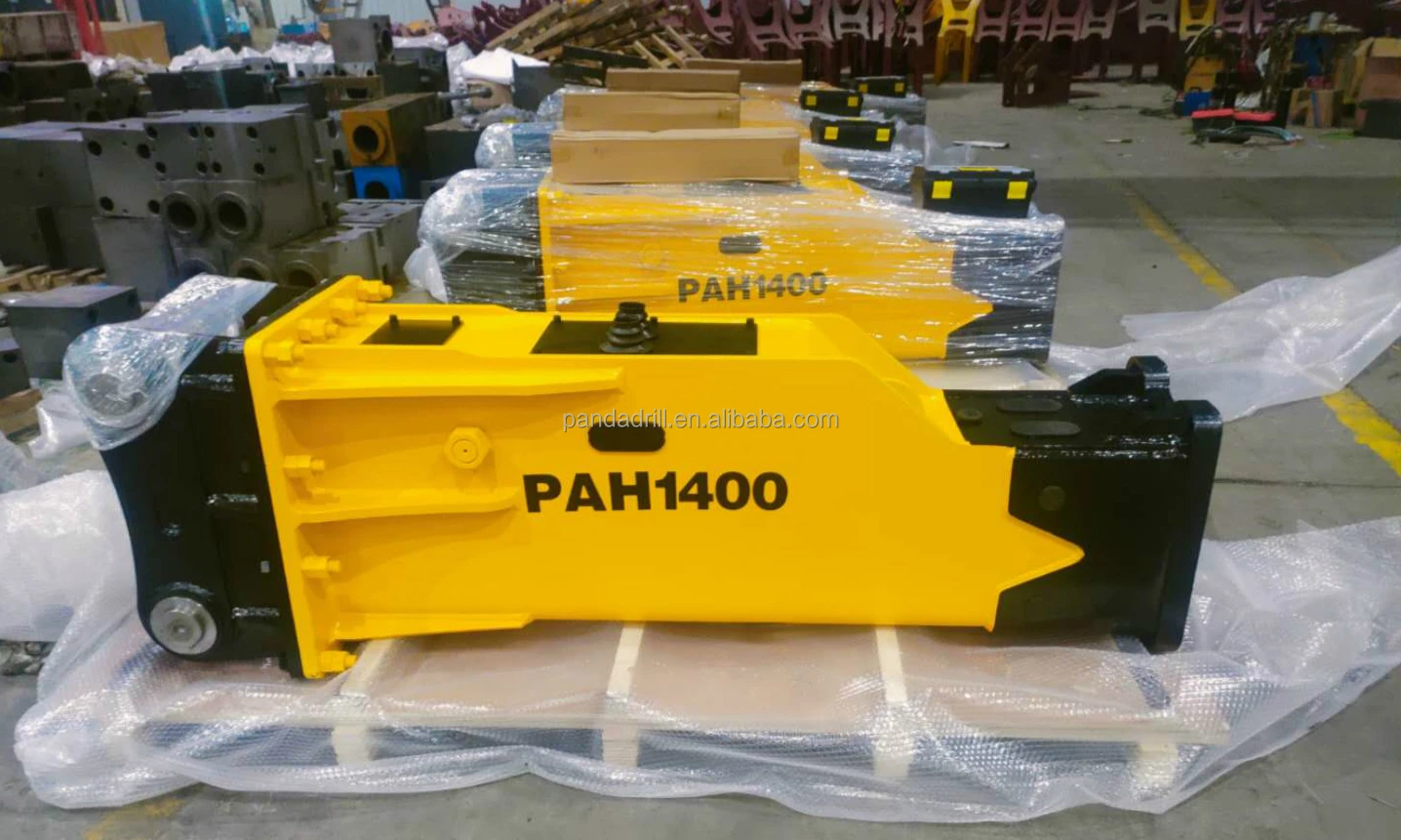

WORKSHOP VIEW
Related Products
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
