High Quality Telescopic Lift Platform Truck 23 Meters Hydraulic Truck Aerial Work Platform
- Category: >>>
- Supplier: Jining Jiubang Construction Machinery Equipment Co. Ltd.Jining Ltd.
Share on (1601351860314):
Product Overview
Description
Products Description

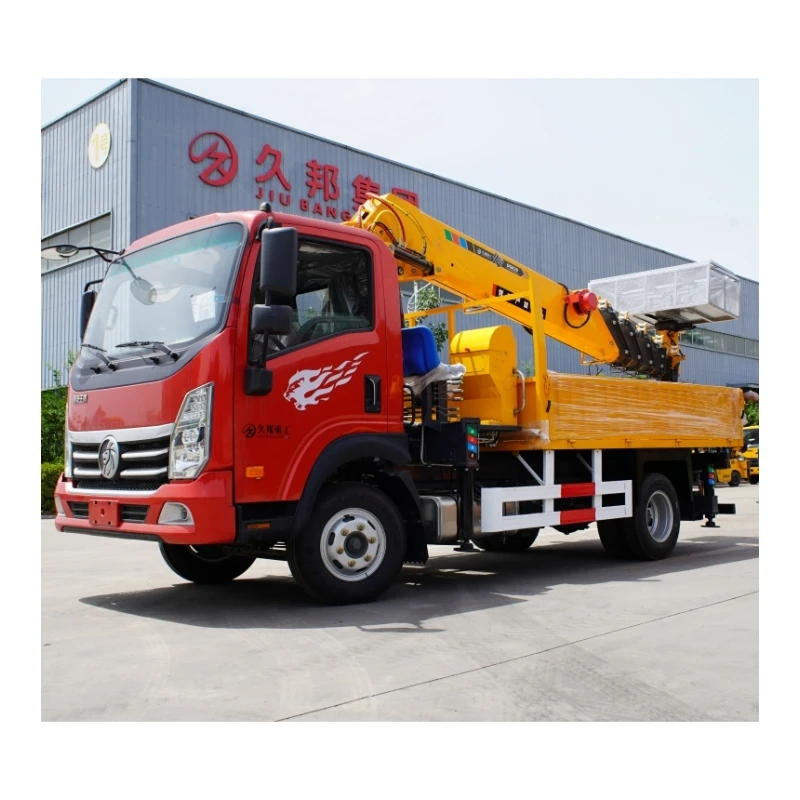

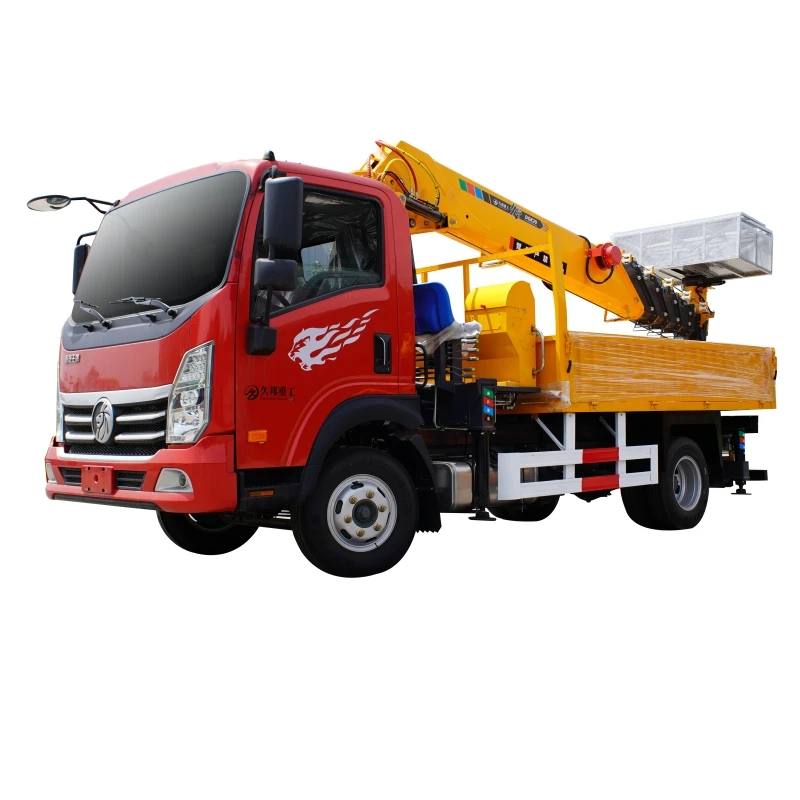

Jiubang 27m aerial working vehicle adopts JMC/JAC/ISUZU as the working platform chassis, with the working height up to 27m. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
SHANGHAI BAOSTEEL WORKING BOOM
High strength, stronger bearing capacity
REINFORCED TELESCOPIC BOOM
Hexagonal working boom, more stable structure
Chassis | ||||||
Brand | JAC/JMC/Isuzu | Drive | 4 x 2 | |||
Dimensions(L x W x H) | 5995 x 2000 x 2980(mm) | Gross Vehicle Weight | 4495 Kg | |||
Engine | Isuzu | Horsepower | 95/115 HP | |||
Max. speed | 110 / 99 Km/h | Emission Standard | Euro VI | |||
Wheelbase | 3360 mm | Braking system | Oil brake | |||
Approach angle | 27° | Departure angle | 11° | |||
Cab | Single row / 2 passengers / Air Conditioner | |||||
Aerial work platform | ||||||
Working platform dimensions | 1400 x 710 x 1200 mm | Rated load | 200 Kg | |||
Max. working height | 27 m | Operating range at max. working height | 3 m | |||
Max. operating range | 12 m | Working height at max. operating range | 17 m | |||
Working boom | Five section hexagonal work Boom | |||||
PTO System | Mechanical operation | Rotary device | 360 deg continuous rotation | |||
Derricking cylinder | 1 set | Telescopic structure | Oil cylinder and wire rope | |||
Outrigger | Front V and rear H, separately controlled | |||||
Outrigger span(TVS) | 4140 mm | Outrigger span(I) | 4300 mm | |||
Operation mode | Remote / electric / manual | |||||
Emergency system | Automatic | |||||
Control system | CAN bus control system | |||||
Leveling system | Liquid automatic leveling | |||||
Control voltage | 12 V | |||||
MORE STABLE LIFTING
Equipped with reducer and automatic leveling system
Equipped with Dejin rotary reducer, the movement speed is adjusted stably
Liquid automatic leveling system makes the working platform more stable
360 DEGREE ROTATION
The working platform and rotary device can rotate 360 degrees
The rotary device can rotate 360 degrees continuously
The working platform can rotate 360 degrees continuously

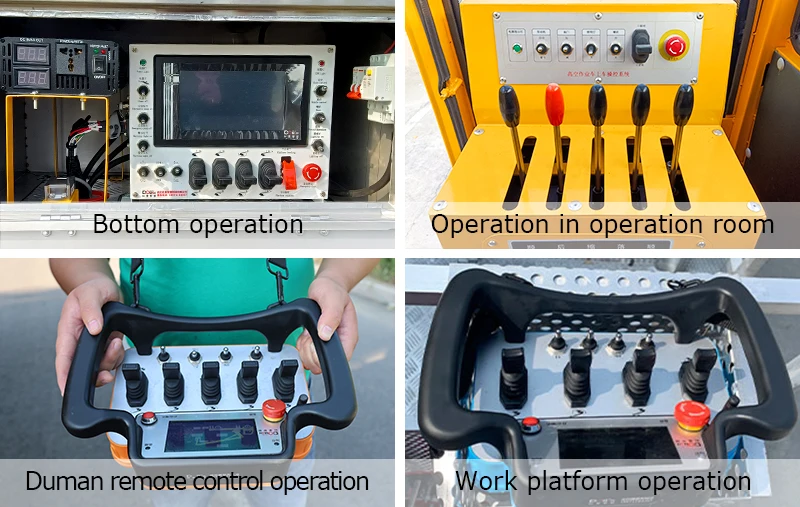

FOUR IN ONE OPERATION
Different operation modes in different construction environments
MULTIPLE SECURITY GUARANTEES
Multiple safety schemes to ensure personnel and construction safety
HYDRAULIC OUTRIGGER
Front V and rear H type design, can be adjusted separately, more stable
Interlock the outrigger and vehicle to prevent misoperation
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way

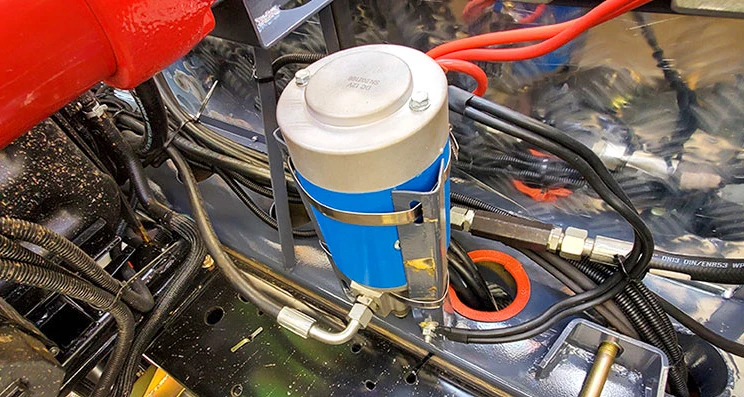

AUTOMATIC EMERGENCY PUMP
When the engine and main pump fail, the staff can be sent back to the ground through the emergency system
For emergency stop operation and limit boom operation
When the working range reaches the specified value, the dangerous direction will be automatically limited

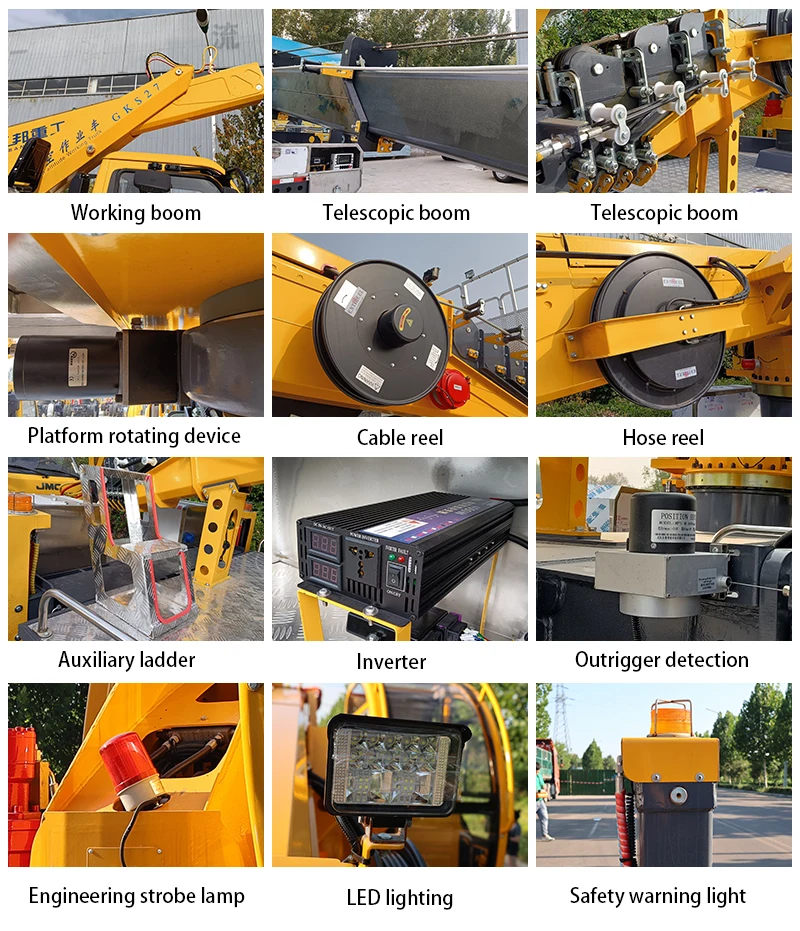

MORE PRODUCT DETAILS
Details determine product quality
OPTIONAL CONFIGURATION
Products support customization, giving you more choices
Panoramic operation room
Enlarge the working platform

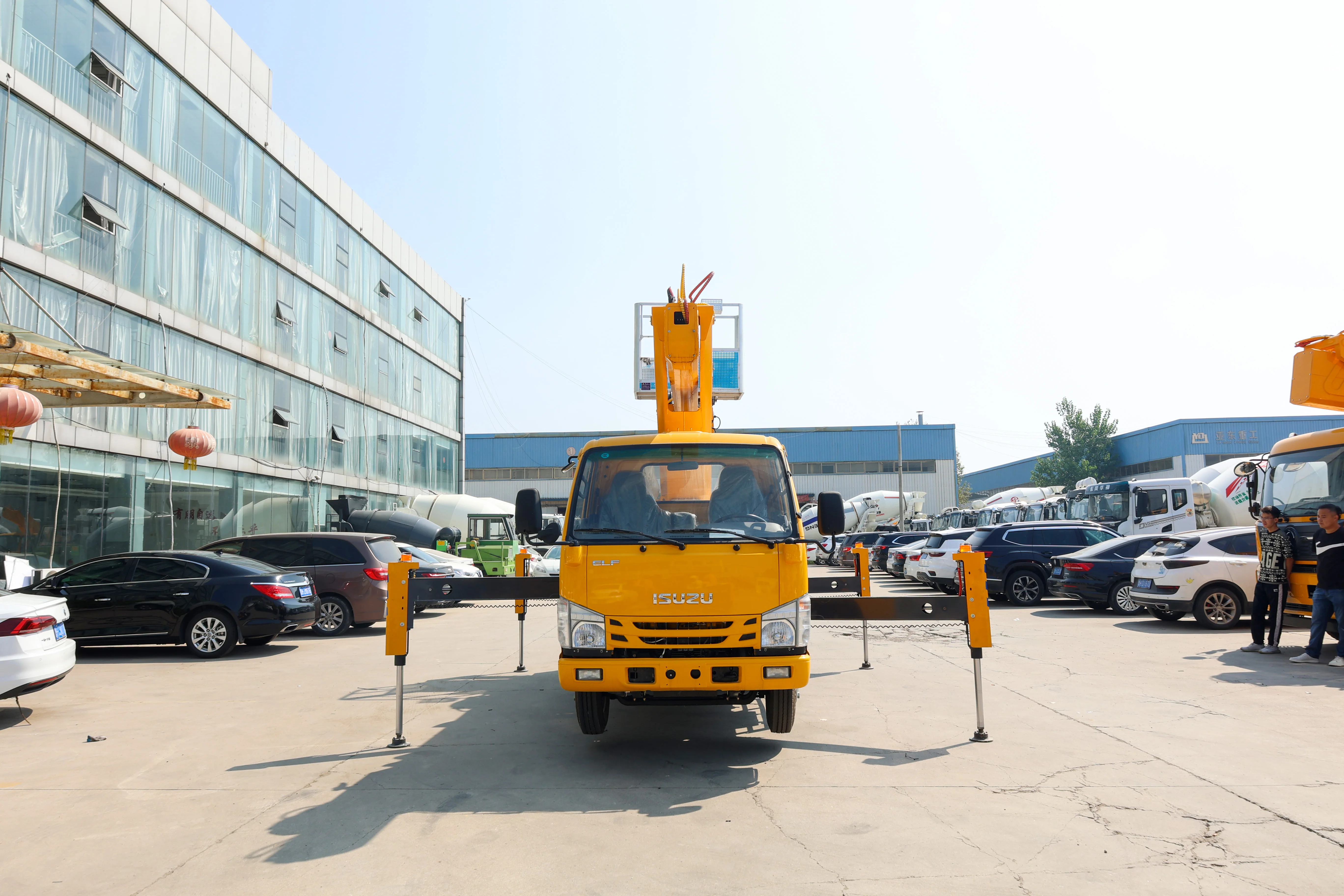

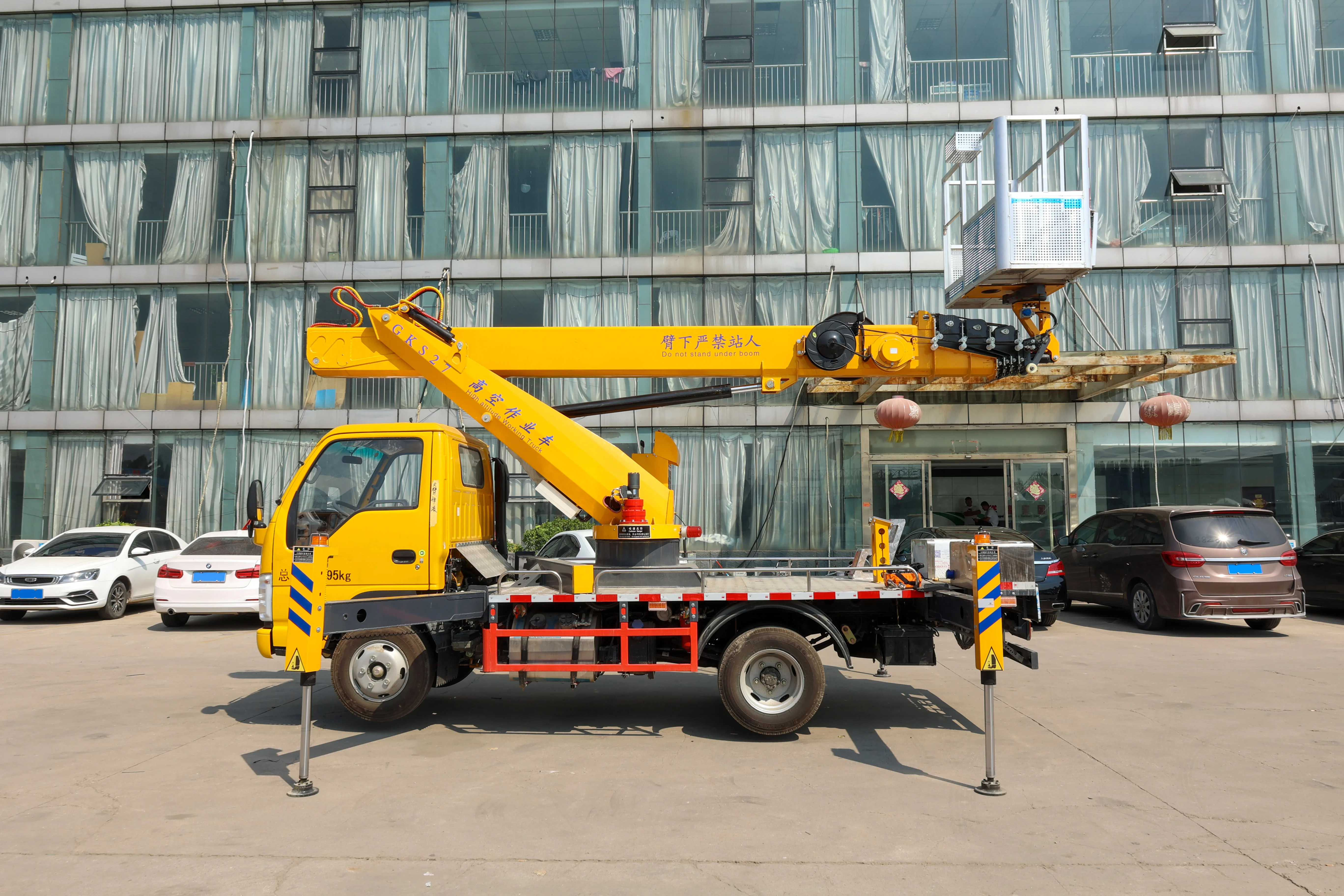

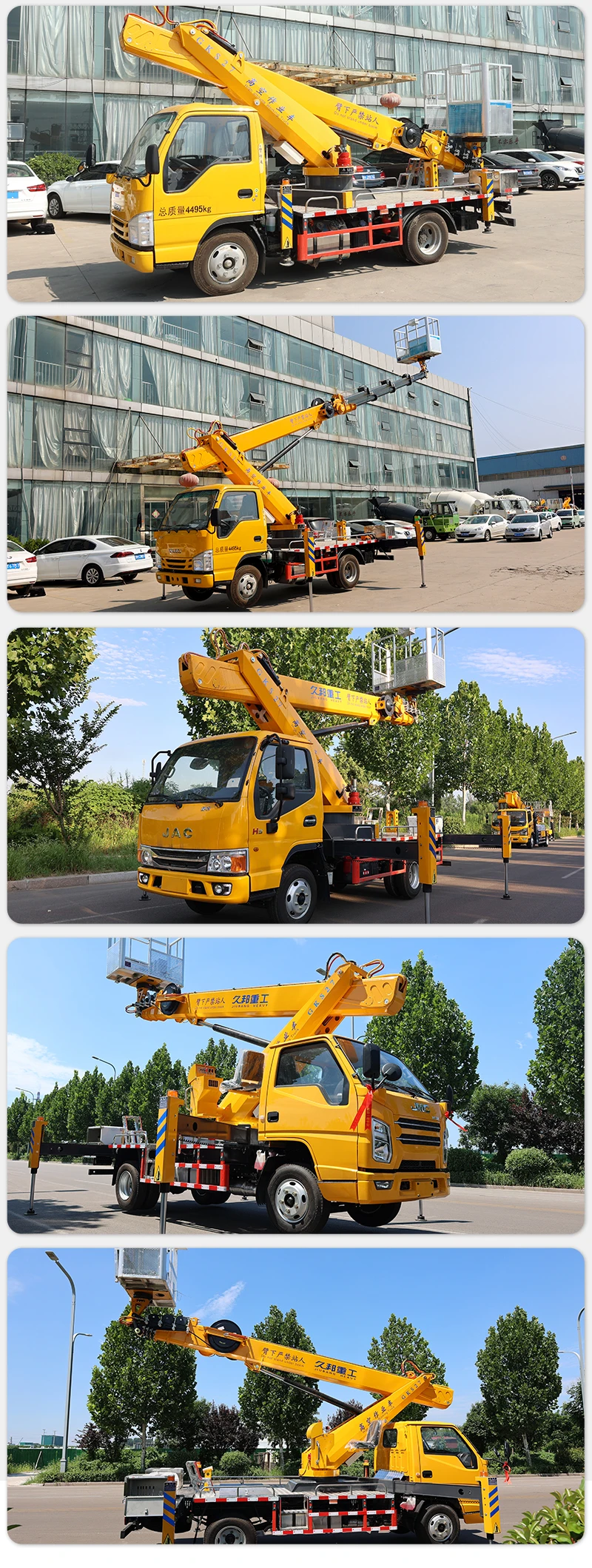

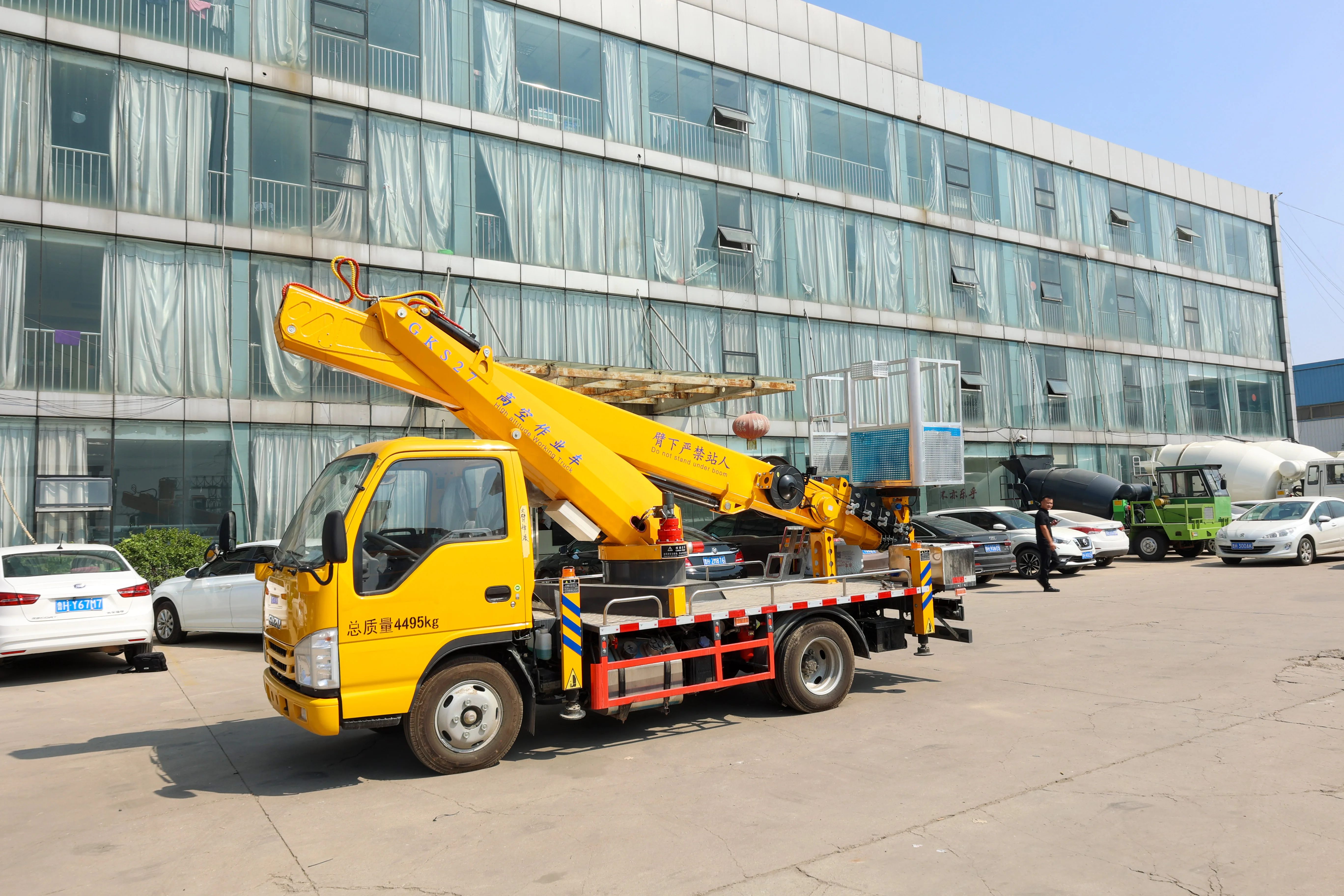

PRODUCT PHOTOGRAPH
More real product photos
MORE PRODUCTS
PRODUCTS CAN BE CUSTOMIZED ACCORDING TO YOUR NEEDS
Company Profile
Jining Jiubang Construction Machinery Equipment Co., Ltd., located in Jining, Shandong Province, the birthplace of Chinese Confucian culture, is a model enterprise in the heavy machinery manufacturing industry, focusing on the R&D, design and production of aerial work vehicles, truck mounted crane, folding boom cranes, spider crawler cranes and other products. At present, the company covers an area of 60,000 square meters, with laser cutting machines, bending machines, automatic digital processing equipment, etc., and has passed the ISO9001 international standard quality management system certification. Jiubang committed to developing high-tech products, has a number of technical patents, and has introduced the technology of Rexroth, Harvey, Siemens, Schneider and Mitsubishi to provide customers around the world with better products and services.
Main products: 21m, 23m, 26m, 27m, 28m, 32m, 36m, 40m, 45m, 50m aerial work vehicle, 32m aerial ladder trucks, self-propelled aerial work vehicle, truck mounted crane, folding boom crane, spider crawler crane, steel grabbing machine, laser leveling machine, etc.
CUSTOMER FEEDBACK
Widely praised and trusted
Packing & Delivery
FAQ
Q1: Is your company a factory or a trading company?
A: Yes,We are a factory specializing in the production of aerial vehicles.
Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.
Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of Letter.
Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
A: Yes,We are a factory specializing in the production of aerial vehicles.
Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.
Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of Letter.
Q4: What is your terms of delivery?
A: EXW,FOB,CFR,CIF,DDU.
Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
