Concrete Anchor Hook Bolt With Nut & Flat Washer J Type Anchor Bolt

Concrete Construction Galvanized L Type Foundation Anchor Bolt With Nut & Flat Washer

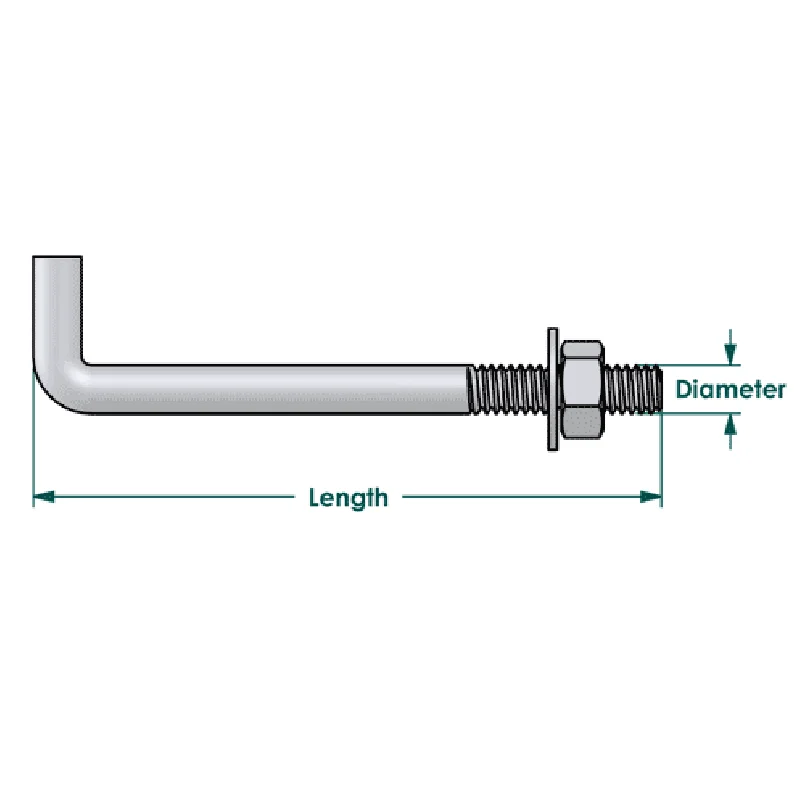

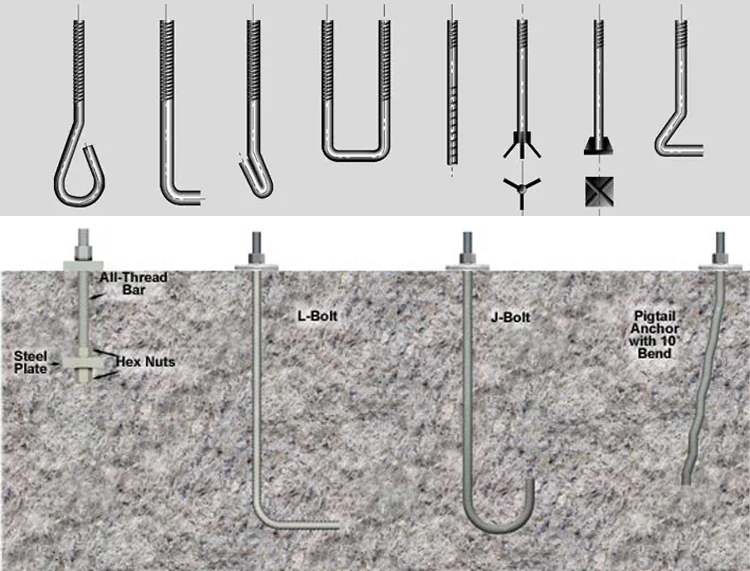

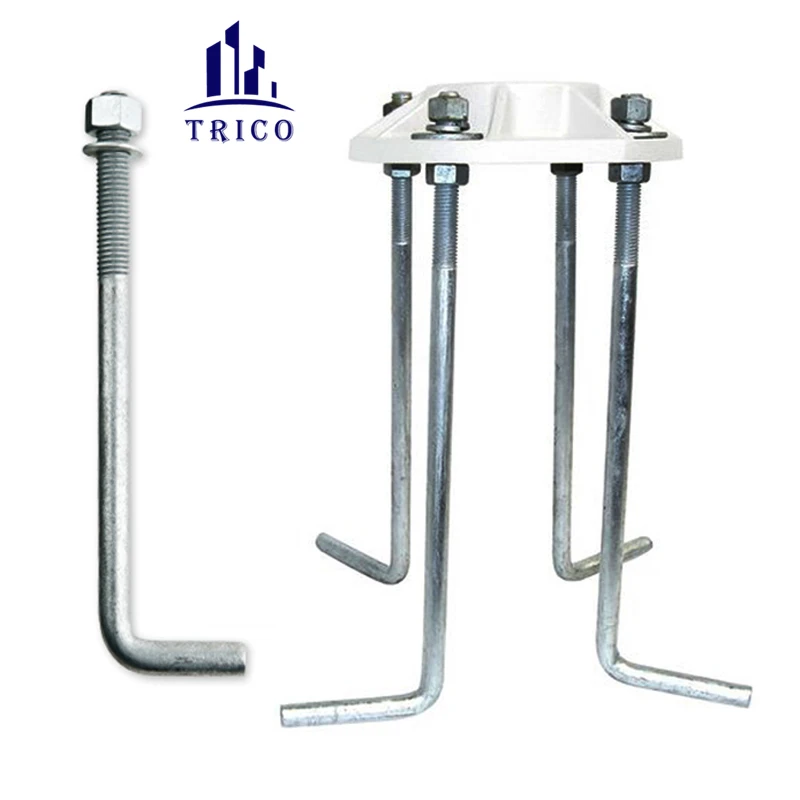

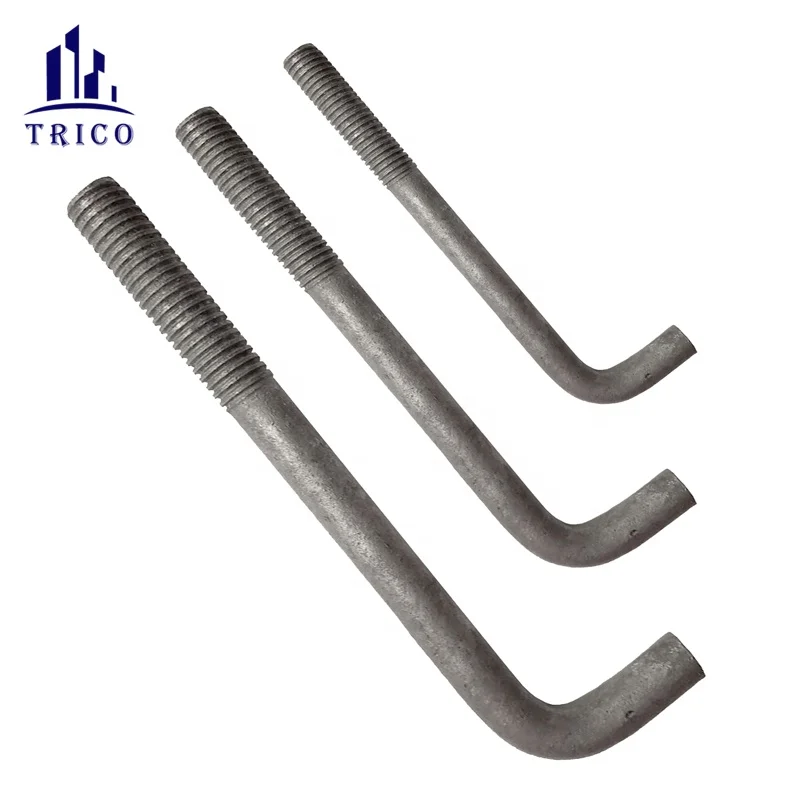

The end of an L-type anchor bolt (L-Ankerbolzen) is curved so it may grip onto a masonry or concrete building. GDPA Fasteners deliver these anchor bolts that are often cast in place, which means they are put into the concrete right away after it has been poured. As the concrete hardens, the bolts are kept in place by fastening. In new construction, concrete anchor bolts are used to fix steel columns to concrete piers, secure a structure’s walls to concrete slabs and foundation walls, and anchor equipment to concrete pads.

Anchor Bolts
Photo	Description	Sets/Box	Boxes/Pallet
	1/2x6 Anchor Bolt with Nut & Washer	50	50
	1/2x8 Anchor Bolt with Nut & Washer	50	50
	1/2x10 Anchor Bolt with Nut & Washer	50	50
	1/2x12 Anchor Bolt with Nut & Washer	50	50
	1/2x14 Anchor Bolt with Nut & Washer	50	50
	1/2x16 Anchor Bolt with Nut & Washer	50	50
	1/2x18 Anchor Bolt with Nut & Washer	50	50
	5/8x6 Anchor Bolt with Nut & Washer	25	50
	5/8x8 Anchor Bolt with Nut & Washer	25	50
	5/8x10 Anchor Bolt with Nut & Washer	25	50
	5/8x12 Anchor Bolt with Nut & Washer	25	50
	5/8x14 Anchor Bolt with Nut & Washer	25	50
	5/8x16 Anchor Bolt with Nut & Washer	25	50
	5/8x18 Anchor Bolt with Nut & Washer	25	50
	3/4x6 Anchor Bolt with Nut & Washer	20	50
	3/4x8 Anchor Bolt with Nut & Washer	20	50
	3/4x10 Anchor Bolt with Nut & Washer	20	50
	3/4x12 Anchor Bolt with Nut & Washer	20	50
	3/4x14 Anchor Bolt with Nut & Washer	20	50
	3/4x16 Anchor Bolt with Nut & Washer	20	50
	3/4x18 Anchor Bolt with Nut & Washer	20	50
	Finished: Plain or HOG Other size also available

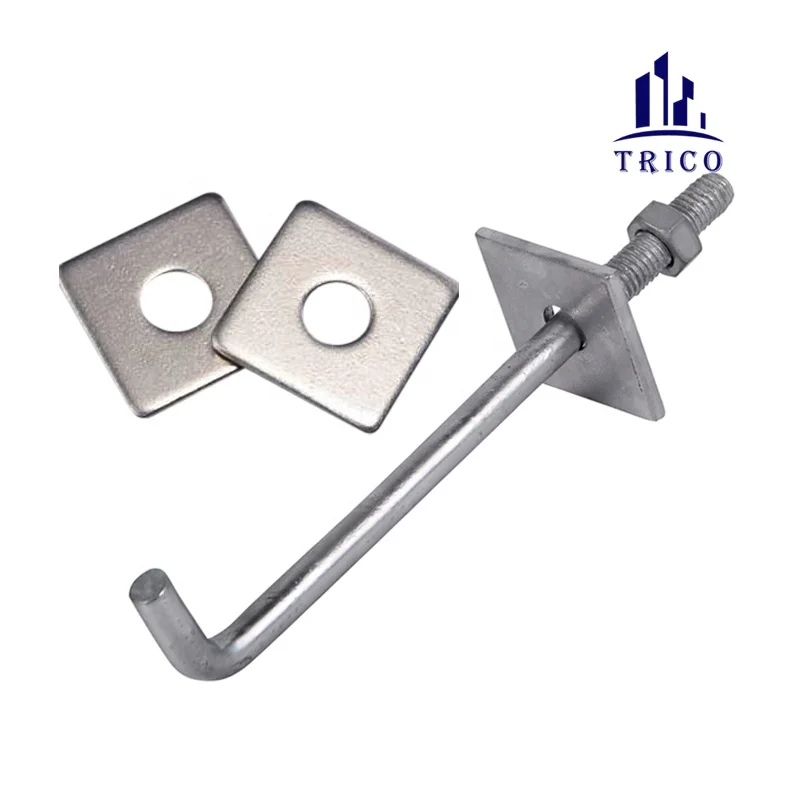

Flat Washer
Photo	Destription	Pcs/Box	Boxes/Pallet
	Flat Washer 1/2" Dia. Hole 2"x2"x3/16"	50	50
	Flat Washer 5/8" Dia. Hole 2"x2"x3/16"	50	50
	Flat Washer 3/4" Dia. Hole 2"x2"x3/16"	50	50
	Flat Washer 1/2" Dia. Hole 3"x3"x1/4"	50	50
	Flat Washer 5/8" Dia. Hole 3"x3"x1/4"	50	50
	Flat Washer 3/4" Dia. Hole 3"x3"x1/4"	50	50
	Flat Washer 3/4" Dia. Hole 5"x5"x3/8"	25	36
	Flat Washer 1" Dia. Hole 7"x7"x3/4"	25	12
	Flat Washer 1-1/4" Dia. Hole 7"x7"x3/4"	25	12
	Flat Washer 1-1/2" Dia. Hole 7"x7"x3/4"	25	12
	Finished: Plain or HOGHole: Round or Slotted Flat Washer for 1/2", 5/8", 3/4", 7/8" bolt diameter Other size also available

Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Long End, Short End, and Odd End Snap Ties are used with Wedge, A/C Brackets for plywood forming.

X Flat Tie System

X-Flat Ties are used with Wedge Bolts to space and secure modular concrete forms.

TRICO offering the products:

• Formwork Tie Rod System


• Aluminium Formwork Wall Tie System


• Scaffolding System


• PP Hollow Plastic Formwork


• Steel Formwork Panel with Plywood Forming System


• Other Plastic Building Materials

1. Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.

2. Timeliness: 24 hours online. Provide consulting and quotation services for customers all the time.

3. Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.

4. Integrity: If the customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.

5. Longevity: Establish good long-term relationship with customers.

TRICO was founded in 2002. As an expert in the field of formwork and scaffolding, TRICO is committed to providing better products and services to customers in the global construction industry.

TRICO has a wide range of product lines, including the production and supply of full system of building formwork, scaffolding and related components, and has realized the "1+N" one-stop service mode. The products sell well in more than 90 countries and regions, winning the recognition and trust of business partners around the world.

TRICO's R&D team is experimenting and optimizing products every day. The endless improvement and perfection is the gene of TRICO culture. TRICO's mission is to promote the quality improvement, cost reduction and environmental protection and efficiency enhancement of global buildings.

Let's work together to make it easier to build houses anywhere in the world!
