ALLMAN high performance electrical winches 2ton 3ton 5ton electric wire rope winch with electric magnetic brake
- Category: >>>
- Supplier: Nantong Allman Industry Co. Ltd.Nantong Ltd.
Share on (1601352299653):
Product Overview
Description
Product Overview

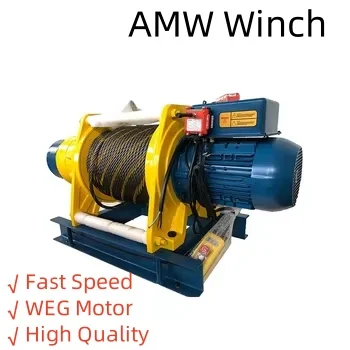

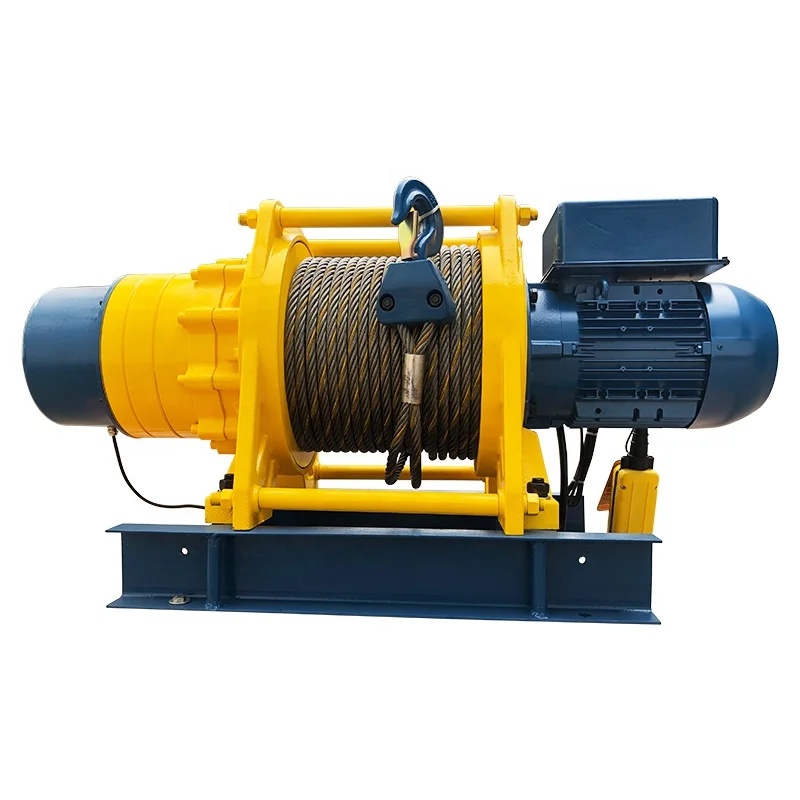

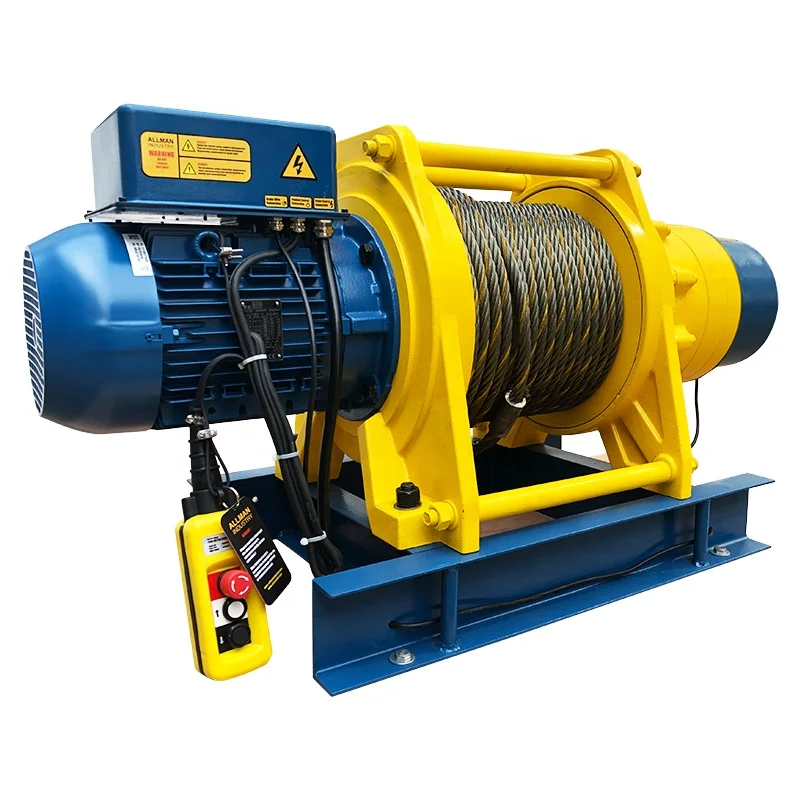

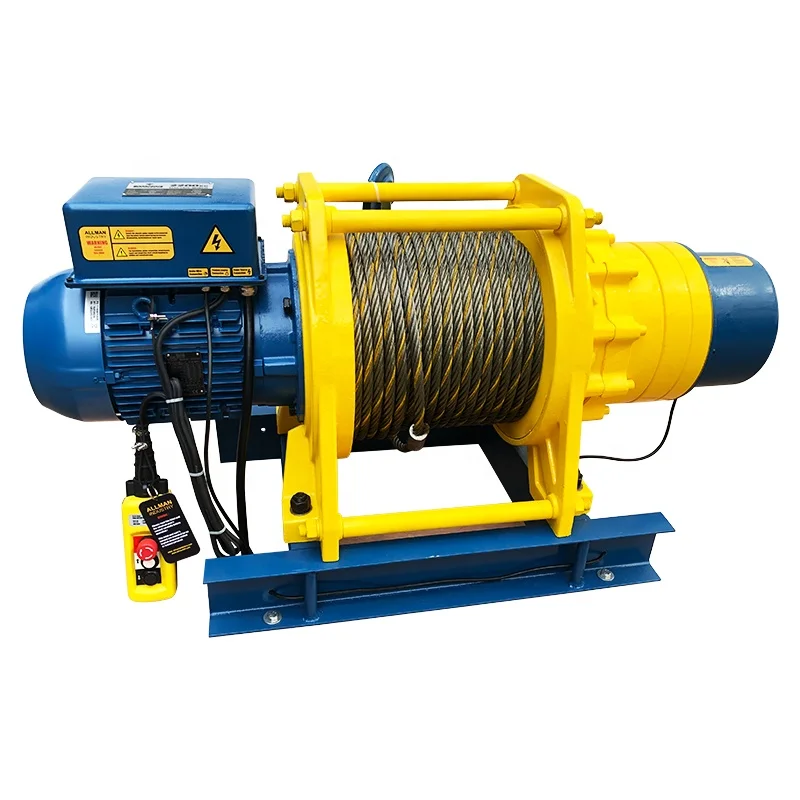

ALLMAN Industry AMW Electric Winch
Electric winch is the ac powered winch, which have high speed in pulling or lifting application. It can be set on the ground and fixed on the I-Beam. The industrial electric winch could designed as several kinds of voltage (230/380/415/440/480V) to meet various demands of power supply. Have a leading technical team, Allman Industry can provide you winch with high quality and competitive price.
High duty Boat winch is optional
PRODUCT SPECIFICATIONS
Model | AMW-500 | AMW-750 | AMW-1000 | AMW-1600 | |||
Capacity | 500kg | 750kg | 1000kg | 1600kg | |||
Wire Rope Length | 60m/100m | 60m/100m | 60m/100m | 60m/100m | |||
Wire Rope Dia. | 9mm | 10mm | 11mm | 13mm | |||
Working Speed | 13-19m/min | 13-19m/min | 13-19m/min | 13-19m/min | |||
Motor Power | 1.5kW | 2.2kW | 3.0kW | 4.0kW | |||
Power Supply | 3Phase, 220/380/440V | ||||||
Model | AMW-2200 | AMW-3200 | AMW-3600 | AMW-5000 | |||
Capacity | 2200kg | 3200kg | 3600kg | 5000kg | |||
Wire Rope Length | 60m/100m | 100m/160m | 100m/160m | 200m/300m | |||
Wire Rope Dia. | 16mm | 18mm | 18mm | 22mm | |||
Working Speed | 9-14m/min | 9-14m/min | 9-14m/min | 6-12m/min | |||
Motor Power | 5.5kW | 7.5kW | 9.2kW | 15kW | |||
Power Supply | 3Phase, 220/380/440V | ||||||

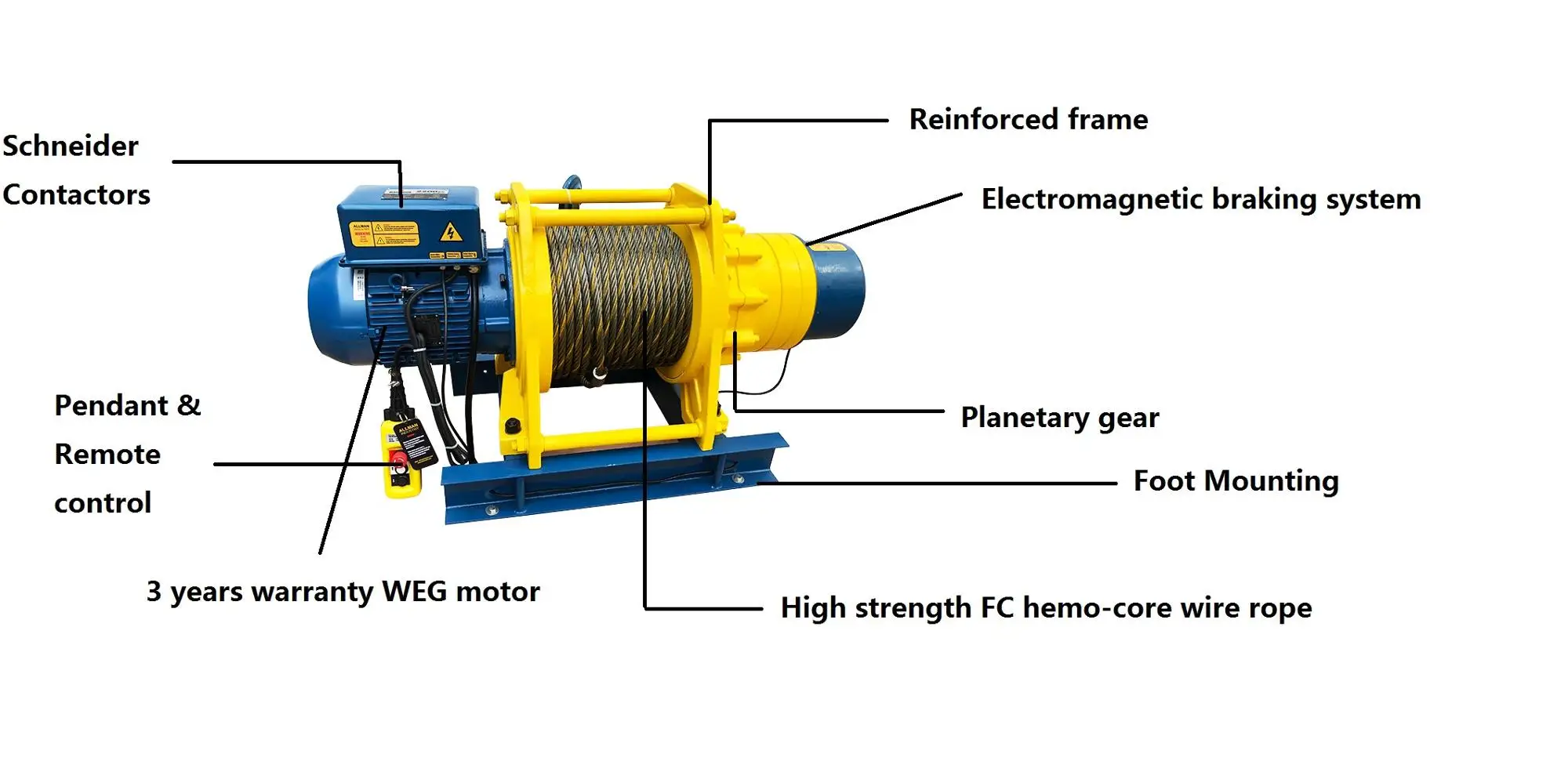

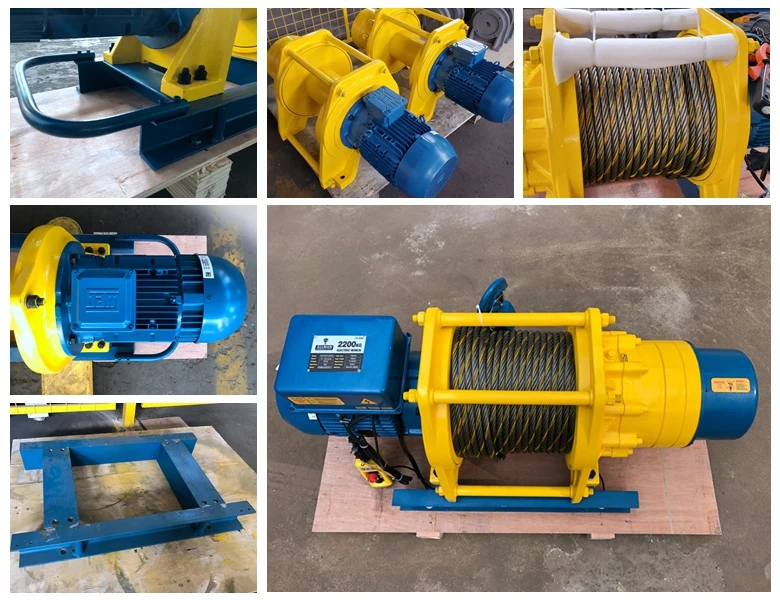

Details Images
Power Mechanism | World famous brand motor for excellent working performance on site. Enclosure reach to IP55 high protection class. With high effiencient cooling fan for good heat dissipation. |
Transmission System | Adopting planetary gears system outstanding effiency, high safety and long lifespan. Gears groups with precise processing , smooth running, durable wearproof and low noisy. |
Brake System | We adopt electro-magnetic disc brake for strong and reliable working performance. The brake can output strong and enough braking force instantly for safety. Less maintenance is required, and with long service lifespan. |
Wire rope and Drum | High tensile strength wire rope with 1770MPa for high working and safety performance. Rolling on seamless steel drum which made of Q346(Fe52) class steel materisl. |
Electronics Parts | Using world famous brand electronics only for safety and stable working performance. Electronics are well and clear assembled in high enclosure control is available as an extra options for customers. |
Pendant & Remote control | Solid and ergonomic pendant as standard operation controller. The pendant control with IP56 high enclosure and protection class which can be used outside directly. Remote control is available as an extra options for customers. |
Foot mounting | A strong base which is made by steel for foot mounting on ground, concrete or other places. The base can enhance the connecting strength of winch structure. With handles on both sides for easily carrying and moving. |
Load Hook | DIN standard high grade load hook which forged by high strength alloy material, with special design hook shell for iconic looking and high working performance. Hook latch installed on each hook for safety concern. |
FEATURES
1.Full steel reducer gear .
2.Three stage planetary gear reducer
3.Free slipping clutch for safety protection .
4.Automatic screw cone braking action .
5. Light weight , and easy to operate .
2.Three stage planetary gear reducer
3.Free slipping clutch for safety protection .
4.Automatic screw cone braking action .
5. Light weight , and easy to operate .
Application
Mining Use Project in South Africa
Project in Chilee
Boat Winch Use in Thailand
.
Certifications

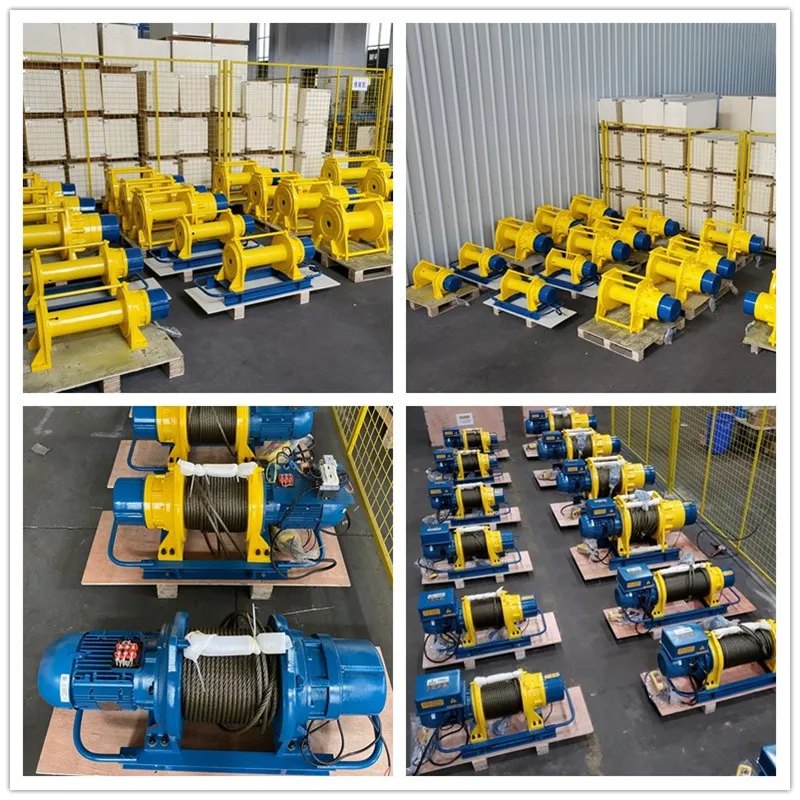

PACKAGE and SHIPPING
Exhibition
