Full Automatic Motor Stretch Paper Film Rewinding Machine
- Category: >>>
- Supplier: Hangzhou Prime Intelligent Technology Co. Ltd.Hangzhou Ltd.
Share on (1601352301219):
Product Overview
Description
Product Overview
PM Jumbo Automatic Aluminum Foil Roll Paper Rewinding Machine Key Features Product Category Post-Press Equipment
This rewinding machine is suitable for rewinding roll materials, labels, trademarks with below functions: rewinding, counting the number of sheets, counting the number of meters, quantity display, set the number of automatic stop, adjustable speed, smooth rewinding, rewinding tension can be adjusted. It's efficient, convenient, easy and practical.
Product Specifications
Model | PM- FJ-450A | PM- FJ-450B | PM- FJ-450C | |||
Max. unwinding plate diameter(mm) | 450 | 450 | 440 | |||
Max. rewinding plate diameter(mm) | 450 | 450 | 440 | |||
Unwinding shaft diameter(inch) | 1-6 inch | 1-6 inch | 3 inch * 150 | |||
Rewinding shaft diameter(inch) | 1-6inch | 1-6inch | 3 inch * 150 | |||
Speed(m/min) | 40-200 | 40-200 | 0-100 | |||
Allowable weight(kg) | 20 | 30 | 30 | |||
Power(w) | 120 | 120 | 200 | |||
Power supply(v) | 110/220/customize | |||||
Tension(N) | 6 | 12 | 12 | |||
Material width(mm) | 0-600 | 0-600 | 0-300 | |||
Weight(kg) | 60 | 70 | 80 | |||
Machine size(mm) | 700*420*630 | 700*550*630 | 900*550*850 | |||
Machine function varies subject to final machine configuration | ||||||
Model : A
Model : B
Model : C
Machine Details
Unwind & Rewind Receiving Table

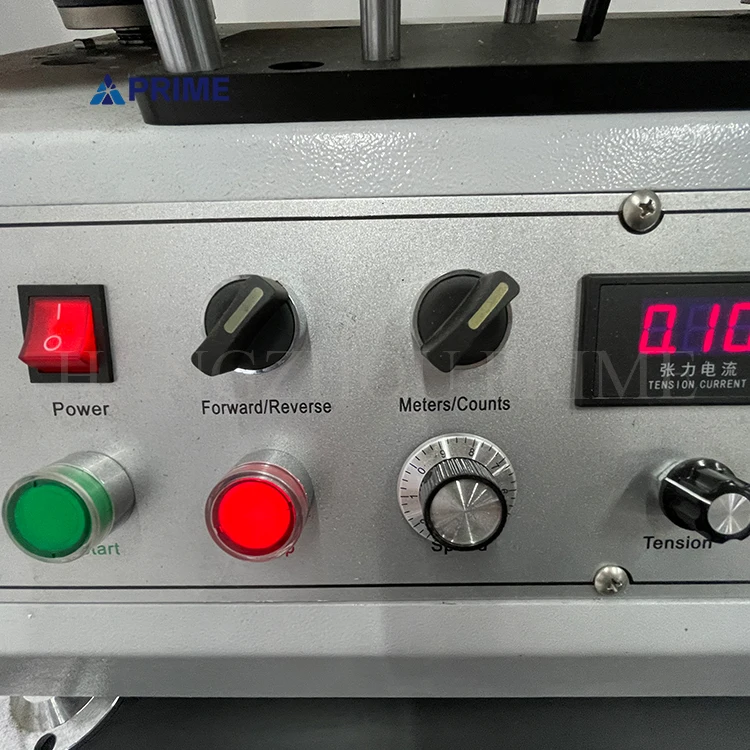

Count Tension Control

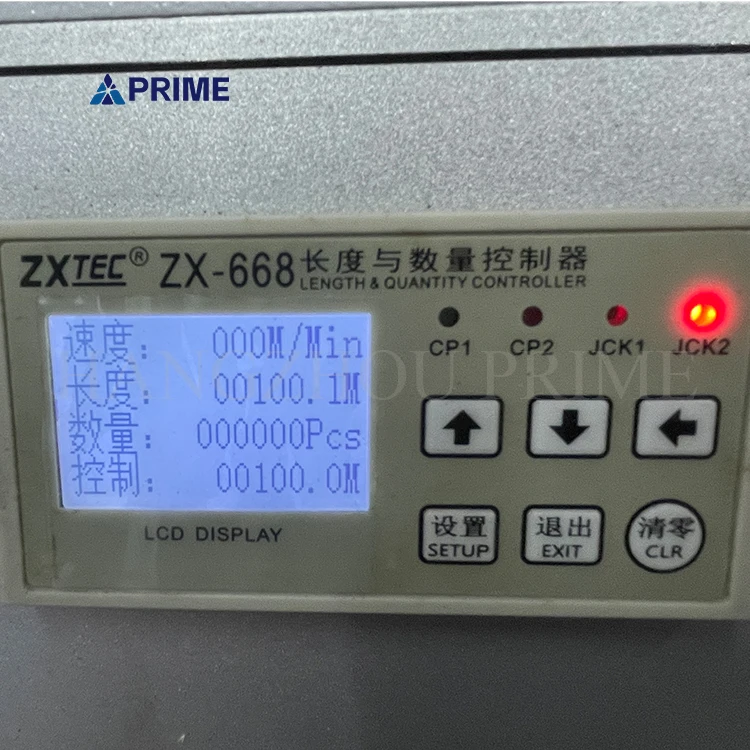

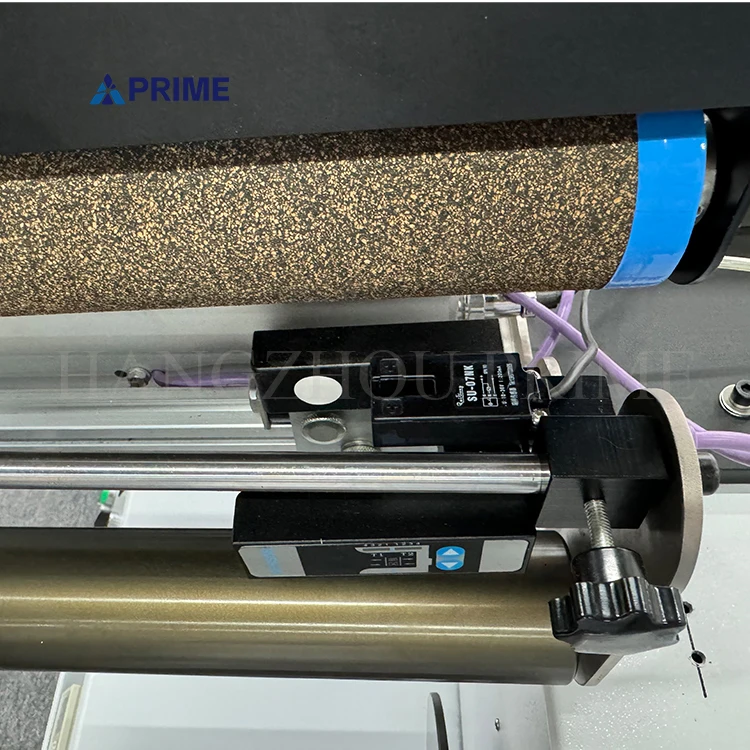

Auto Web Guide Meter Counter
Thermal Transfer Coding Machine
Optional: Thermal transfer printing machine is mainly suitable for various flexible packaging labeling solutions such as food, medicine, daily chemicals, seeds, and household paper.
Manual Air Shaft
Adjust the air shaft by manually rotating.
Adjust the air shaft by manually rotating.
Inflatable Shaft (manual inflation)
Inflatable Shaft (automatic inflation)
Air Shaft Expanding Sleeve
Our Factory
Product packaging
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
